Starter Motor for Case Ford New Holland JX60 JX70 JX80 JX90 TD60 TD80 TD95 18374
Starter Motor for Case Ford New Holland JX60 JX70 JX80 JX90 TD60 TD80 TD95 18374
SKU:410-24066
Free shipping over £150. Terms apply
Couldn't load pickup availability

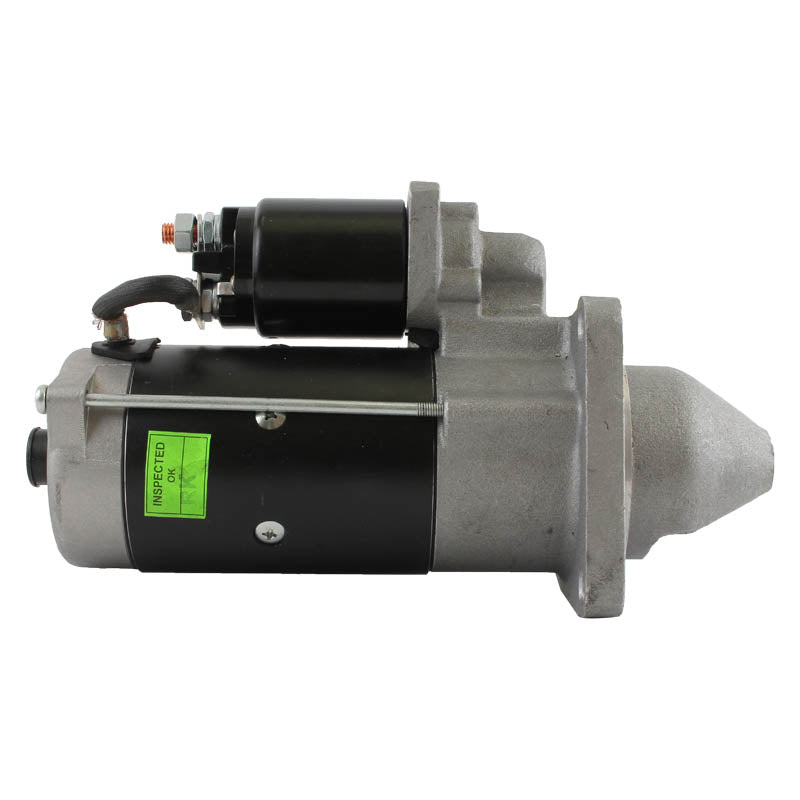

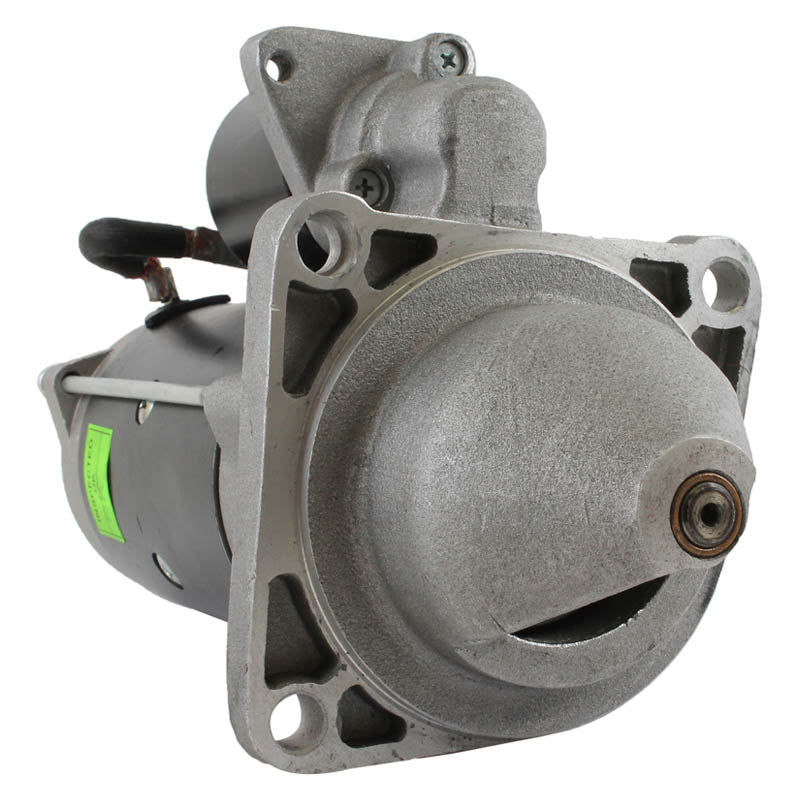

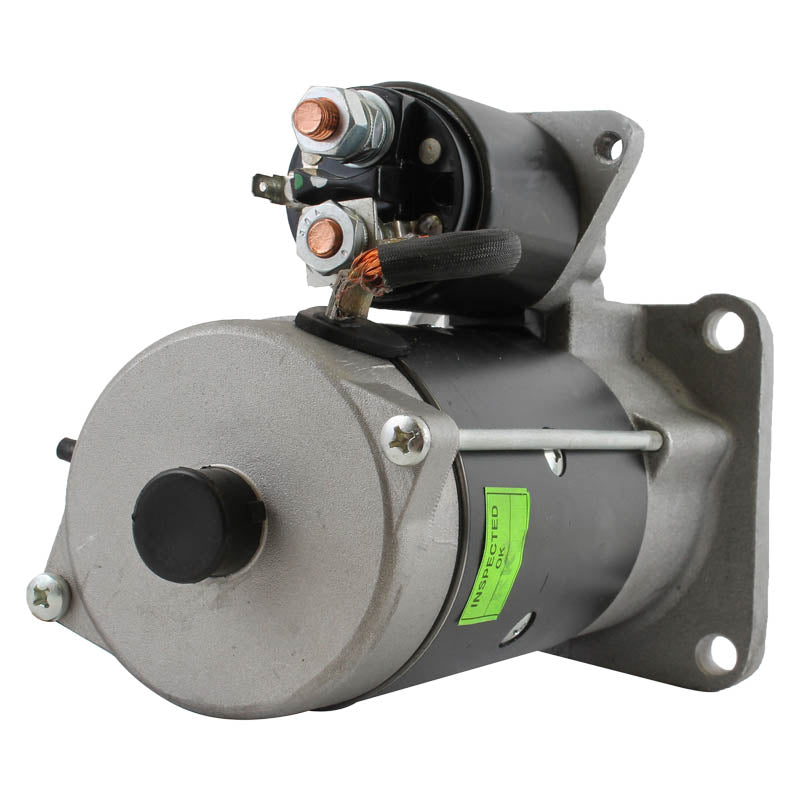

HD Tractor Starter Motor
Fits Case IH & Ford New Holland - JX, TD & 10 Series
Keep your agricultural machinery moving with this premium 12-volt, 3.2kW high-torque starter motor. Specifically engineered to meet the demanding requirements of Case IH and Ford New Holland tractors, this unit provides reliable ignition performance even in challenging farming environments and cold-weather starts.
Utilising advanced Planetary Gear Reduction (PLGR) technology, this starter delivers superior cranking power while consuming less battery amperage. It is a precision-manufactured aftermarket component designed to match the original equipment specifications for a seamless "bolt-on" installation.
Key Features
- ✔ Gear Reduction: PLGR design for maximum torque and efficiency.
- ✔ Heavy Duty: 3.2kW power output for dependable diesel engine ignition.
- ✔ Long Service Life: High-quality internal components resist wear and vibration.
Technical Specs
| Voltage: | 12V |
| Power: | 3.2 kW |
| Rotation: | CW (Clockwise) |
| Teeth: | 10-Tooth |
| Starter Type: | PLGR |
Vehicle Fitment Guide
| Make | Model Series | Specific Models |
|---|---|---|
| Case IH | JX Series | JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95 |
| Ford New Holland | TD Series | TD60, TD70, TD80, TD90, TD95 |
| Ford New Holland | 10 Series | 3010, 4010, 5010 |
OEM Part Number Cross Reference
| Bosch: | 0001223013, 0986022570 |
| Case / New Holland: | 500325145, 82025118, 500325145R |
| Marelli: | 63227494, MSN252, 504031641 |
| Arrowhead: | 410-24066, BO0001223013 |
| Lester: | 18374 |
Frequently Asked Questions
Will this fit my specific tractor year?
This starter is compatible with a wide range of JX and TD series tractors. We recommend matching the part number from your current starter (e.g., 500325145) to ensure 100% compatibility.
Is this a gear reduction starter?
Yes, it uses Planetary Gear Reduction (PLGR) which provides higher cranking torque and better efficiency compared to older direct-drive units.
Note: Please verify your vehicle model and year before purchasing.
