Starter Motor for Harley Davidson V-Rod Night Rod Special Muscle 2002-17 31614-01A
Starter Motor for Harley Davidson V-Rod Night Rod Special Muscle 2002-17 31614-01A
SKU:410-52291
Free shipping over £150. Terms apply
Couldn't load pickup availability

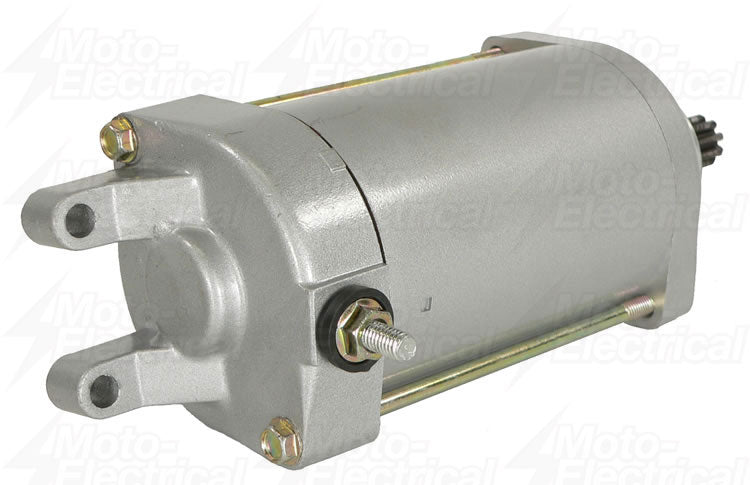

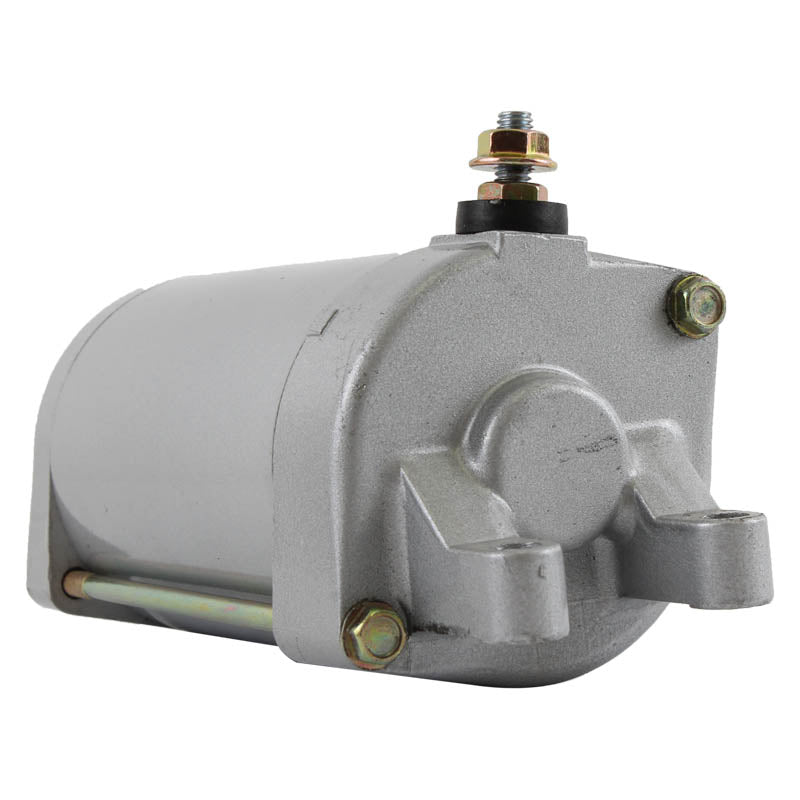

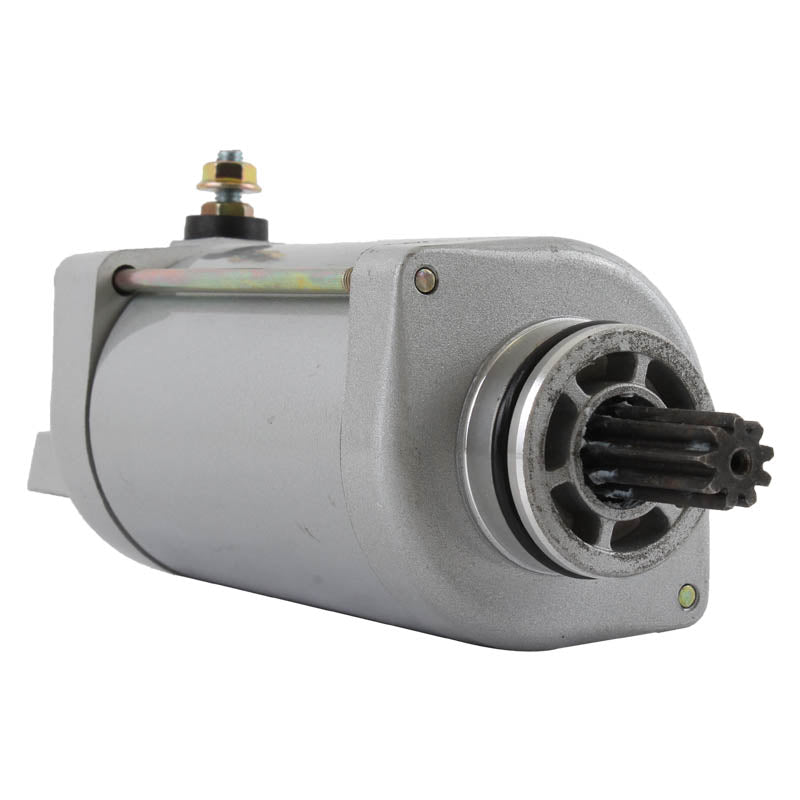

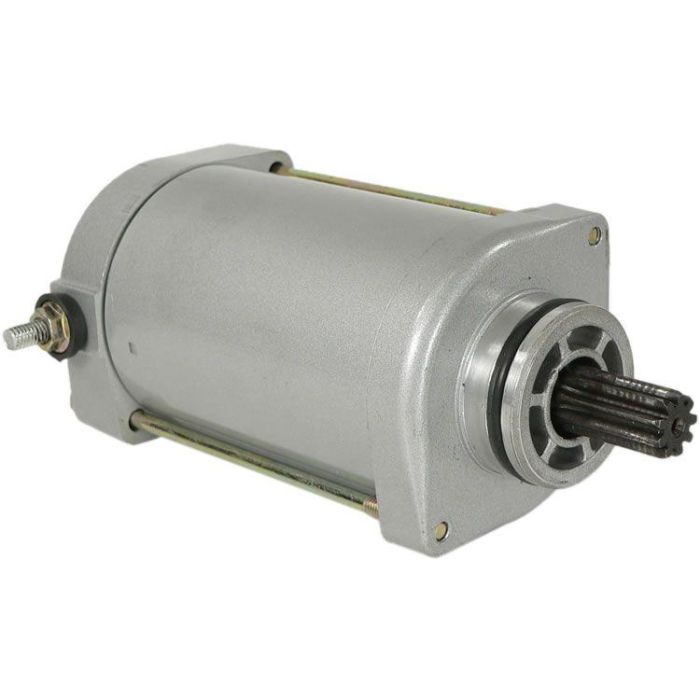

Harley-Davidson V-Rod Starter Motor
High-Performance 1.2kW Unit for VRSC Series (2002-2017)
Restore the reliable ignition your Harley-Davidson V-Twin deserves. This premium aftermarket starter motor is specifically engineered for the high-compression Revolution engine found in the V-Rod series. Whether you are dealing with "hot-start" drag or a complete solenoid failure, this unit provides the necessary torque to turn over 1130cc and 1250cc engines effortlessly.
Manufactured by Moto-Electrical standards, this starter features upgraded internal brushes and high-temperature copper windings. It serves as a direct drop-in replacement for the original Denso and Harley-Davidson units, ensuring you spend less time in the garage and more time on the road.
Key Features
- ✔ Enhanced Torque: 1.2kW output exceeds standard requirements.
- ✔ Weather Sealed: Double-sealed housings to prevent moisture ingress.
- ✔ OEM Specs: Built to match exact physical dimensions of part 31614-01A.
- ✔ Durability: High-quality bearings for long-term cycle life.
Technical Specs
| Voltage: | 12 Volts |
| Power: | 1.2 kW |
| Rotation: | Clockwise (CW) |
| Teeth count: | 10 Teeth |
| Starter Type: | PLGR |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Harley-Davidson | VRSCA / VRSCB V-Rod | 2002 - 2006 |
| Harley-Davidson | VRSCDX Night Rod Special | 2007 - 2017 |
| Harley-Davidson | VRSCF V-Rod Muscle | 2009 - 2017 |
| Harley-Davidson | VRSCR Street Rod | 2006 - 2007 |
OEM Part Number Cross Reference
| Harley-Davidson: 31614-01 | Harley-Davidson: 31614-01A |
| Denso: 228000-8960 | Denso: 228000-8961 |
| Lester: 18451 | Arrowhead: SND0437 |
Frequently Asked Questions
Will this fit the 1250cc Night Rod Special?
Yes, this starter is designed to handle both the original 1130cc and the later 1250cc Revolution engines used in the V-Rod family.
Does it come with the mounting bolts?
This unit is the starter motor only. You should reuse your existing mounting hardware and electrical leads.
Note: Please verify your vehicle model and year before purchasing.
