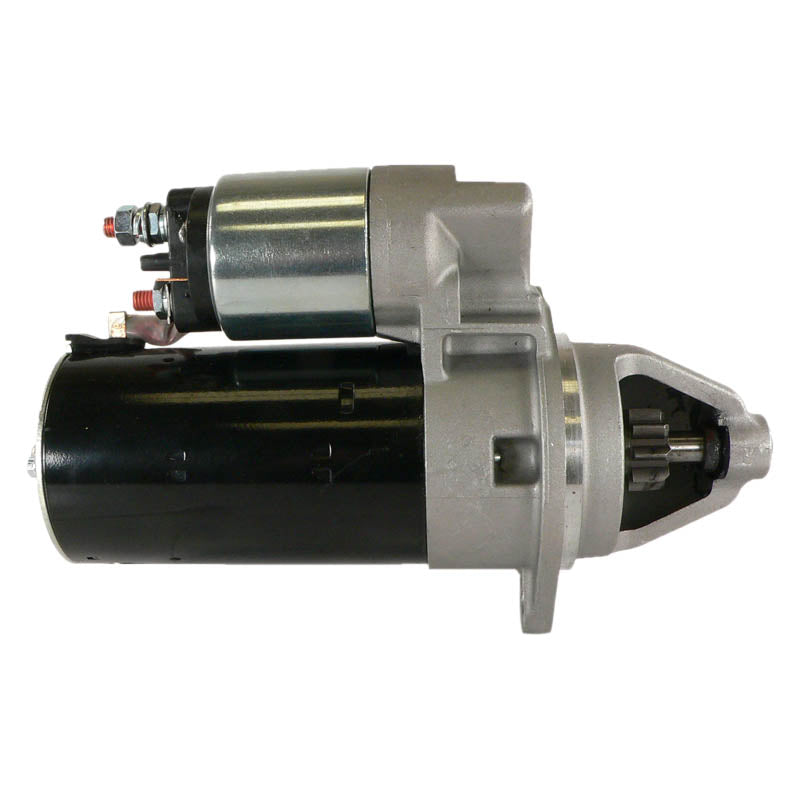

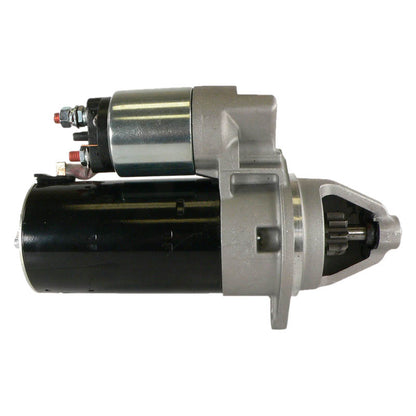

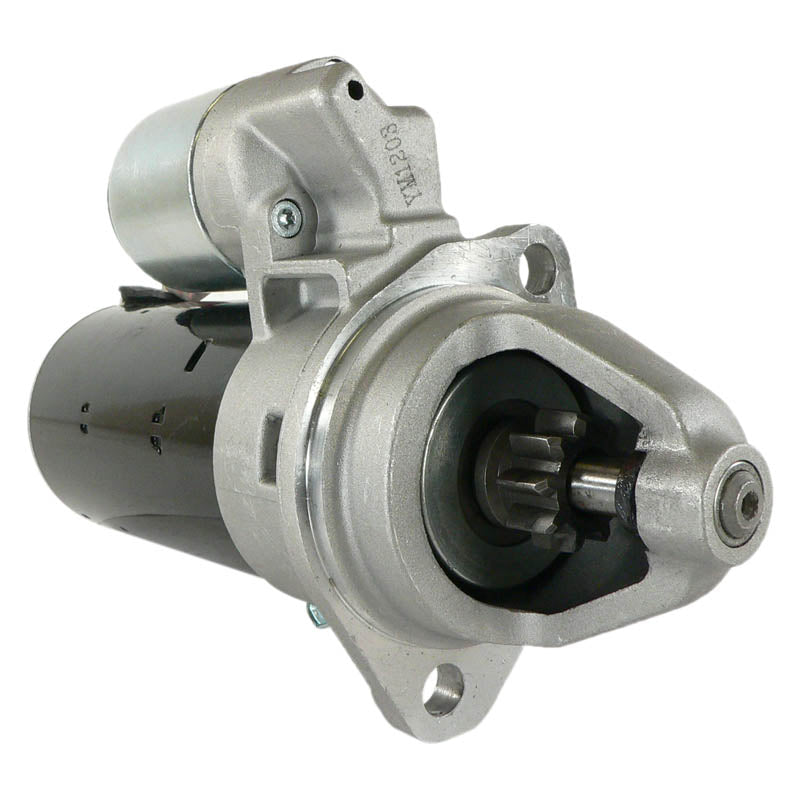

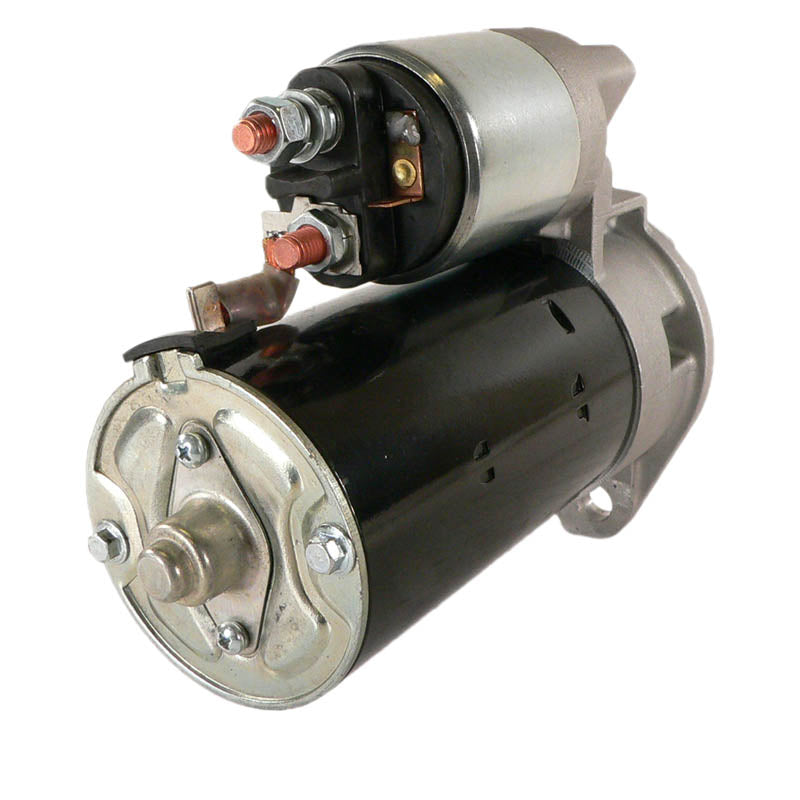

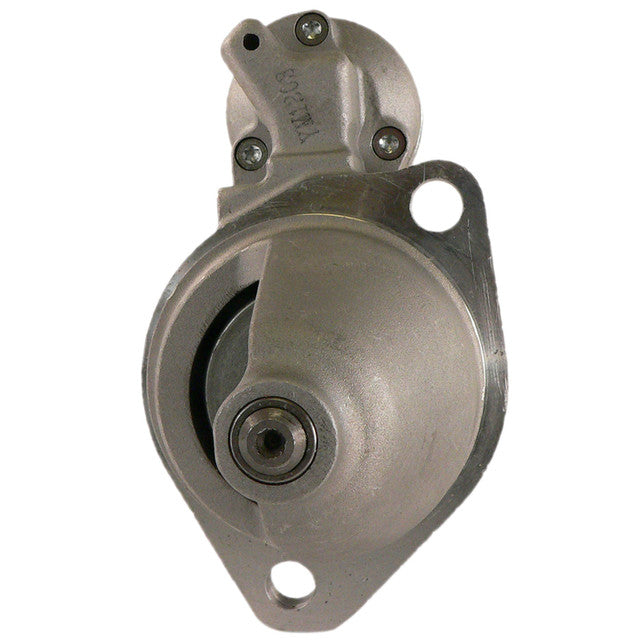

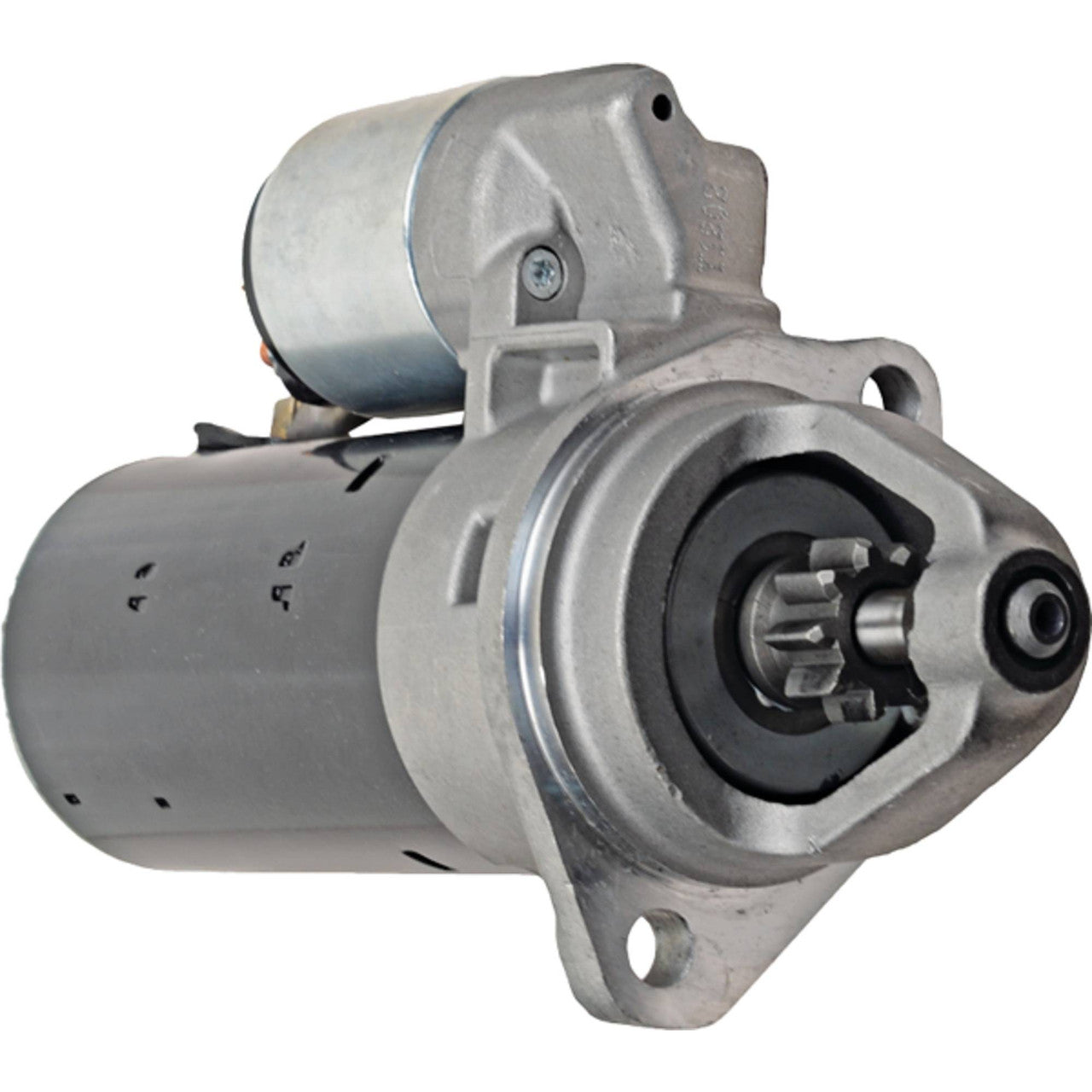

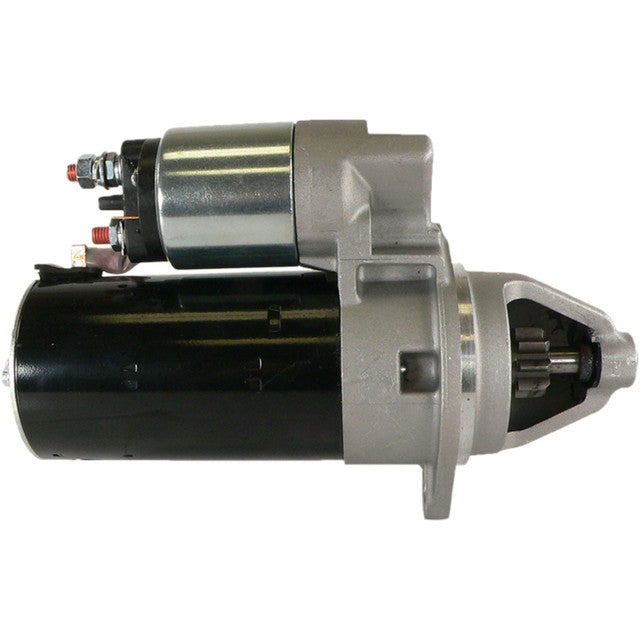

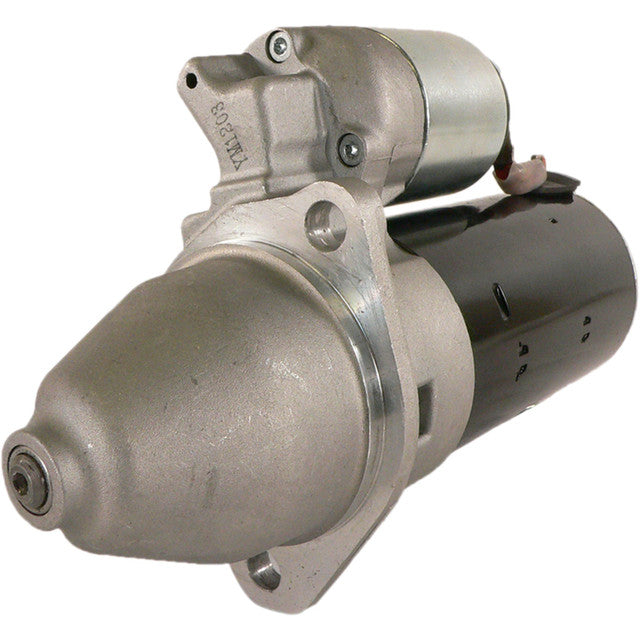

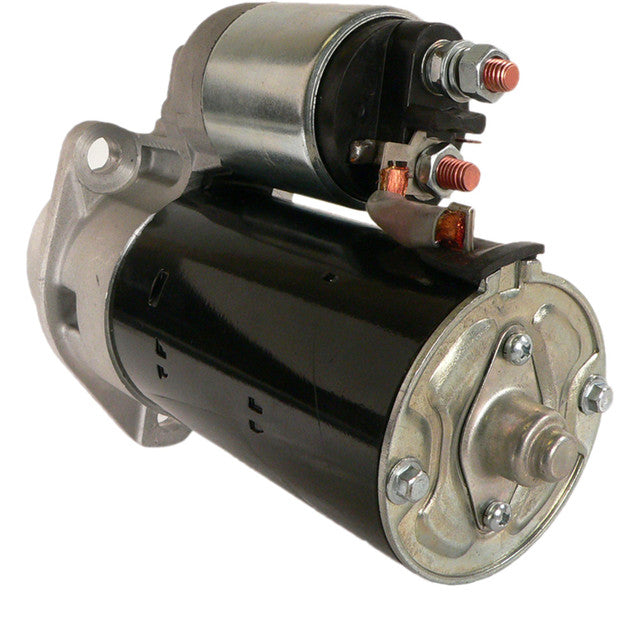

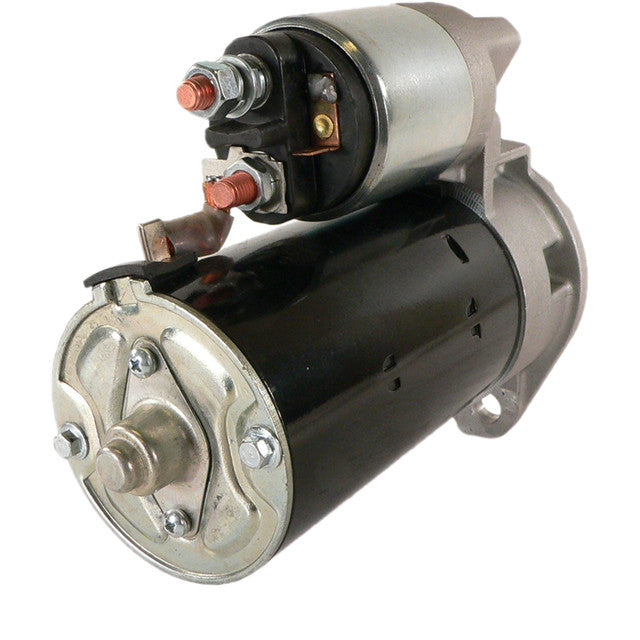

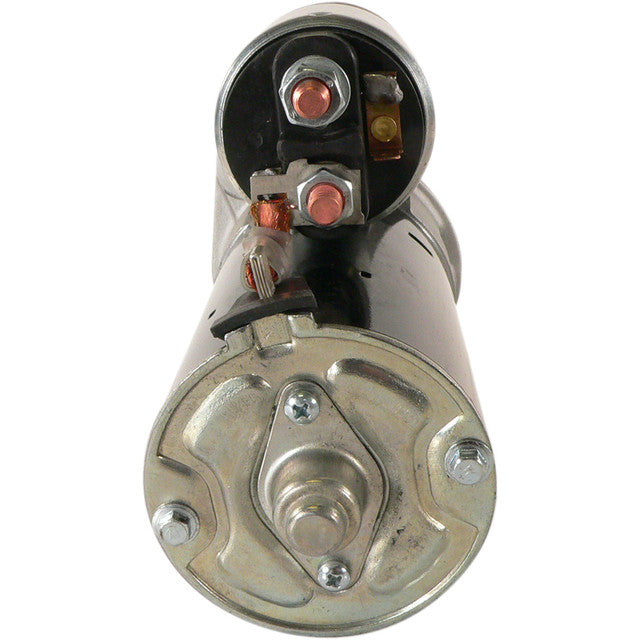

Starter Motor for Hatz 1D20 1D30 1D40 Engine 12V 1.6kW 0001109008 0001109043
Starter Motor for Hatz 1D20 1D30 1D40 Engine 12V 1.6kW 0001109008 0001109043
SKU:410-24118
Free shipping over £150. Terms apply
Couldn't load pickup availability
Hatz Industrial Starter Motor
Fits Hatz 1D20, 1D30, 1D40 & 1D81 Series (1991-On)
Ensure reliable cranking power for your heavy-duty machinery with this premium aftermarket starter motor. Specifically engineered for the Hatz 1D series diesel engines, this unit provides the high torque necessary for quick ignition in demanding industrial environments.
Whether you are operating a Bomag compactor, a Wacker plate, or a stationary industrial generator, this 1.6kW starter is built to withstand frequent start-stop cycles. It serves as a direct-fit replacement for original Bosch and Hatz units, ensuring minimal downtime for your equipment.
Key Features
- ✔ Engineered for Durability: Sealed housings protect internal components from dust and moisture.
- ✔ High Torque Output: 1.6kW motor ensures fast starts even in cold weather.
- ✔ Direct OEM Compatibility: Matches original mounting points and electrical connections.
Technical Specs
| Voltage: | 12 Volts |
| Power Rating: | 1.6 kW |
| Rotation: | Clockwise (CW) |
| Tooth Count: | 9 Teeth |
| Starter Type: | PMGR |
Vehicle & Engine Fitment Guide
| Application | Model / Engine | Year Range |
|---|---|---|
| Hatz Industrial | 1D20, 1D30, 1D31, 1D40, 1D41, 1D50 Engines | 1991 - On |
| Hatz Industrial | 1D60, 1D80, 1D81, 1D90 Engines | Various |
| Bomag | BPR50, BPR52-D3, BPR55 Compactor | All Years |
| Wacker | Compactors with Hatz Diesel Engines | Various |
OEM Part Number Cross Reference
| Bosch: | 0-001-109-008, 0-001-109-043, 0001109008, 0001109043 |
| Hatz: | 50353510, 50353511, 50495900, 50495901, 50496200, 01721000 |
| Lucas: | LRS01330, LRS1330, LRS02371, LRS2760, LES0743 |
| Iskra/Mahle: | 11.130.923, 11.131.528, AZE2606, AZE2663, IS1149 |
| Bomag: | 05726002, 05821275, 5726002, 5821275 |
Frequently Asked Questions
Will this fit my Hatz 1D41 engine?
Yes, this unit is a standard replacement for the 1D41 as well as the 1D20, 1D30, and 1D40 models produced from 1991 onwards.
How do I verify compatibility if my part number is different?
Check the OEM cross-reference table above. If your motor is a Bosch 0001109 series or Hatz 503535xx series, this unit will likely be a direct fit. You can also verify the 9-tooth count and 12V rating.
Note: Please verify your vehicle model and year before purchasing.
