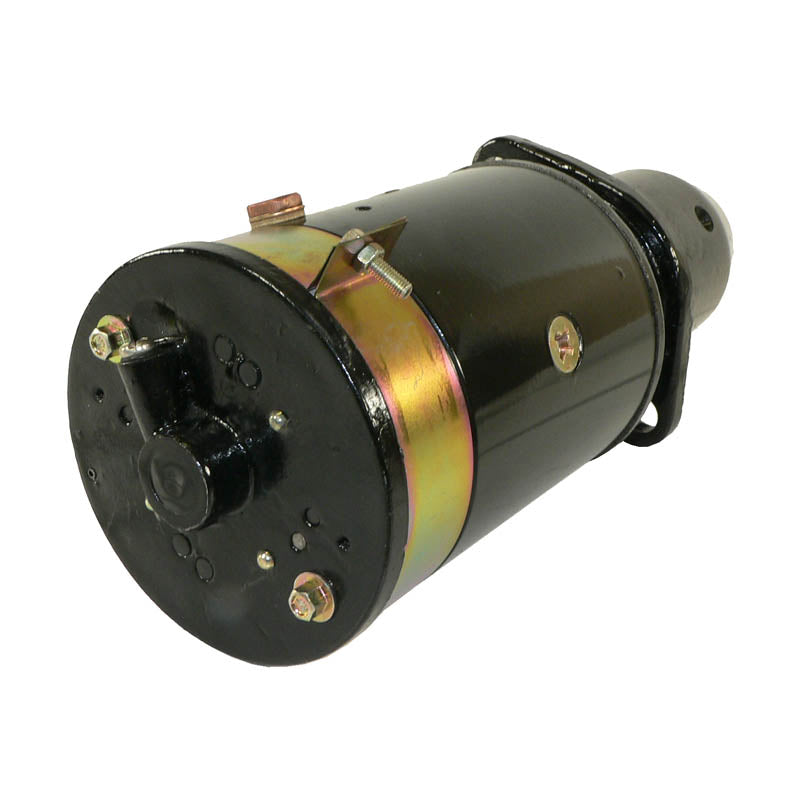

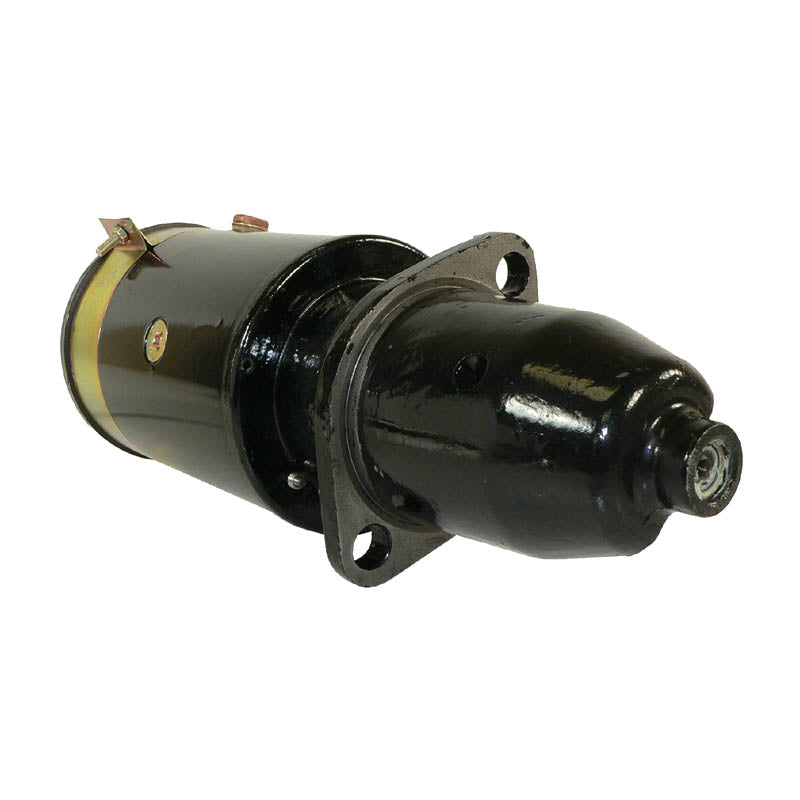

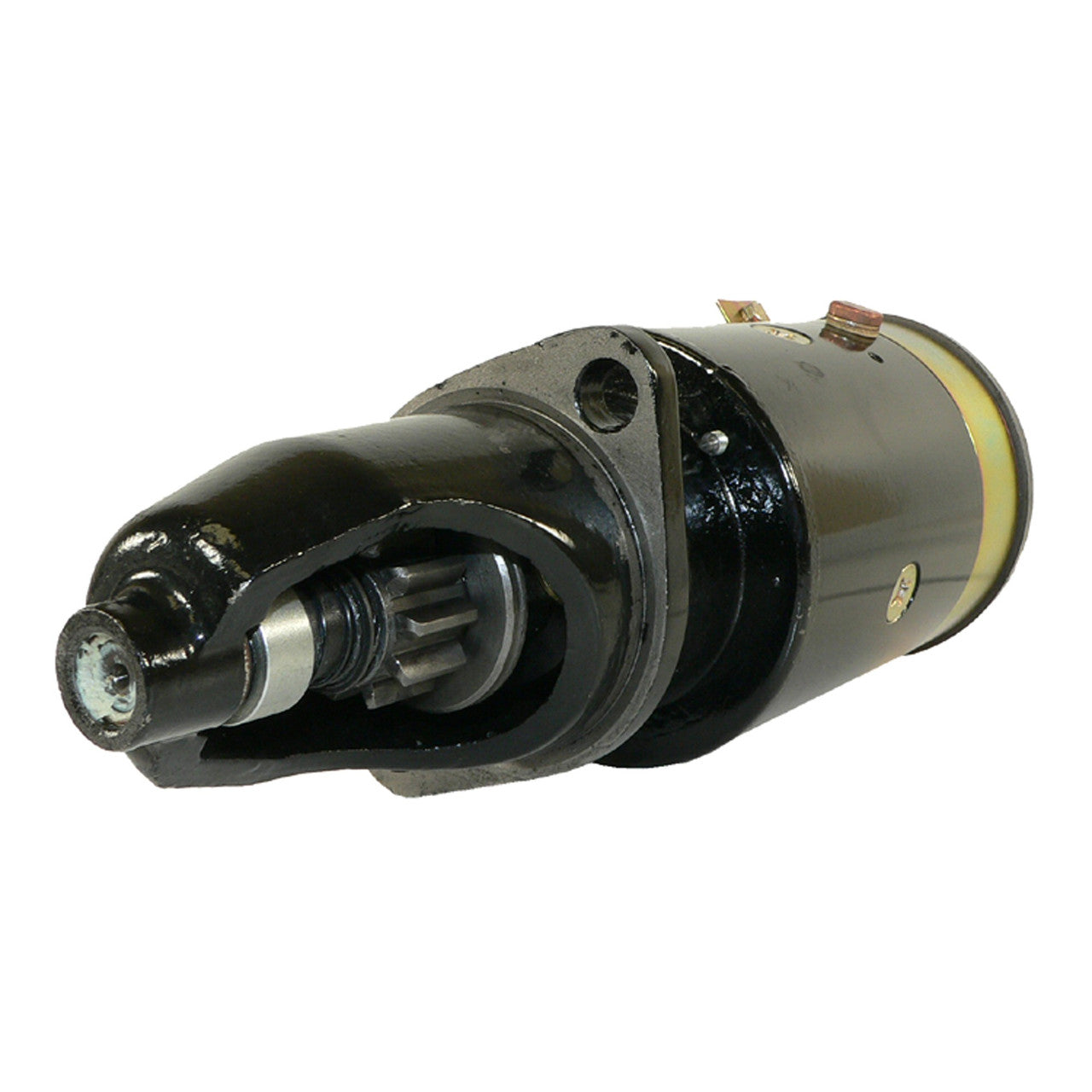

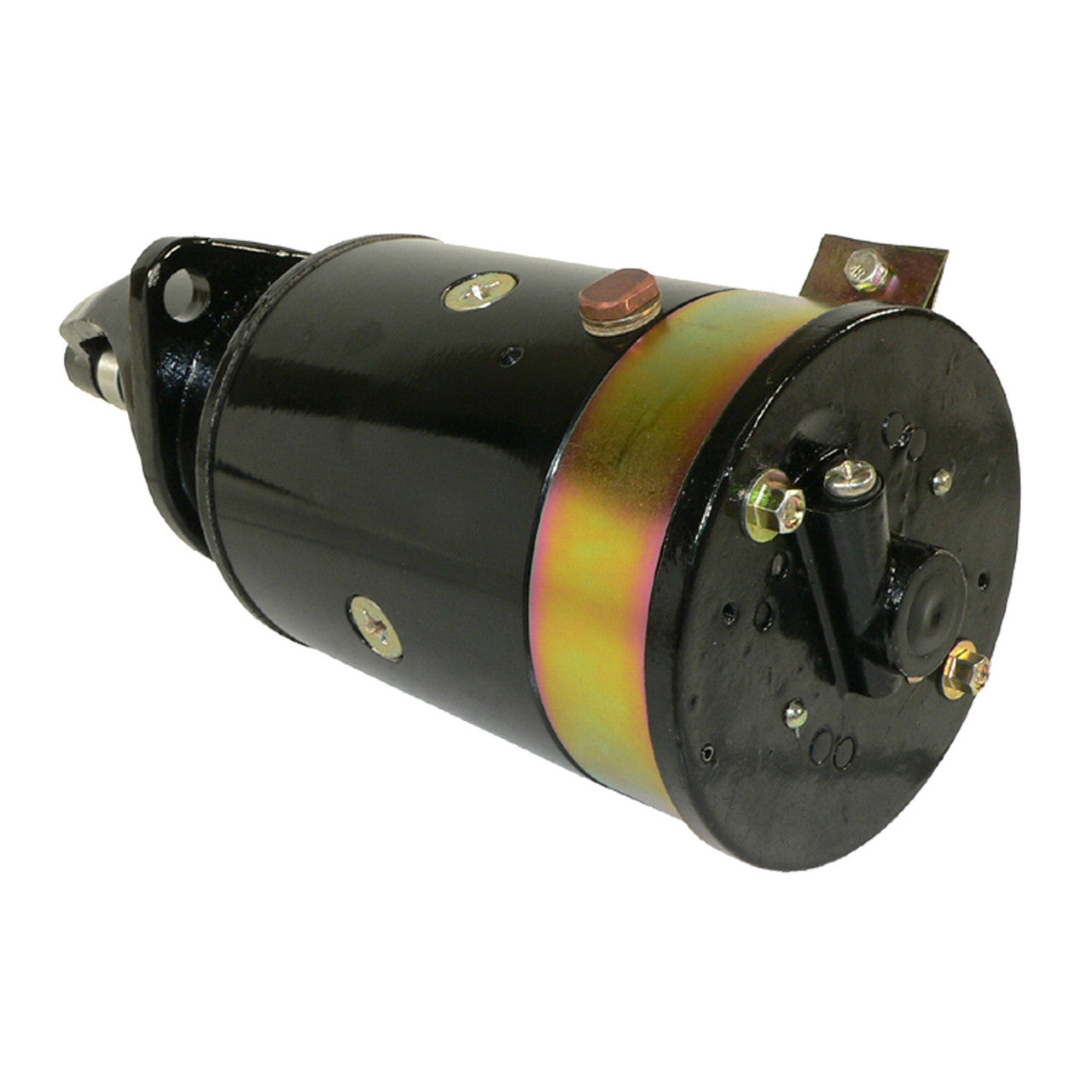

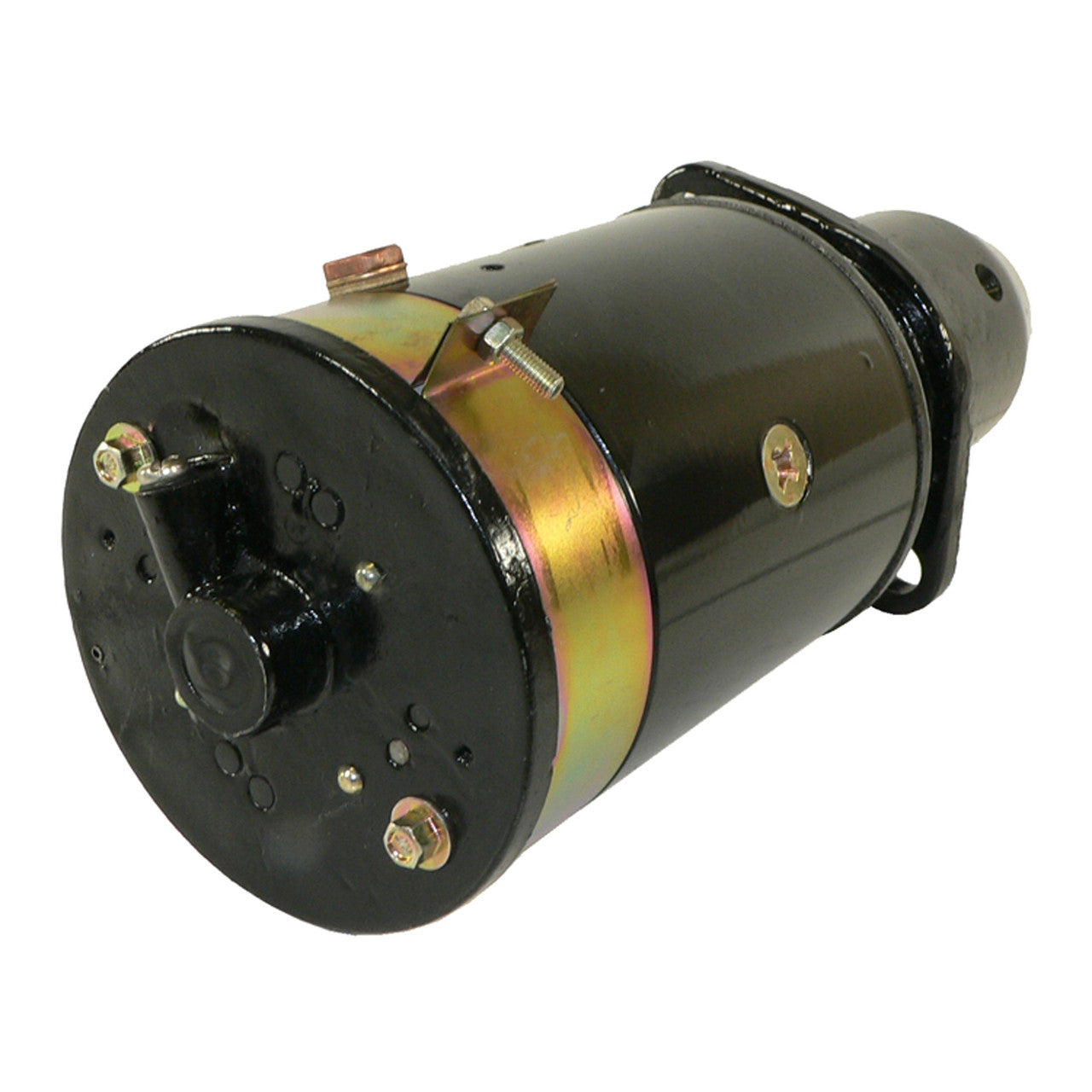

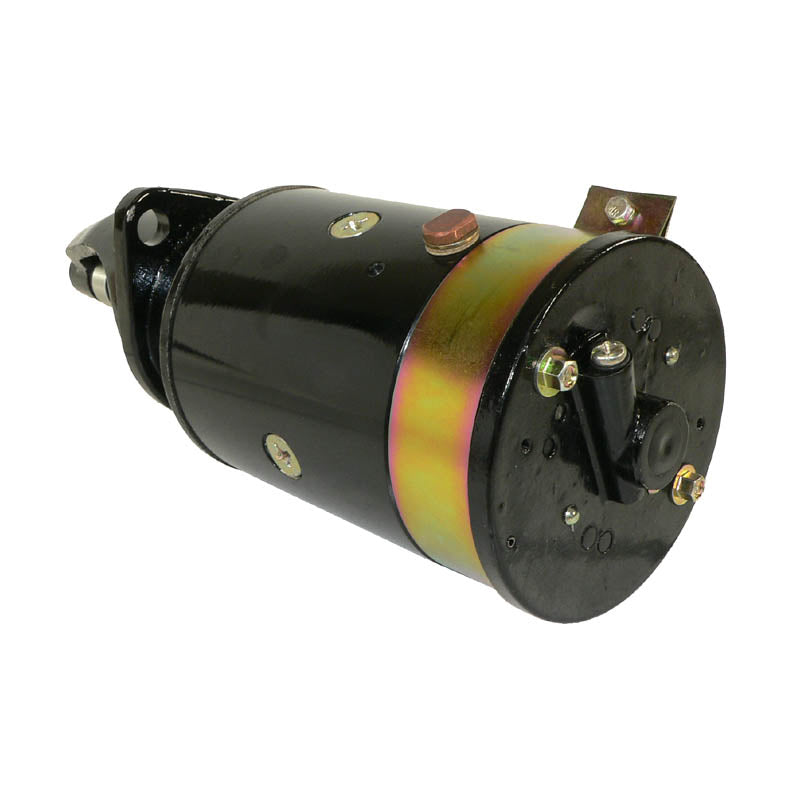

Starter Motor for Farmall A, B, C, 100-240 & Case 220/230 - 6V CCW 10-Tooth
International Harvester Farmall, McCormick & Case Tractors - 6V Direct Drive
This starter motor is a direct replacement for the 6-volt Delco unit fitted to International Harvester Farmall, McCormick and Case tractors built between 1939 and 1964. It is made to the original specification and bolts straight into the existing mounting points without any drilling or bracket changes.
It is a direct drive (DD) 6-volt unit with counter-clockwise (CCW) rotation and a 10-tooth drive gear of 38.4mm (1.512in) outside diameter, with a 14mm mounting hole. It replaces Delco numbers 1107067, 1107093 and 1108096 and the Case IH numbers listed below, so it installs as a like-for-like replacement.
Key Features
- 6-Volt, Counter-Clockwise (CCW) rotation
- 10-Tooth drive gear, 38.4mm OD
- Direct Drive (DD) design
- Replaces Delco 1107067, 1107093 and 1108096
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 6V |
| Rotation | Counter-Clockwise (CCW) |
| Teeth | 10 |
| Starter Type | Direct Drive (DD) |
| Drive Gear OD | 38.4mm (1.512in) |
| Mounting Hole ID | 14mm |
| Lester References | 4025, 4033, 4043 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Farmall A / Super A / B / C / Super C Tractors | 1939-1964 |
| Farmall 100 / 130 / 140 Tractors | 1939-1964 |
| Farmall 200 / 230 / 240 Tractors | 1939-1964 |
| McCormick O Series and Super W Series Tractors | 1939-1964 |
| Case / IH 220 and 230 Tractors (Gas) | 1939-1964 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1107067, 1107093, 1108096, 10461702 | Delco |
| 104221A1, 104221A2, 104221A2R | Case IH |
| 251384R91, 355794R2, 355794R91, 355794R92, A449934Z | Case IH |
| 323-99 | AC Delco |
| SDR0092 | Arrowhead |
| 4025, 4033, 4043 | Lester |
Frequently Asked Questions
Will this starter motor fit my Farmall or Case tractor without modification?
Yes, this is a direct OEM-fit replacement built to the original specification, so no modification is required for installation - it uses the same mounting points, rotation and tooth count as the unit it replaces.
What's included?
You will receive one complete starter motor unit, ready to fit. Your existing wiring loom connects directly to the original terminal layout.
How can I tell my old starter motor has failed?
Common signs include a clicking noise when starting, a slow or labouring crank, smoke or a burning smell from the starter, or no response at all when the key is turned.
What does DD and CCW mean on this starter motor?
DD indicates a Direct Drive starter design, and CCW means the starter motor spins counter-clockwise as viewed from the drive end - confirm both details match your original unit before ordering, since a starter with the wrong rotation will not engage correctly.
Is this a 6-volt or 12-volt starter?
This is a 6-volt unit for tractors still running the original 6V system. If your tractor has been converted to 12 volts, you will need the corresponding 12V starter instead.
