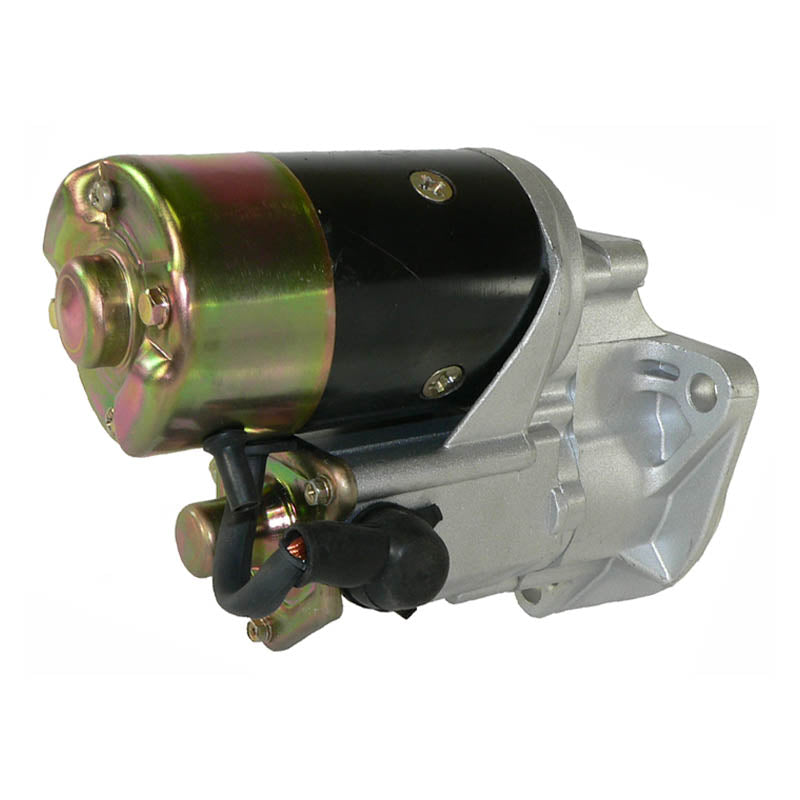

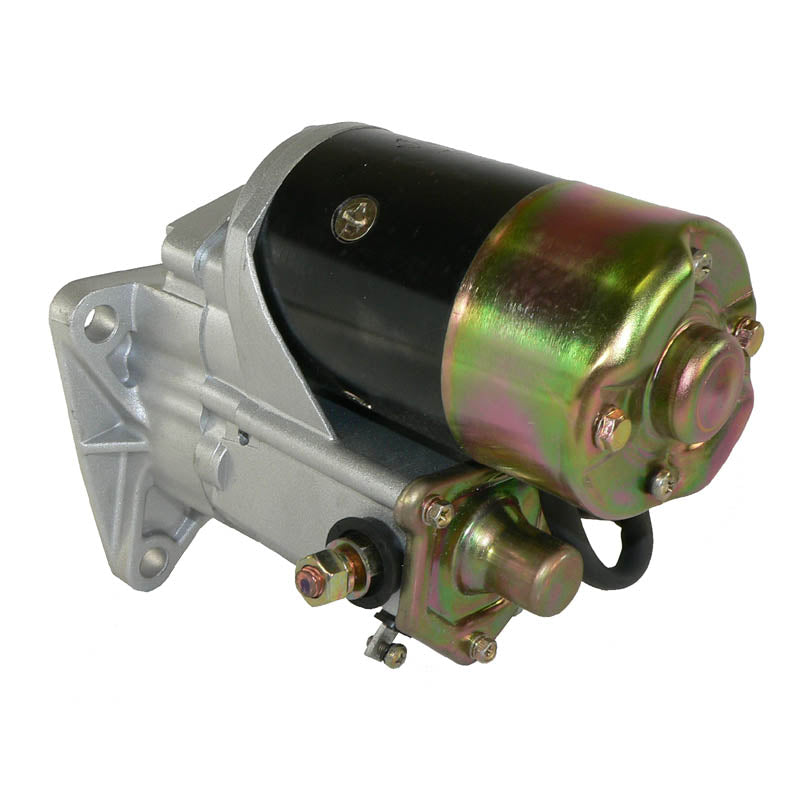

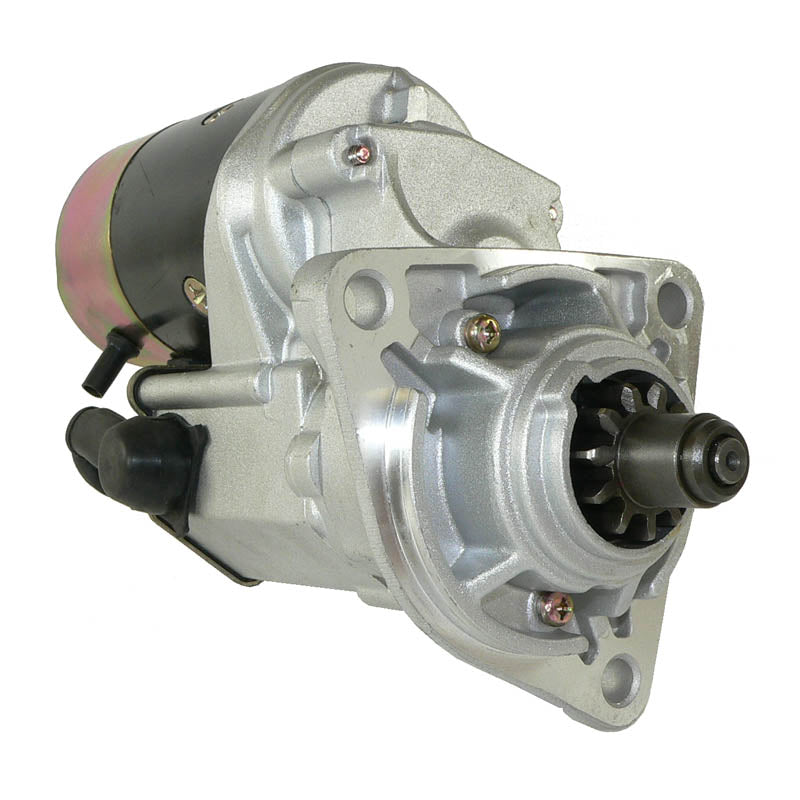

Heavy-Duty Isuzu Industrial Starter Motor
Reliable 24V 4.5kW Replacement for 6BB1, 6BD1, 6BF1, 6BG1 Engines
Ensure your industrial equipment starts strong every time with this high-quality aftermarket starter motor, designed specifically for Isuzu 6BB1, 6BD1, 6BF1, and 6BG1 diesel engines. Built to meet or exceed OEM specifications, this starter from DB Electrical delivers robust and consistent performance in demanding conditions.
Whether you're operating excavators, generators, or other heavy machinery, this 24-volt, 4.5kW starter provides the necessary torque and reliability to keep your operations running smoothly. It's a brand new, non-remanufactured unit, guaranteeing fresh components and optimal functionality right out of the box.
Key Features
- ✔ OEM-Quality Performance: Manufactured to deliver performance equivalent to the original equipment.
- ✔ Fast & Efficient Starts: High-quality magnets and field coils provide superior torque.
- ✔ Enhanced Durability: Sealed housings and bearings protect internal components from dirt and moisture.
- ✔ Premium Components: Utilises copper and silver contacts, along with quality brushes and bushings for extended service life.
- ✔ 1-Year Warranty: Backed by a comprehensive 12-month warranty for peace of mind.
Technical Specs
| Brand: | DB Electrical |
| SKU: | 410-52016 |
| Voltage: | 24 Volts |
| Kilowatt (kW): | 4.5 kW |
| Number of Teeth: | 11 |
| Starter Type: | Gear Reduction |
| Condition: | New |
Vehicle & Engine Fitment Guide
| Make | Model/Application | Engine | Year Range |
|---|---|---|---|
| ISUZU | Misc. Industrial Equipment | 6BB1 Engine | 1976 - On |
| ISUZU | Misc. Industrial Equipment | 6BD1 Engine | All |
| ISUZU | Misc. Industrial Equipment | 6BF1 Engine | All |
| ISUZU | Misc. Industrial Equipment | 6BG1 Engine | All |
OEM Part Number Cross Reference
| ARROWHEAD | 410-52016, ND028000-6200, ND028000-6202 |
| CARGO | 110580 |
| DENSO | 028000-6200, 028000-6202 |
| ISUZU | 1811001410, 1811001411, 5811001180, 8811002531, 1-81100-198-1, 1-81100-189-1, 1-81100-189-2, 1-81100-141-1, 1811002340, 1811002341 |
| J&N Electrical Products | 410-52016 |
| LESTER | 18190 |
| NSA | STR-6160 |
| UNIPOINT | STR-6160 |
| WAI | 2-2105-ND |
Frequently Asked Questions
What are the signs of a failing starter motor?
Common symptoms include a grinding noise when starting, a single click or no sound at all, the engine not cranking, or the starter spinning without engaging the flywheel.
What is a gear reduction starter?
A gear reduction starter uses a set of planetary gears to increase speed and torque, allowing for more powerful and efficient engine starts with less current. This design makes them lighter, faster, and smaller than older direct-drive starters.
How can I diagnose a grinding noise from my starter?
A grinding noise often indicates misalignment or damage. First, check if the starter has come loose and ensure proper drive gear to flywheel alignment with shims if necessary. If grinding persists, inspect the flywheel and starter drive gear for wear or damage.
Why does the starter sometimes make a whizzing sound but the engine doesn't crank?
This usually means the starter's drive gear (bendix) is slipping and not properly engaging the engine's flywheel, indicating the need for replacement.
How much cranking amperage does an industrial diesel engine typically require?
Industrial diesel engines, especially high-compression models, typically require 500-800 Cold Cranking Amps (CCA) on average to start, with some larger or higher compression engines requiring even more.
Note: Please verify your vehicle model and year before purchasing.
