Starter Motor for John Deere, Kawasaki & Kubota Ride-On Mowers
Fits John Deere, Kawasaki-engined and Kubota ride-on mowers and compact tractors

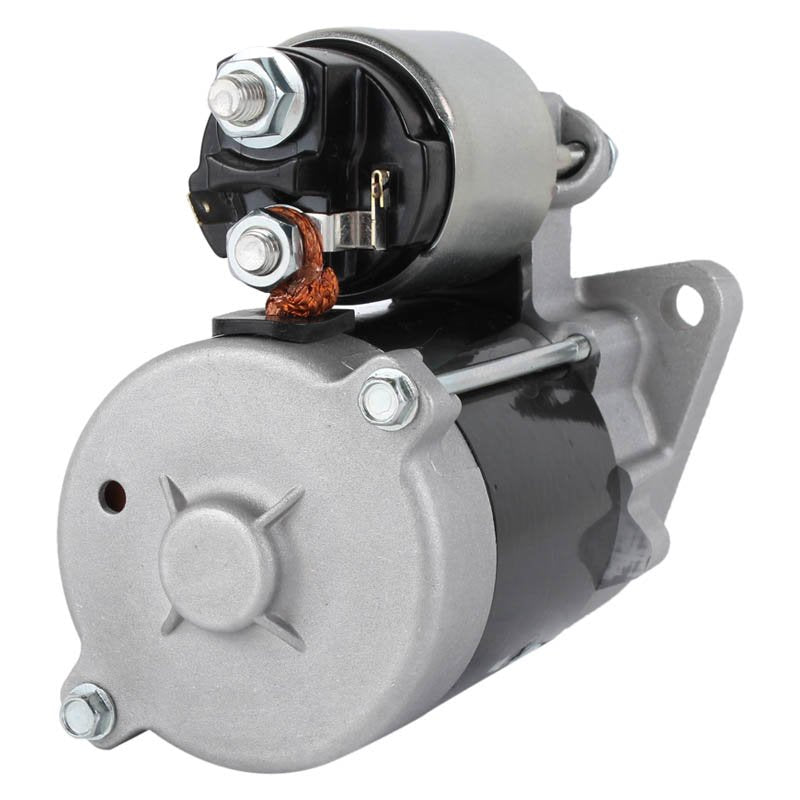

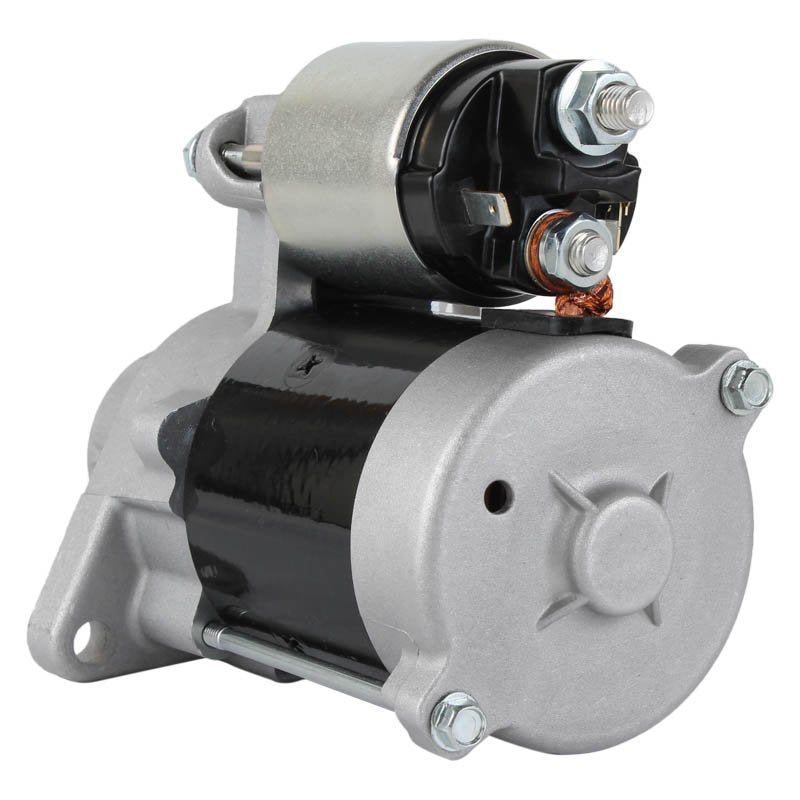

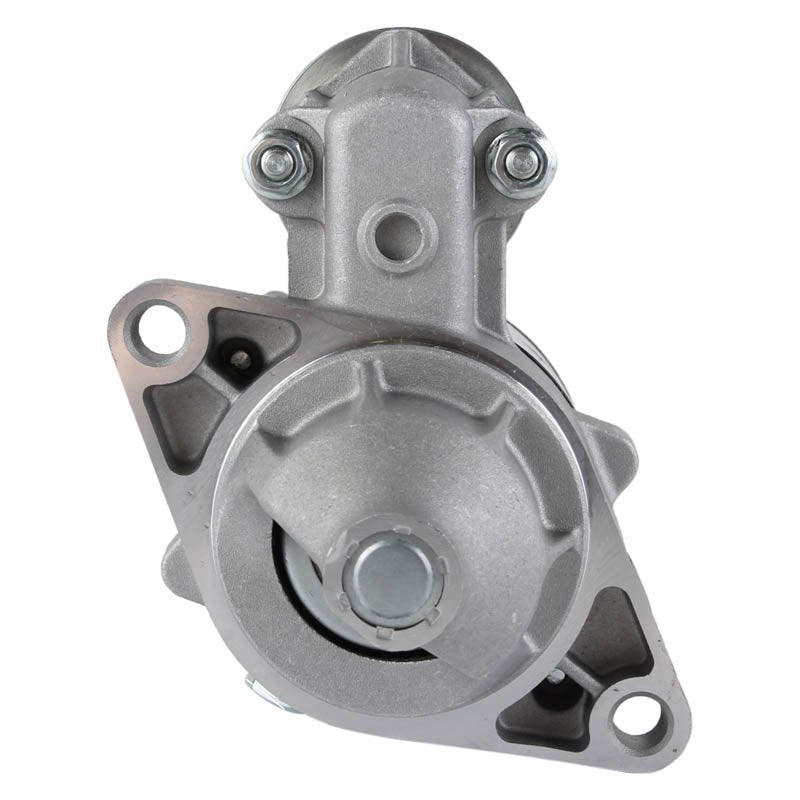

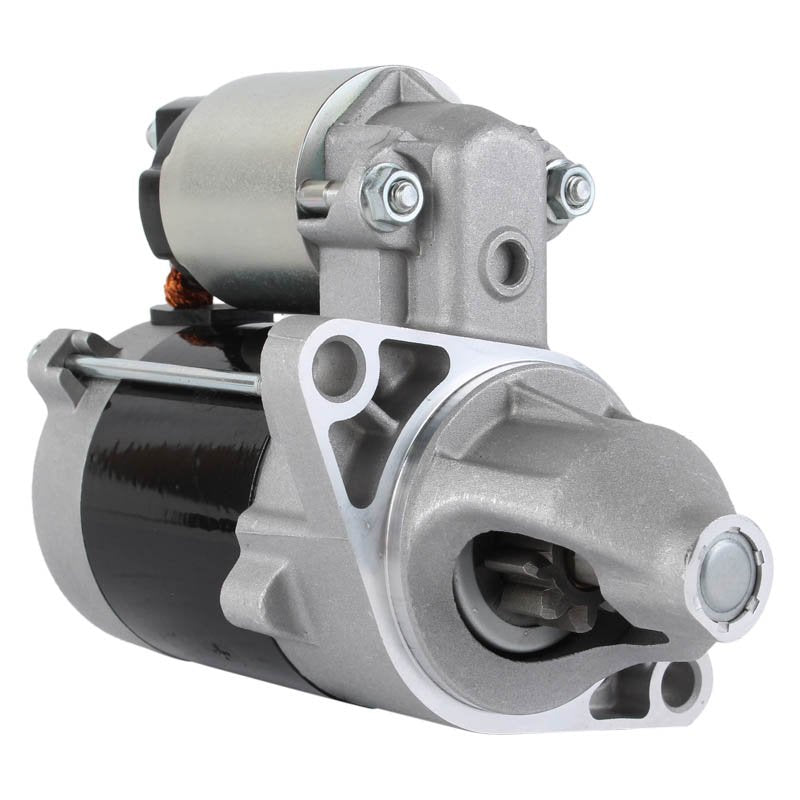

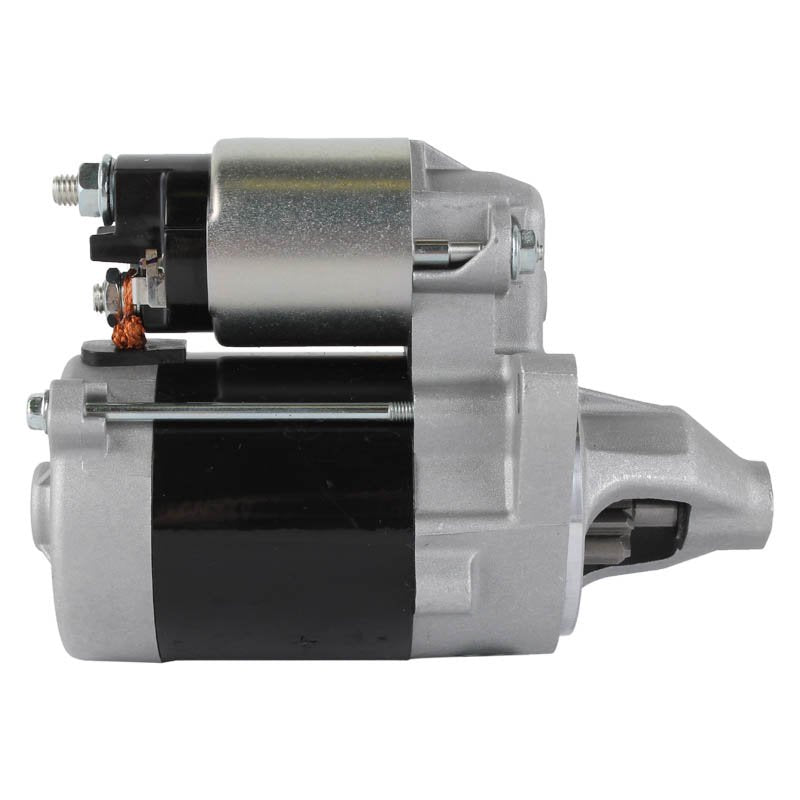

This is a direct-fit replacement starter motor built to OEM specifications for a wide range of John Deere ride-on mowers, Kawasaki FD-series vertical shaft engines and Kubota compact tractors fitted with this wide 2-bolt mount starter. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment across this shared engine platform, and carries Lester reference 18010.
The unit runs on a standard 12-volt electrical system, produces 0.6kW, turns counter-clockwise (CCW) and uses a 9-tooth direct-drive pinion of 29mm outside diameter on a wide 2-bolt mounting flange, matching the specification of the starter originally fitted across these John Deere, Kawasaki and Kubota applications.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt, 0.6kW direct-drive starter motor
- Counter-clockwise (CCW) rotation
- 9-tooth drive pinion, 29mm gear OD
- Wide 2-bolt mounting flange
- Covers John Deere, Kawasaki FD-series and Kubota applications sharing this starter
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW (Counter-Clockwise) |
| Teeth | 9 |
| Power | 0.6kW |
| Starter Type | Direct Drive (DD) |
| Pinion Gear OD | 29mm |
| Mount Type | Wide 2-bolt |
| Lester Number | 18010 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 285, 2243, 320, 345, F725, GX345, LX178, LX188, LX279 & LX289 | 1987-2005 |
| John Deere 325 | Not specified by supplier |
| Cub Cadet Z48L (Kawasaki 18HP) | 1997-1998 |
| Cub Cadet 365L (Kawasaki 18HP) | 2000-2002 |
| Cub Cadet Z54L Gas | Not specified by supplier |
| Kawasaki FD440V, FD501V, FD590V & FD611V Vertical Shaft Engines | Not specified by supplier |
| Kubota T1760 & TG1860G Tractors (Kawasaki-engined) | Not specified by supplier |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 128000-5500 | Denso |
| 9712809-550 | Denso |
| AM105575 | John Deere |
| M70306 | John Deere |
| SE501863 | John Deere |
| 21163-2077 | Kawasaki |
| 21163-2141 | Kawasaki |
| E7199-63010 | Kubota |
| EG673-64012 | Kubota |
| 71-29-18010, 91-29-5201 | Wilson |
| 18010 | Lester |
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement across the listed John Deere, Kawasaki and Kubota applications sharing this wide 2-bolt mount starter, and requires no modification to install.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key or ignition switch is engaged.
My machine isn't listed above but uses one of the OEM numbers listed - will this fit?
Yes. This starter is a direct match for any application originally fitted with one of the OEM part numbers listed in the cross-reference table above, regardless of make or model.
