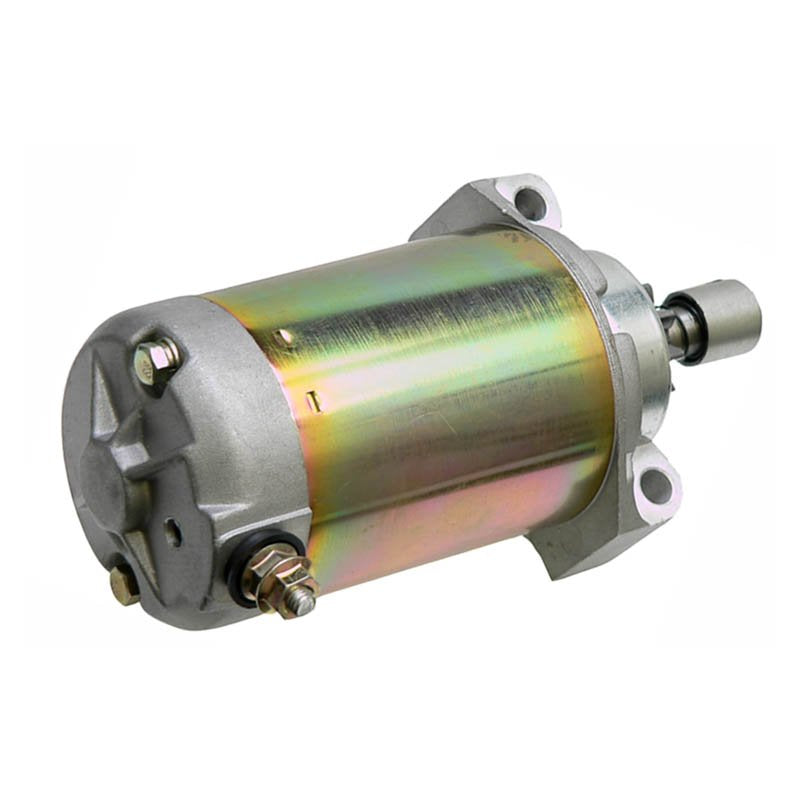

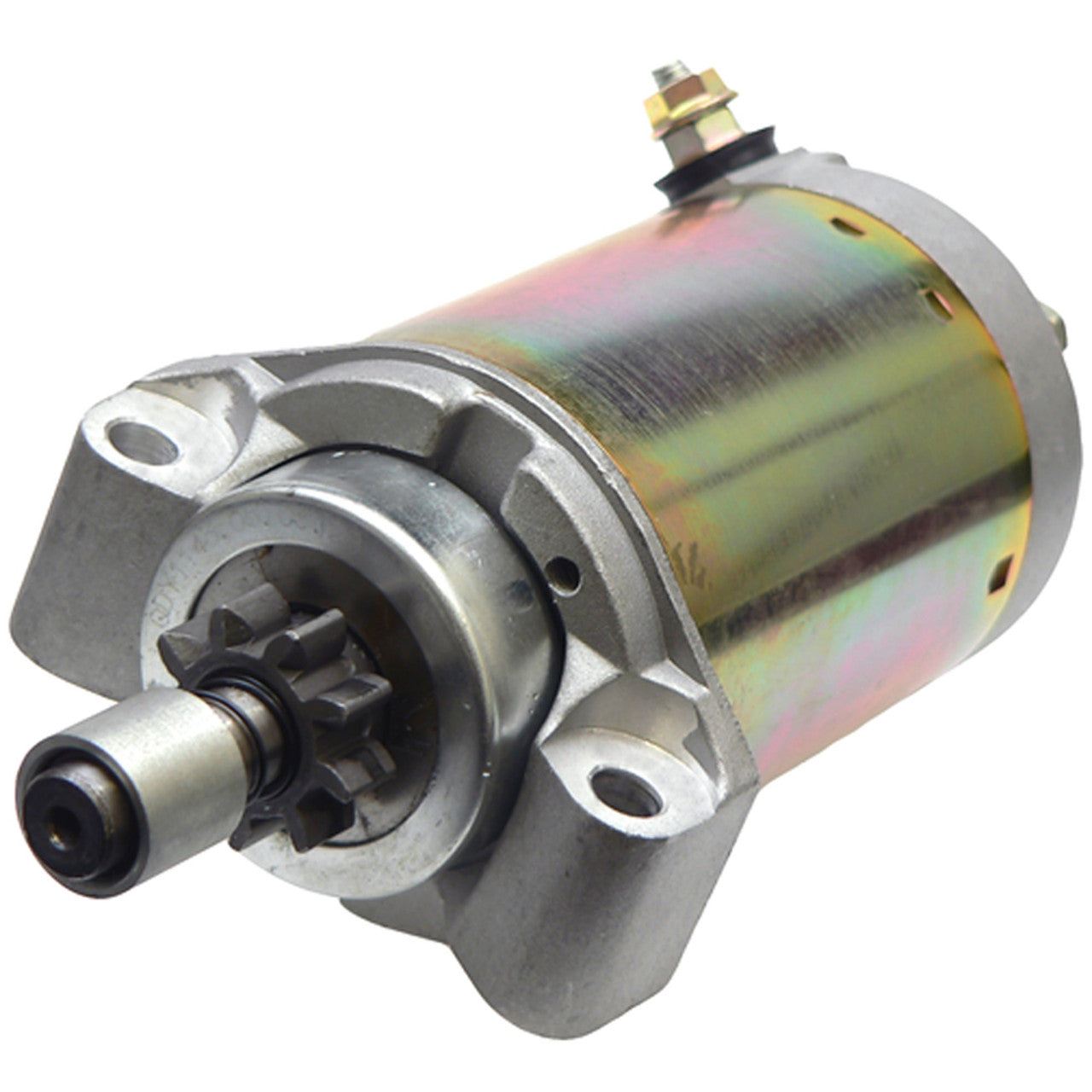

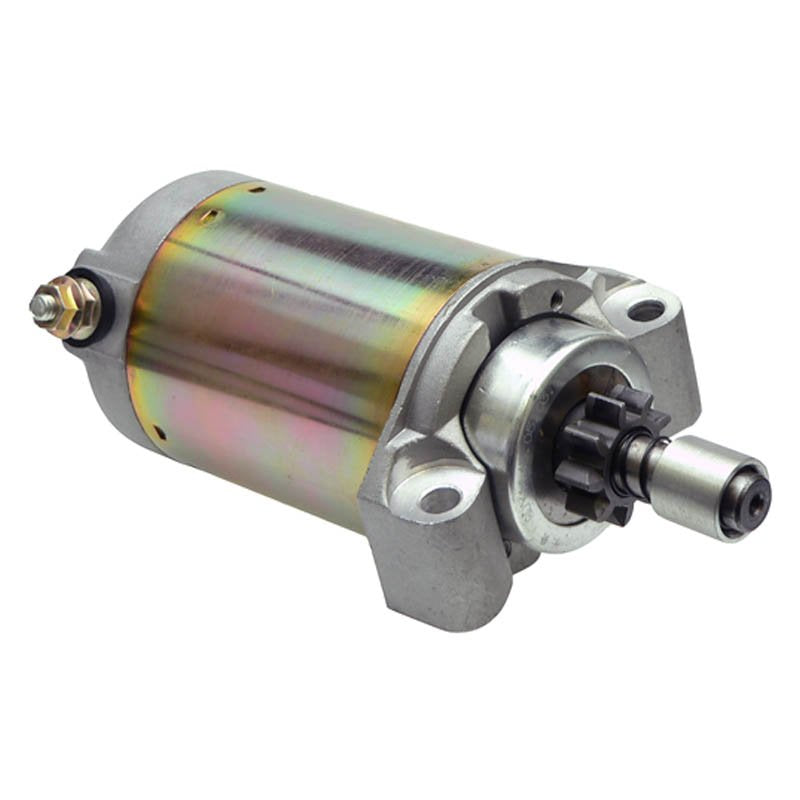

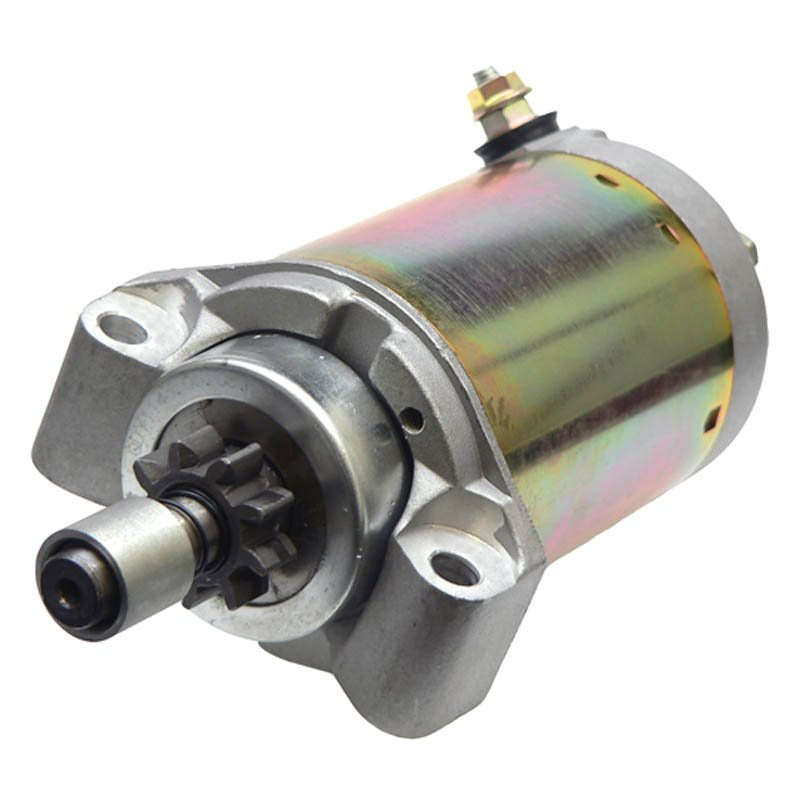

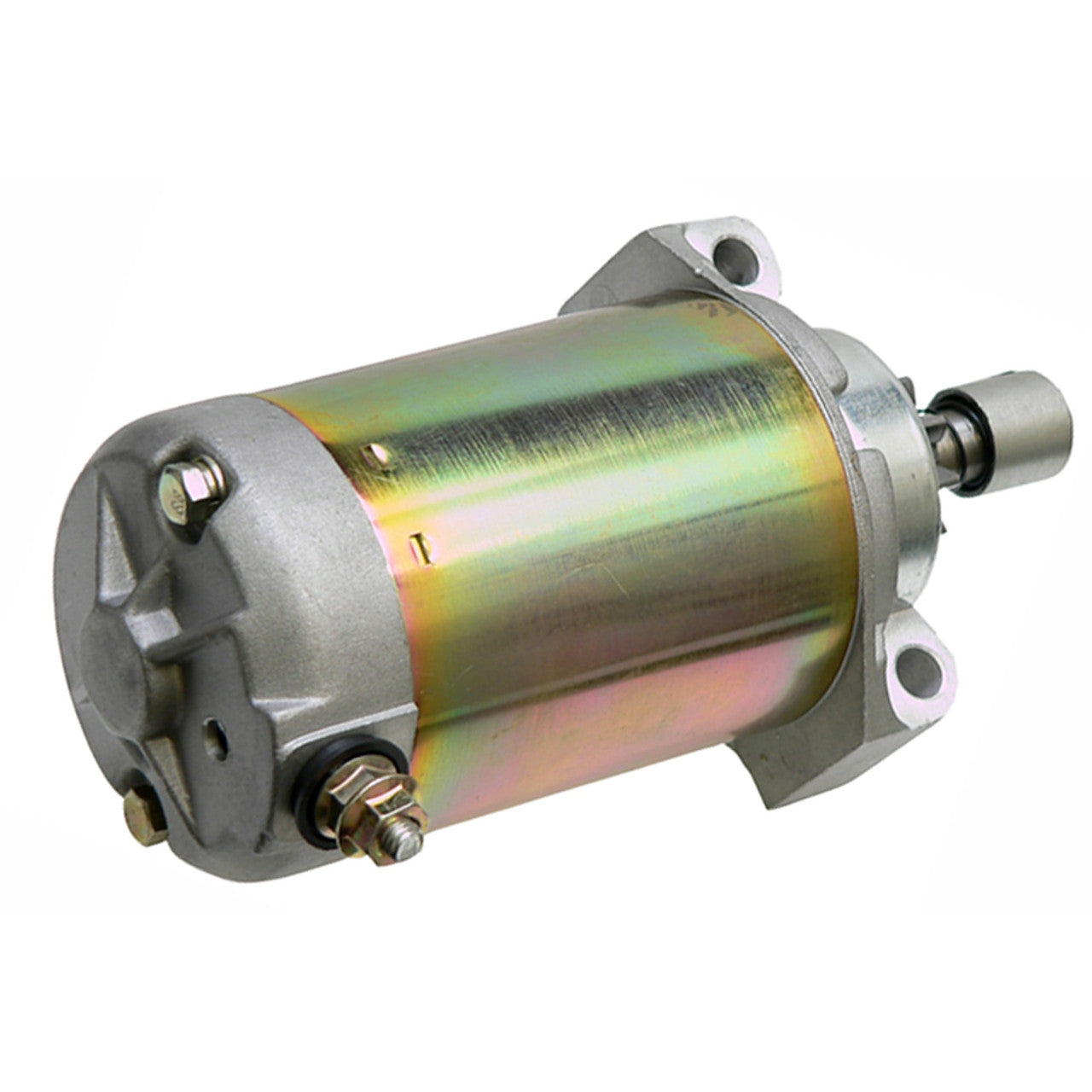

Starter Motor for John Deere GX75, RX75, SRX75 & SX75 Mowers
Starter Motor for John Deere GX75, RX75, SRX75 & SX75 Mowers
SKU:410-52068
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for John Deere GX75, RX75, SRX75 & SX75 Mowers
Fits John Deere riding mowers and lawn tractors with the Kawasaki FC290V engine
This is a direct-fit replacement starter motor built to OEM specifications for John Deere riding mowers and lawn tractors fitted with the Kawasaki FC290V engine, including the 130, GX75, RX75, SRX75 and SX75. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, and replaces John Deere AM102628 and Kawasaki 21163-2068.
The unit runs on a standard 12-volt electrical system, turns counter-clockwise (CCW) and uses a 9-tooth drive pinion, matching the specification of the starter originally fitted to these John Deere and Kawasaki-engined machines.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt starter motor
- Counter-clockwise (CCW) rotation
- 9-tooth drive pinion
- Replaces John Deere AM102628 / Kawasaki 21163-2068
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW (Counter-Clockwise) |
| Teeth | 9 |
| Engine | Kawasaki FC290V |
| Lester Number | 18403 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 130 | 1986-1988 |
| John Deere GX75 & SRX75 | 1991-1996 |
| John Deere RX75 & SX75 | 1987-1990 |
| Toro 222-5 Tractor | 1988 |
| Kawasaki FC290V Engine | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AM102628 | John Deere |
| 21163-2068 | Kawasaki |
| 128000-2760 | Denso |
| SND0006 | Arrowhead |
| 18403 | Lester |
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement for John Deere riding mowers and lawn tractors fitted with the Kawasaki FC290V engine, and requires no modification to install.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key is turned.
My model isn't listed - will this still fit?
Check the number stamped on your original starter against the cross-reference table above. If it matches AM102628, 21163-2068 or 128000-2760, this unit is a direct replacement.
