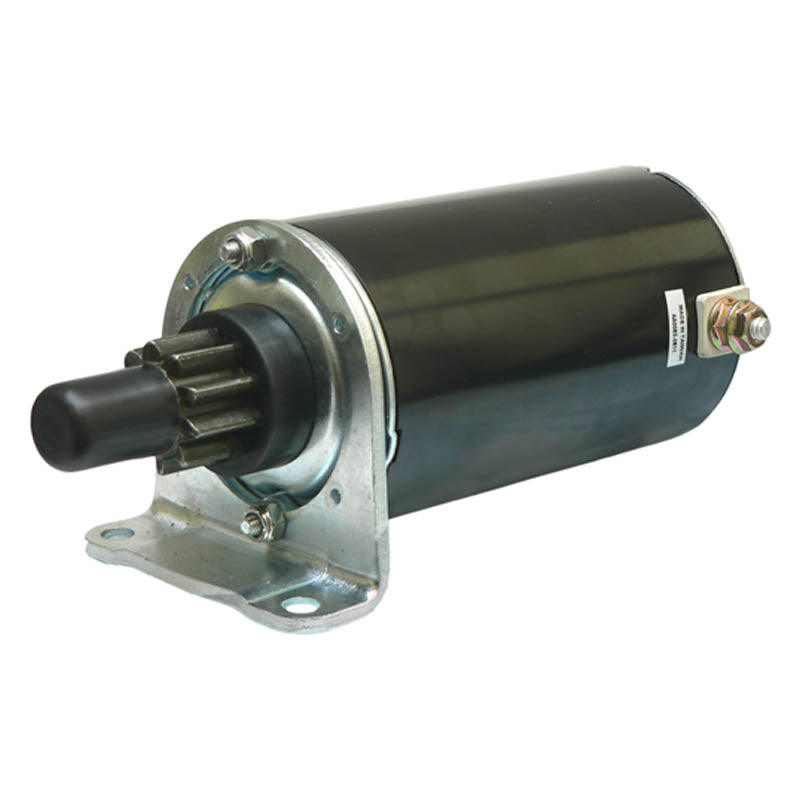

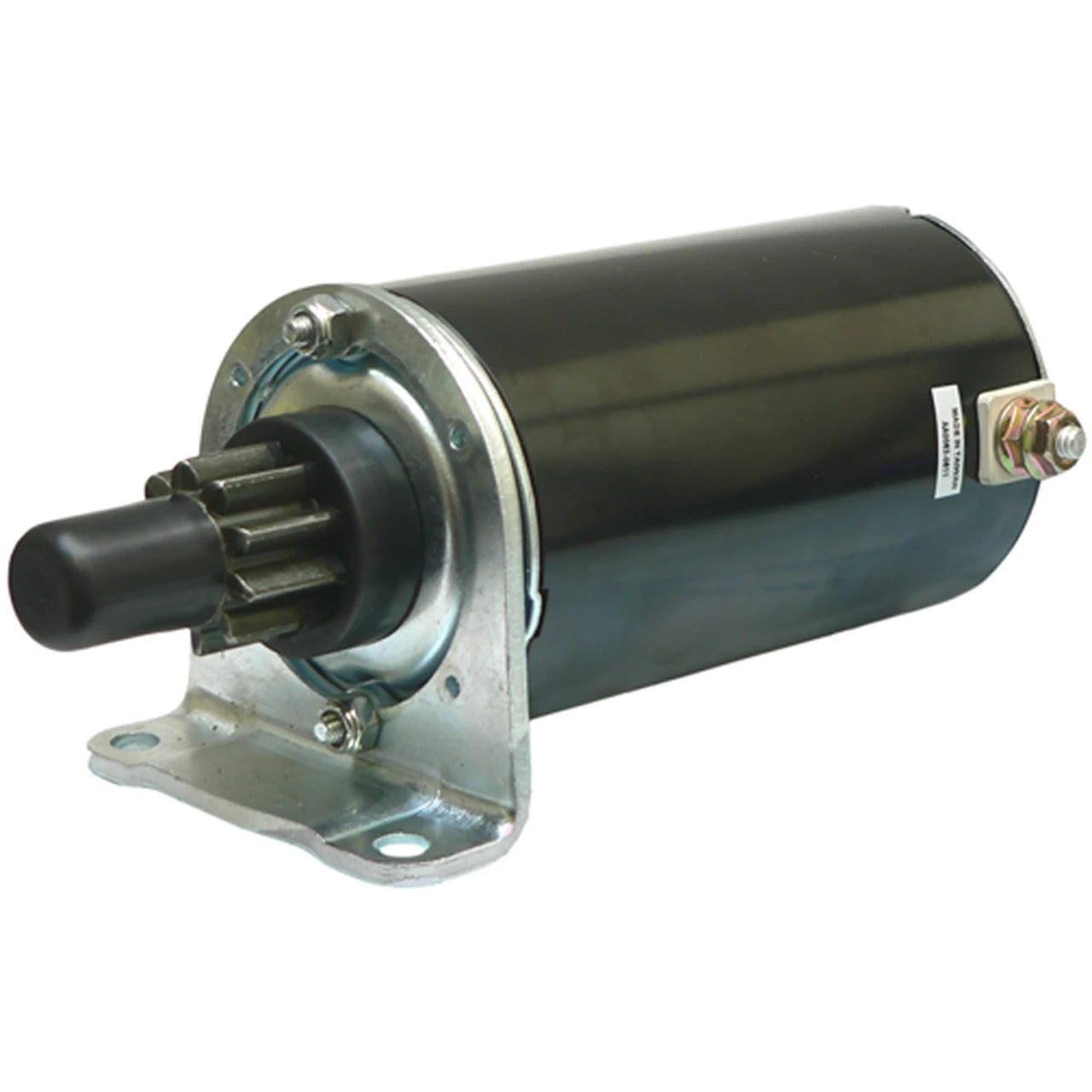

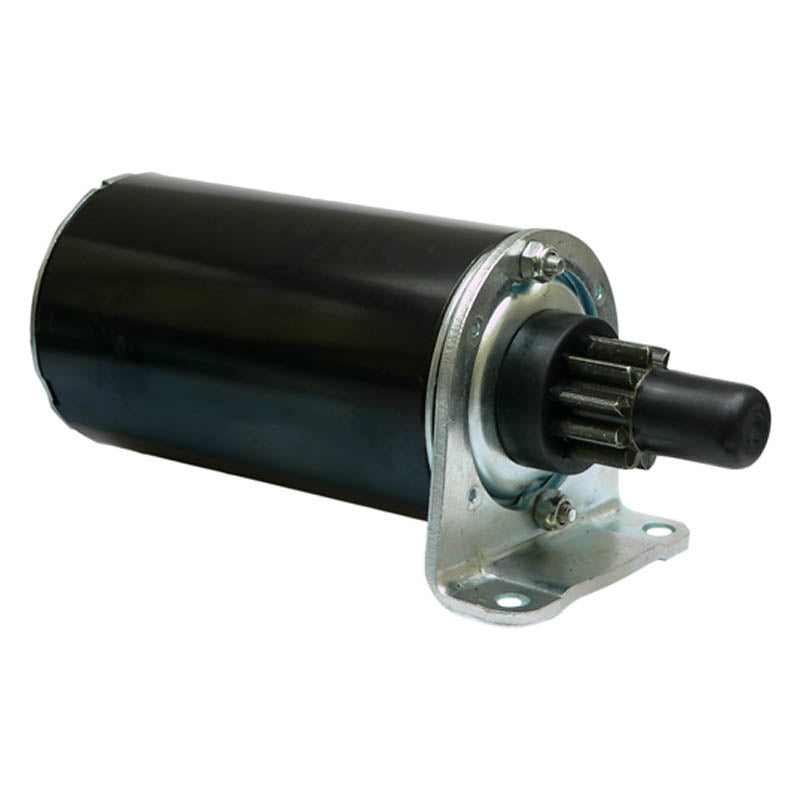

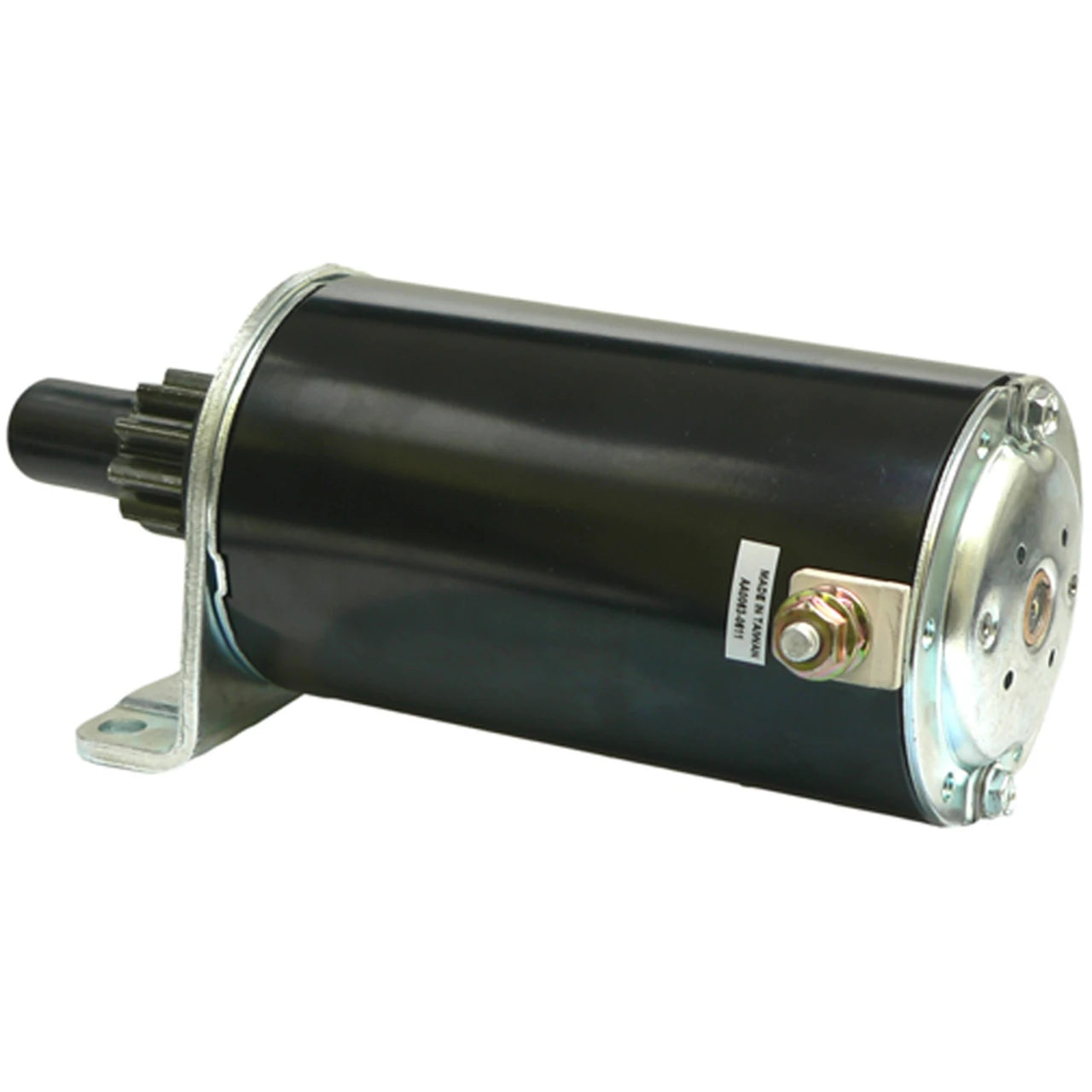

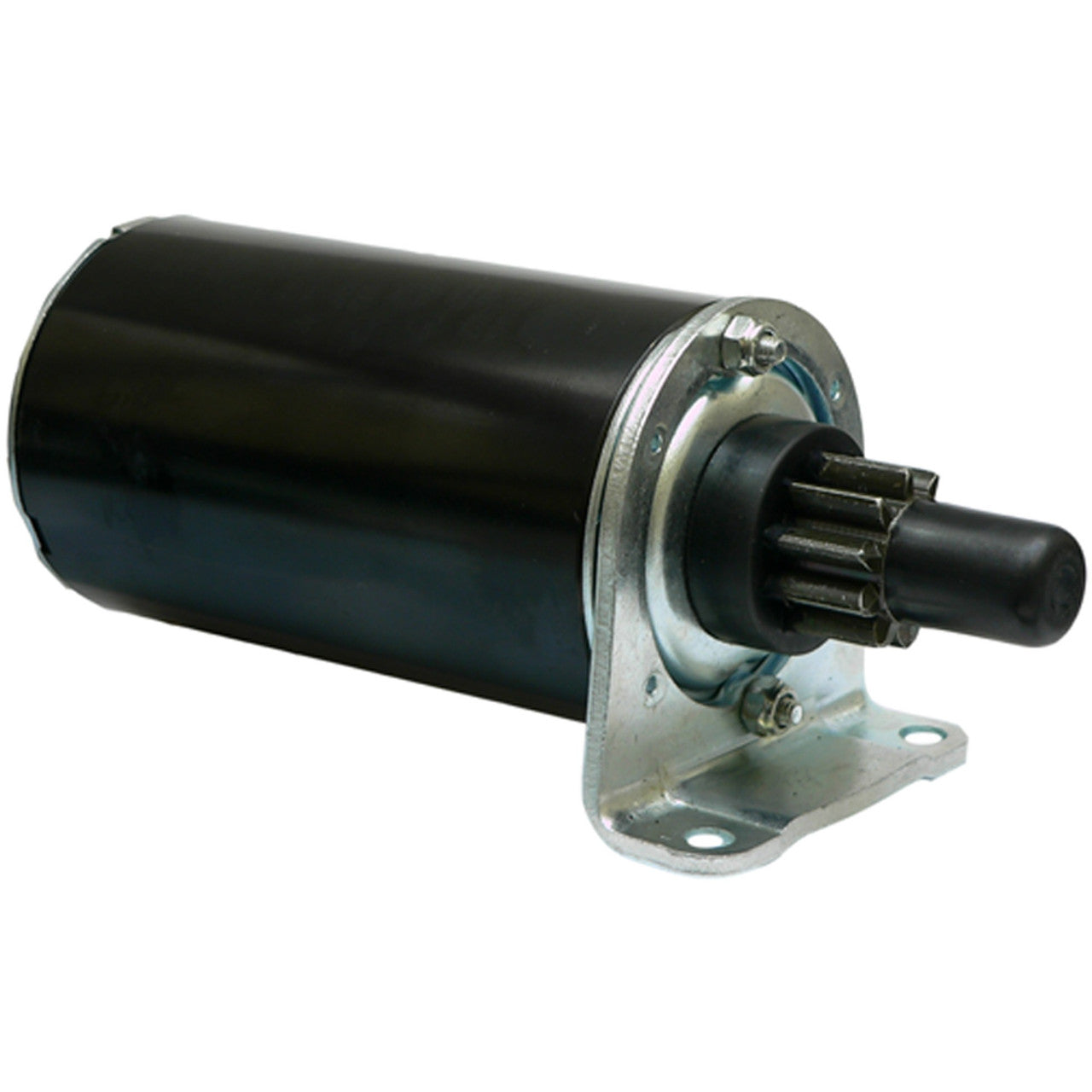

Starter Motor for Kawasaki FH-Series - Cub Cadet, Toro & John Deere
12V, CCW, 10-tooth PMDD starter - replaces Kawasaki 21163-7001 / 7010 / 7022 / 7029
This starter motor is a direct-fit replacement for the Kawasaki FH-series engine range, built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place. The same starter is used across a very wide spread of commercial and domestic machines - Cub Cadet Tank and Z-Force mowers, Toro Z Master and TimeCutter zero-turns, John Deere Z-Trak and X-series tractors, and New Holland MZ and MY yard tractors.
It runs on 12 volts, turns counter-clockwise (CCW) and uses a 10-tooth drive gear on a permanent-magnet direct-drive (PMDD) motor, matching the specification of the original Kawasaki unit. The drive gear engages the engine's flywheel ring gear only while cranking and retracts automatically once the engine fires, so no adjustment is needed after fitting.
Key Features
- Direct OEM fit and function for the listed Kawasaki FH engines
- 12-volt permanent-magnet direct-drive (PMDD) motor
- Counter-clockwise (CCW) rotation, 10-tooth drive gear
- Covers 15HP to 28HP Kawasaki FH twins
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW |
| Drive Teeth | 10 |
| Starter Type | PMDD |
| Engine Application | Kawasaki FH-series V-twin |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki FH451V, FH500V, FH531V, FH541V, FH580V, FH601D, FH601V, FH641D, FH641V, FH661V, FH680D, FH680V, FH721D, FH721V & FH770D engines | All |
| Cub Cadet M48-KW, M48-KW Tank, M48-KWS, M54-KW Tank, M60-KW Tank, M60-KW ROPS Tank | 2002-2006 |
| Cub Cadet 3648, 3654, 3660 riding mowers | 2001 |
| Cub Cadet H1748, H1952, HF1748, HF1954, HFF1748 wide-area mowers | 2002-2006 |
| Cub Cadet RZT50, Z-Force 15, Z-Force 60 zero-turn mowers | 2003-2006 |
| John Deere Z445 & Z465 Z-Trak, X320, X324 & X360 (Kawasaki engine) | All |
| Toro Z Master Z147, Z149, Z153, Z255, Z300, Z334, Z340, Z400, Z441, Z449, Z450, Z453, Z500, Z528, Z550, Z555, Z558 | 1999-2009 |
| Toro TimeCutter Z / ZX 17-44ZX, 18-52ZX, 19-52ZX, Z17-44, Z18-52, Z5040, ZD420T, ZX440, ZX525 | 2002-2009 |
| Toro 417XT, 419XT, 420 & 430 garden tractors, MZ19H riding mower, Precision Z3500 HLX | 2003-2008 |
| Toro GrandStand 74558 & 74559 walk-behind mowers | 2009 |
| New Holland MZ19H, MY17 & MY19 yard tractors | 2004 onwards |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21163-7001, 21163-7010, 21163-7022, 21163-7029 | Kawasaki |
| AM133369, MIA11479, MIA11480, MIA11563 | John Deere |
| KAW211637001, KAW211637010 | New Holland |
| SAB0120 | Arrowhead |
| 5951 | Lester |
| 113593 | Cargo |
| 2-2432-UT | WAI |
| 3200-7080 | Atlantic |
| 710-011 | Barsanco |
| MS-6027 | Dixie |
| 10561 | Rotary |
| 106-216 | PIC |
| 410-22022 | J&N Electrical Products |
Frequently Asked Questions
Will this starter fit my engine without modification?
Yes. Provided your engine is one of the Kawasaki FH engines listed above, this starter bolts straight in with no modification needed.
What's included?
The starter motor unit only, complete with its drive gear ready to fit. No mounting bolts or brushes are included unless stated.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
Does the rotation direction matter?
Yes. This unit turns counter-clockwise (CCW) as viewed from the drive end, matching the original Kawasaki FH-series starter. A clockwise unit will not engage correctly.
