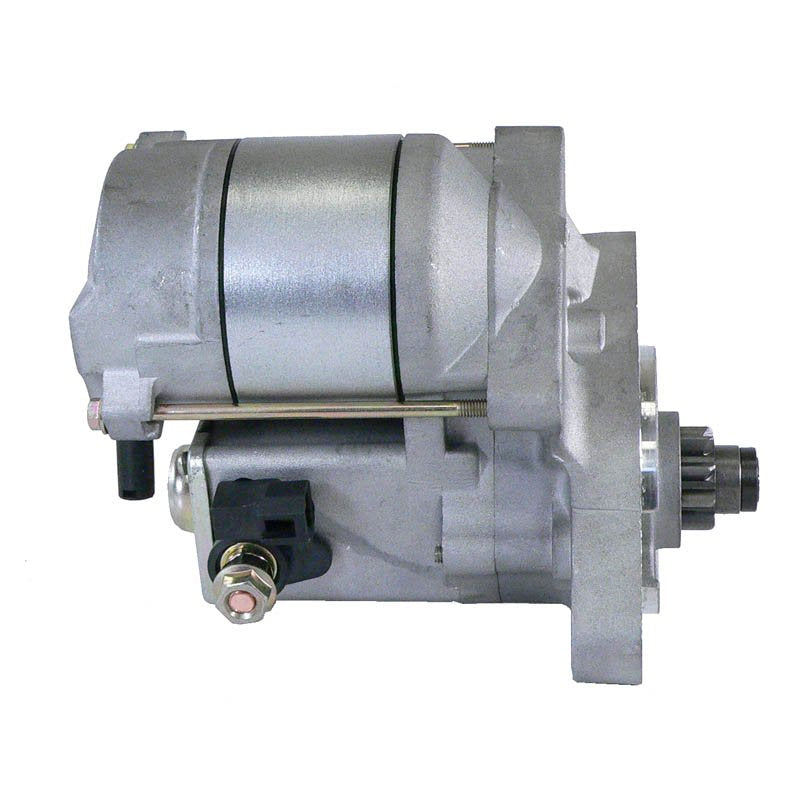

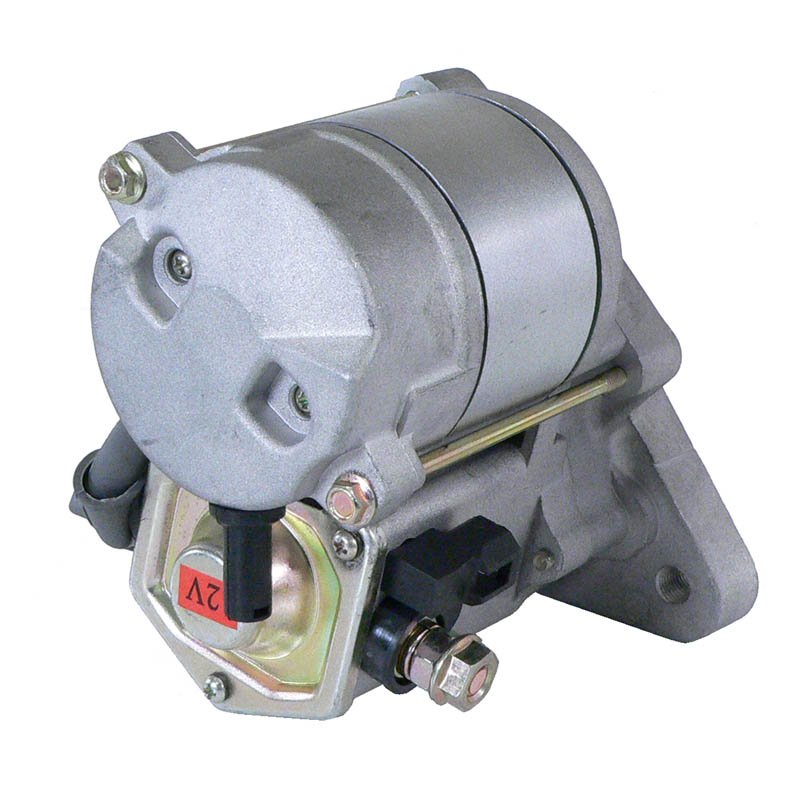

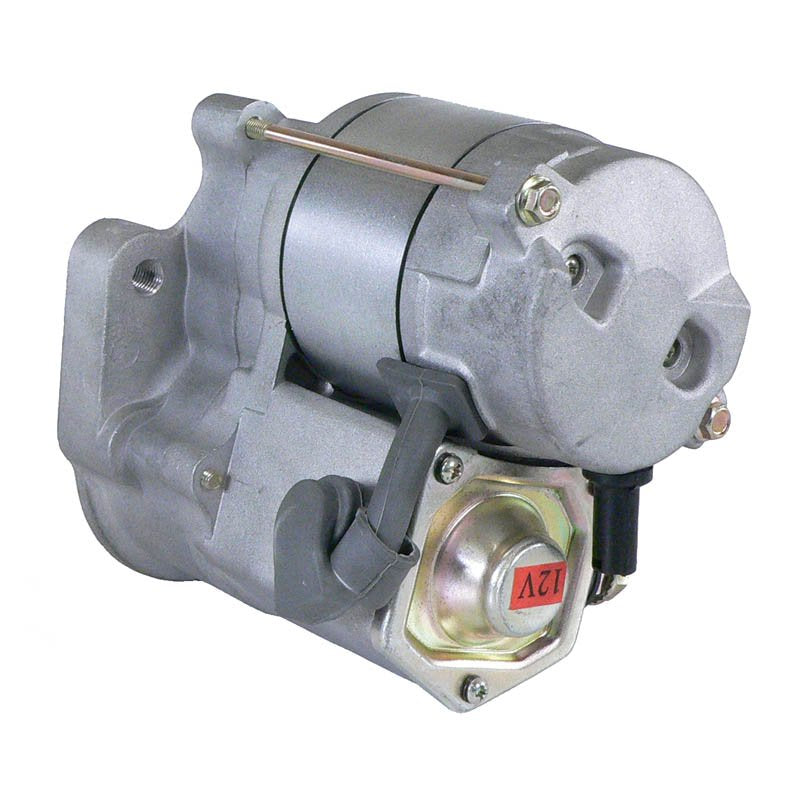

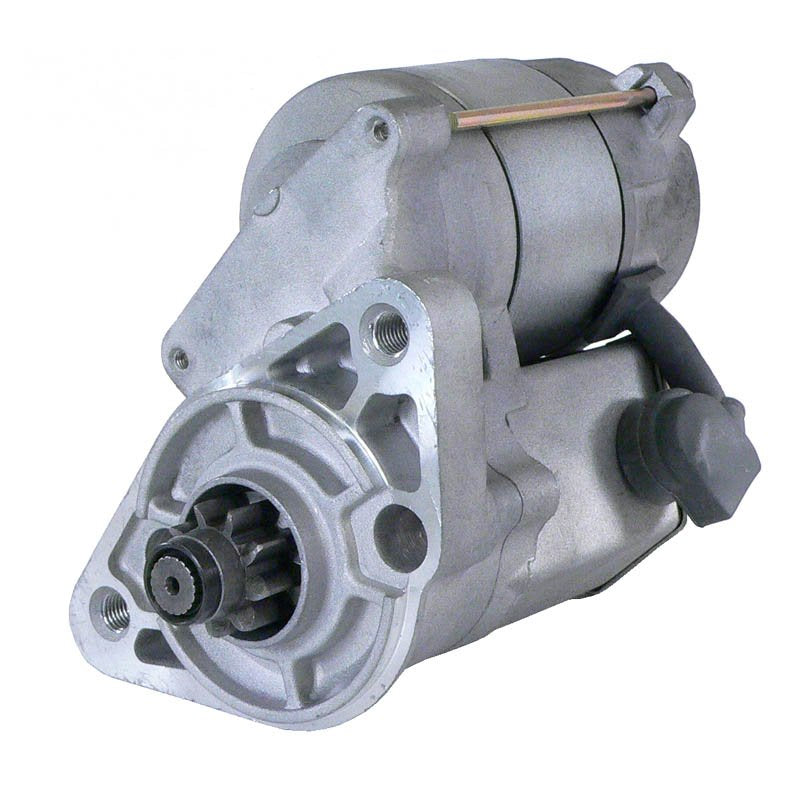

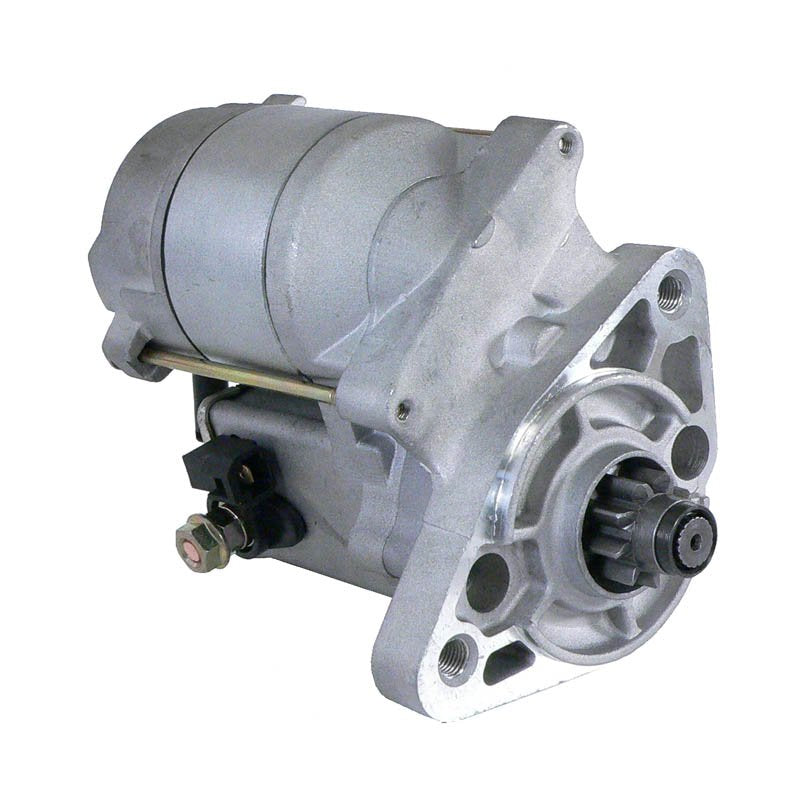

Starter Motor for Kawasaki Mule 2510, 3010 & 4010 KAF950 Diesel
Fits Kawasaki Mule 2510, 3010 and 4010 KAF950 diesel (Daihatsu engine), 2000-2013
This is a direct-fit replacement starter motor built to OEM specifications for the Kawasaki Mule 2510, 3010 and 4010 KAF950 diesel, powered by the Daihatsu engine fitted to these utility vehicles. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment.
The unit is an OSGR (offset gear reduction) design running on a standard 12-volt electrical system, turning clockwise (CW), delivering 1.2kW output and using a 9-tooth drive pinion with both mounting ears threaded, matching the specification of the starter originally fitted to these Mule diesel models. It replaces Daihatsu 28100-B8010, Denso 428000-3170 and Briggs & Stratton 825700.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt, 1.2kW starter motor
- OSGR (offset gear reduction) design
- Clockwise (CW) rotation
- 9-tooth drive pinion
- Both mounting ears threaded
- Covers Mule 2510, 3010 and 4010 diesel models from 2000 to 2013
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Teeth | 9 |
| Output | 1.2kW |
| Starter Type | OSGR (offset gear reduction) |
| Mounting | Both ears threaded, 2 threaded mounting holes |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KAF950A Mule 2510 Diesel | 2000-2002 |
| Kawasaki KAF950B Mule 3010 Diesel 4x4 | 2001-2007 |
| Kawasaki KAF950D Mule 3010 Diesel 4x4 | 2008 |
| Kawasaki KAF950F Mule 4010 Diesel 4x4 | 2009-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 28100-B8010 | Daihatsu |
| 428000-3170 | Denso |
| 825700 | Briggs & Stratton |
| SND0523 | Arrowhead |
| 18630A | Lester |
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement for the Kawasaki Mule 2510, 3010 and 4010 KAF950 diesel and requires no modification to install.
Which Mule model years does this cover?
It covers the KAF950A Mule 2510 Diesel from 2000 to 2002, the KAF950B Mule 3010 Diesel 4x4 from 2001 to 2007, the KAF950D Mule 3010 Diesel 4x4 for 2008, and the KAF950F Mule 4010 Diesel 4x4 from 2009 to 2013.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key is turned.
How is this different from the version with only one ear threaded?
This starter has both mounting ears threaded, unlike some earlier or alternate versions which have only one ear threaded. Please check your original starter's mounting ears before ordering to ensure the correct match.
