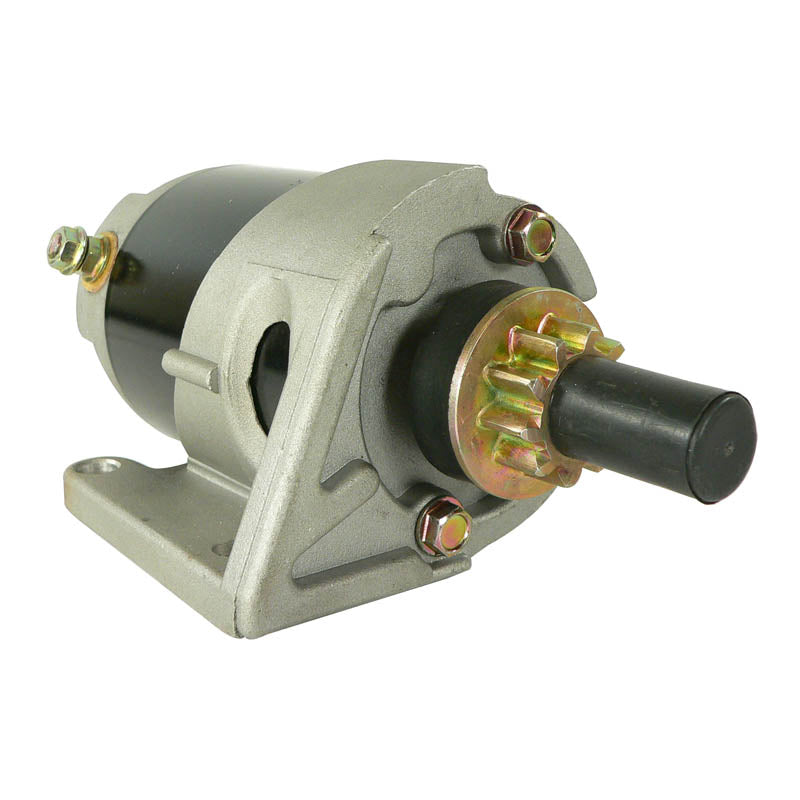

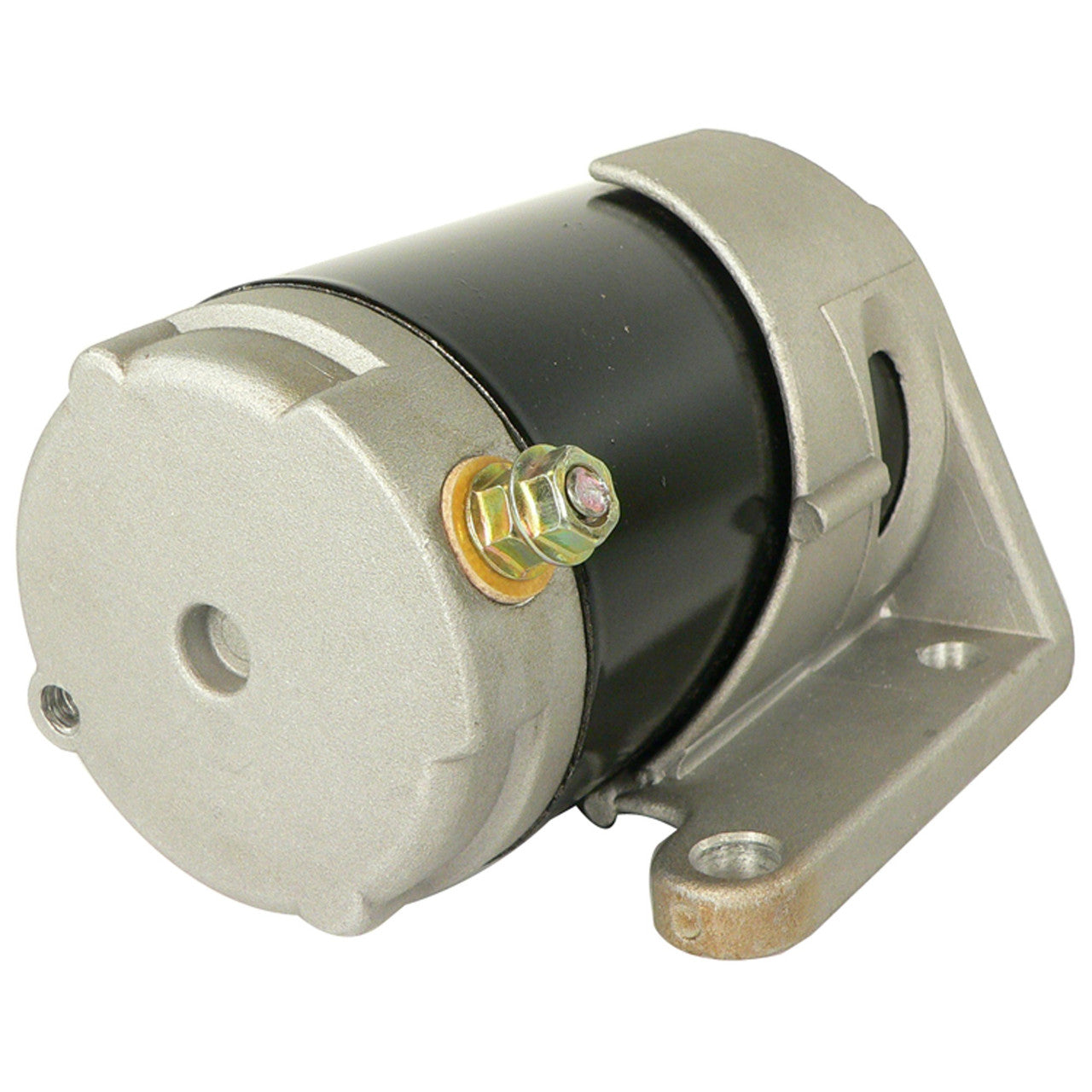

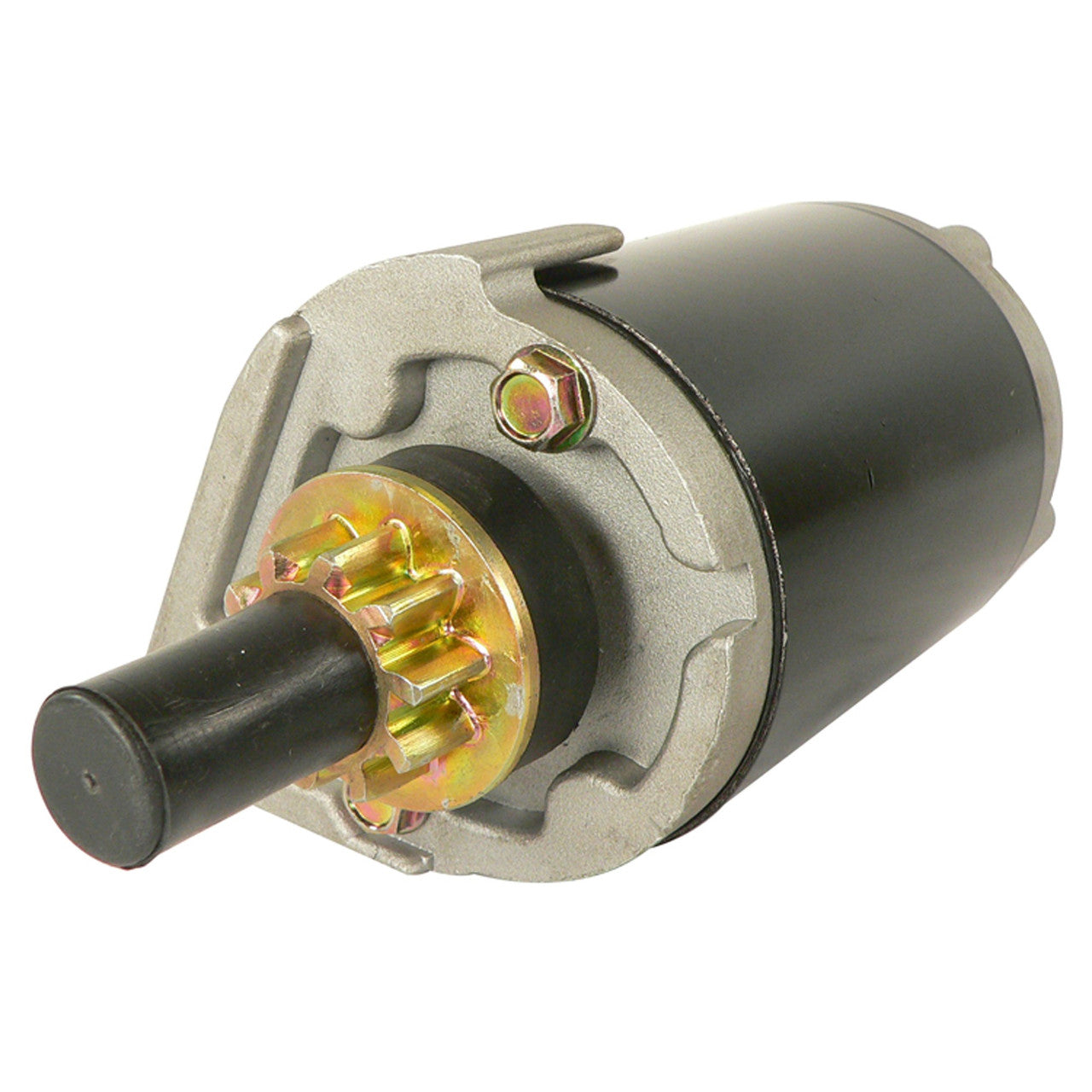

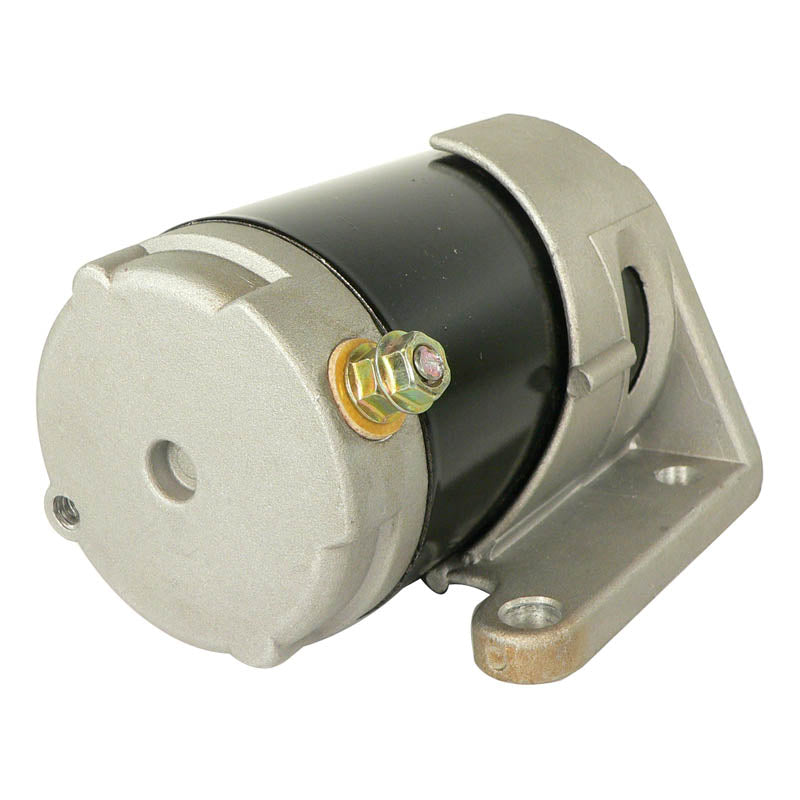

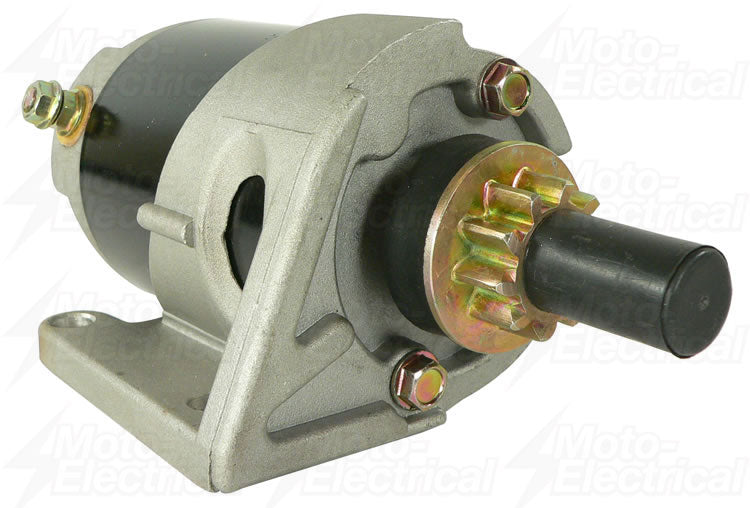

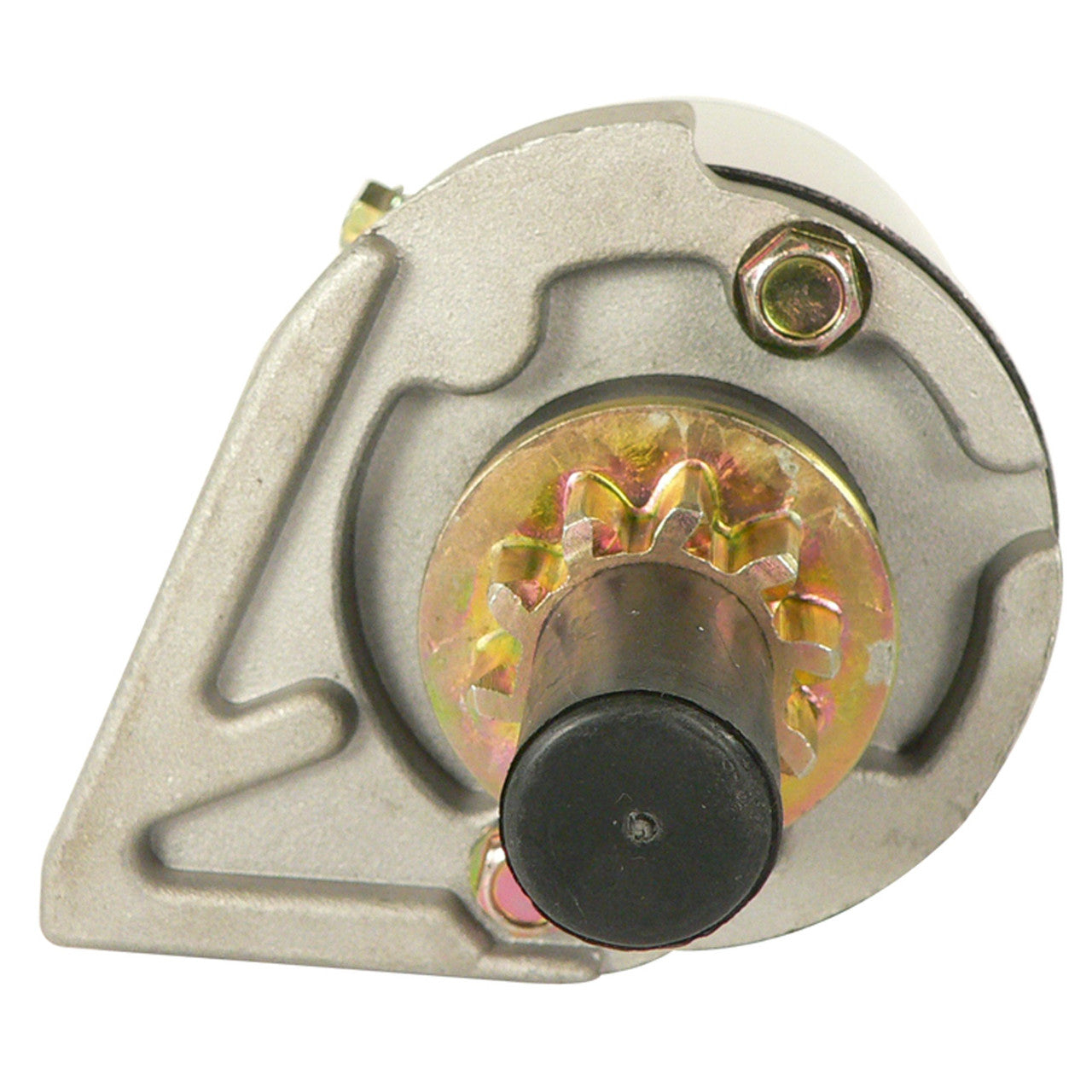

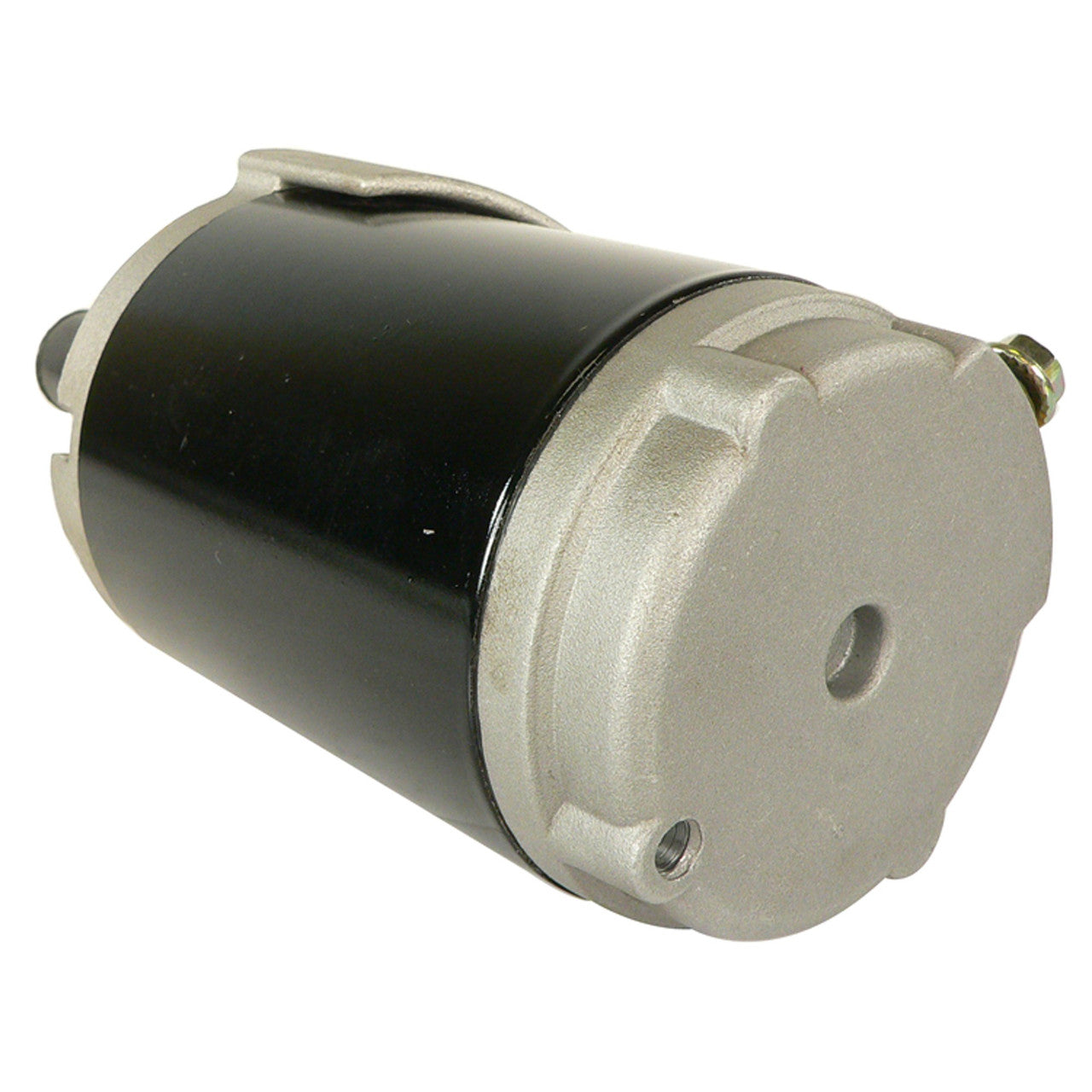

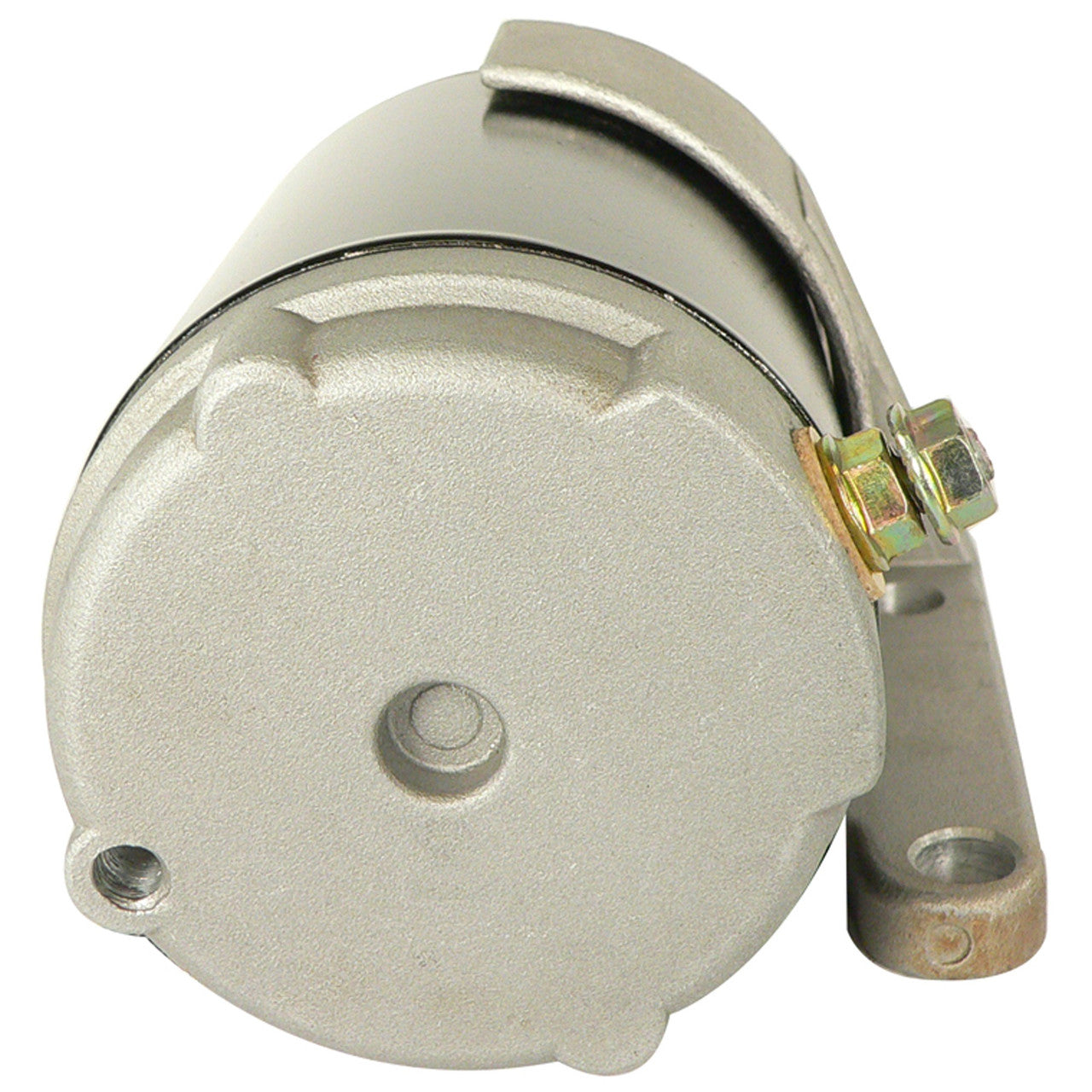

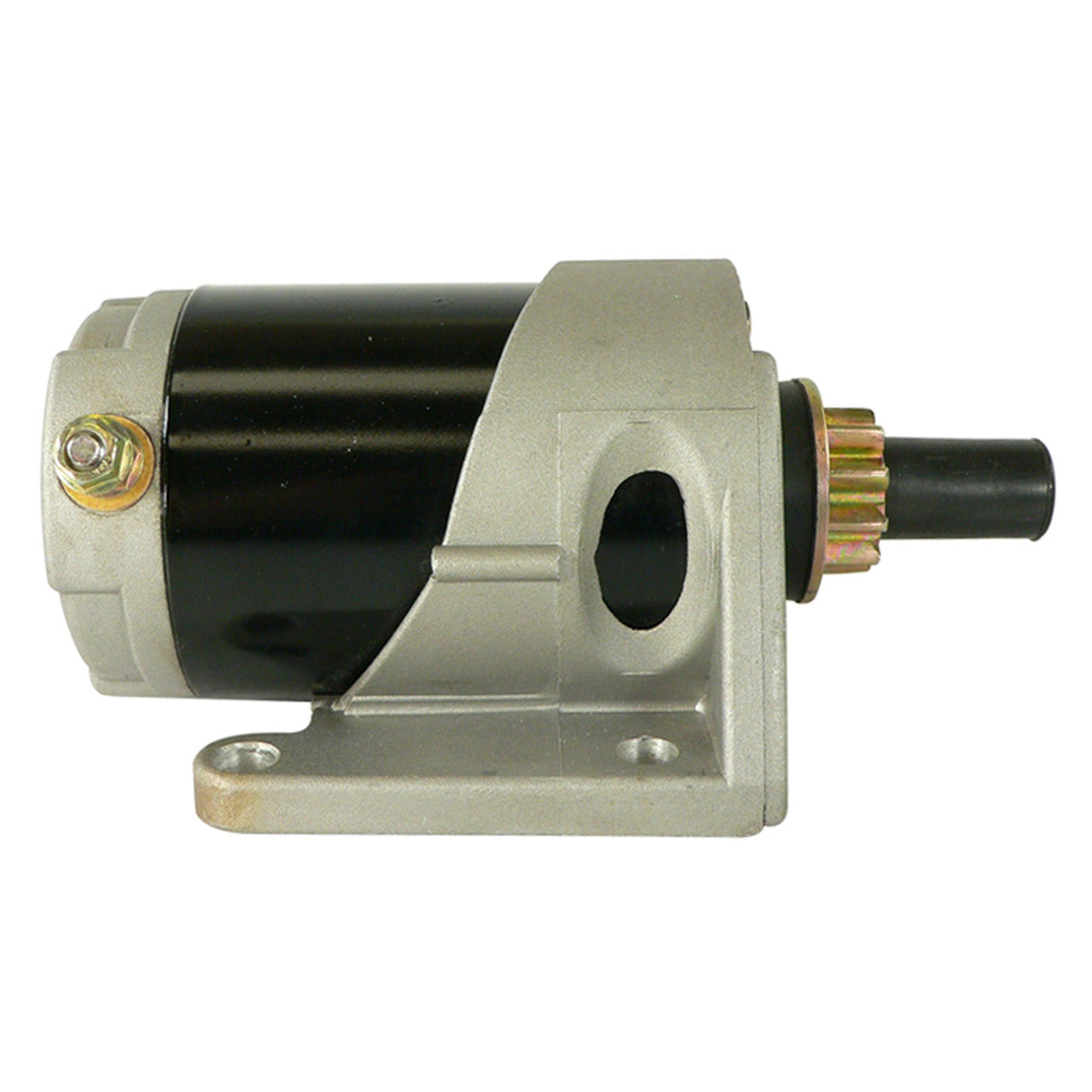

Starter Motor for Kohler K211, K301, K321 & K341 Engines 10-14HP
Kohler K-series air-cooled engines, 10HP to 14HP - 12V, counter-clockwise rotation, 10-tooth
A starter motor is the component that cranks the engine over to begin combustion. If it fails to engage, spins without turning the engine, or does not respond at all when the key is turned or the start button is pressed, the engine will not start. This starter motor is built for the Kohler K-series air-cooled engines - K-211, K-301, K-321 and K-341 - covering the 10HP, 12HP and 14HP ratings, engineered as a direct replacement that matches the original unit's fit, mounting and function.
It is a 12V permanent magnet direct drive (PMDD) unit with counter-clockwise (CCW) rotation and a 10-tooth drive pinion, with a motor housing length of 3.390in matching the original Kohler specification.
Key Features
- Direct fit for Kohler K-211, K-301, K-321 and K-341 air-cooled engines
- Covers the Kohler 10HP, 12HP and 14HP ratings
- 12V starter motor, counter-clockwise (CCW) rotation
- 10-tooth drive pinion, PMDD design
- Motor housing length 3.390in
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Rotation |
Counter-Clockwise (CCW) |
| Teeth |
10 |
| Starter Type |
PMDD (permanent magnet direct drive) |
| Motor Housing Length |
3.390in |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kohler K-211 air-cooled engine (10HP) |
All years |
| Kohler K-301 air-cooled engine (12HP) |
All years |
| Kohler K-321 air-cooled engine (14HP) |
All years |
| Kohler K-341 air-cooled engine |
All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 41-098-10, 45-098-10 |
Kohler |
| A236292, A237132, A237511 |
OEM / Interchange |
| SAB0049 |
Arrowhead |
| 5760 |
Lester |
| 111700 |
Cargo |
| 96761 |
Remy Light Duty |
| 9812 |
Rotary |
| STR-1051 |
NSA / Unipoint |
| SM56657, SMH12A3, SMH12A5 |
United Tech |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is built to match the original Kohler K-series unit's housing length, rotation and drive pinion, so it installs as a direct swap.
What's included?
One new 12V starter motor, ready to fit.
How do I know my old starter has failed?
Common signs are a single click with no crank, a slow or straining crank, or no response at all when the key is turned or the start button pressed.
How do I confirm this fits my engine?
Check the model designation cast into your Kohler engine's blower housing or shroud plate against K-211, K-301, K-321 and K-341, and compare the 10-tooth drive and 3.390in motor housing length if you have your old unit to hand.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
