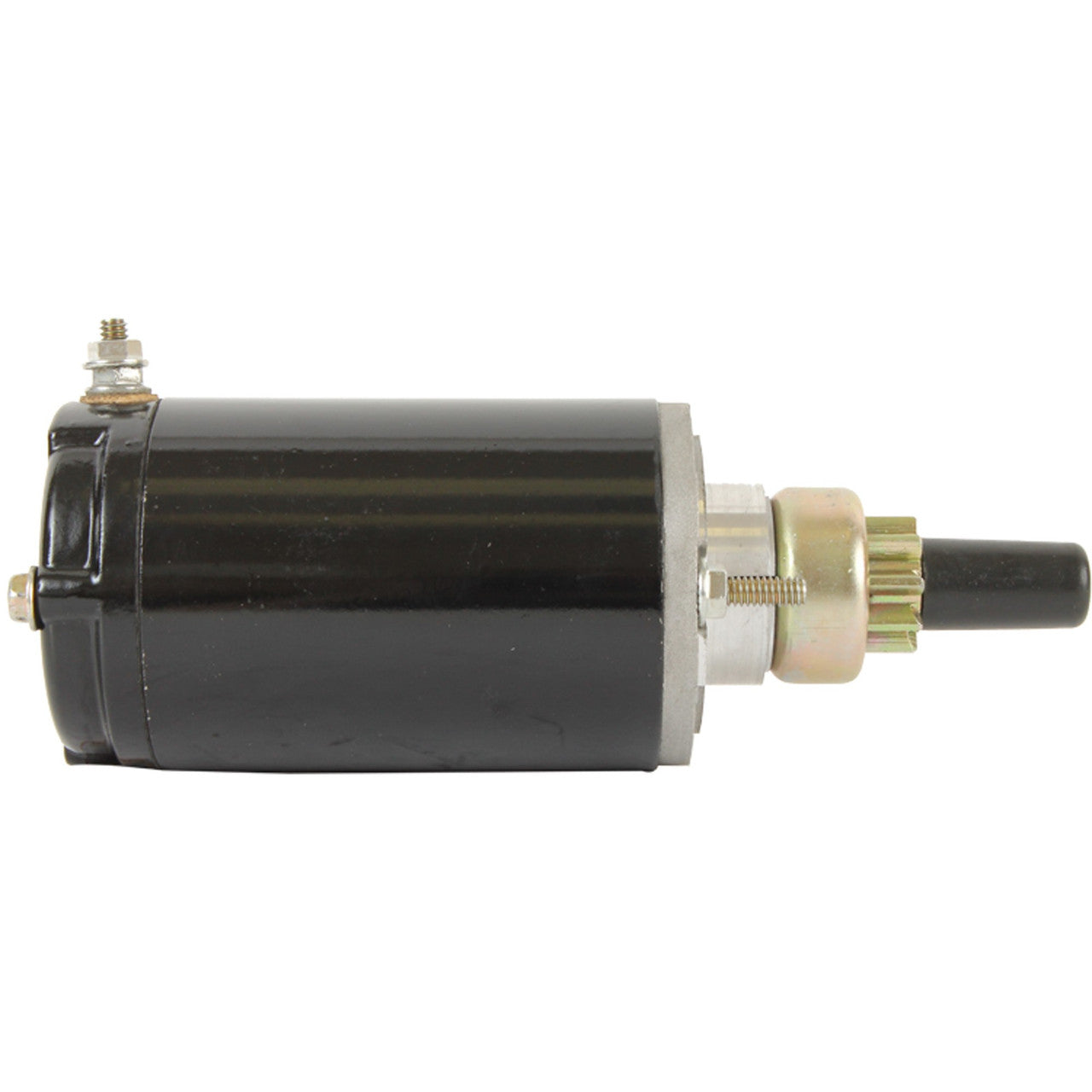

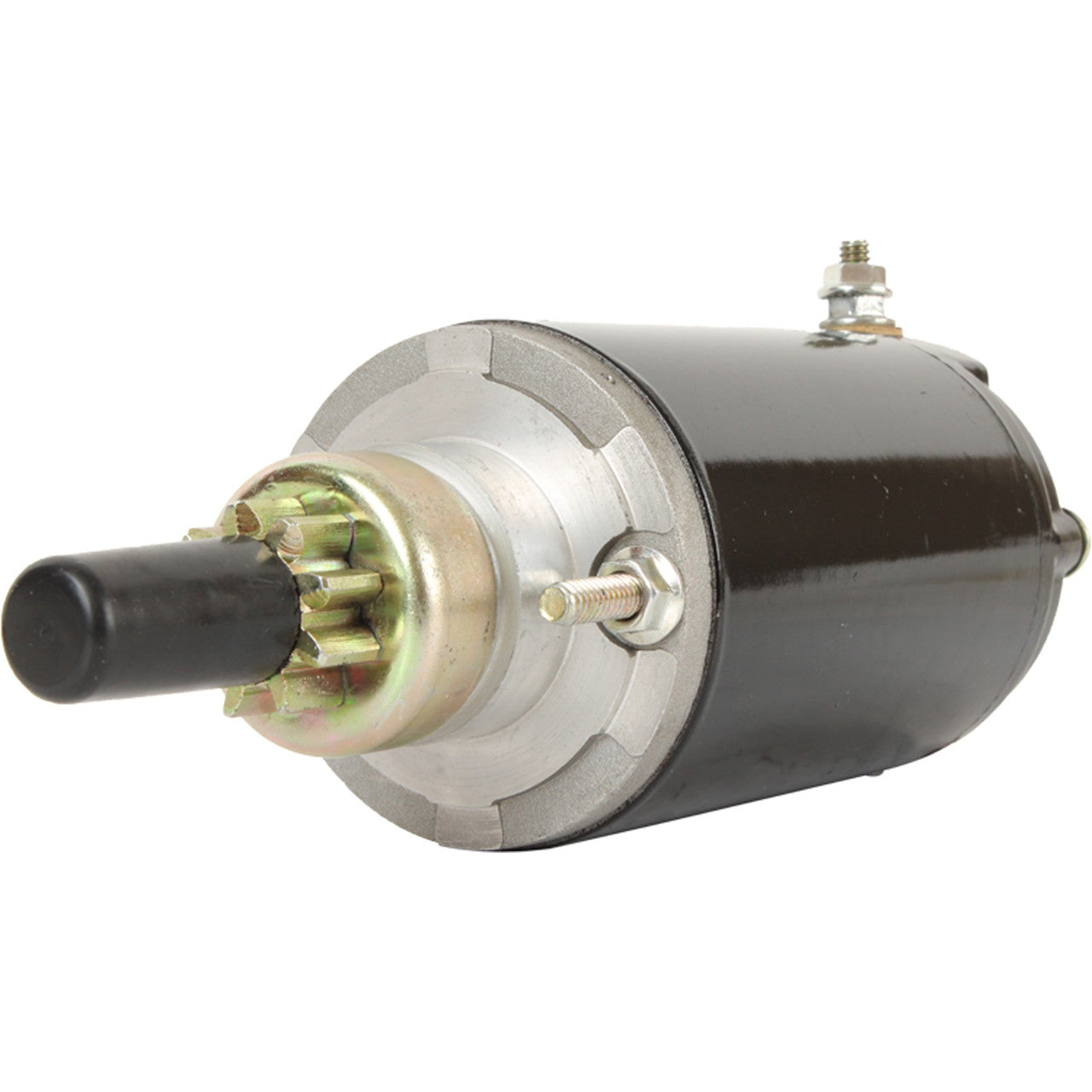

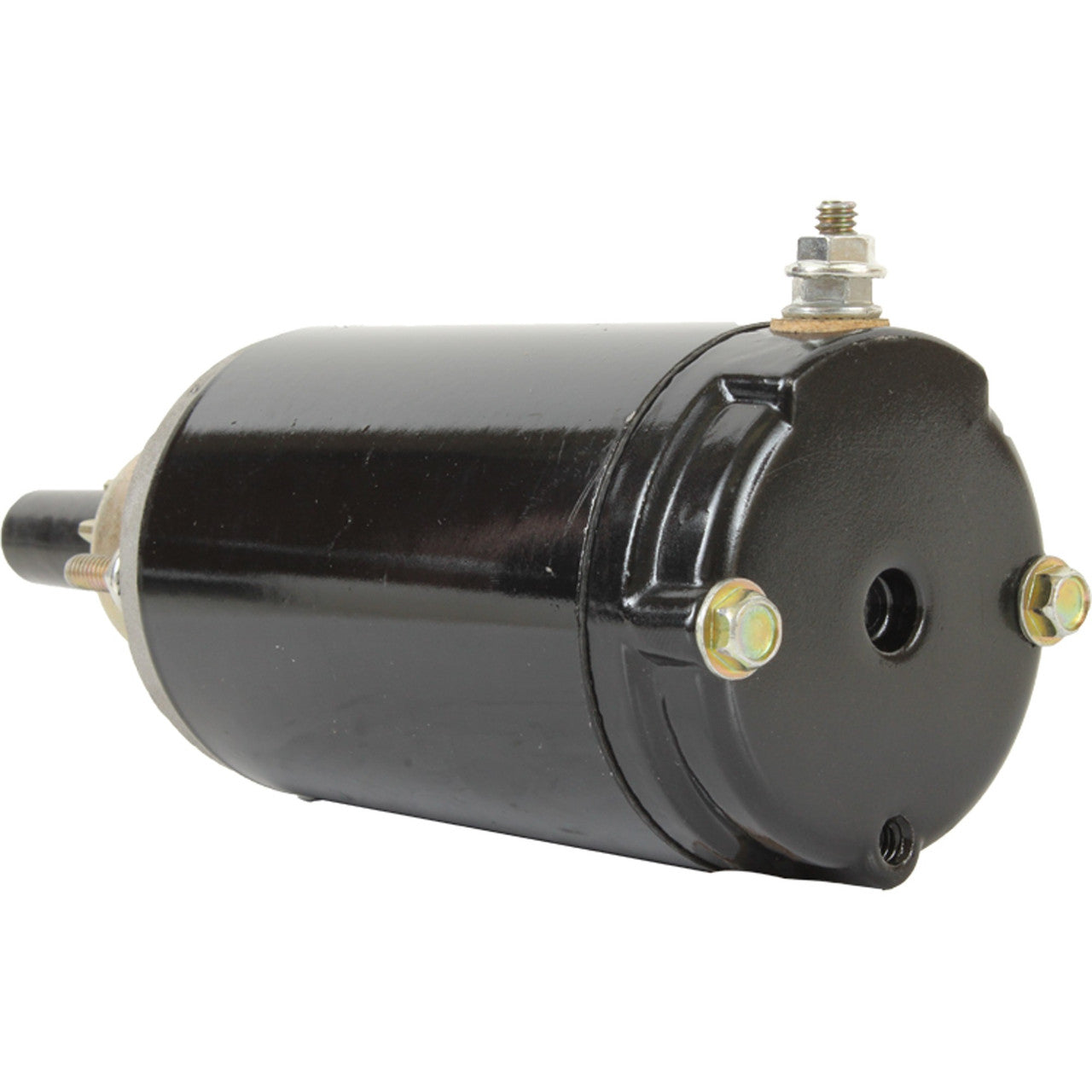

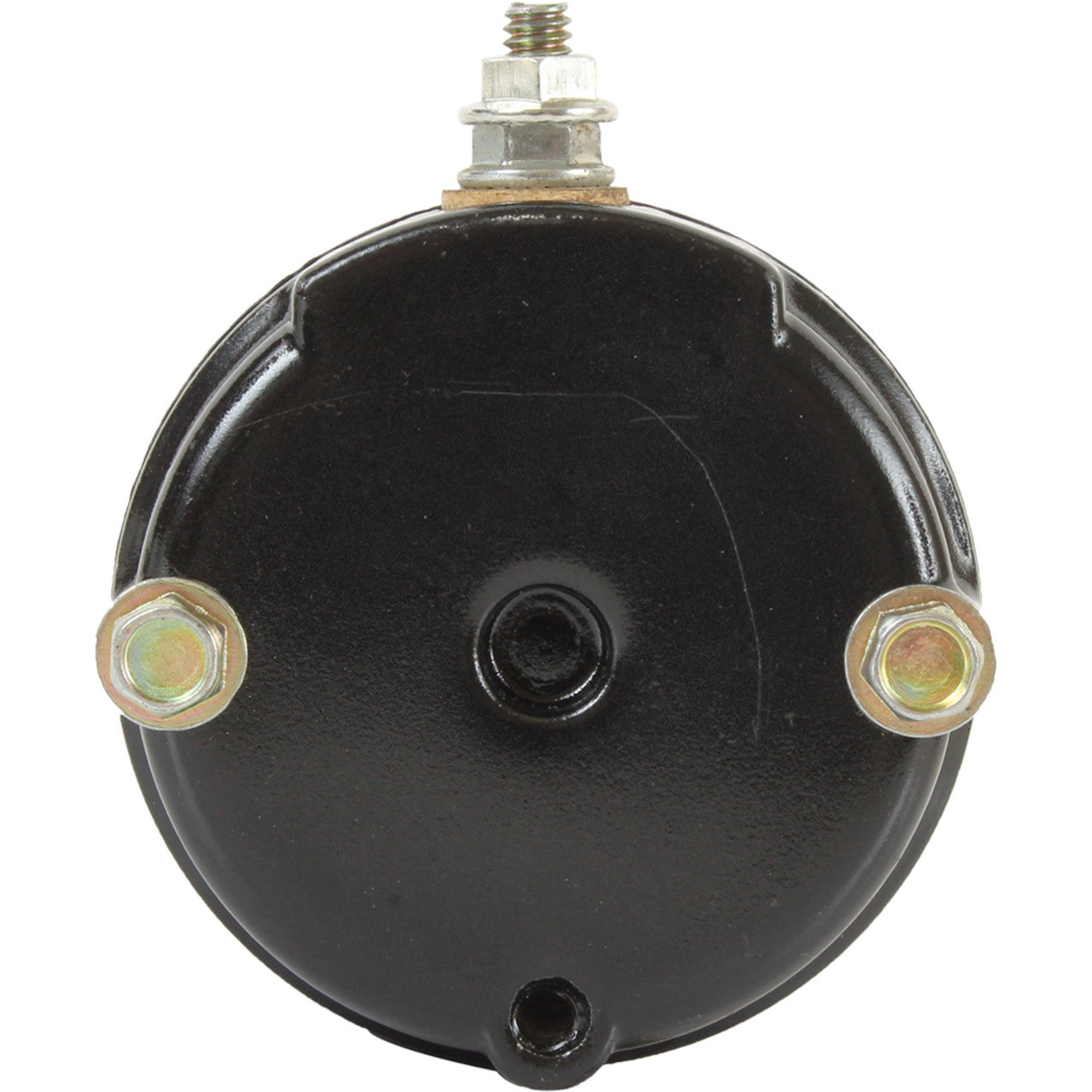

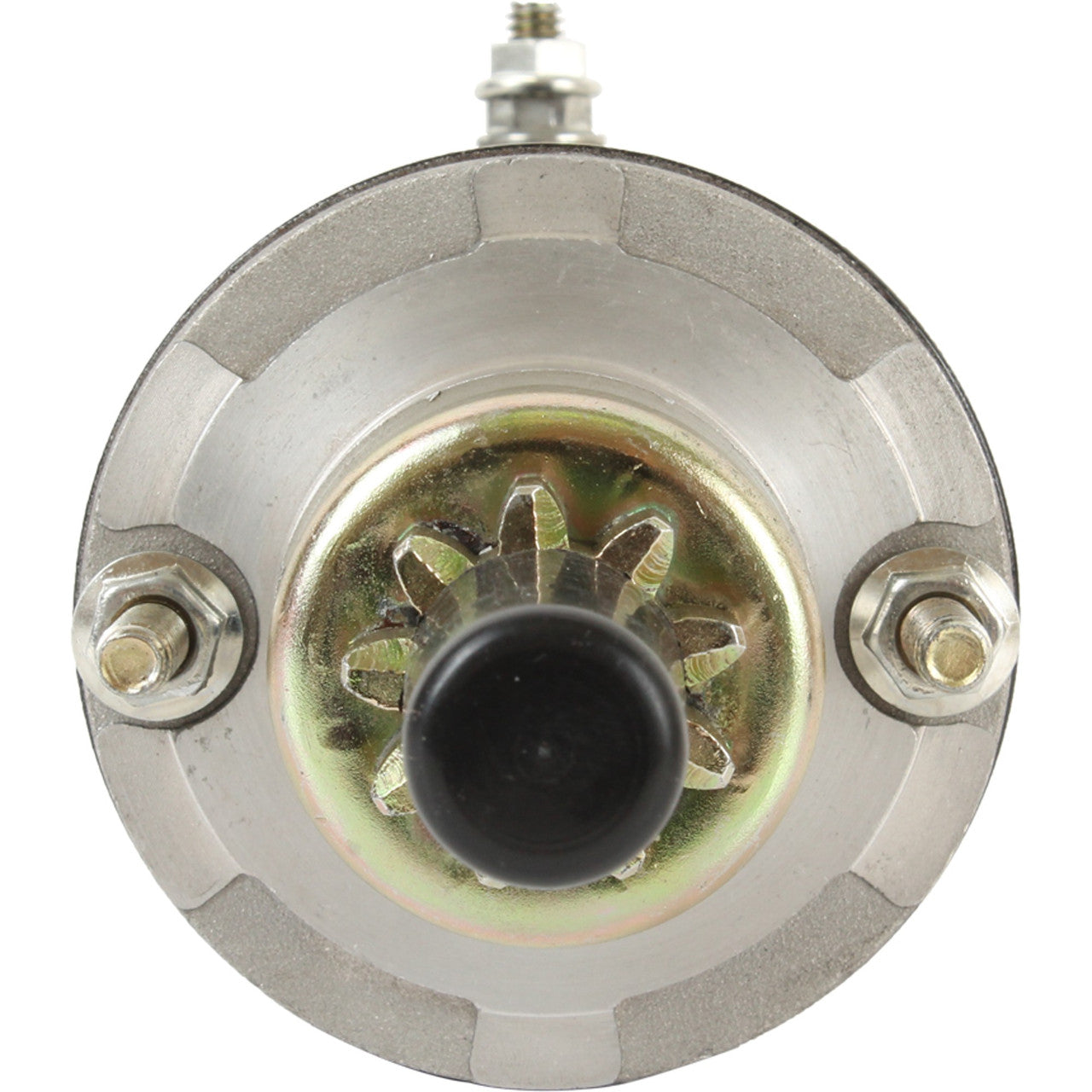

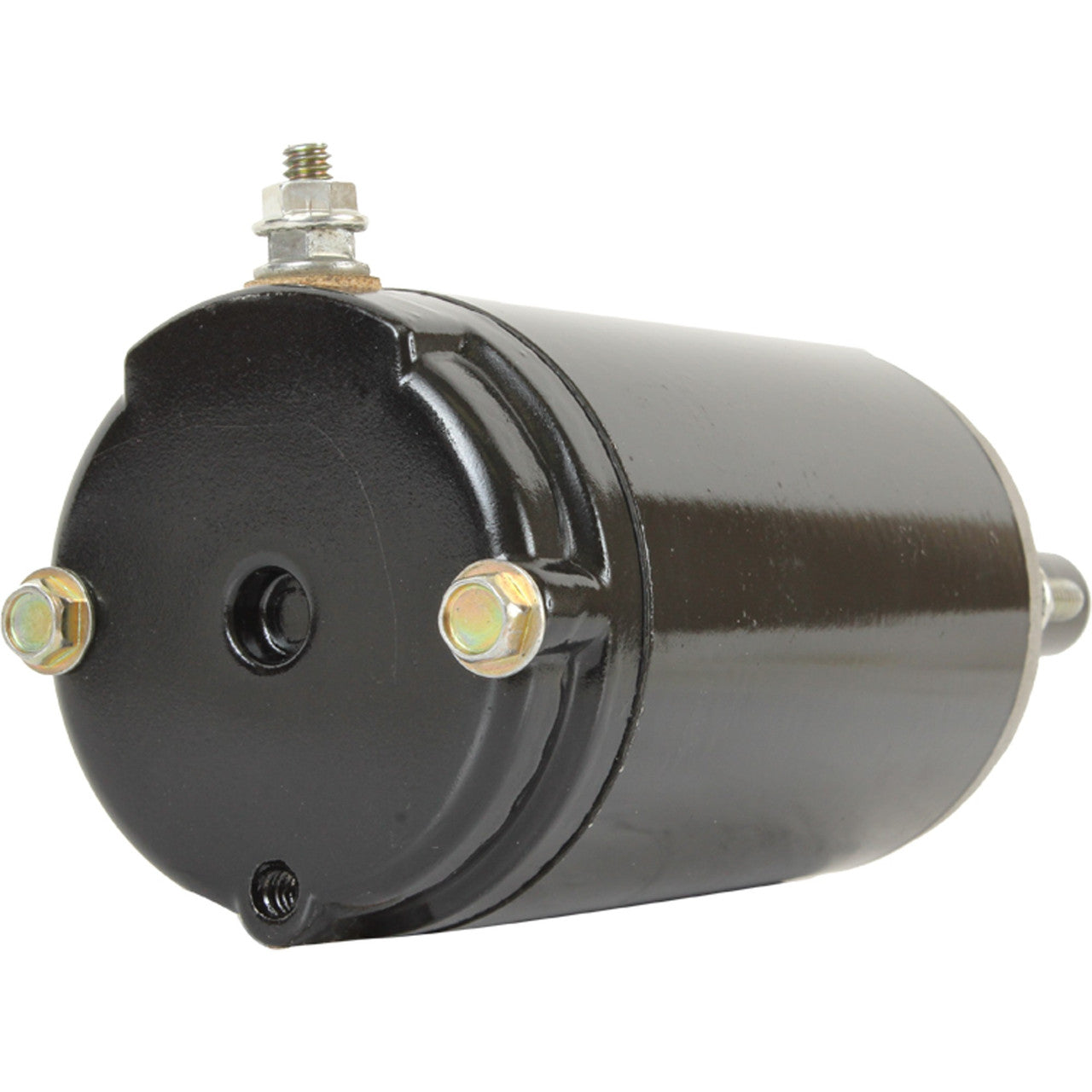

Starter Motor for Kohler KT17-KT19, Magnum M18-M20 & MV16-MV18 Engines
Kohler KT, Magnum M and MV series engines, Cub Cadet garden tractors 1985-1993 - 12V, CCW
A starter motor is the component that cranks the engine over to begin combustion. If it fails to engage, spins without turning the engine, or does not respond at all when the key is turned or the start button is pressed, the engine will not start. This starter motor is built for Kohler KT series (KT17, KT19), Magnum (M18-M20) and MV (MV16S, MV17, MV18) engine applications, engineered as a direct replacement that matches the original unit's fit, mounting and function.
It is a 12V permanent magnet direct drive (PMDD) unit with counter-clockwise (CCW) rotation and a 9-tooth drive pinion, with a motor housing length of 4.033in matching the original Kohler specification. It is the starter used across the Cub Cadet 18HP Kohler-engined garden tractor range built between 1985 and 1993.
Key Features
- Direct fit for Kohler KT17, KT19, Magnum M18-M20 and MV16-MV18 engines
- Fits Cub Cadet garden tractors with the 18HP Kohler engine, 1985-1993
- 12V starter motor, counter-clockwise (CCW) rotation
- 9-tooth drive pinion, PMDD design
- Motor housing length 4.033in
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Counter-Clockwise (CCW) |
| Teeth | 9 |
| Starter Type | PMDD (permanent magnet direct drive) |
| Motor Housing Length | 4.033in |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kohler KT17, KT19, Magnum M18-M20, MV16S, MV17, MV18 Engines | All years |
| Cub Cadet 1415, 1420, 1430, 1541 (18HP Kohler) | 1985-1993 |
| Cub Cadet 1615, 1620, 1710, 1711, 1712, 1715, 1720, 1730 (18HP Kohler) | 1985-1993 |
| Cub Cadet 1806, 1810, 1811, 1812, 1860, 1872, 1882 (18HP Kohler) | 1985-1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 52-098-03, 52-098-09, 52-098-12, 52-098-12-S | Kohler |
| SAB0041 | Arrowhead |
| 5757 | Lester |
| 110949 | Cargo |
| 032546 | Gravely |
| STR-1070 | NSA / Unipoint |
| 96757 | Remy Light Duty |
| 9814 | Rotary |
| 1770540, 1819040, 1819040-M030SM, 5213140-M030SM, 5666240-M030SM | United Tech |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is built to match the original Kohler KT/Magnum/MV series unit's housing length, rotation and drive pinion, so it installs as a direct swap.
What's included?
One new 12V starter motor, ready to fit.
How do I know my old starter has failed?
Common signs are a single click with no crank, a slow or straining crank, or no response at all when the key is turned or the start button pressed.
Which Kohler engines does this cover?
This unit is built for the KT series (KT17, KT19), Magnum M18-M20 and MV16-MV18 engine families - check your engine's model plate against these designations before ordering.
Does it fit my Cub Cadet?
It fits Cub Cadet garden tractors and riding mowers built 1985-1993 with the 18HP Kohler engine - see the fitment guide above for the model list, and match the Kohler part number stamped on your original starter.
