Starter Motor for Komatsu FD40 Forklift - 24V, 11-Tooth, OSGR
Starter Motor for Komatsu FD40 Forklift - 24V, 11-Tooth, OSGR
SKU:410-52019
Free shipping over £150. Terms apply
Couldn't load pickup availability

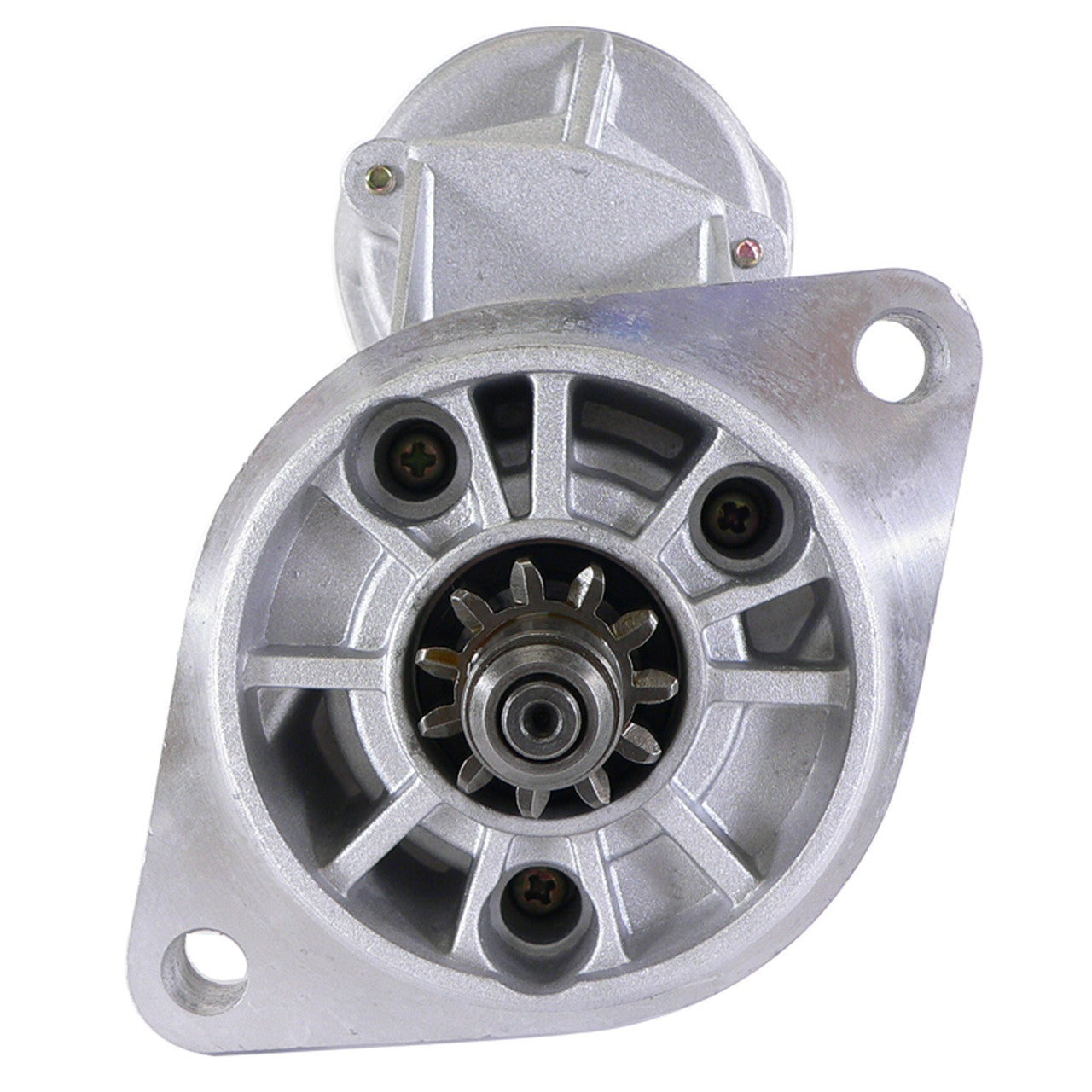

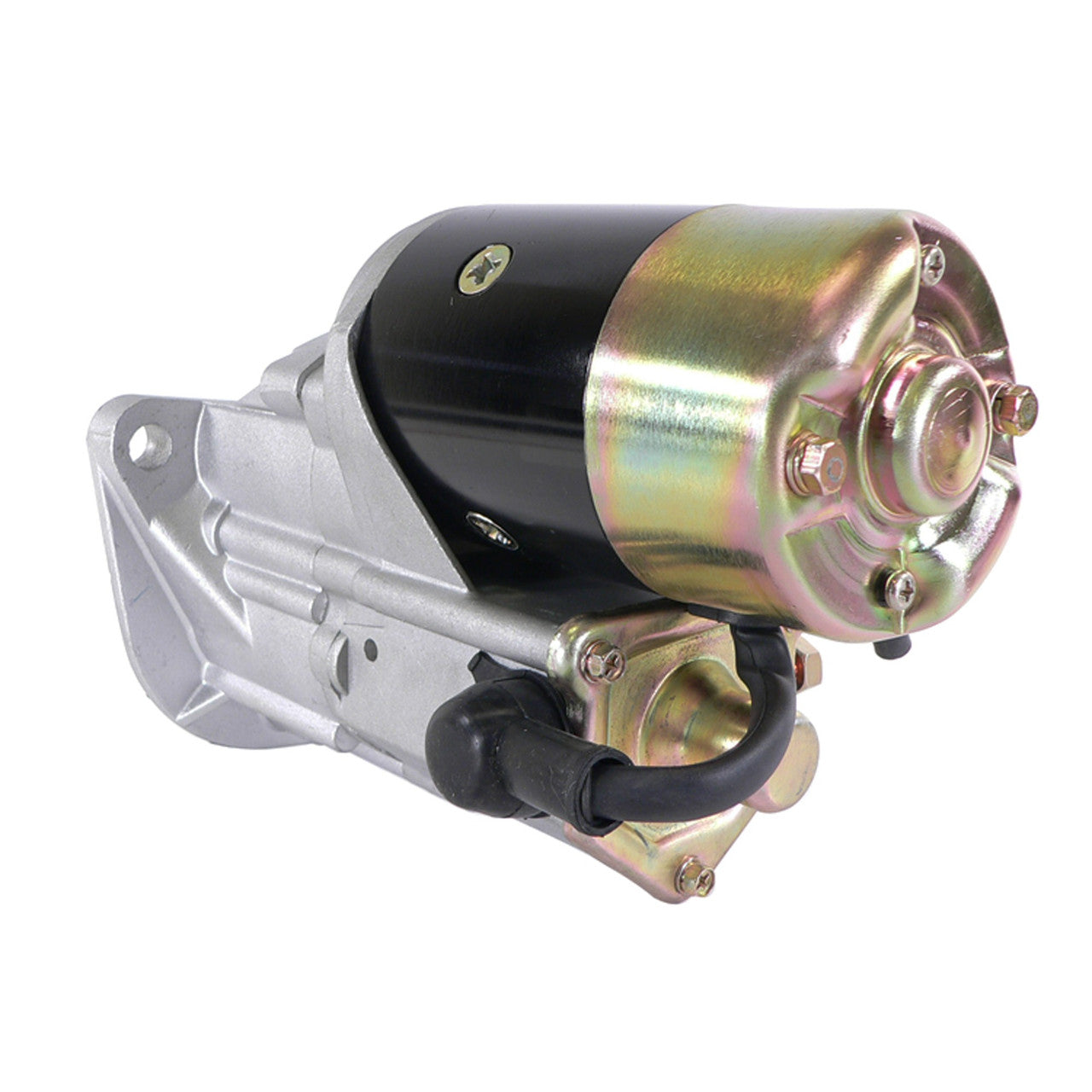

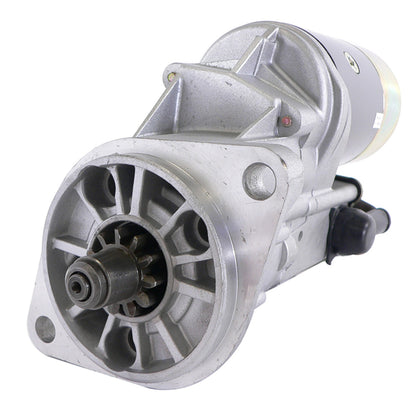

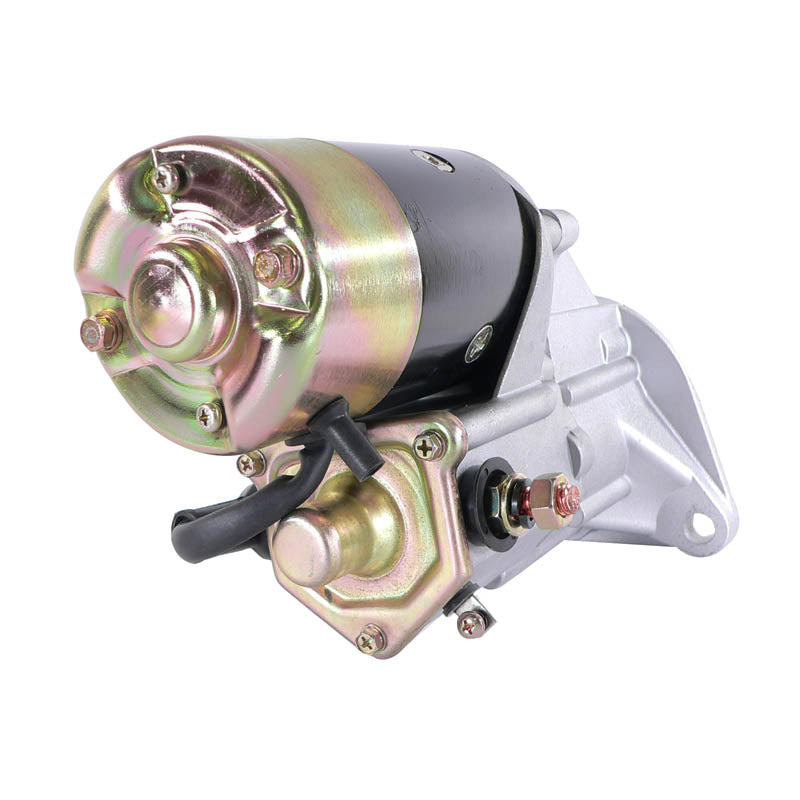

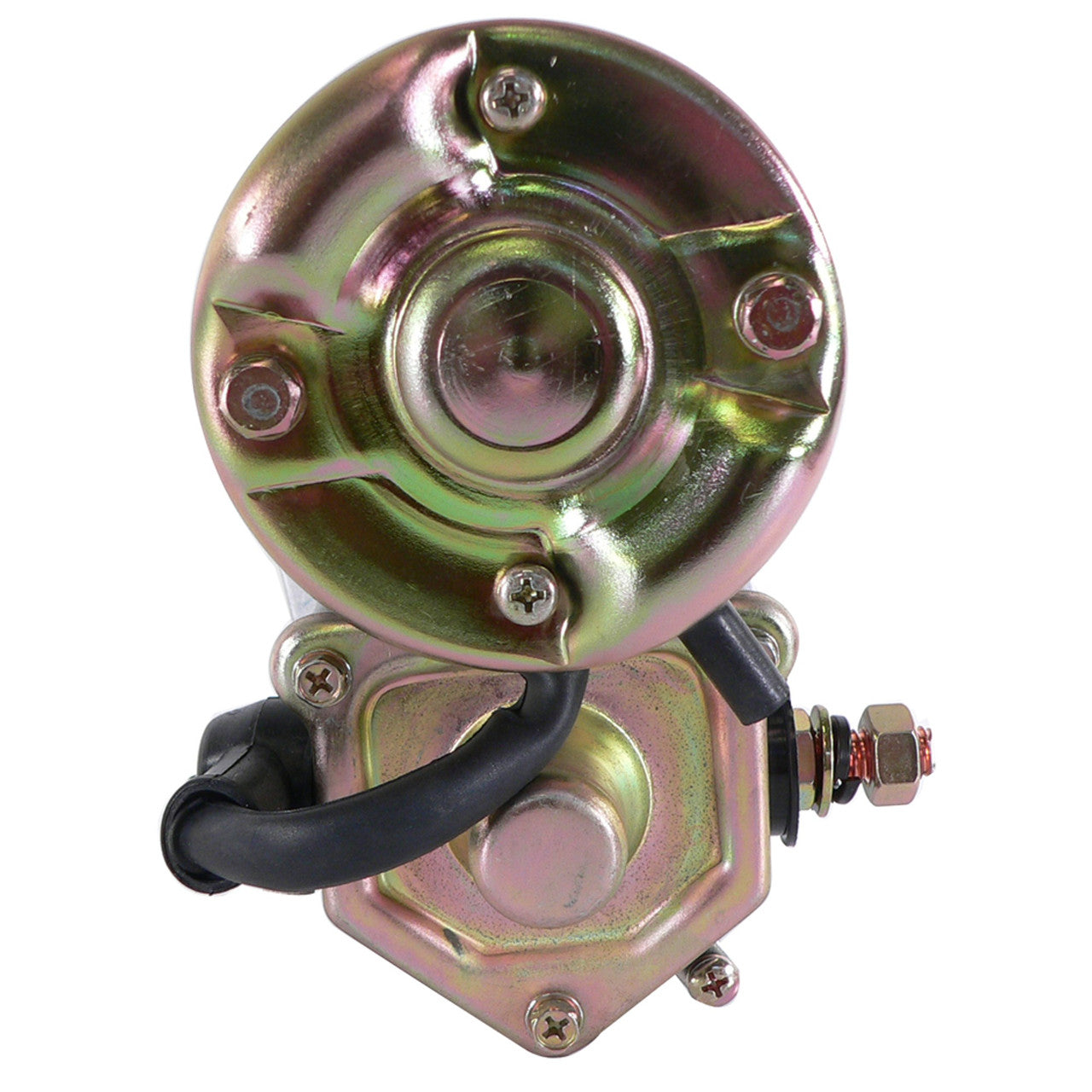

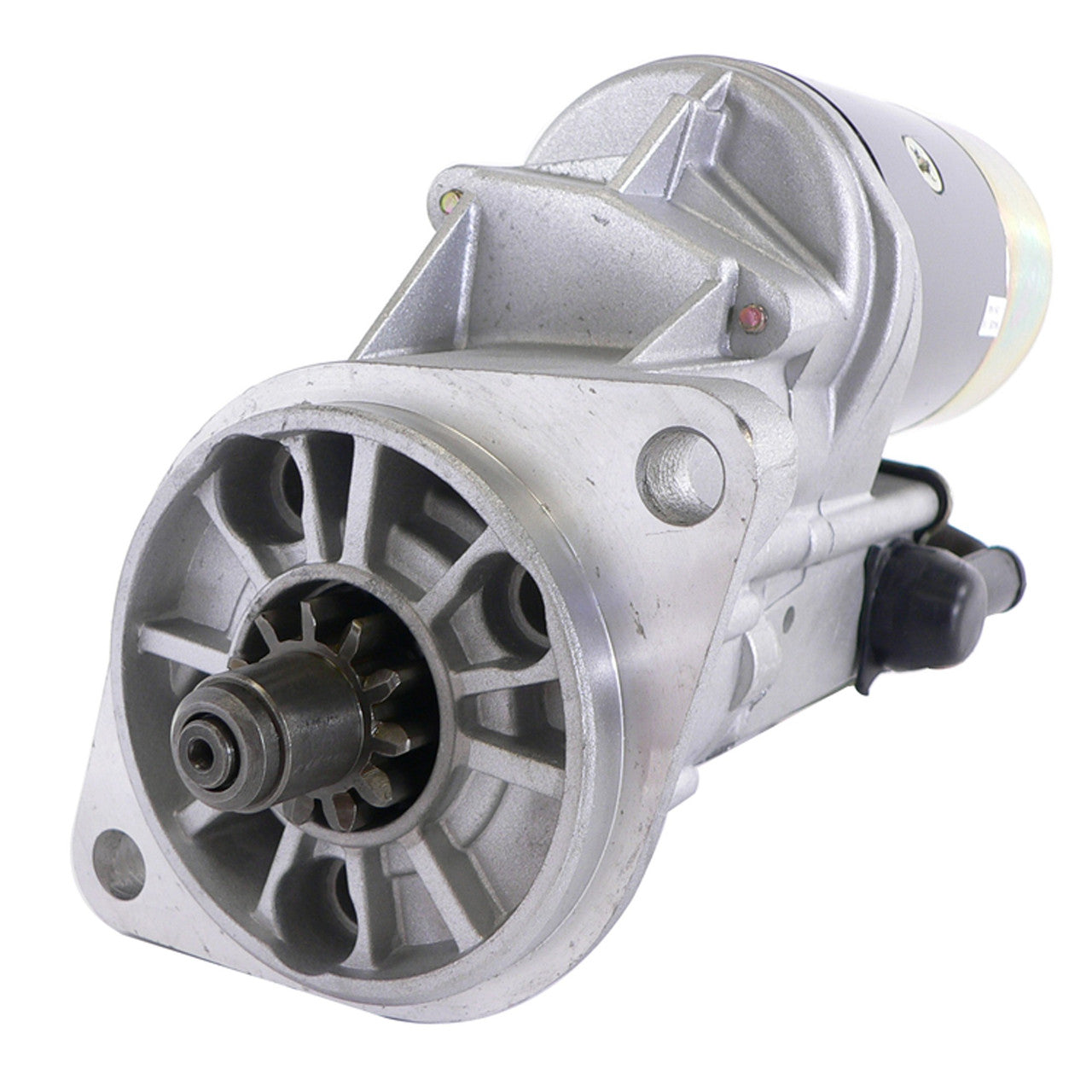

Starter Motor for Komatsu FD40 Forklift - 24V, 11-Tooth, OSGR
Fits Komatsu FD40 lift trucks with the 4D52 diesel engine, 1985 onwards
This starter motor is built to OEM specifications as a direct fit and function replacement for the Komatsu FD40 lift truck fitted with the 4D52 diesel engine, from 1985 onwards. It replaces Komatsu 600-813-3240 and carries Lester reference 17376.
It is an OSGR (offset gear reduction) type starter, rated at 24V and 4.5kW with an 11-tooth clockwise-rotation drive, supplied as a complete unit ready to fit in place of the original part.
Industrial starter electrical systems vary between manufacturers, so we recommend checking your original starter's dimensions, voltage and mounting pattern against this listing before ordering. This unit is bench tested before dispatch to confirm correct output and rotation. OSGR-type starters use an offset gear reduction stage to deliver higher cranking torque than a standard direct-drive unit, making them well suited to the heavier compression loads found in Komatsu diesel engines.
Key Features
- OSGR (offset gear reduction) starter motor
- 24V, 4.5kW unit
- 11-tooth pinion, clockwise rotation
- Direct OEM fit and finish for the Komatsu FD40 with 4D52 engine
- Replaces Komatsu 600-813-3240
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 24V |
| Rotation | CW |
| Teeth | 11 |
| Power | 4.5kW |
| Starter Type | OSGR |
| Lester Number | 17376 |
| Part Type | Unit |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Komatsu FD40 Lift Truck (4D52 engine) | 1985 onwards |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 600-813-3240 | Komatsu |
| 128000-1000, 128000-1001, 128000-1002 | Denso |
| ND128000-1002 | Arrowhead |
| 113203 | Cargo |
| STR-6187 | NSA / Unipoint |
| 17376 | Lester |
Frequently Asked Questions
Will this fit my Komatsu machine without modification?
Yes, this starter is built to OEM specifications for a direct fit and function replacement on the Komatsu FD40 with the 4D52 engine and requires no modification to install.
What is included?
One complete starter motor unit, ready to fit.
How do I know my old starter has failed?
Common signs include a clicking noise when turning the key, the engine failing to crank, or the starter spinning without engaging the flywheel.
What does OSGR mean?
OSGR stands for Offset Gear Reduction, a starter motor design that uses a gear reduction stage offset from the main shaft for increased cranking torque.
