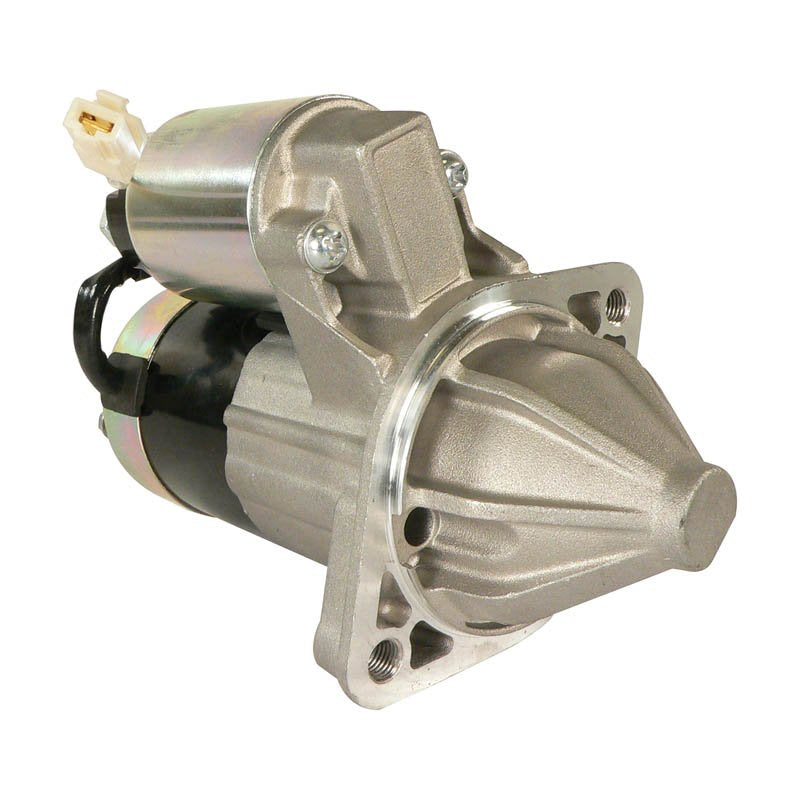

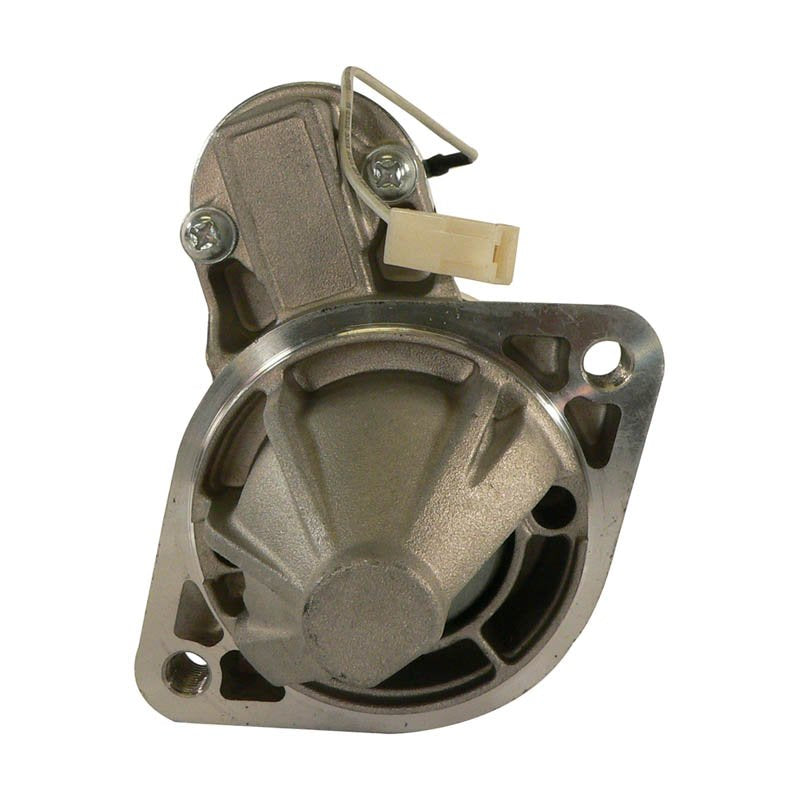

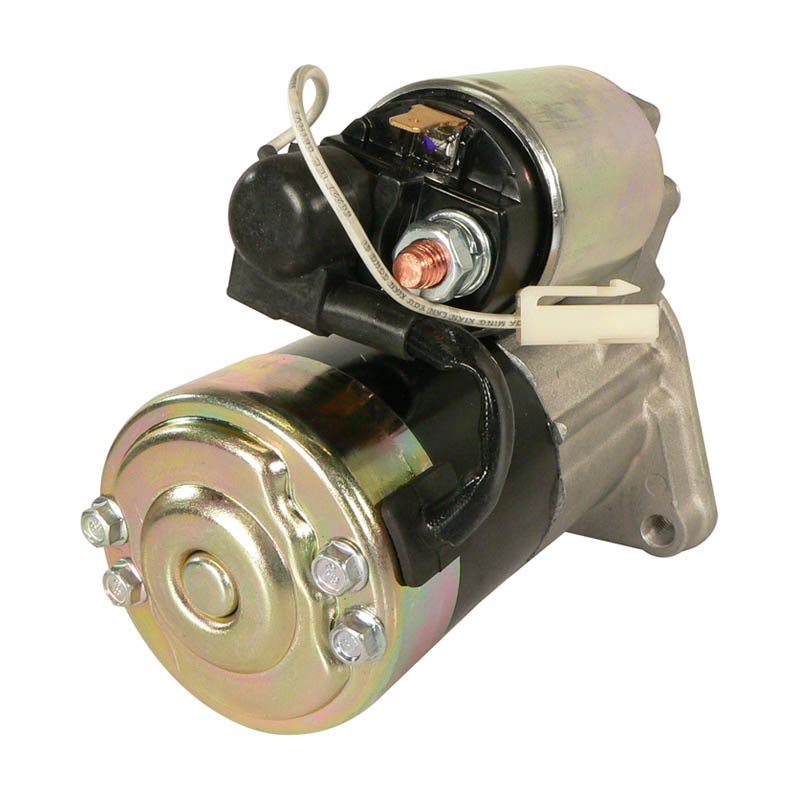

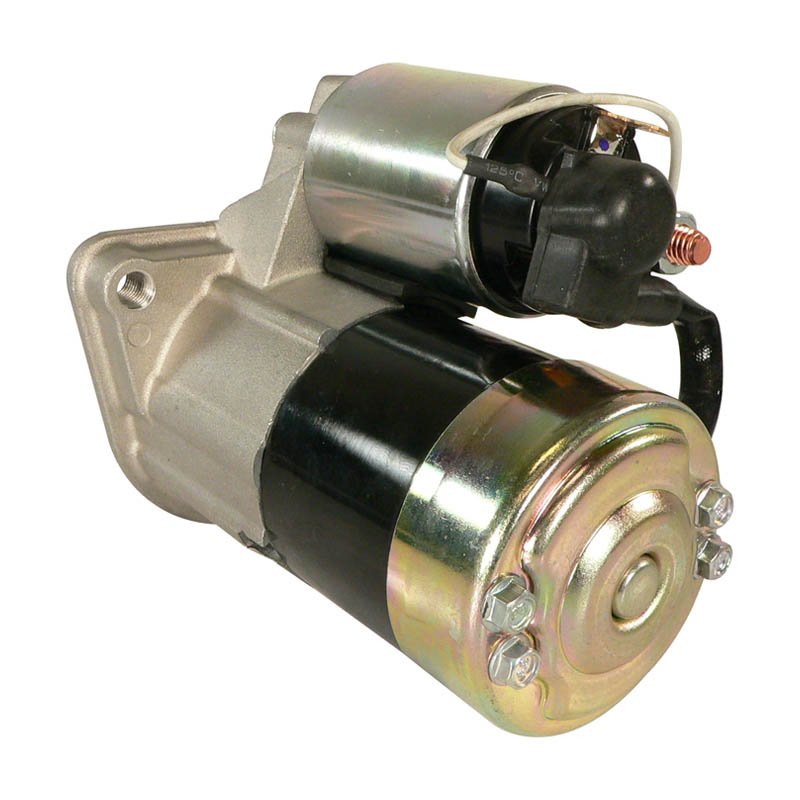

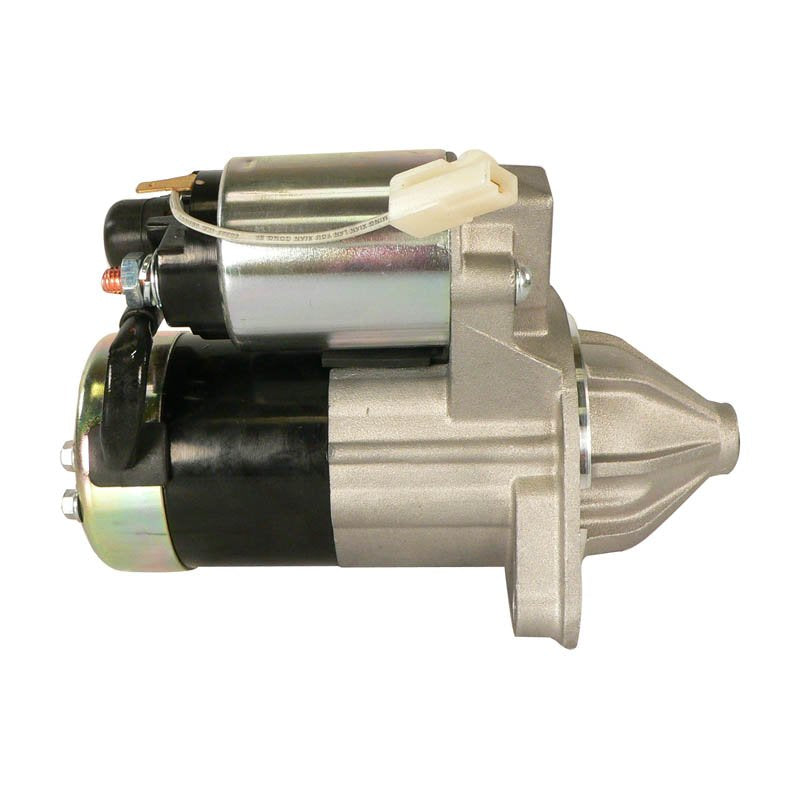

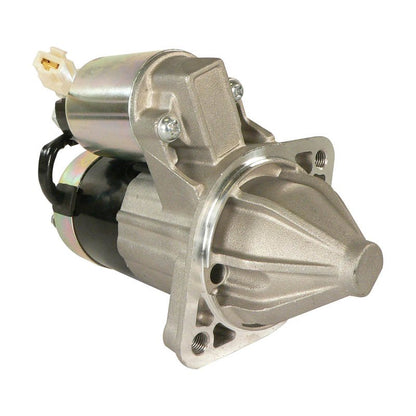

Starter Motor for Kubota B1700, B2100, B2410 & B7500 Compact Tractors
Starter Motor for Kubota B1700, B2100, B2410 & B7500 Compact Tractors
SKU:410-48222
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Kubota B1700, B2100, B2410 & B7500 Compact Tractors
Fits Kubota B-series compact tractors with D782, D905, D1005, D1105 and D1305 diesel engines
This starter motor is a direct replacement for Kubota B-series compact tractors fitted with the D782, D905, D1005, D1105 and D1305 diesel engines, built to OEM specifications for correct fit and function. It replaces Kubota 6C140-59210, 6C140-59211 and 6C140-59212 and carries Lester reference 18396.
It is a 12V permanent magnet gear reduction (PMGR) unit with an 8-tooth clockwise rotation drive, delivering 0.9kW of cranking power, with a 28.2mm pinion gear outside diameter and two M10-1.25 threaded mounting holes.
We recommend checking your battery condition and charging system before fitting a replacement starter, as a weak battery is a common cause of premature starter failure. This unit is bench tested before dispatch to confirm correct output and rotation. Compact tractor and loader work involves frequent engine restarts through a working day, so brush and drive gear wear on the starter over time is normal, typically showing up first as slow or intermittent cranking.
Key Features
- Direct OEM fit and finish for Kubota B-series compact tractors
- 12V, 0.9kW PMGR starter motor
- 8-tooth pinion, clockwise rotation
- Two M10-1.25 threaded mounting holes
- Replaces Kubota 6C140-59210 / 59211 / 59212
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW |
| Teeth | 8 |
| Power | 0.9kW |
| Starter Type | PMGR |
| Pinion Gear OD | 28.2mm |
| Mounting | 2 holes, M10-1.25 threaded |
| Lester Number | 18396 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kubota B1700DT, B1700E, B1700HSD, B1700HSDB (D905, 17HP) | 1995-1998 |
| Kubota B2100DT, B2100HSD, B2100HSDB (D1005, 21HP) | 1995-1998 |
| Kubota B2400HST-D / HST-DB / HST-E, B2410HSDB, B2410HSE (D1105, 24HP) | 1995-1998 |
| Kubota B7410DT-F, B7410DT-R (D782-E, 18HP) | 2004-2007 |
| Kubota B7500DT, B7500HSD, B7510 series (D1005-E, 21HP) | 2004-2007 |
| Kubota B7610HSD-F, B7610HSD-R (D1105-E, 24HP) | 2004-2007 |
| Kubota B2320 series, B2620HSD, B2630HSD, B2920HSD (D1105 / D1305, 23-29HP) | 2008-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6C140-59210, 6C140-59211, 6C140-59212 | Kubota |
| M0T90281, M0T90282, M0T90284 | Mitsubishi |
| 18396 | Lester |
Frequently Asked Questions
Will this fit my Kubota without modification?
Yes, this starter is a direct OEM-fit replacement for the Kubota B-series models listed and requires no modification to install.
What is included?
One complete starter motor unit, ready to fit.
How do I know my old starter has failed?
Common signs include a clicking noise when turning the key, the engine failing to crank, or the starter spinning without engaging the flywheel.
My model is not listed - will this still fit?
Check the number stamped on your original starter against the cross-reference table above. If it matches 6C140-59210, 6C140-59211 or 6C140-59212, this unit is a direct replacement.
