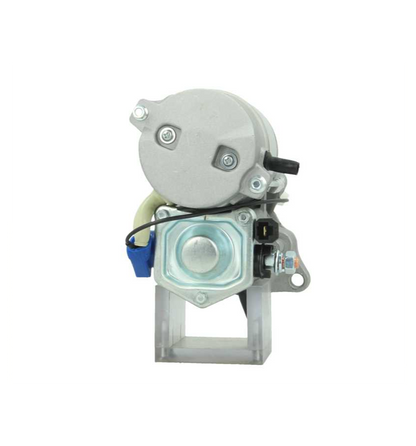

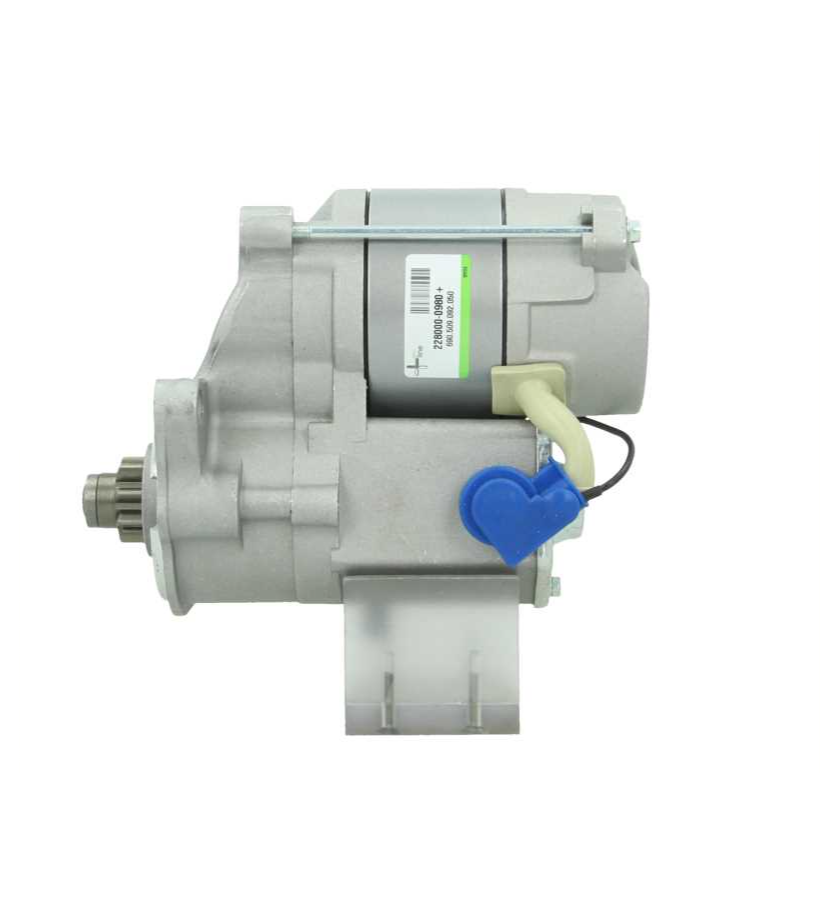

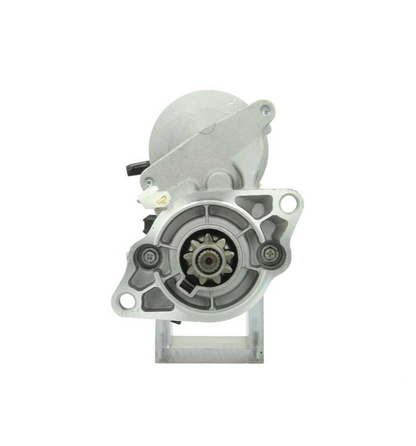

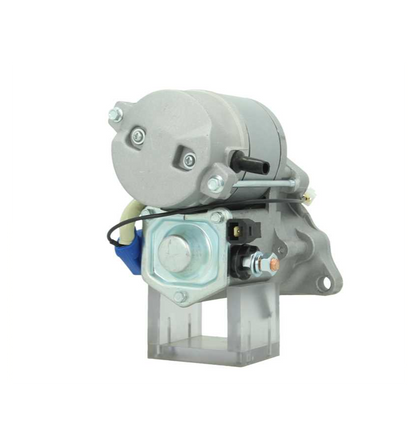

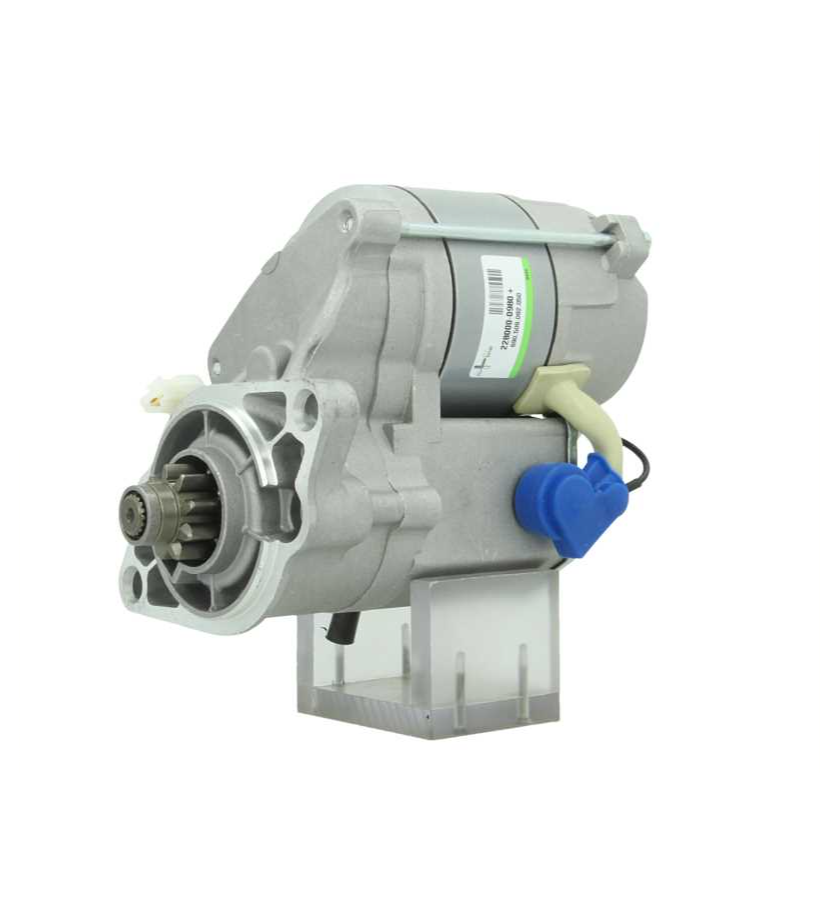

Starter Motor Kubota D722 D782 V1505 Tractor Excavator ZD18 ZD21 12V 9T 1623563010
Starter Motor Kubota D722 D782 V1505 Tractor Excavator ZD18 ZD21 12V 9T 1623563010
SKU:410-52356
Free shipping over £150. Terms apply
Couldn't load pickup availability

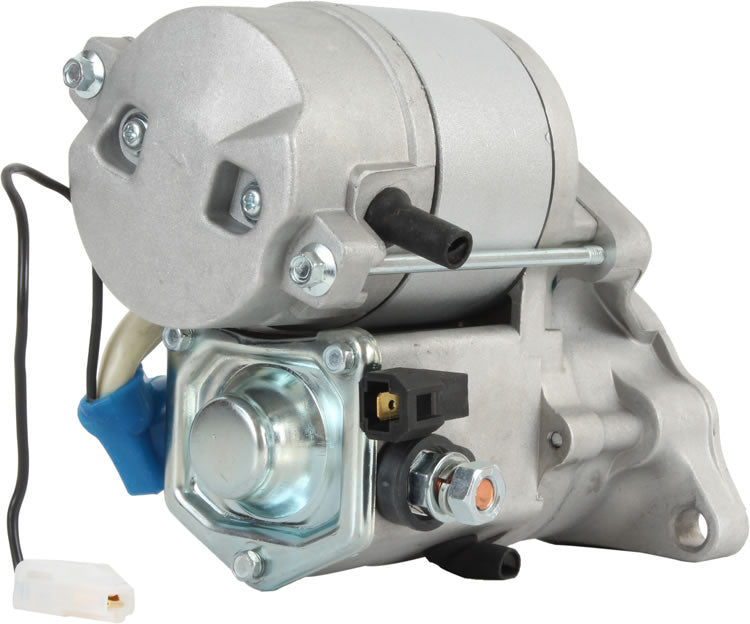

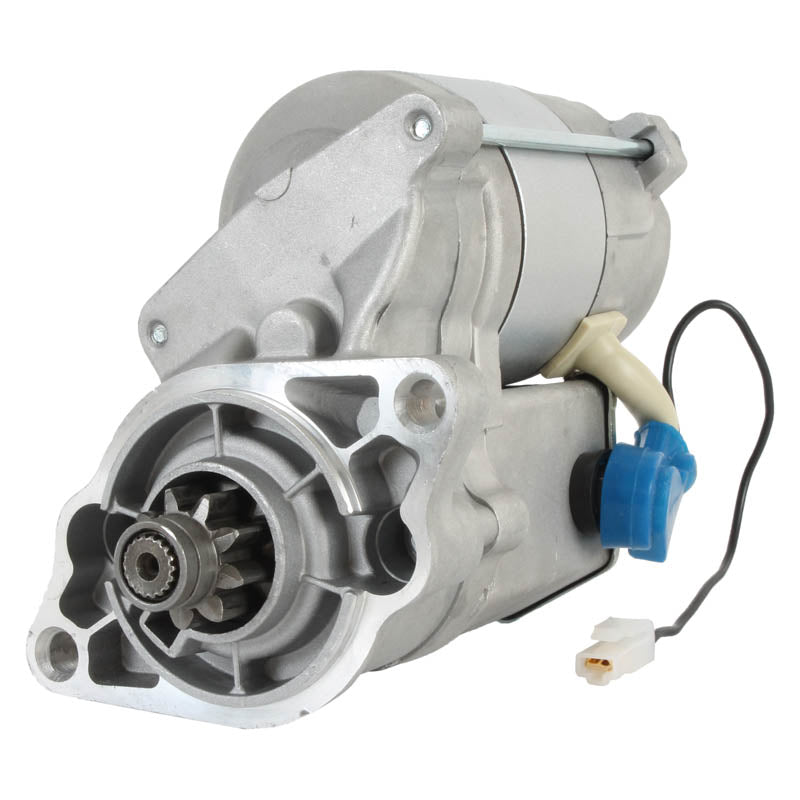

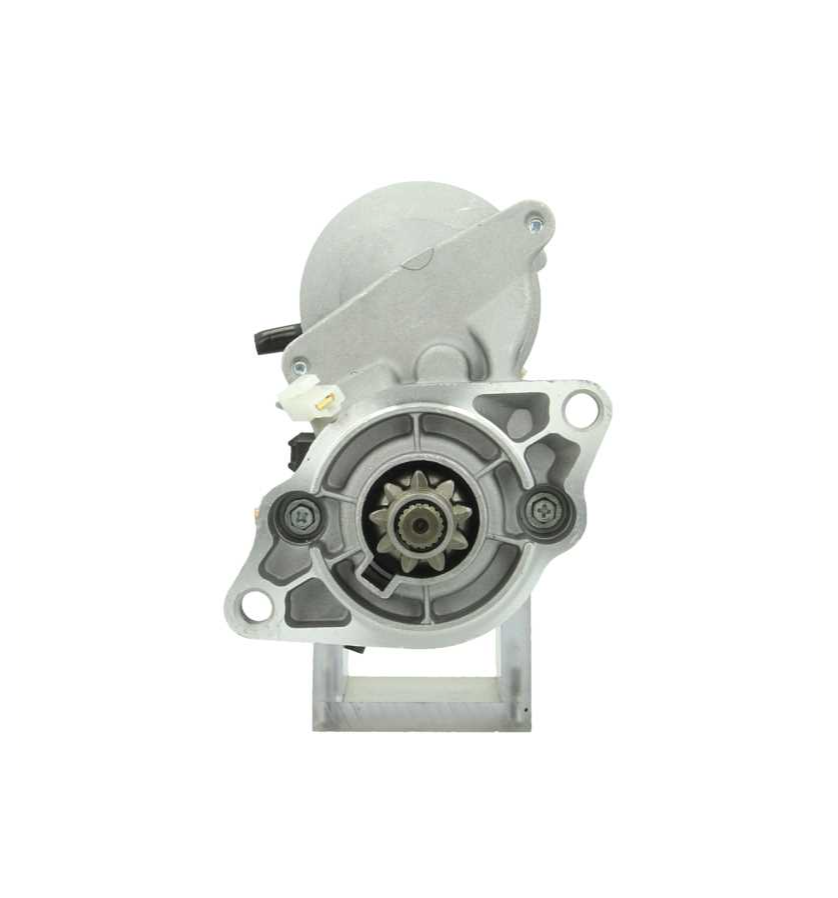

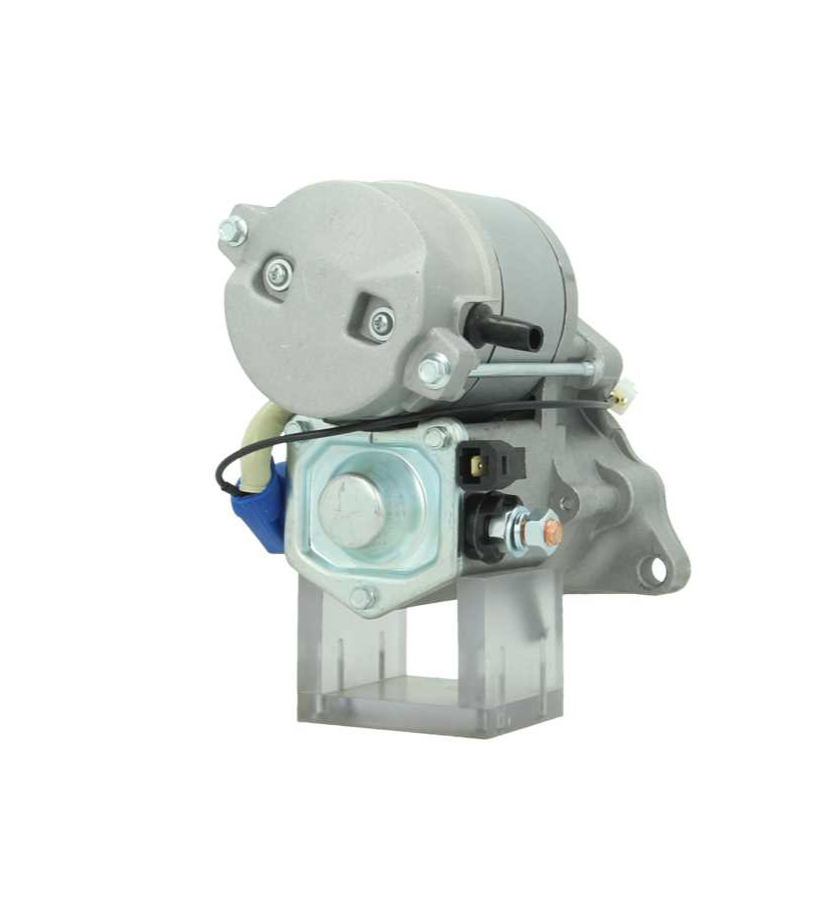

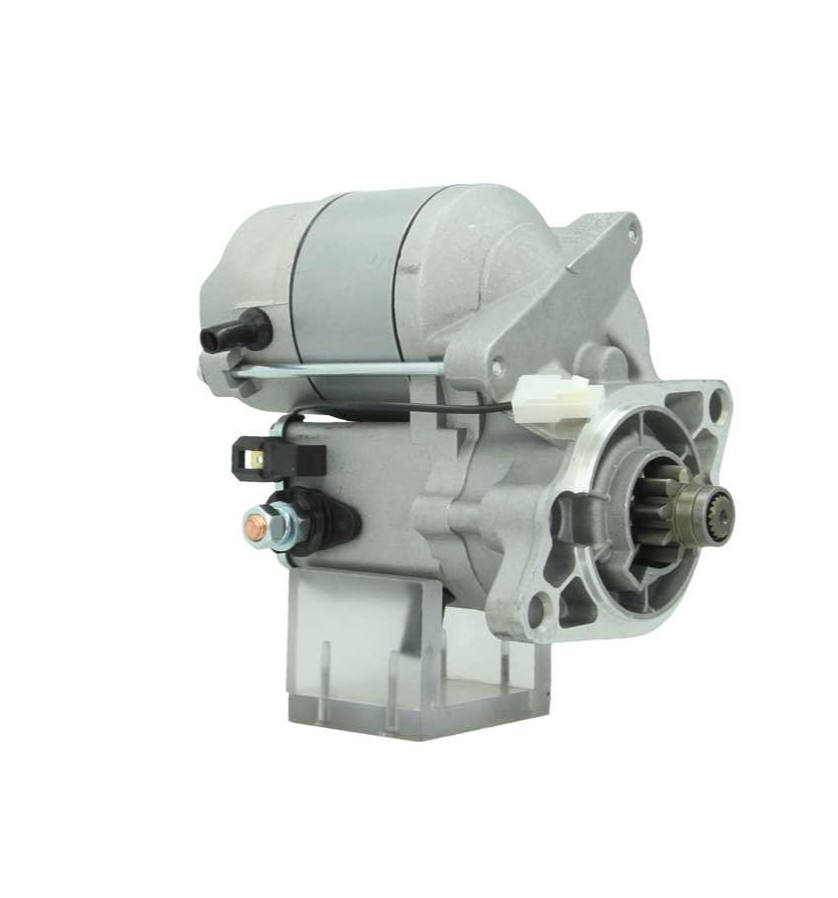

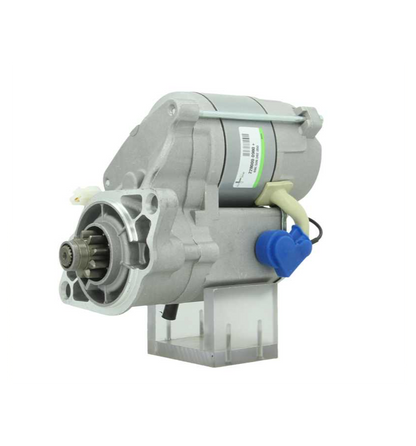

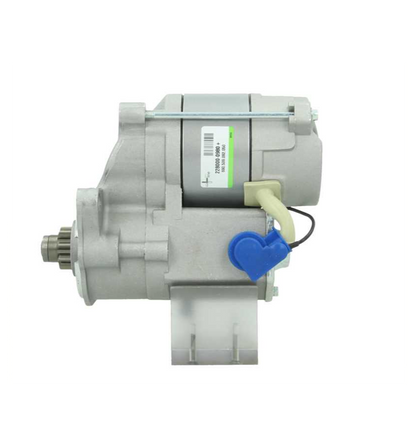

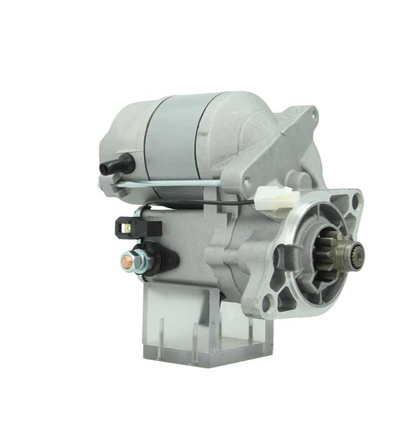

Kubota Diesel Starter
Fits V1505, D722, D782 Engines & More (OSGR)
Power up your diesel equipment with this high-torque **OSGR (Offset Gear Reduction)** starter motor. Designed specifically for **Kubota** engines (including the popular **V1505, D1105, D722, and D782** series), this unit provides superior cranking speed for easier starts in cold weather.
This starter fits a vast array of machinery, including **Kubota Tractors (L-Series)**, **Excavators (KX Series)**, **Zero Turn Mowers (ZD Series)**, and even **Case Skid Steers**. It is a direct replacement for the original Denso unit, featuring a 9-tooth drive gear and a compact, powerful motor design.
Key Features
- ✔ High Torque: 1.2kW - 1.4kW OSGR design.
- ✔ Direct Fit: Replaces Denso/Kubota OEM.
- ✔ Versatile: Fits tractors, mowers & excavators.
- ✔ Specs: 12 Volt, 9-Tooth Pinion.
Technical Specs
| Voltage: | 12 Volts |
| Power: | 1.2 - 1.4 kW |
| Rotation: | CW (Clockwise) |
| Teeth Count: | 9 Teeth |
| Starter Type: | OSGR |
| SKU Reference: | 410-52076 |
Vehicle Fitment Guide
| Make | Models | Engine |
|---|---|---|
| Kubota | Tractors: L2250, L2550, L3450, L3600, L4200, BX1500 | Various Diesel |
| Kubota | Mowers: G2160, G18, ZD18, ZD21, ZD221 | D722, D782 |
| Kubota | Excavators: KX41, KX71, KH36 | D1105 |
| Case | Skid Steer: 1818, 1825 | Kubota Engine |
| Kubota | Industrial Engines: V1405, V1505, D722, D782 | Diesel |
OEM Part Number Cross Reference
| Kubota | 16235-63010, 17341-63010, 1G023-63010, 19269-63010 |
| Denso | 228000-0950, 128000-0050, 228000-6320 |
| Case | Use Kubota / Denso # |
| Arrowhead / WAI | SND0356, 410-52076 |
Frequently Asked Questions
What does OSGR mean?
OSGR stands for **Offset Gear Reduction**. This type of starter uses gears to increase torque, allowing a smaller, lighter motor to turn over high-compression diesel engines more easily than older direct drive units.
Will this fit my Kubota ZD18 mower?
Yes, this starter replaces the 1G023-63010 part number used on the Kubota ZD18, ZD21, and similar zero-turn mowers with diesel engines.
Is this a 9-tooth starter?
Yes, this unit comes with a 9-tooth pinion gear, which is the standard specification for these Kubota applications.
Note: Please verify your engine model and original part number before purchasing.
