Starter Motor for Mercury Marine 30-60HP 4-Stroke Outboard
Starter Motor for Mercury Marine 30-60HP 4-Stroke Outboard
SKU:410-21026
Free shipping over £150. Terms apply
Couldn't load pickup availability

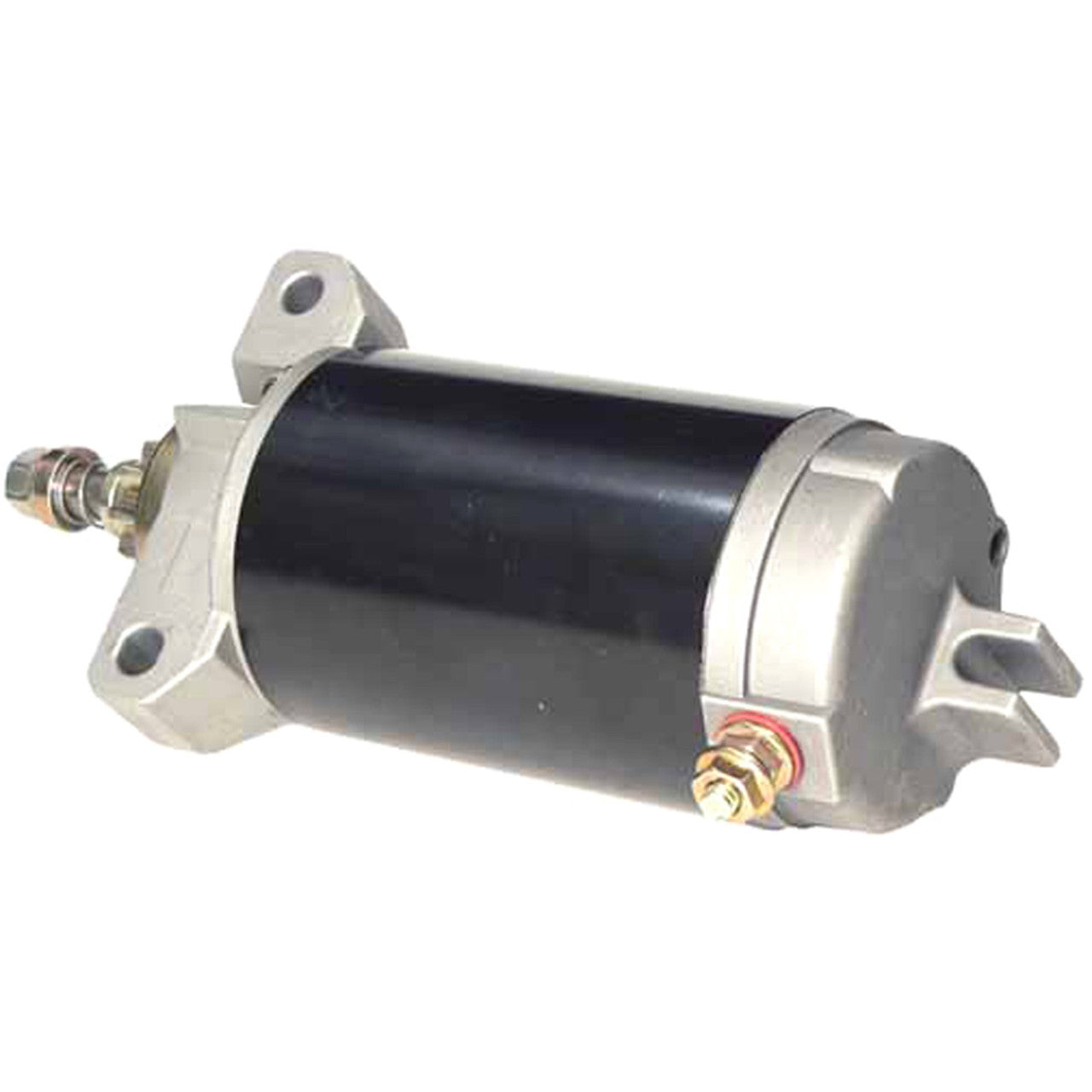

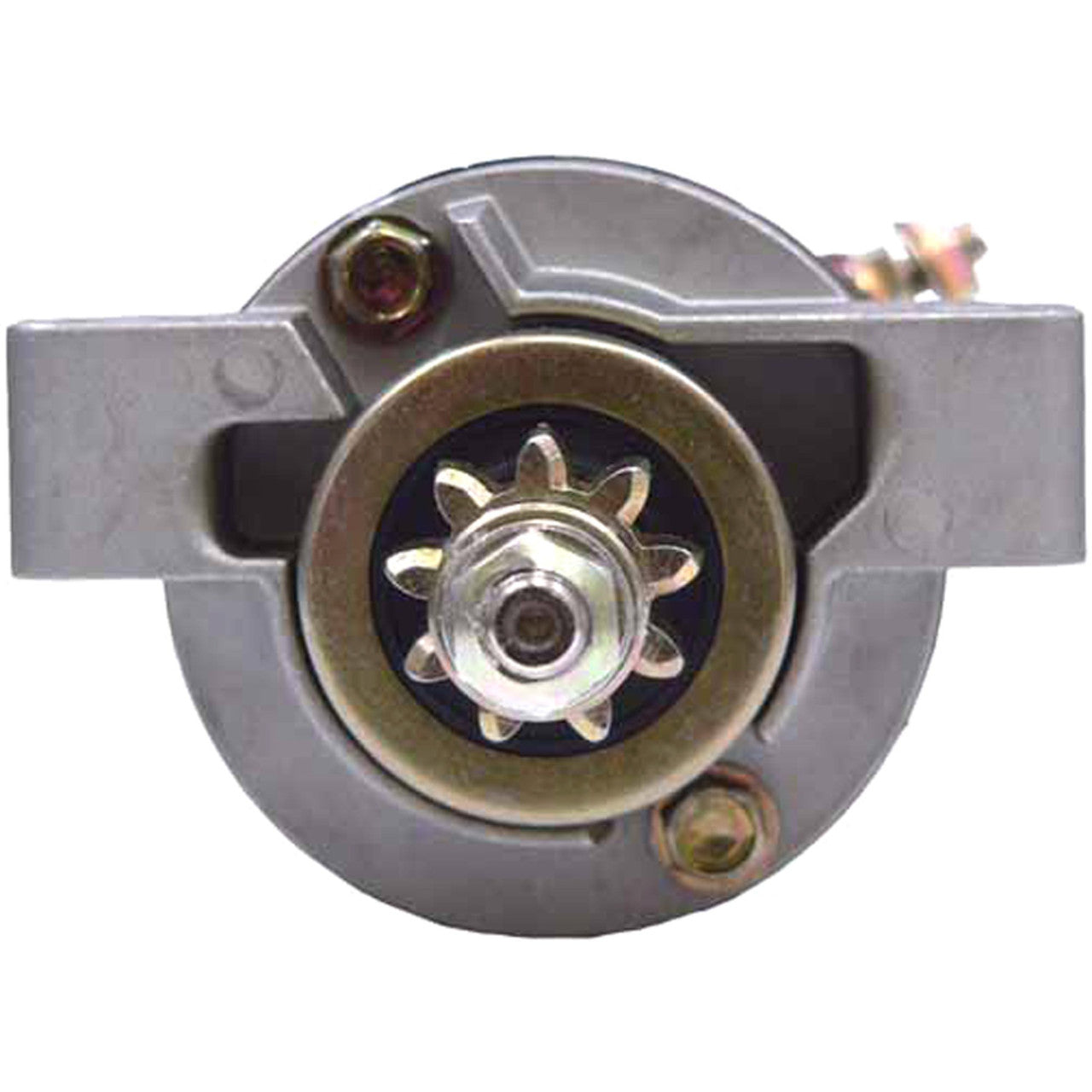

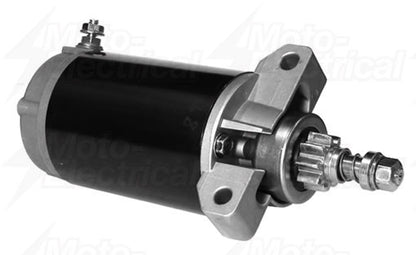

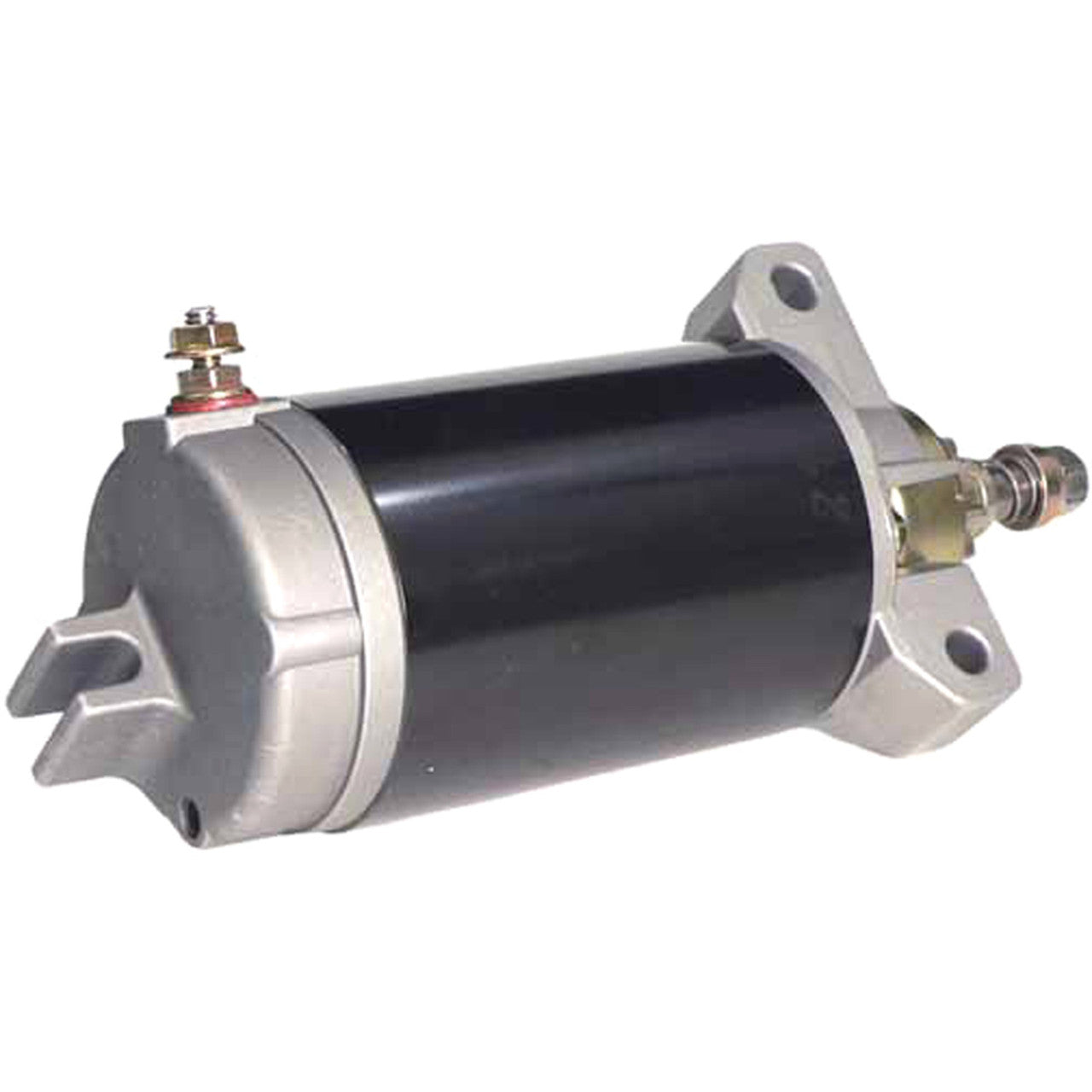

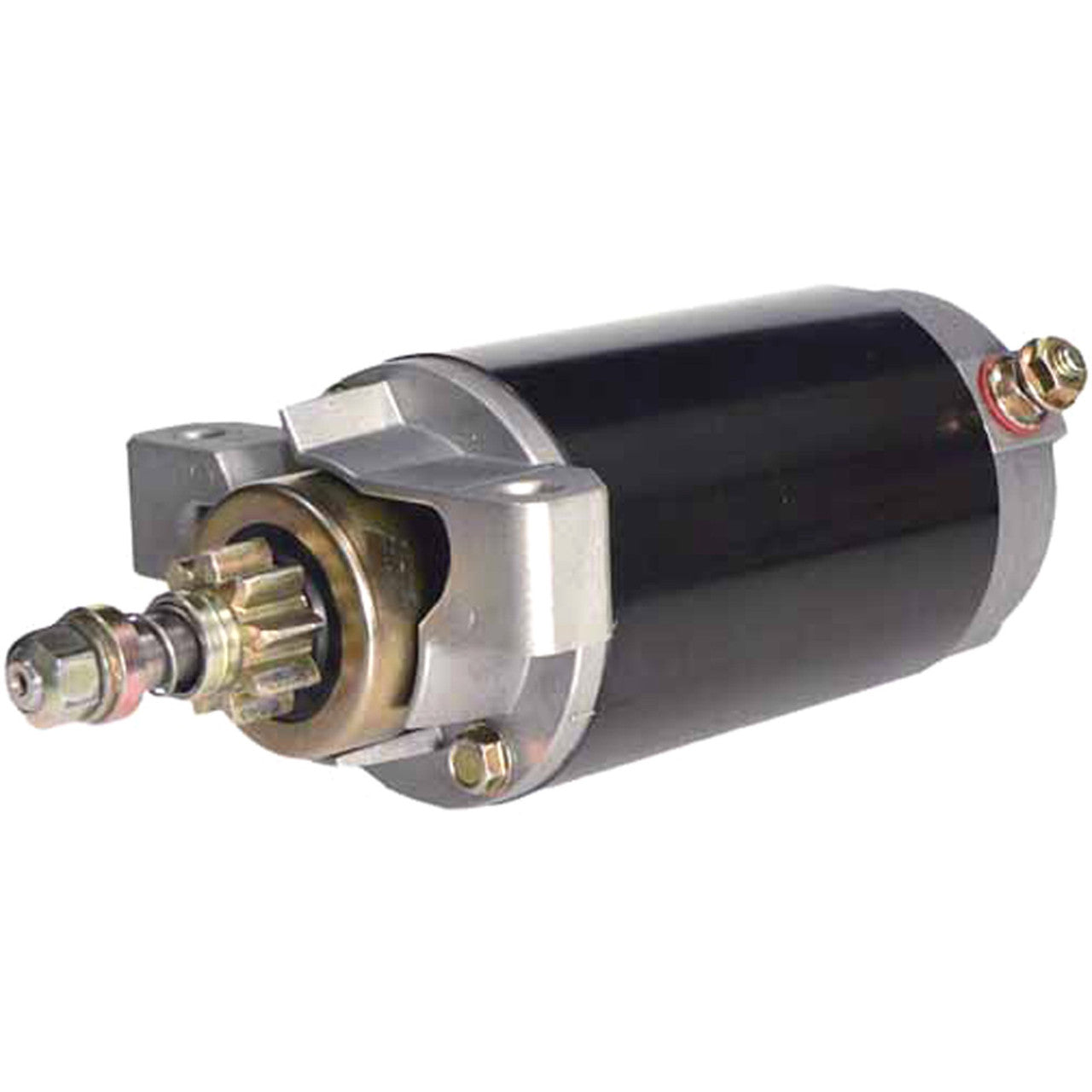

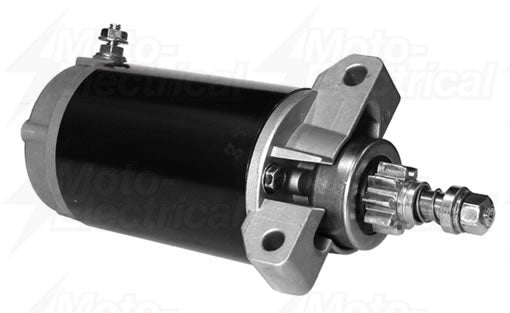

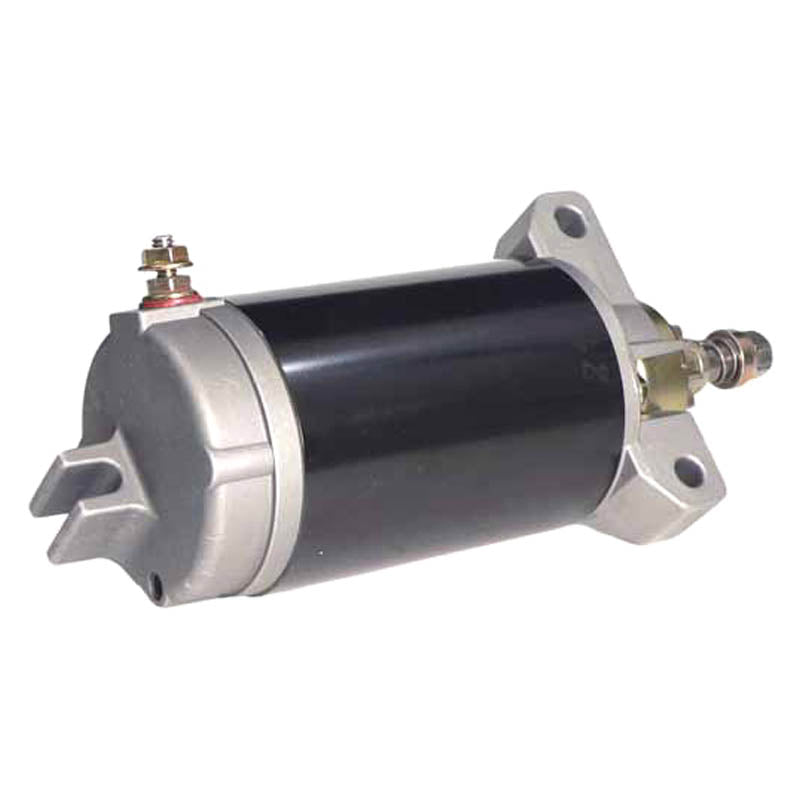

Starter Motor for Mercury Marine 30-60HP 4-Stroke Outboard
Mercury and Mariner 30-60HP 4-stroke outboards from 1999 - 12V, counter-clockwise, 9-tooth
A starter motor is the component that cranks the engine over to begin combustion. If it fails to engage, spins without turning the engine, or does not respond at all when the key is turned or the start button is pressed, the engine will not start. This starter motor is built for Mercury Marine and Mariner 30-60HP 4-stroke outboard engine applications, engineered as a direct replacement that matches the original unit's fit, mounting and function.
It is a 12V permanent magnet direct drive (PMDD) unit with counter-clockwise (CCW) rotation and a 9-tooth drive pinion, fitted with the nut-design drive end used on this Mercury 4-stroke range. The field case measures 4in (101.6mm) and the drive gear outside diameter is 1.654in (42mm). The same starter is used on the Yamaha-built versions of these powerheads, which carry the 67C-81800 series Yamaha part numbers.
Key Features
- Direct fit for Mercury Marine and Mariner 30-60HP 4-stroke outboard engines
- 12V starter motor, counter-clockwise (CCW) rotation
- 9-tooth drive pinion, PMDD design
- Nut-design drive end
- Field case 4in / 101.6mm, drive gear OD 1.654in / 42mm
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Counter-Clockwise (CCW) |
| Teeth | 9 |
| Starter Type | PMDD (permanent magnet direct drive) |
| Drive End | Nut Design |
| Field Case Length | 4in / 101.6mm |
| Drive Gear Outside Diameter | 1.654in / 42mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Mercury / Mariner 30HP 4-Stroke - 30E, 30EL, 30ELH, 30ELPT | 1999-2001 |
| Mercury / Mariner 40HP 4-Stroke - 40E, 40EL, 40ELH, 40ELPT, 40ELHPT | 1999-2001 |
| Mercury / Mariner 50HP and 60HP 4-Stroke | 2001 onwards |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 50-854636, 50-854636T, 50-859170T, 50-859170T1, 50-884045T, 50-888160T, 50-893887T | Mercury Marine |
| 67C-81800-00-00, 67C-81800-01-00, 67C-81800-02-00 | Yamaha |
| SAB0114 | Arrowhead |
| 5365 | ARCO Marine |
| 18-6438 | Sierra Marine |
| 5764 | Lester |
| 476217 | OEM / Interchange - Retaining Ring Design |
| 476219 | OEM / Interchange - Replacement for 476217 & 476218 |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is built to match the original Mercury 30-60HP 4-stroke unit's drive end, rotation and drive pinion, so it installs as a direct swap.
What's included?
One new 12V starter motor, ready to fit.
How do I know my old starter has failed?
Common signs are a single click with no crank, a slow or straining crank, or no response at all when the key is turned or the start button pressed.
Does it fit the Yamaha-built version of this powerhead?
Yes - the same starter carries the Yamaha 67C-81800 series numbers listed in the cross reference above.
What is the difference between the nut-design and retaining-ring drive end?
Mercury used both a nut-design and a retaining-ring drive end on this 4-stroke range. This unit uses the nut design; the OEM numbers above cross reference to the retaining-ring version - check your original unit before ordering.
