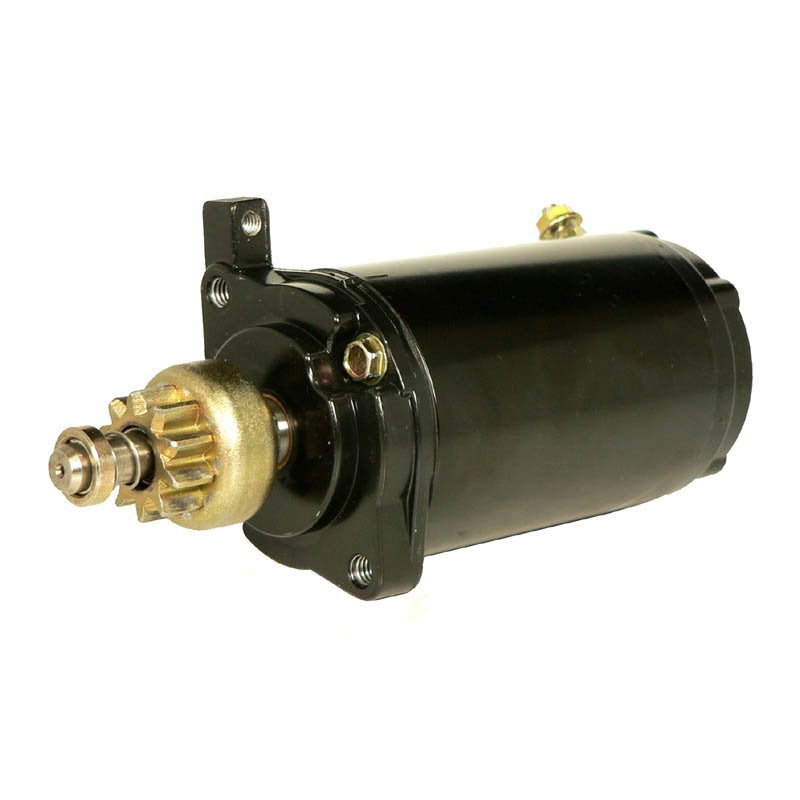

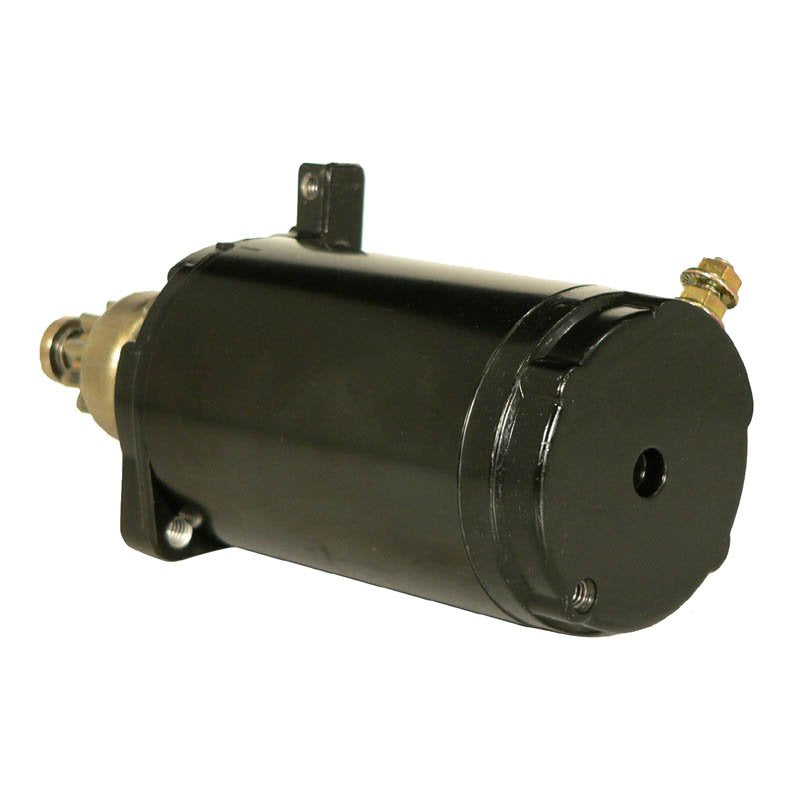

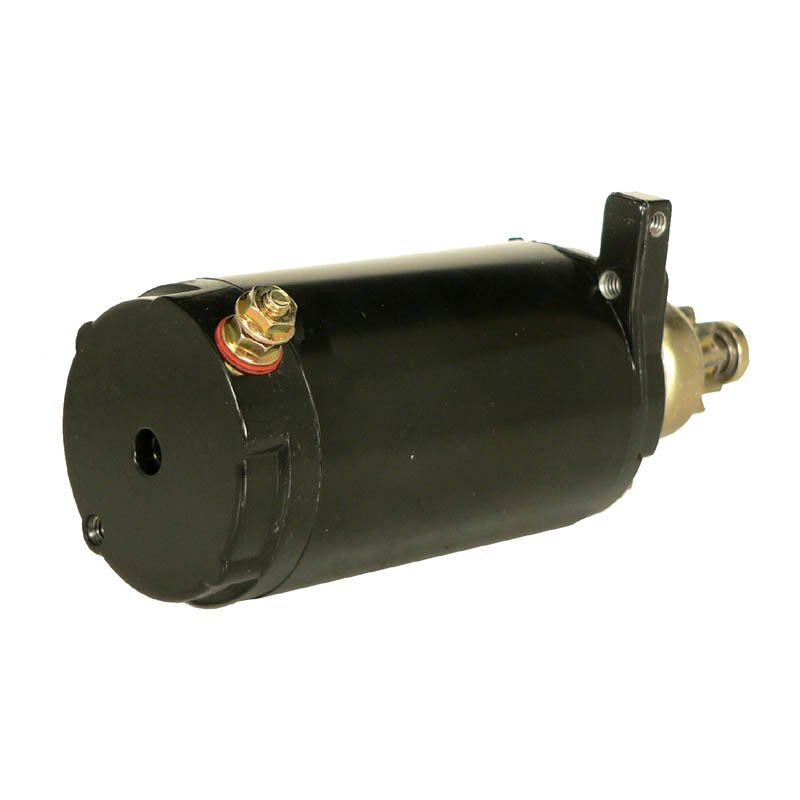

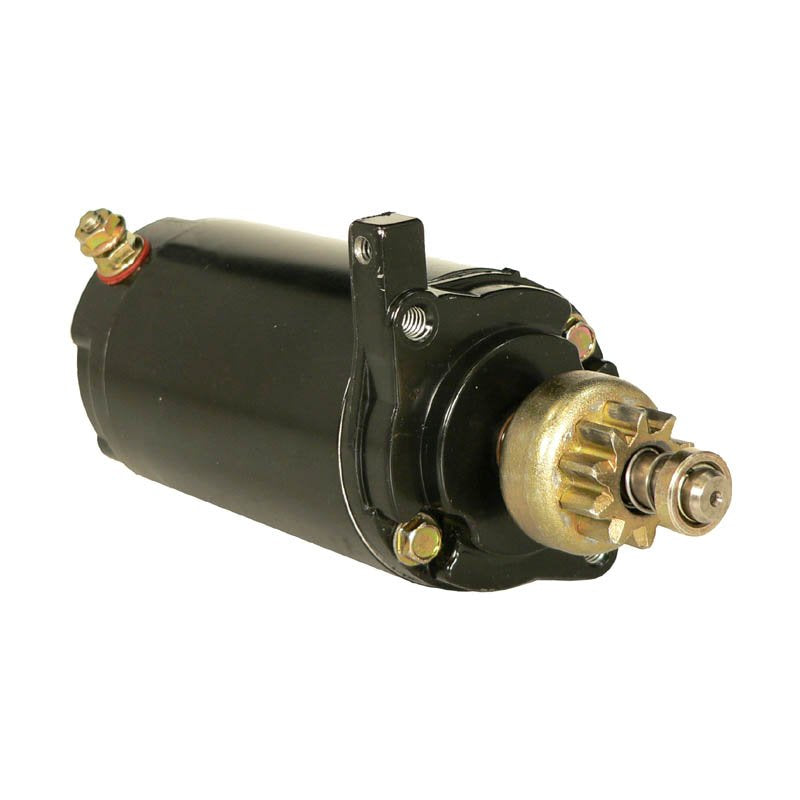

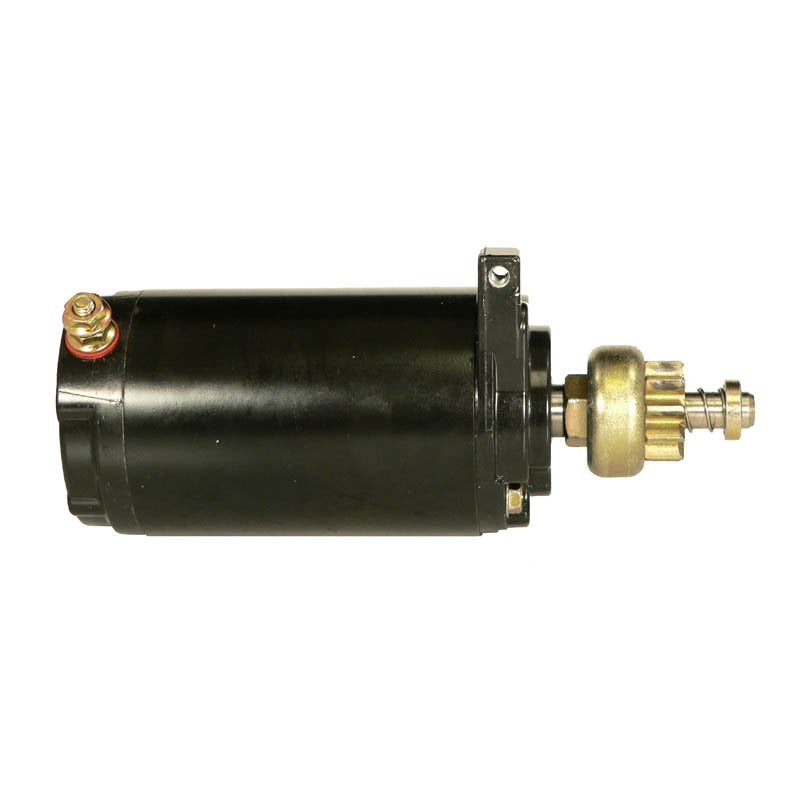

Starter Motor for Mercury Marine 40HP Outboard Engines
Starter Motor for Mercury Marine 40HP Outboard Engines
SKU:410-21049
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Mercury Marine 40HP Outboard Engines
Fits Mercury Marine 40HP outboard engines
This is a direct-fit replacement starter motor built to OEM specifications for Mercury Marine 40HP outboard engines. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, so it bolts straight in place of the original starter with no adaptation required.
The unit runs on a standard 12-volt marine electrical system, turns counter-clockwise (CCW) and uses a 10-tooth drive pinion, with a motor housing length of 4.119 inches, matching the specification of the original starter fitted to these outboard engines. A longer motor housing version is also produced for closely related applications, so confirming the 4.119 in housing length against your original starter is the best way to make sure this is the correct variant for your engine.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt marine starter motor
- Counter-clockwise (CCW) rotation
- 10-tooth drive pinion
- Motor housing length 4.119 in
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW (Counter-Clockwise) |
| Teeth | 10 |
| Motor Housing Length | 4.119 in |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Mercury Marine 40HP Outboard | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement for Mercury Marine 40HP outboard engines and requires no modification to install.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key is turned or the start button is pressed.
Is there a different version of this starter available?
Yes, a longer motor housing version is available separately for applications that require it - check your original unit's housing length of 4.119 in before ordering this version.
