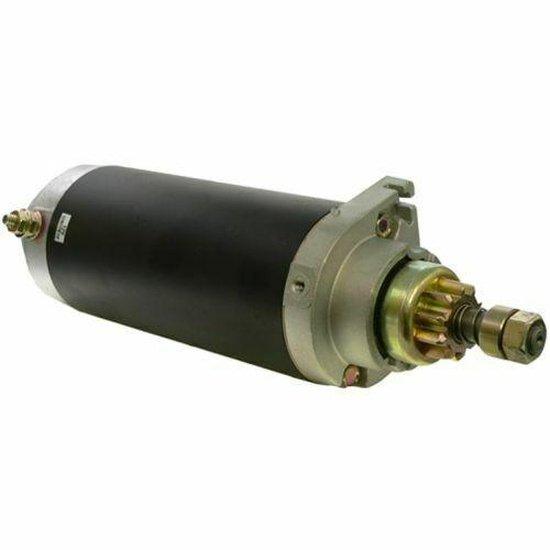

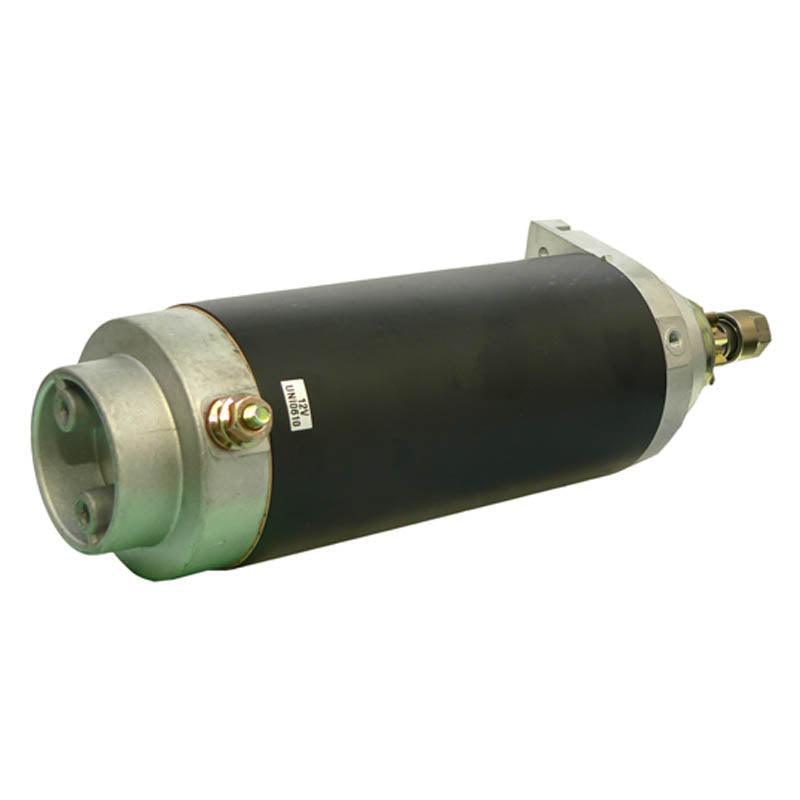

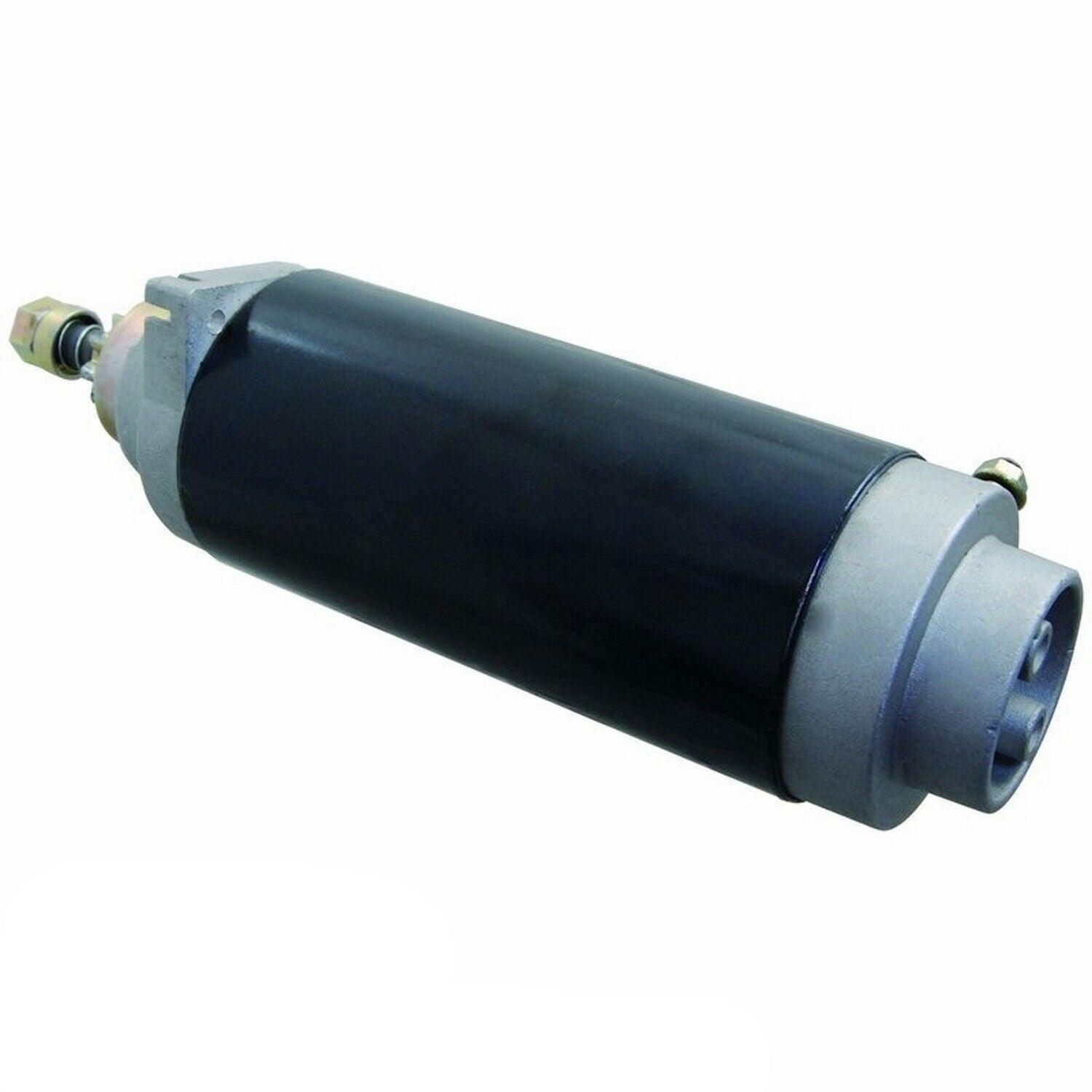

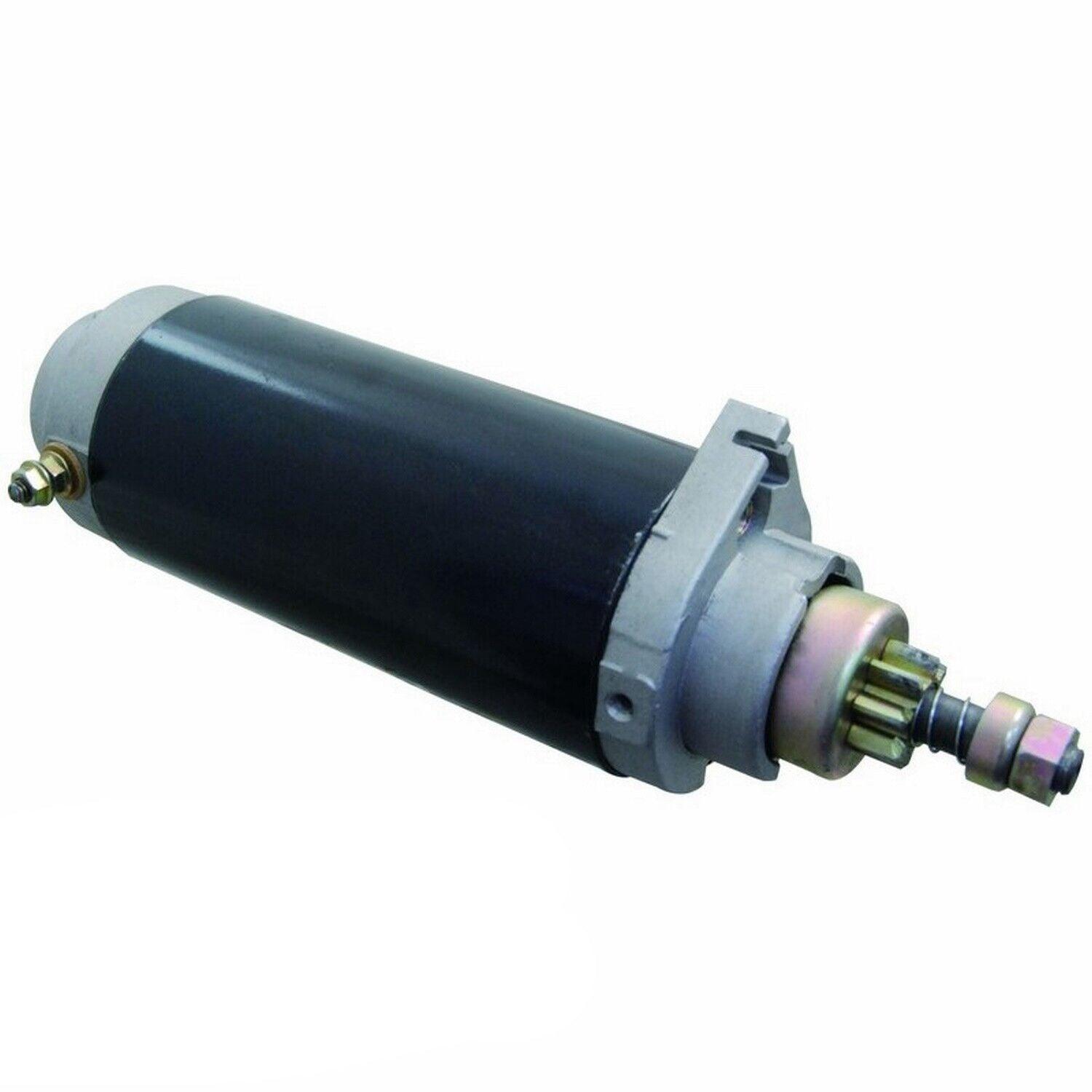

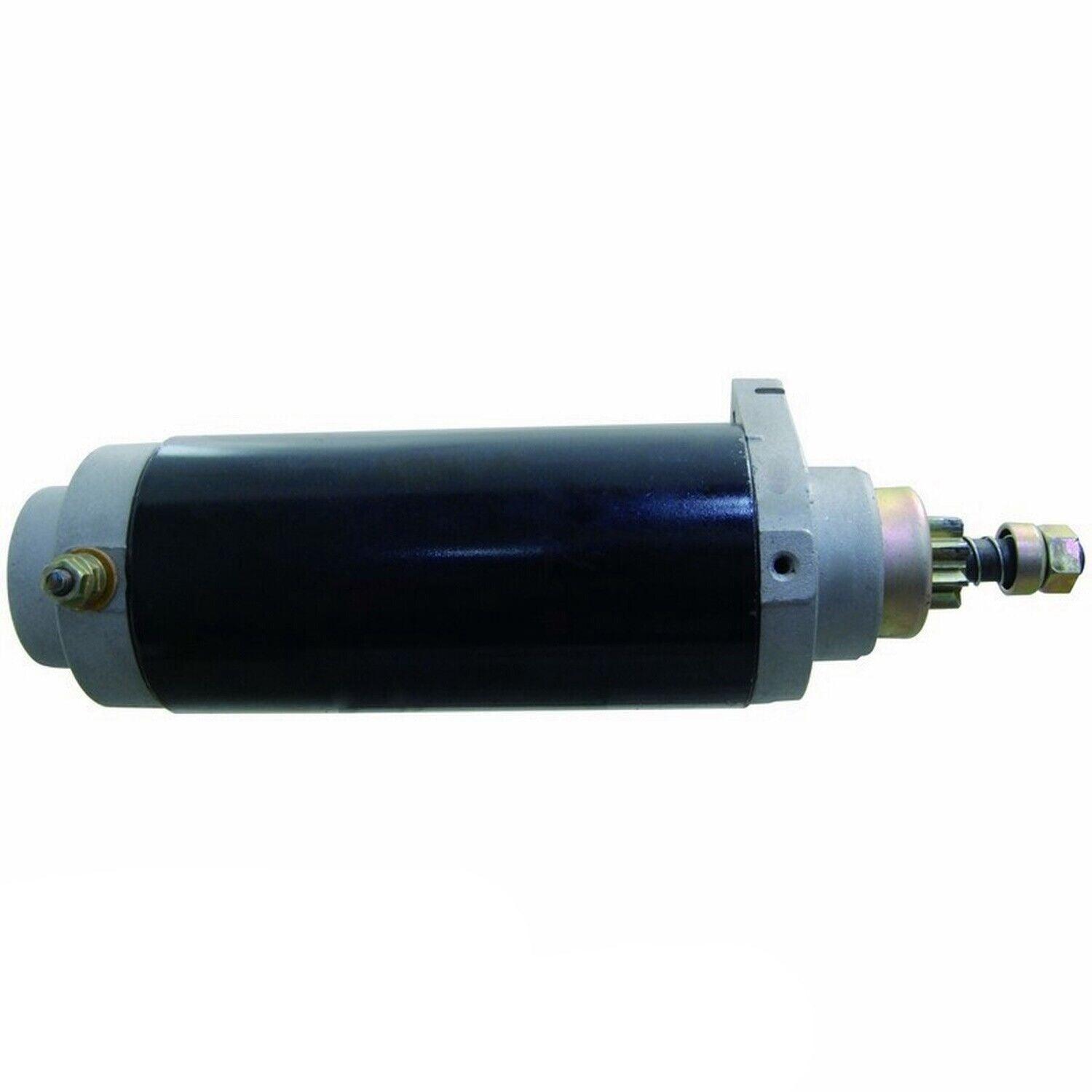

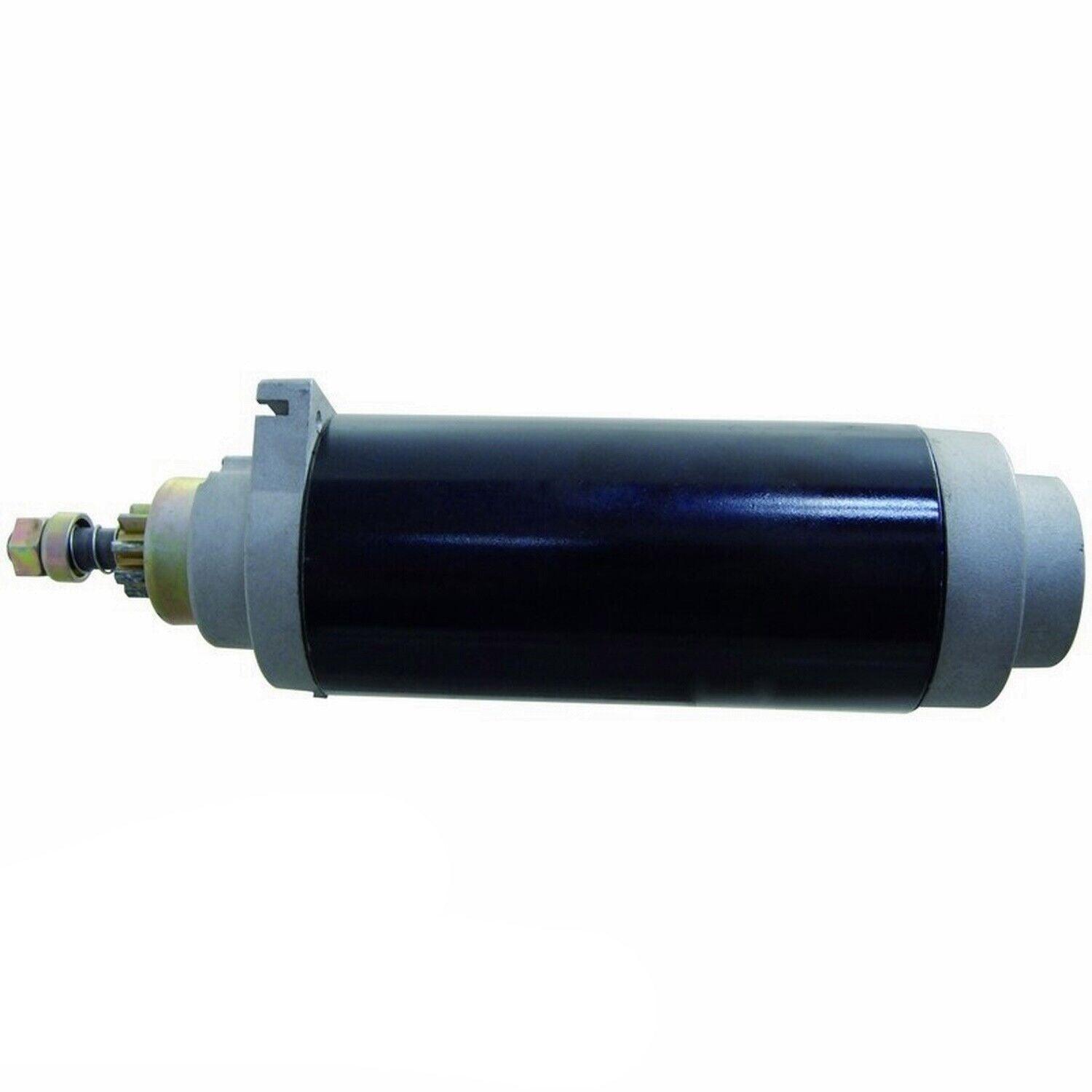

Starter Motor Mercury Mariner 135-225HP V6 2-Stroke Outboard 50-79472 PMDD
Starter Motor Mercury Mariner 135-225HP V6 2-Stroke Outboard 50-79472 PMDD
SKU:5389N
Free shipping over £150. Terms apply
Couldn't load pickup availability
Marine Starter Motor
Reliable Starting Power for Mercury/Mariner V6 135-225 HP 2-Stroke Outboards
Ensure your marine adventures start smoothly every time with our high-performance 12V PMDD Starter Motor. This brand new, aftermarket unit is engineered as a direct marine-grade replacement, meticulously designed for Mercury and Mariner V6 2-stroke outboard engines. It provides dependable and efficient starting power for models ranging from 135 HP to 225 HP, manufactured between 1978 and 2005.
Crafted to meet or exceed original equipment manufacturer (OEM) specifications, this starter motor is built for the harsh marine environment. It features robust construction and excellent corrosion resistance, promising an extended service life and consistent performance on the water. Say goodbye to frustrating starting issues and hello to reliable ignition with this essential upgrade.
Key Features
- ✔ Brand New Unit: Not rebuilt or remanufactured, ensuring peak performance and longevity.
- ✔ PMDD Design: Permanent Magnet Direct Drive for strong, efficient cranking power.
- ✔ Marine-Grade Quality: Built to marine standards for superior corrosion resistance and extended service life.
- ✔ Fast Engine Starts: High-quality magnets and field coils deliver greater torque for quick, reliable ignition.
- ✔ Sealed Construction: Housings and bearings are sealed to protect internal components from moisture and debris.
- ✔ SAE J1171 Certified: Marine Ignition Protection Certified for safety and reliability.
Technical Specs
| Voltage: | 12V |
| Power: | 0.8 kW |
| Rotation: | Counter-Clockwise (CCW) |
| Gear Teeth: | 8-tooth pinion |
| Design Type: | PMDD (Permanent Magnet Direct Drive) |
| Mounting Holes: | 1 |
| Terminal: | B+ M6 |
Vehicle Fitment Guide
| Make | Model & HP | Year Range |
|---|---|---|
| Mercury/Mariner | V6 Outboards (2-Stroke) | 1978-2005 |
| Mercury/Mariner | 135 HP V6 | 1993-2000 (e.g., 135CXL, 135L, 135XL) |
| Mercury/Mariner | 150 HP V6 | 1978-2005 (e.g., 150 XR2, XR4, XR6, Magnum EFI) |
| Mercury/Mariner | 175 HP V6 | 1978-2005 (e.g., 175L, 175EXLPT, 175EXLPTO, 175SKI) |
| Mercury/Mariner | 200 HP V6 | 1978-2005 (e.g., 200CXL, 200XLI, 200XR6, 220 EFI) |
| Mercury/Mariner | 225 HP V6 | 1978-2005 (e.g., 225EFI) |
OEM Part Number Cross Reference
| Mercury/Mariner | 50-79472, 50-44414, 50-44415, 50-44369A1, 50-77141, 50-884238T, 50-893893, 794722, 79472T2, 884238T, 893893, 50-79472-1, 50-79472T2 |
| Lester Equivalents | 5388, 5389 |
| Johnson Electric | 1718328M030SM, 4820440, 4820540, SM14916, SM17183, SM48204, SM48205 |
| ARCO | 5380 |
Frequently Asked Questions
What are the common signs of a failing marine starter motor?
Signs of a failing starter include repeated clicking when you try to start the engine, slow or labored cranking, or a burning smell coming from the starter area. If you experience these symptoms, it's likely time for a replacement.
Is this starter motor a direct replacement for my Mercury/Mariner outboard?
Yes, this 12V PMDD starter motor is designed as a direct marine-grade replacement for Mercury/Mariner V6 2-stroke outboards, specifically for 135-225 HP models from 1978-2005. Always cross-reference the OEM part number, pinion gear teeth, and shaft/gear details from your original unit to ensure perfect fitment before purchase.
What does PMDD mean for a starter motor?
PMDD stands for Permanent Magnet Direct Drive. This design uses permanent magnets instead of field coils to generate a magnetic field, offering a more compact and often lighter starter motor with efficient power delivery for reliable engine cranking.
Note: Please verify your bike's model and year before purchasing.
Fast shipping available across the UK and Europe.
