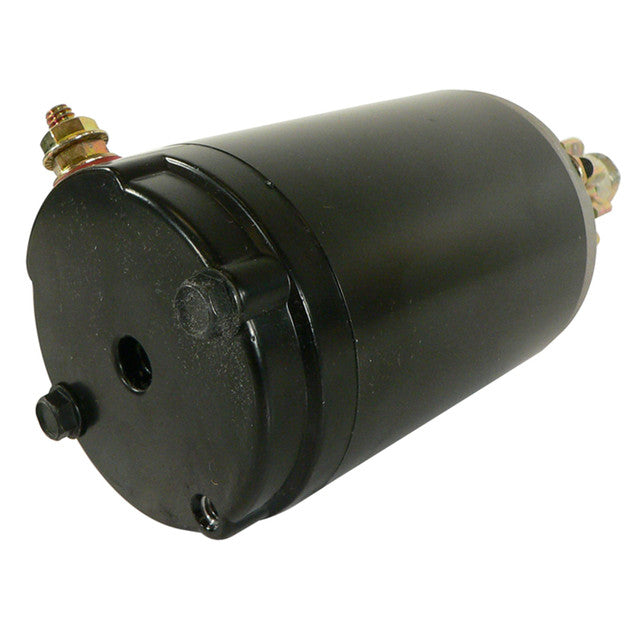

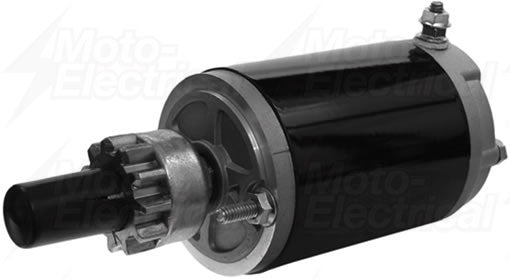

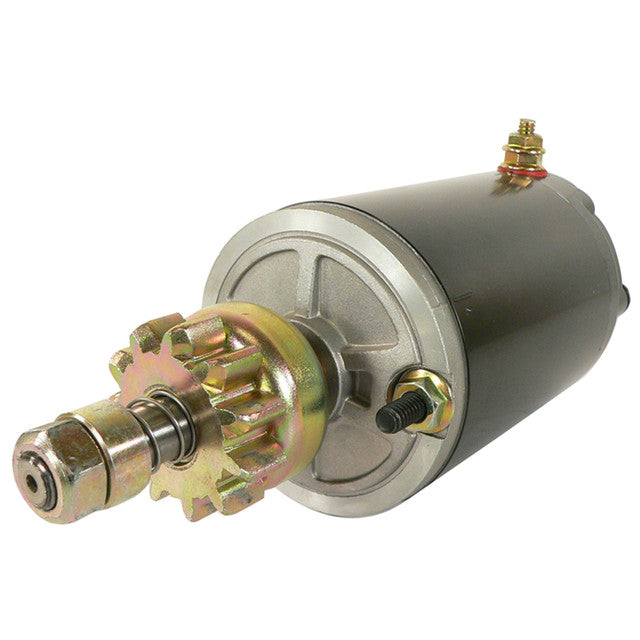

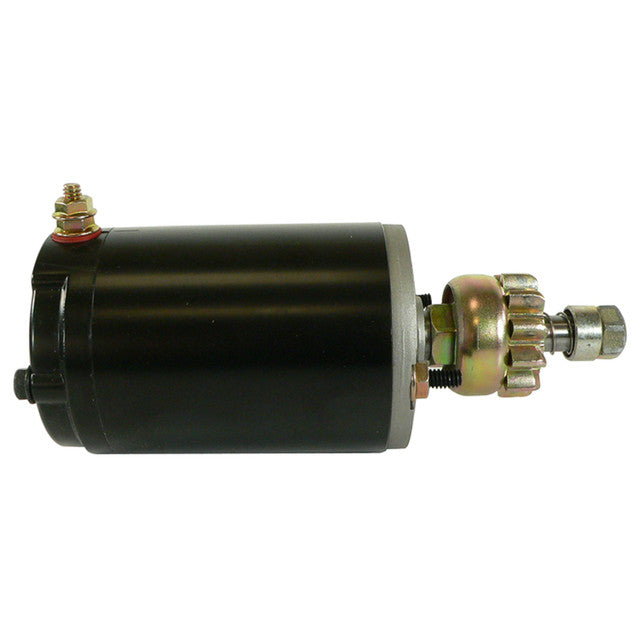

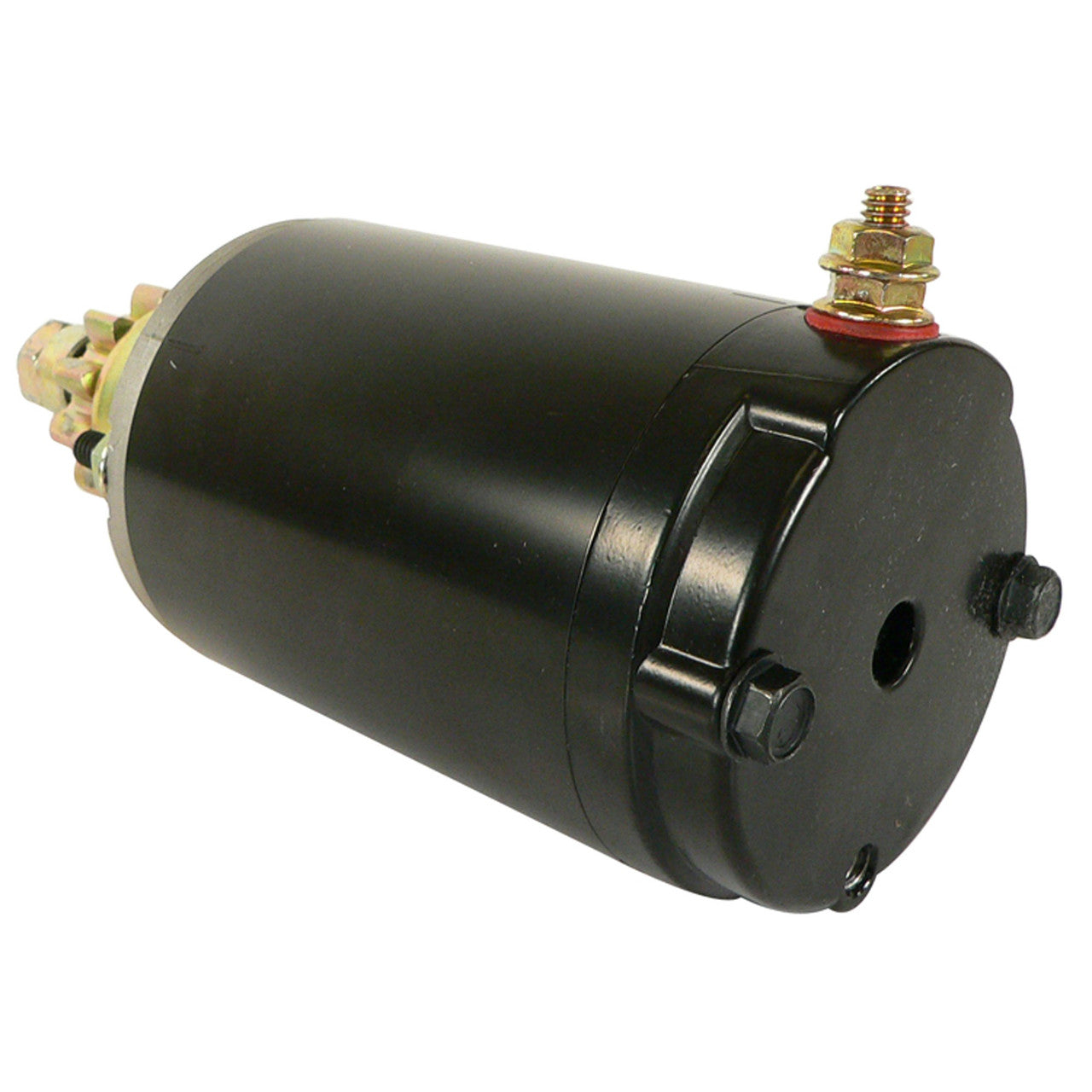

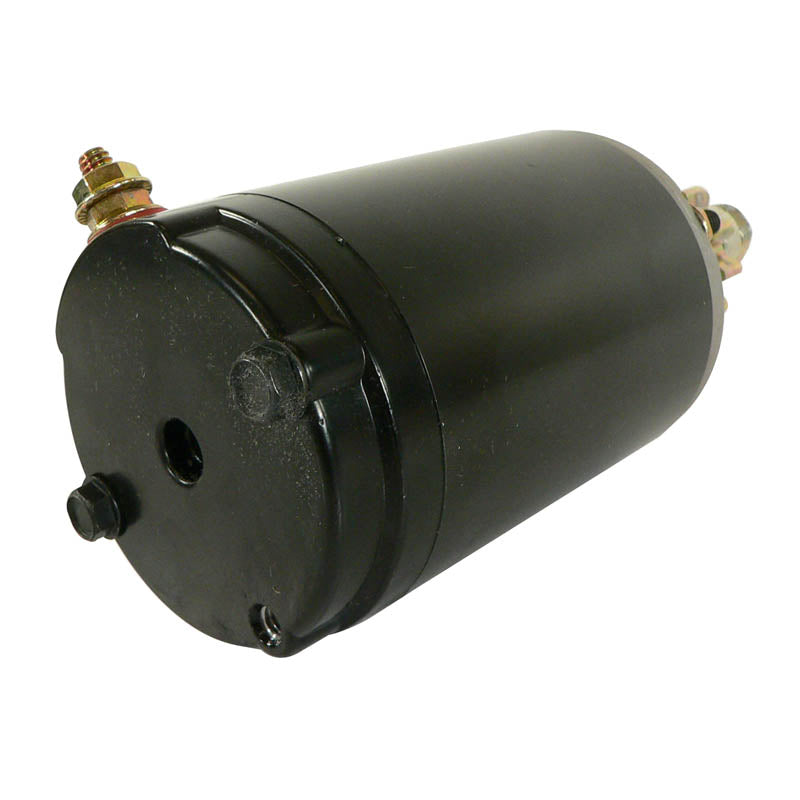

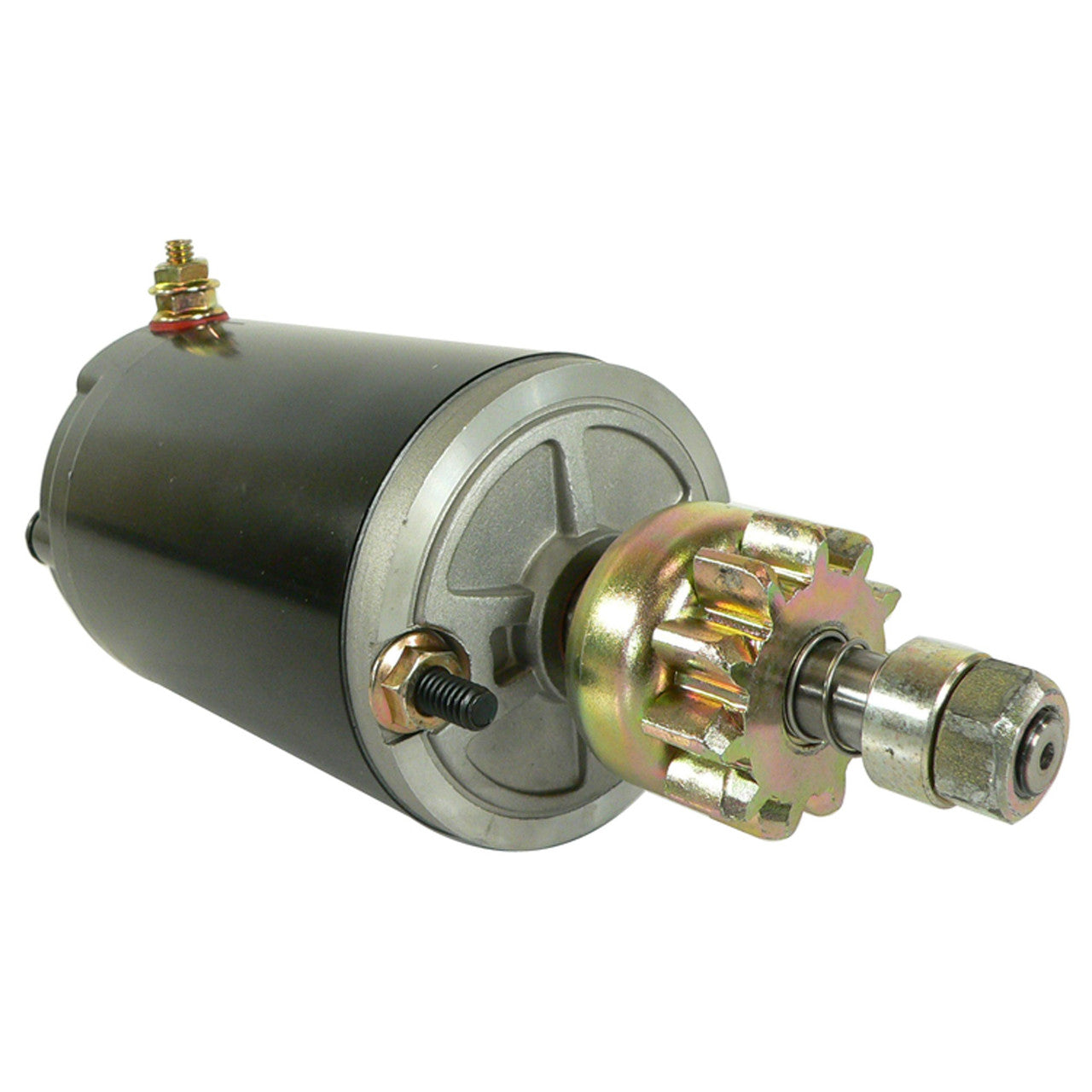

Starter Evinrude E25E E25EL E25TE E25TEL Outboard 1966-98 DB Electrical SAB0109
Starter Evinrude E25E E25EL E25TE E25TEL Outboard 1966-98 DB Electrical SAB0109
SKU:410-21010
Free shipping over £150. Terms apply
Couldn't load pickup availability

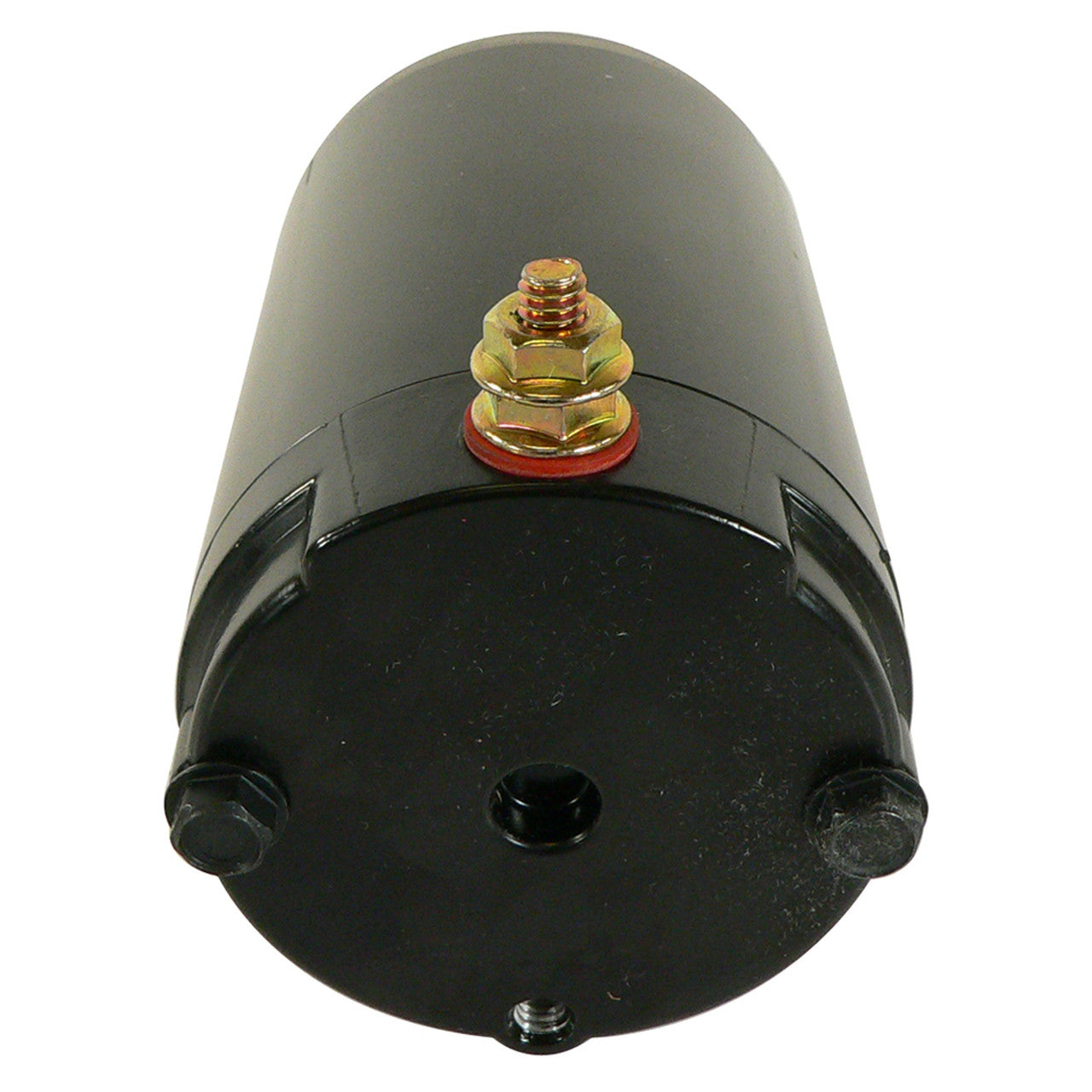

Premium Starter Motor for Evinrude Outboards
Reliable Starting Power for Evinrude 20-40HP Models (1966-1998)
Ensure quick and consistent starts for your Evinrude outboard motor with the high-performance DB Electrical SAB0109 starter. This aftermarket unit is meticulously engineered to provide dependable ignition, making sure you spend less time troubleshooting and more time on the water. It's a perfect replacement for a wide range of Evinrude 20-40HP engines manufactured between 1966 and 1998.
Crafted with marine environments in mind, this starter boasts superior construction designed to resist corrosion and wear, ensuring longevity and consistent operation in challenging conditions. Enjoy the peace of mind that comes with a robust and reliable starting system, equivalent to or exceeding original equipment performance.
Key Features
- ✔ Superior Aftermarket Quality: Engineered to meet or exceed OEM specifications for reliable performance.
- ✔ Direct-Fit Replacement: Designed for hassle-free installation and perfect fitment, just like the original.
- ✔ Fast Engine Starts: Utilizes high-quality magnets and field coils to deliver increased torque for quick and efficient engine ignition.
- ✔ Marine-Grade Durability: Features sealed housings, bearings, and epoxied armatures to resist corrosion from harsh marine environments.
- ✔ SAEJ1171 Certified: Meets industry certification standards specifically for watercraft applications.
Technical Specs
| Voltage: | 12 Volts |
| Rotation: | Counter-Clockwise (CCW) |

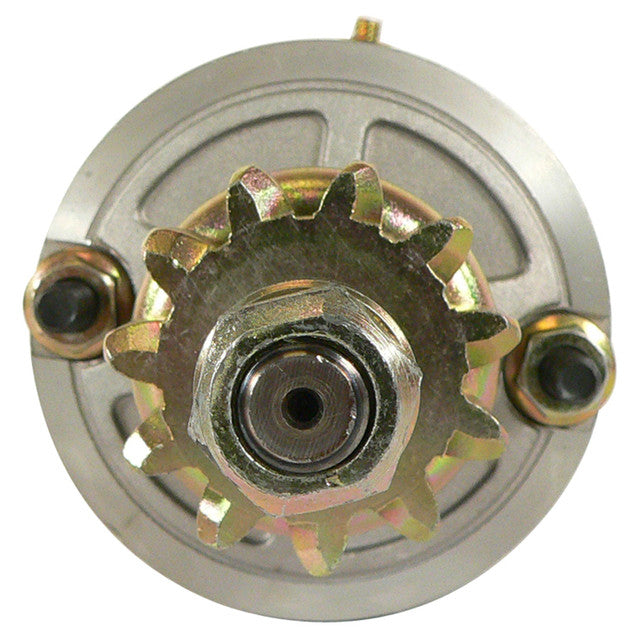

| Teeth: | 11-Tooth Pinion |
| Starter Type: | PMDD (Permanent Magnet Direct Drive) |
| Gear OD: | 1.689in / 42.9mm |
| Field Case Length: | 3.5" / 88.9mm |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Evinrude | E20 (31CI) | 1966-1998 |
| Evinrude | E25E (31CI) | 1981-1998 |
| Evinrude | E25EL (31CI) | 1981-1997 |
| Evinrude | E25TE (31CI) | 1980-1998 |
| Evinrude | E25TEL (31CI) | 1980-1998 |
| Evinrude | E28 (31CI) | 1960-1976 |
| Evinrude | E30E / EL / TE / TEL (31CI) | 1984-1998 |
| Evinrude | E35E / EL / TEL (31CI) | 1980-1984 |
| Evinrude | E40 (44CI) | 1960-1976 |
| Evinrude | E40E / EL / TE / TEL (44CI) | 1985-1988 |
OEM Part Number Cross Reference
| API Marine | MDO4102, MGD4102, MOT2005 |
| Arco Marine | 5376 |
| Delco | 1113519 |
| J & N | 410-21010 |
| Johnson Electric | 0255640, 5705140, 5705140MO30SM, SM02556, SM57051 |
| Lester | 3019, 5230, 5265, 5270, 5290, 5712 |
| OMC | 386591, 392133, 585061, 586278 |
| Prestolite | MDW4104M |
| Sierra Marine | 18-5629, 18-5645 |
| United Tech | 0255640-M030SM, 5705140-M030SM, SM02556, SM57051 |
| Wisconsin | YA27, YA63 |
Frequently Asked Questions
What Evinrude models is this SAB0109 starter compatible with?
This DB Electrical SAB0109 starter is compatible with a wide range of Evinrude outboard motors from 1966-1998, including E20, E25E, E25EL, E25TE, E25TEL, E28, E30 series, E35 series, and E40 series models. Please refer to the detailed fitment guide for specific years and engine configurations.
What are the key technical specifications of this starter?
The SAB0109 starter operates at 12 volts, features a counter-clockwise (CCW) rotation, and has an 11-tooth pinion. It's a PMDD (Permanent Magnet Direct Drive) type starter, with a gear OD of 1.689 inches (42.9mm) and a 3.5-inch field case length.
Is this an OEM (Original Equipment Manufacturer) part?
No, the DB Electrical SAB0109 is a high-quality aftermarket starter. It is designed and tested to meet or exceed OEM specifications, providing equivalent performance and reliability as the original part.
What makes DB Electrical starters suitable for marine use?
DB Electrical starters for marine applications are built with enhanced durability features such as sealed housings and bearings to keep internal components cleaner and drier. They also incorporate epoxied armatures and high-quality magnets to combat the corrosive effects of water, meeting SAEJ1171 certification standards for watercraft.
