Starter Motor for Evinrude & Johnson 90-115HP Outboard 1995-2006
Starter Motor for Evinrude & Johnson 90-115HP Outboard 1995-2006
SKU:410-21033
Free shipping over £150. Terms apply
Couldn't load pickup availability

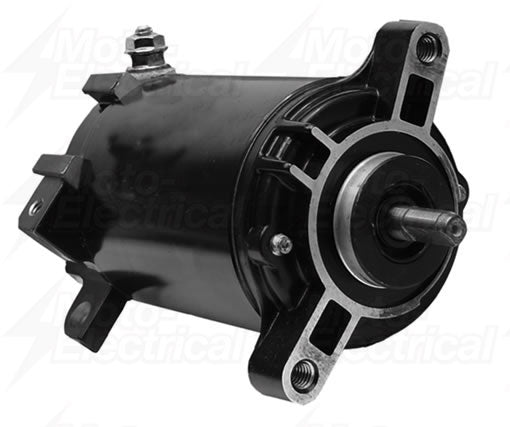

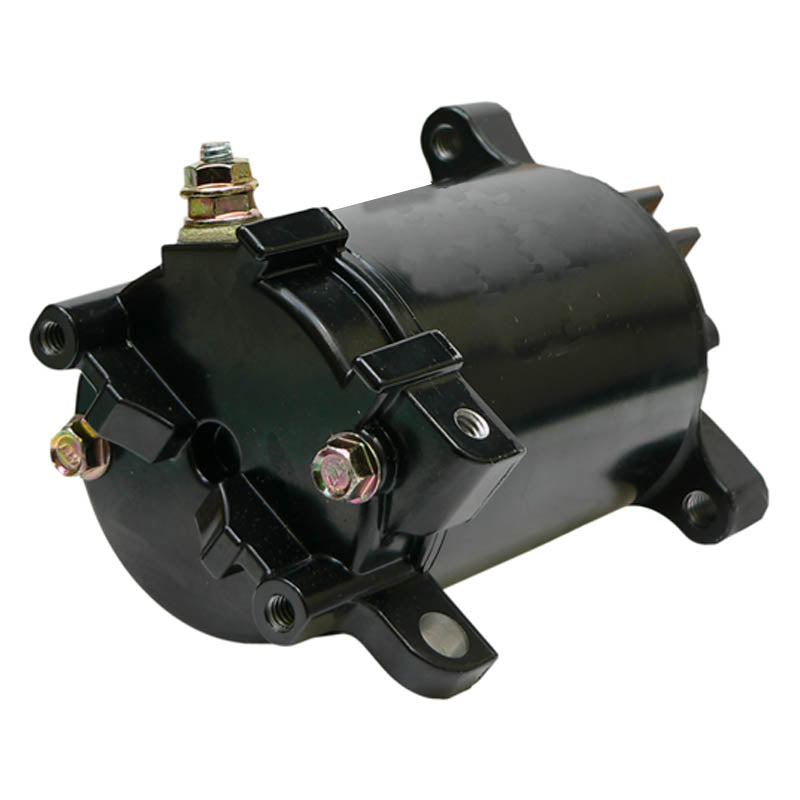

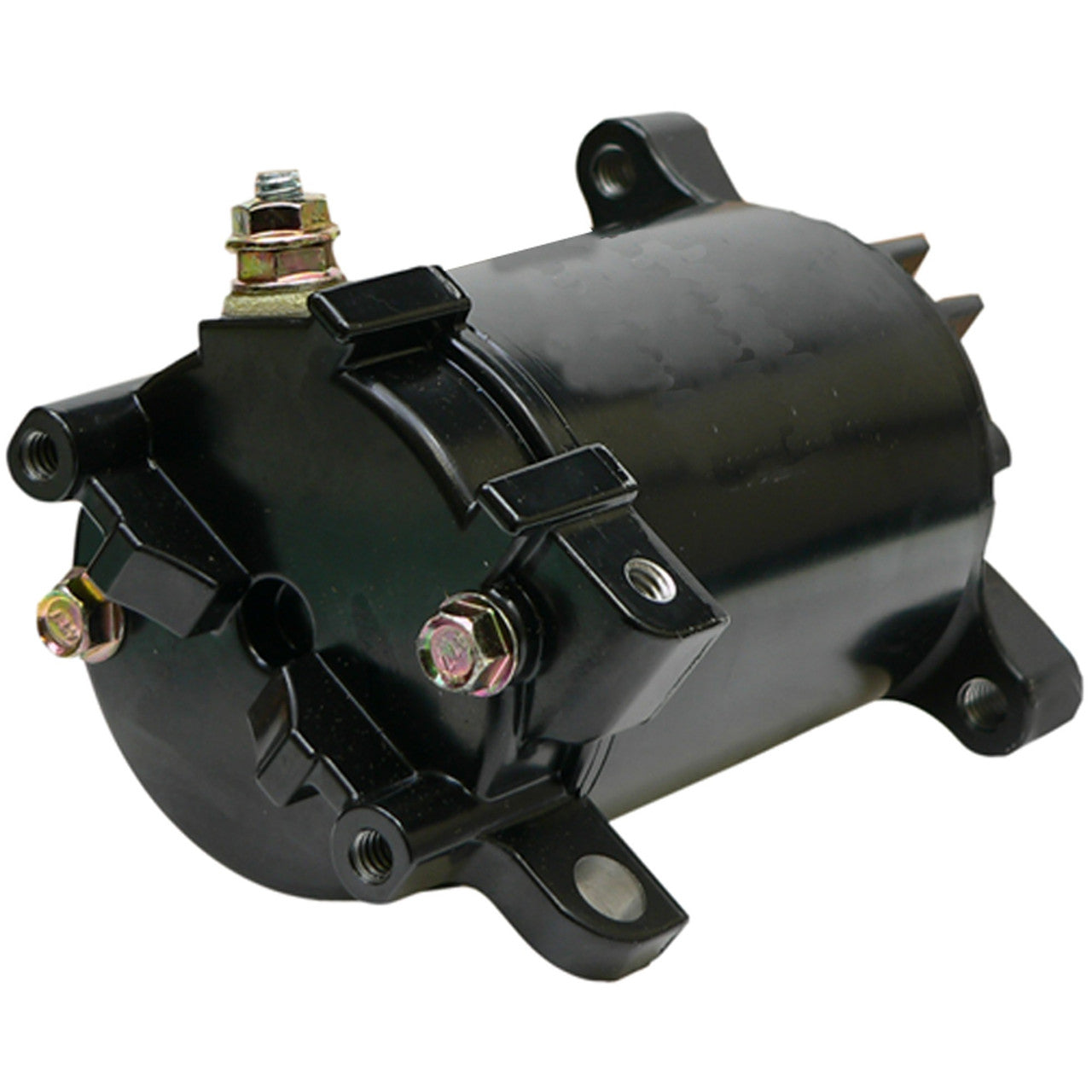

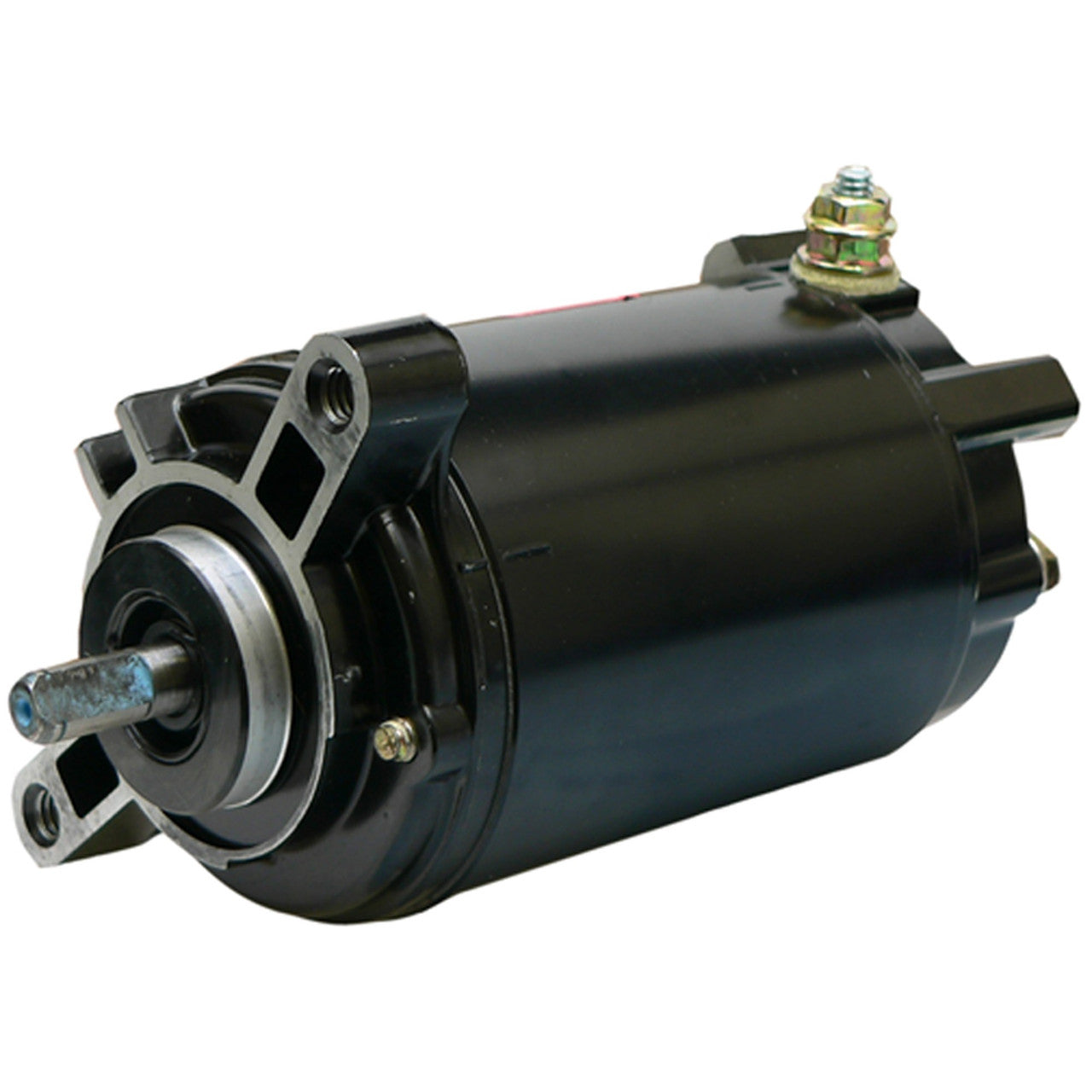

Starter Motor for Evinrude & Johnson 90-115HP Outboard 1995-2006
Fits OMC, Johnson and Evinrude 90, 100, 105 and 115HP outboard engines
This is a direct-fit replacement starter motor built to OEM specifications for OMC, Johnson and Evinrude outboard engines rated at 90, 100, 105 and 115 horsepower. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, so it bolts straight in place of the original starter with no adaptation required.
The unit is a permanent magnet direct drive (PMDD) starter running on a standard 12-volt marine electrical system, turning clockwise (CW), with a motor housing length of 3.39 inches and three 1/4-20 threaded mounting holes in the commutator end housing. Because rotation direction and housing length vary between OMC and Johnson outboard variants, this is a genuine like-for-like specification match rather than a generic universal starter.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt marine starter motor
- Clockwise (CW) rotation
- Permanent magnet direct drive (PMDD) design
- Motor housing length 3.39 in
- Three 1/4-20 threaded mounting holes in CE housing
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Starter Type | PMDD (Permanent Magnet Direct Drive) |
| Motor Housing Length | 3.39 in |
| Mounting | Three 1/4-20 threaded holes in CE housing |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Evinrude / Johnson 90HP outboard (BE90EL, BE90SL, BE90SX, BJ90EL, BJ90PL, BJ90PX, BJ90SL, BJ90SX, BJ90VL, BJ90VX, E90EL, E90EX, E90PL, E90SL, E90SLE, J90EL, J90EX, J90GL, J90PL, J90PX, J90SL, J90SLE, J90SPL, J90VL, L90GLE, RJ90PL, RJ90VL) | 1995-2006 |
| Evinrude / Johnson 100HP outboard (E100WPL, E100WPX, E100WQL, E100WQX, J100WPL, J100WPX, J100WQL, J100WQX) | 1998-2001 |
| Evinrude / Johnson 105HP outboard (E105WEL, E105WPL, E105WPX, J105WEL, J105WPL, J105WPX, SE105WE, SE105WR, SJ105WE, SJ105WR) | 1998-2003 |
| Evinrude / Johnson 115HP outboard (BE115EL, BE115GL, BE115SX, BJ115EL, BJ115GL, BJ115PL, BJ115PX, BJ115SX, BJ115VX, E115EL, E115GL, E115JTL, E115SL, E115SX, HE115SL, HJ115SL, J115EL, J115GL, J115JPL, J115JTL, J115PL, J115PX, J115SL, J115SPL, J115SX, J115VL, J115VX, J115WPL, L115GLE, RJ115PL, RJ115PX, RJ115VL, RJ115VX) | 1995-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0584980, 0586284, 584980, 586284 | OMC |
| 8M6007315 | Mercury Marine |
| 18-5632 | Sierra Marine |
| SAB0075 | Arrowhead |
| 5720 | Lester |
| 2-2257, 2-2257-UT, 5720N | WAI |
| 5399 | Arco Marine |
| MOT2011 | API Marine |
| 4-5632 | EMP Parts / MP Parts |
| 5721740-M030SM, SM57217 | United Tech |
| S2049M, S2049M-OE | MES Motorcycle & Marine |
| 57-1698 | Minnpar |
| 106-508 | PIC |
| 690-054 | Barsanco |
| 49-0075 | EMS |
| 91-09-1048, 71-09-5720 | Wilson |
| 410-21033 | J&N Electrical |
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement for the listed OMC, Johnson and Evinrude outboard engines and requires no modification to install.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key is turned or the start button is pressed.
Is the rotation direction important?
Yes - this unit is clockwise (CW) rotation. Fitting a starter with the wrong rotation direction will not turn the engine correctly, so please confirm your original unit's rotation before ordering.
My engine code is not in the list - will it still fit?
The quickest check is the OEM number stamped on your original starter. If it matches one of the cross reference numbers above, this unit is the correct replacement.
