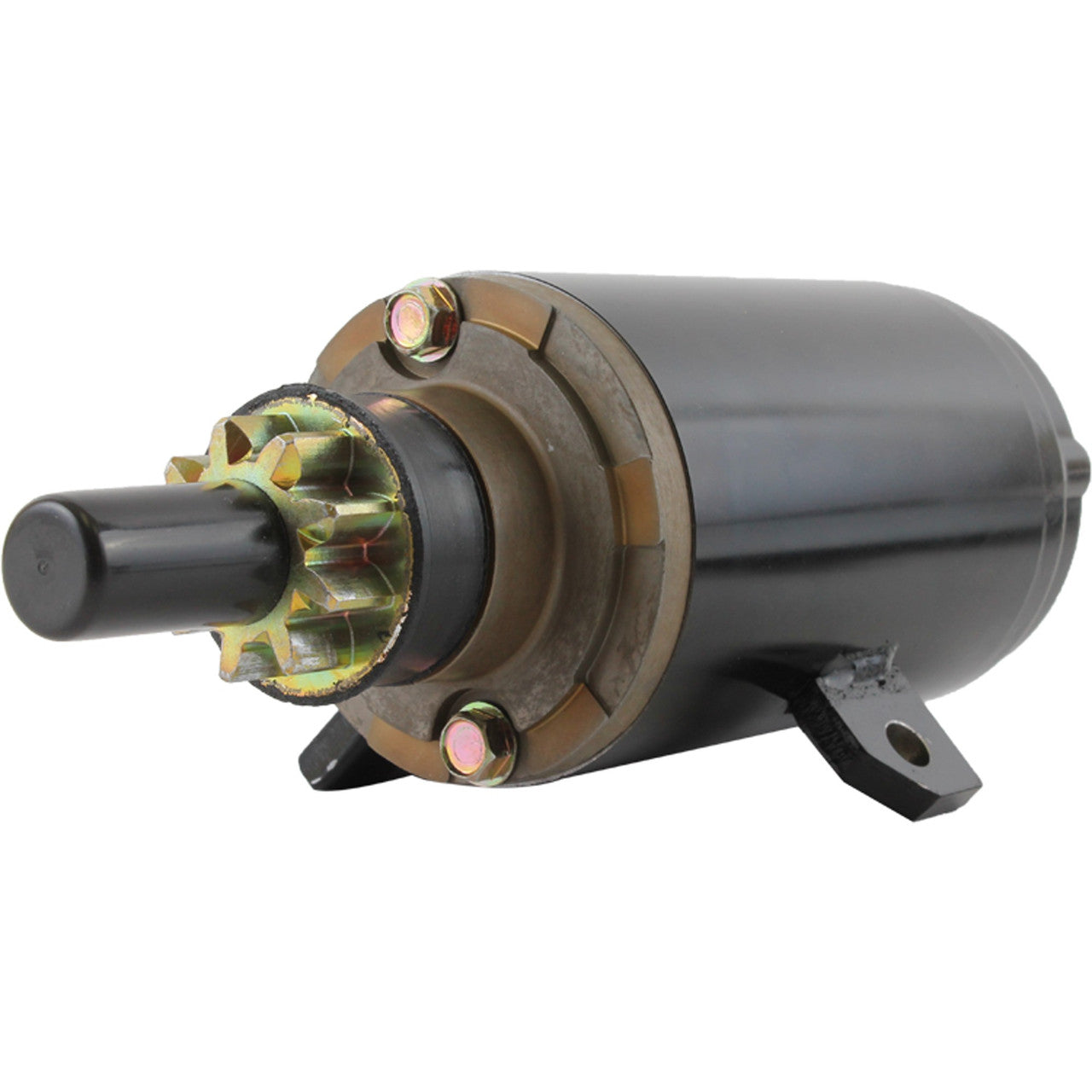

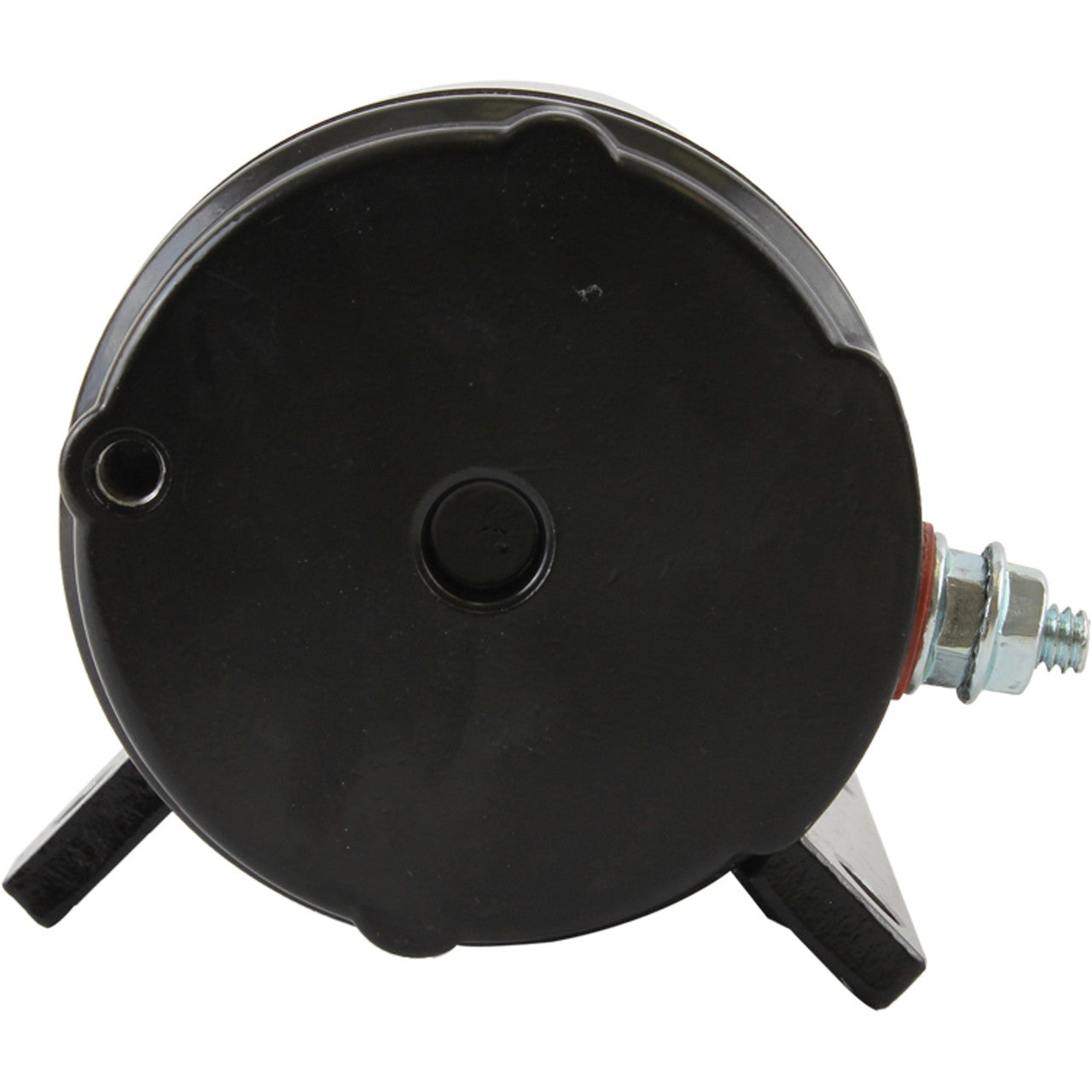

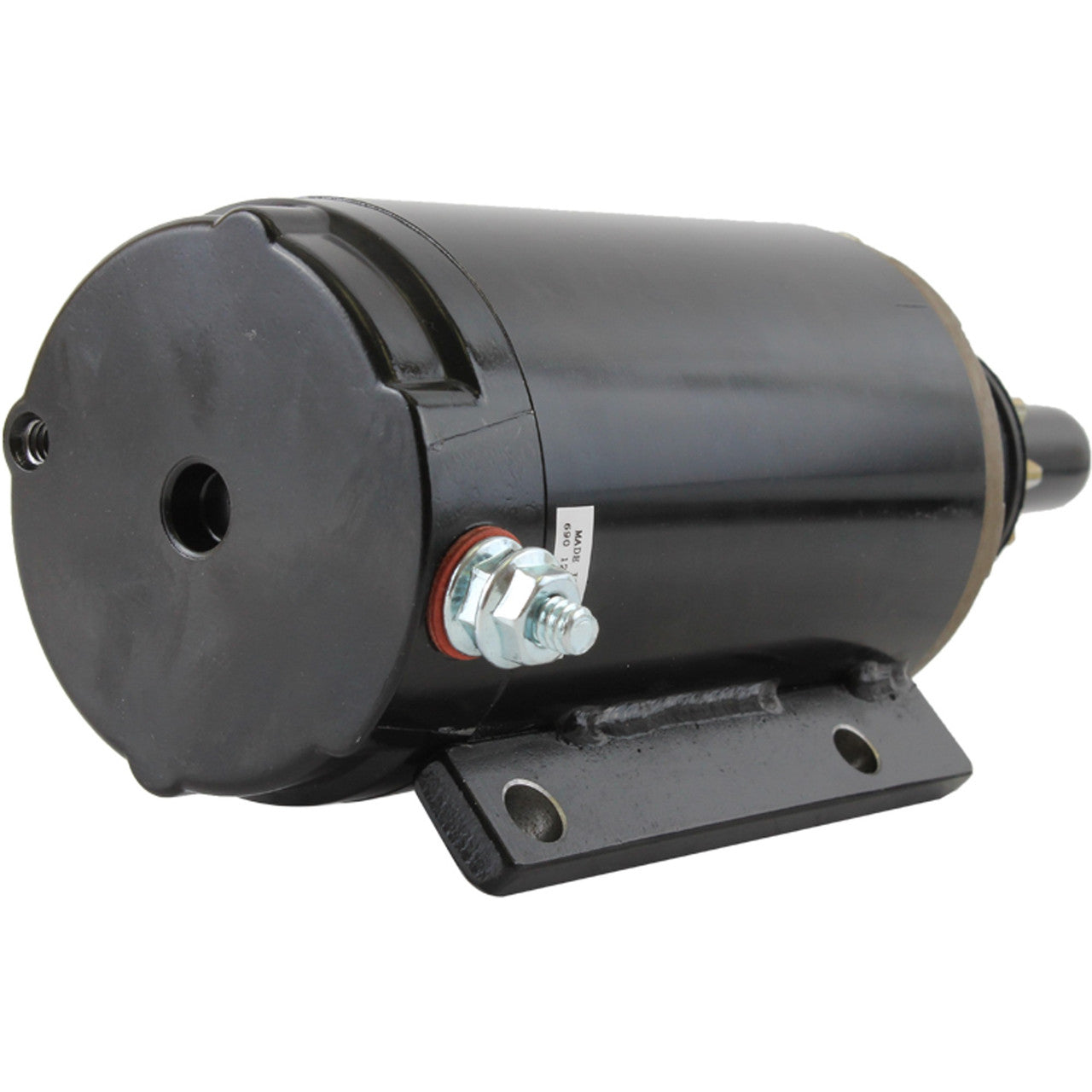

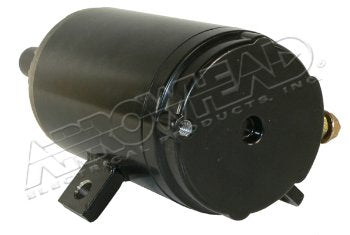

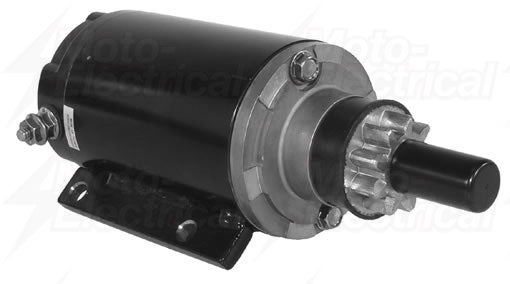

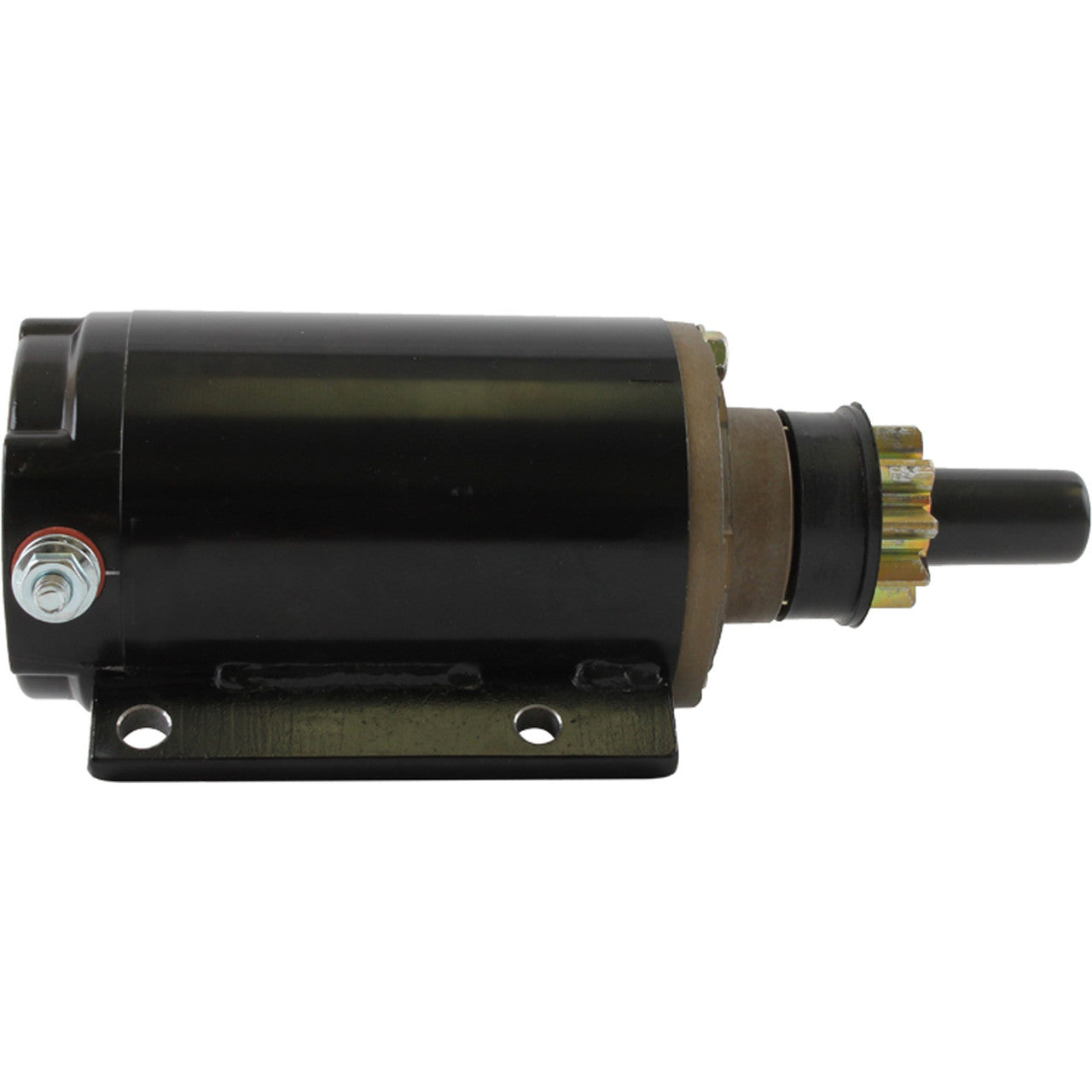

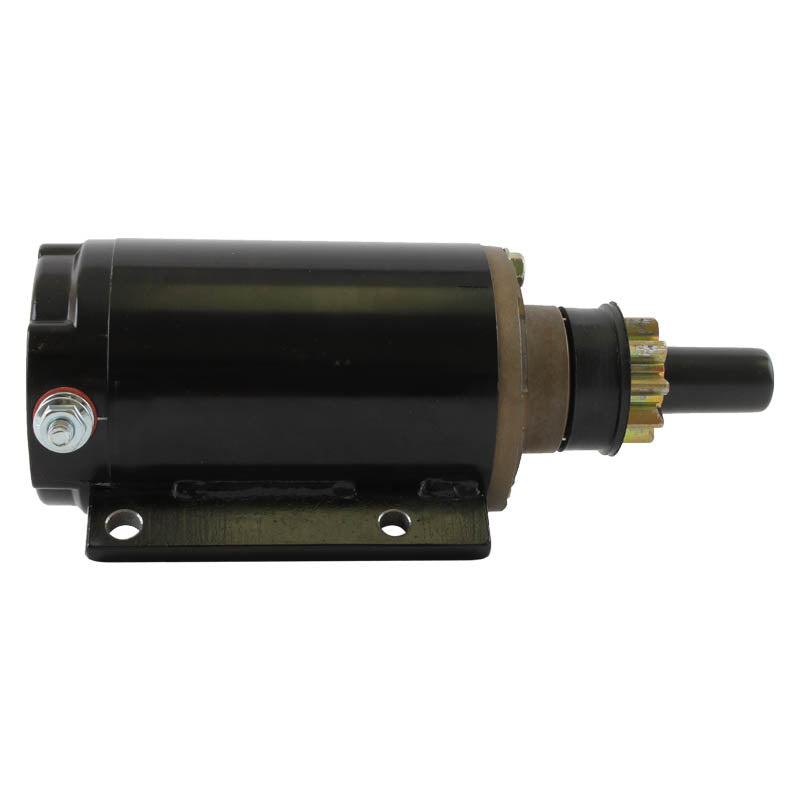

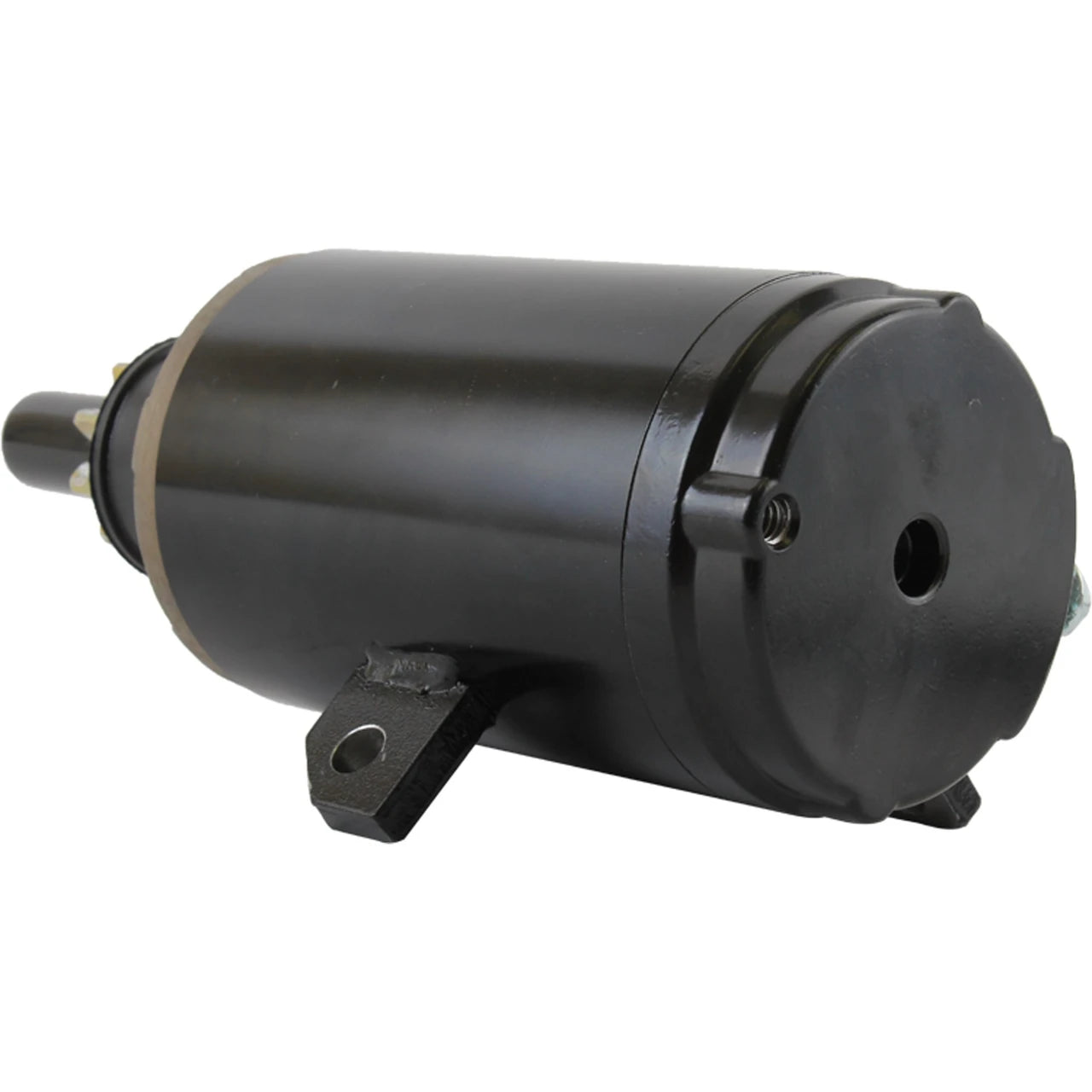

Starter Motor for Johnson Evinrude OMC Outboard 50-75HP 1972-2001
OMC Johnson and Evinrude marine outboards - 12V, counter-clockwise rotation, 9-tooth
A starter motor is the component that cranks the engine over to begin combustion. If it fails to engage, spins without turning the engine, or does not respond at all when the key is turned or the start button is pressed, the engine will not start. This starter motor is built for OMC Johnson and Evinrude marine outboard engines in the 50, 60, 65, 70 and 75HP range, engineered as a direct replacement that matches the original unit's fit, mounting and function.
It is a 12V permanent magnet direct drive (PMDD) unit with counter-clockwise (CCW) rotation and a 9-tooth drive pinion, with a motor housing length of 4.033in (102.7mm) and a 1.441in (36.6mm) drive gear outside diameter matching the original OMC specification.
Key Features
- Direct fit for OMC Johnson and Evinrude 50-75HP outboards
- 12V starter motor, counter-clockwise (CCW) rotation

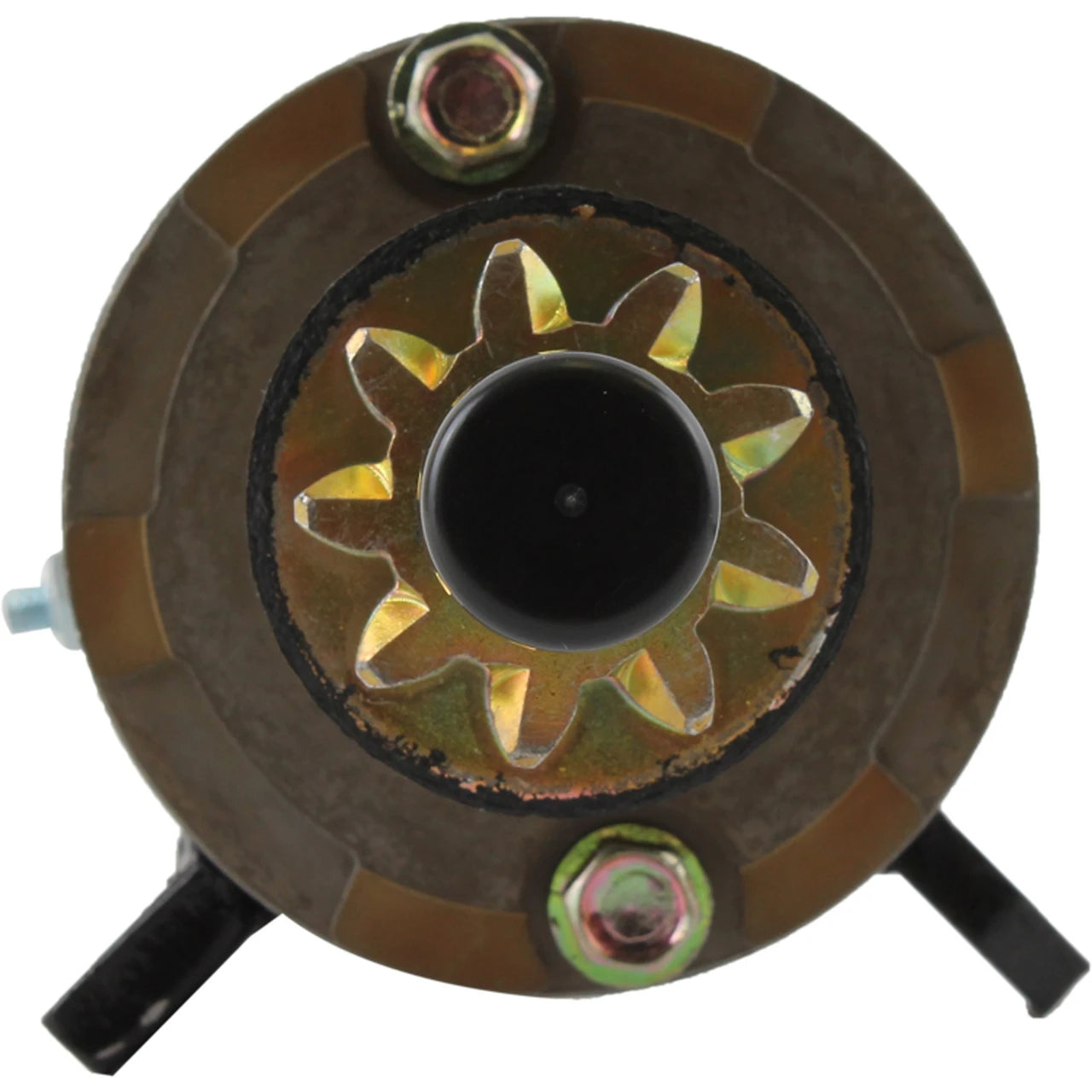

- 9-tooth drive pinion
- Permanent magnet direct drive (PMDD) design
- Motor housing length 4.033in (102.7mm)
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Counter-Clockwise (CCW) |
| Teeth | 9 |
| Starter Type | PMDD (permanent magnet direct drive) |
| Motor Housing Length | 4.033in / 102.7mm |
| Drive Gear Outside Diameter | 1.441in / 36.6mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Evinrude Outboard 50HP (E50DTL, XJ50ESL) | 1972-2001 |
| Evinrude Outboard 60HP (E60EL, E60TL) | 1972-2001 |
| Evinrude Outboard 65HP and 70HP (E65 series, E70EL) | 1972-2001 |
| Johnson Outboard 50HP and 60HP (J50TTL, J60 series) | 1972-2001 |
| Johnson Outboard 65HP, 70HP and 75HP (J65, J70, J75, RJ70PL, SJ65WML, TJ70TLC, VJ70EL) | 1972-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 386657, 585050, 585197, 586281 | OMC / Johnson / Evinrude |
| SM02610, SM10629, SM17996, SM57048 | OEM / Interchange |
| 476178 | OEM / Interchange |
| 481937 | OEM / Interchange - Prestolite Version, 10-Tooth |
| Equivalents also listed by | API Marine, ARCO, Arrowhead, Cargo, EMP, J&N, Lester, Quicksilver, Sierra Marine, Unipoint, WAI |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is built to match the original OMC outboard unit's housing length, rotation and drive pinion, so it installs as a direct swap.
What's included?
One new 12V starter motor, ready to fit.
How do I know my old starter has failed?
Common signs are a single click with no crank, a slow or straining crank, or no response at all when the key is turned or the start button pressed.
Is there a version with a different tooth count?
A 10-tooth Prestolite-pattern version also interchanges with this application - see the OEM cross reference above and check your original unit's tooth count before ordering.
