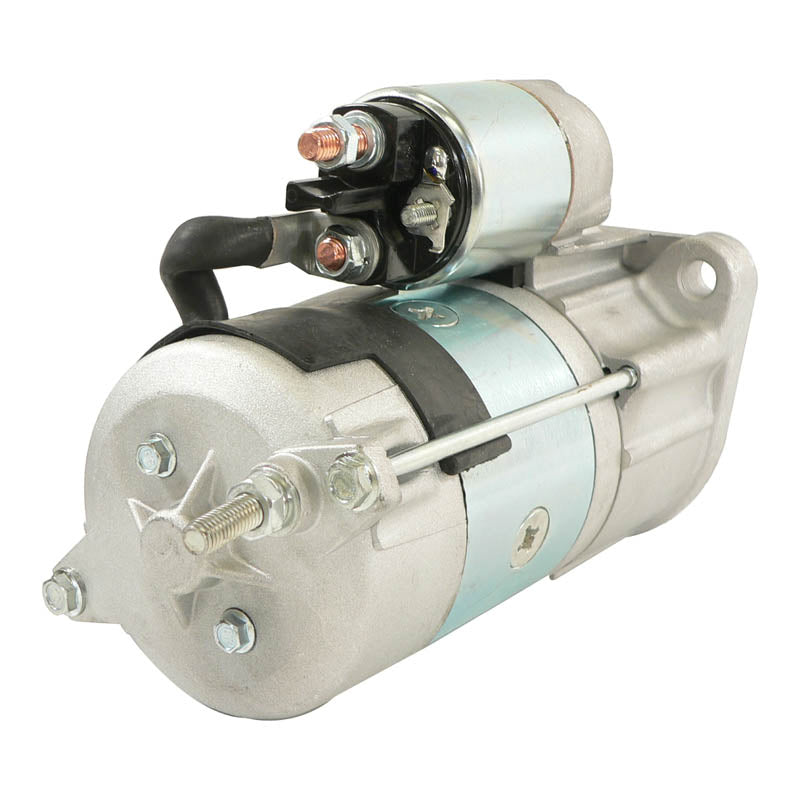

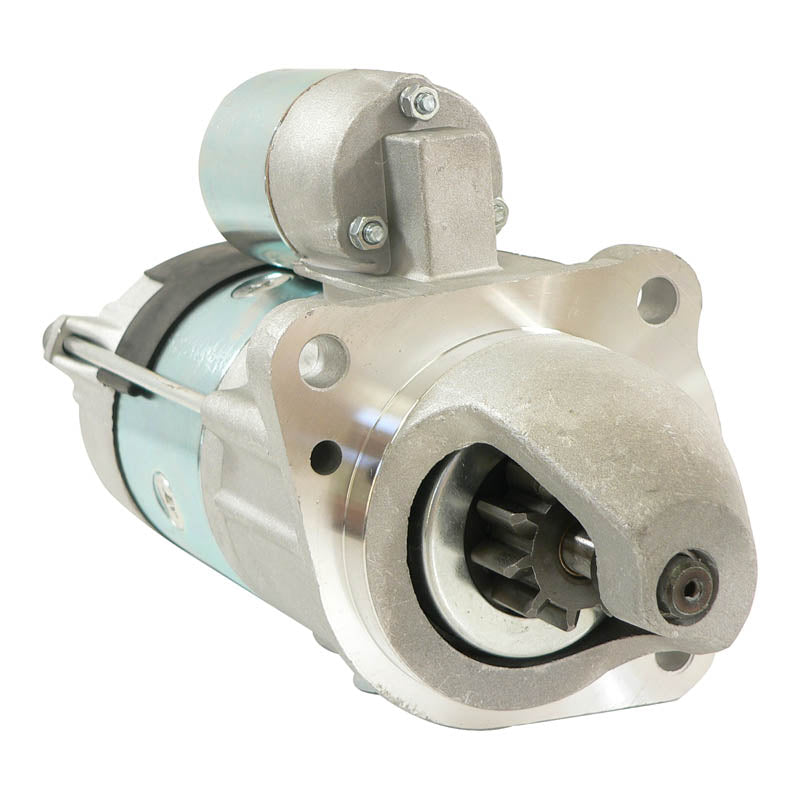

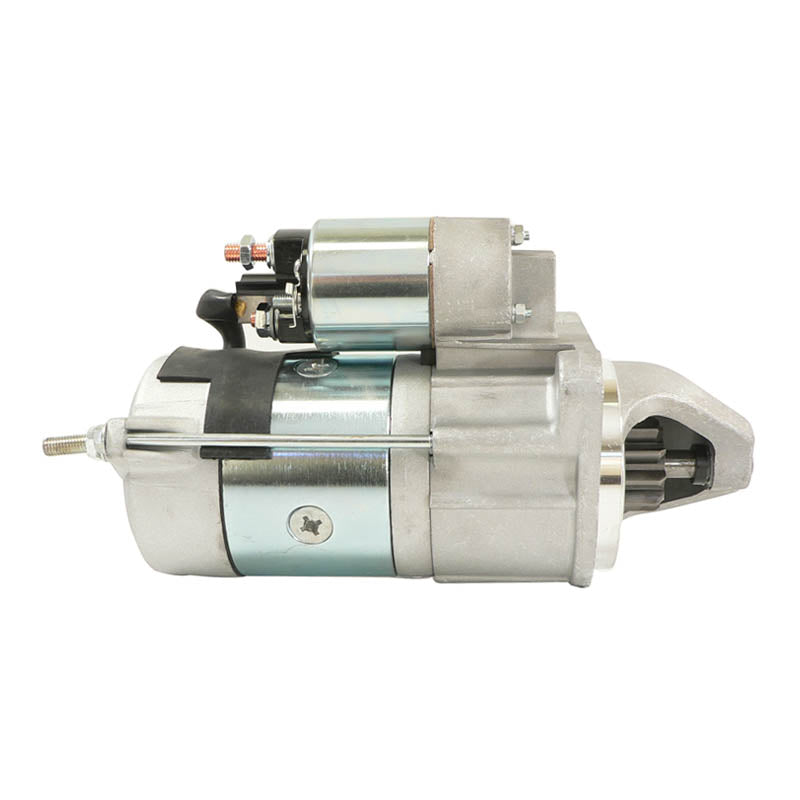

Starter Motor for Perkins PLGR Engines - 12V CW 10-Tooth
Starter Motor for Perkins PLGR Engines - 12V CW 10-Tooth
SKU:410-41005
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Perkins PLGR Engines - 12V CW 10-Tooth
Fits Perkins Engines (PLGR type)
This starter motor is a direct-fit replacement for Perkins engines fitted with a PLGR-type starter, built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place.
It runs on 12 volts, turns clockwise (CW) and uses a 10-tooth drive gear, matching the specification of the starter originally fitted. The drive gear engages the engine's flywheel ring gear only while cranking and retracts automatically once the engine fires, so no adjustment is needed after fitting. Fitting is a straightforward like-for-like swap: disconnect the battery, remove the mounting bolts securing the original starter, transfer the wiring connector across, and bolt this unit into place in the same orientation.
Key Features
- Direct OEM fit and function for Perkins PLGR-type applications
- 12-volt motor
- Clockwise (CW) rotation, 10-tooth drive gear
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW |
| Drive Teeth | 10 |
| Part Type | PLGR |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Perkins Engines (PLGR type) | Not specified by supplier |
OEM Part Number Cross Reference
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this starter fit my engine without modification?
Yes, provided your engine takes a PLGR-type 12-volt, clockwise, 10-tooth starter as fitted to the applicable Perkins engines, this unit bolts straight in.
What's included?
The starter motor unit only, complete with its drive gear ready to fit.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
What does PLGR mean?
PLGR describes the starter's drive/gear type - it identifies the mechanical configuration of this unit so you can match it against your original starter before ordering.
