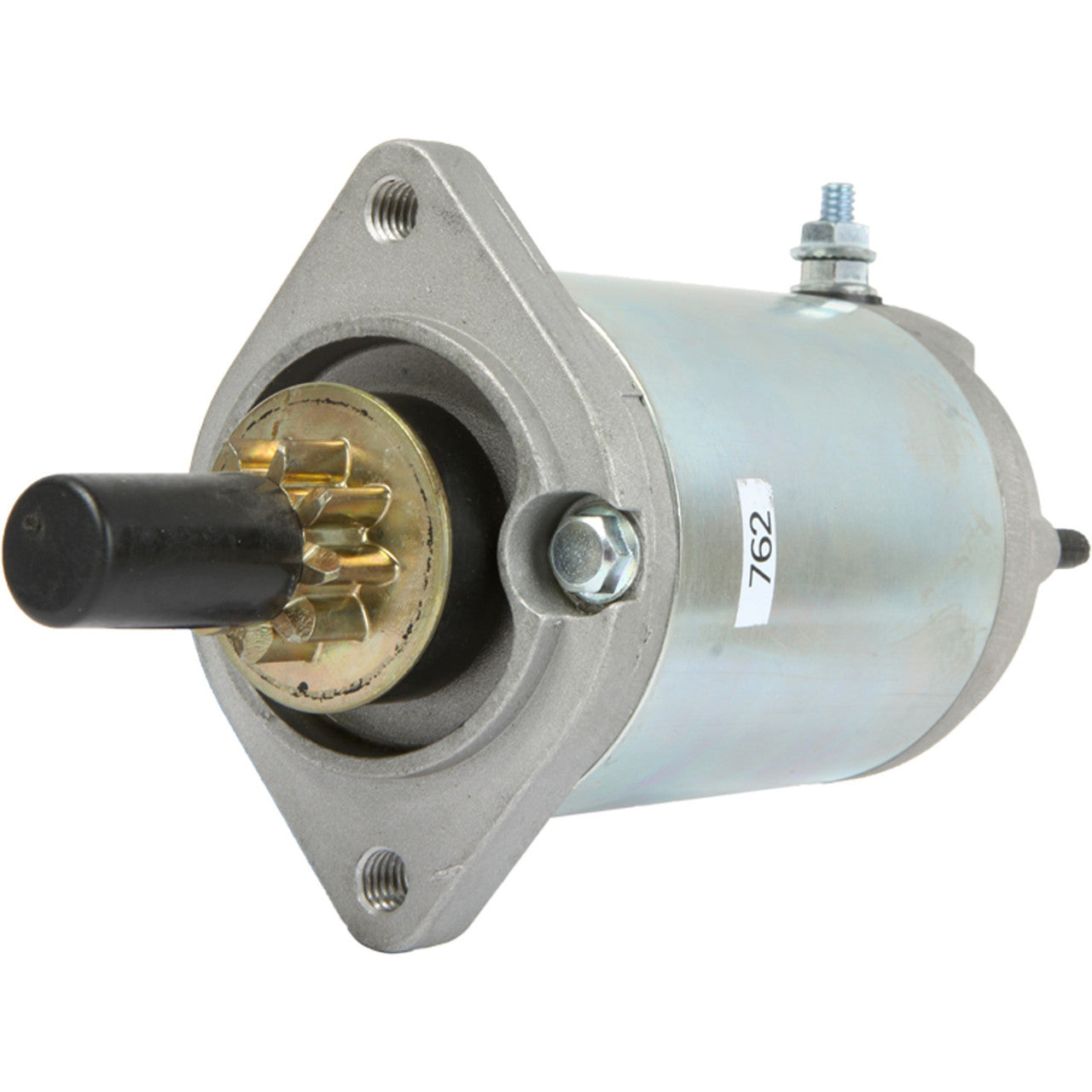

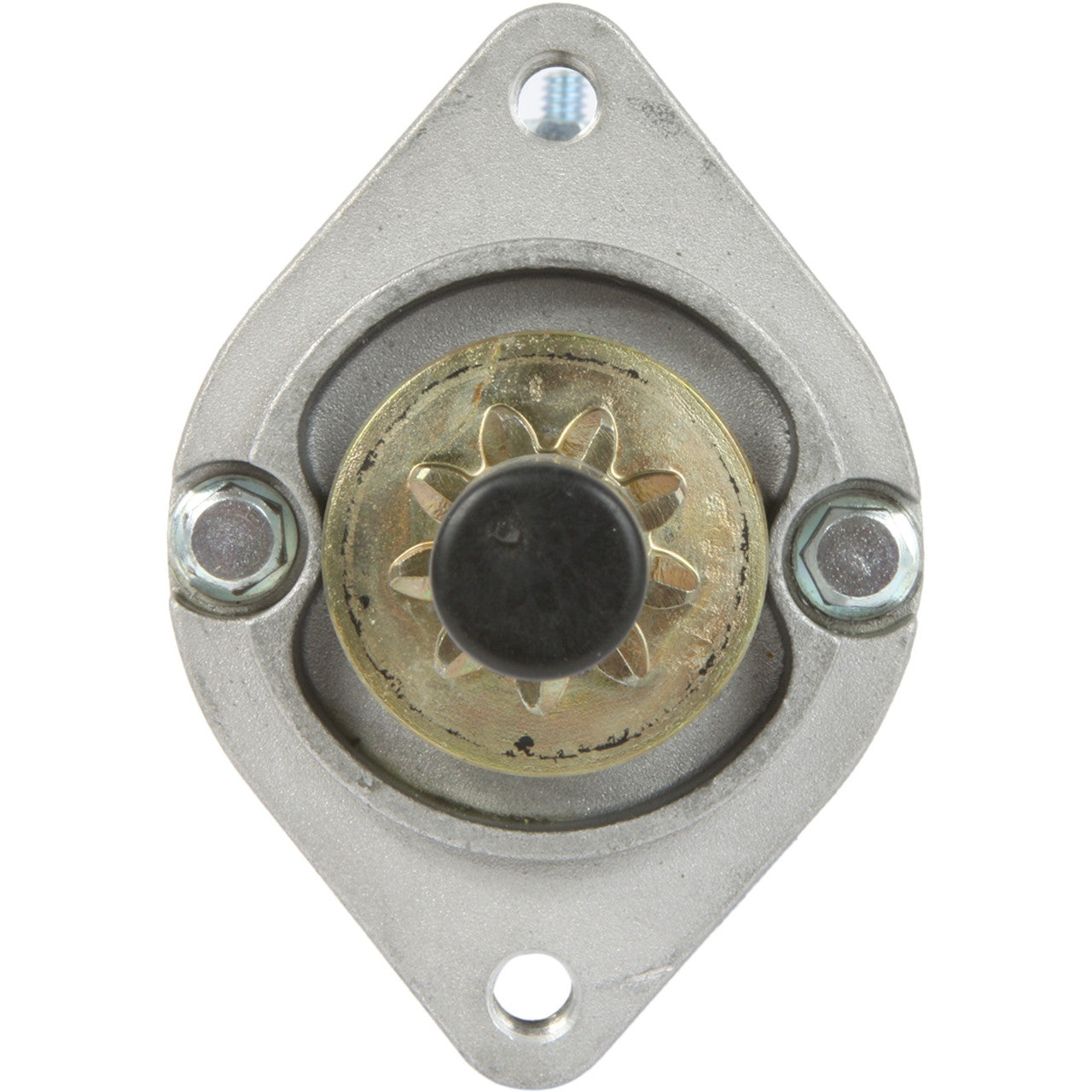

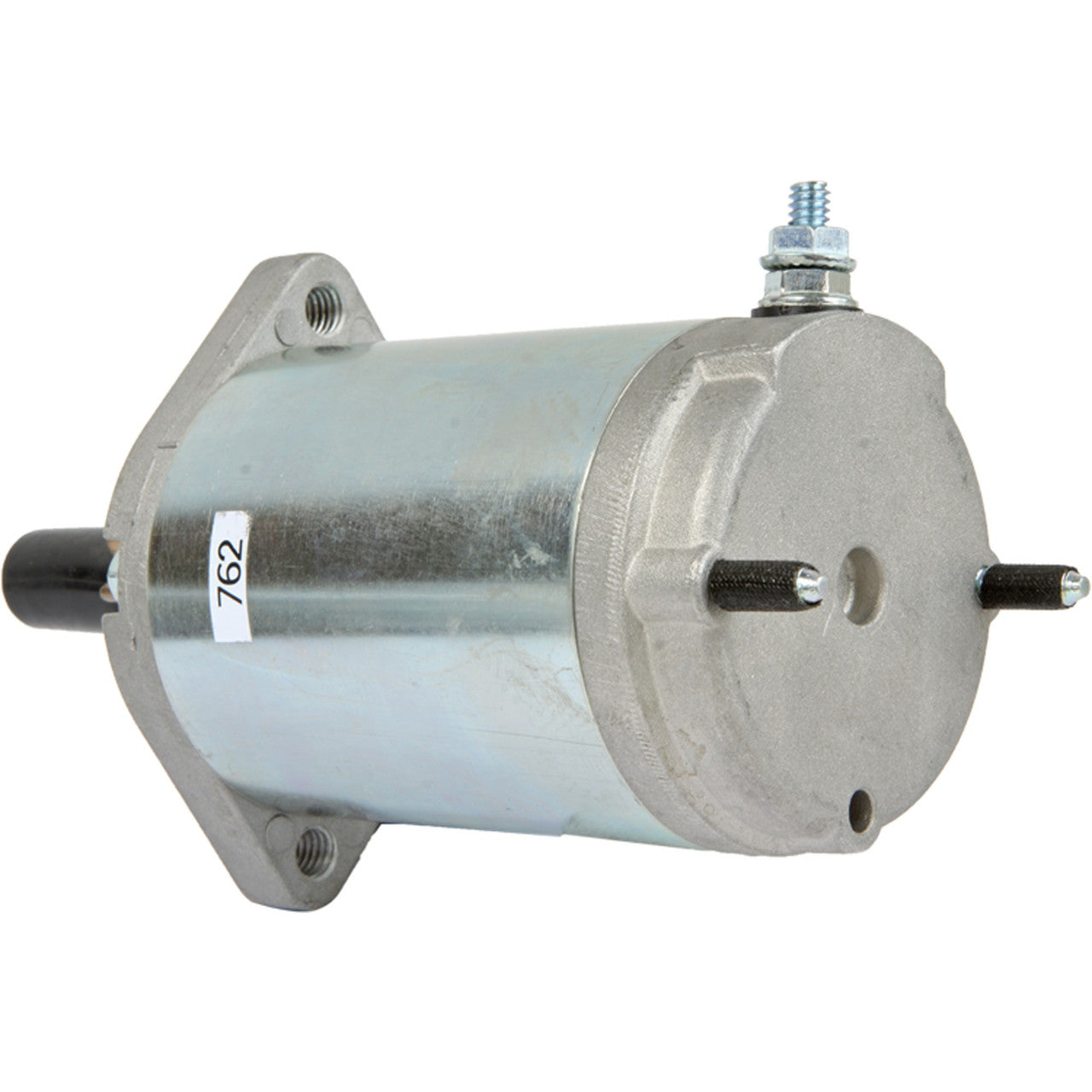

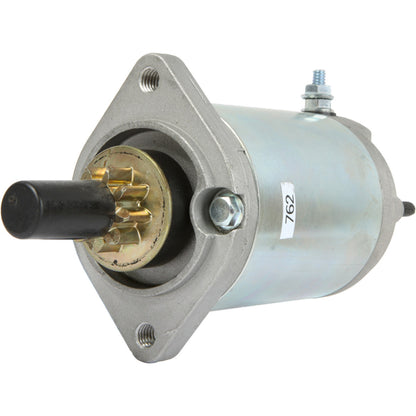

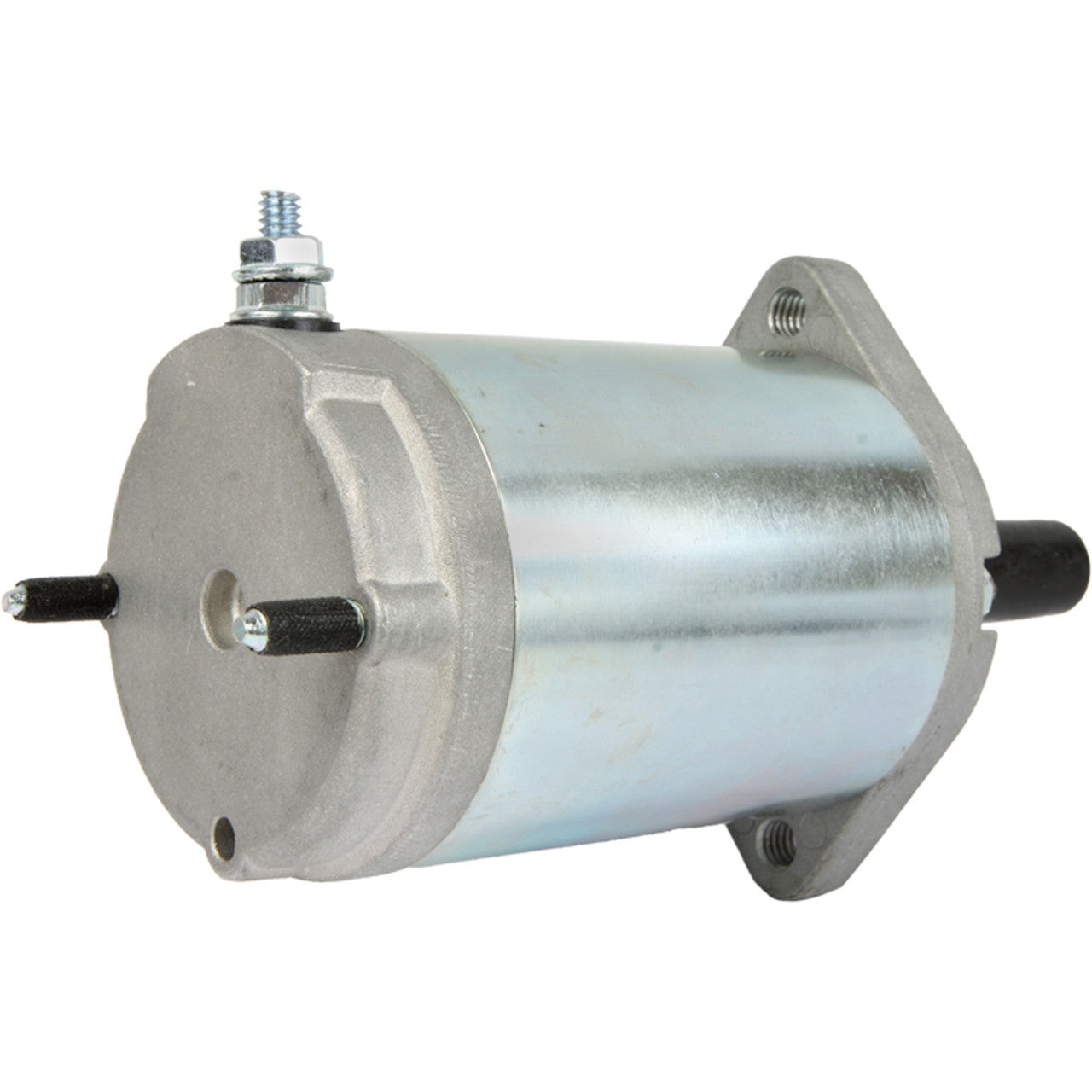

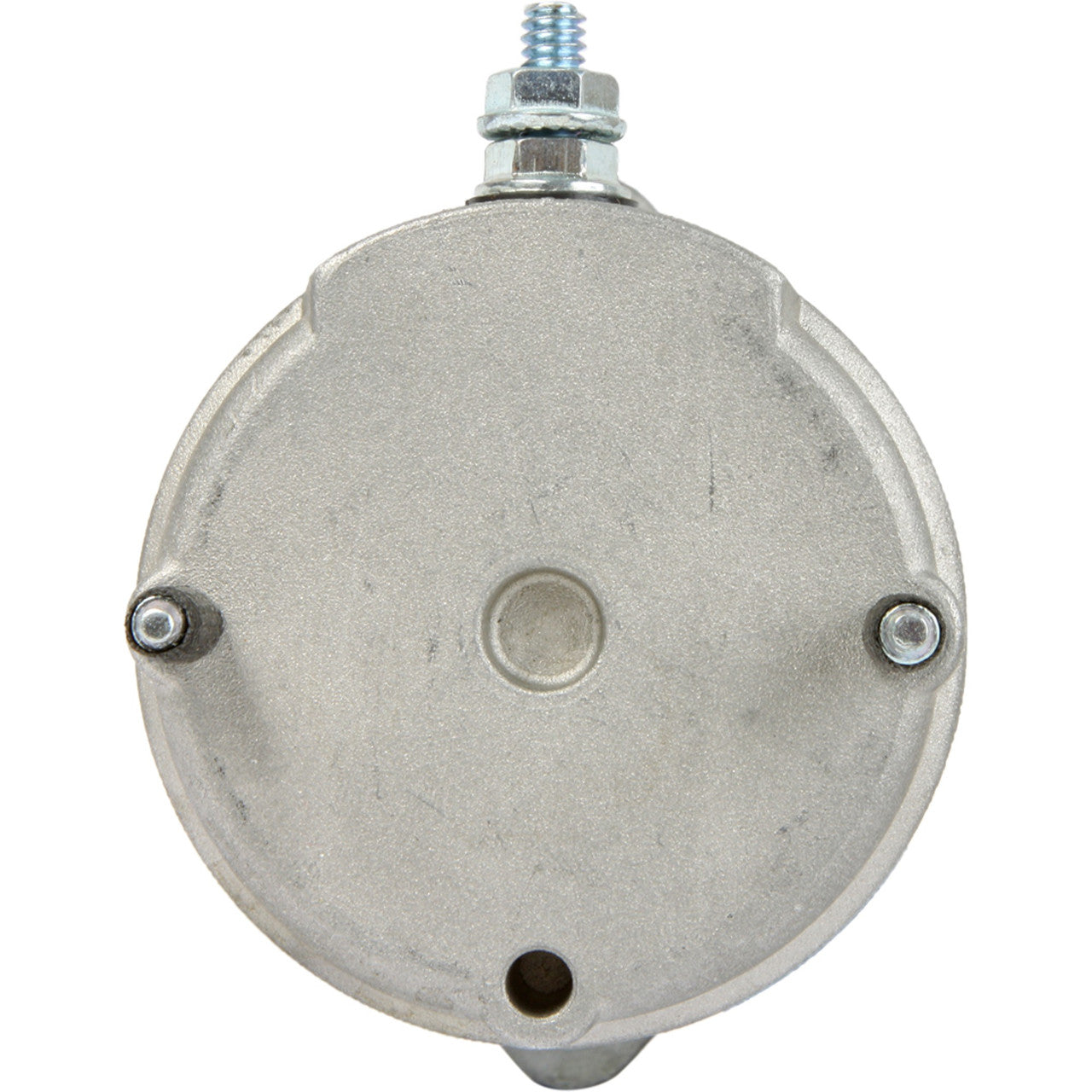

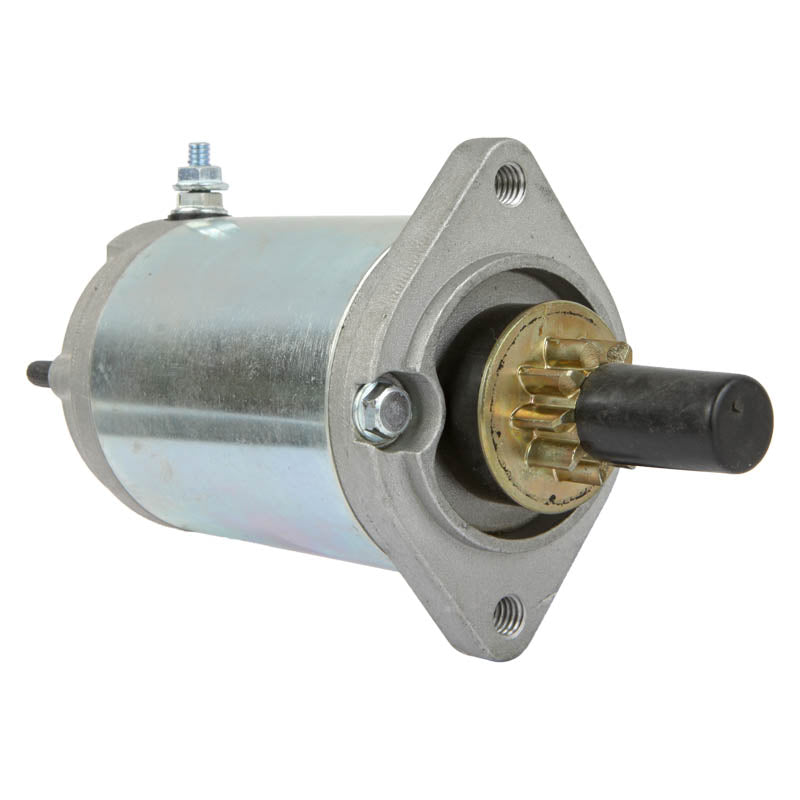

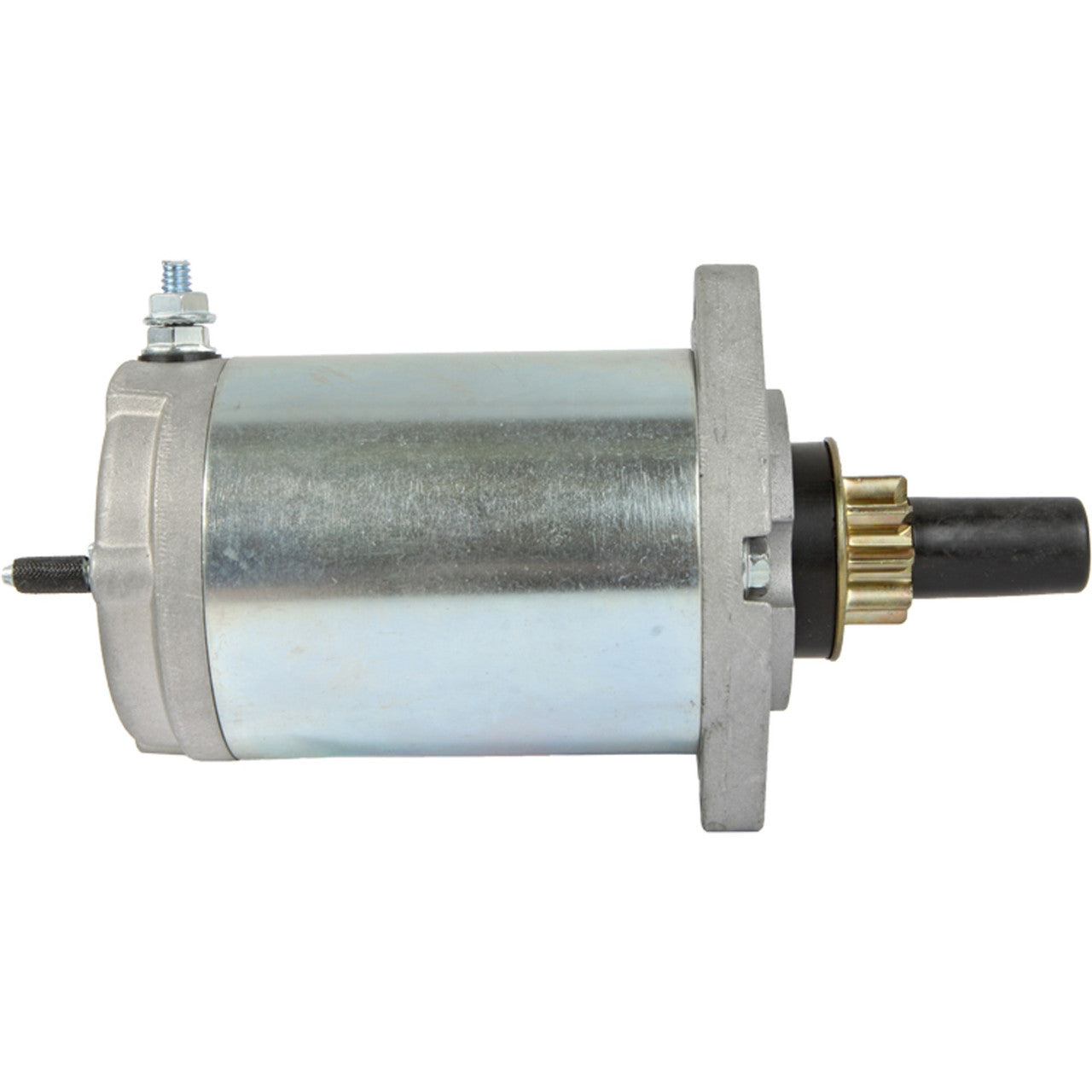

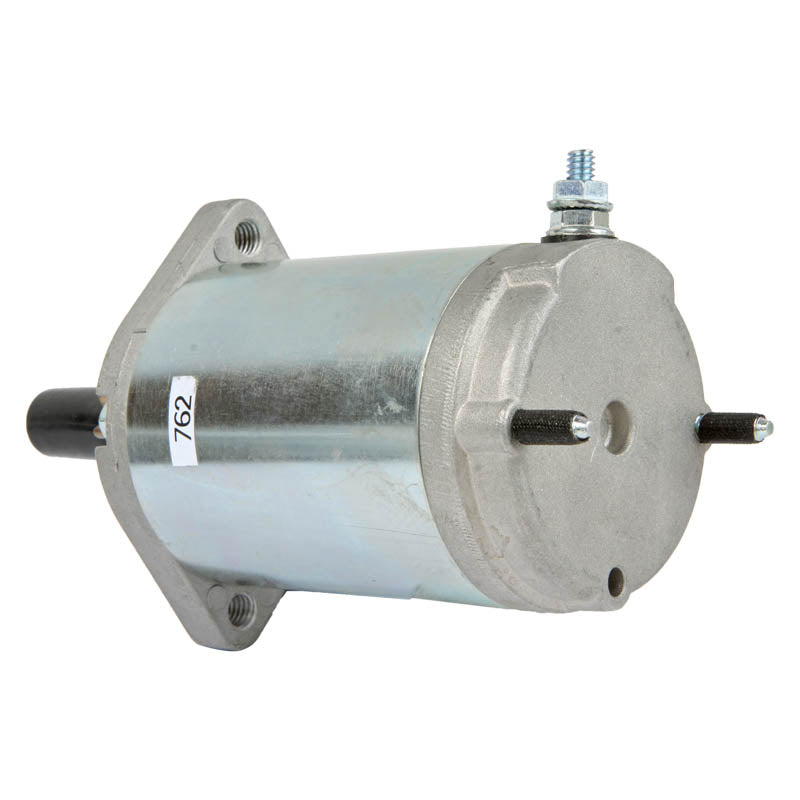

Starter Motor for Polaris Snowmobiles 1996-2015 - 12V CW 9-Tooth PMDD
Replaces Polaris 2410748 and 4170006 - 12V, clockwise rotation, 9-tooth PMDD
This is a direct-fit 12V starter motor built to OEM specifications for Polaris snowmobile applications, covering more than 160 models built between 1996 and 2015. It is engineered as a permanent magnet direct drive (PMDD) unit, which uses permanent magnets in place of field windings, giving a compact, lightweight housing that matches the fit, form and function of the original equipment part.
Manufactured to spin clockwise (CW) with a 9-tooth drive pinion and weighing 2.27kg (5lbs), it is a straightforward swap for a worn or failed original starter, with no modification required to the mounting bracket, drive gear or wiring loom. Compression on modern snowmobile engines places heavy demand on the starter, and PMDD units are widely used because they combine strong cranking torque with a lighter overall package than older wound-field designs.
Key Features
- 12V permanent magnet direct drive (PMDD) starter
- Clockwise (CW) rotation to match OEM spec
- 9-tooth drive pinion
- Compact, lightweight housing at 2.27kg (5lbs)
- Direct replacement for Polaris 2410748 and 4170006
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Teeth | 9 |
| Starter Type | PMDD |
| Weight | 2.27kg (5lbs) |
| Part Number | 410-21064 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris 340 series (Classic, Edge, Indy, Touring) | 1999-2007 |
| Polaris 500 series (Classic, XC SP Edge) | 1997-2006 |
| Polaris 550 / 600 / 700 / 800 series | 2000-2005 |
| Polaris Trail Touring and RMK variants | 1996-2010 |
| Polaris Widetrak LX | 1997-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2410748, 4170006 | Polaris |
| 0645-184 | Arctic Cat |
| AM52455 | John Deere |
| SAB0105 | Arrowhead |
| 5768 | Lester |
| 2-2146, 5768N | WAI |
| 5698340-M030SM, SMH12A104 | United Technologies |
| 49-0152 | Stockers |
| 46-4253 | Tucker Rocky |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is a direct replacement for the original Polaris snowmobile unit - the mounting points, drive gear and wiring connections match the factory part, so no cutting, drilling or rewiring is needed.
What's included?
One 12V PMDD starter motor, ready to fit. Mounting bolts and wiring are reused from your original unit.
How do I know my old starter has failed?
Common signs include a single clicking noise with no engine turnover, a slow or labouring crank that gets weaker as the battery drains, unusual grinding when the key is turned, or no response at all when starting.
How do I confirm this is right for my sled?
The quickest check is the number on your existing starter. If it reads Polaris 2410748 or 4170006, or Arrowhead SAB0105 or Lester 5768, this is the correct unit.
Is this starter new or reconditioned?
This is a new aftermarket unit built to OEM specifications, not a reconditioned or rebuilt part, so you are not inheriting wear from a previous life on another machine.
