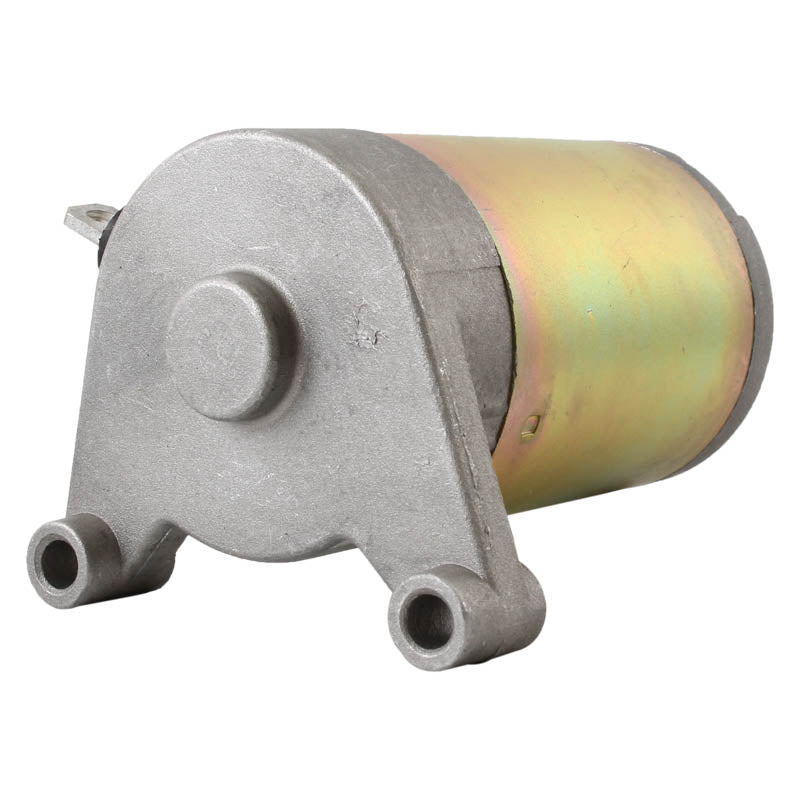

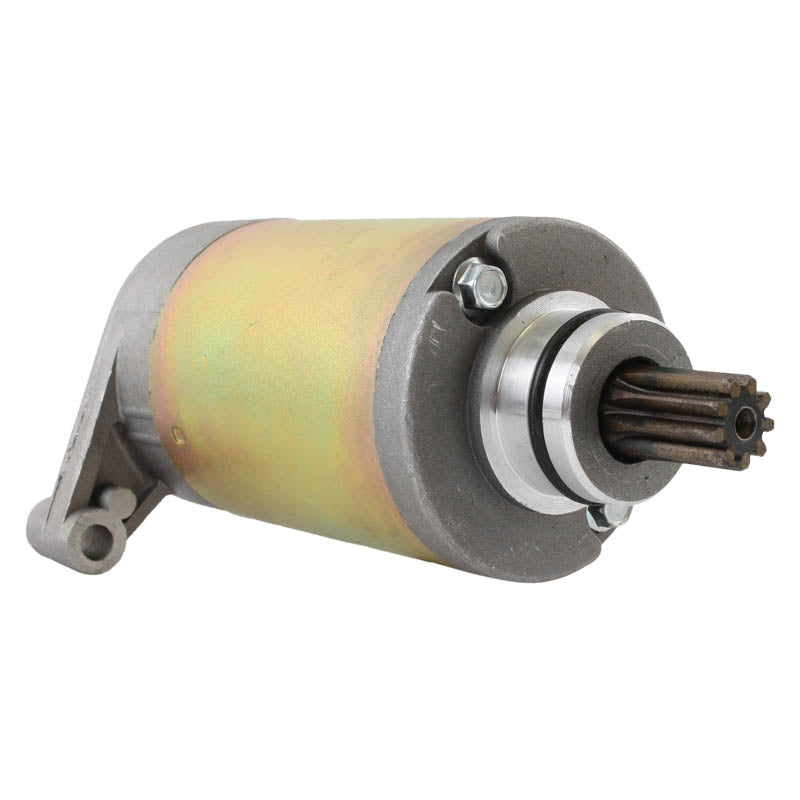

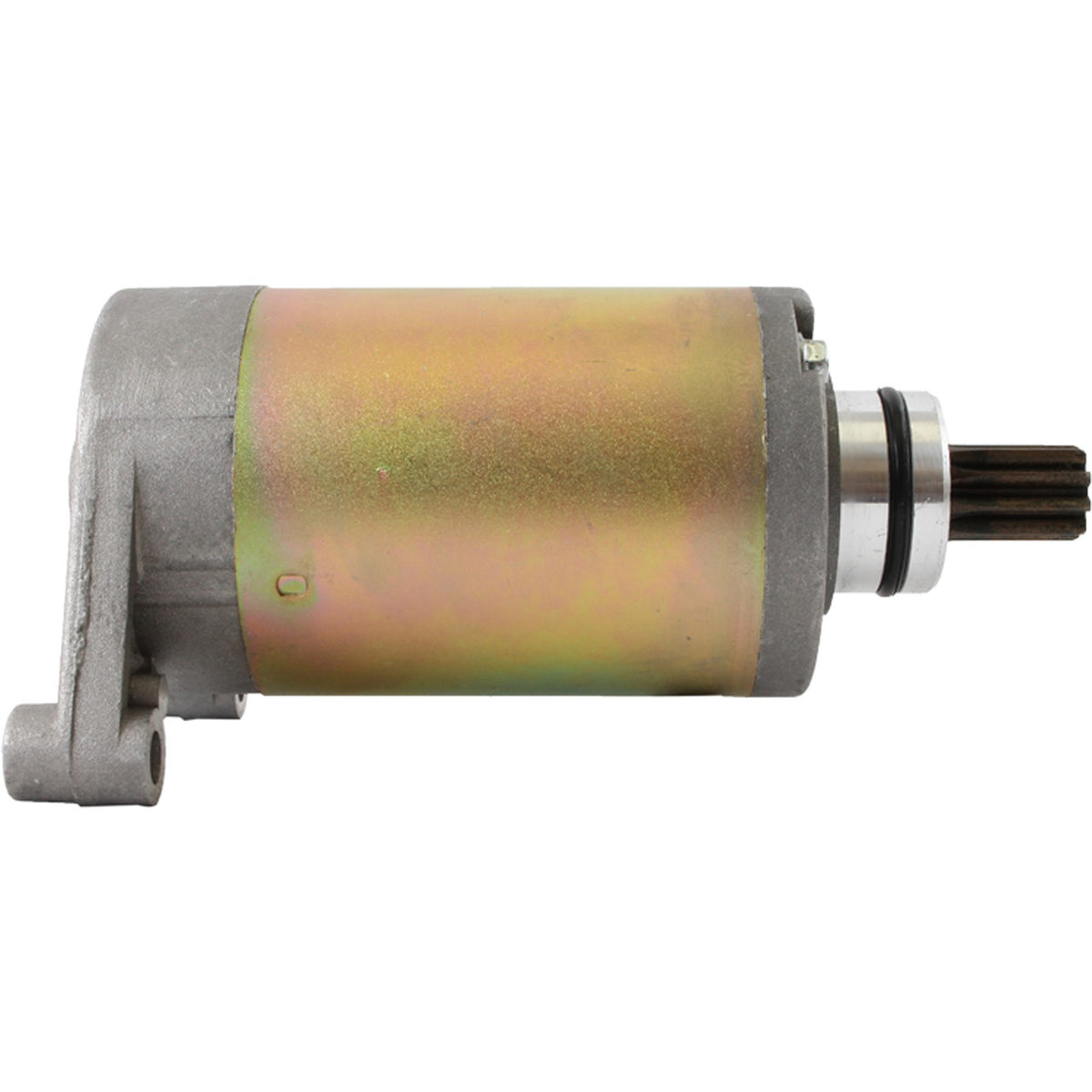

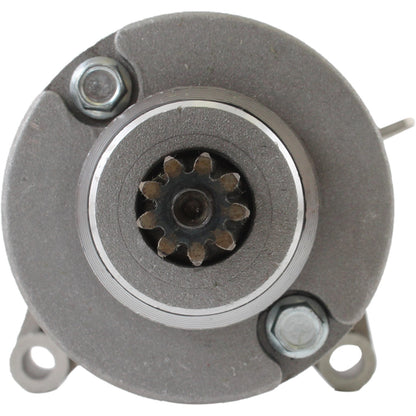

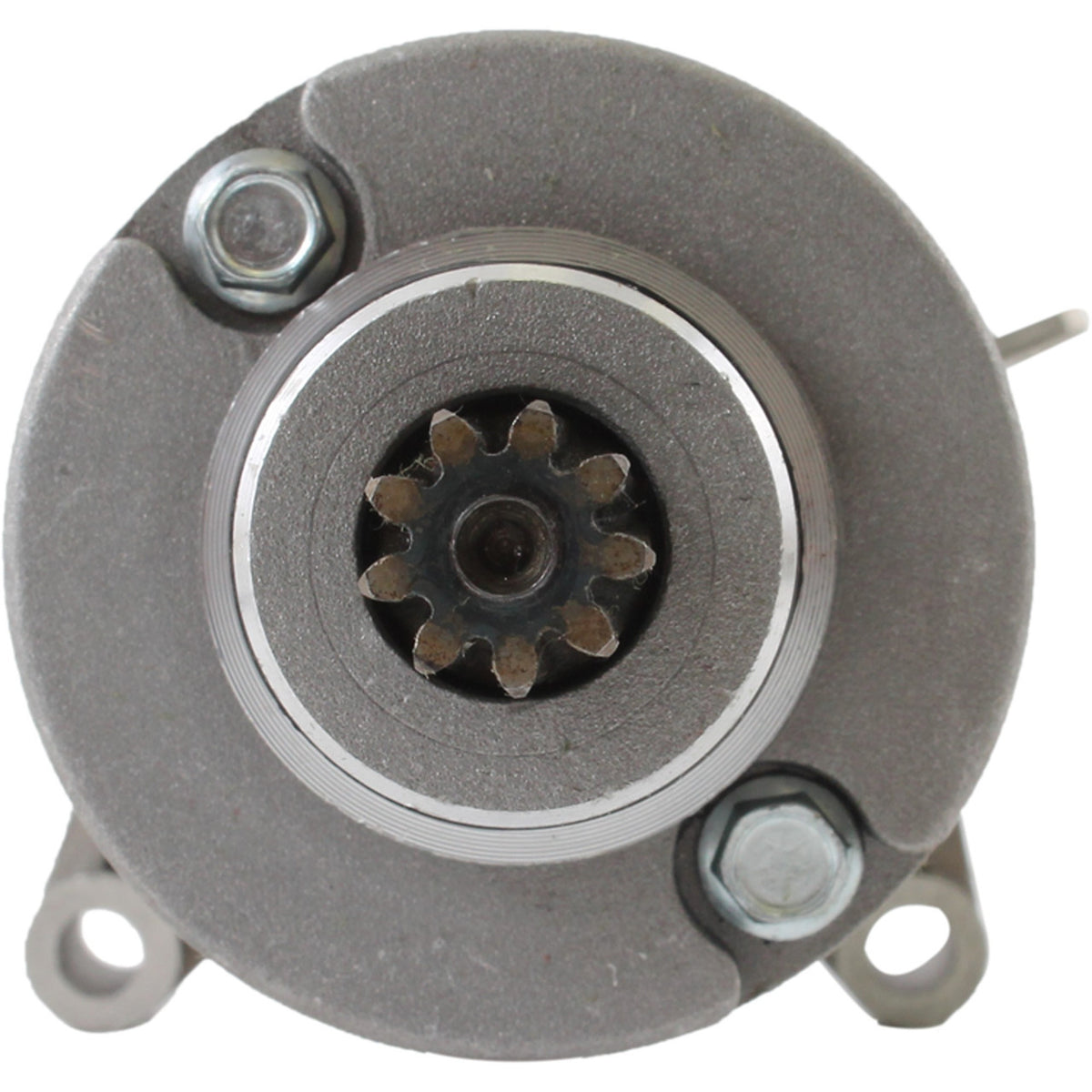

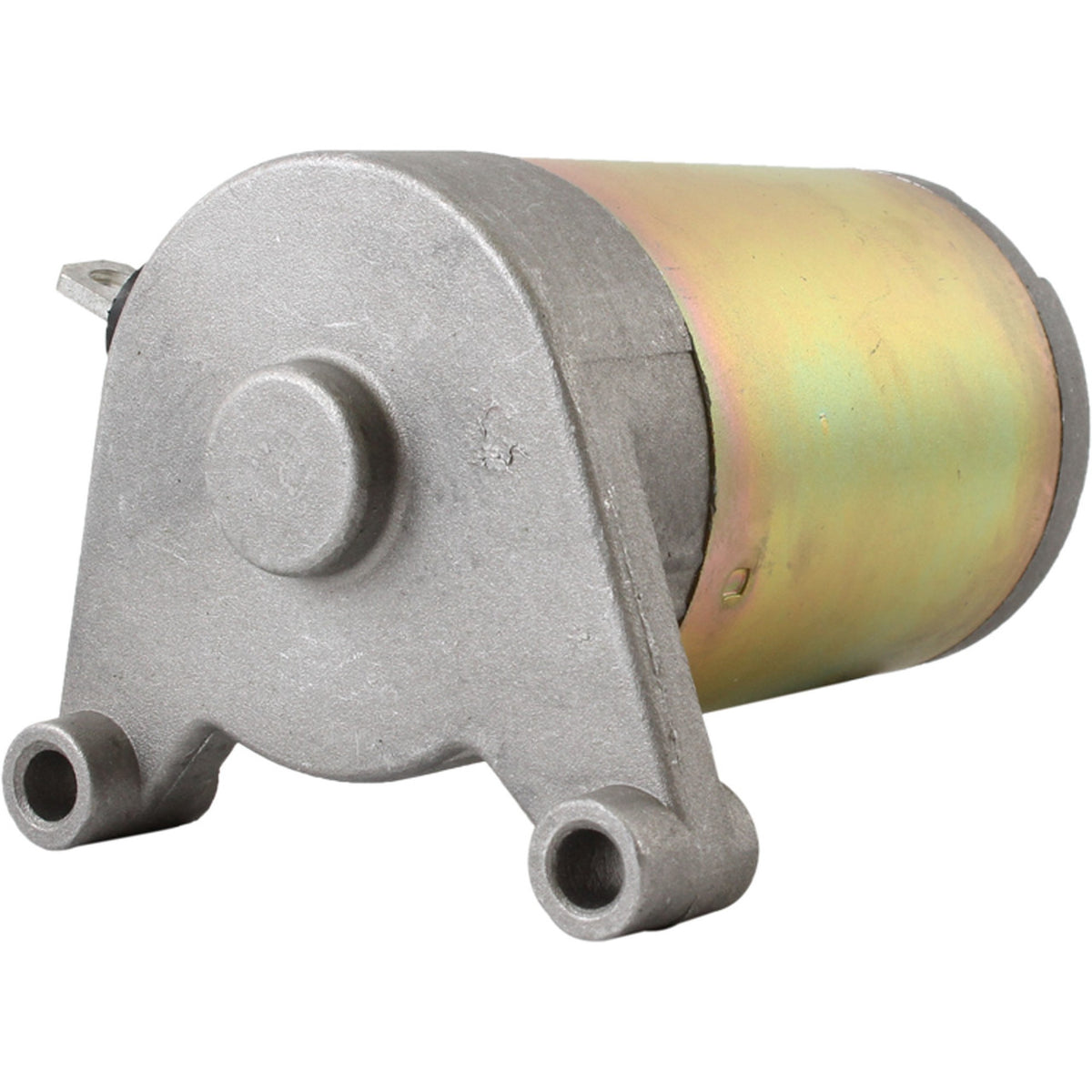

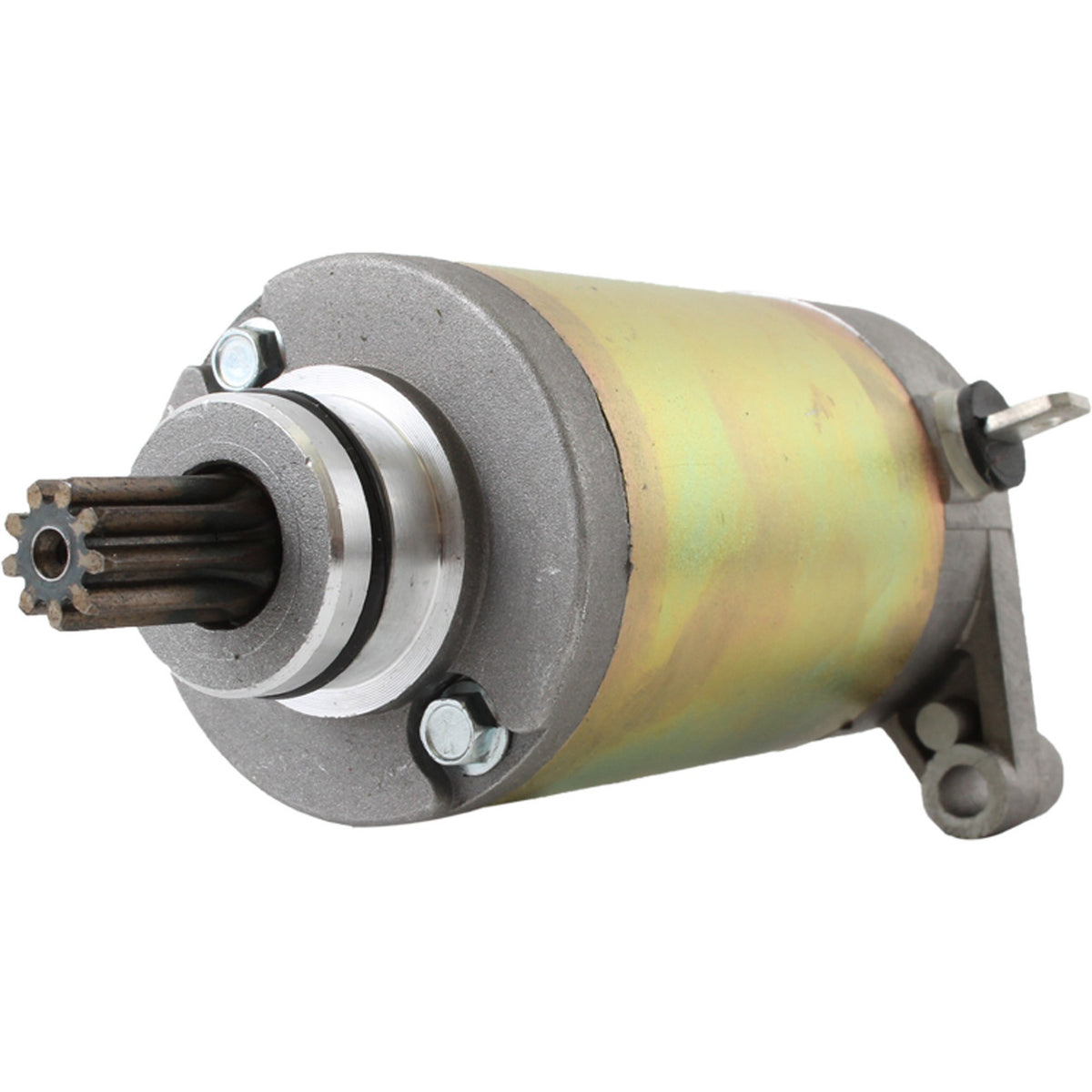

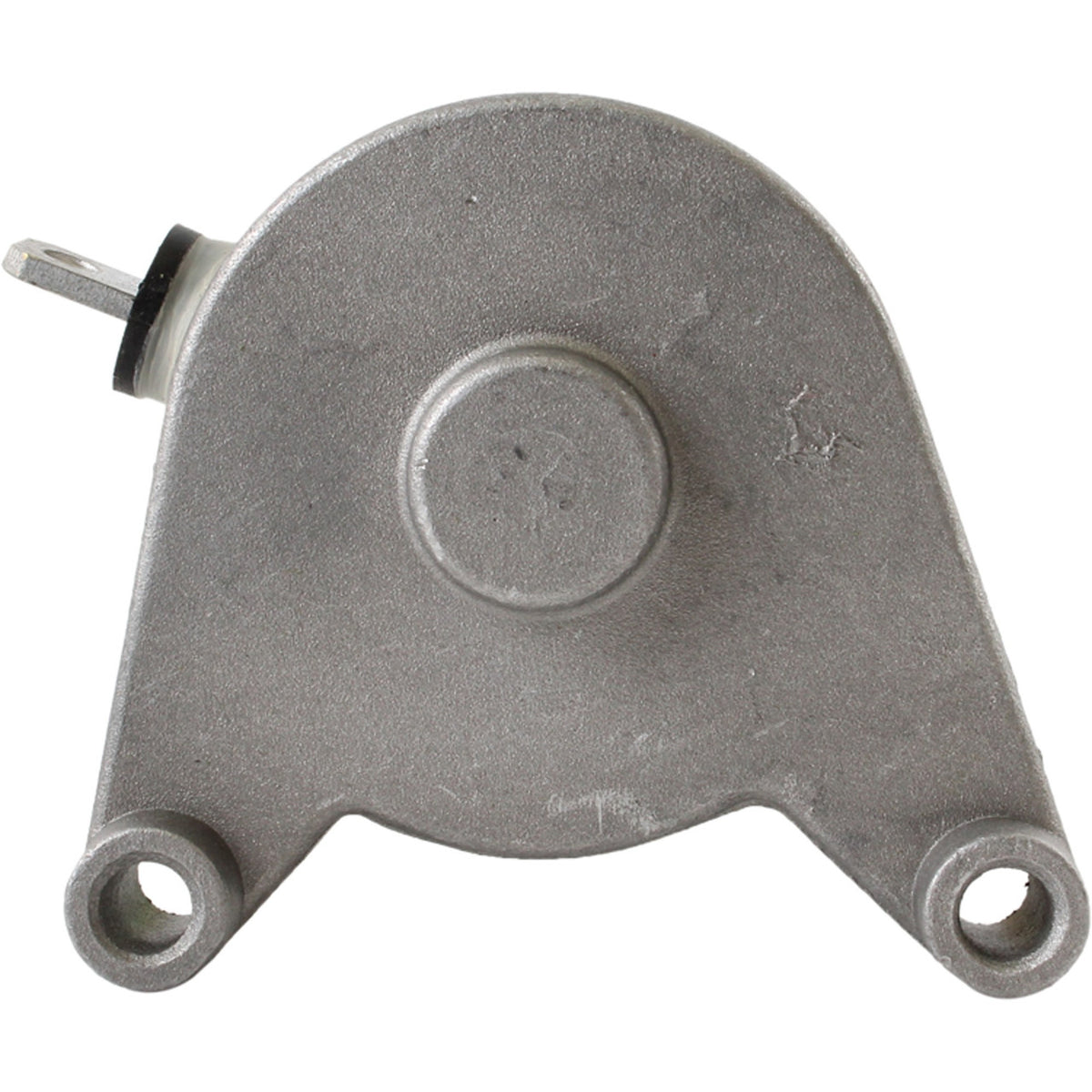

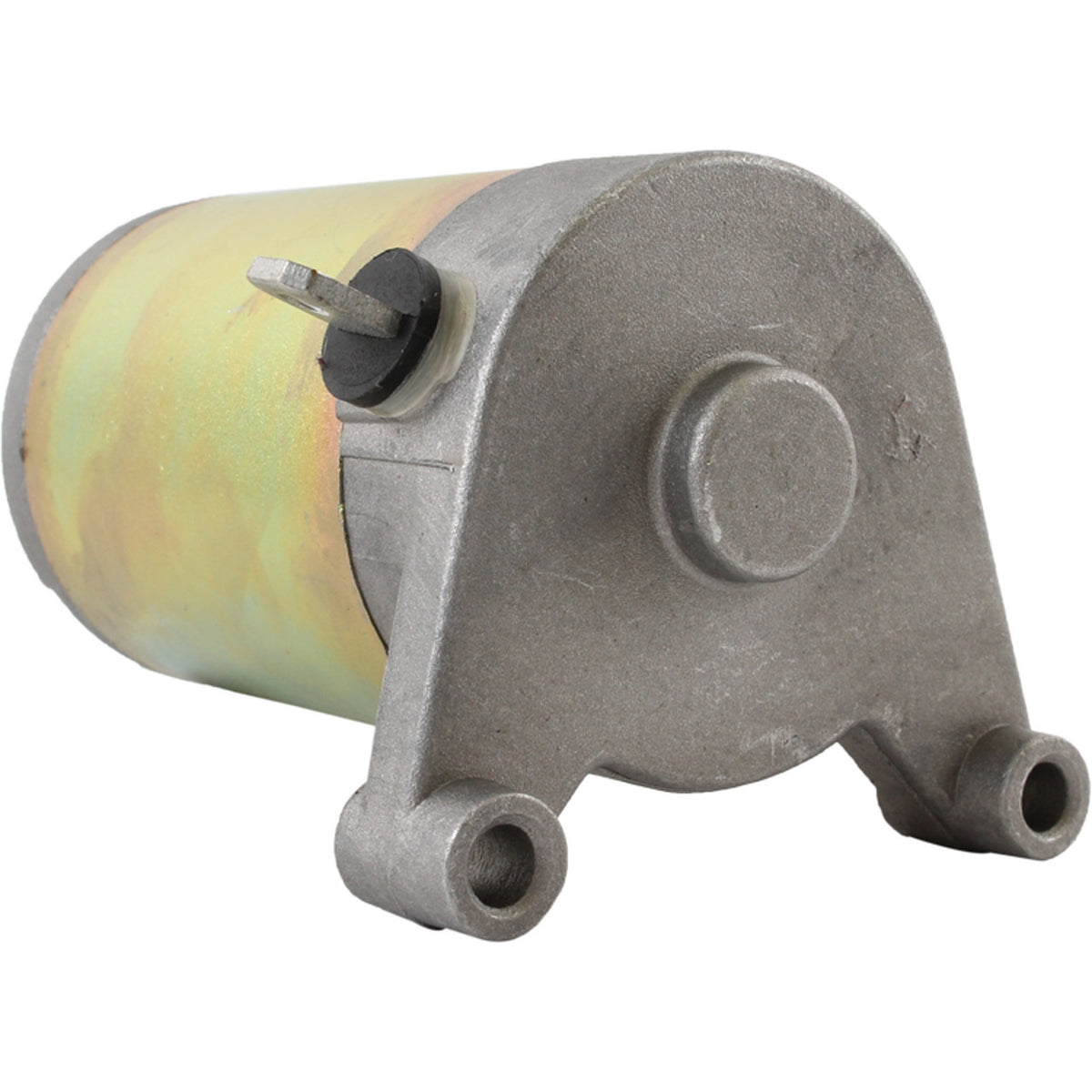

Starter Motor Suzuki GN125 DR125 DR200 Hyosung 125 GA125 RX125 31100-05501 12V
Starter Motor Suzuki GN125 DR125 DR200 Hyosung 125 GA125 RX125 31100-05501 12V
SKU:410-54052
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor 31100-05501
Premium Quality Replacement for Suzuki & Hyosung
Restore reliable ignition to your motorcycle with this heavy-duty 12V starter motor. Engineered to meet or exceed OEM specifications, this unit provides the high-torque output required for consistent starting in all weather conditions. It is a direct bolt-on replacement for the Suzuki DR and GN series, as well as several Hyosung 125cc platforms.
Key Features
- ✔ Direct fit OEM replacement
- ✔ 9-Tooth drive gear spline
- ✔ Counter-Clockwise (CCW) rotation
- ✔ Sealed housing to resist dirt and moisture

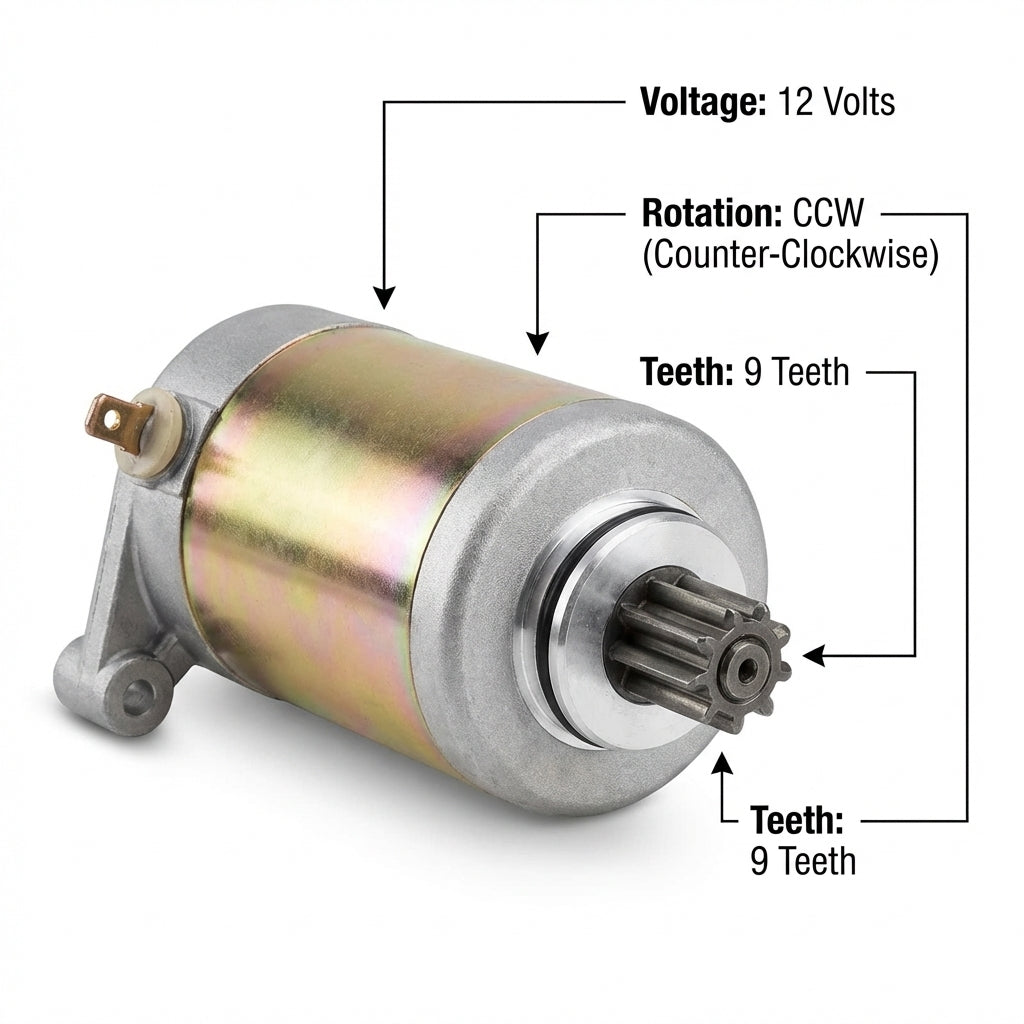

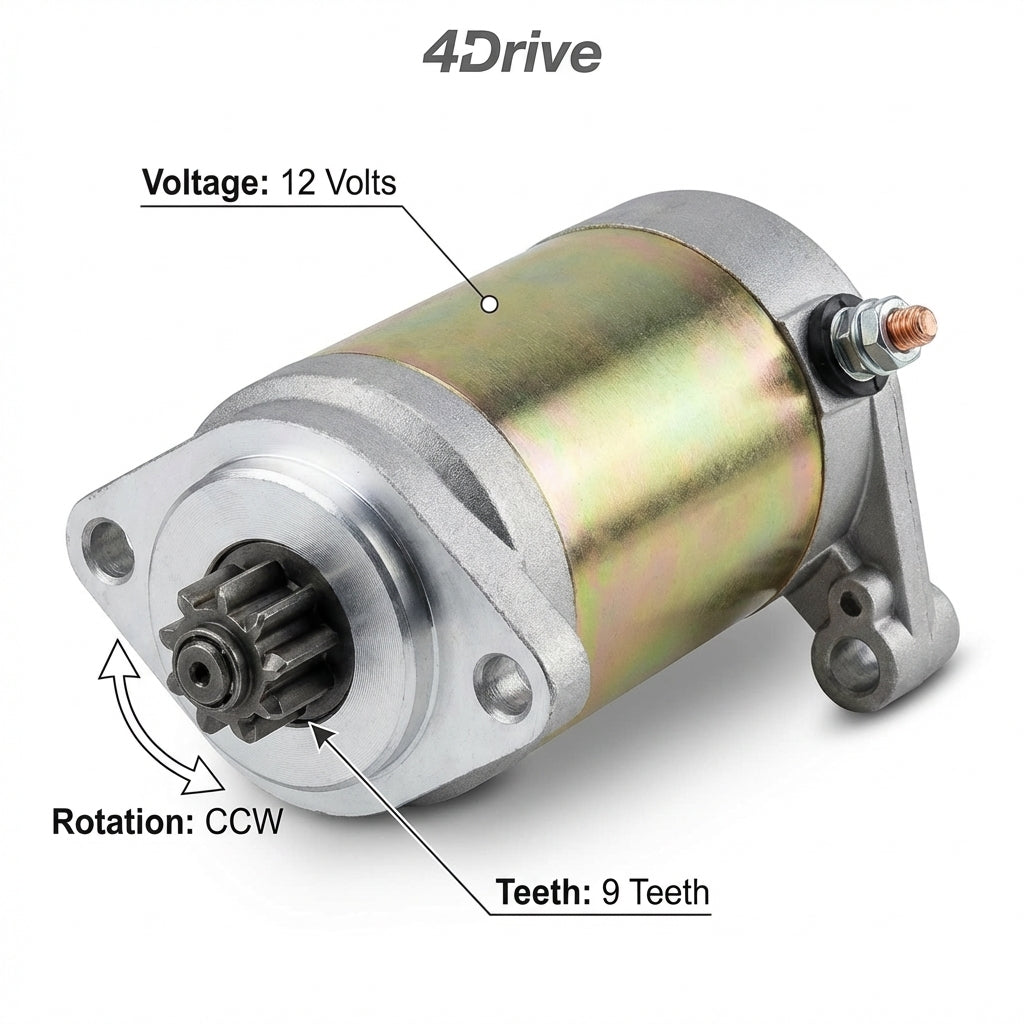

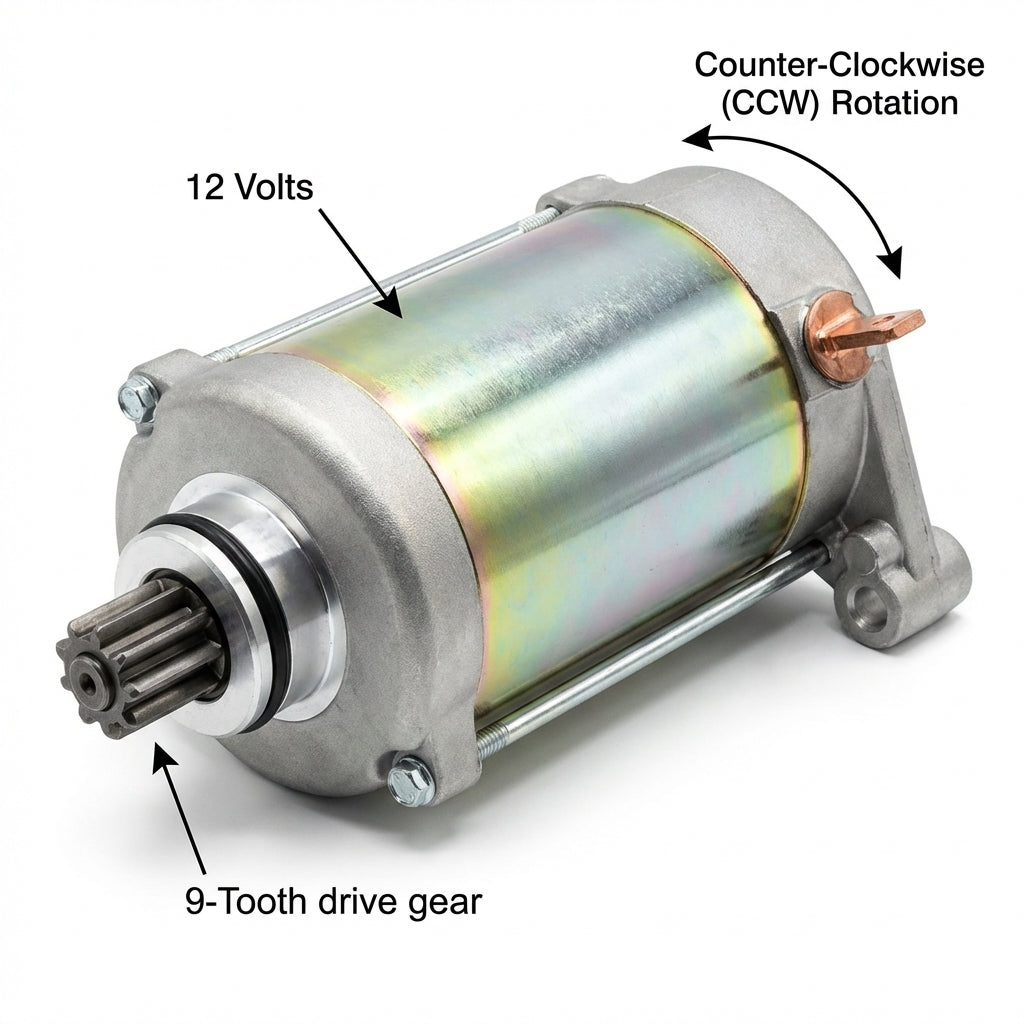

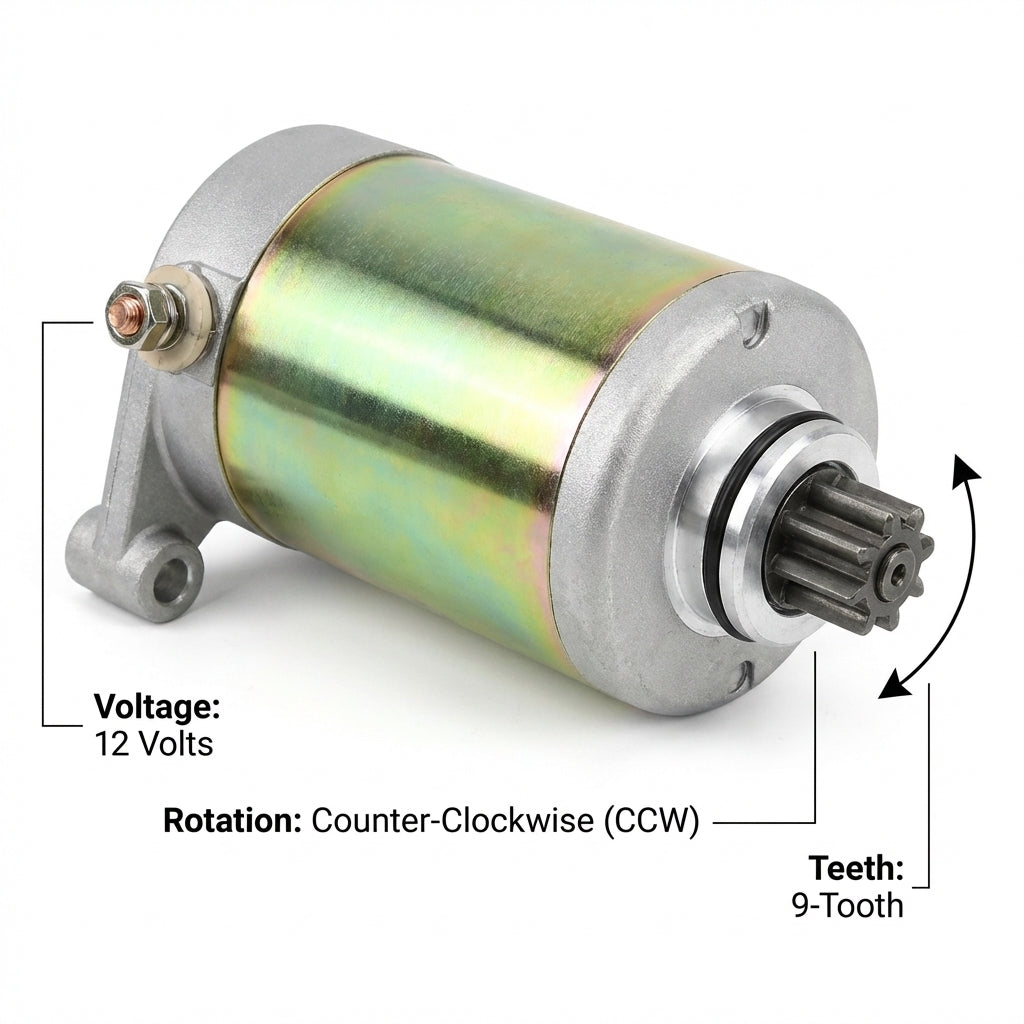

Technical Specs
| Voltage: | 12V |
| Rotation: | CCW |
| Teeth Count: | 9 |
| Type: | PMDD |
| Power: | 0.5 kW (Approx) |
Compatibility / Fitment Guide
| Make | Model / Application | Years |
|---|---|---|
| Suzuki | GN125 / GN125E / GN125H | 1982 - 2018 |
| Suzuki | DR125 / DR125SE / DR125E | 1982 - 2002 |
| Suzuki | DR200 / DR200SE / DR200S | 1986 - 2022 |
| Suzuki | RV125 VanVan / RV200 VanVan | 2003 - 2019 |
| Suzuki | GZ125 Marauder / TU125 | 1998 - 2011 |
| Hyosung | GA125 Cruiser / GF125 / RX125 | 1997 - 2006 |
| Hyosung | RT125 Karion / GV125 Aquila | 2000 - 2007 |
OEM Cross Reference
| Suzuki: | 31100-05501, 31100-05510, 31100-05300, 31100-05320, 31100-42A01, 31100-42A20 |
| Hyosung: | 31100HG5100, 31100-HD6-300, 31100-HL7-300 |
| Denso: | 028000-8712, 128000-8750, 228000-0851 |
| Lester / Other: | 18783, 19627, SMU0137 (Arrowhead) |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured by 4Drive to meet or exceed original equipment (OE) standards for fitment and performance.
Will this fit the "SE" or "E" versions of the DR/GN models?
Yes, this motor is a direct replacement for both the standard and electric start (E/SE) variants across the GN125 and DR200 ranges, utilizing the same mounting footprint.
What if my original starter has 10 teeth?
Most models in this category utilize the 9-tooth spline. Please verify your original part number against the cross-reference list. If your OEM number is listed, this unit is the correct gear match for your flywheel.
Note: Please verify your original part number against the references above before purchasing at 4drive.co.uk.
