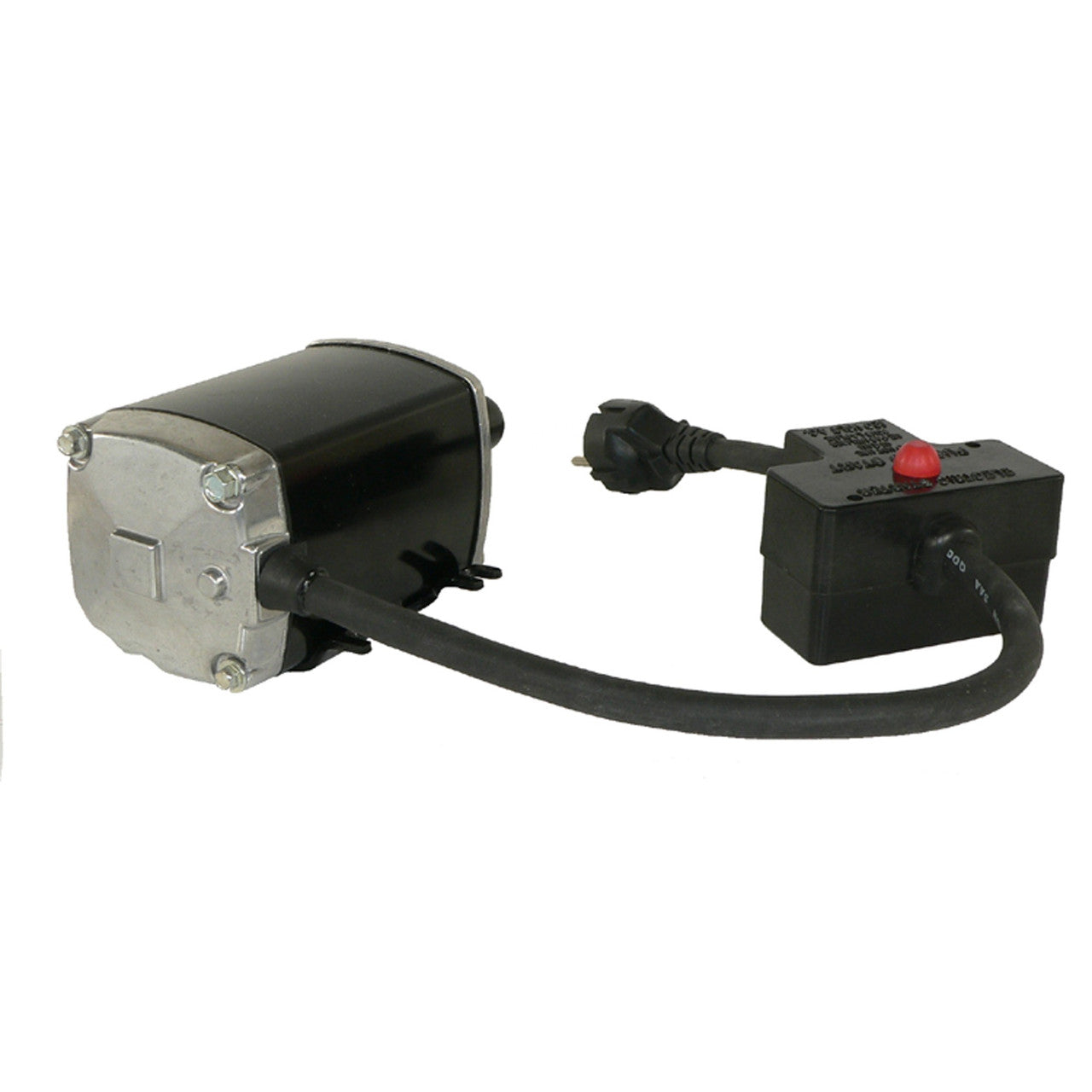

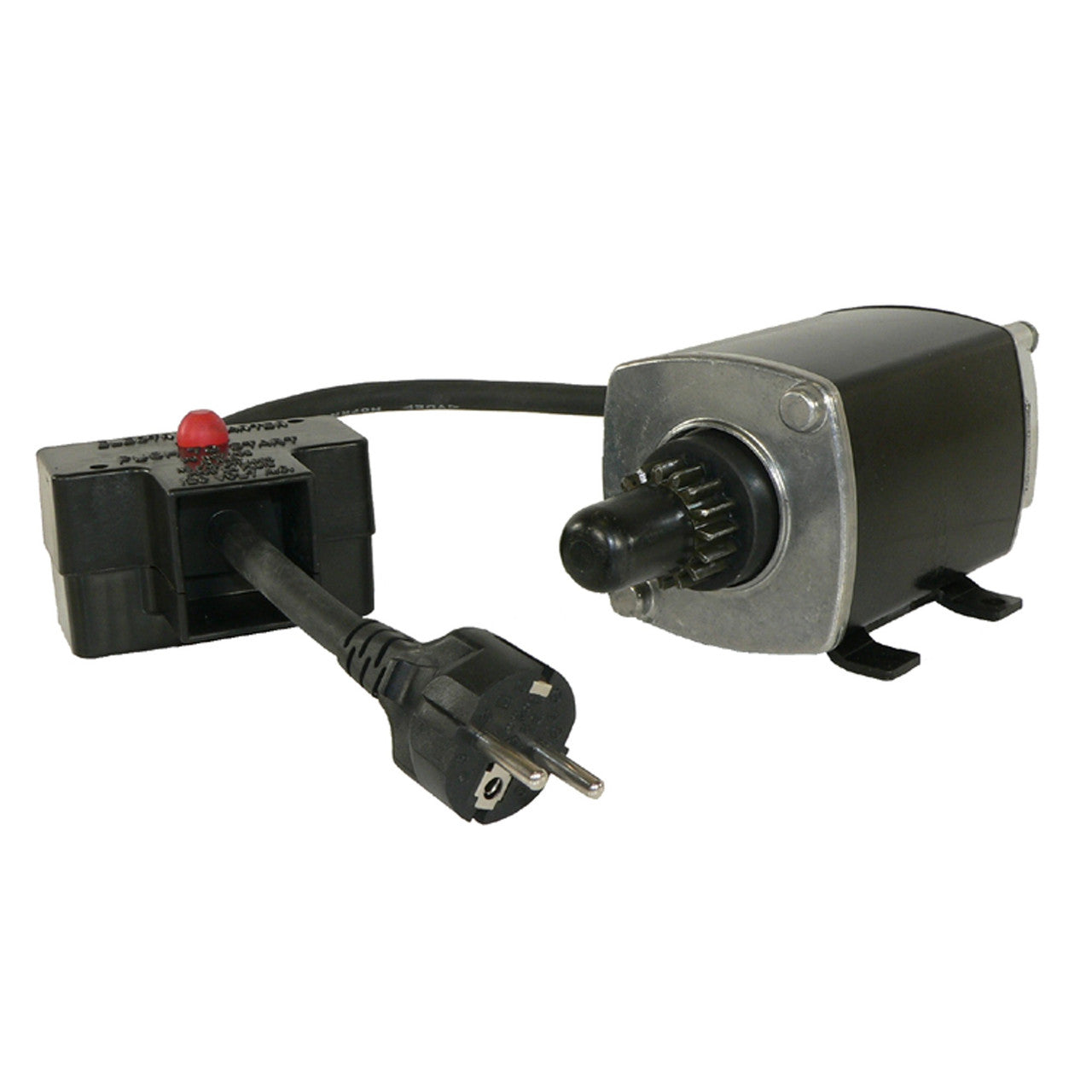

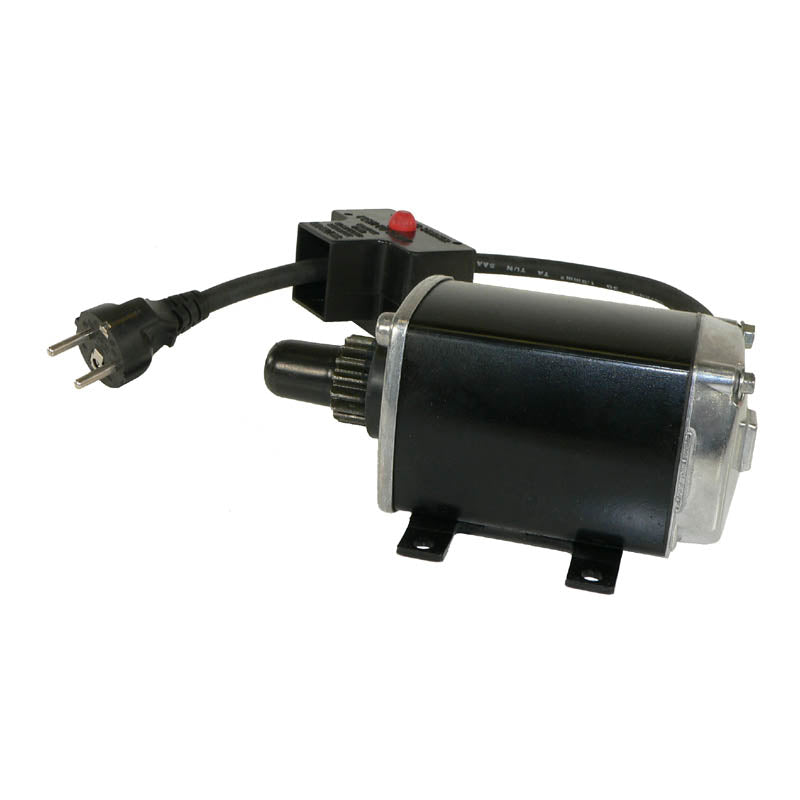

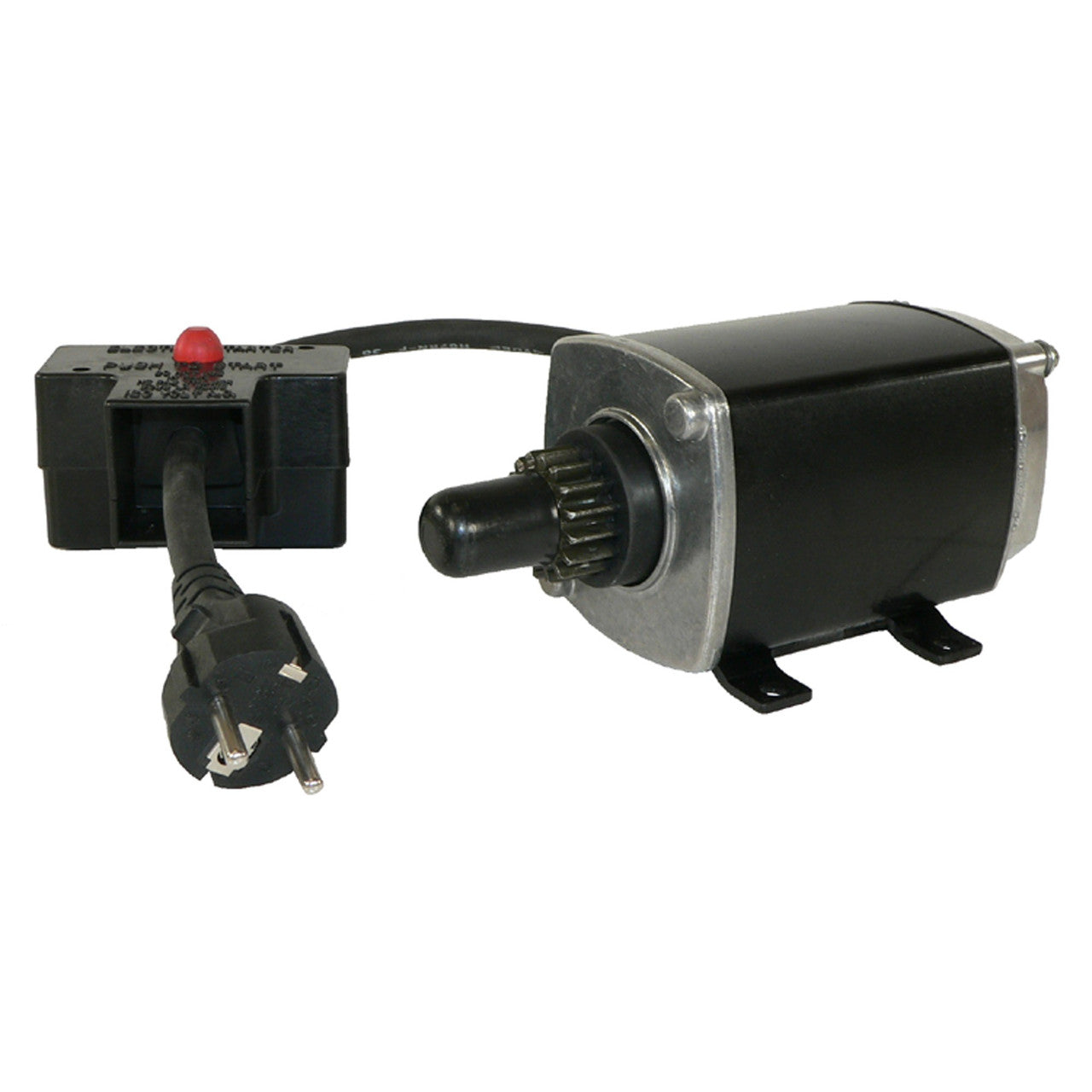

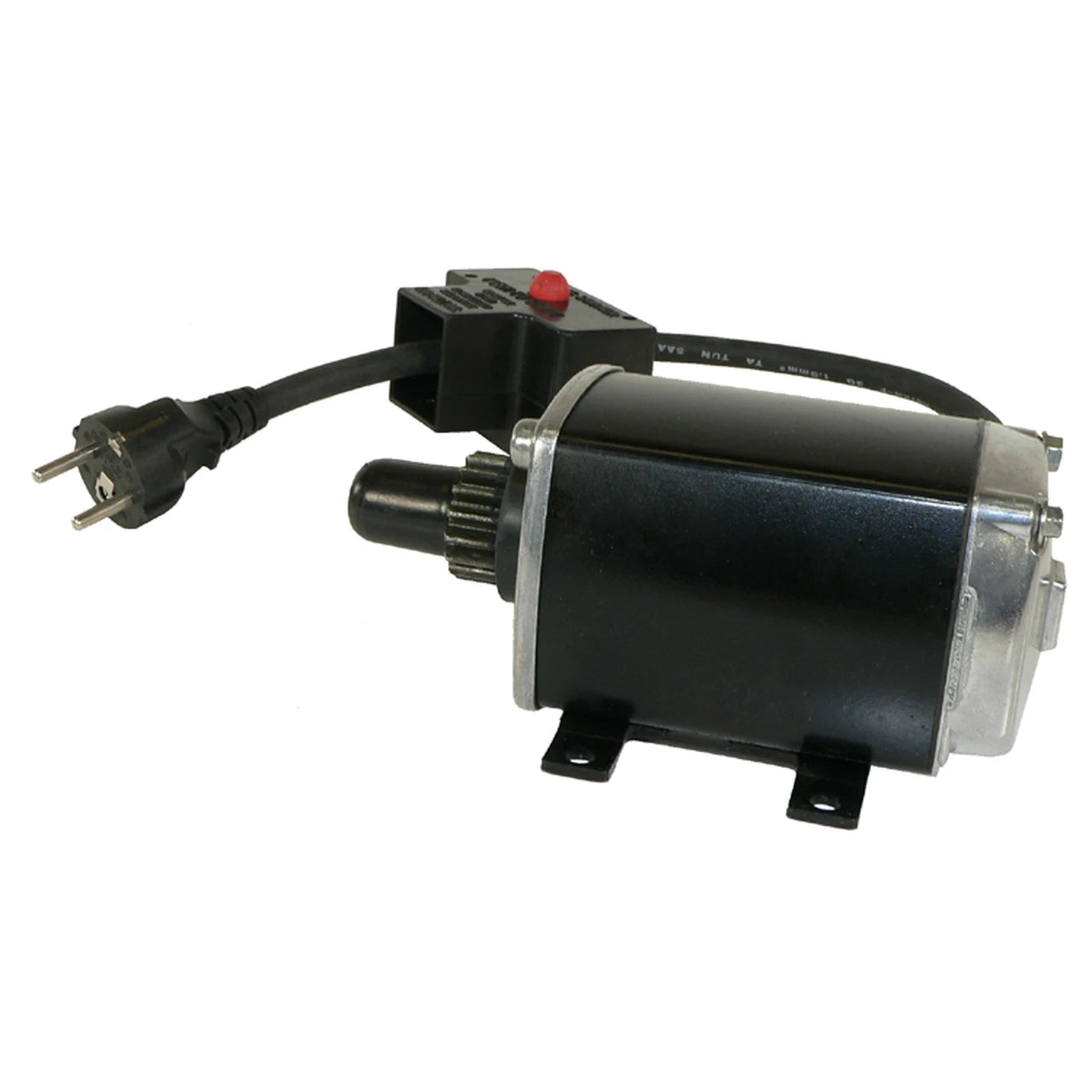

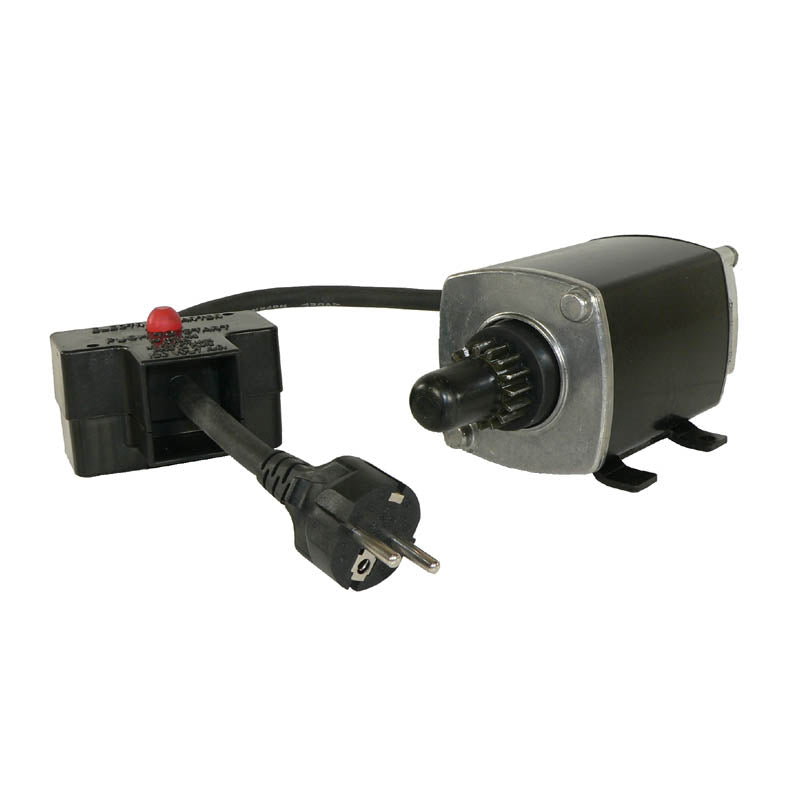

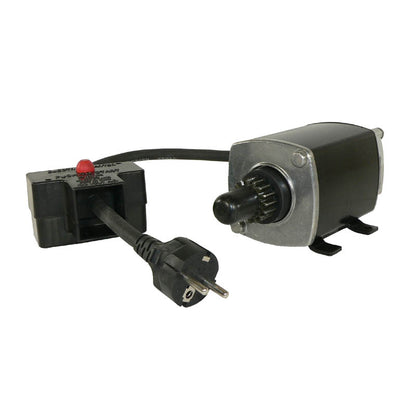

Electric Starter for Tecumseh HM80-HM100 & OHSK Snow Engines - 220V
Electric Starter for Tecumseh HM80-HM100 & OHSK Snow Engines - 220V
SKU:410-22042
Free shipping over £150. Terms apply
Couldn't load pickup availability
Electric Starter for Tecumseh HM80-HM100 & OHSK Snow Engines - 220V
220V mains electric starter - Tecumseh 37102 - 16 tooth, CCW
This is the 220V mains-powered electric starter for Tecumseh HM and OHSK series engines, the type fitted to snow throwers and similar equipment that is started from a domestic wall socket rather than an on-board battery. It replaces Tecumseh part number 37102 and uses a 16-tooth drive gear turning counter-clockwise, matching the original unit exactly.
Please note this is a 220-240V unit supplied with a European (Type C) plug - it is not a 12V battery starter. Fitting is a like-for-like swap: remove the mounting bolts holding the original starter, transfer the wiring across and bolt this unit into place in the same orientation.
Key Features
- 220-240V mains electric starter, European Type C plug
- Direct replacement for Tecumseh 37102
- 16-tooth drive gear, counter-clockwise (CCW) rotation
- Gear outside diameter 32mm (1.26 in)
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 220V mains (Type C plug) |
| Rotation | CCW |
| Drive Teeth | 16 |
| Gear Outside Diameter | 32mm (1.26 in) |
| Mounting Ear Holes | 6.8mm unthreaded |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Tecumseh HM80, HM90 & HM100 engines | All |
| Tecumseh HMSK80, HMSK100 & HMSK105 engines | All |
| Tecumseh OHSK90, OHSK110, OHSK120 & OHSK130 engines | All |
| Toro 38631 | All |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 37102 | Tecumseh |
| STC0029 | Arrowhead |
| 5960 | Lester |
| 410-22042 | J&N Electrical Products |
Frequently Asked Questions
Is this a 12V starter?
No. This is a 220-240V mains starter that plugs into a wall socket, as fitted to Tecumseh-powered snow throwers. If your machine cranks from its own battery you need a 12V unit instead.
Will this fit without modification?
Yes. Provided your engine is one of the Tecumseh HM, HMSK or OHSK units listed above, this starter bolts straight in with no modification needed.
What plug does it come with?
It is supplied with a European Type C plug. A UK adaptor or a plug change by a competent electrician will be needed for a standard BS 1363 socket.
How can I tell my old starter has failed?
Common signs include a clicking noise with no engine turnover, the starter freewheeling without turning the engine, a weak or laboured crank, or a burning smell from the motor.
