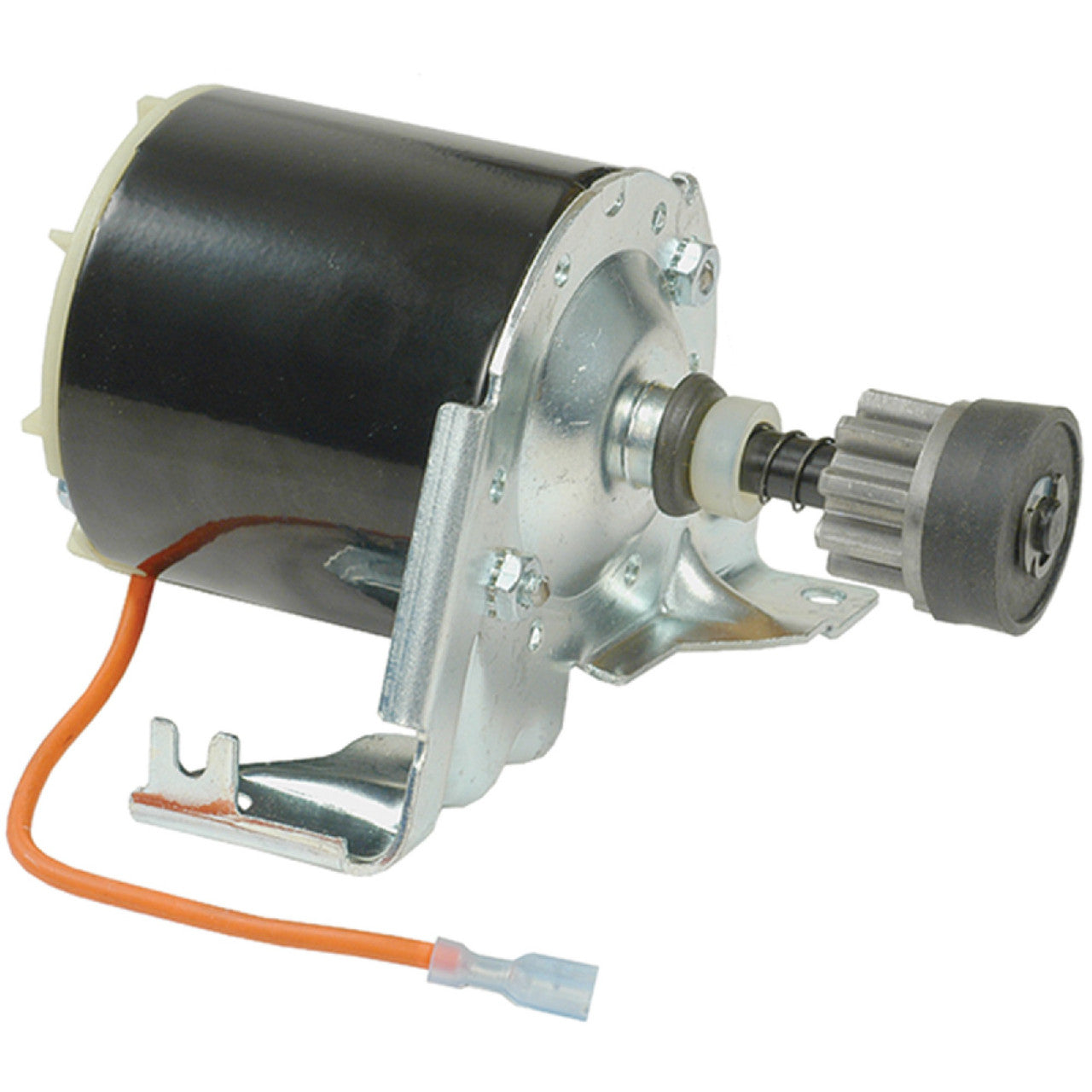

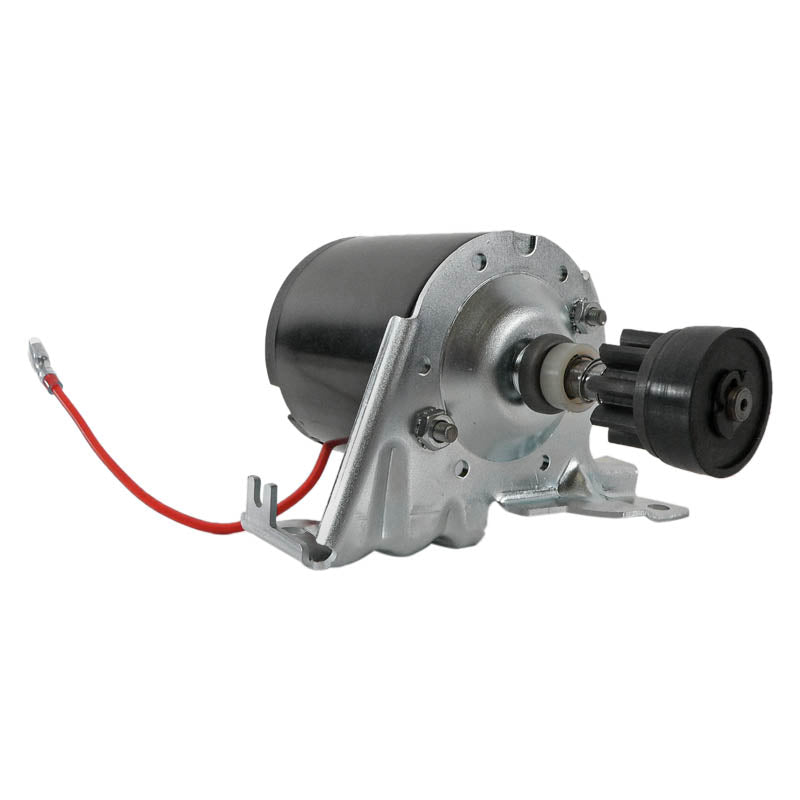

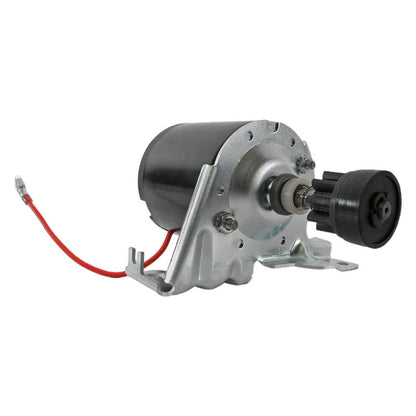

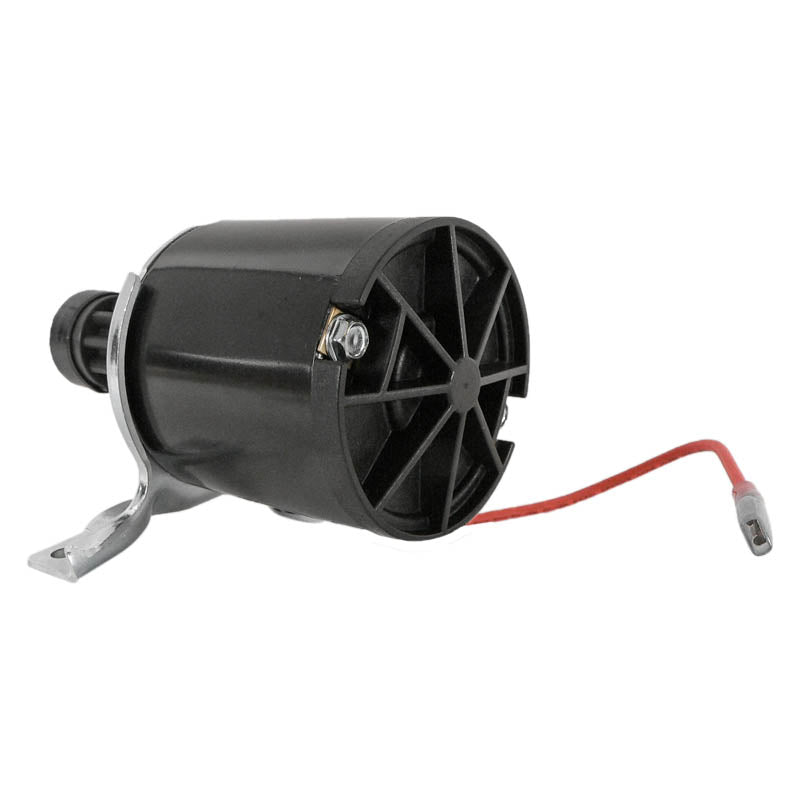

Starter Motor for Tecumseh LEV115-120 & OVRM/TVS Engines - 12V
12V, CCW, 9-tooth - replaces Tecumseh 34934, 35707, 35709 & 37753
This 12V starter motor is built to OEM specifications for Tecumseh LEV115-120, OVRM40 and TVS90, 105, 115 and 120 engines, fitted with a 9-tooth drive gear for correct flywheel ring gear engagement. These vertical-shaft engines are widely used across walk-behind and push mowers, and this starter is engineered to match their mounting and drive requirements. It replaces Tecumseh part numbers 34934, 35707, 35709 and 37753.
It turns counter-clockwise (CCW) to match the original equipment rotation, making it a straightforward swap for a worn or failed original starter with no modification required to the mounting bracket or wiring loom. The drive gear measures 26.7mm (1.051 in) across and the field case is 65.3mm (2.57 in) long, so it is worth measuring your original unit if you are unsure which of the several Tecumseh starters you have.
Key Features
- 12V starter motor for Tecumseh LEV115-120, OVRM40 & TVS series engines
- 9-tooth drive gear for correct flywheel engagement
- Counter-clockwise (CCW) rotation to match OEM spec
- Direct OEM fit and finish, no modification needed
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW |
| Teeth | 9 |
| Gear Outside Diameter | 26.7mm (1.051 in) |
| Field Case Length | 65.3mm (2.57 in) |
| Mounting Ear Holes | 6.9mm unthreaded |
| Part Type | Starter Unit |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Tecumseh LEV115 & LEV120 engines | All |
| Tecumseh OVRM40 engines | All |
| Tecumseh TVS90, TVS105, TVS115 & TVS120 engines | All |
| Craftsman 917377574 walk-behind mower | All |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 34934, 35707, 35709, 37753 | Tecumseh |
| STC0004 | Arrowhead |
| 5748 | Lester |
| 113018 | Cargo |
| 410-22021 | J&N Electrical Products |
Frequently Asked Questions
Will this fit without modification?
Yes, this is a direct replacement for the original starter motor on compatible Tecumseh LEV115-120, OVRM40 and TVS engines - mounting points, drive gear and wiring connections match the factory part, so no cutting, drilling or rewiring is needed.
What's included?
One 12V, 9-tooth starter motor, ready to fit. Mounting bolts and wiring are reused from your original unit.
How do I know my old starter has failed?
Common signs include a single clicking noise with no engine turnover, a slow or labouring crank that gets weaker as the battery drains, unusual grinding when the key is turned, or no response at all when starting.
Is this starter new or reconditioned?
This is a new aftermarket unit built to OEM specifications, not a reconditioned or rebuilt part, so you are not inheriting wear from a previous life on another machine.
