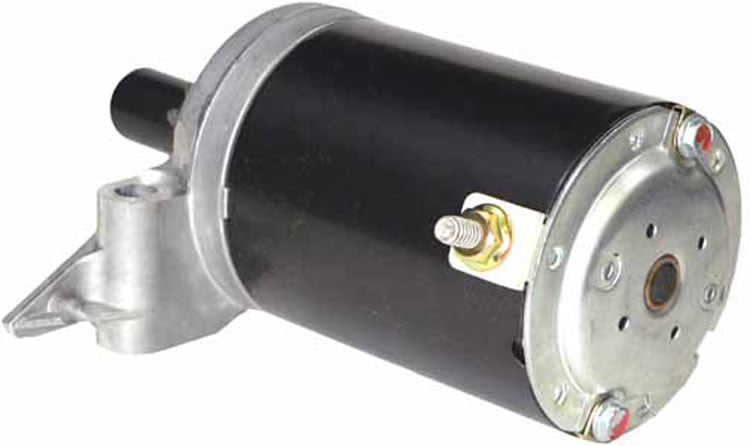

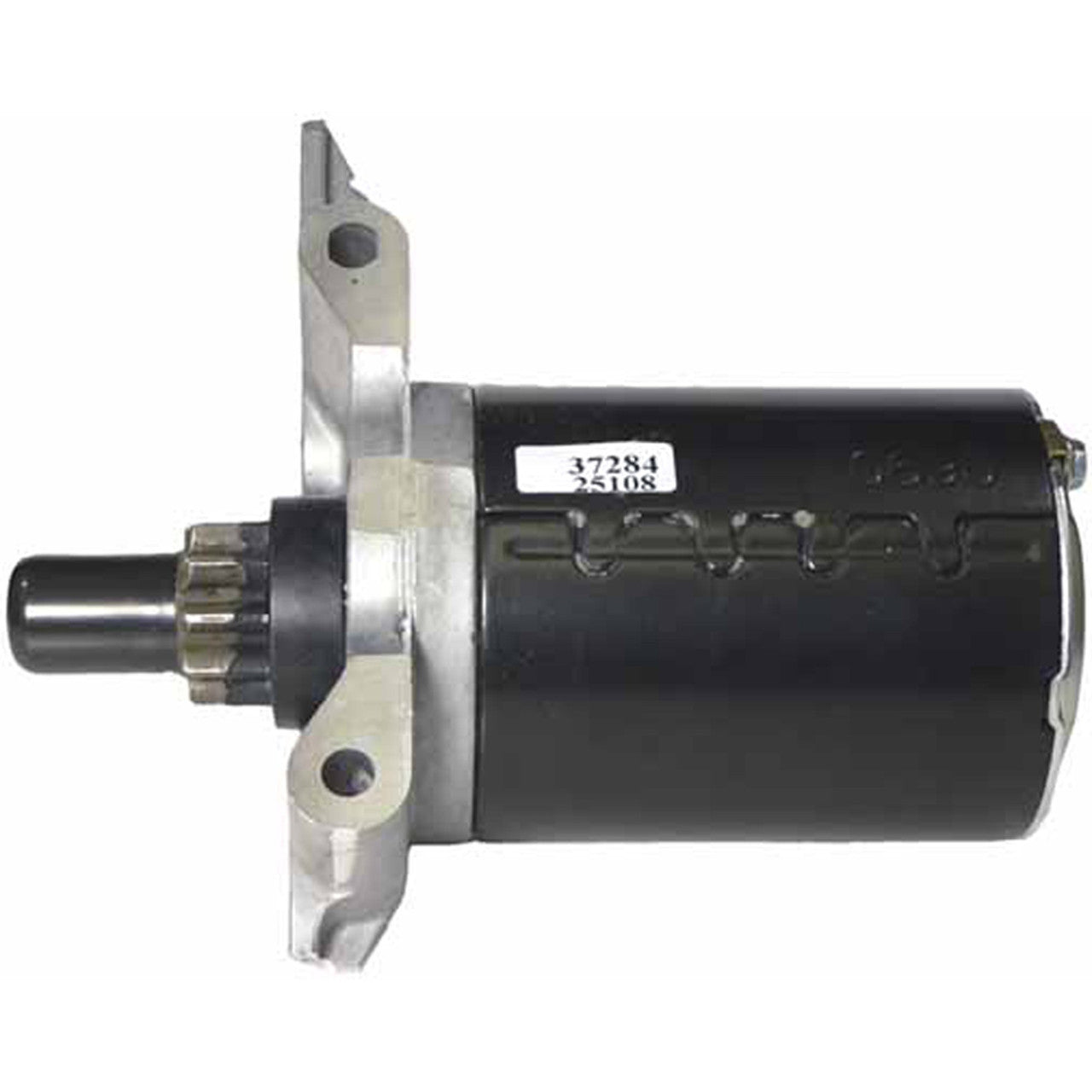

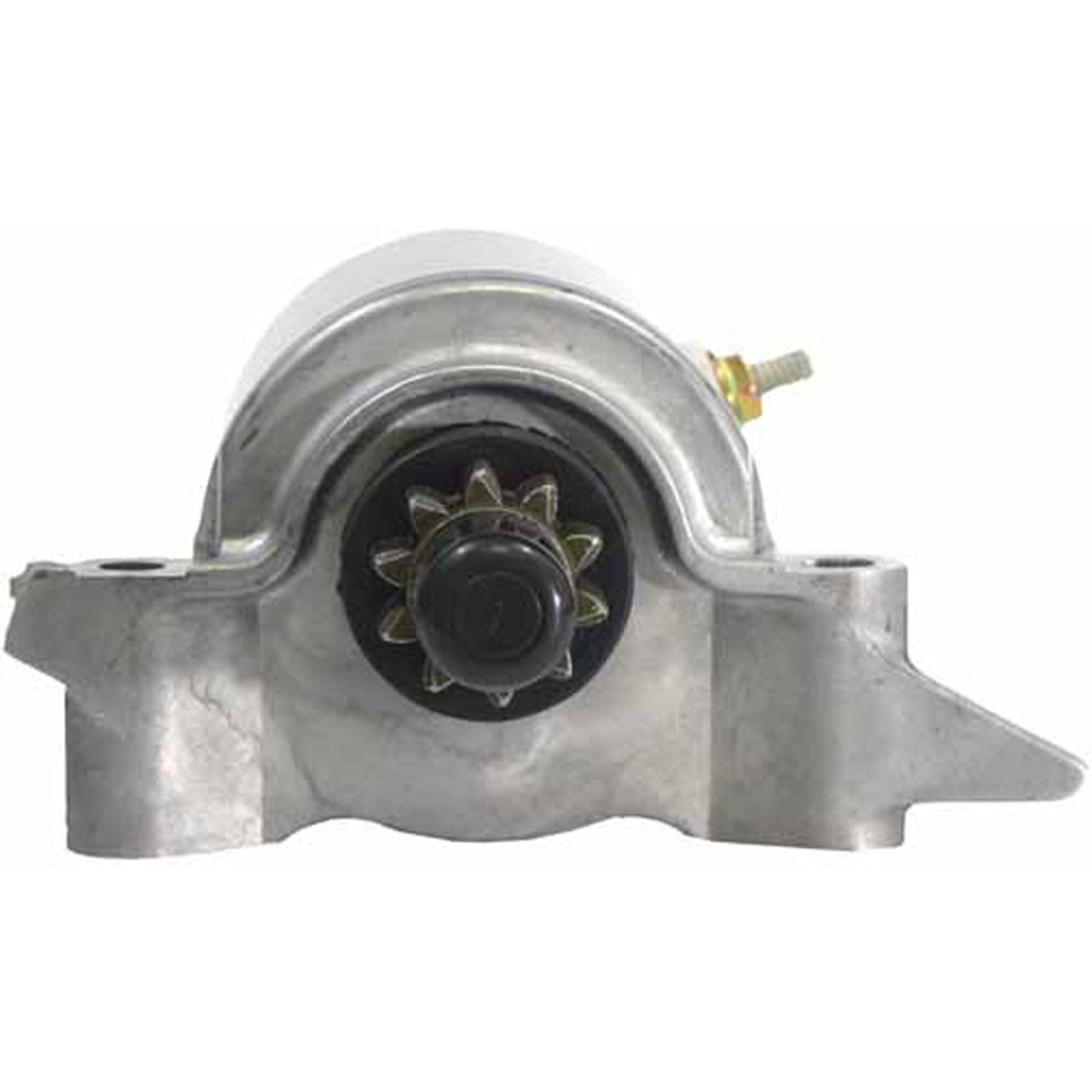

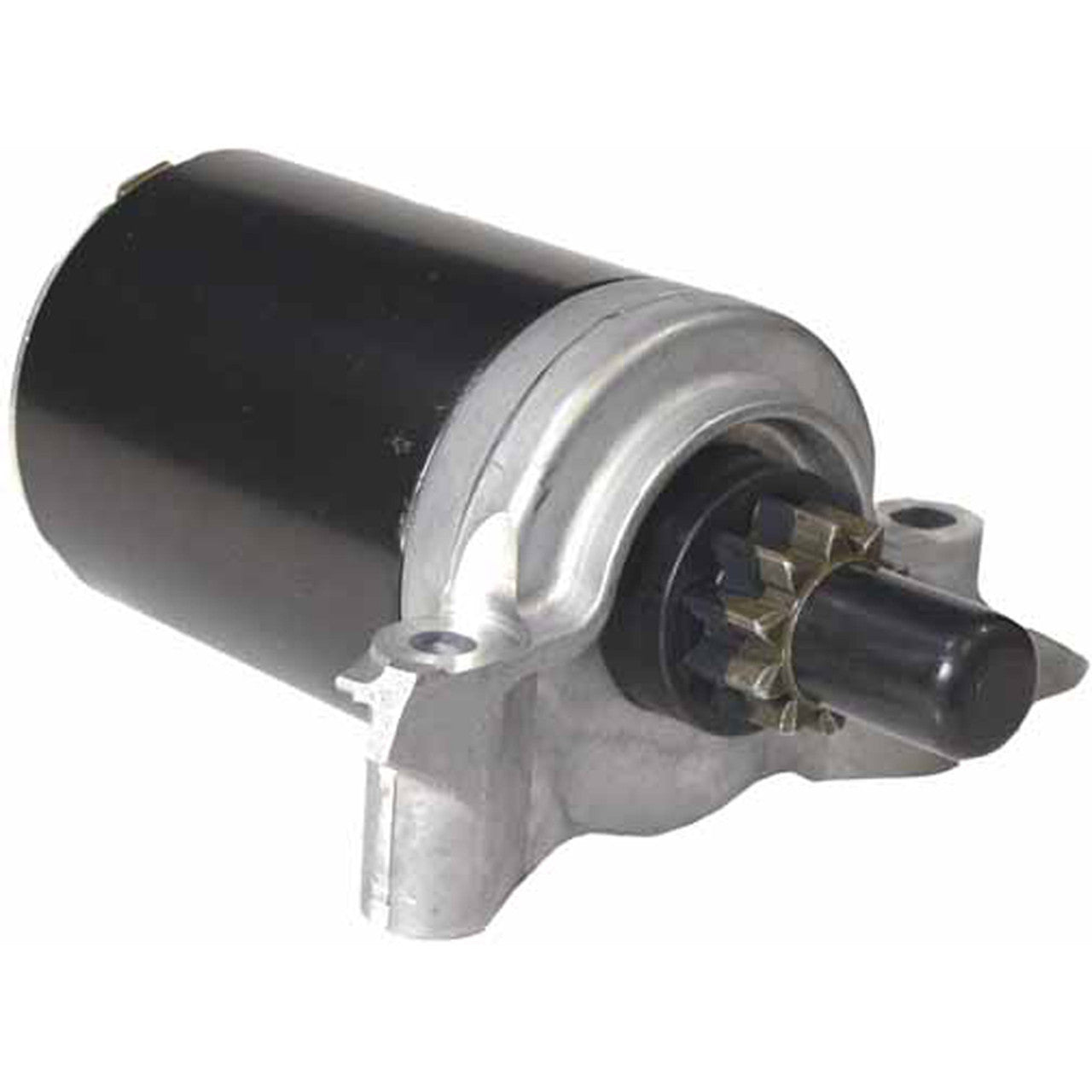

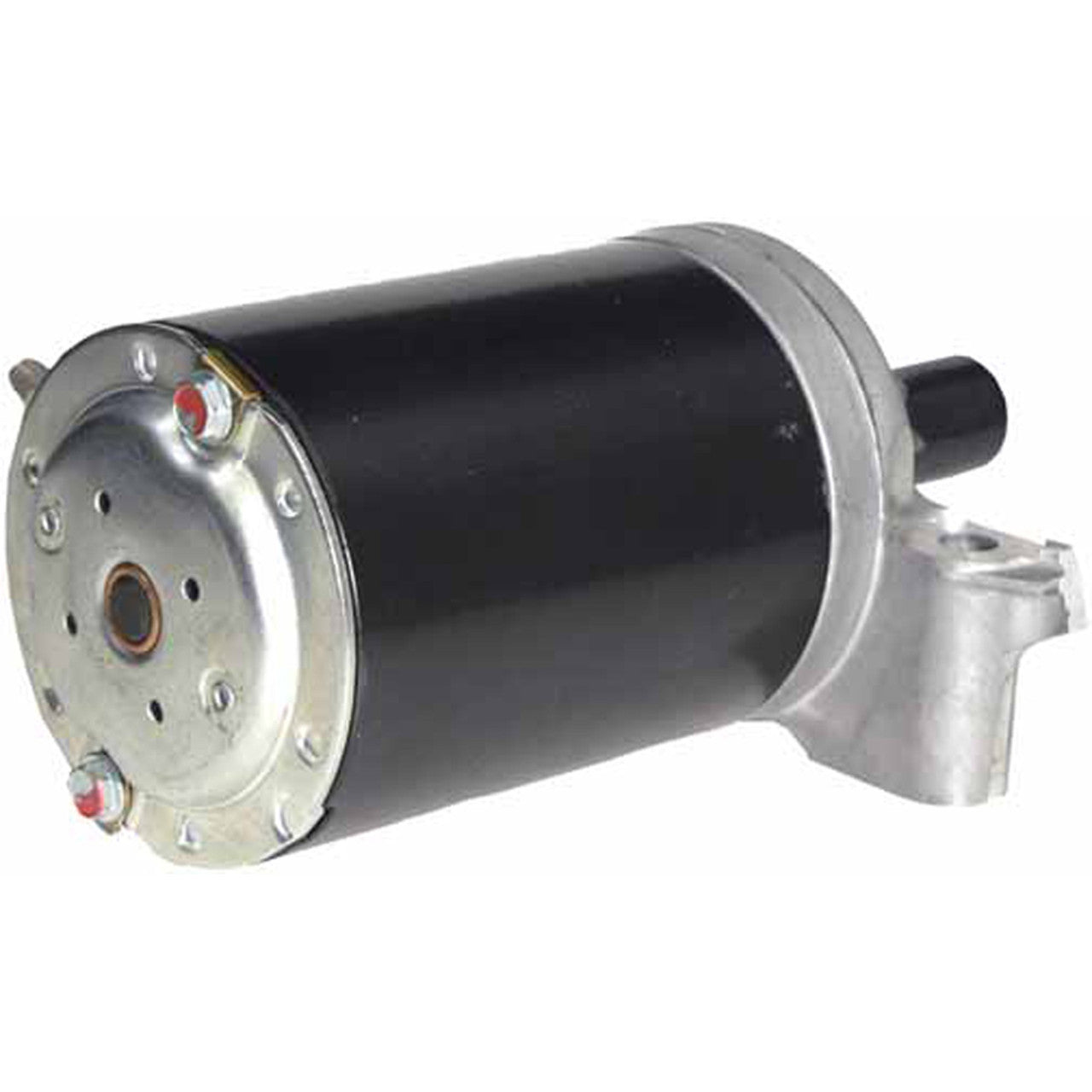

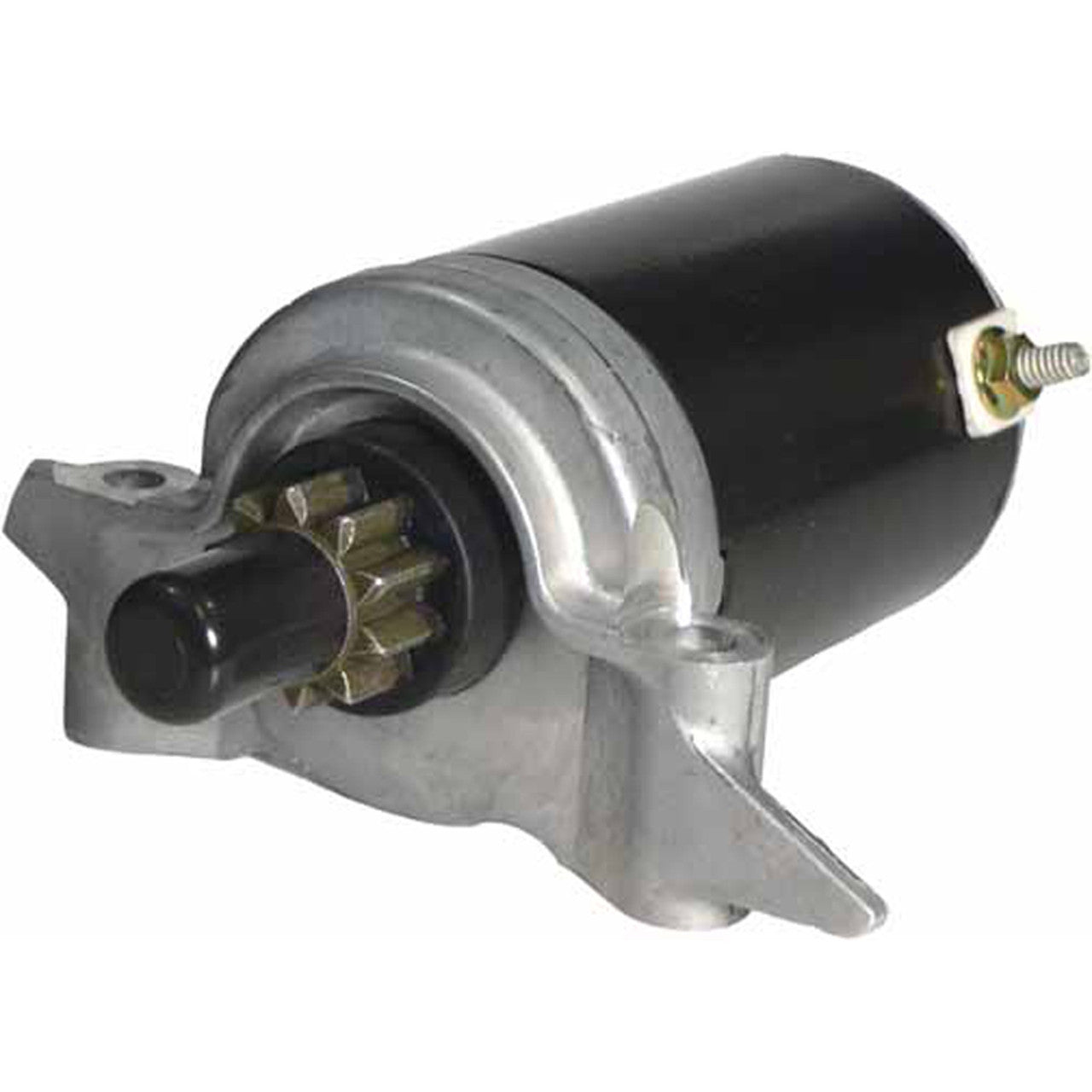

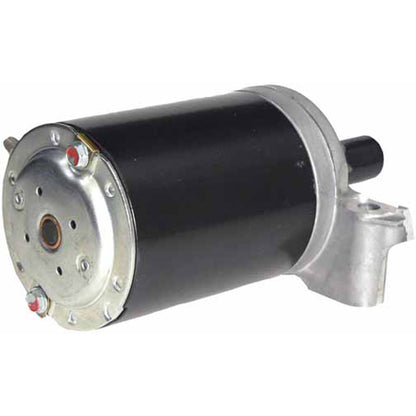

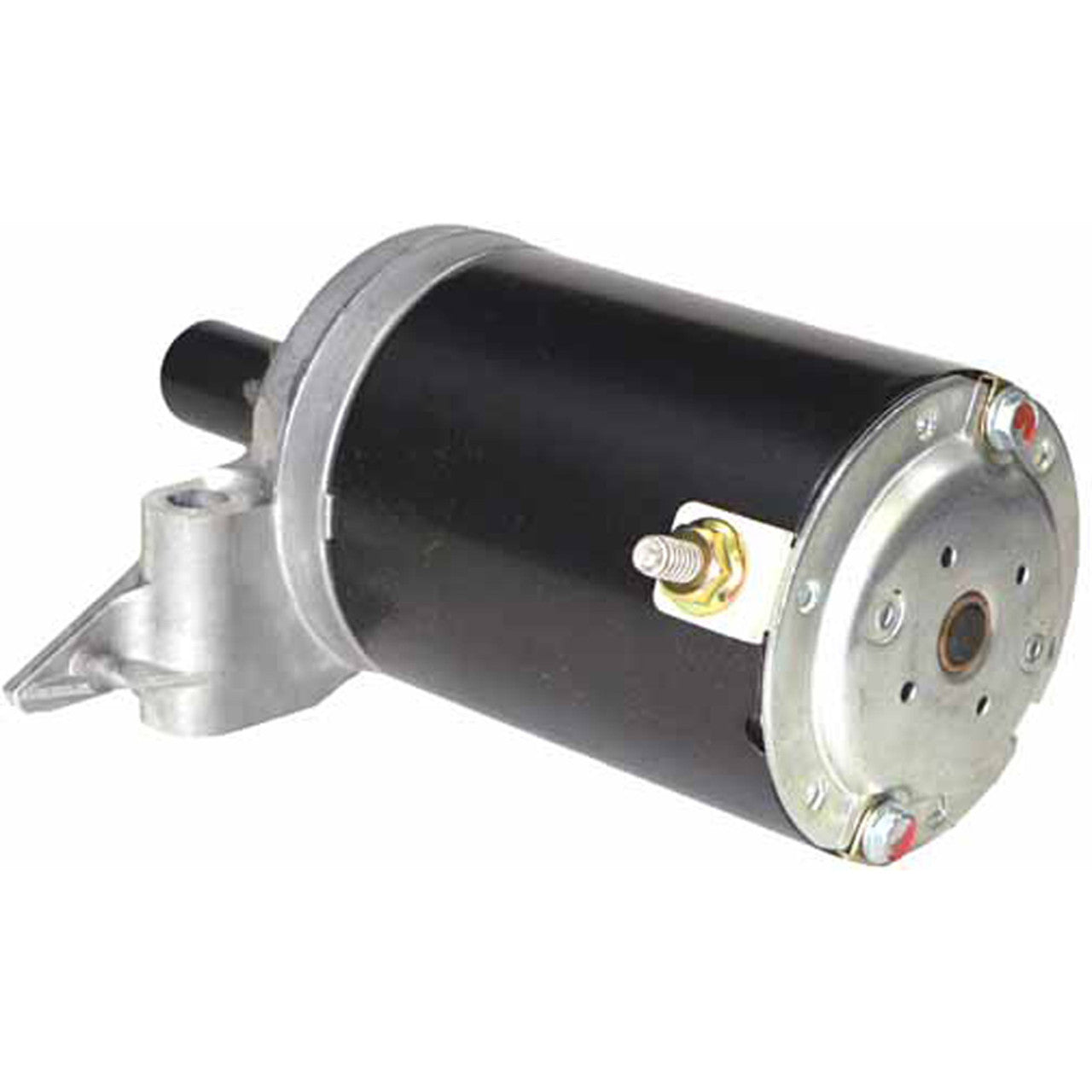

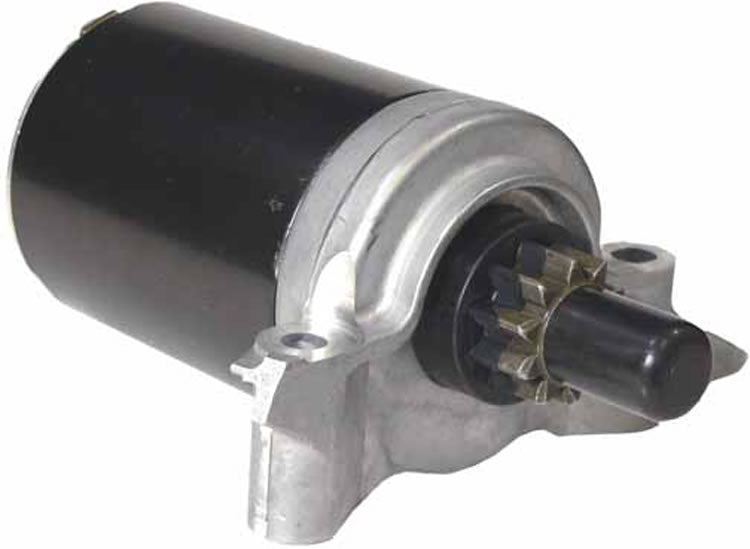

This starter motor is a direct-fit replacement for Tecumseh OV691, TVT691 and VTX691 engines, built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place. It replaces Tecumseh part number 37284 and covers the 17.5HP OV691EA, the 24HP OV691EP and the 22HP TVT691, as well as the VTX691.
It runs on 12 volts, turns counter-clockwise (CCW) and uses a 10-tooth drive gear on a permanent-magnet direct-drive (PMDD) motor. The drive gear engages the flywheel ring gear only while cranking and retracts once the engine fires, so no adjustment is needed after fitting. Fitting is a straightforward like-for-like swap: disconnect the battery, remove the mounting bolts securing the original starter, transfer the wiring connector across, and bolt this unit into place in the same orientation.
Key Features
- Direct OEM fit and function for the listed Tecumseh engines
- 12-volt permanent-magnet direct-drive (PMDD) motor
- Counter-clockwise (CCW) rotation, 10-tooth drive gear
- Gear outside diameter 32.1mm (1.264 in)
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Rotation |
CCW |
| Drive Teeth |
10 |
| Starter Type |
PMDD |
| Gear Outside Diameter |
32.1mm (1.264 in) |
| Mounting Ear Holes |
8mm unthreaded / 9.4mm x 8mm slotted |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Tecumseh OV691EA (17.5HP) |
All |
| Tecumseh OV691EP (24HP) |
All |
| Tecumseh TVT691 (22HP) |
All |
| Tecumseh VTX691 |
All |
| White Outdoor 13A4616G790 (Tecumseh OV691E engine) |
All |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 37284 |
Tecumseh |
| STC0027 |
Arrowhead |
| 5893 |
Lester |
| 410-22035 |
J&N Electrical Products |
Frequently Asked Questions
Will this starter fit my engine without modification?
Yes. Provided your engine is one of the Tecumseh OV691, TVT691 or VTX691 units listed above, this starter bolts straight in with no modification needed.
What's included?
The starter motor unit only, complete with its drive gear ready to fit.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
Does the rotation direction matter?
Yes. This unit turns counter-clockwise (CCW) as viewed from the drive end, matching the original Tecumseh starter. A clockwise unit will not engage correctly.
