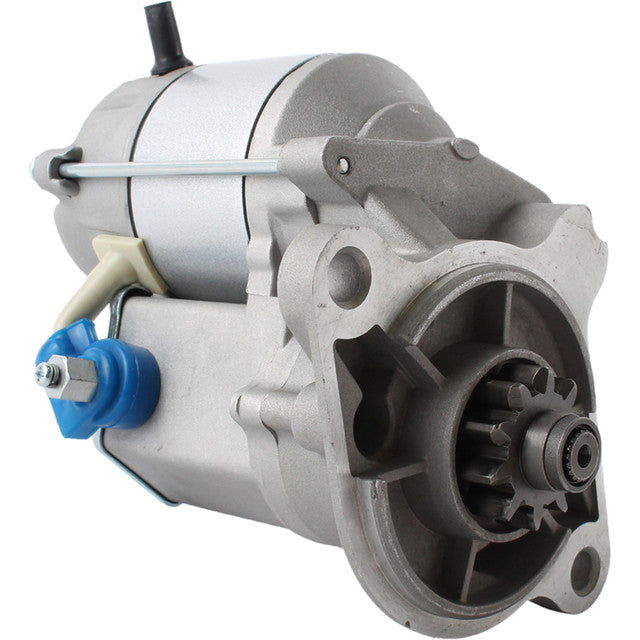

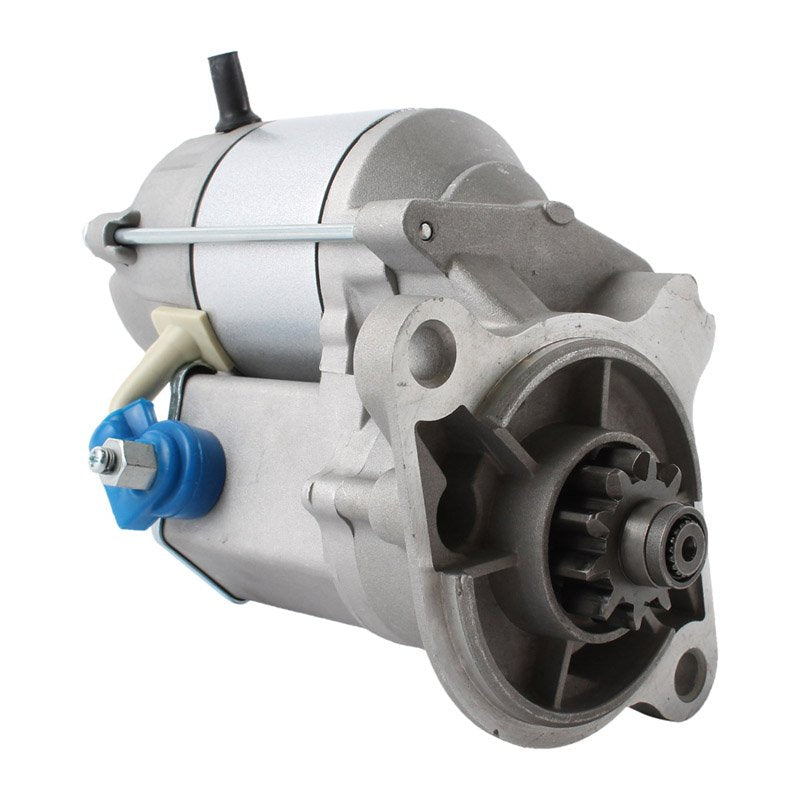

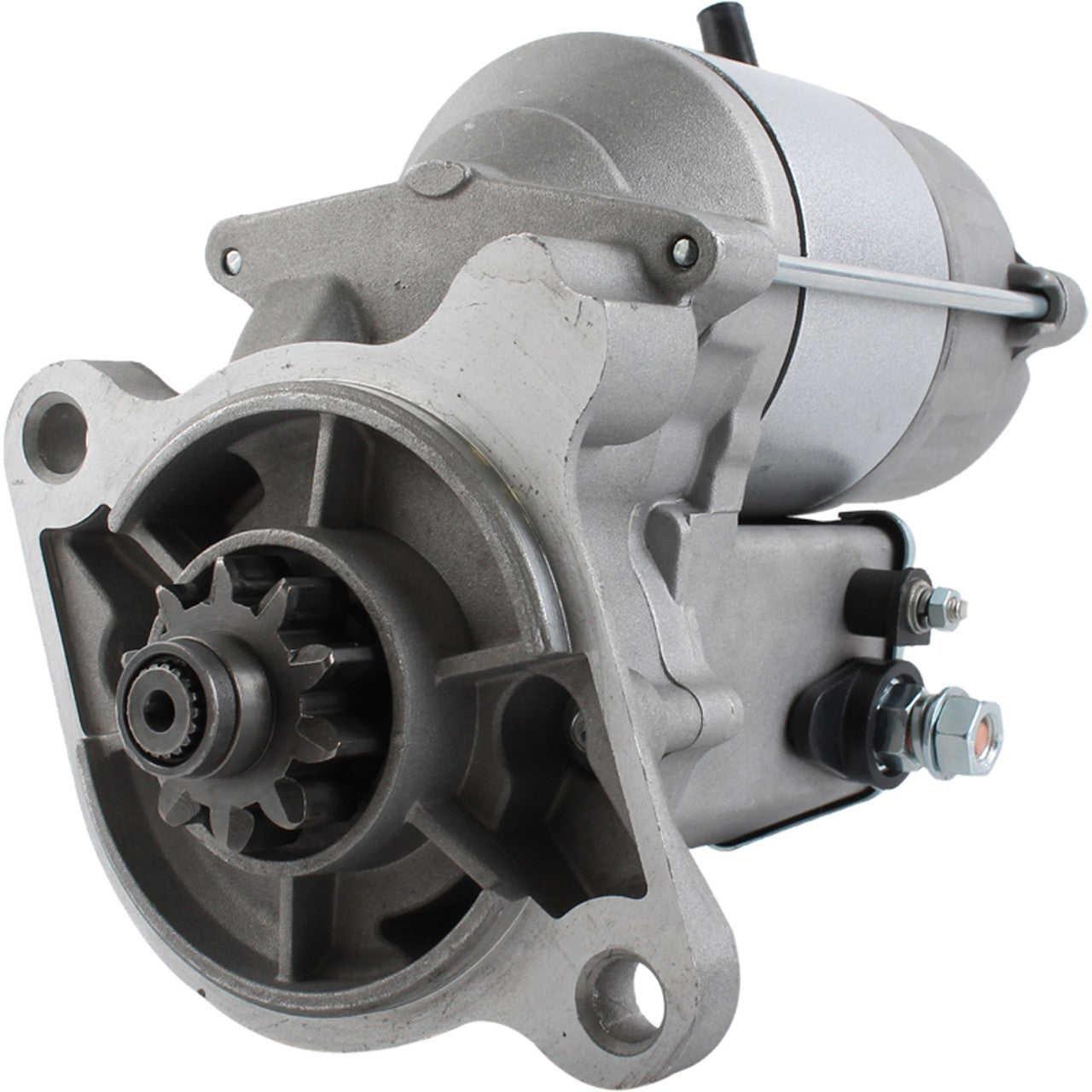

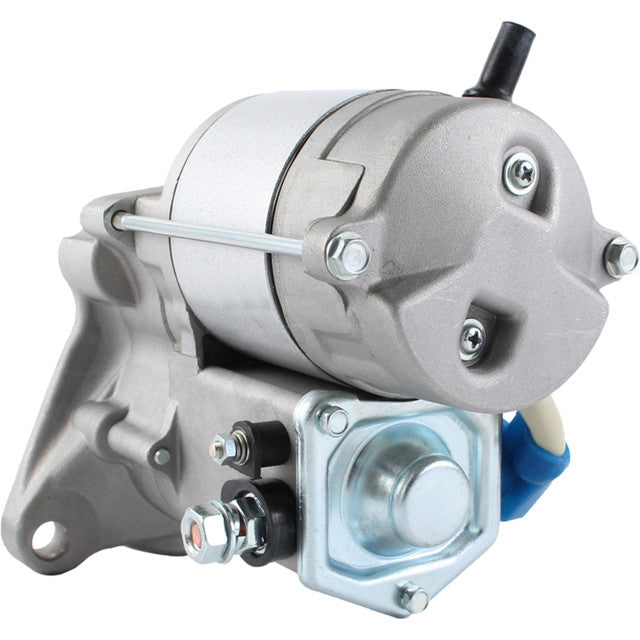

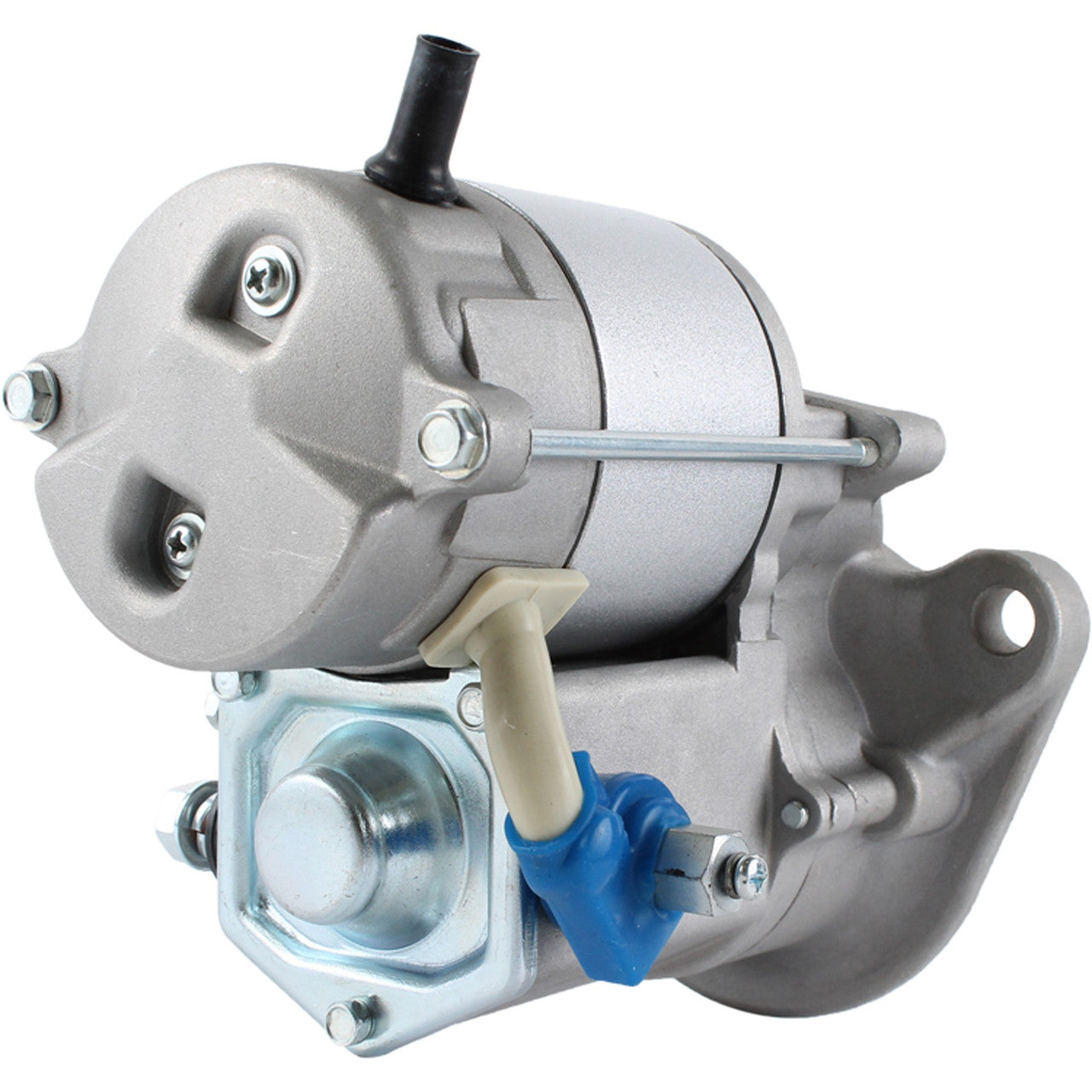

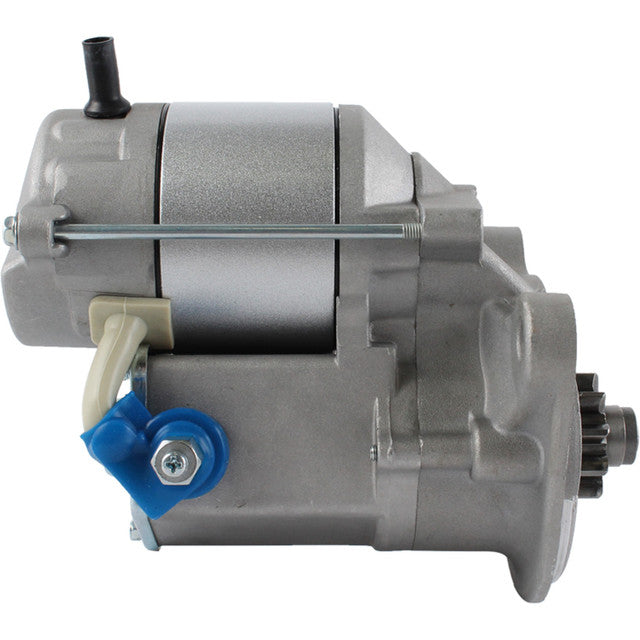

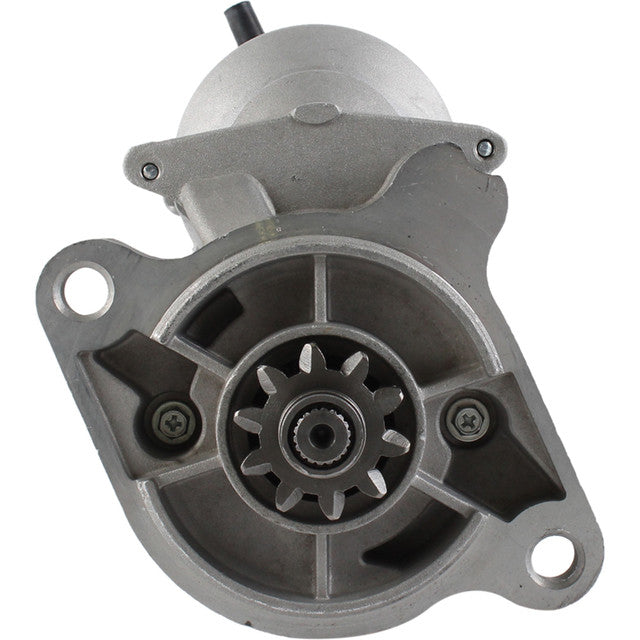

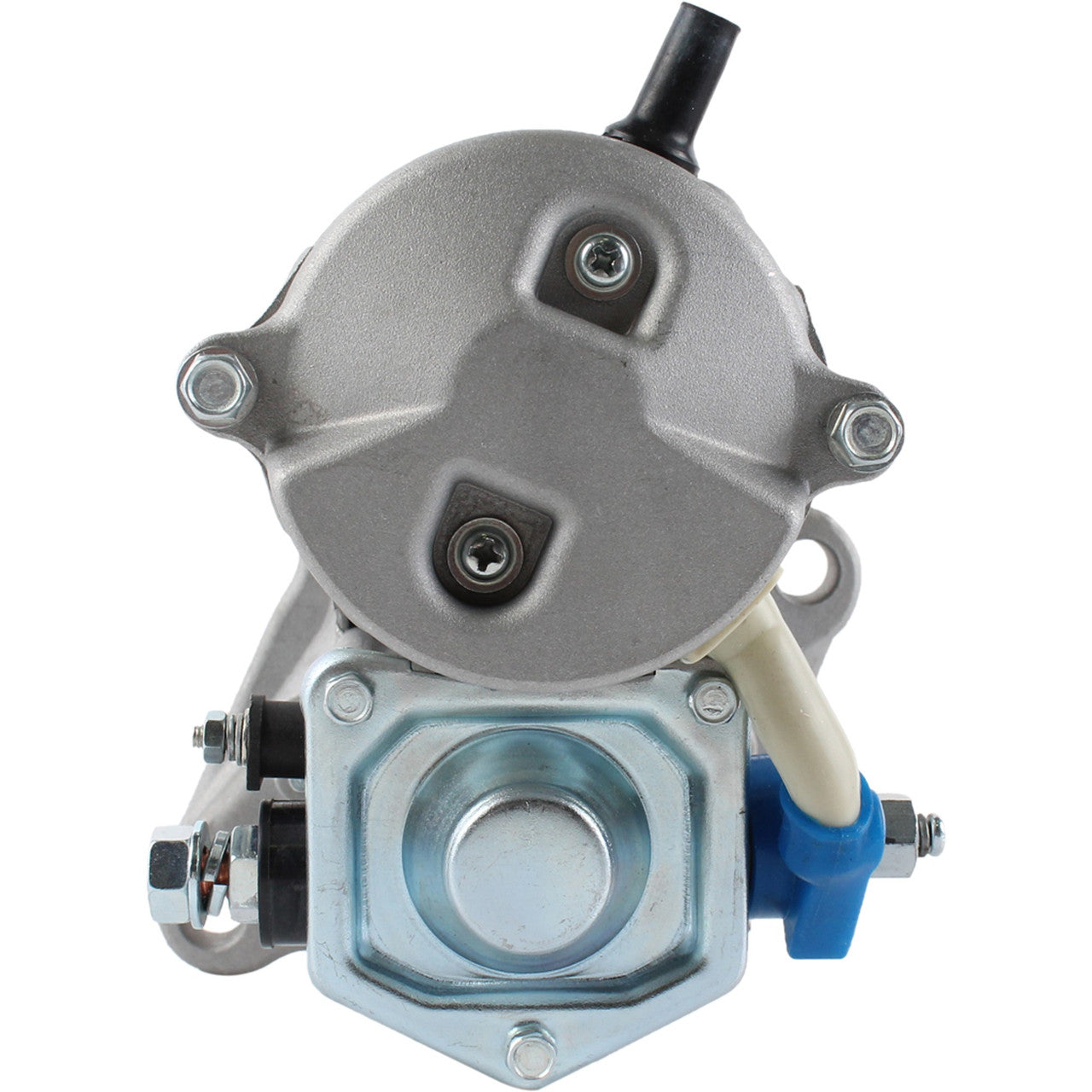

Starter Motor For Teledyne Engines 228000-2181
Starter Motor For Teledyne Engines 228000-2181
SKU:410-52416
Free shipping over £150. Terms apply
Couldn't load pickup availability
Premium Starter Motor for Teledyne Continental Engines
Direct Replacement for TM27 Series (1992-2005) - Denso 228000-2181 Equivalent
Ensure reliable starting power for your Teledyne Continental industrial engine with this high-quality aftermarket starter motor, a direct replacement for the Denso 228000-2181. Specifically engineered for the demanding applications of TM27 series engines manufactured between 1992 and 2005, this unit delivers consistent performance and durability.
This starter motor is meticulously crafted to meet or exceed OEM specifications, providing the robust cranking power needed for your equipment. It converts electrical energy from your battery into mechanical motion, effectively engaging the engine's flywheel to initiate the combustion process.
Key Features
- ✔ Optimized Performance: Provides powerful and efficient engine cranking.
- ✔ Durable Construction: Features robust metal housing, precision electrical windings, and a reliable solenoid assembly for long-lasting service.
- ✔ Direct Replacement: Designed for a hassle-free installation, matching original equipment fit and function.
- ✔ OEM Equivalent Quality: Manufactured to high standards for dependable operation in industrial applications.
Technical Specs
| Voltage: | 12V |
| Power: | 1.4 kW / 1.88 HP |
| Rotation: | Clockwise (CW) |
| Number of Teeth: | 10 |
| Starter Type: | OSGR (Offset Gear Reduction) |
| Weight: | Approx. 3.93 kg (8.65 lbs) |
| OEM(s): | Denso |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Teledyne Continental | TM27 Industrial Engines | 1992-2005 |
OEM Part Number Cross Reference
| Denso | 228000-2180, 228000-2181, 228000-6070, 280-7071 |
| Teledyne | TM27M00516 |
| Case | 235907A1 |
| Lester | 19913 |
| Arrowhead | ND228000-2181, ND228000-6070, SND0772 |
| J&N Electrical Products | 410-52416 |
| PIC | 190-298, 190-431 |
| Wilson Heavy Duty | 91-29-5561 |
| Dixie Electric | S-8905 |
| Andre Niermann | 012180 |
Frequently Asked Questions
How does a starter motor work in a Teledyne Continental engine?
The starter motor converts electrical energy from the battery into mechanical rotational force. This force drives a small pinion gear which engages with the engine's flywheel, cranking the crankshaft and initiating the engine's combustion cycle. Many Continental engines also use a starter adapter with a clutch mechanism to ensure proper engagement and disengagement.
What are common signs of a failing starter motor?
Common symptoms include slow or sluggish cranking, a grinding noise when trying to start, the starter motor spinning but not engaging the engine, or a complete failure to crank with only a clicking sound. Dimming lights on the dashboard when attempting to start can also indicate an issue with the starting system.
Why is it important to use the correct starter type for my Teledyne Continental engine?
Using the correct starter, especially one designed for your specific engine series like the TM27, is crucial for proper fitment and to avoid damage to the starter adapter and engine components. Incorrect specifications (e.g., voltage, number of teeth, rotation) can lead to inefficient starting, premature wear, or severe engine damage.
Note: Please verify your engine's model and year before purchasing.
