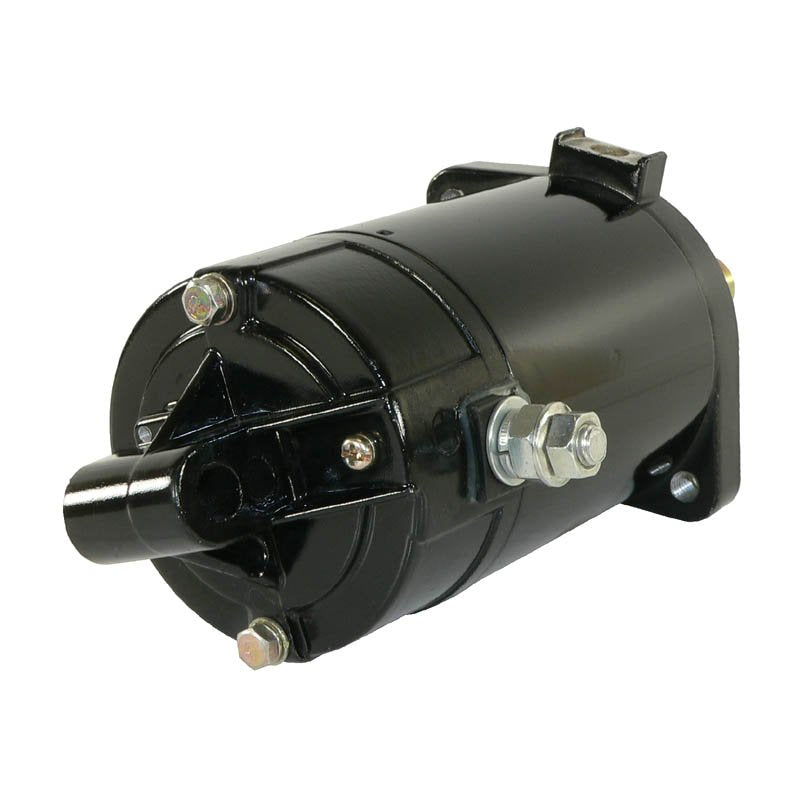

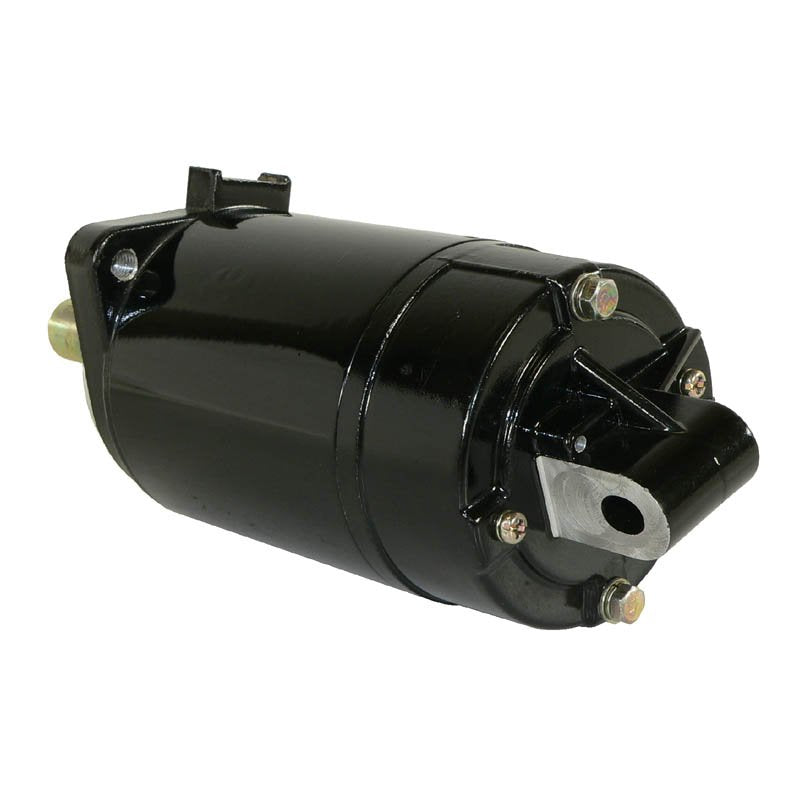

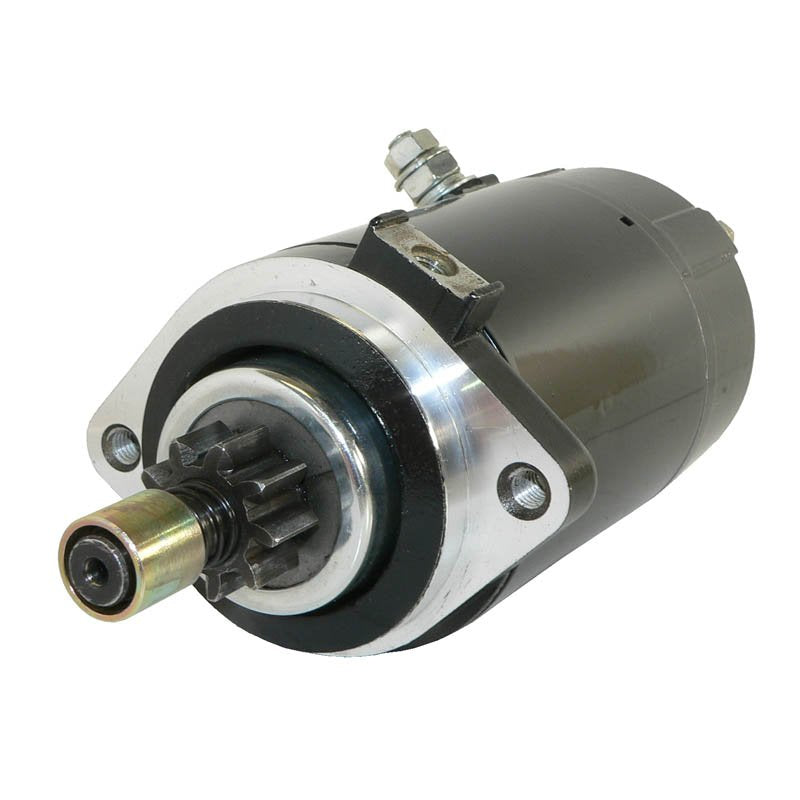

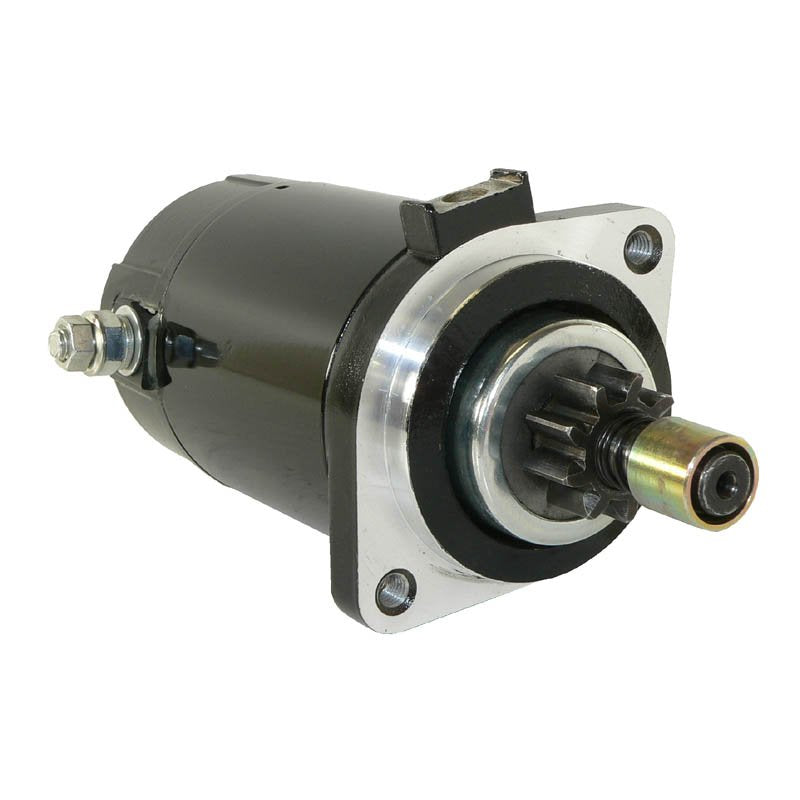

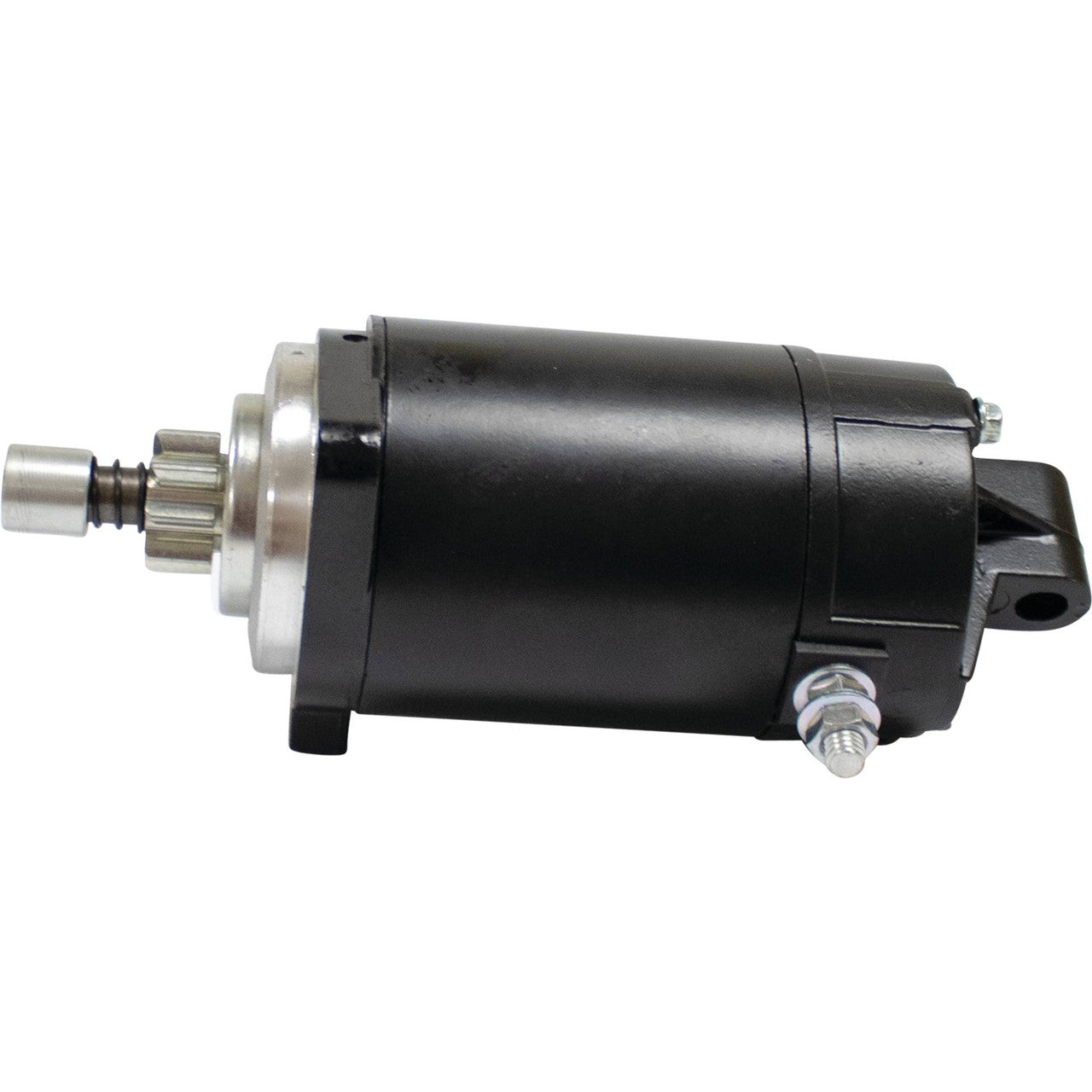

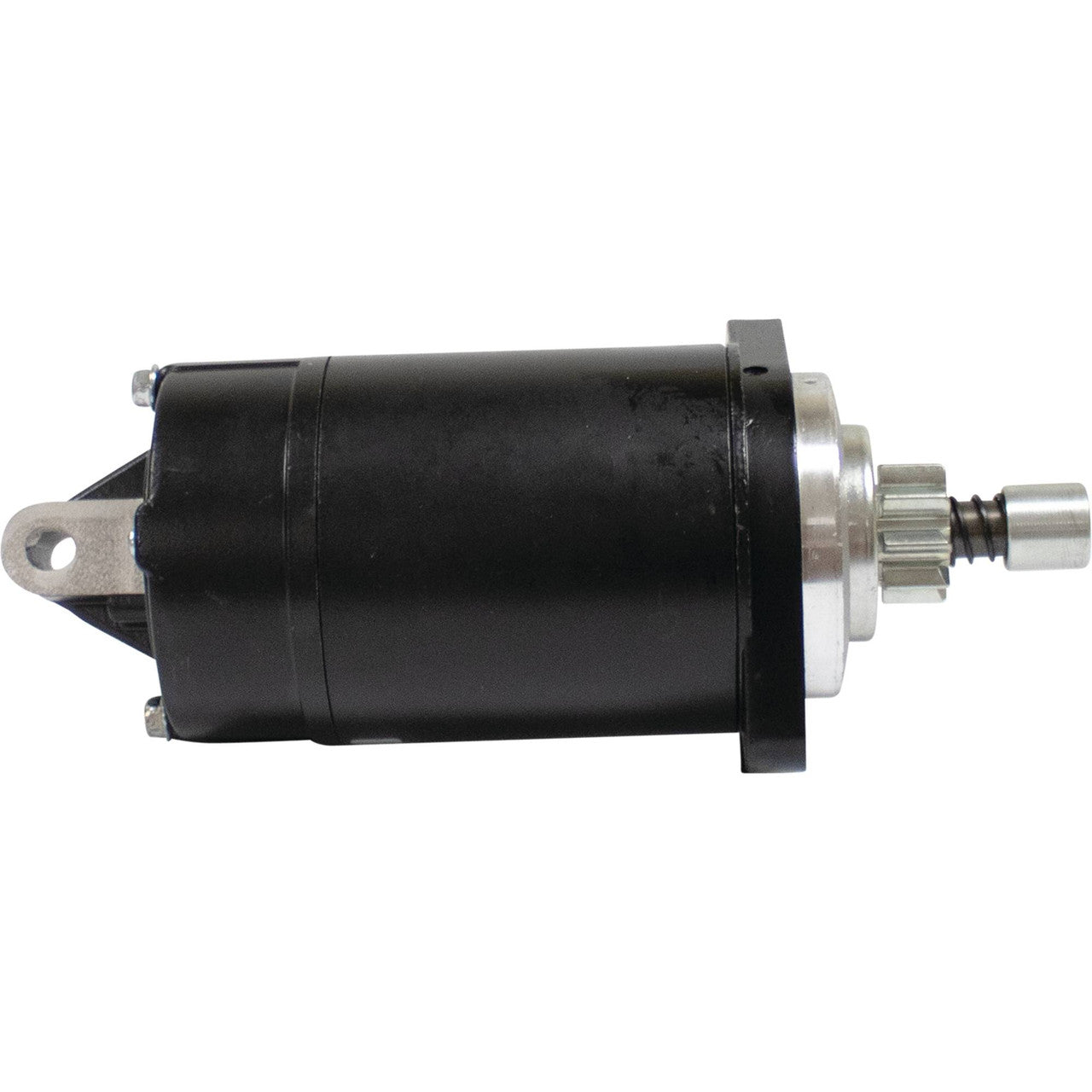

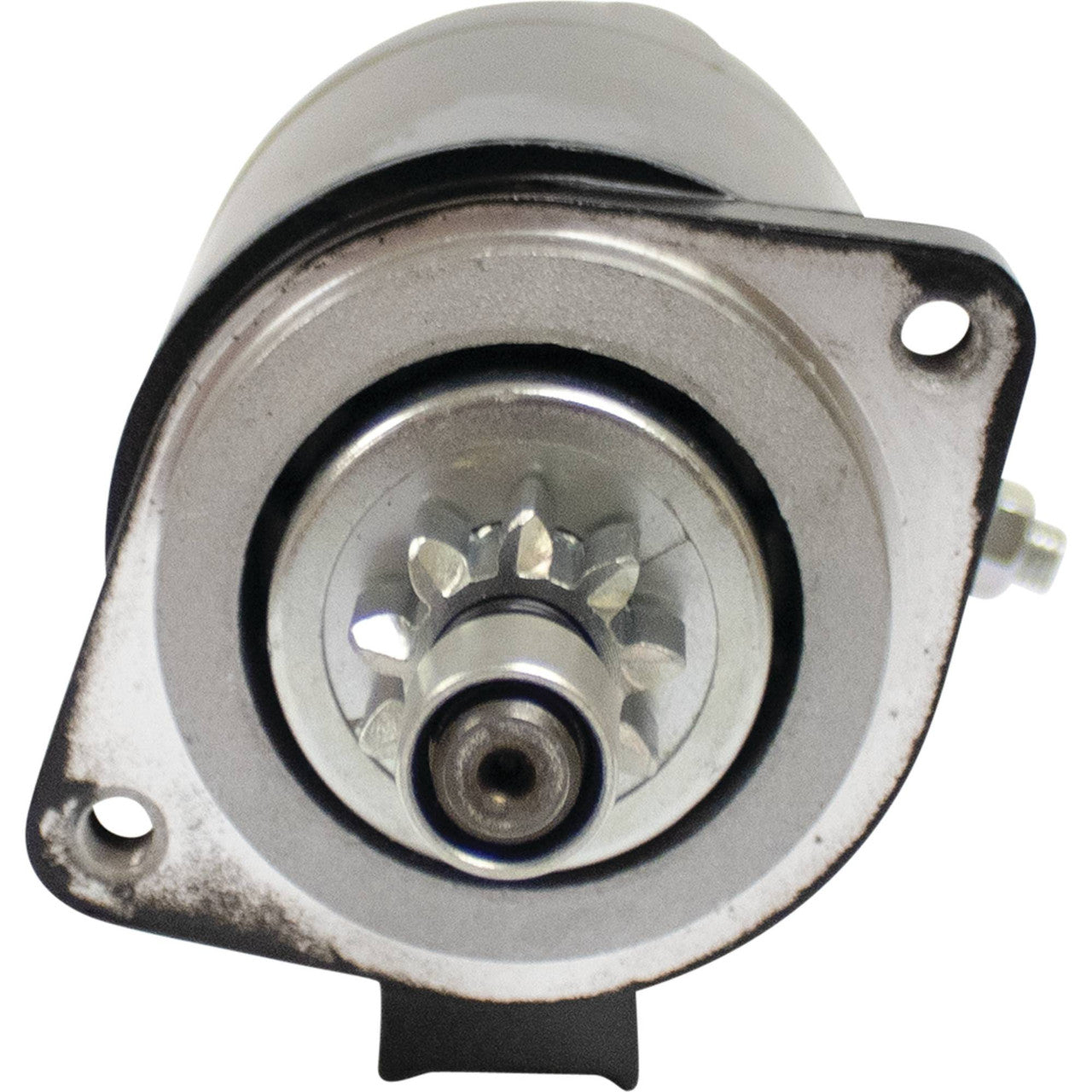

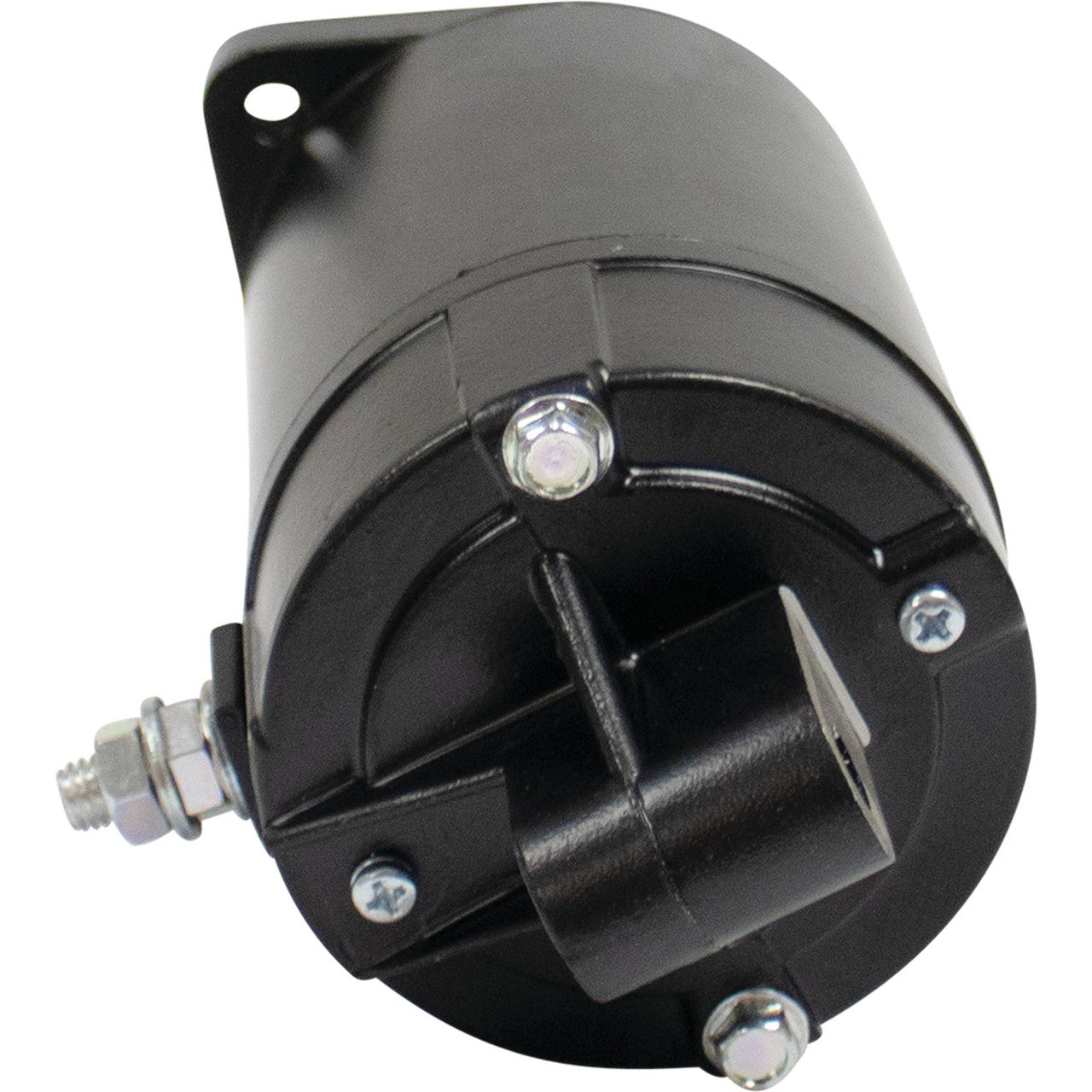

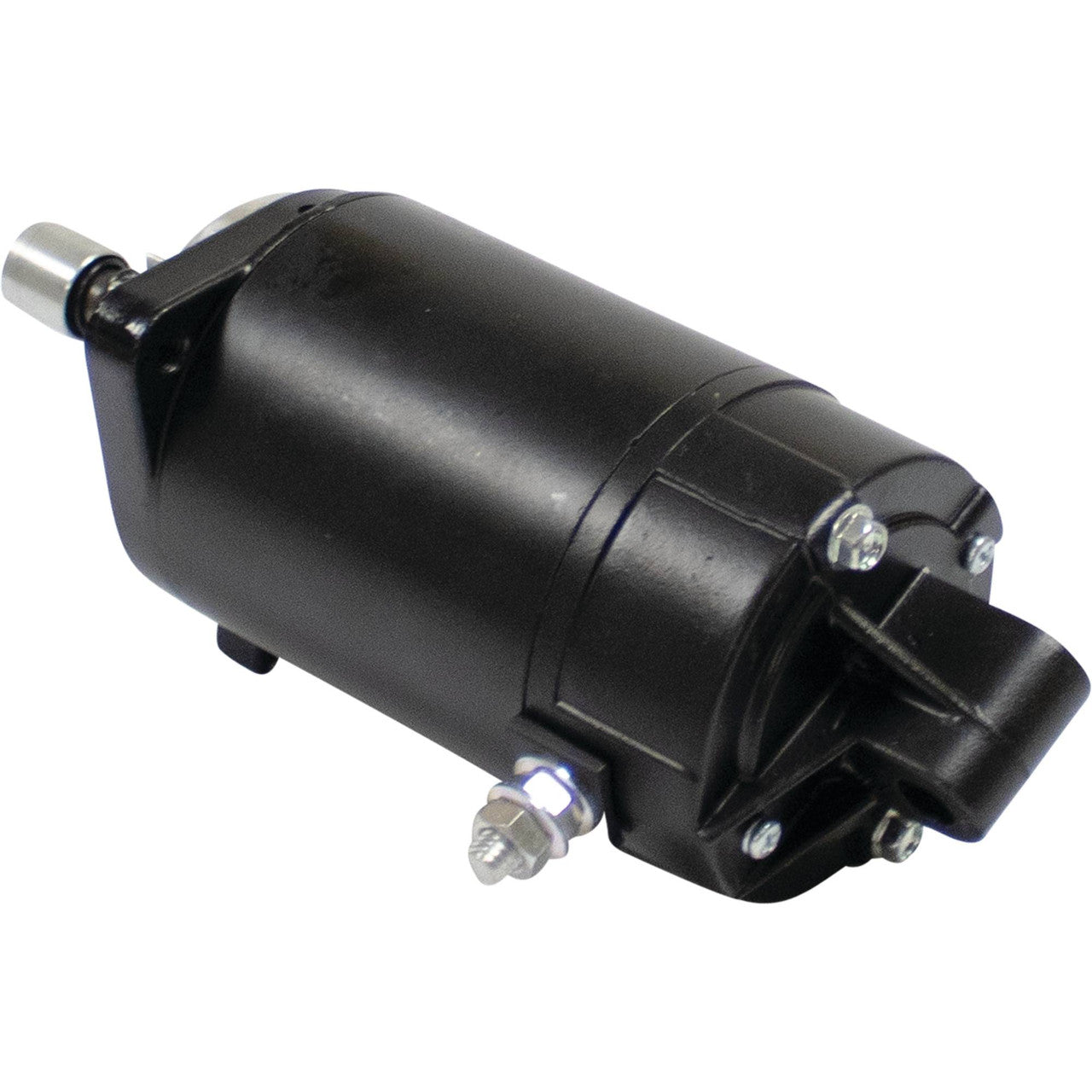

Starter Motor for Yamaha Outboard 115-200HP 1984-1996 & F40-F50 1996-2002
12V · 1.1kW · CCW · 9-Tooth PMDD · Replaces Yamaha 6E5-81800 / Hitachi S114-323
This starter motor is a direct-fit replacement for Yamaha outboard engines, built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place. It covers the Yamaha V4 and V6 115HP to 200HP two-stroke range as well as the F40 and F50 four-stroke outboards.
It runs on 12 volts with a 1.1kW output, turning counter-clockwise (CCW) with a 9-tooth drive gear, and uses a permanent magnet direct drive (PMDD) design. Earlier production versions of this starter have a rear threaded hole by the B+ stud; later versions eliminated this feature, so check your original unit if this detail matters for your accessories.
Key Features
- Direct OEM fit and function for the listed Yamaha outboards
- 12-volt, 1.1kW permanent magnet direct drive motor
- Counter-clockwise (CCW) rotation, 9-tooth drive gear
- Covers 115, 130, 150, 175 and 200HP two-strokes plus F40/F50/T50 four-strokes
- Cross-references Yamaha 6E5-81800-10-00 and Hitachi S114-323
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Output | 1.1kW |
| Rotation | CCW |
| Drive Teeth | 9 |
| Starter Type | PMDD (permanent magnet direct drive) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Outboard 115HP - 115ETL, 115ETX, 115ETLJD, 115TJR, 115TLR, 115TXR, C115TLR, C115TXR, S115TLR, S115TXR | 1984-1996 |
| Yamaha Outboard 130HP - 130ETL, 130ETX, 130TLR, 130TXR, L130ETX, L130TXR, S130TLR, S130TRX | 1988-1996 |
| Yamaha Outboard 150HP - 150ETL, 150ETX, 150TJR, 150TLR, 150TXR, L150ETX, L150TXR, C150TLR, C150TXR, P150TLR, PRO150L, S150TLR, S150TSR | 1985-1996 |
| Yamaha Outboard 175HP - 175ETL, 175ETX, 175TLR, 175TXR, P175TLR, S175TXR | 1985-1996 |
| Yamaha Outboard 200HP - 200ETL, 200ETX, 200ETLJD, 200TJR, 200TLR, 200TXR, L200ETX, L200TLR, L200TXR, S200TXR | 1984-1996 |
| Yamaha Outboard V6 Special | 1985-1986 |
| Yamaha Outboard 40-50HP Four-Stroke - F40TLR, F50TJR, F50TLH, F50TLR, T50TLR | 1996-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6E5-81800-10-00, 6E5-81800-11-00, 6E5-81800-12-00 | Yamaha |
| S114-323, S114-323A, S114-323B | Hitachi |
| S114-323, S114-323C | Arrowhead |
| 18314N, 2-2167-HI | WAI |
| 410-44006 | J&N Electrical |
Frequently Asked Questions
Will this starter fit my outboard without modification?
Yes, provided your outboard appears in the fitment table above. Cross-check the number stamped on your original starter against the reference list to be certain.
What's included?
The starter motor unit only, complete with its drive gear ready to fit.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
Does my outboard need the rear threaded mounting hole?
Earlier production versions of this starter have a rear threaded hole by the B+ stud, which later versions eliminated. Check your original unit if you rely on that hole for an accessory bracket.
