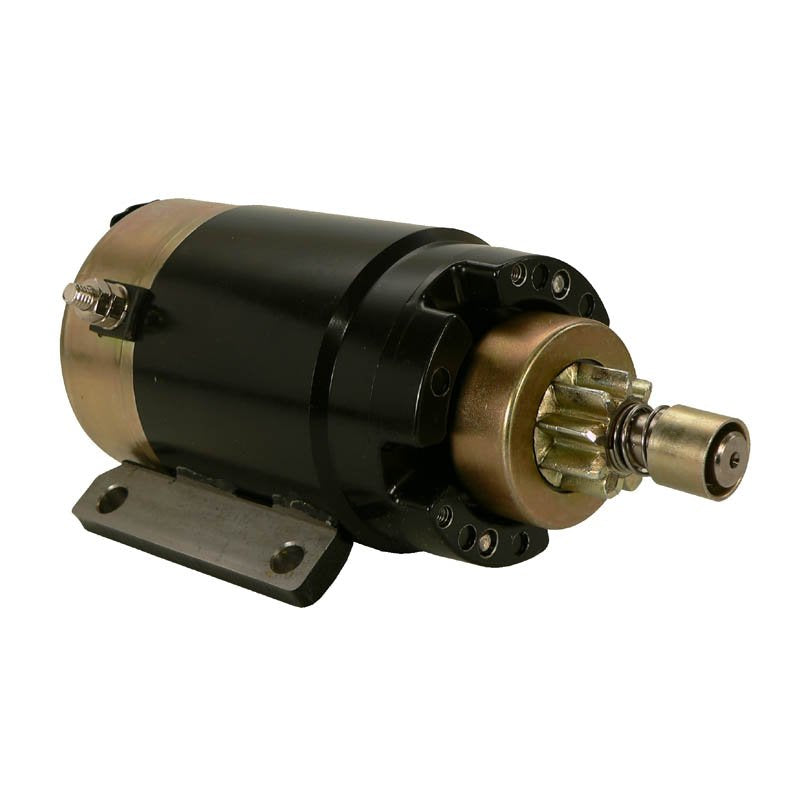

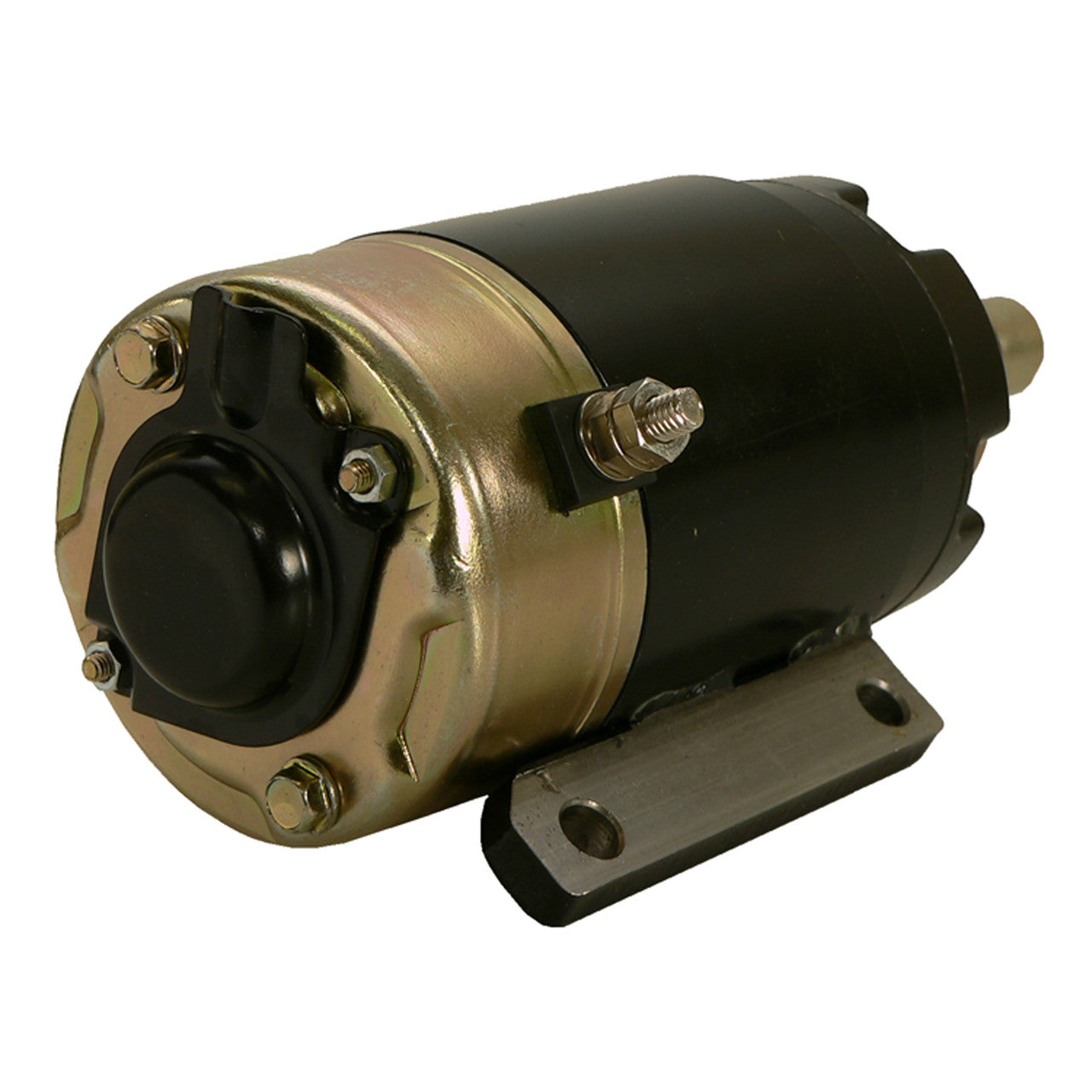

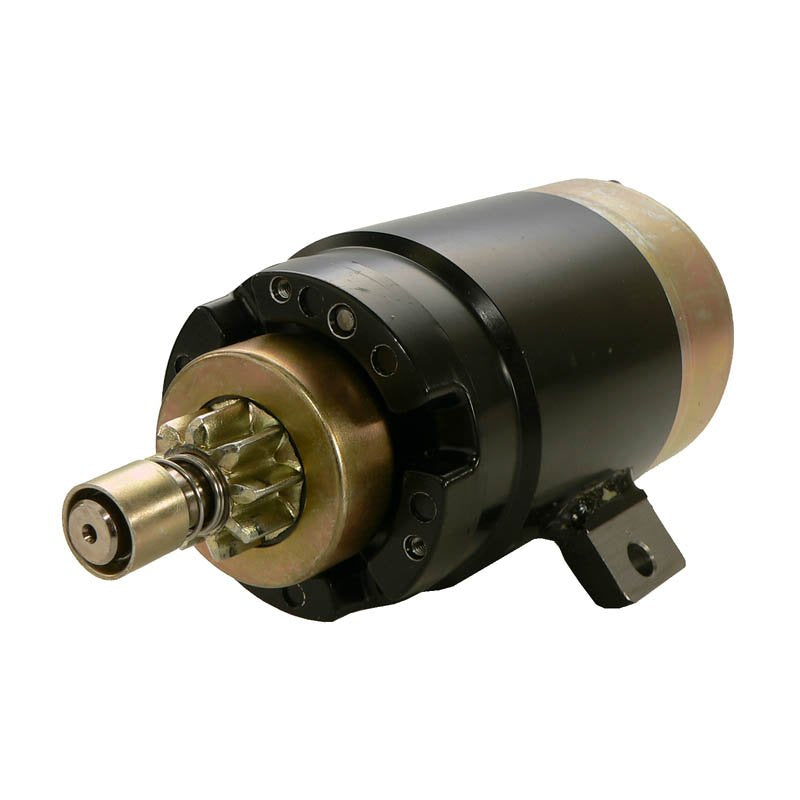

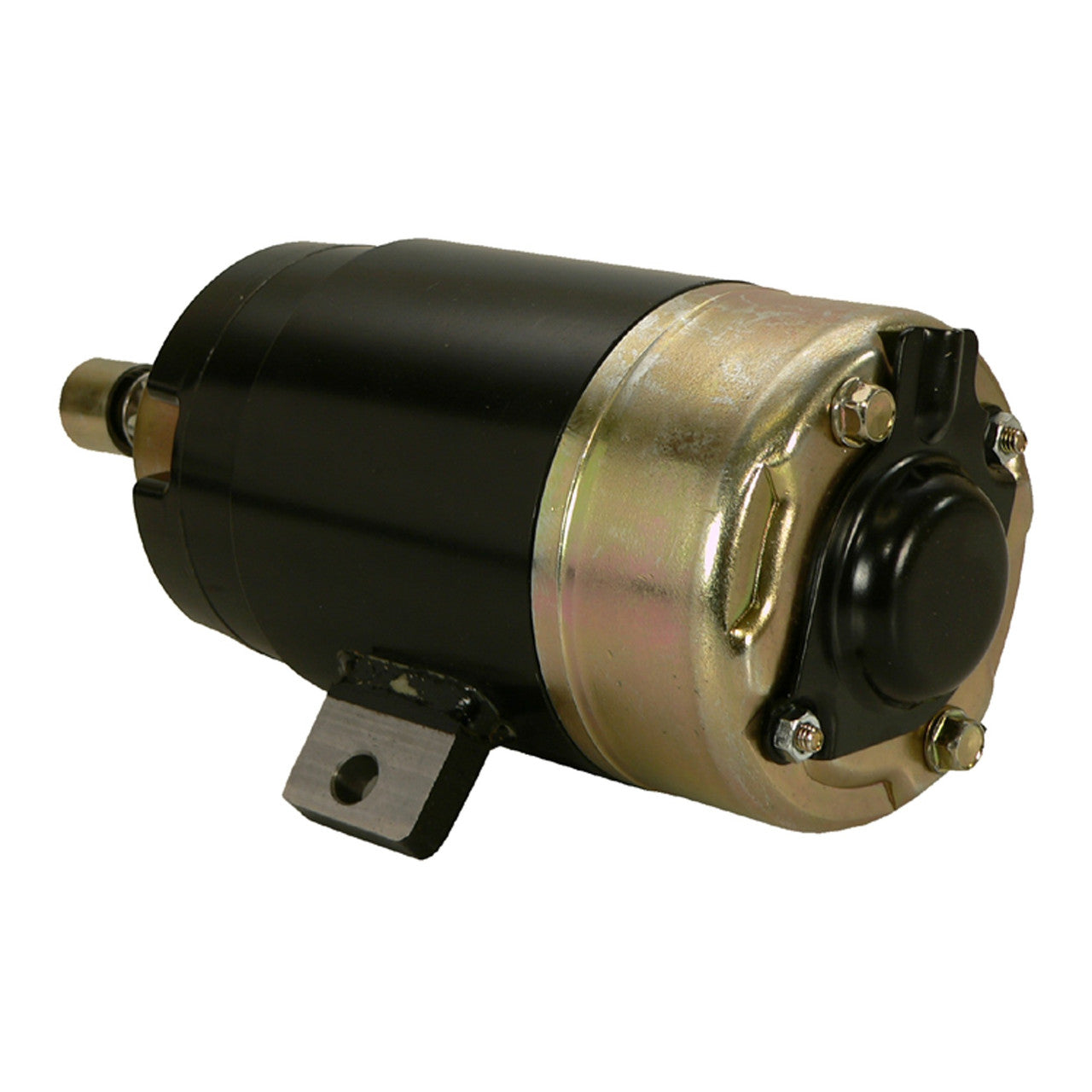

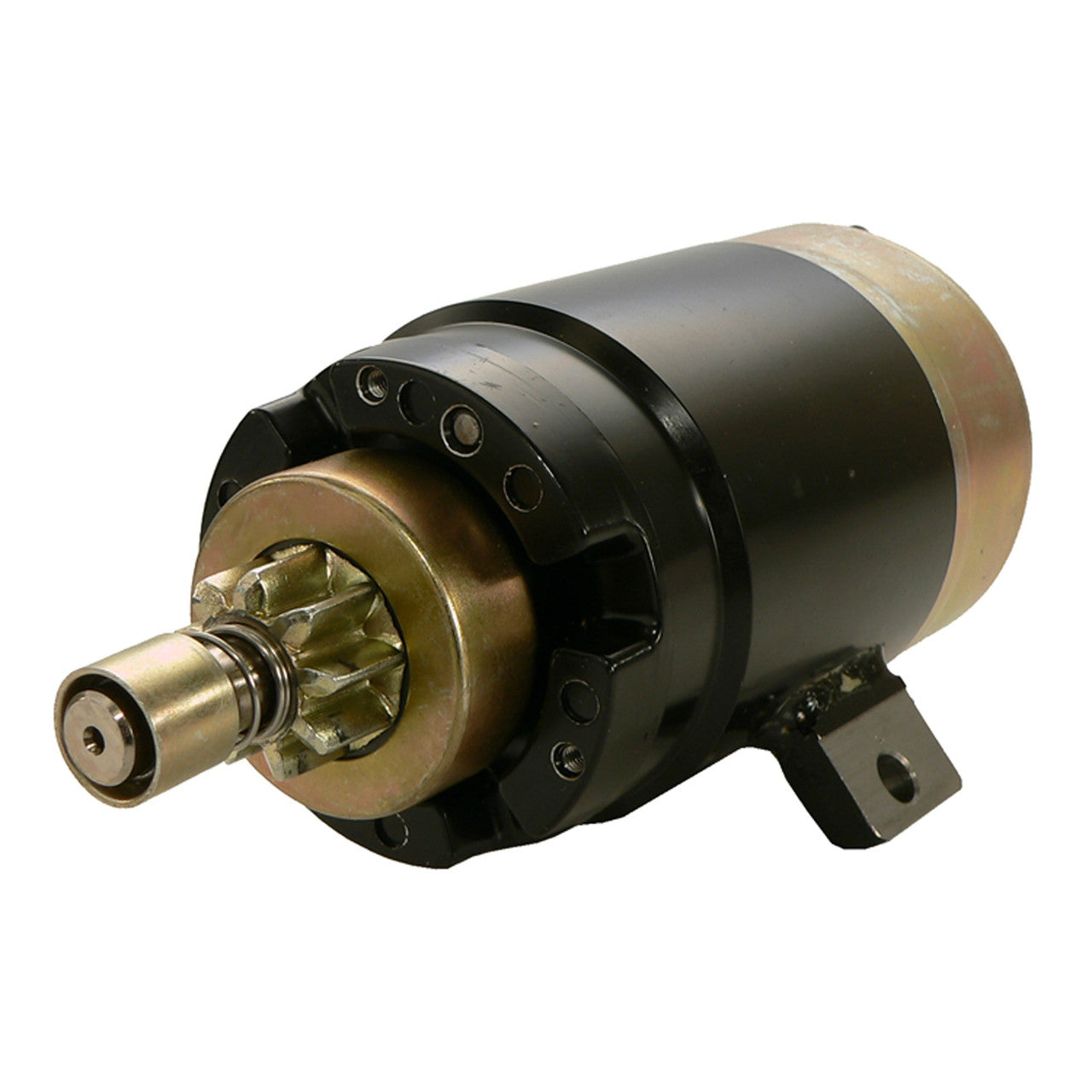

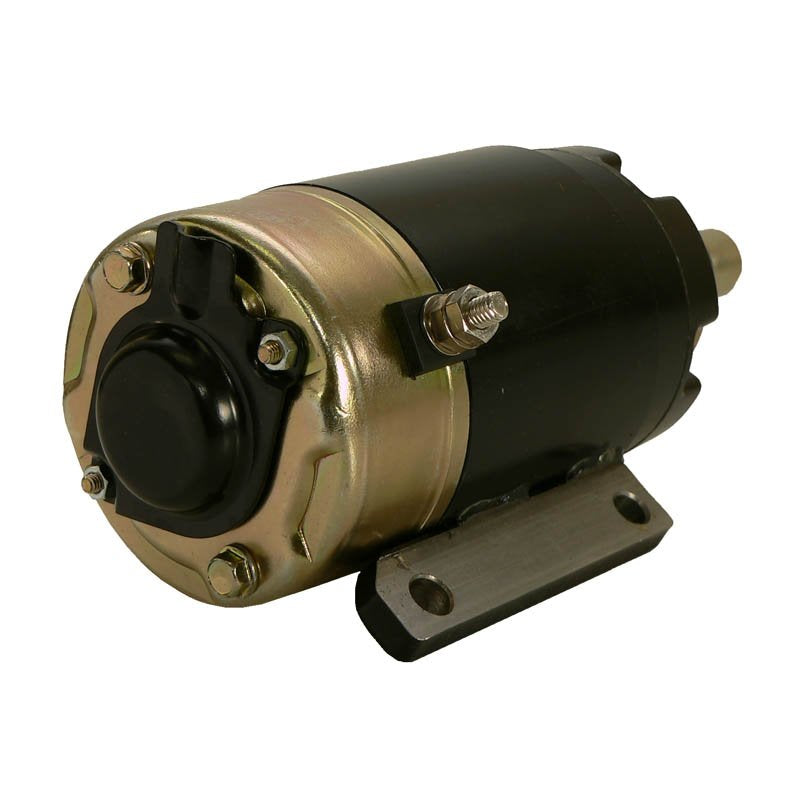

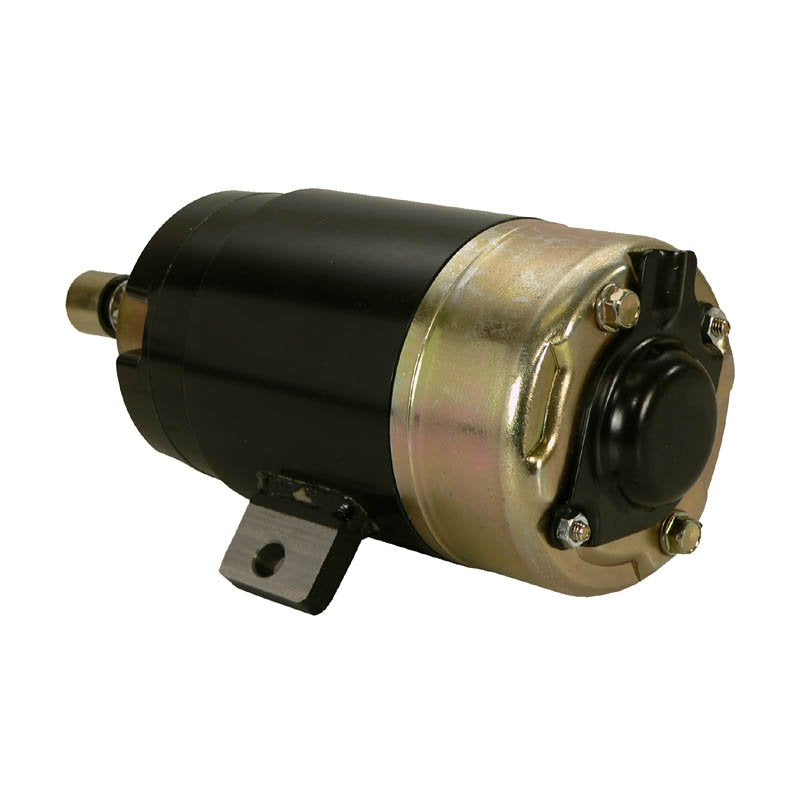

Starter Motor for Yamaha Outboard 75-90HP 1984-2010
Starter Motor for Yamaha Outboard 75-90HP 1984-2010
SKU:410-44058
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Yamaha Outboard 75-90HP 1984-2010
12V · CCW · 9-Tooth Direct Drive · Replaces Yamaha 688-81800-10-00 / Hitachi S114-263B
This starter motor is a direct-fit replacement for the Yamaha 75, 80, 85 and 90HP outboard, built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place.
It runs on 12 volts, turns counter-clockwise (CCW) and uses a 9-tooth direct drive gear, matching the original Hitachi S114-263B specification. The drive gear engages the flywheel ring gear only while cranking and retracts once the engine fires, so no adjustment is needed after fitting. Fitting is a straightforward like-for-like swap: disconnect the battery, remove the mounting bolts securing the original starter, transfer the wiring connector across, and bolt this unit into place in the same orientation.
Key Features
- Direct OEM fit and function for Yamaha 75-90HP outboards
- 12-volt direct drive motor
- Counter-clockwise (CCW) rotation, 9-tooth drive gear
- Cross-references Yamaha 688-81800-10-00 and Hitachi S114-263B
- Marine-grade housing suited to outboard applications
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW |
| Drive Teeth | 9 |
| Starter Type | DD (direct drive) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Outboard 75HP - C75TLR, P75TLH | 1994-1999 |
| Yamaha Outboard 80HP - C80TLR | 1997 |
| Yamaha Outboard 85HP - C85TLR, CV85EL, CV85ETL | 1990-1996 |
| Yamaha Outboard 90HP - 90ETL, 90ETLJD, 90ETX, 90TJR, 90TLR, B90TLR, C90TLR | 1984-2010 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 688-81800-10-00, 688-81800-11-00, 688-81800-12-00 | Yamaha |
| S114-263B | Hitachi |
| S114-263B, S114-263BN | Arrowhead |
| 18344 | Lester |
| 410-44058 | J&N Electrical |
Frequently Asked Questions
Will this starter fit my outboard without modification?
Yes, provided your outboard appears in the fitment table above. Cross-check the number stamped on your original starter against the reference list to be certain.
What's included?
The starter motor unit only, complete with its drive gear ready to fit.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
Does the rotation direction matter?
Yes. This unit turns counter-clockwise (CCW) as viewed from the drive end, matching the original Yamaha outboard starter. A clockwise unit will not engage correctly.
