RELIABILITY: Featuring high-quality magnets and sealed housings, this unit is built to withstand performance-robbing residue and moisture, meeting or exceeding OEM standards.

Key Features

• ✔ Direct Fit: No modifications required for installation.
• ✔ Enhanced Torque: Upgraded copper contacts for faster cranking.
• ✔ Weather Sealed: Protected against dust and moisture ingress.
• ✔ 9-Tooth Spline: Matches original drive configuration exactly.

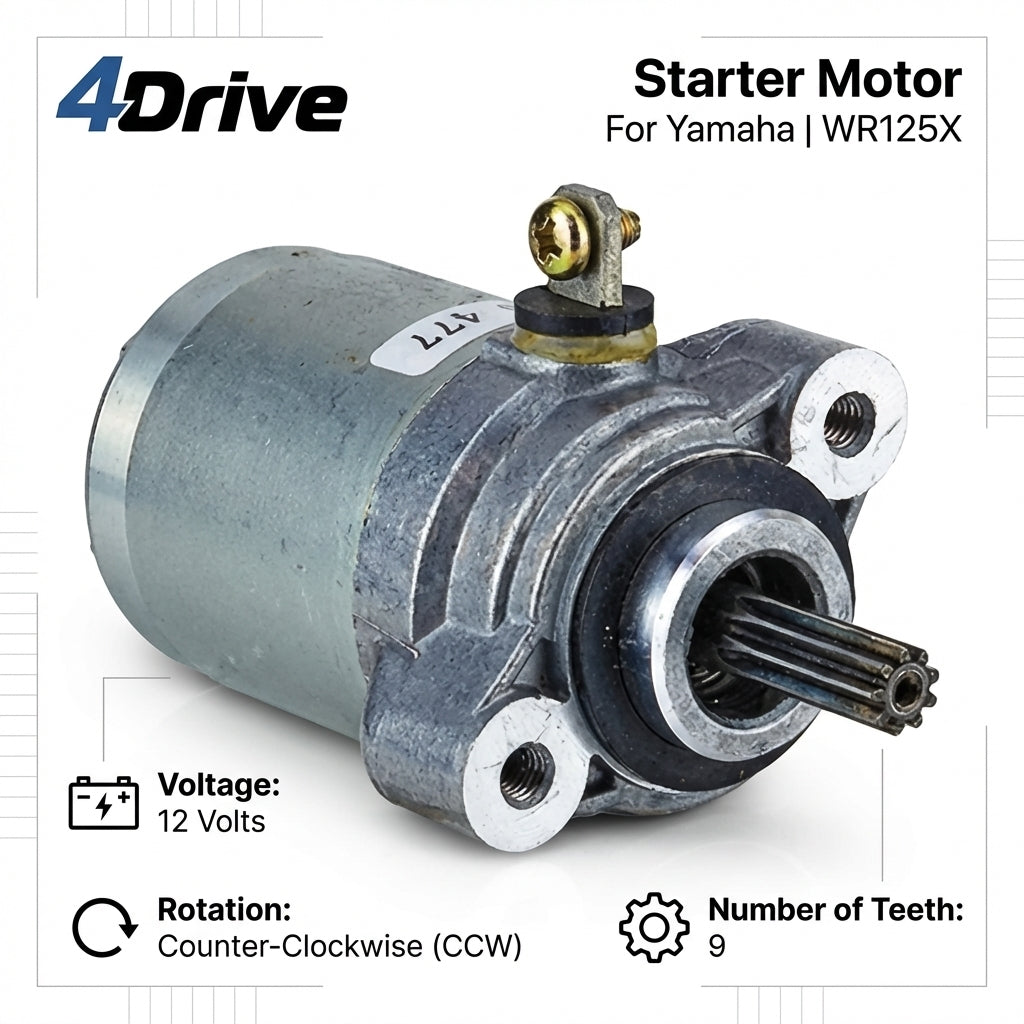

Technical Specs

Voltage:	12V
Rotation:	CCW (Counter-Clockwise)
Splines/Teeth:	9-Spline
Type:	PMDD
Pinion OD:	8.9mm
Mounting:	2-Bolt (51.4mm C-to-C)

Make / Series	Model / Displacement	Year Range
Yamaha WR-X	WR125X	2009 - 2017
Yamaha WR-R	WR125R	2009 - 2017
Yamaha MT Series	MT-125 / MT-125A (ABS)	2014 - 2019
Yamaha YZF-R	YZF-R125 / YZF-R15	2008 - 2018

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured by 4Drive to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking your original part number against the cross-reference list provided above. If your OEM number matches any of those listed, this is a guaranteed fit.

Does this fit the MT-125 with ABS?

Yes, this motor is compatible with both the standard MT-125 and the MT-125A (ABS) models from 2014 through 2019.
