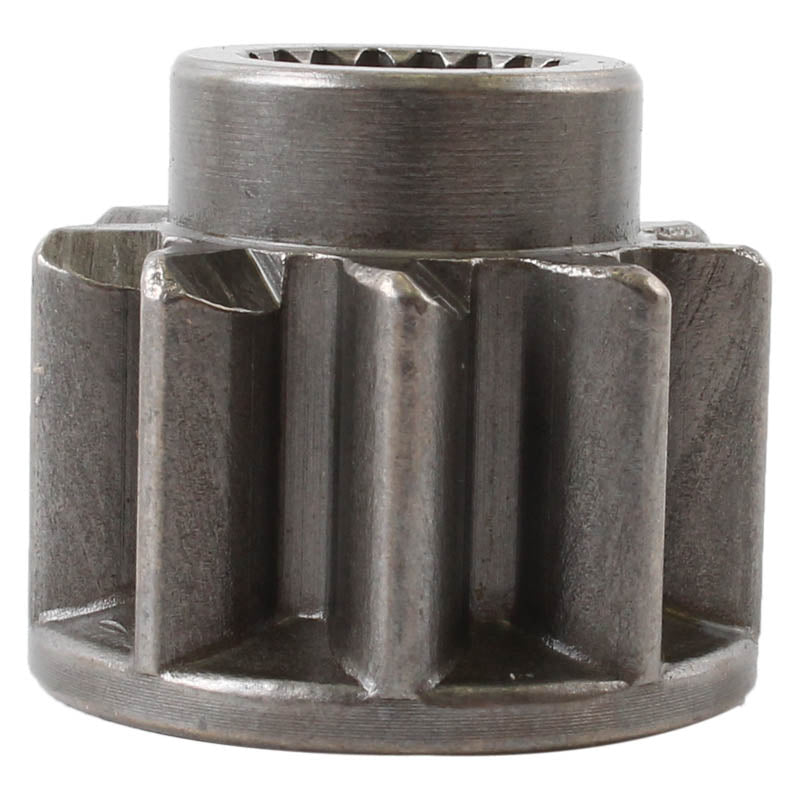

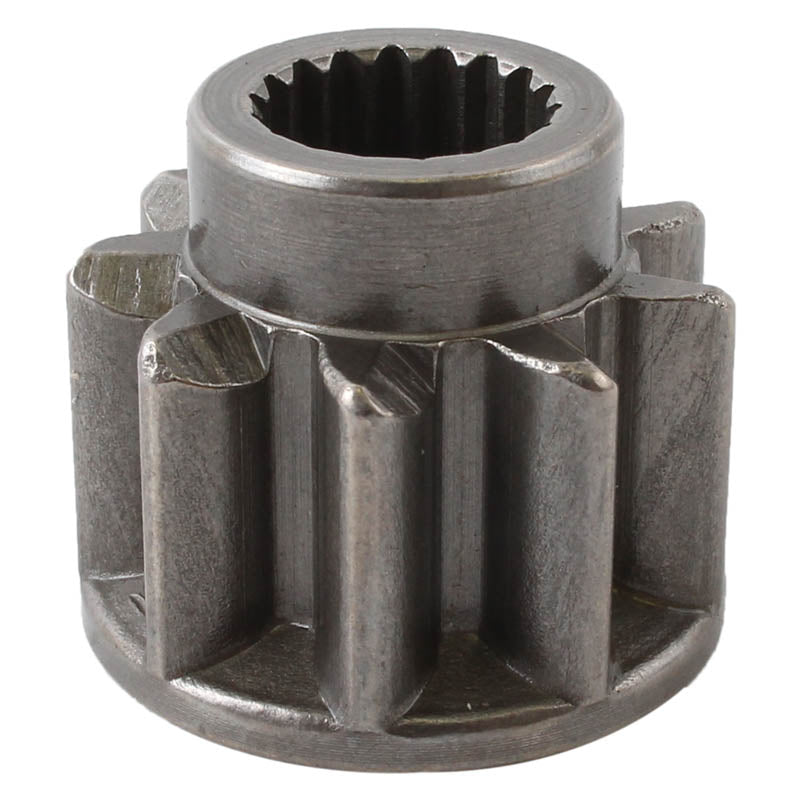

A replacement drive pinion gear for Denso OSGR (offset gear reduction) starters, with 9 teeth, clockwise rotation and 18 splines. This is the gear only; the OE Denso part is supplied as a kit.
Denso OSGR starters of this type are used on Acura, Carrier, Caterpillar, Chevrolet, Daihatsu, Dodge, Geo, Honda, Ishikawajima, Isuzu, Kubota, Lexus, Suzuki and Toyota applications, among others.
Key Features
- 9-tooth pinion gear
- Clockwise (CW) rotation
- 18 splines
- Gear only (OE Denso part is a kit)
Technical Specs
| Specification |
Detail |
| Teeth |
9 |
| Gear OD |
29 mm |
| Gear ID |
17 mm |
| Overall Length |
25 mm |
| Splines |
18 |
| Rotation |
Clockwise (CW) |
| Clutch |
N/A |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 222-52001 (std. version) |
J&N |
Frequently Asked Questions
How do I confirm this fits?
Match the part number or OEM reference on your existing part with the details above. If you are unsure, send us your vehicle or engine model and year and we will confirm before you order.
Is this a genuine OEM part?
It is a new aftermarket part built to the original specification. OEM numbers are listed for cross-reference only.
