Brand new starter relay solenoid switch, built to a standard that exceeds the original equipment part. The starter relay is the heavy-duty switch that sits between the battery and the starter motor. When you press the start button the relay coil is energised, the internal contacts close, and the full battery current is passed through to the starter. Because it carries the entire starting load, the relay contacts are one of the most common electrical wear items on a small ATV or scooter.

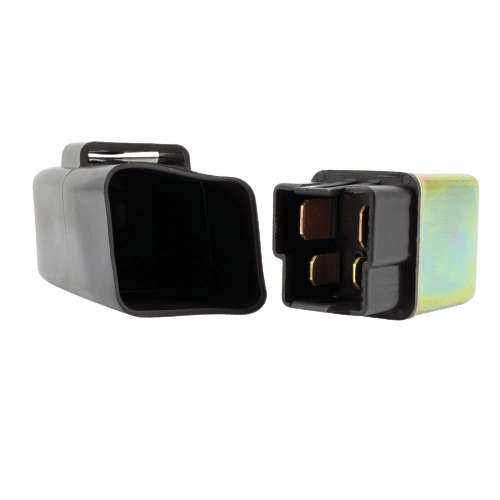

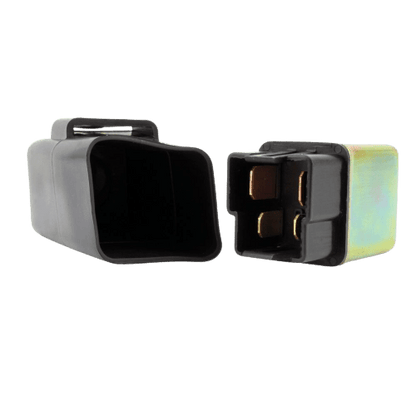

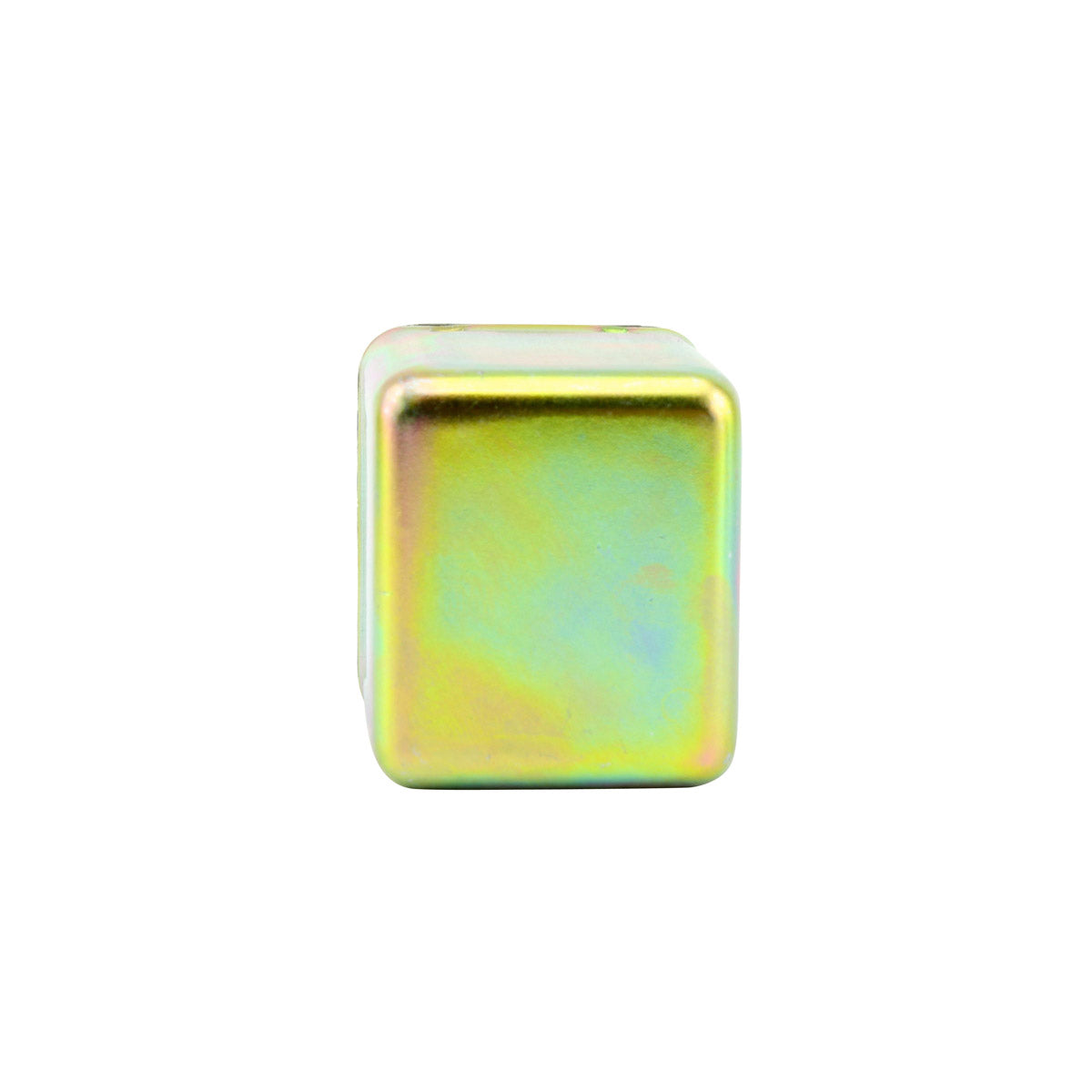

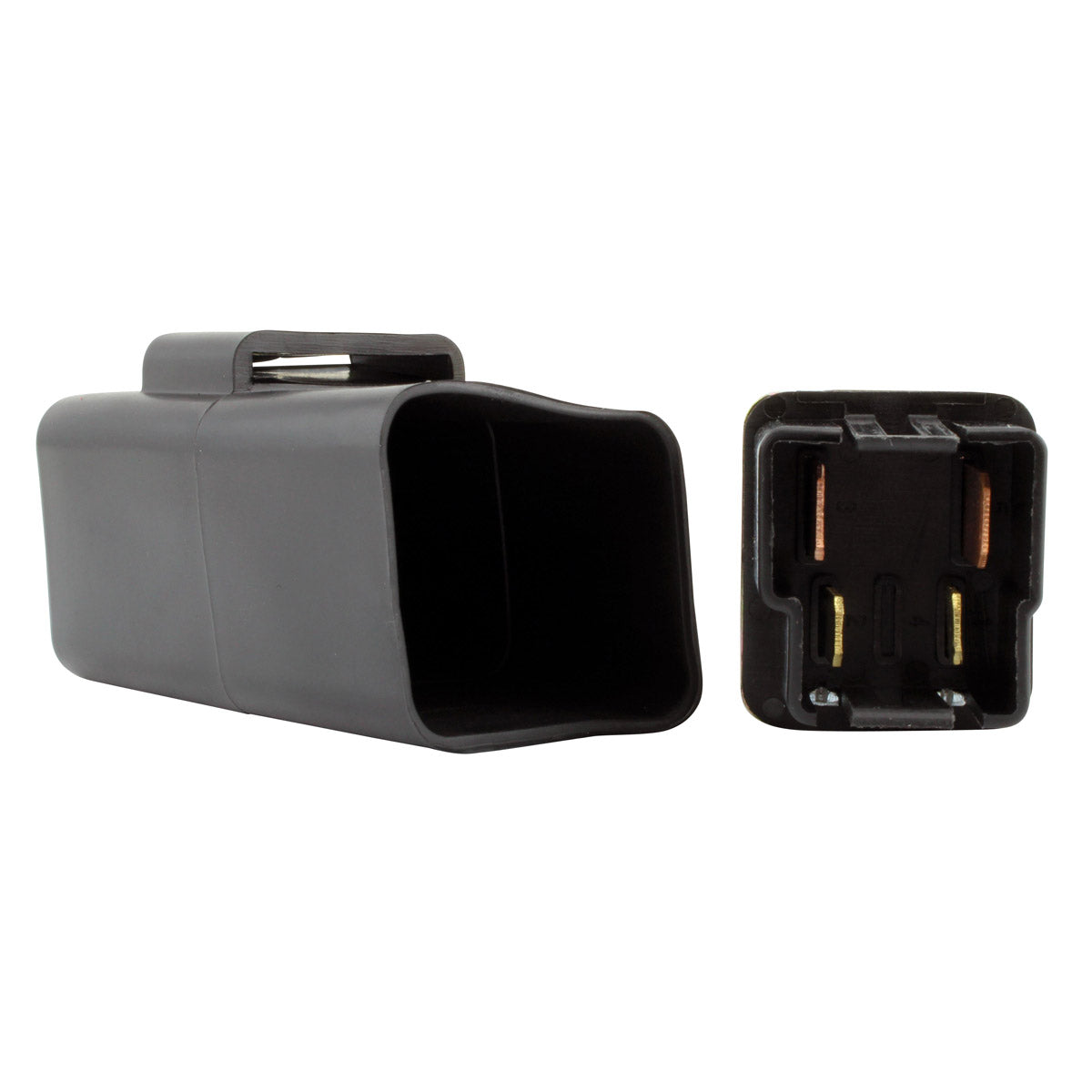

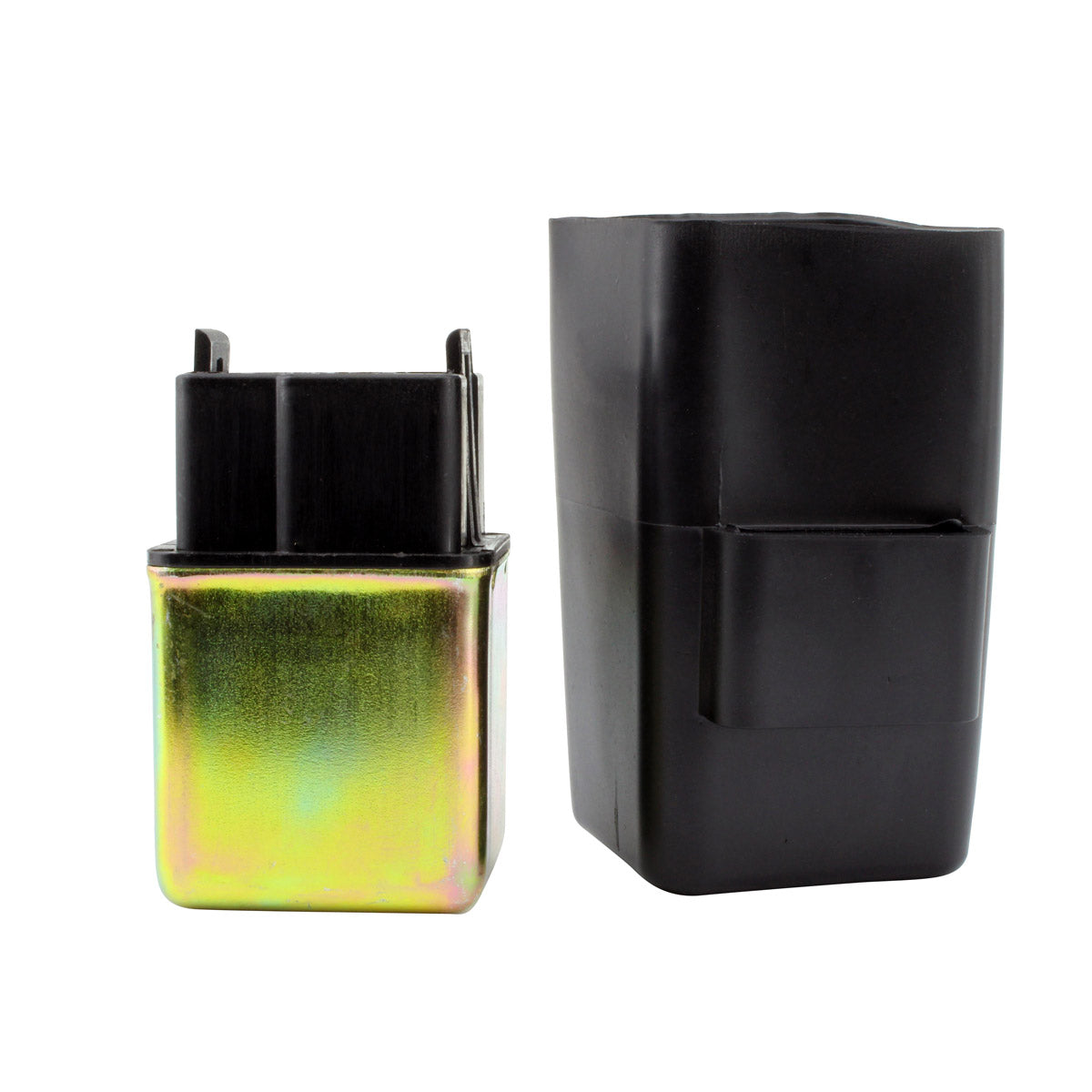

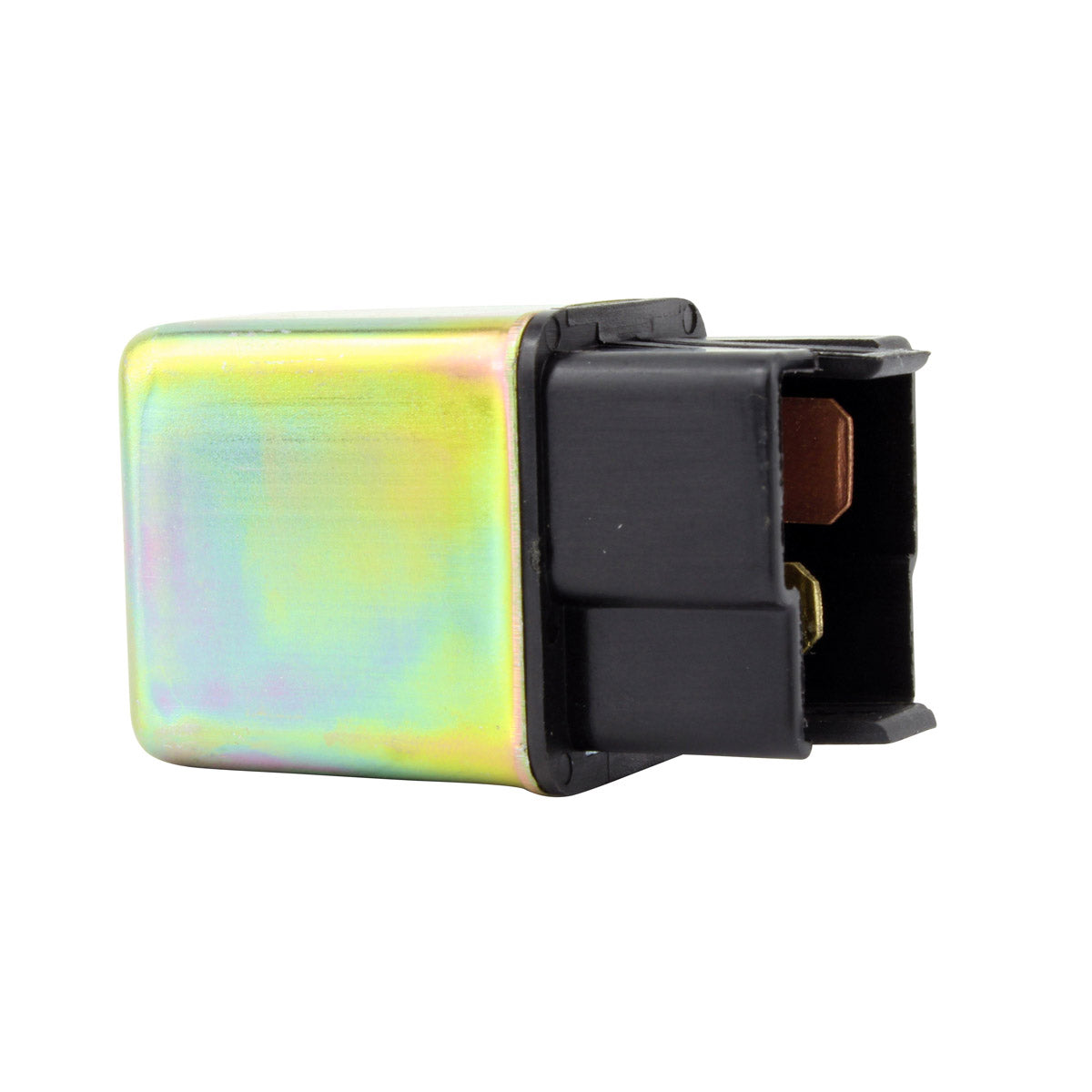

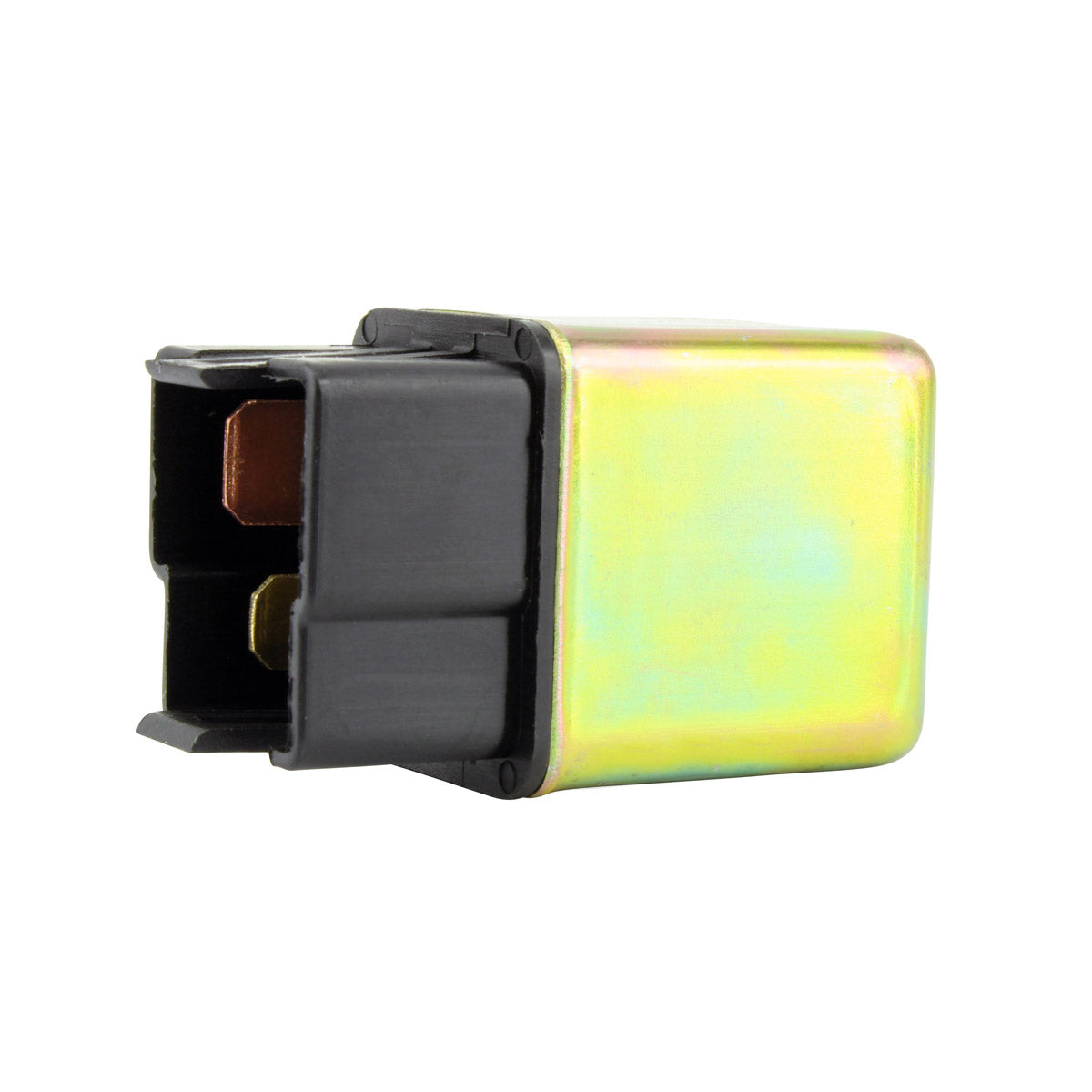

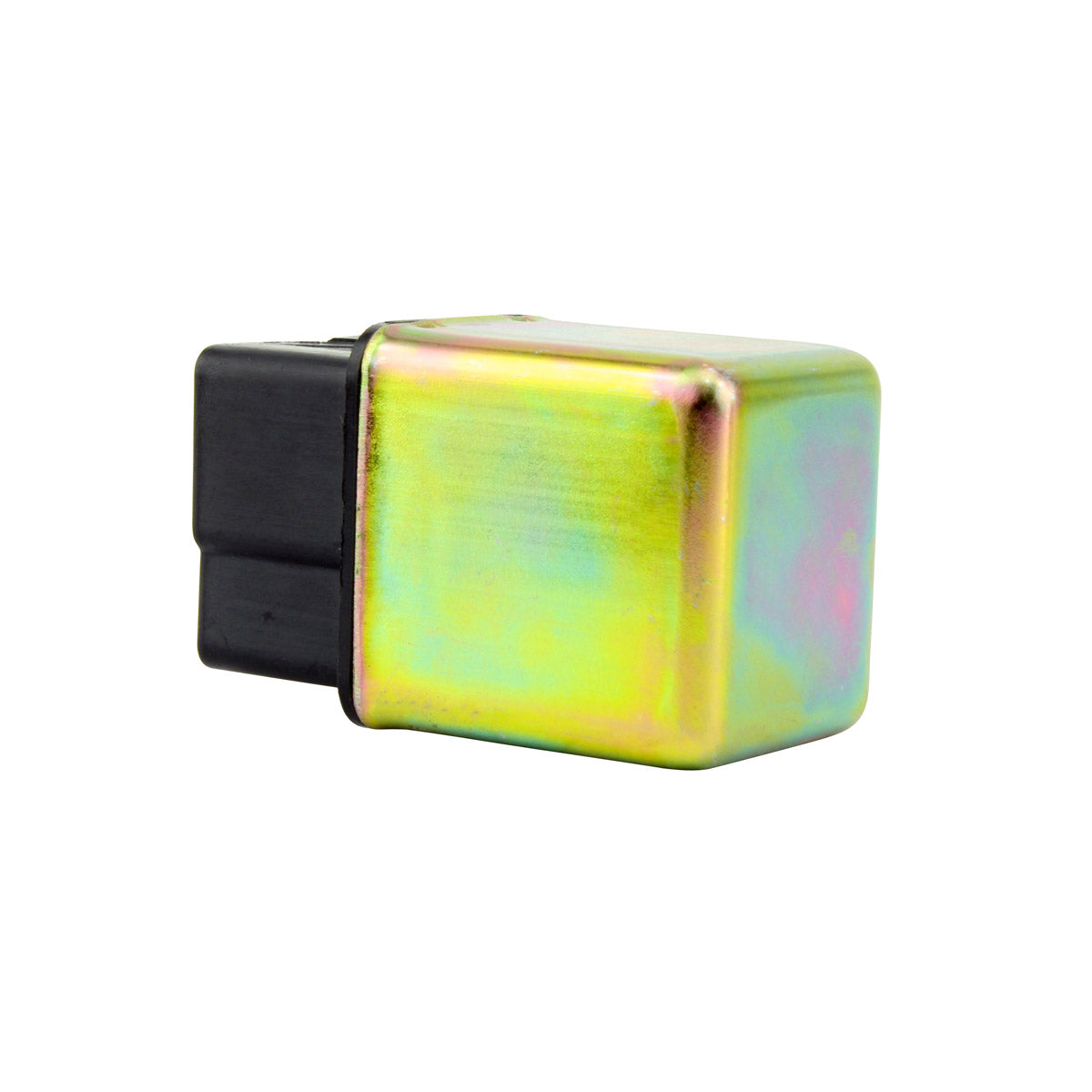

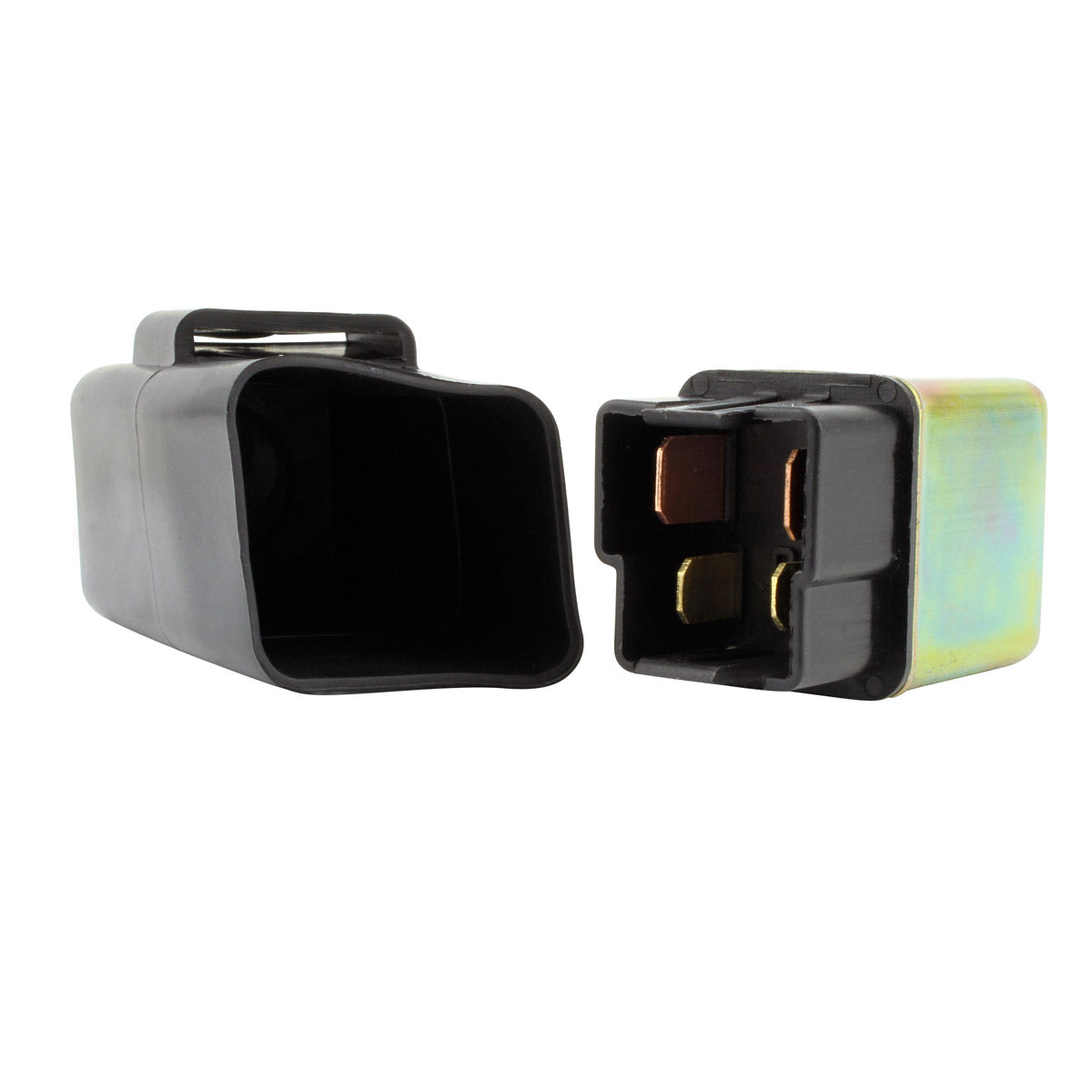

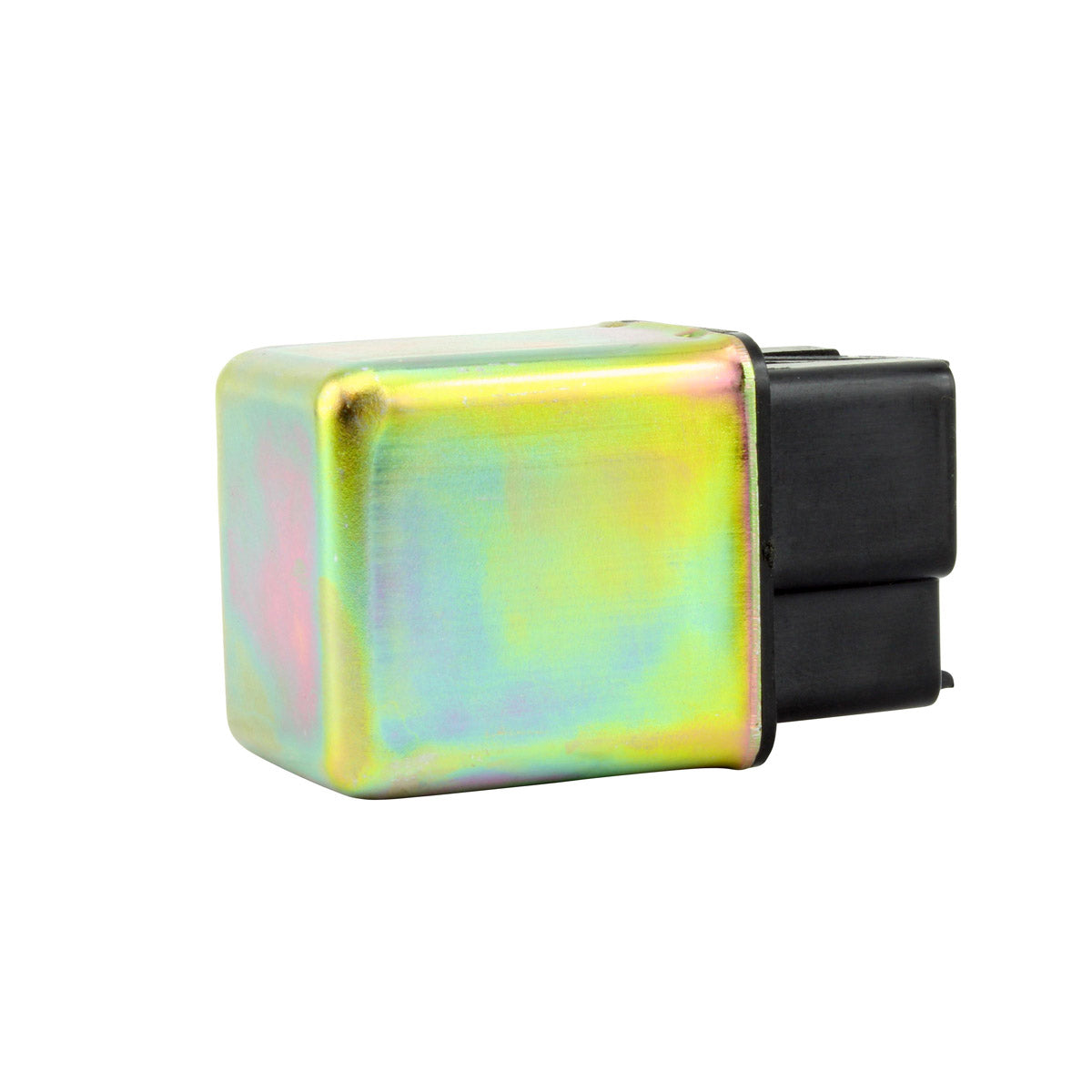

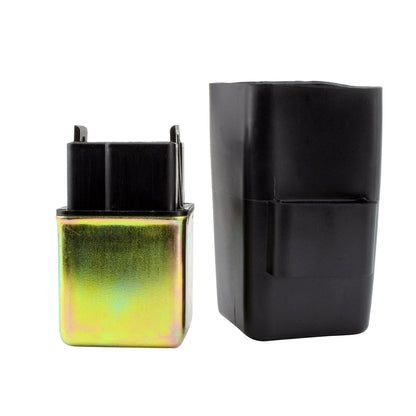

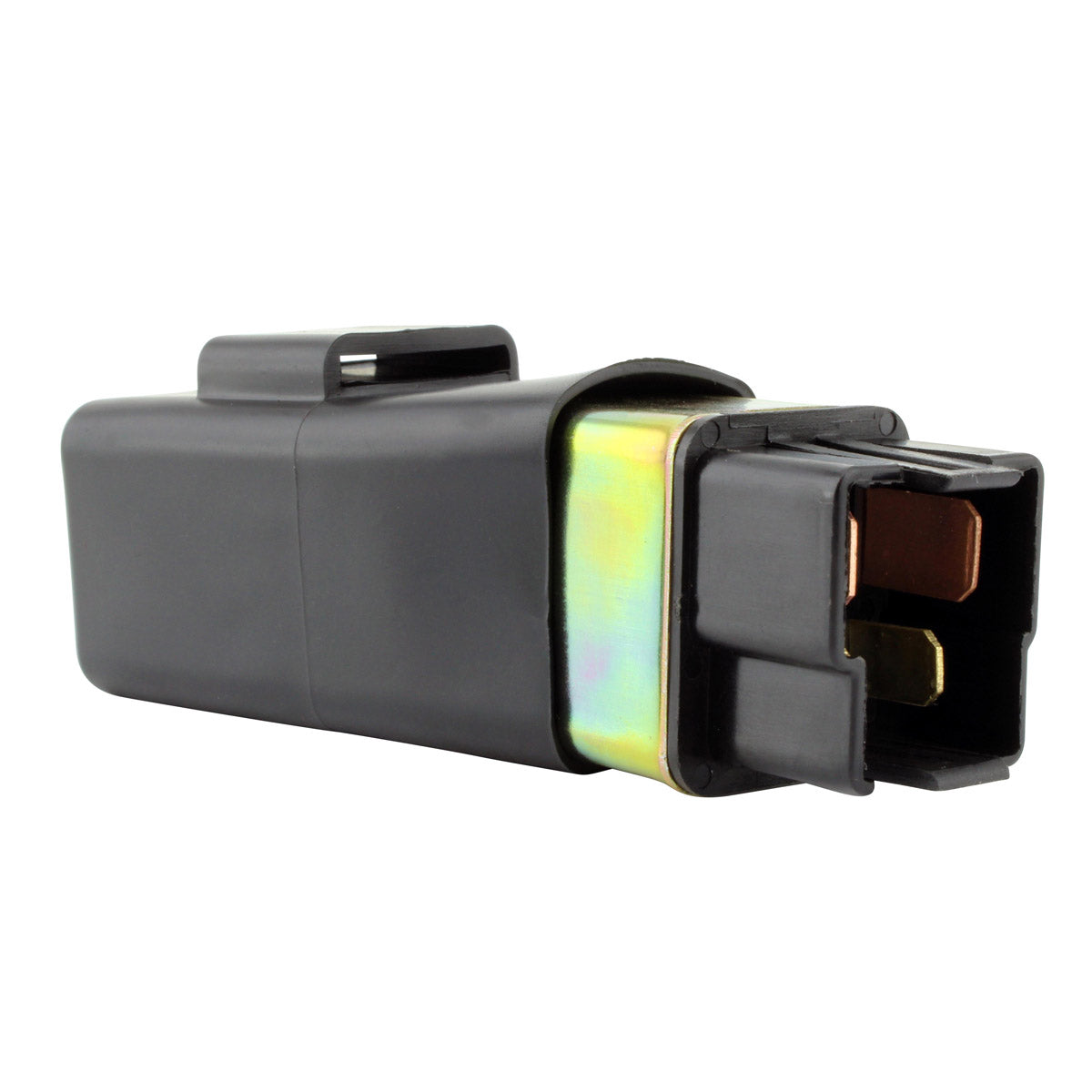

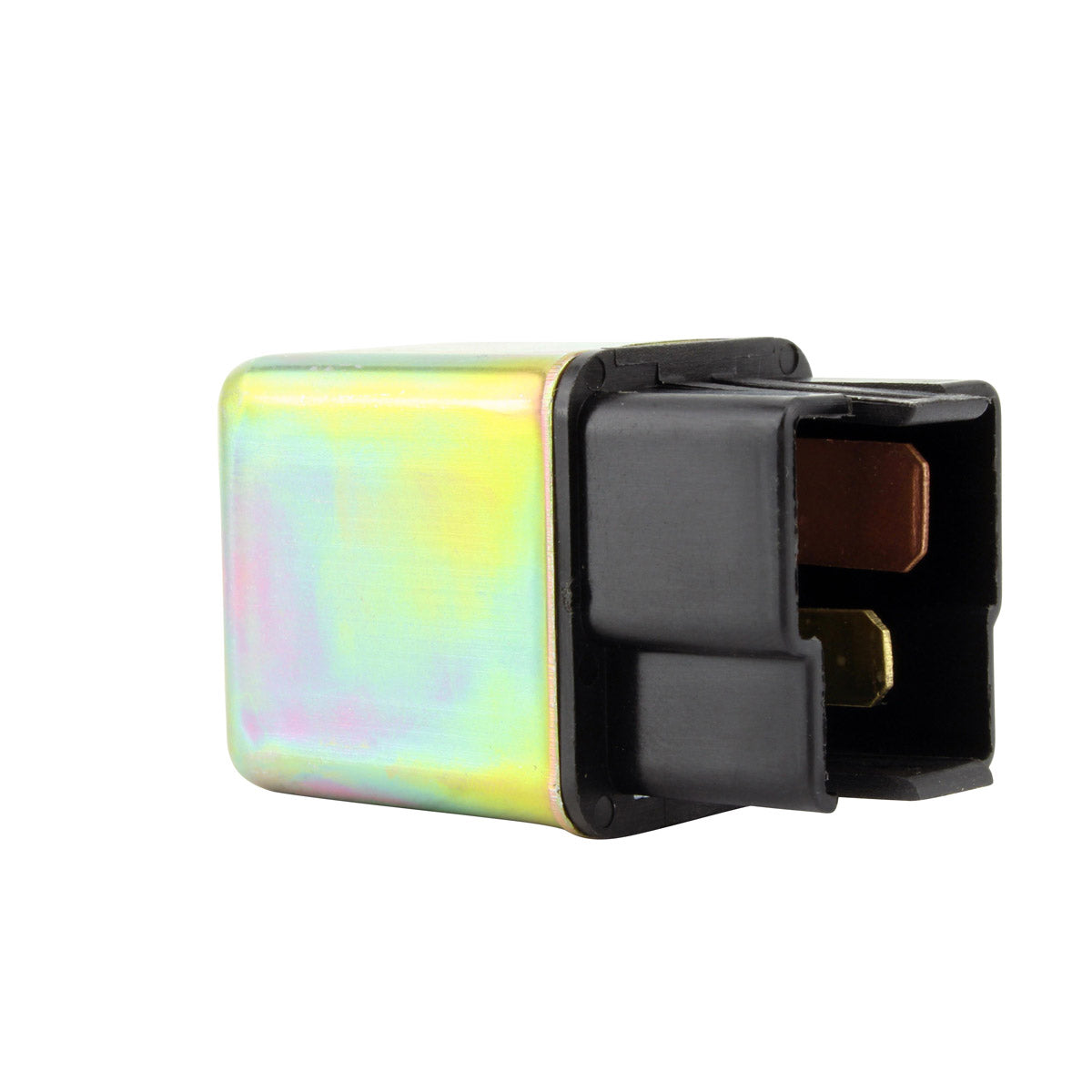

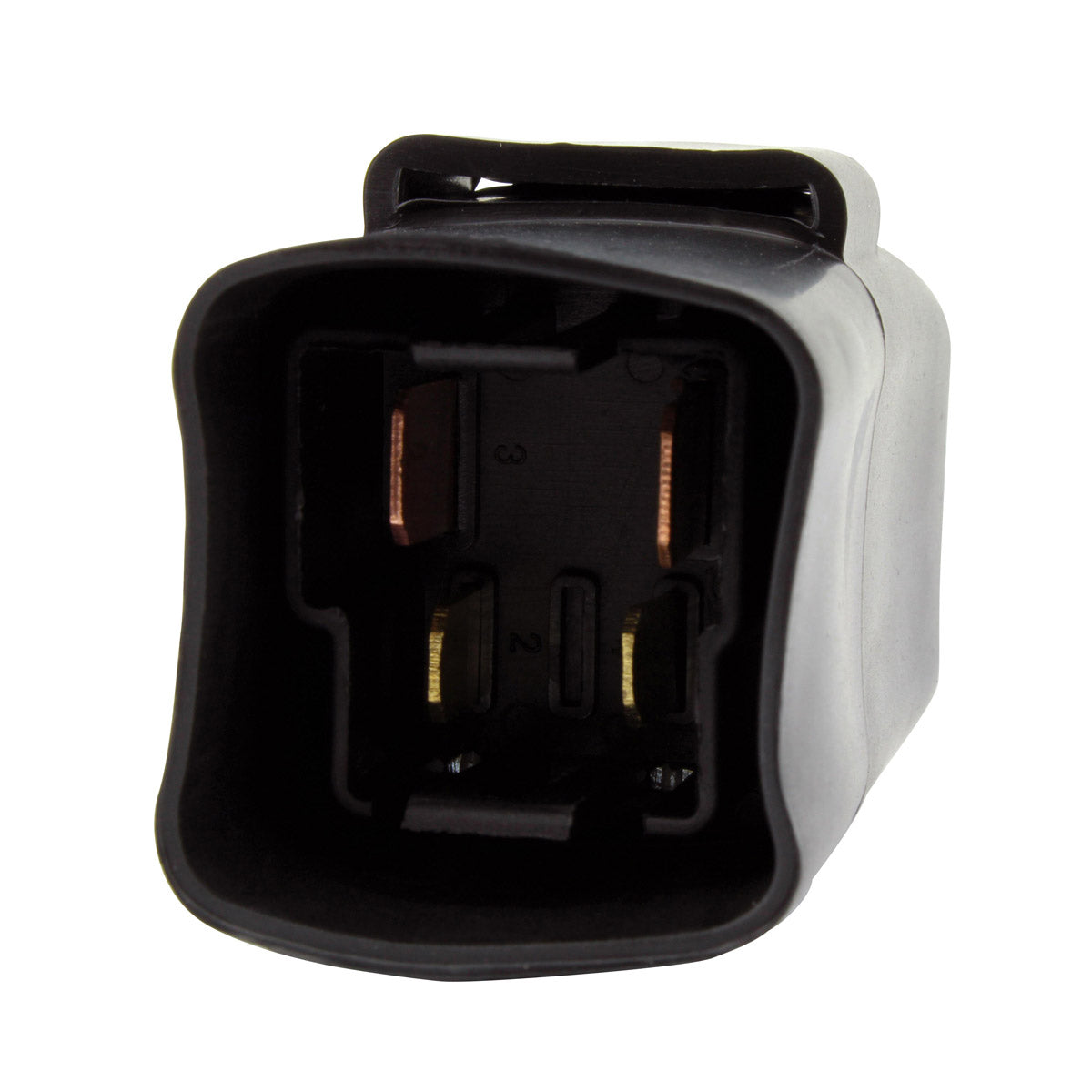

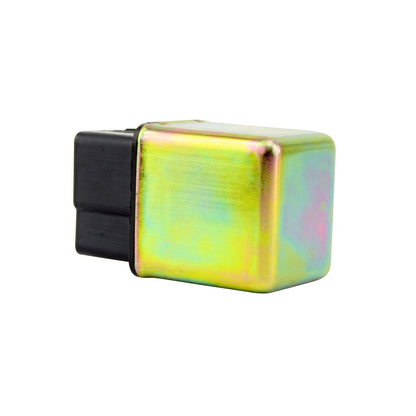

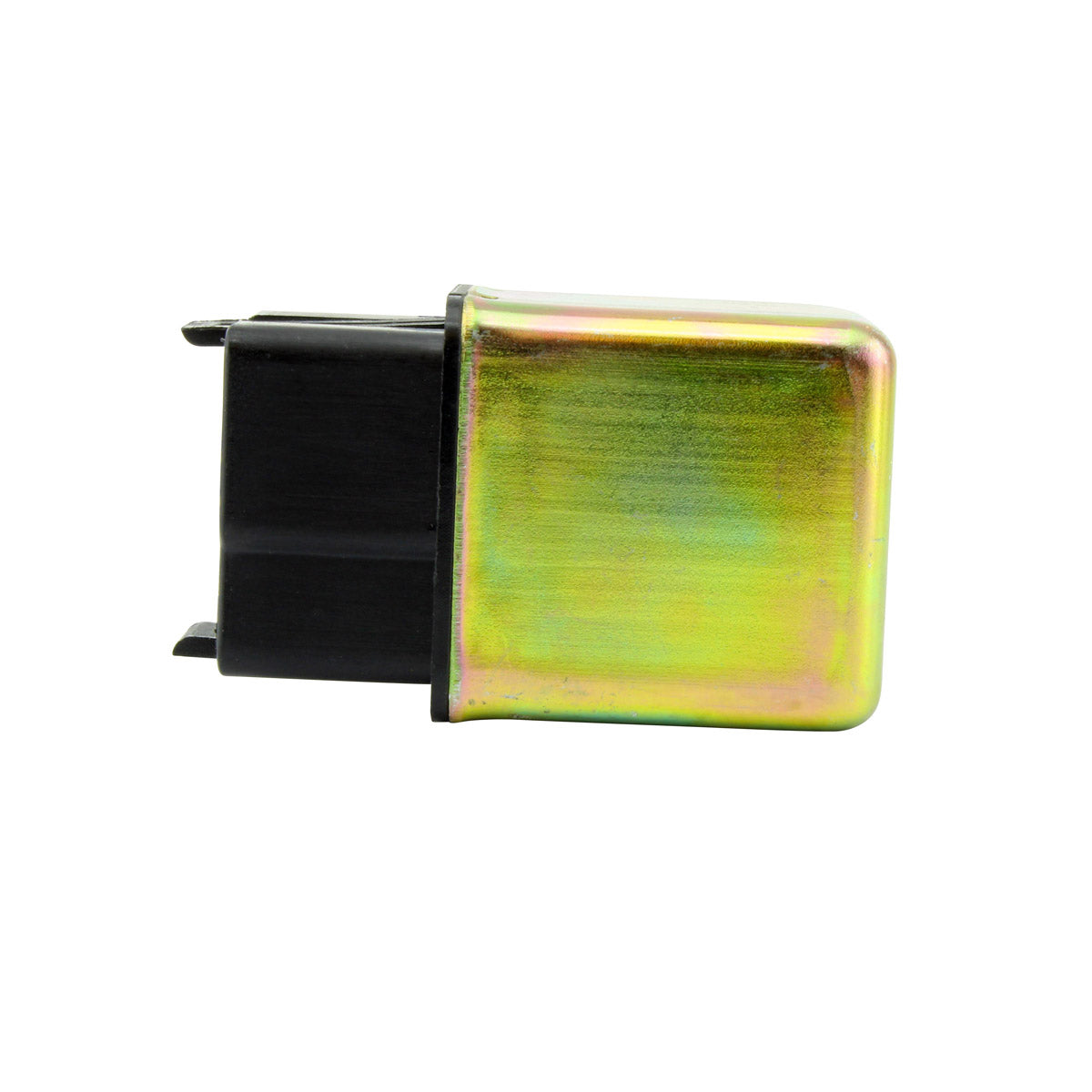

This unit is a direct replacement for the original relay, with four terminals and a single plug, so it drops into the original position and reconnects to the existing harness. Every unit shipped is tested before dispatch. The photographs on this listing show the actual item. If you are in any doubt, compare the body size, the terminal arrangement and the plug against the relay you are removing before you order.
Key Features
- Brand new starter relay solenoid switch, not a refurbished unit
- Quality exceeds the original equipment part
- Four terminals and one plug, matching the original layout
- Direct replacement - fits the original mounting position
- Every unit is tested before it is shipped
- Covers a wide Arctic Cat and Kymco application range
Technical Specs
| Specification |
Detail |
| Height |
57 mm |
| Length |
35 mm |
| Width |
30 mm |
| Number of terminals |
4 |
| Number of plugs |
1 |
| Our part number |
RMS090-106141 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Alterra |
1999-2024 |
| Arctic Cat DVX 90 |
1999-2024 |
| Kymco Mongoose 70 |
1999-2024 |
| Kymco Mongoose 90 |
1999-2024 |
| Kymco People 50 |
1999-2024 |

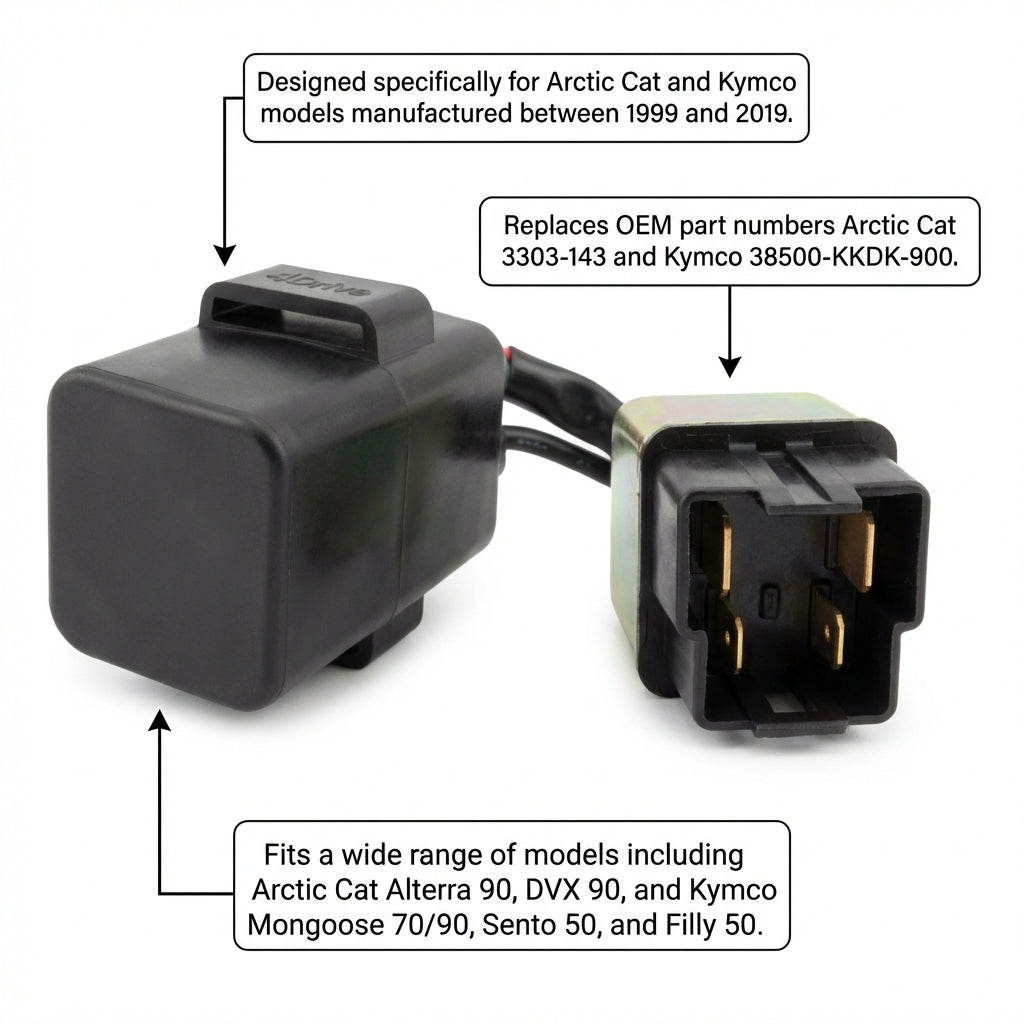

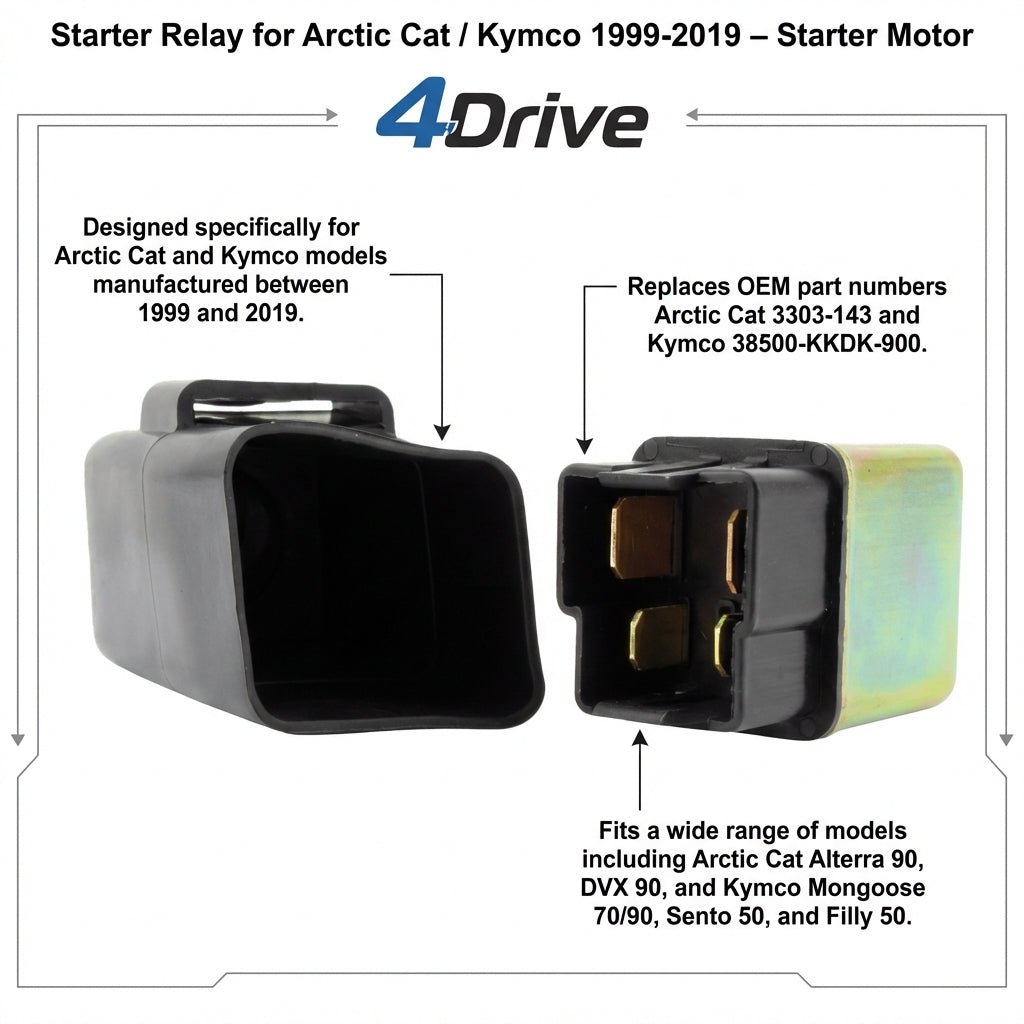

OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3303-143 |
Arctic Cat |
| 38500-KKDK-900 |
Kymco |
Frequently Asked Questions
Do I need to modify anything to fit this relay?
No. It is a direct replacement with the same four terminals and single plug as the original, so it fits the original mounting position and reconnects to the existing wiring.
What do I receive?
One brand new starter relay solenoid switch, tested before dispatch. Fixings and cables are not included, so re-use the originals from the relay you are removing.
How do I tell whether the relay or the starter has failed?
A failing relay usually gives a single loud click with no crank, an intermittent crank that works on the second or third attempt, or complete silence with a battery that is known to be good. If you bridge the two heavy terminals on the relay with a suitable insulated tool and the starter spins normally, the starter is fine and the relay contacts are at fault. If nothing happens, look further at the starter or its cables.
Does it matter which way round the small plug goes?
The relay uses a single keyed plug for the trigger circuit alongside its heavy terminals, so it can only be connected one way. Make sure the battery is disconnected before removing the heavy cables, and refit them to the same terminals they came from.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
