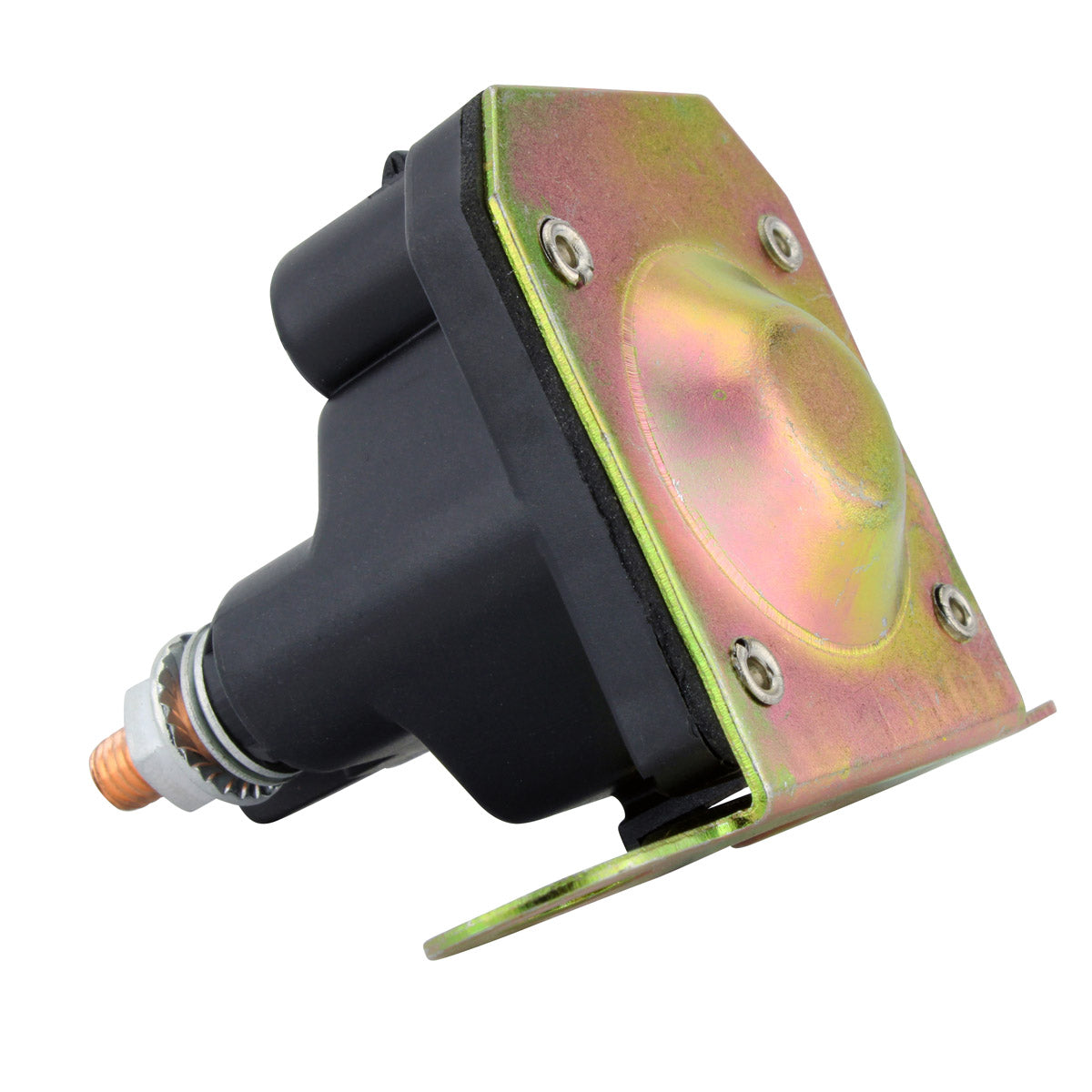

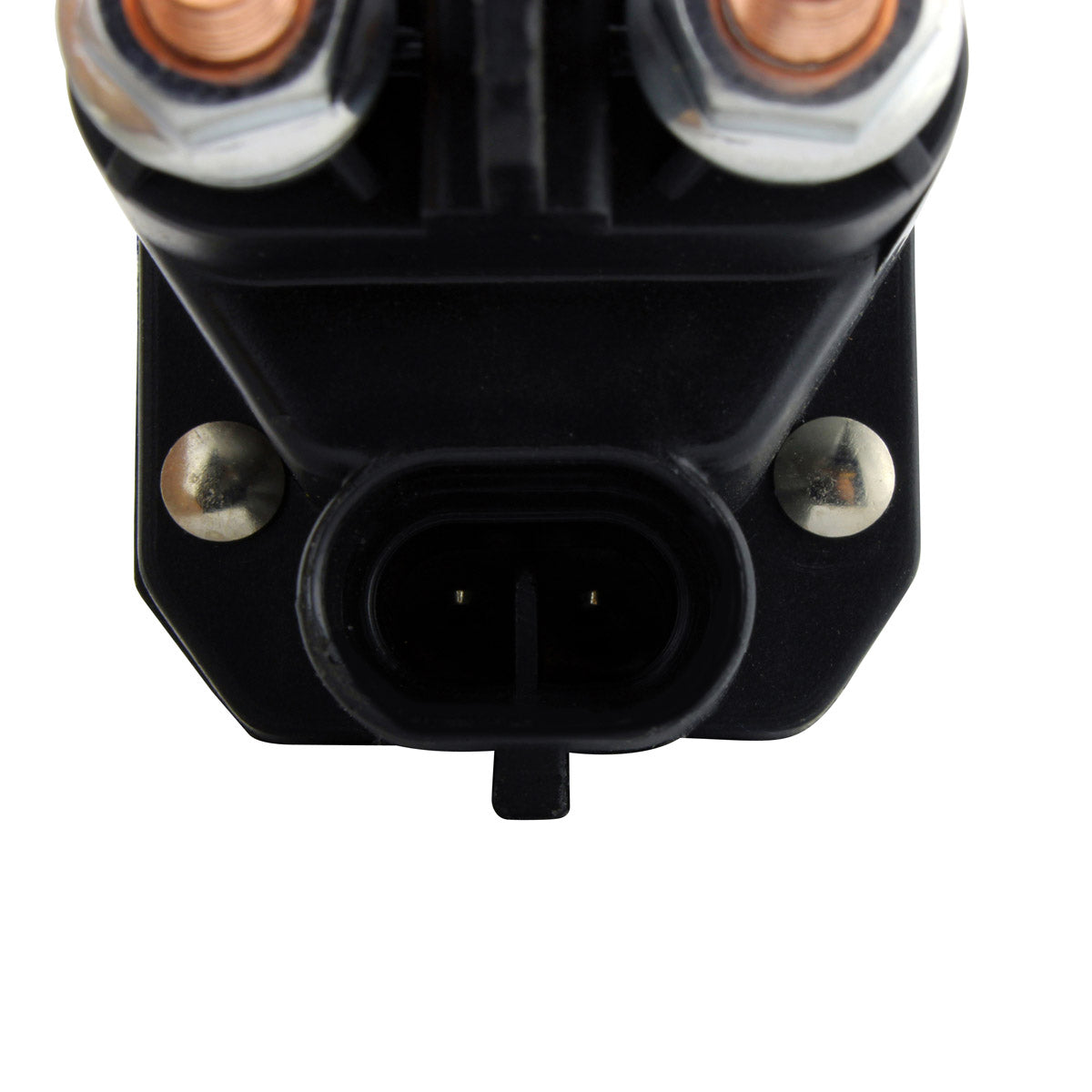

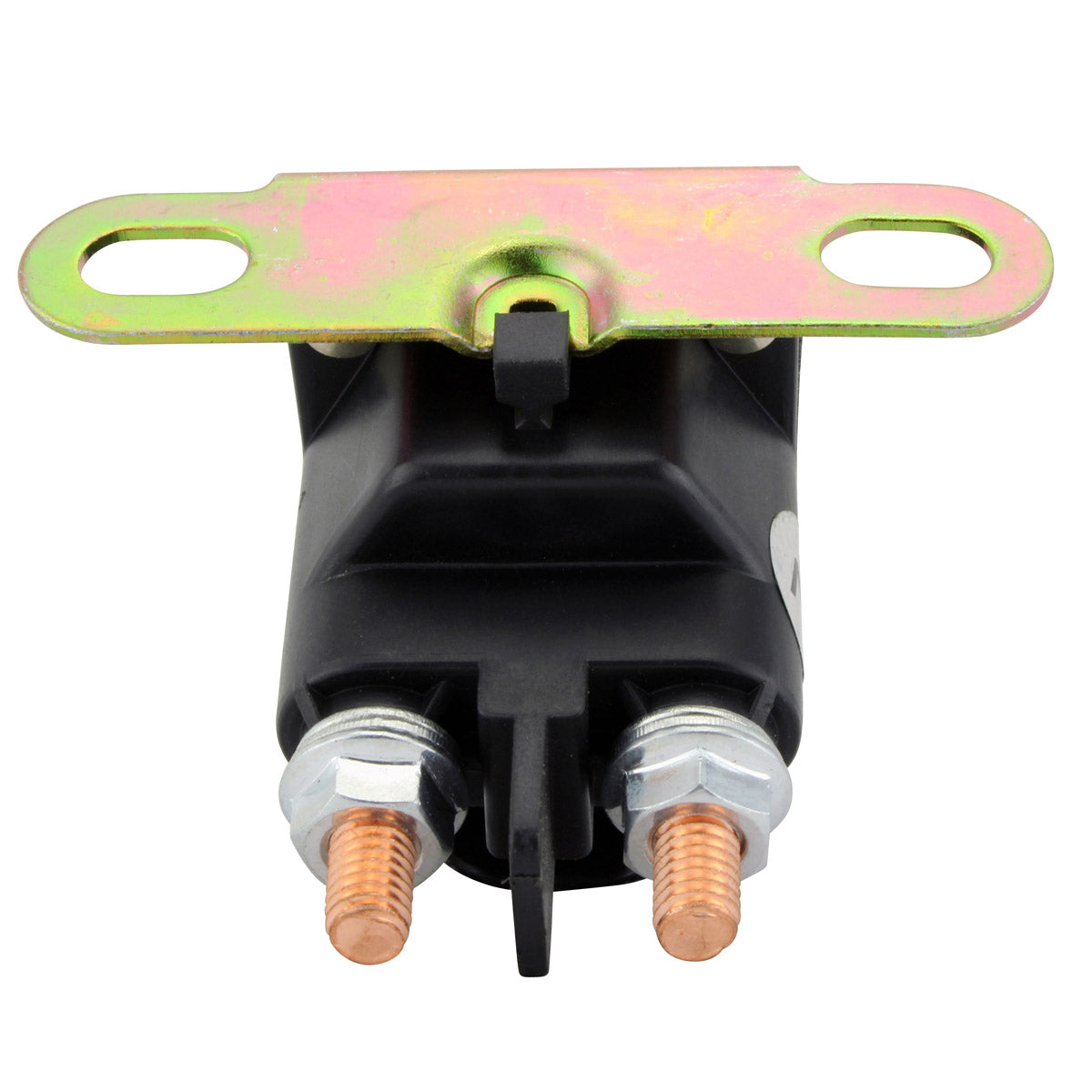

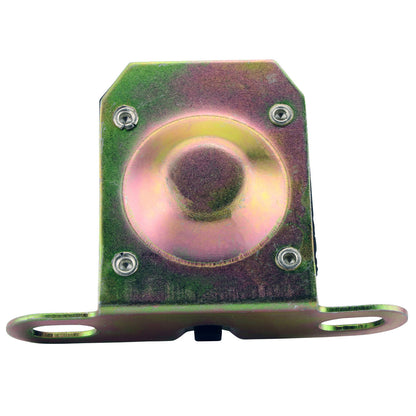

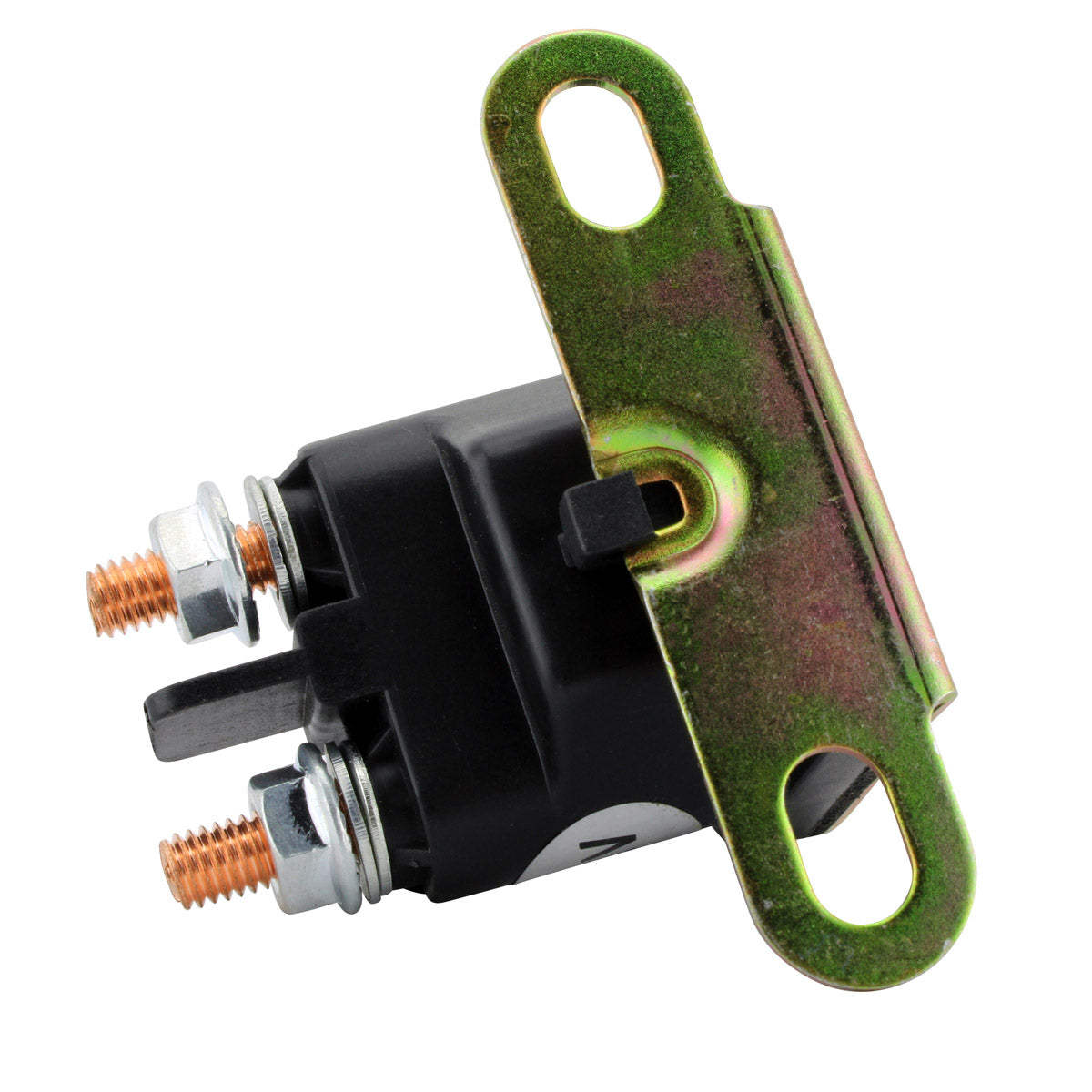

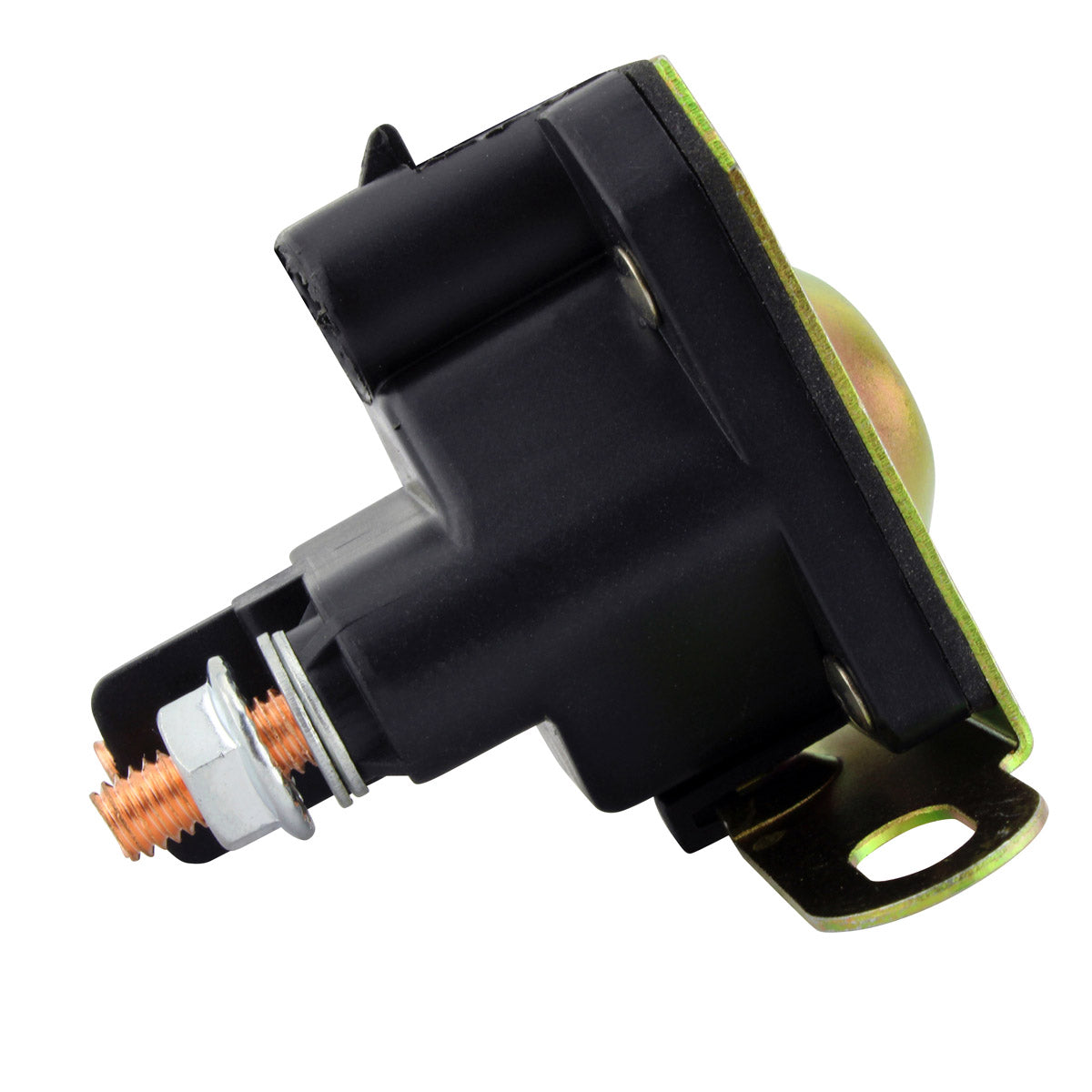

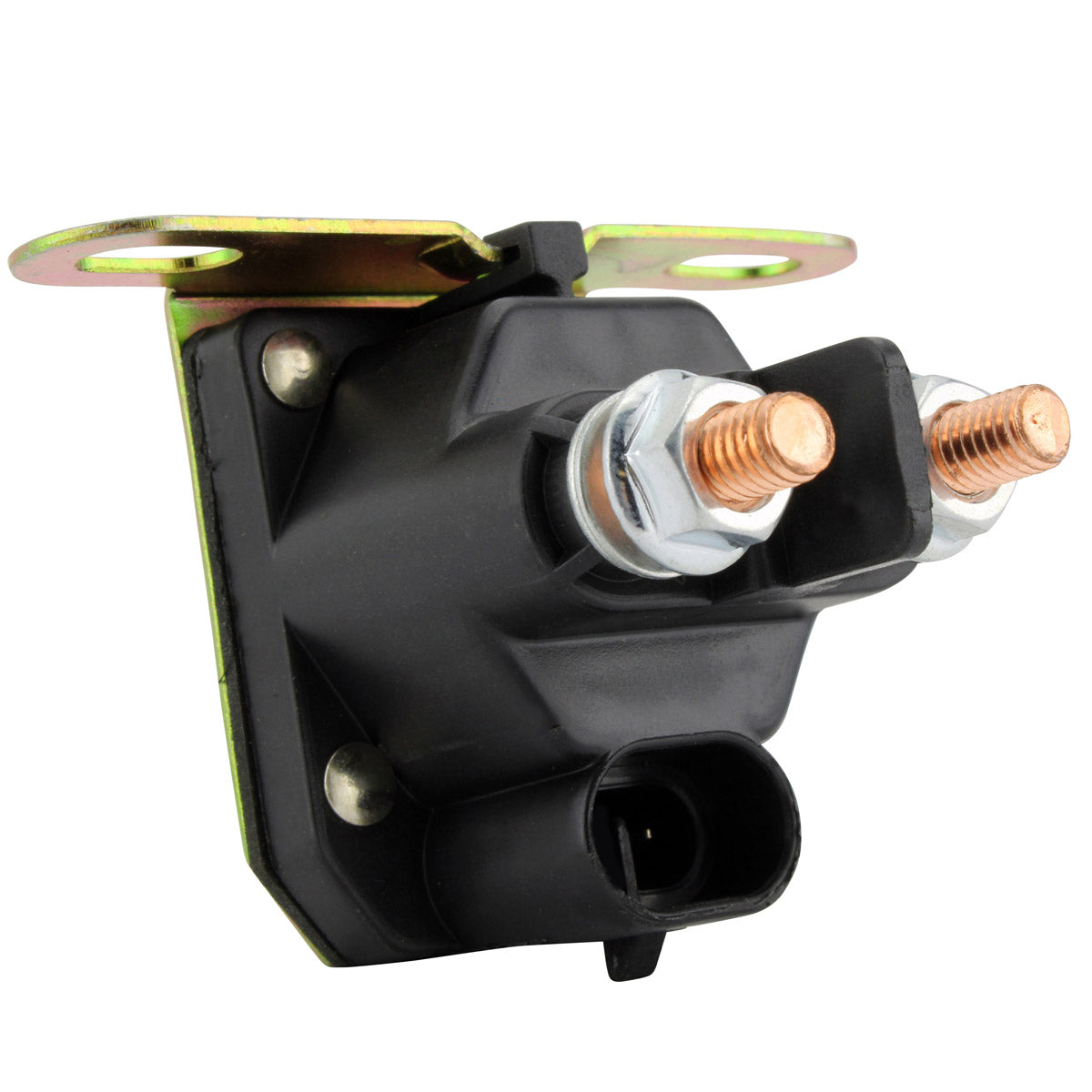

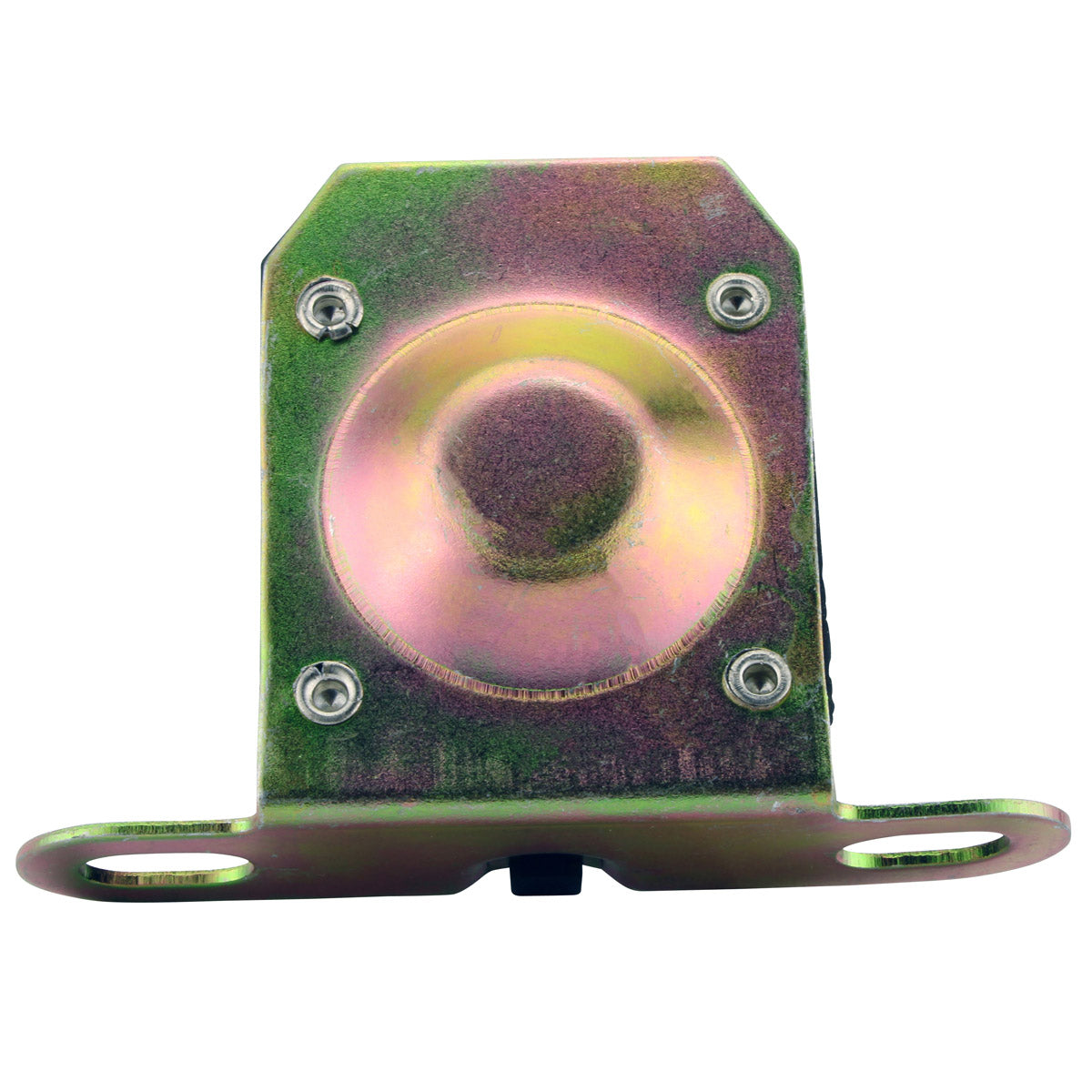

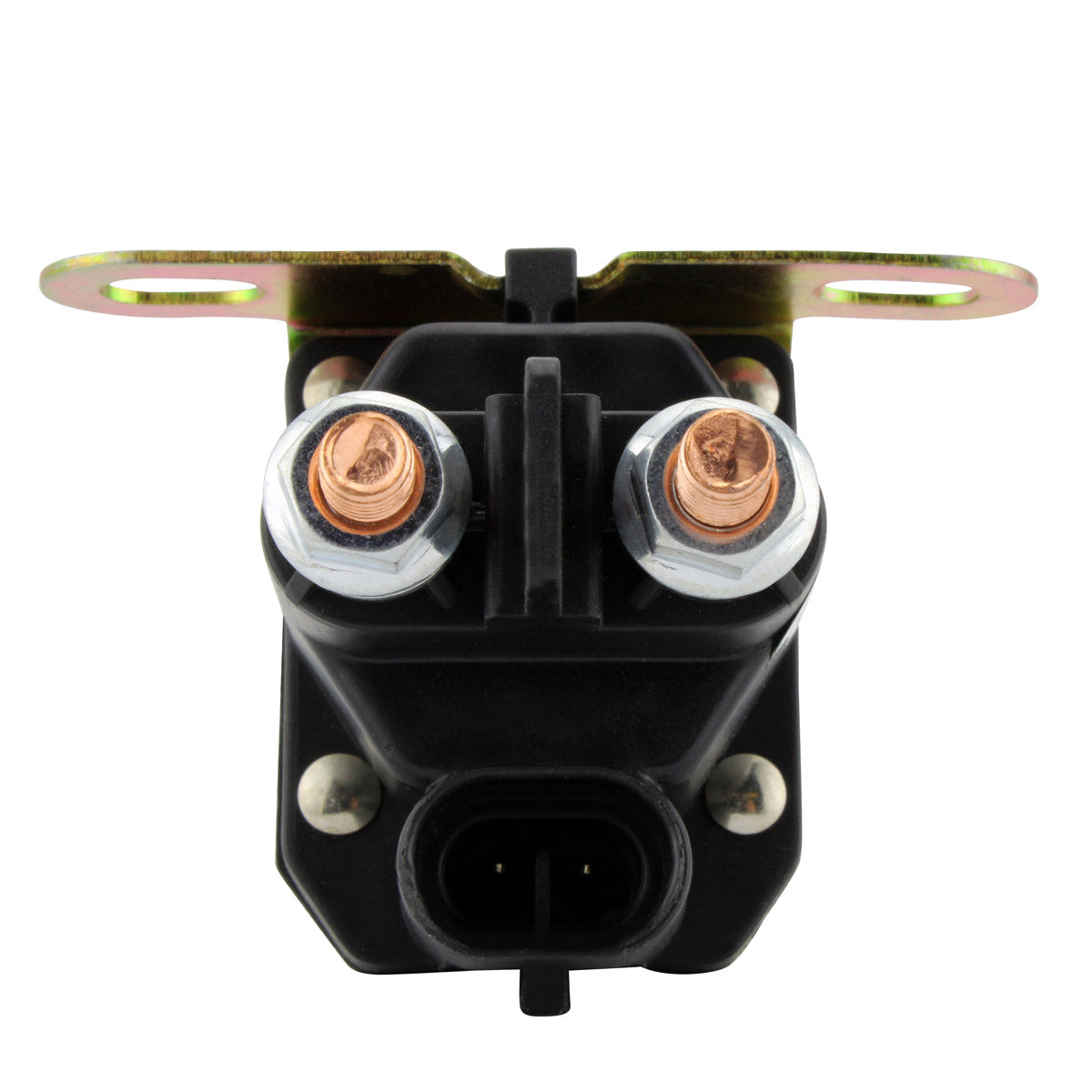

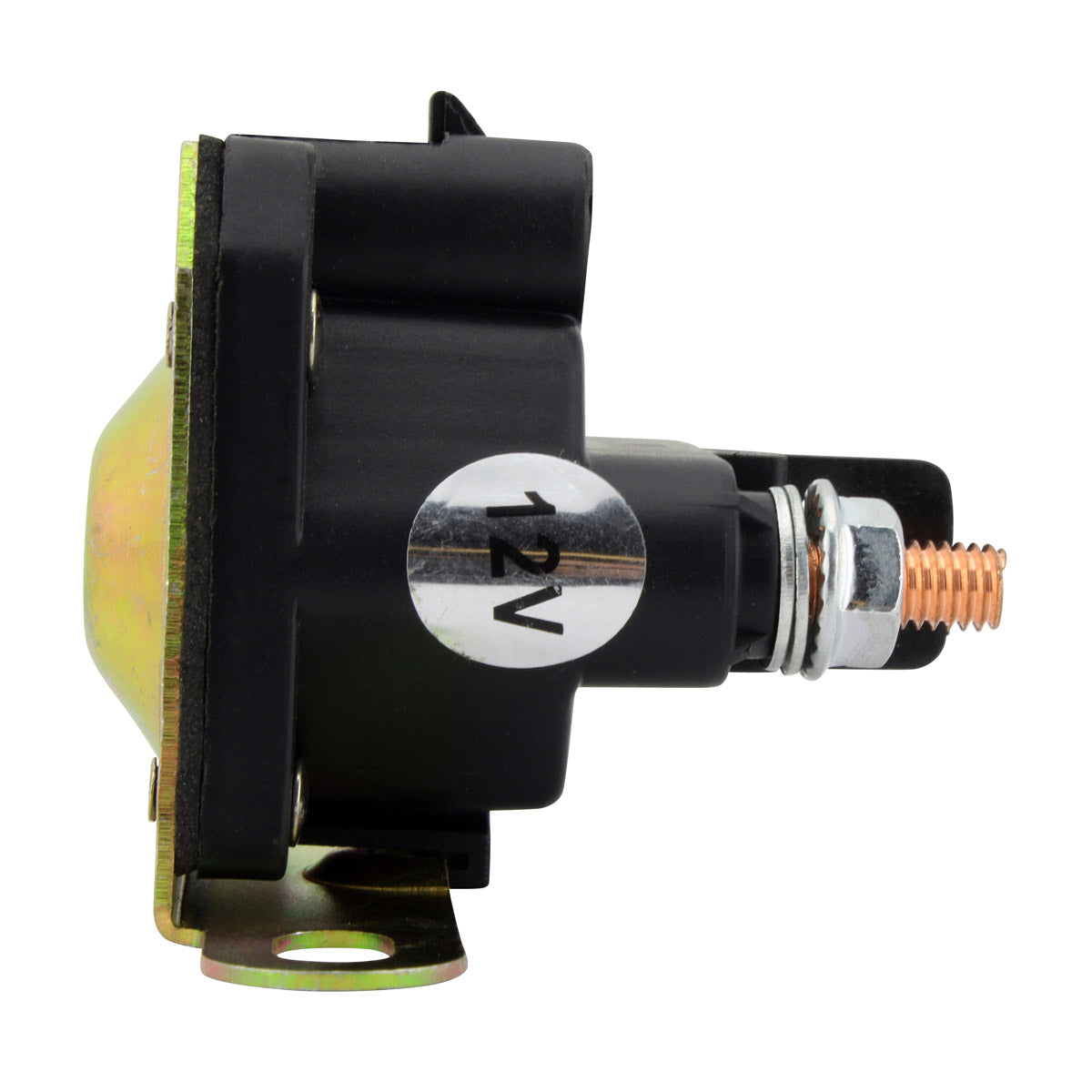

Starter Relay Solenoid for Polaris
600, 800 & 850 Indy, RMK, Rush, Switchback - 570, 900 & 1000 Ranger and RZR - 2015-2025

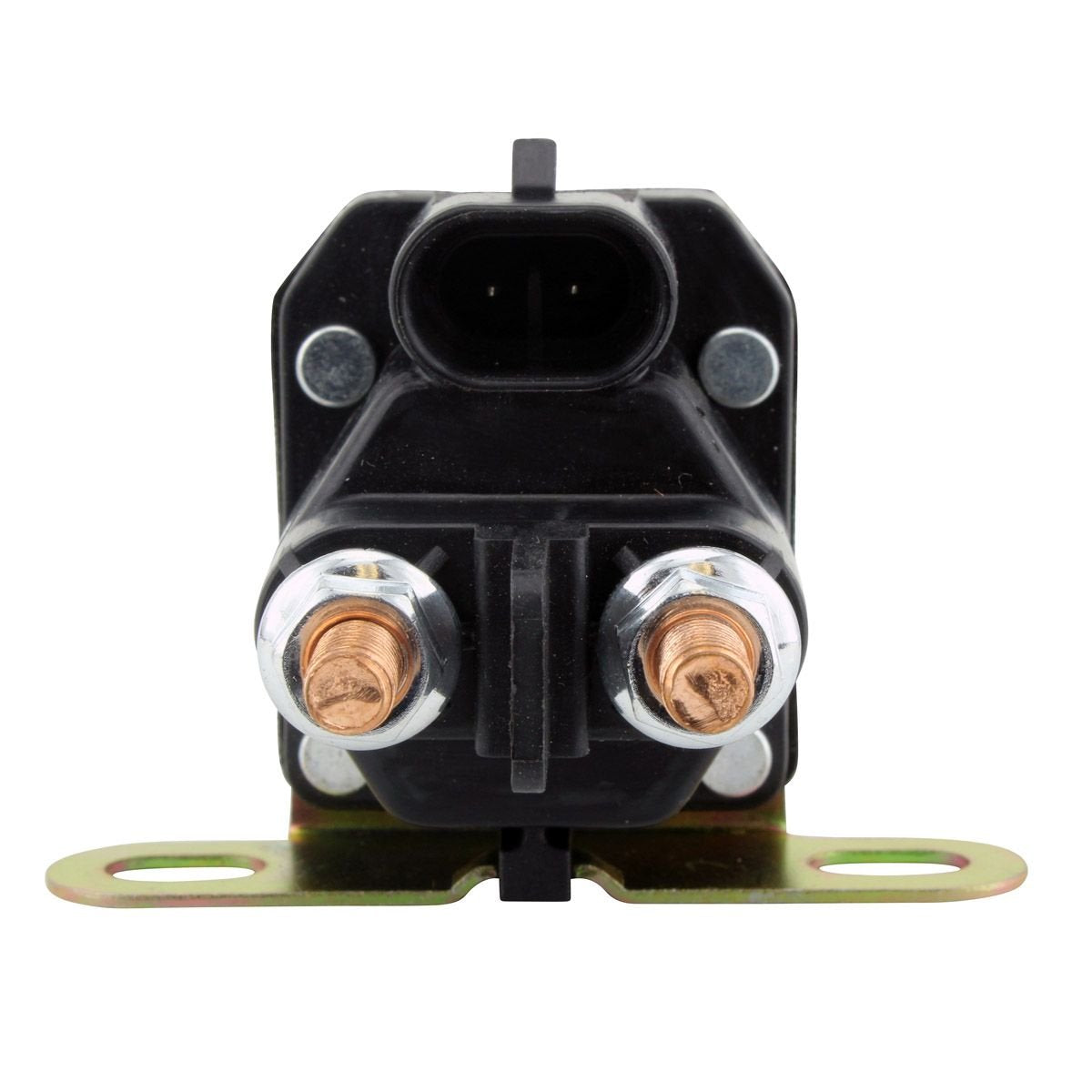

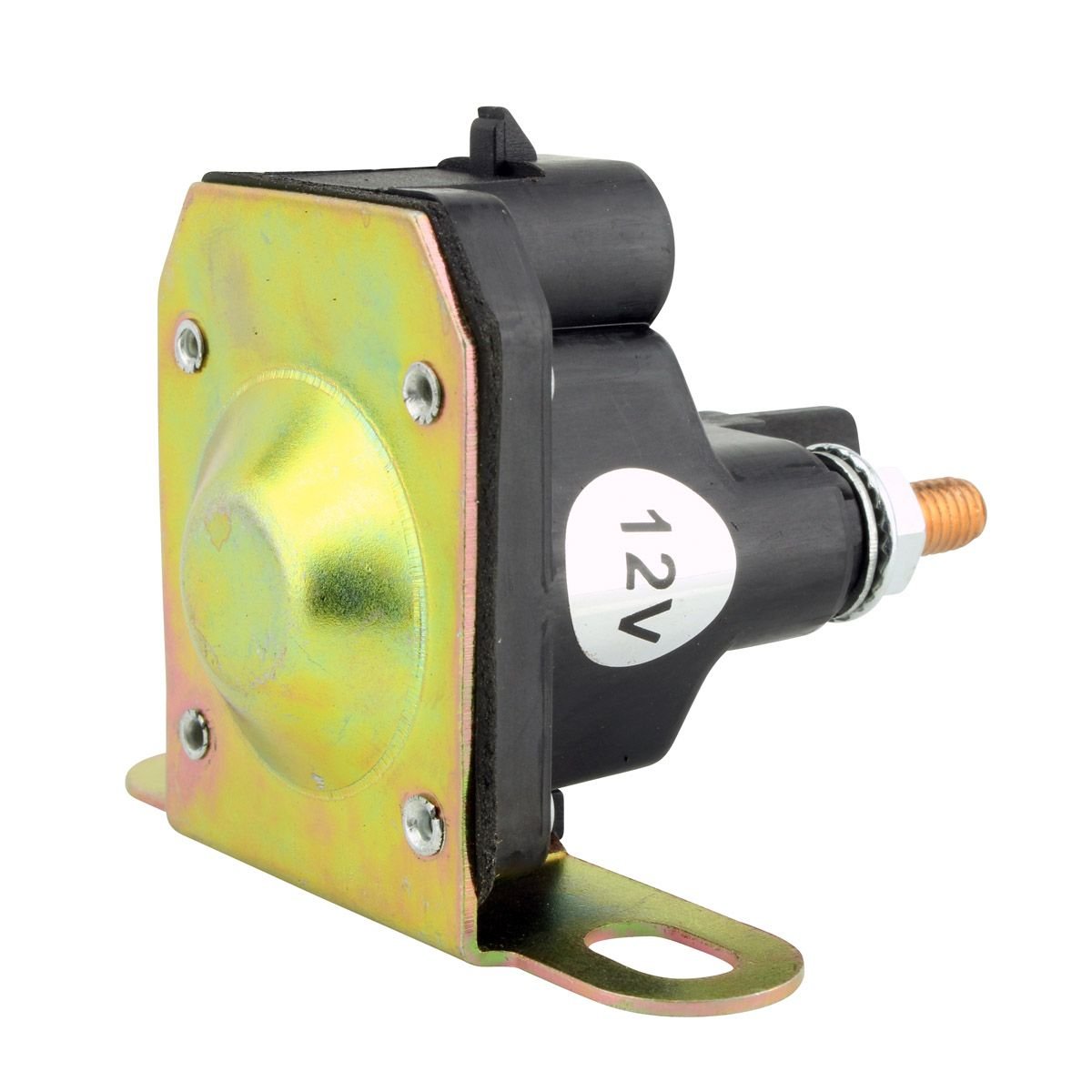

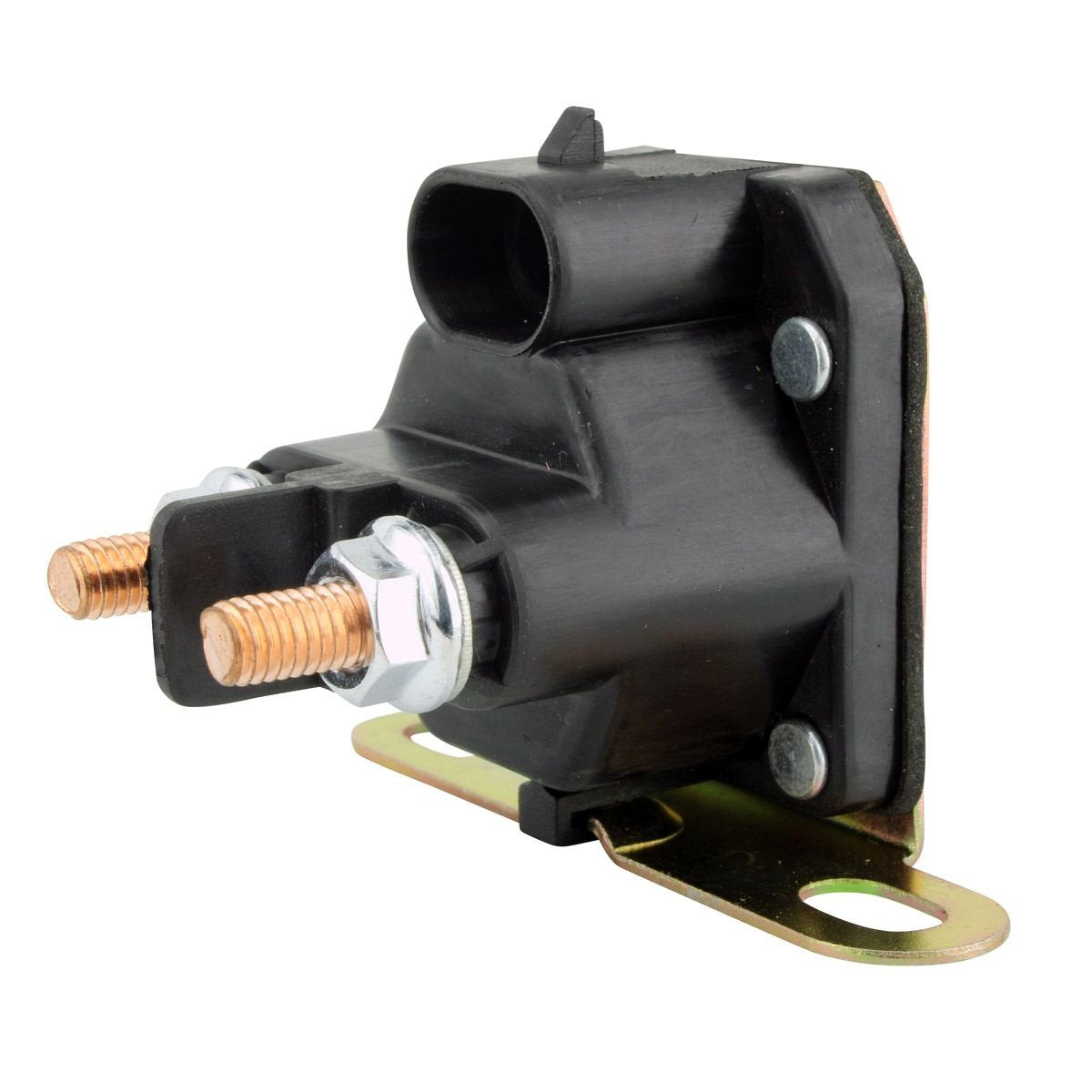

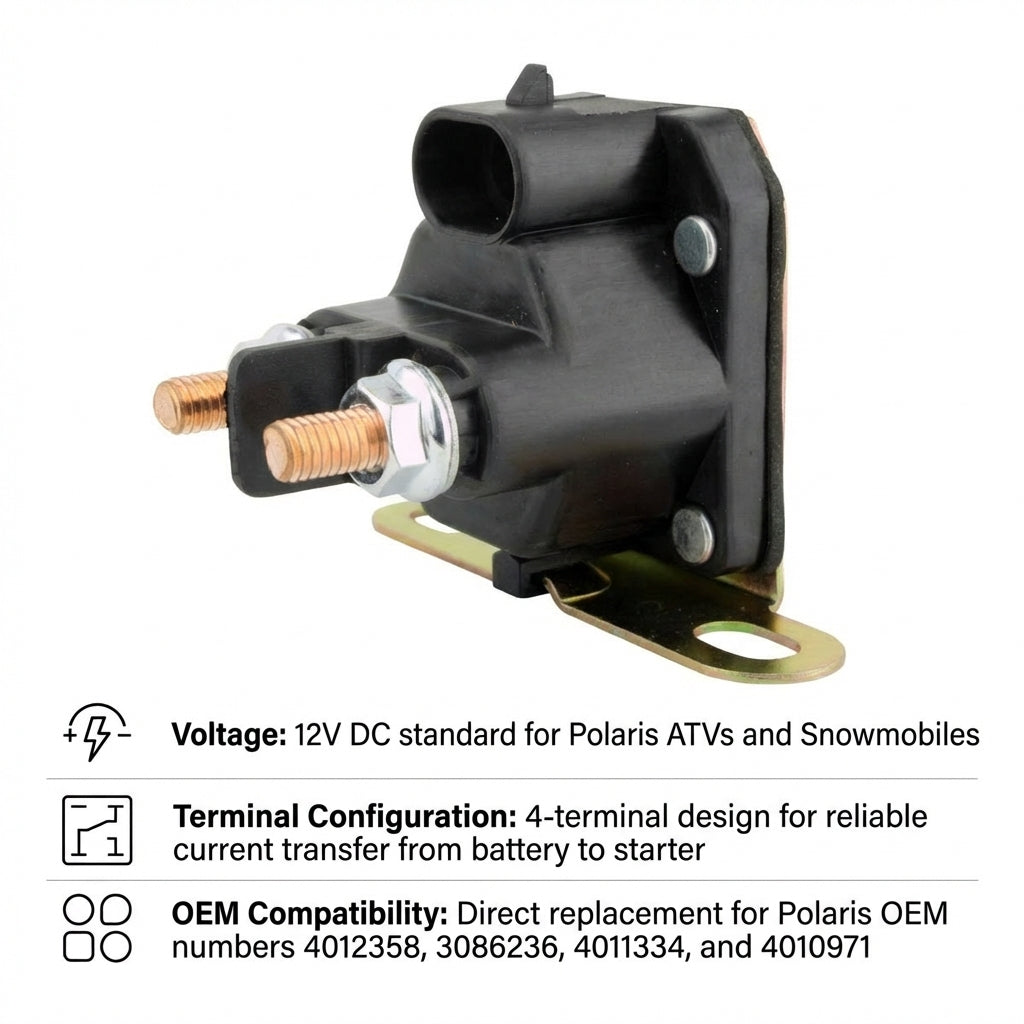

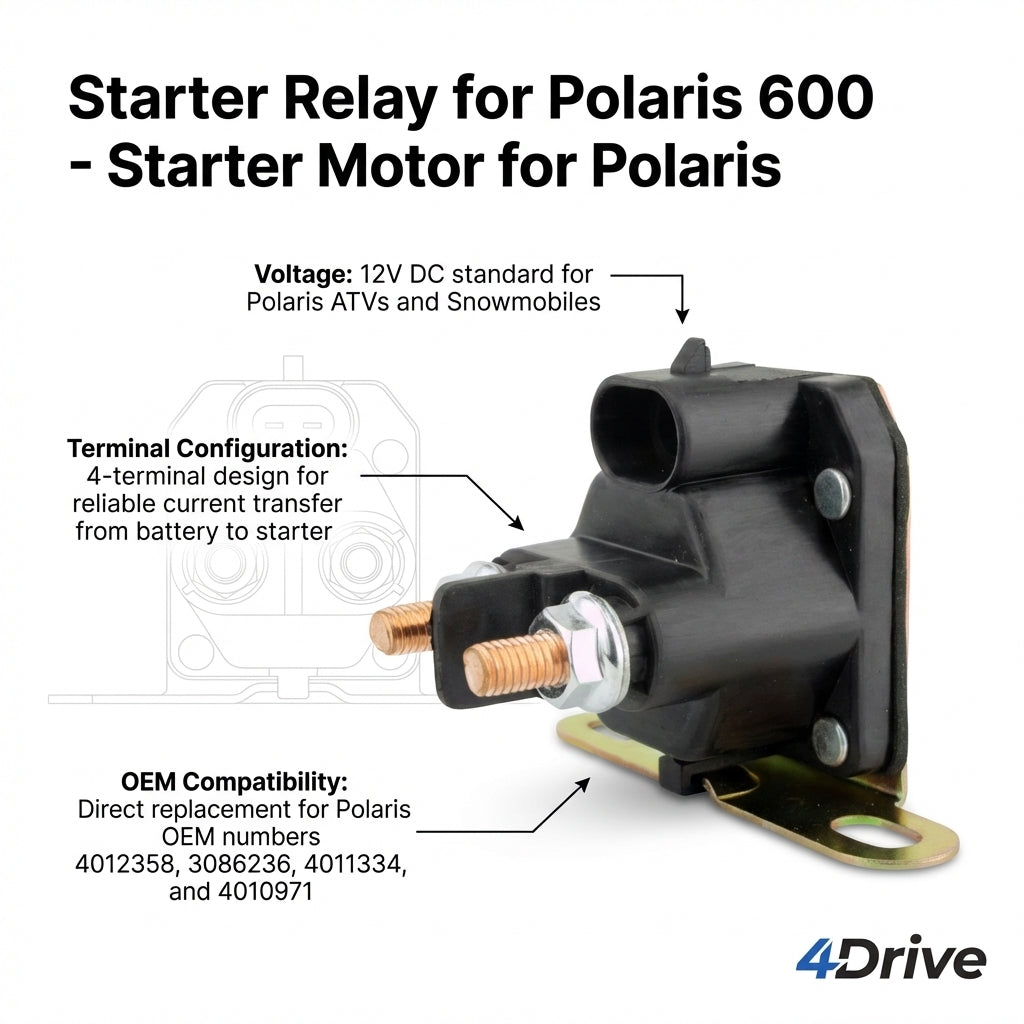

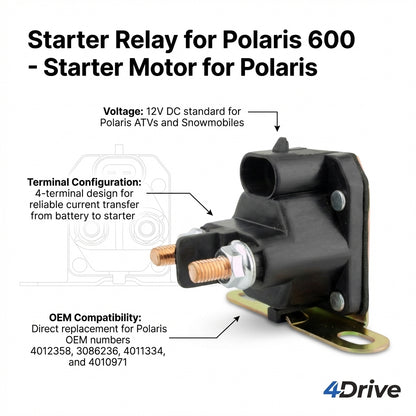

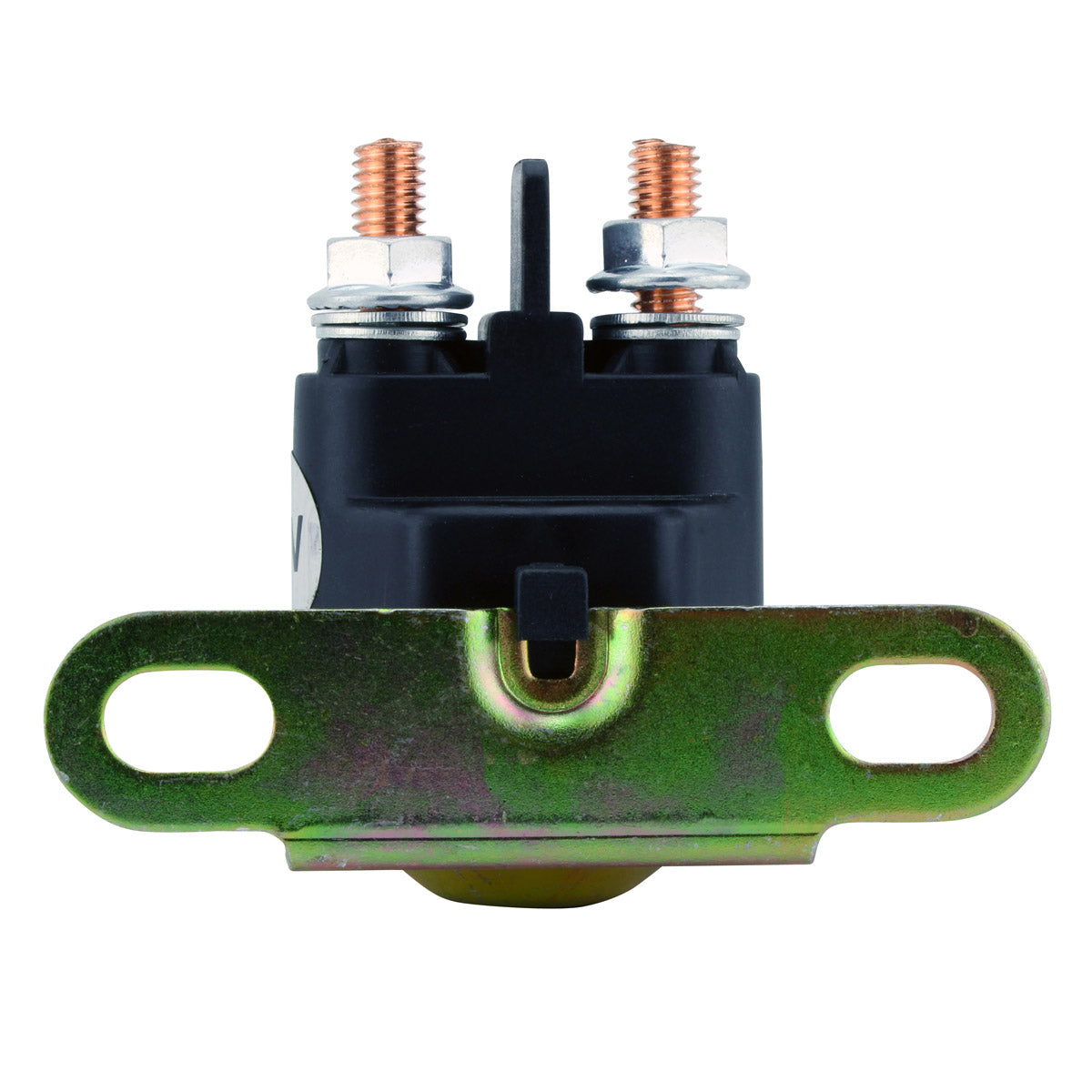

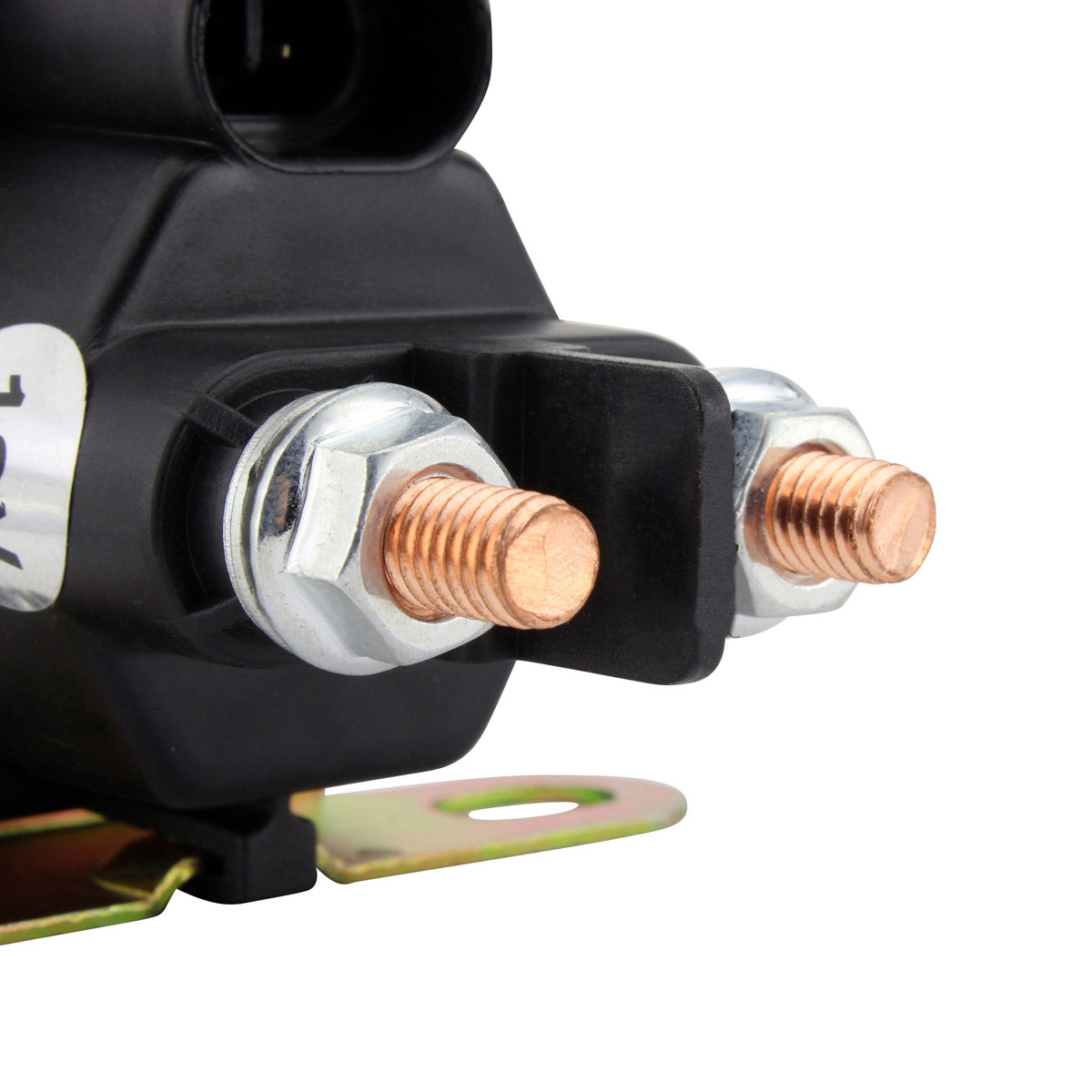

This is a brand new starter relay solenoid switch, built as a direct replacement for the original unit fitted to the Polaris 600, 800 and 850 Indy, RMK, Rush and Switchback snowmobiles and to the 570, 900 and 1000 Ranger and RZR side-by-sides from 2015 to 2025. It is manufactured to a standard that exceeds the OEM equipment, and every unit shipped is tested before it leaves the warehouse.
The starter solenoid is the heavy-duty switch that carries full battery current to the starter motor when the start button is pressed. Because it handles very high current in short bursts, its internal contacts erode over time. The classic failure is a single loud click with no crank, or a starter that turns over slowly and inconsistently, and it is often mistaken for a flat battery or a tired starter motor. This unit measures 74 mm wide, 51 mm long and 58 mm high, with 52 mm between the fixation holes, four terminals and one plug, so it bolts into the original mounting and takes the existing cables and control plug without alteration. Part number RMS090-106819, replacing Polaris 4014655 and 4017681.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit
- Quality exceeds the OEM equipment

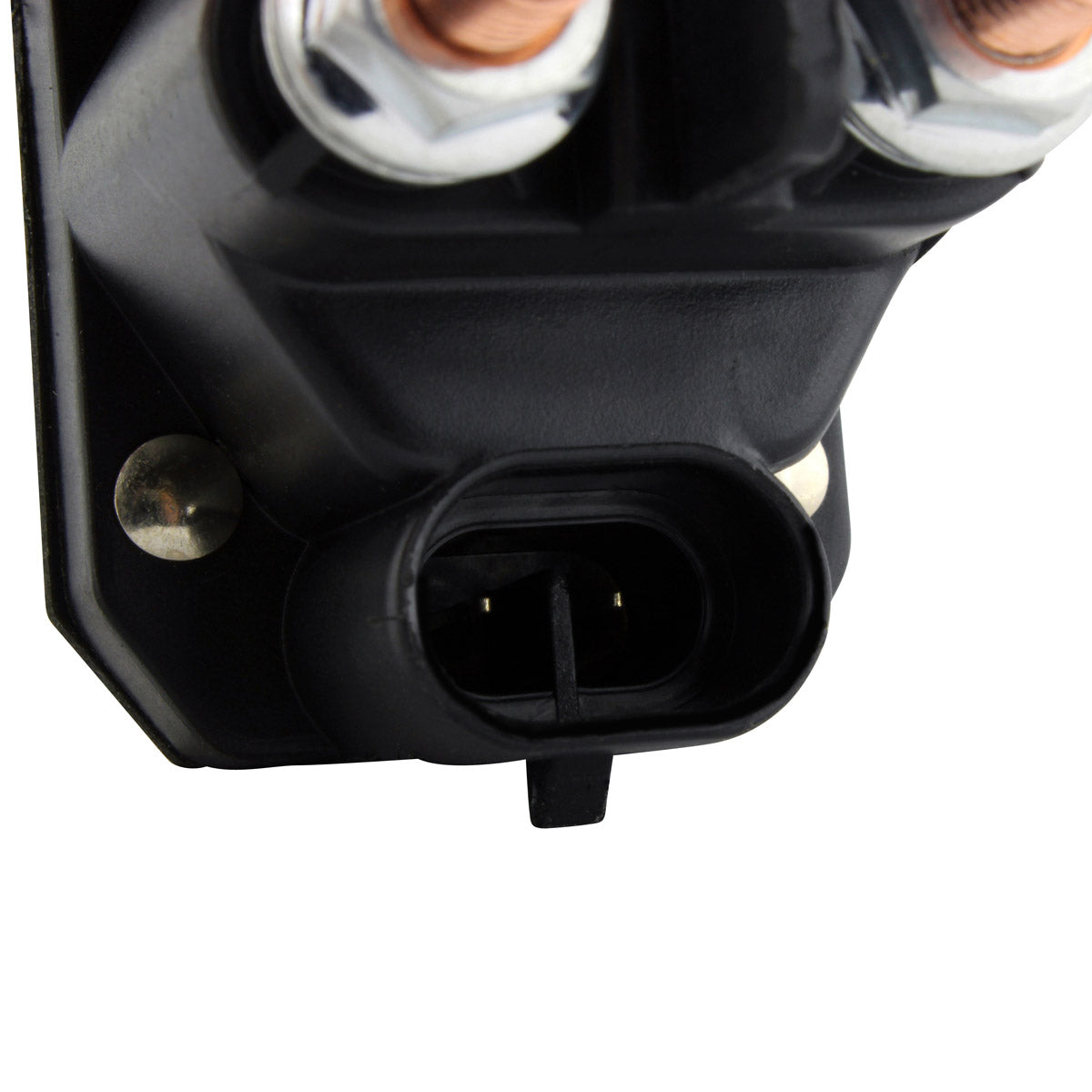

- Four terminals and one control plug, matching the original layout
- 52 mm between the fixation holes for a bolt-in fit
- Every unit is tested before shipment
- Covers both the snowmobile and the Ranger / RZR applications
Technical Specs
| Specification |
Detail |
| Part Number |
RMS090-106819 |
| Width |
74 mm |
| Length |
51 mm |
| Height |
58 mm |
| Distance Between Fixation Holes |
52 mm |
| Number of Terminals |
4 |
| Number of Plugs |
1 |
| Condition |
Brand new, tested before shipment |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Indy 600 / 800 / 850 |
2015-2025 |
| Polaris RMK 600 / 800 / 850 |
2015-2025 |
| Polaris Rush 600 / 800 / 850 |
2015-2025 |
| Polaris Switchback 600 / 800 / 850 |
2015-2025 |
| Polaris Ranger 570 / 900 / 1000 |
2015-2025 |
| Polaris RZR 570 / 900 / 1000 |
2015-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4014655 |
Polaris |
| 4017681 |
Polaris |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original solenoid. The 52 mm fixation hole spacing matches the original mounting and the four terminals and single control plug take the existing cables and loom connector, so no drilling, cutting or splicing is needed.
What is included?
The starter relay solenoid itself, tested and ready to fit. Re-use the original cables, terminal nuts and mounting hardware.
How do I know the old solenoid has failed?
The signature fault is a single sharp click when you press start, with the engine not turning over, on a battery that is known to be good. Slow or intermittent cranking, or a starter that only engages after several attempts, points the same way, because the internal contacts have burnt and can no longer pass full current.
Is this the same unit for both the snowmobiles and the Ranger or RZR?
Yes. Polaris used the same solenoid across the listed 600, 800 and 850 Indy, RMK, Rush and Switchback snowmobiles and the 570, 900 and 1000 Ranger and RZR models. Check the number on your original unit against the cross reference above if you are unsure.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
