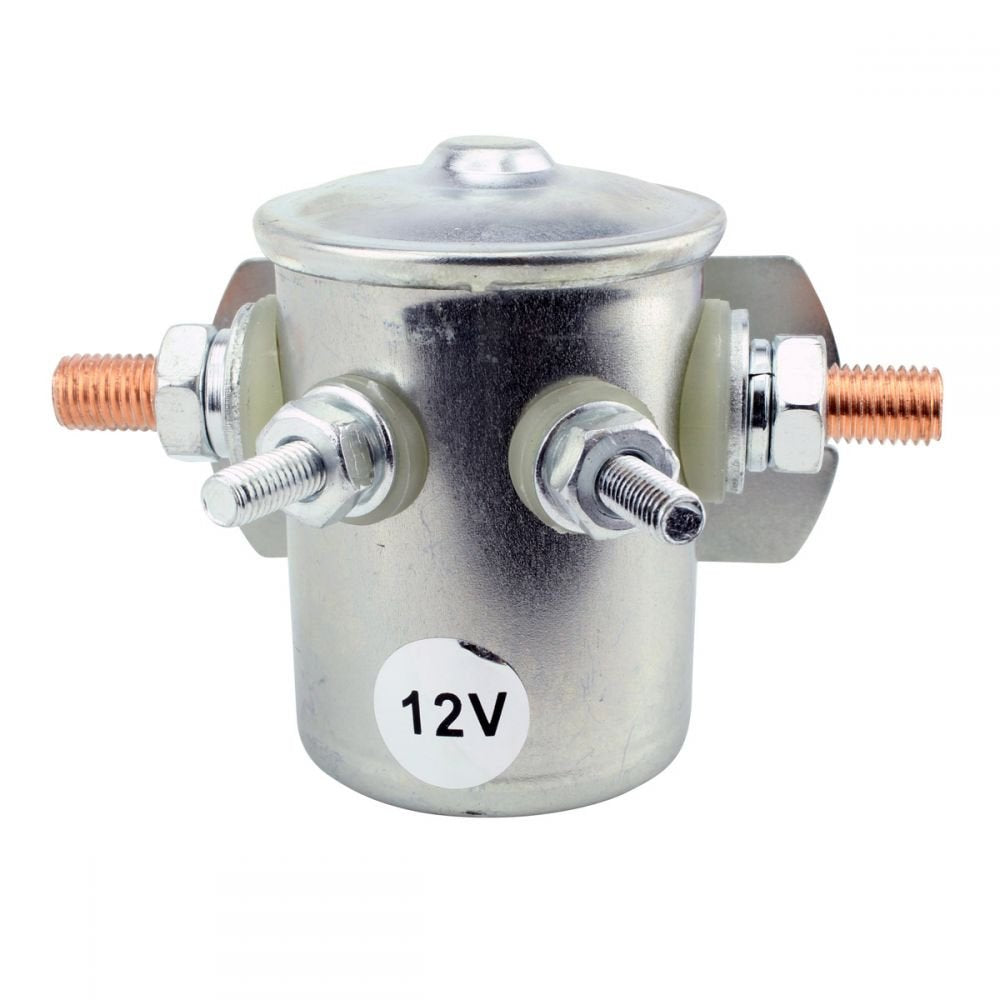

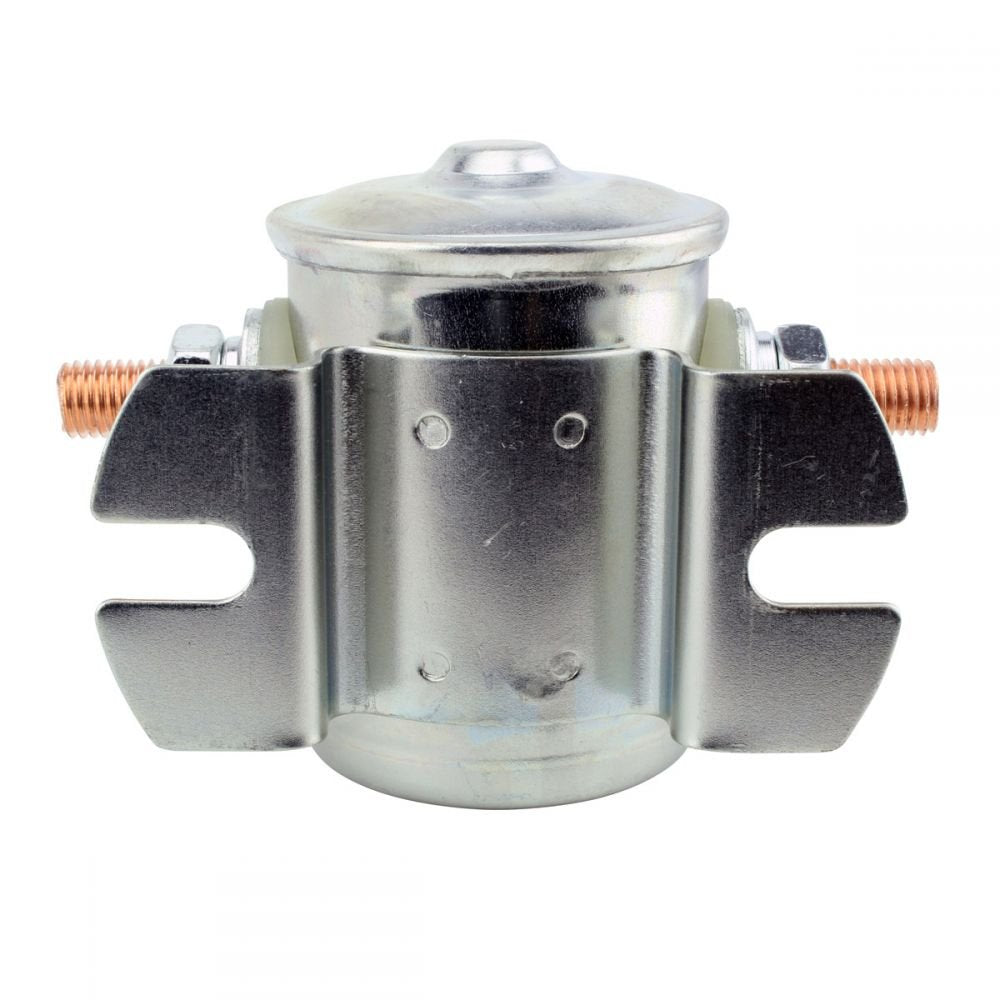

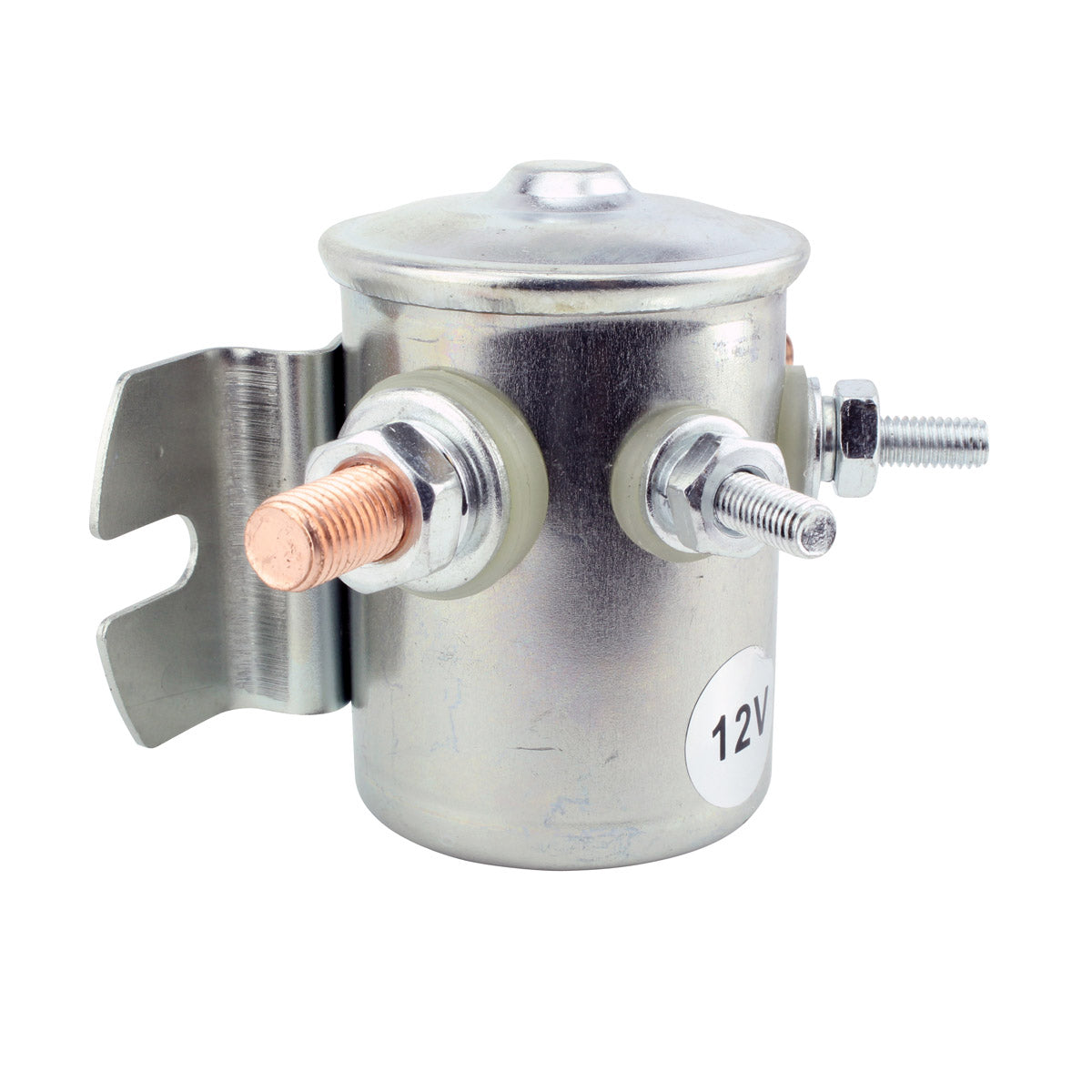

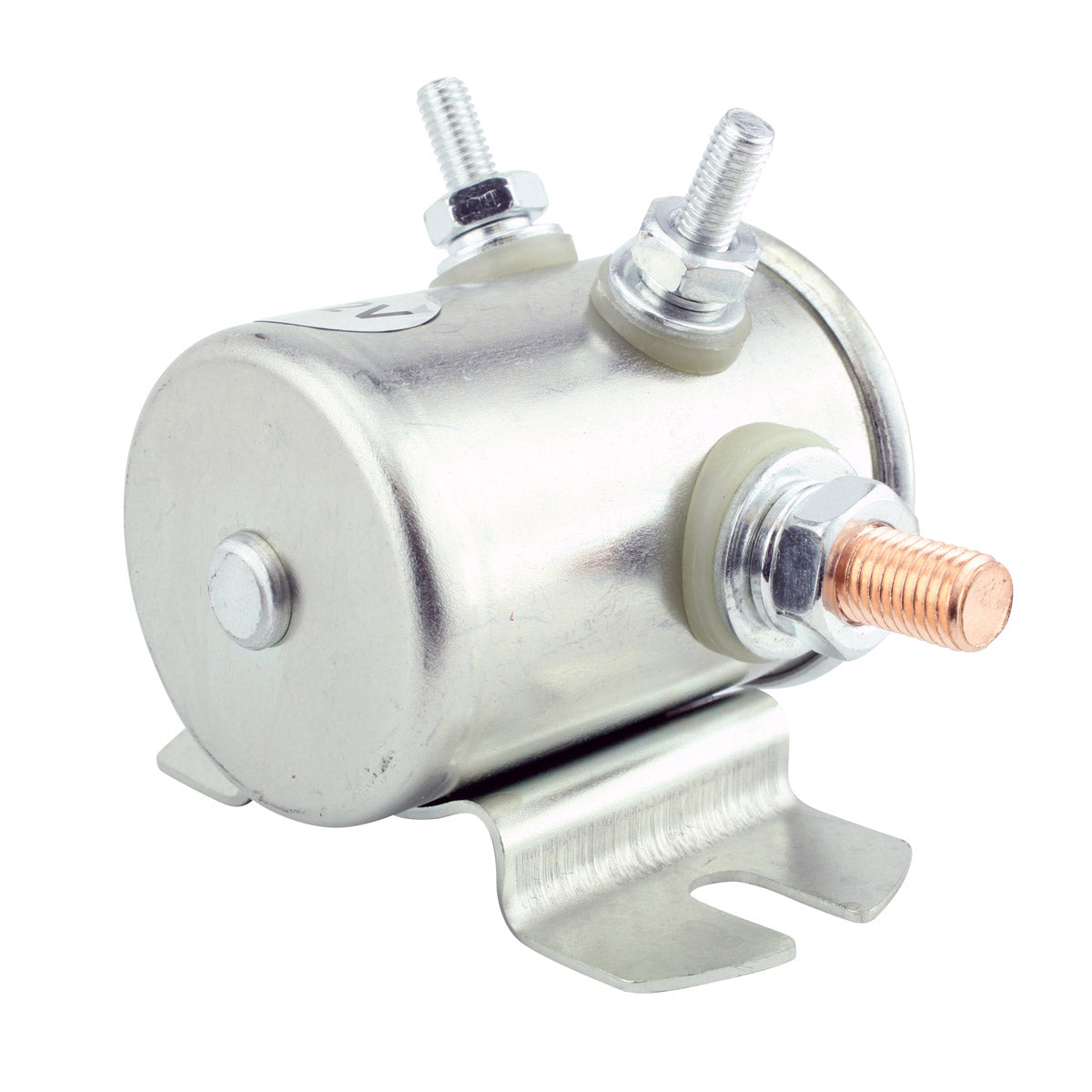

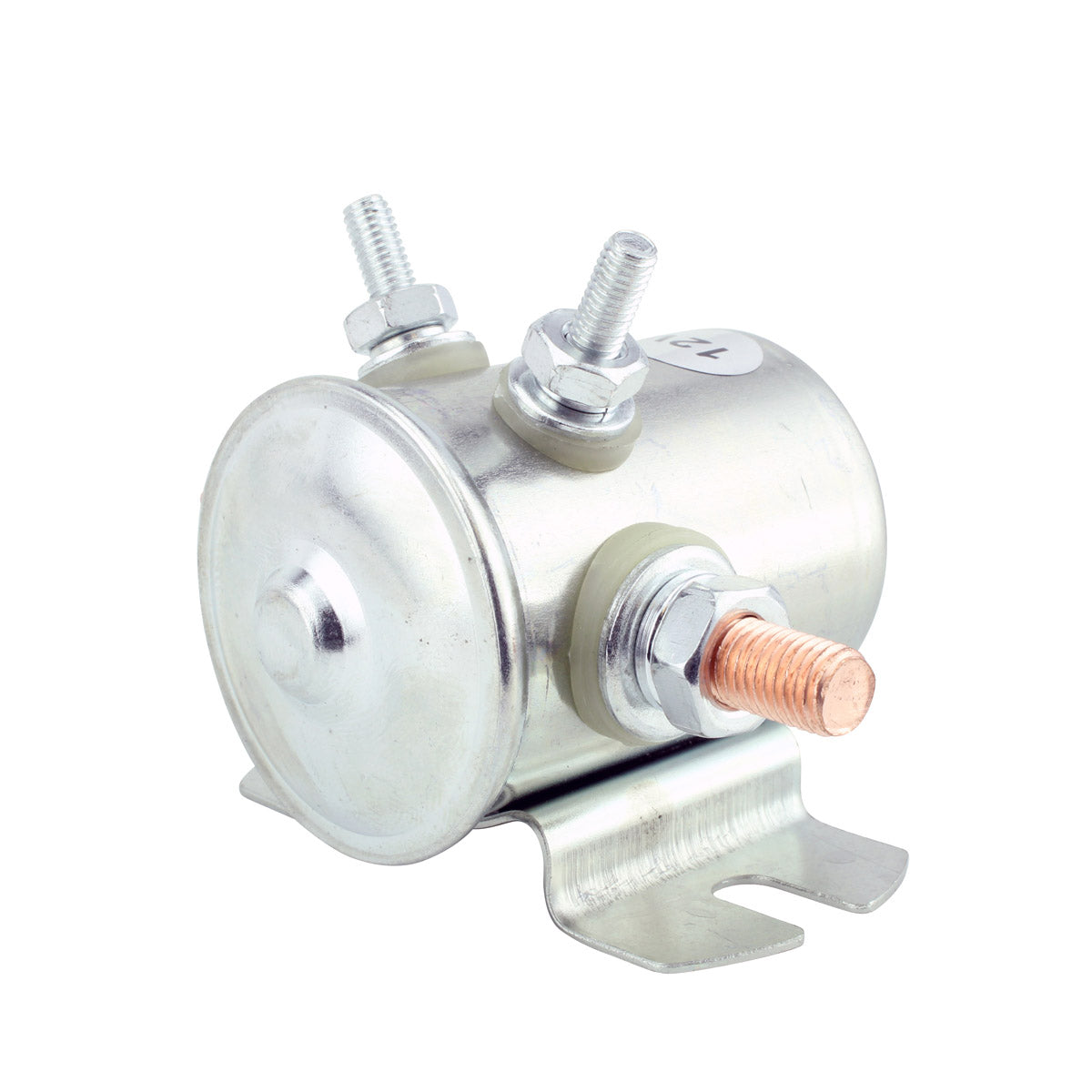

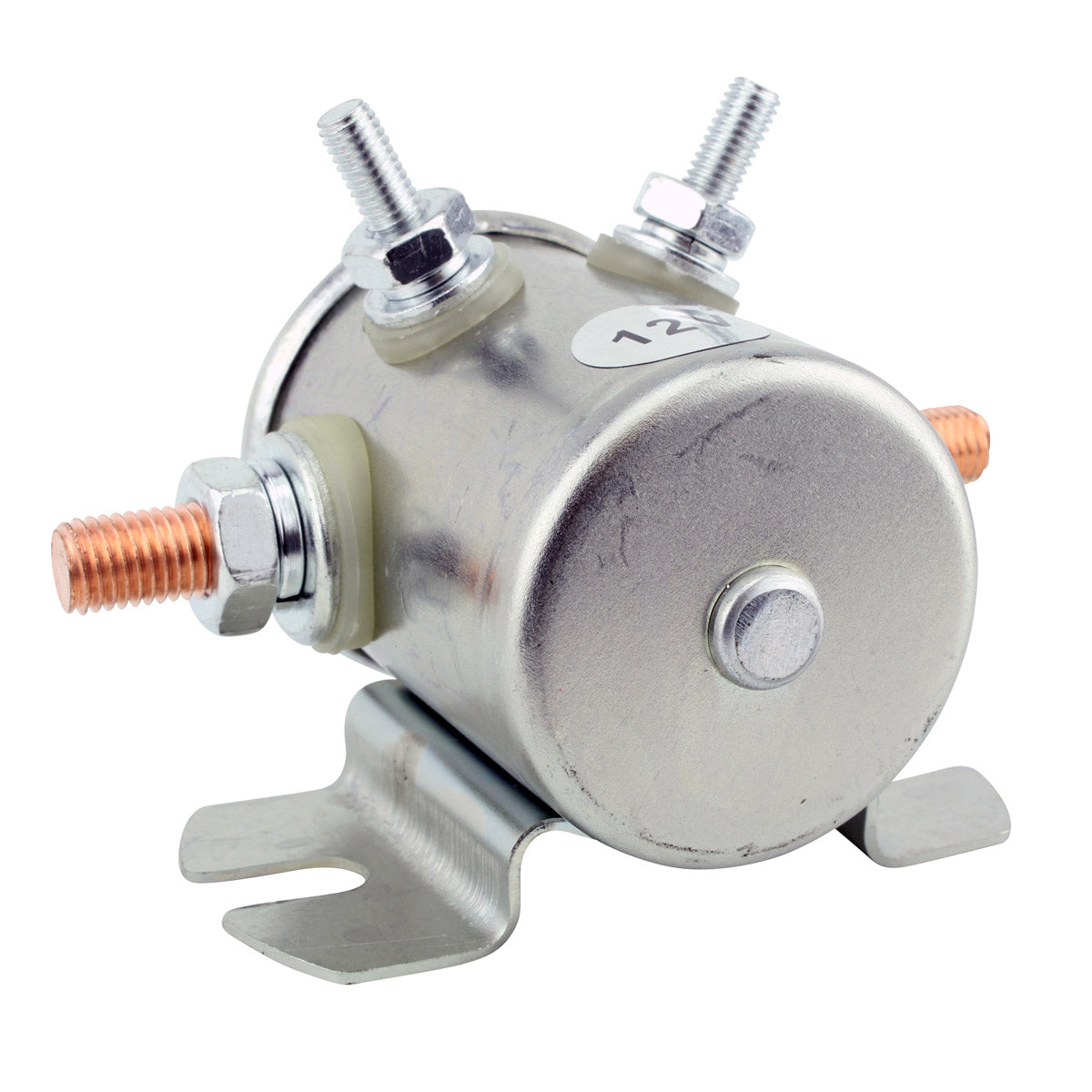

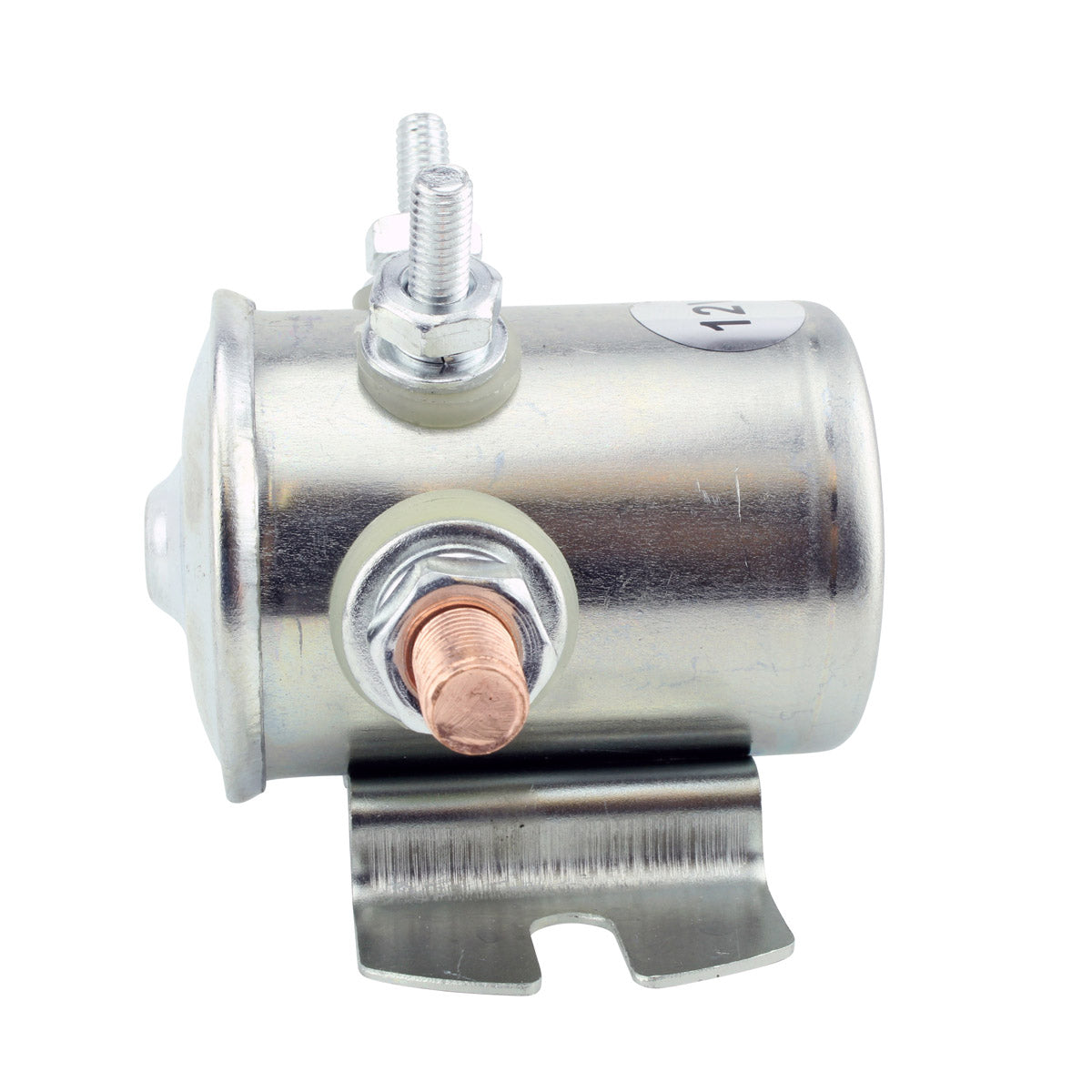

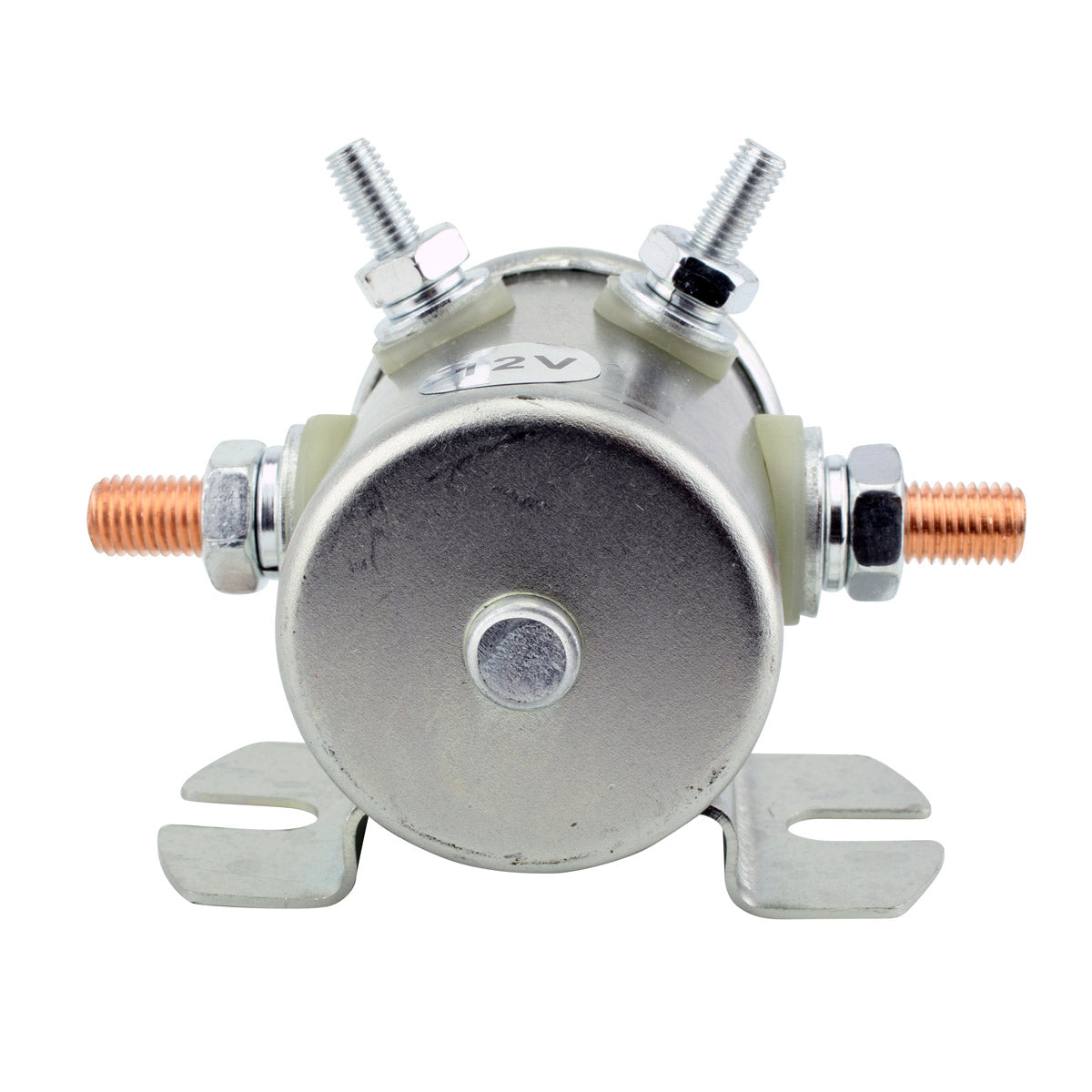

Brand new starter relay solenoid switch for classic Arctic Cat snowmobiles built between 1990 and 2003. The solenoid is the heavy duty switch that stands between the battery and the starter motor. When the start button is pressed a small control current energises the coil inside the housing, which pulls the main contacts together and lets the full cranking current through to the starter.
Cold starting is the hardest work an electrical system does, and the contacts inside the solenoid take the brunt of it. Over the years they pit and burn, resistance rises, and the machine starts clicking instead of cranking. This RMSTATOR replacement is built to a quality that exceeds the OEM equipment and all products shipped are tested. It is a four terminal unit with 56 mm between the fixation holes, matching the original mounting. All item pictures are accurate, so if in doubt do not hesitate to compare our item to your original part.
Key Features
- Brand new starter relay solenoid switch
- Quality exceeds the OEM equipment
- All products shipped are tested
- 4 terminal design
- 56 mm distance between fixation holes
- Replaces Arctic Cat OEM 0645-078 and 0645-017
- Covers Bearcat, Cheetah and Pantera models 1990-2003

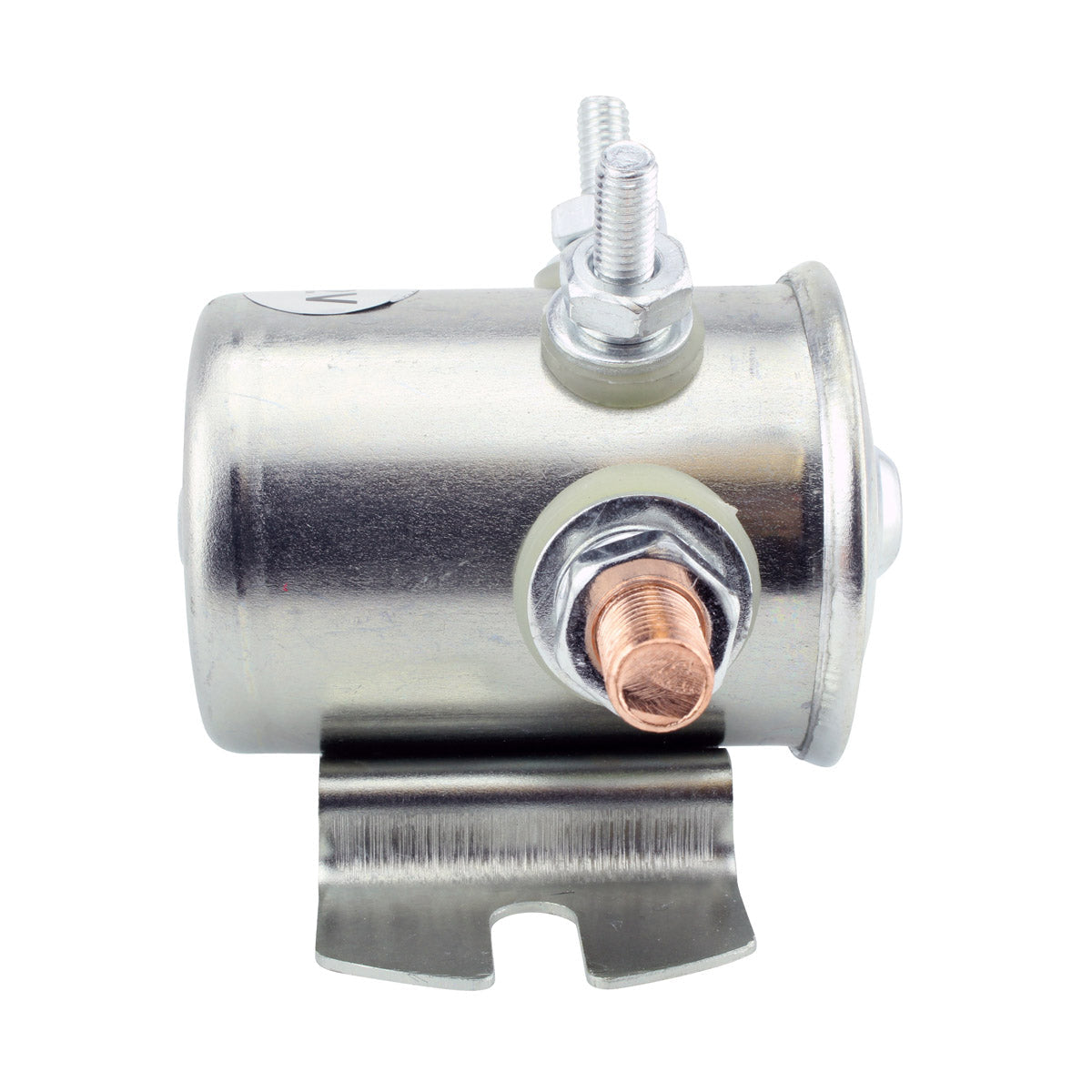

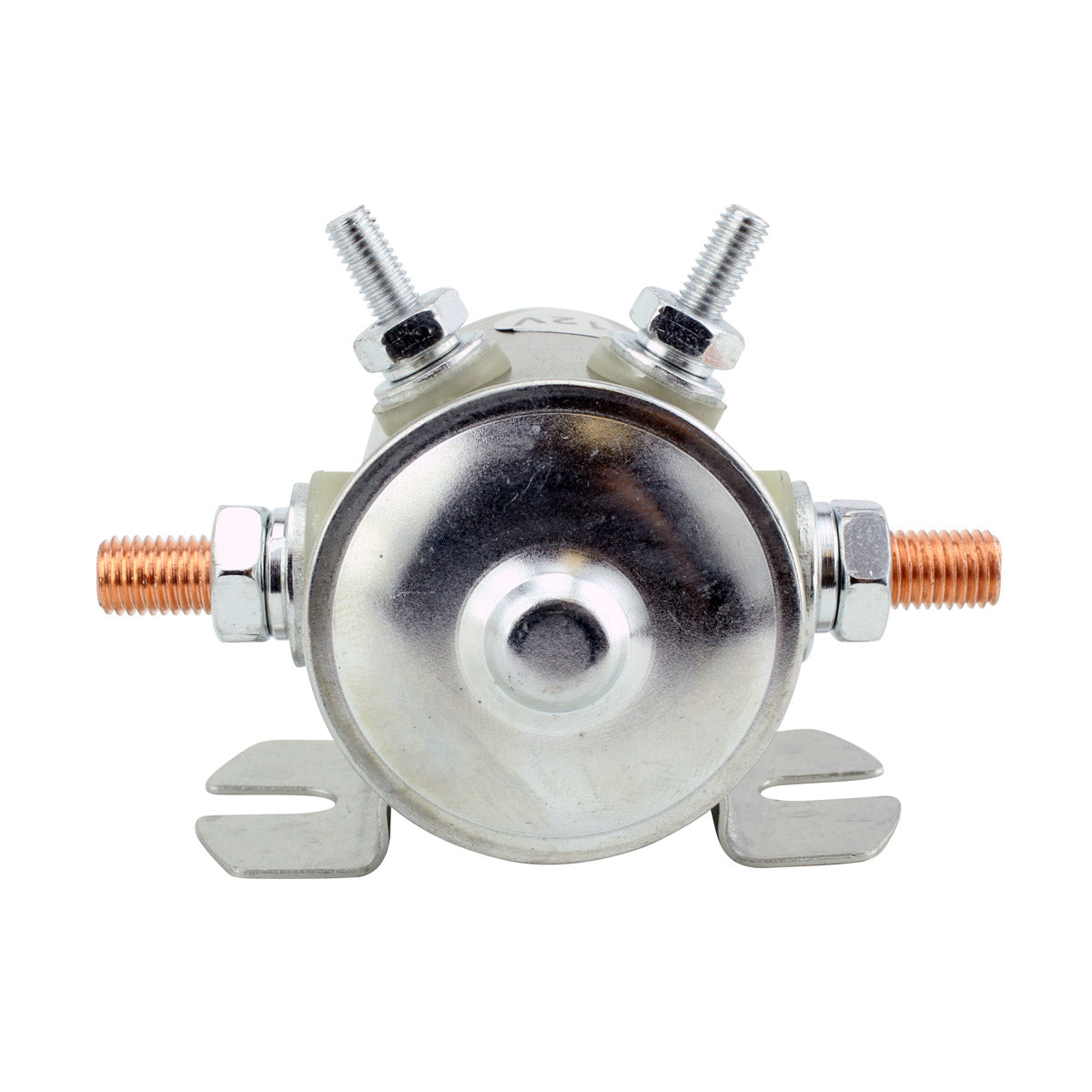

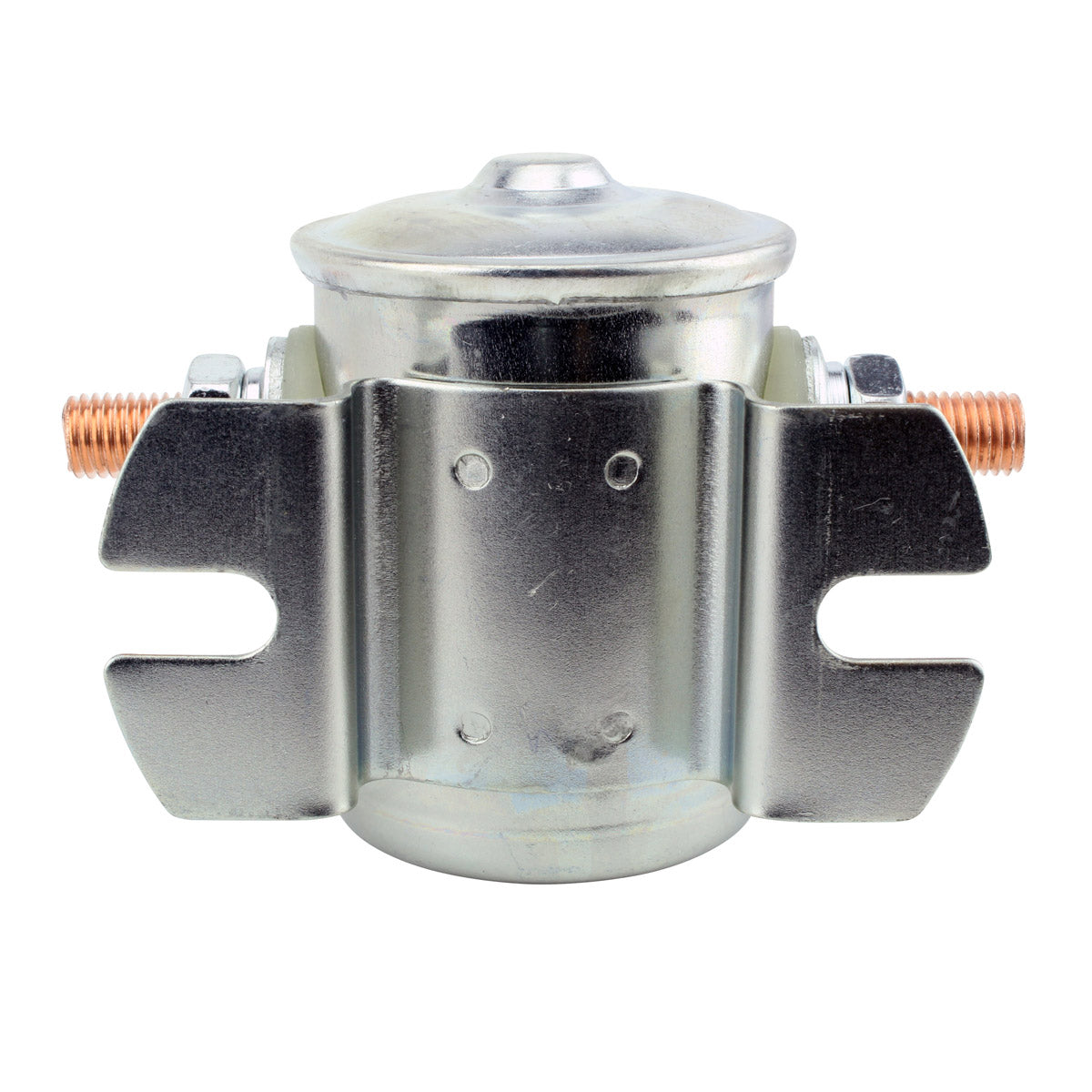

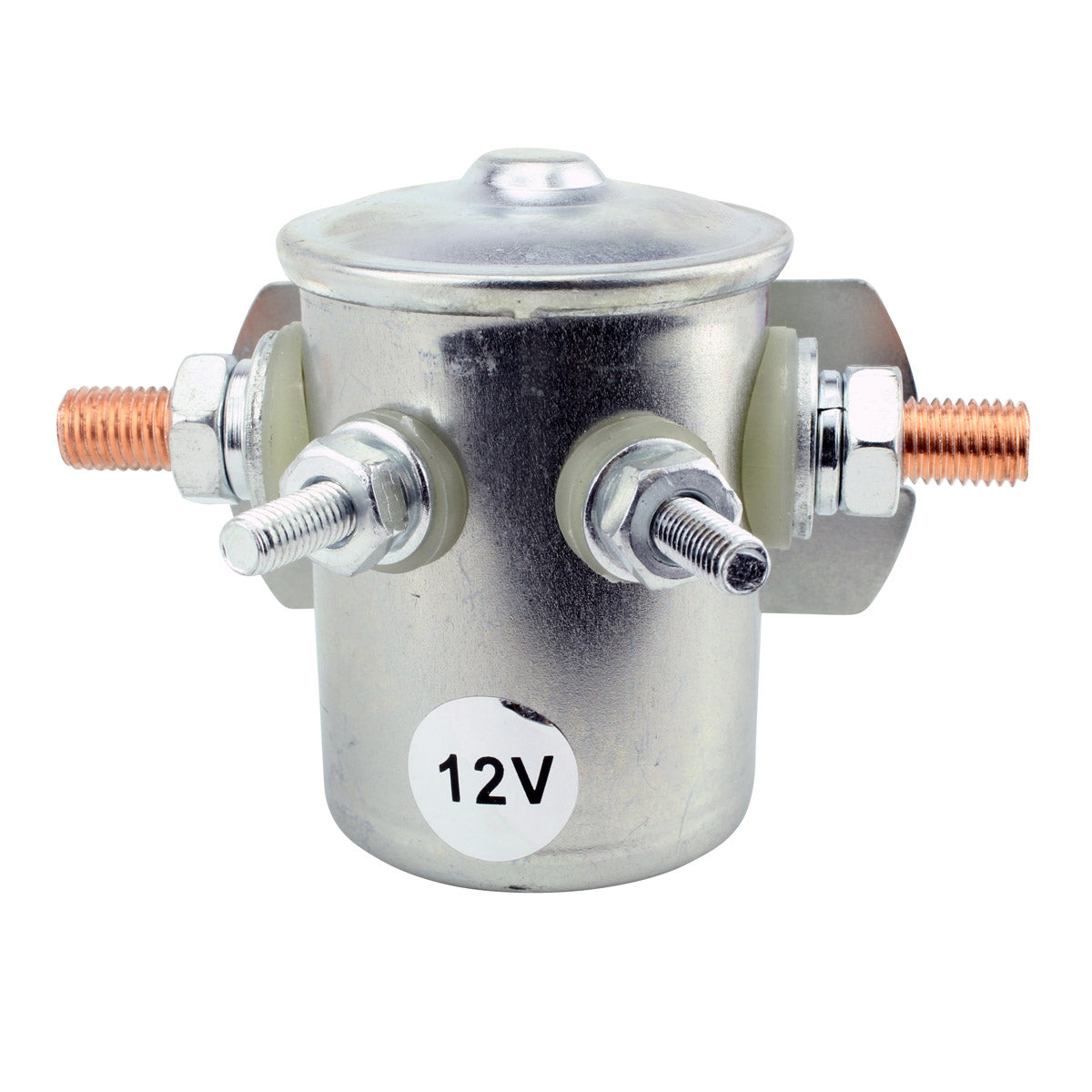

- Item pictures are accurate for direct visual comparison
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-106823 |
| Type |
Starter relay solenoid switch |
| Height |
64 mm |
| Length |
56 mm |
| Width |
40.70 mm |
| Distance between fixation holes |
56 mm |
| Number of terminals |
4 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Bearcat |
1990-2003 |
| Arctic Cat Cheetah 340 |
1990-2003 |
| Arctic Cat Cheetah 440 |
1990-2003 |
| Arctic Cat Cheetah 550 |
1990-2003 |
| Arctic Cat Pantera 440 |
1990-2003 |
| Arctic Cat Pantera 550 |
1990-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0645-078 |
Arctic Cat |
| 0645-017 |
Arctic Cat |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement with four terminals and 56 mm between the fixation holes, so it uses the original mounting points and wiring. Confirm that your existing solenoid carries Arctic Cat part number 0645-078 or 0645-017 before ordering.
What do I receive?
One brand new starter relay solenoid switch, part number RMS090-106823, tested before dispatch.
How do I know the old solenoid has failed?
A single click with no cranking, cranking on only some attempts, or a starter that turns slowly on a good battery are the classic symptoms. On machines of this age the terminals also corrode, so clean and check the connections at the same time as you fit the new solenoid.
Is this the starter motor itself?
No. This part is the starter relay solenoid switch that feeds current to the starter motor, not the motor. It is a far cheaper component and it is the more common failure, so it is well worth ruling out before condemning a starter.
