Starter Relay Solenoid Switch
Arctic Cat Cougar 550, EXT 580 600, Jag 340 440, Pantera 580 and Panther 440 · 1995-2008

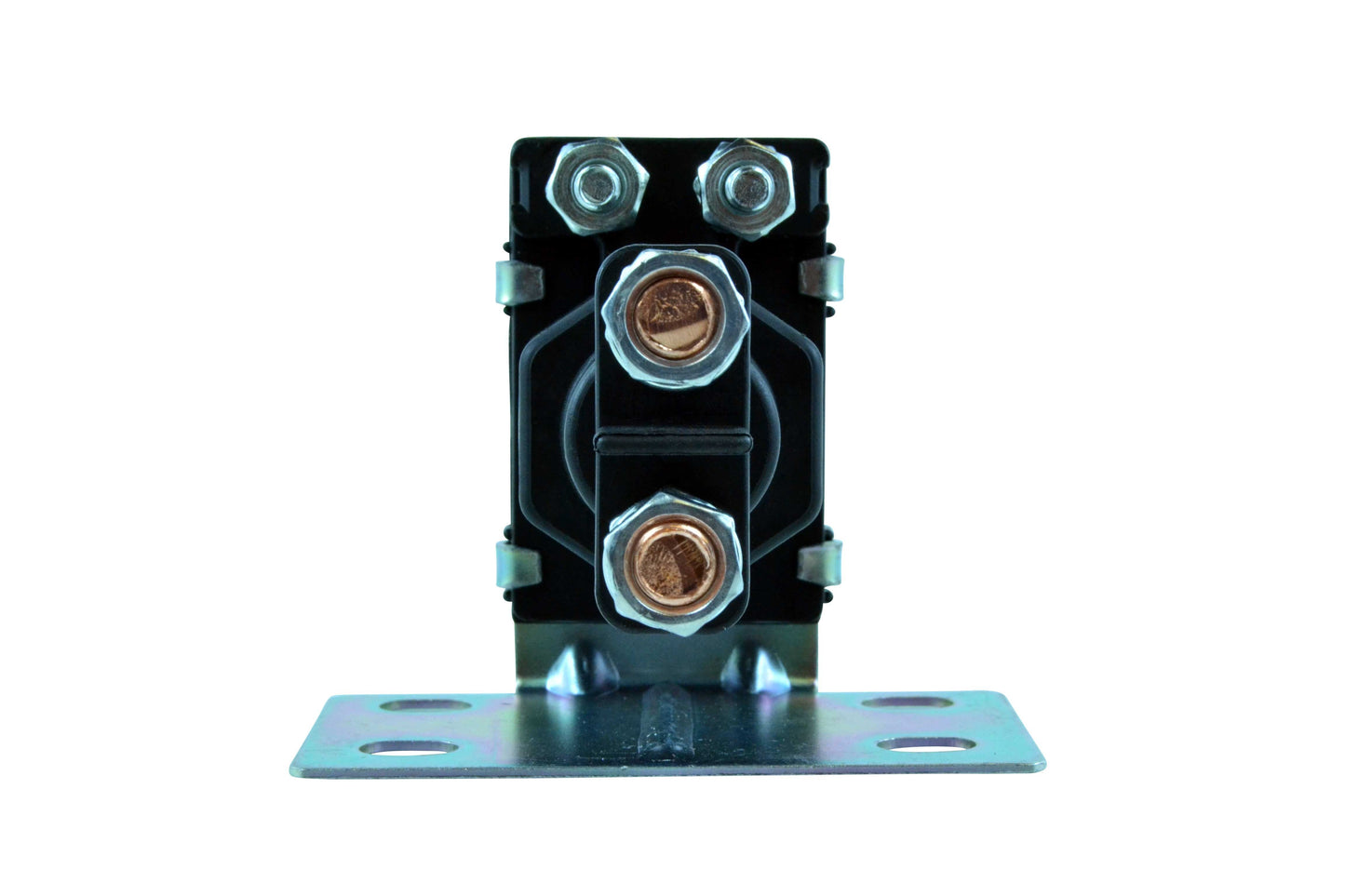

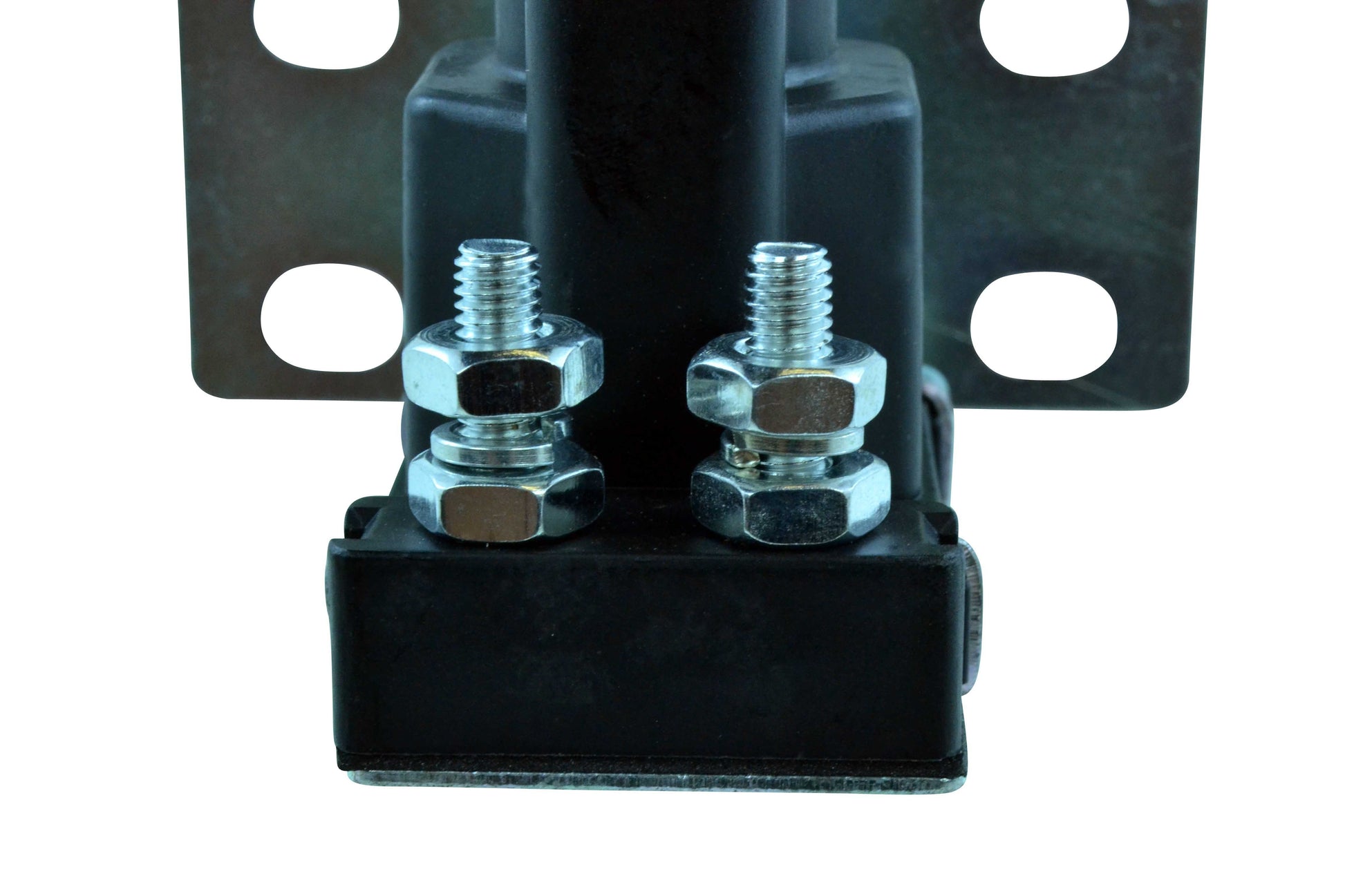

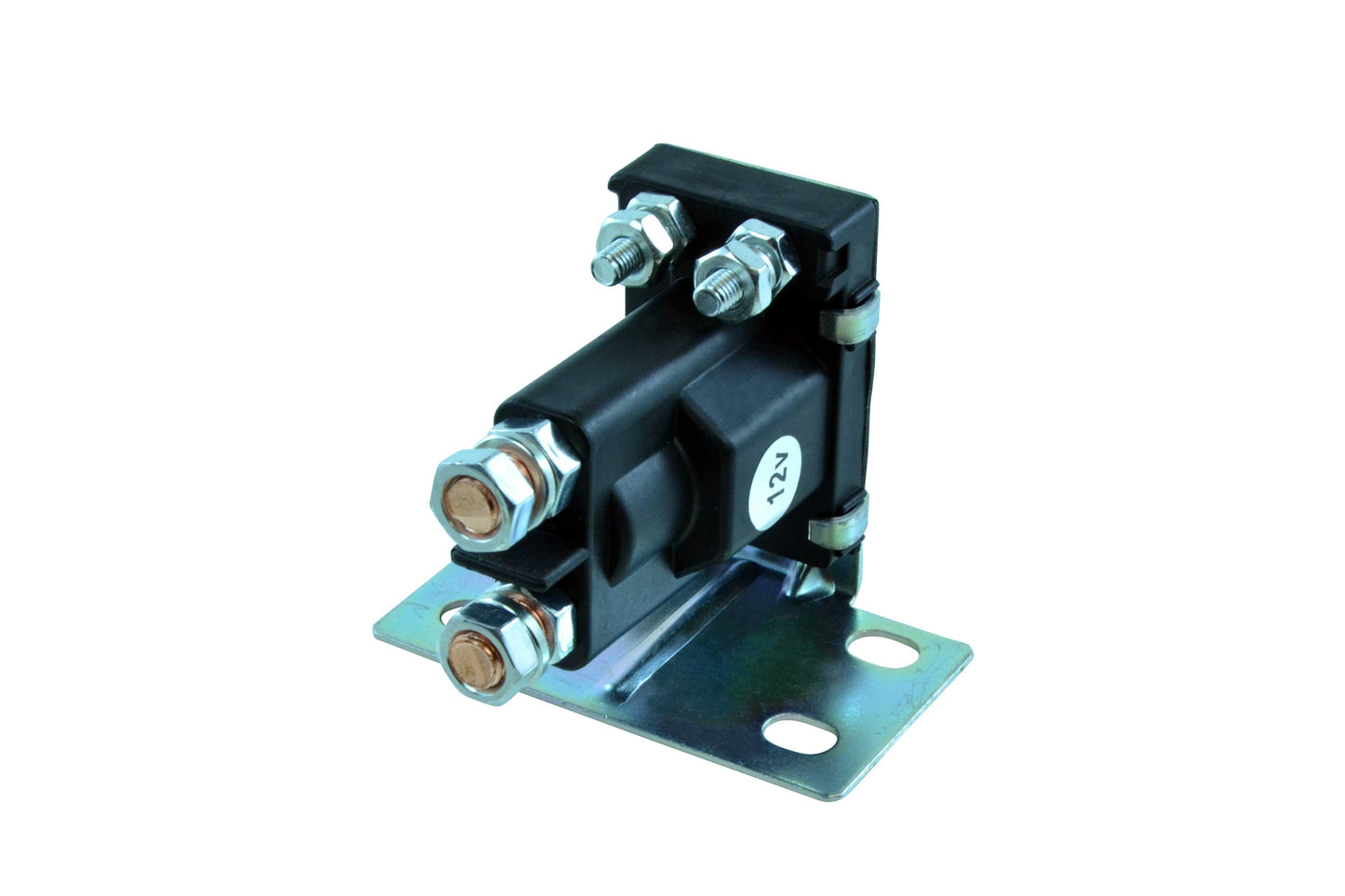

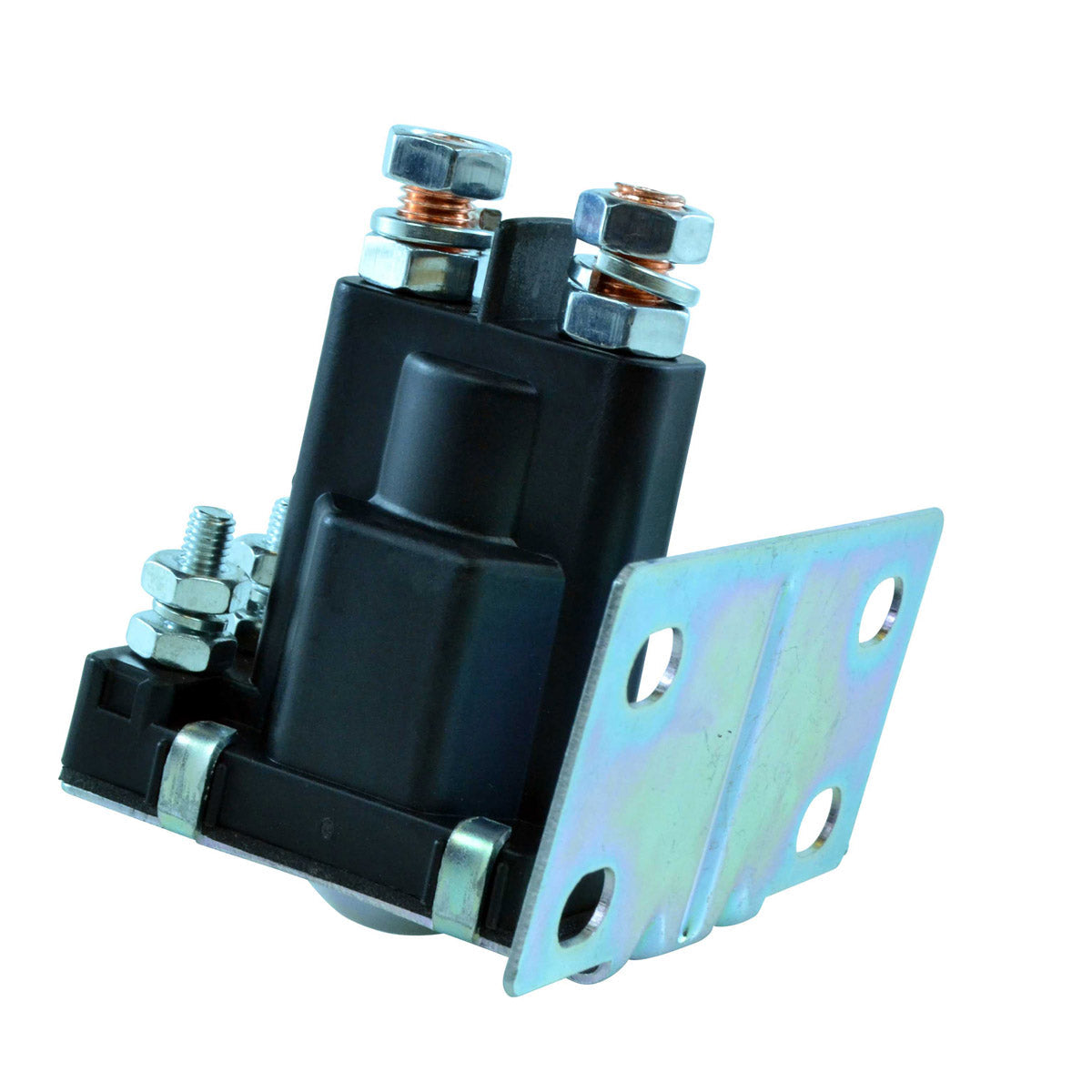

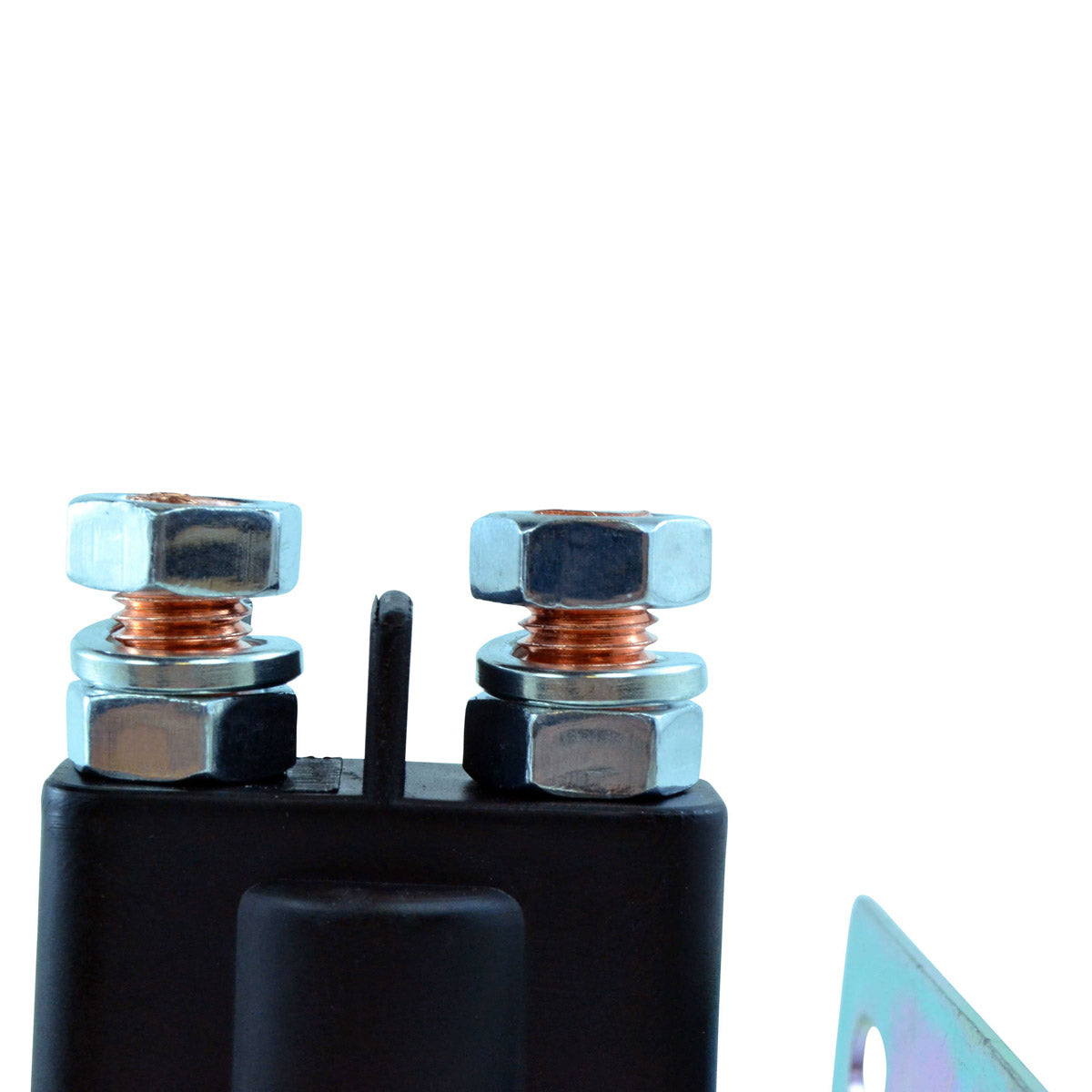

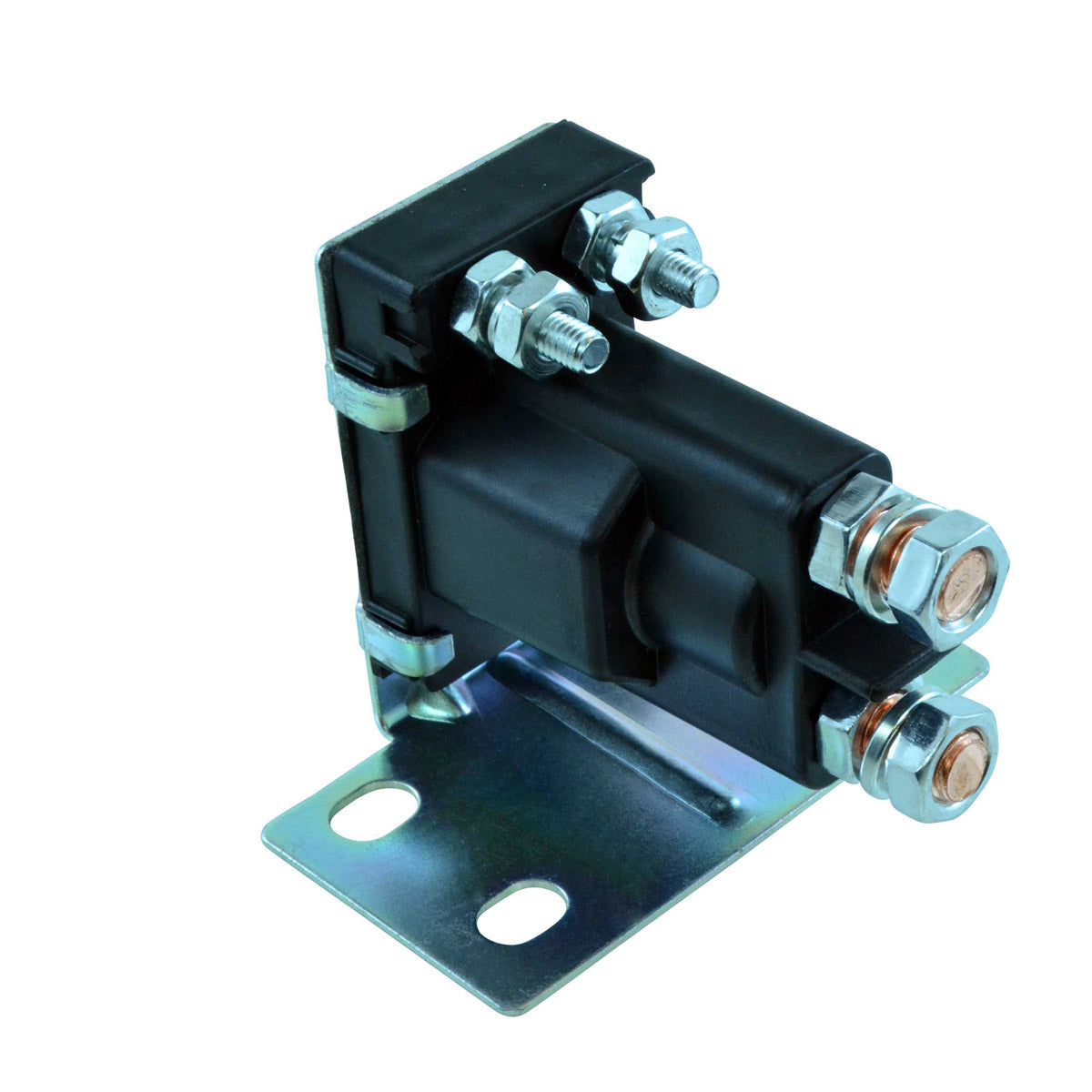

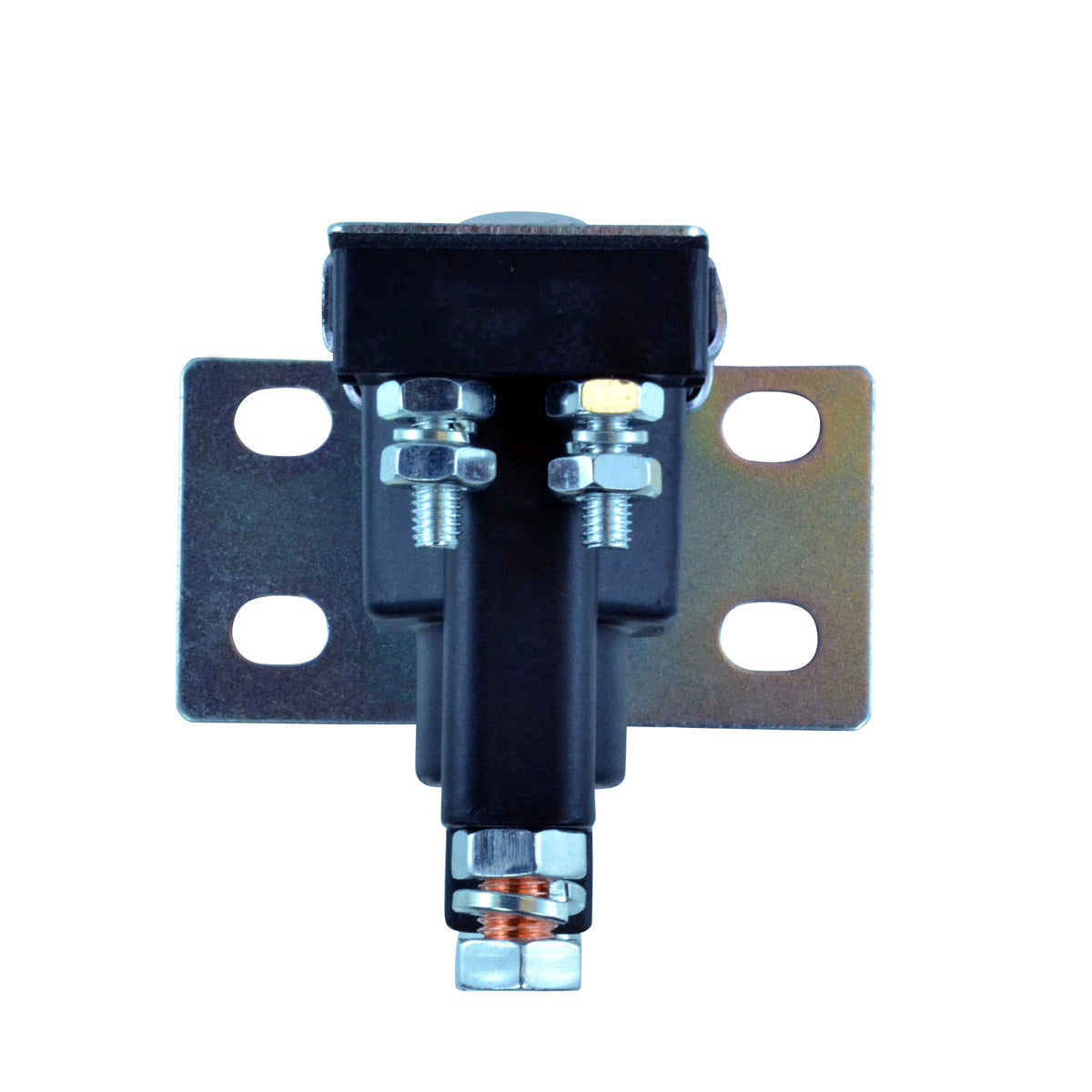

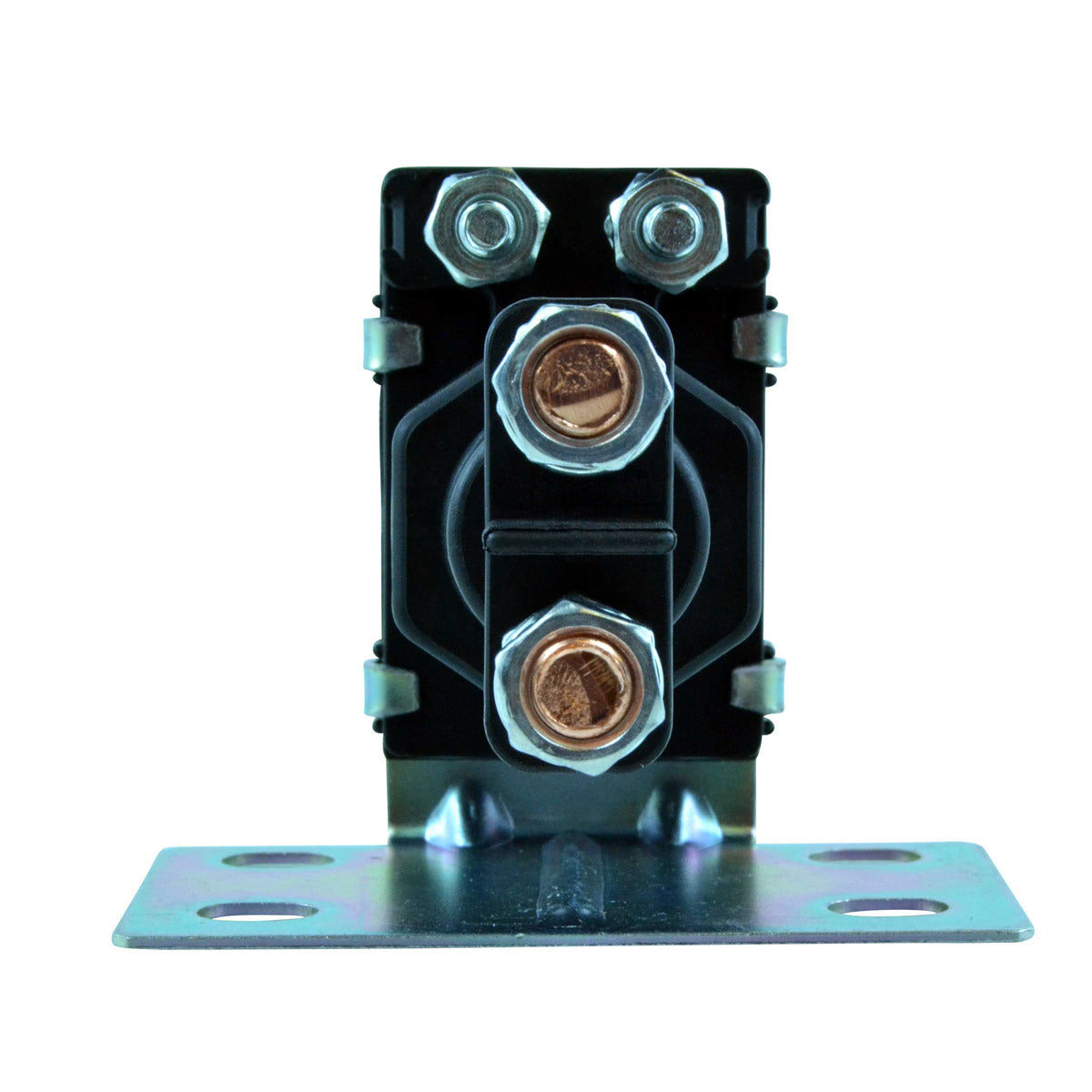

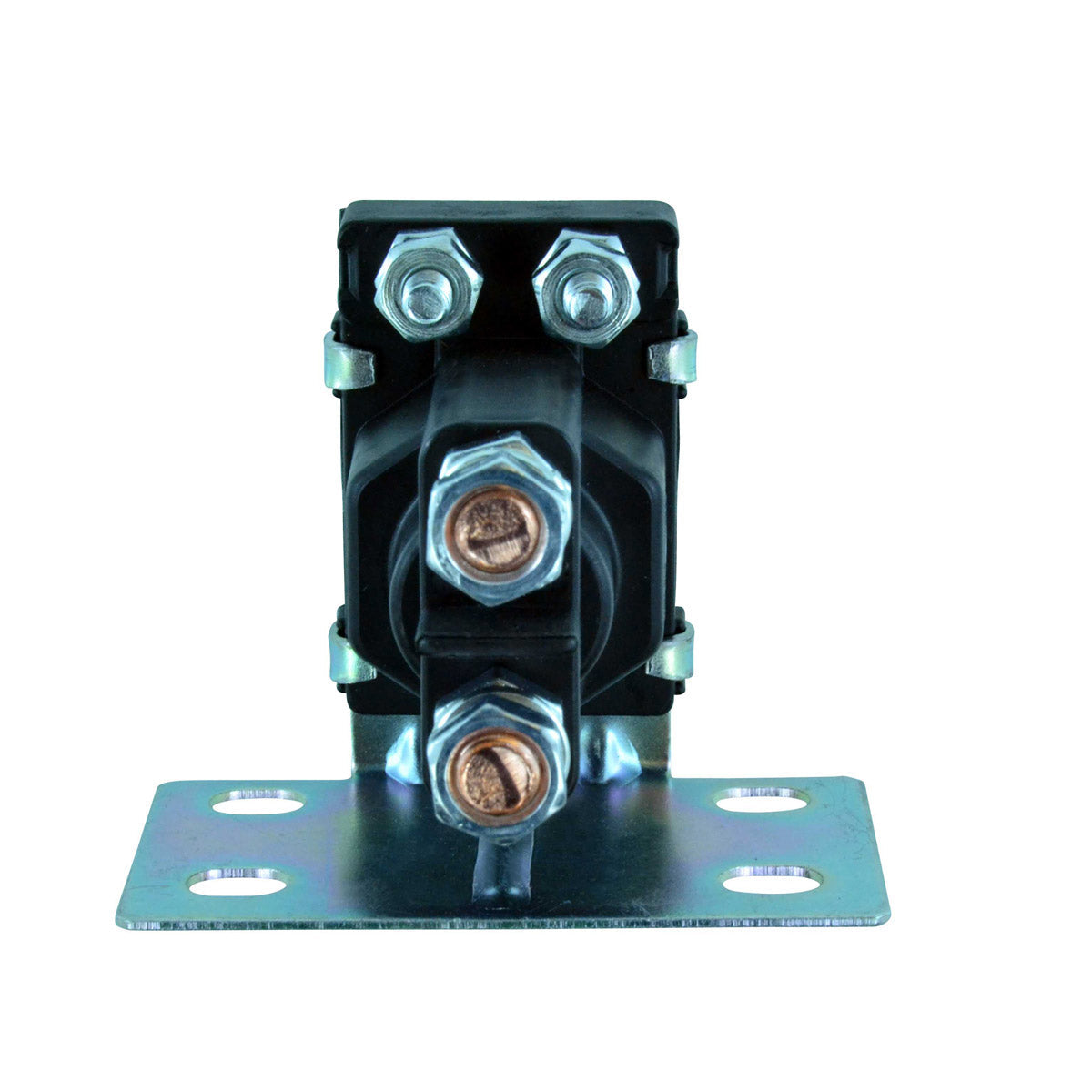

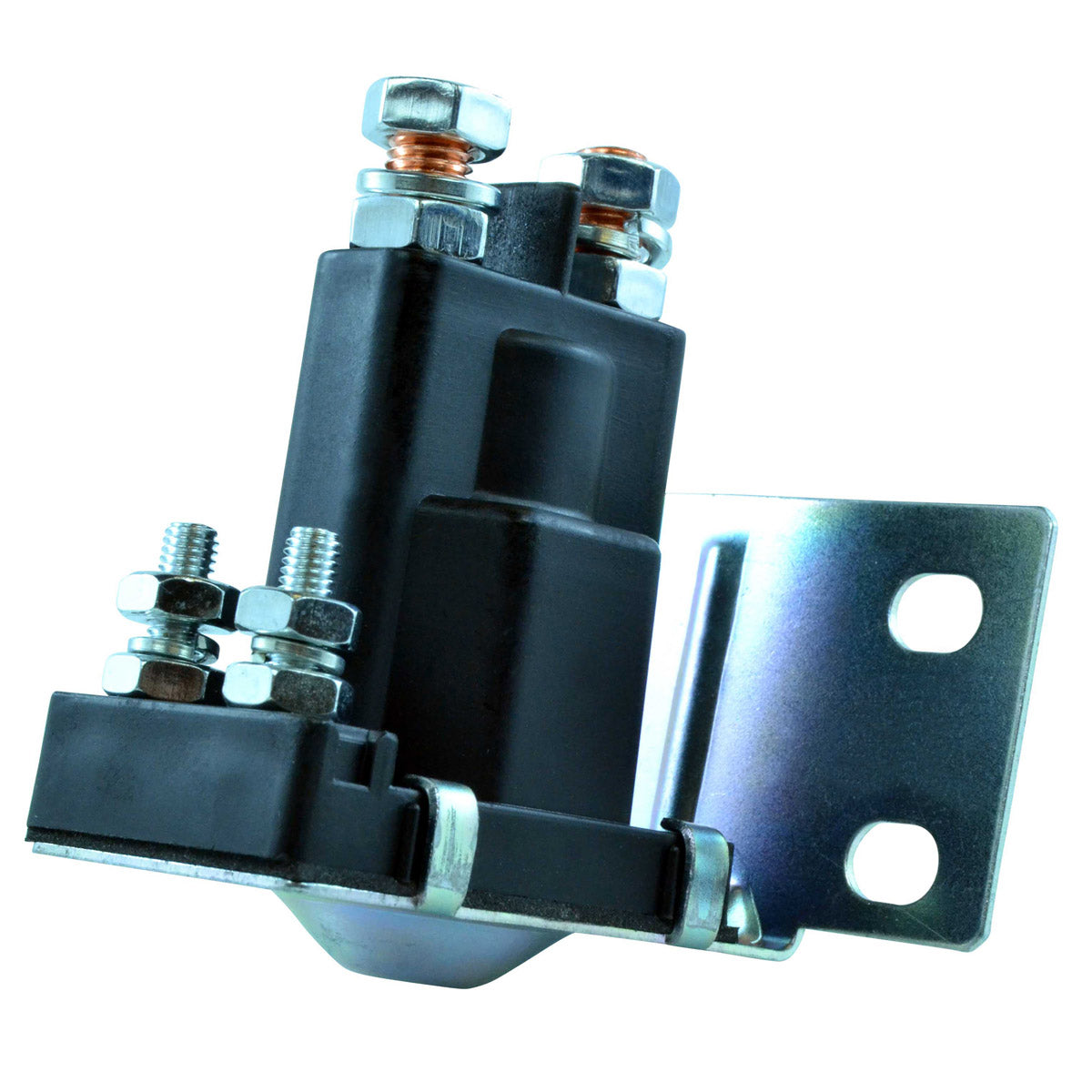

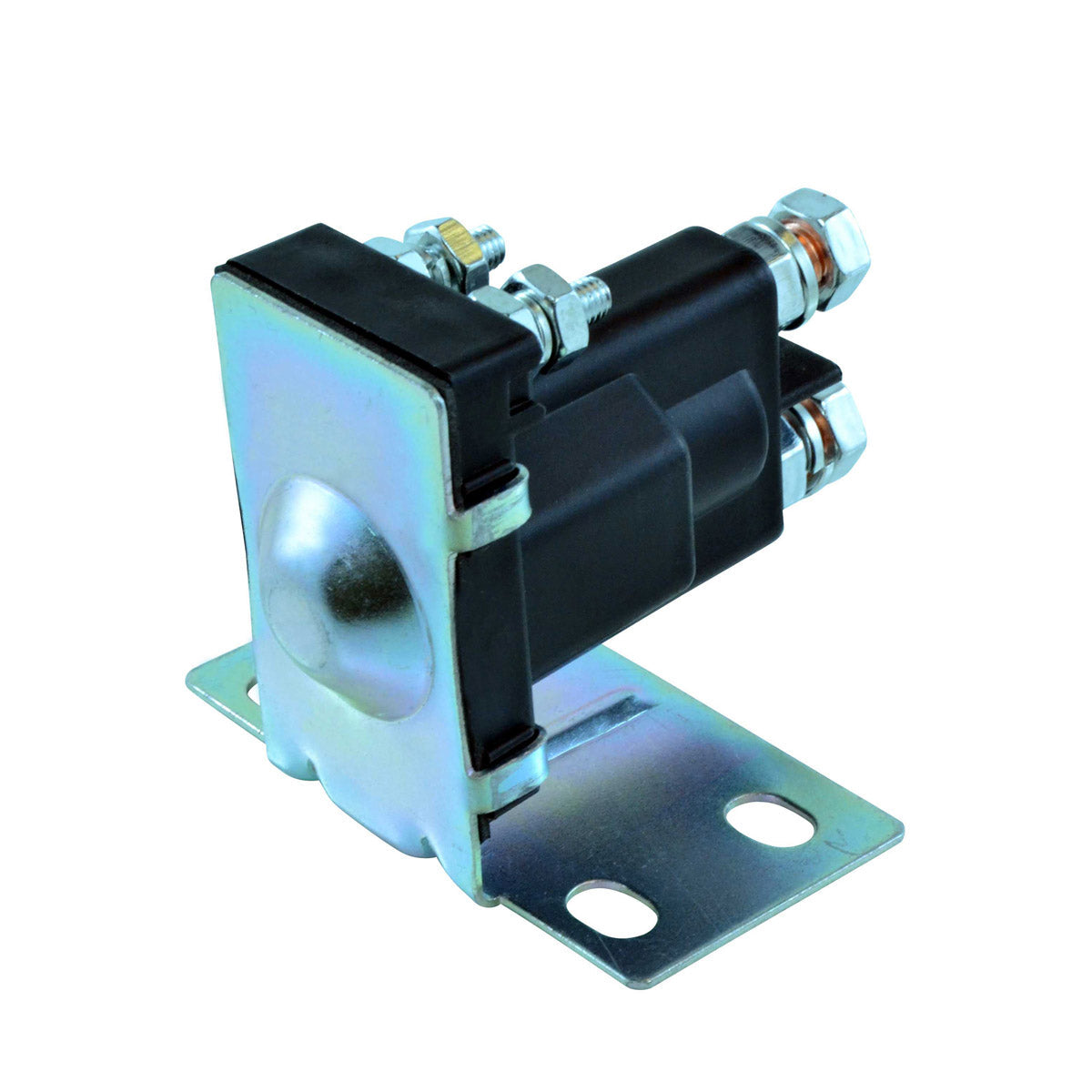

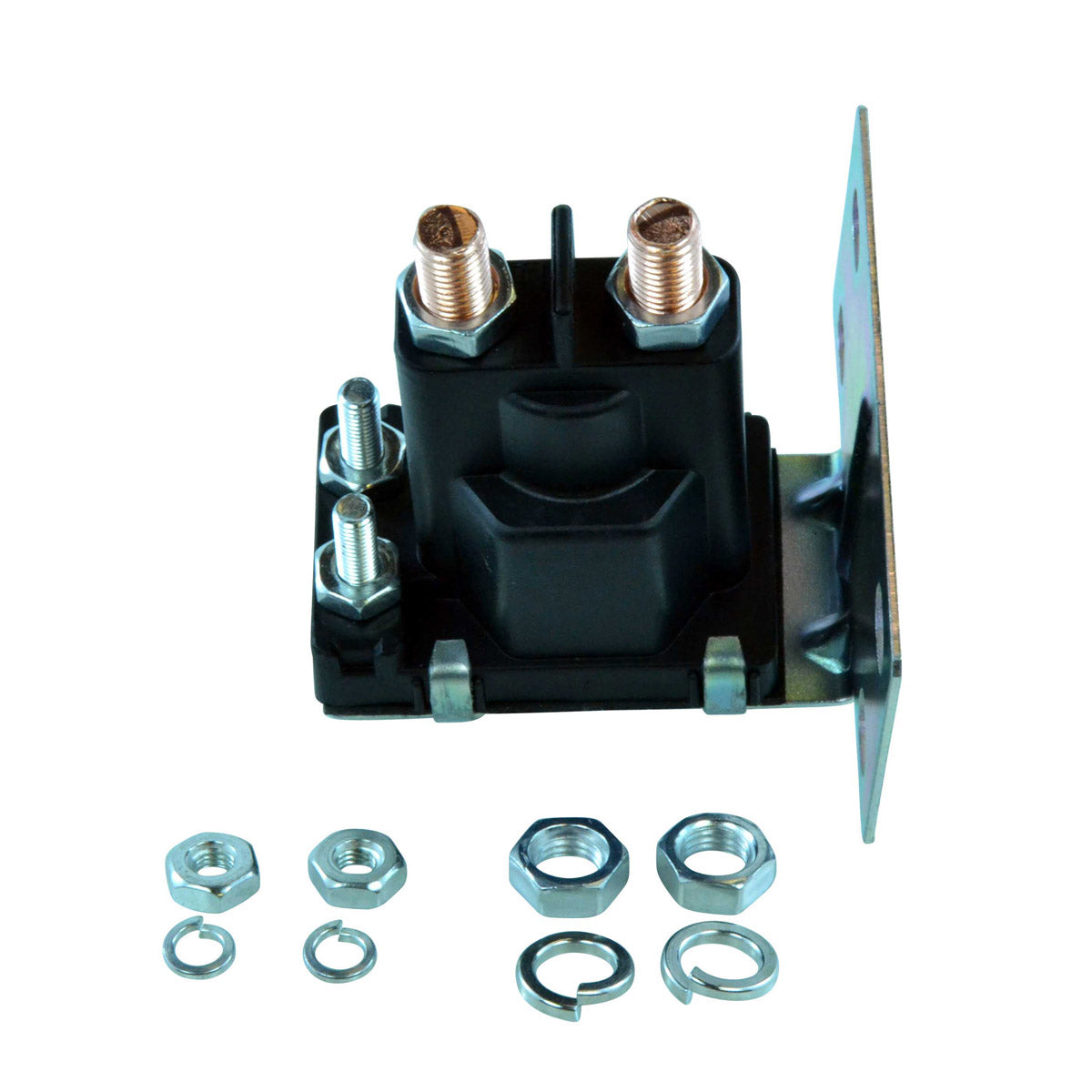

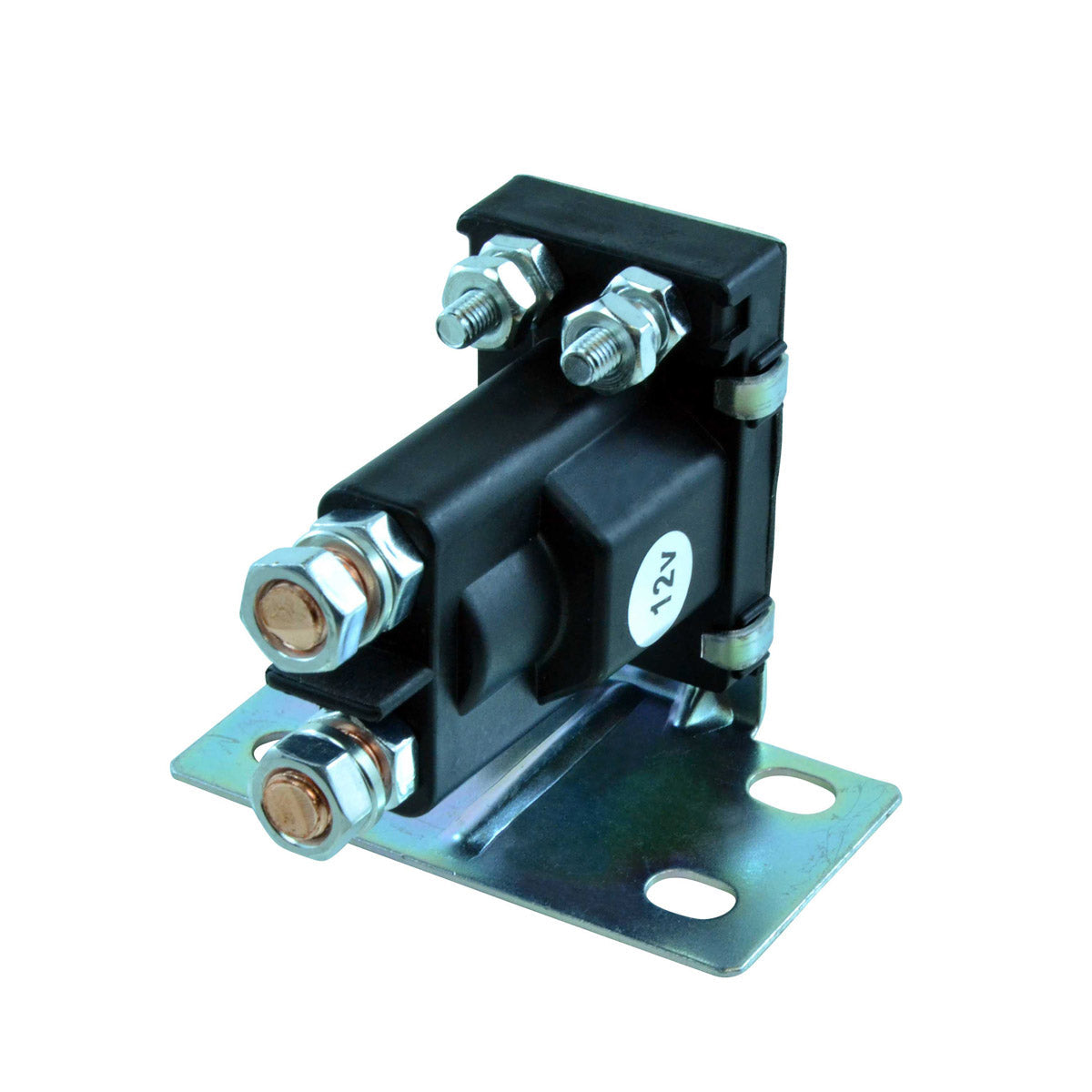

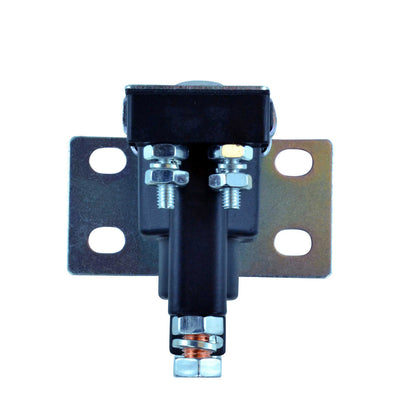

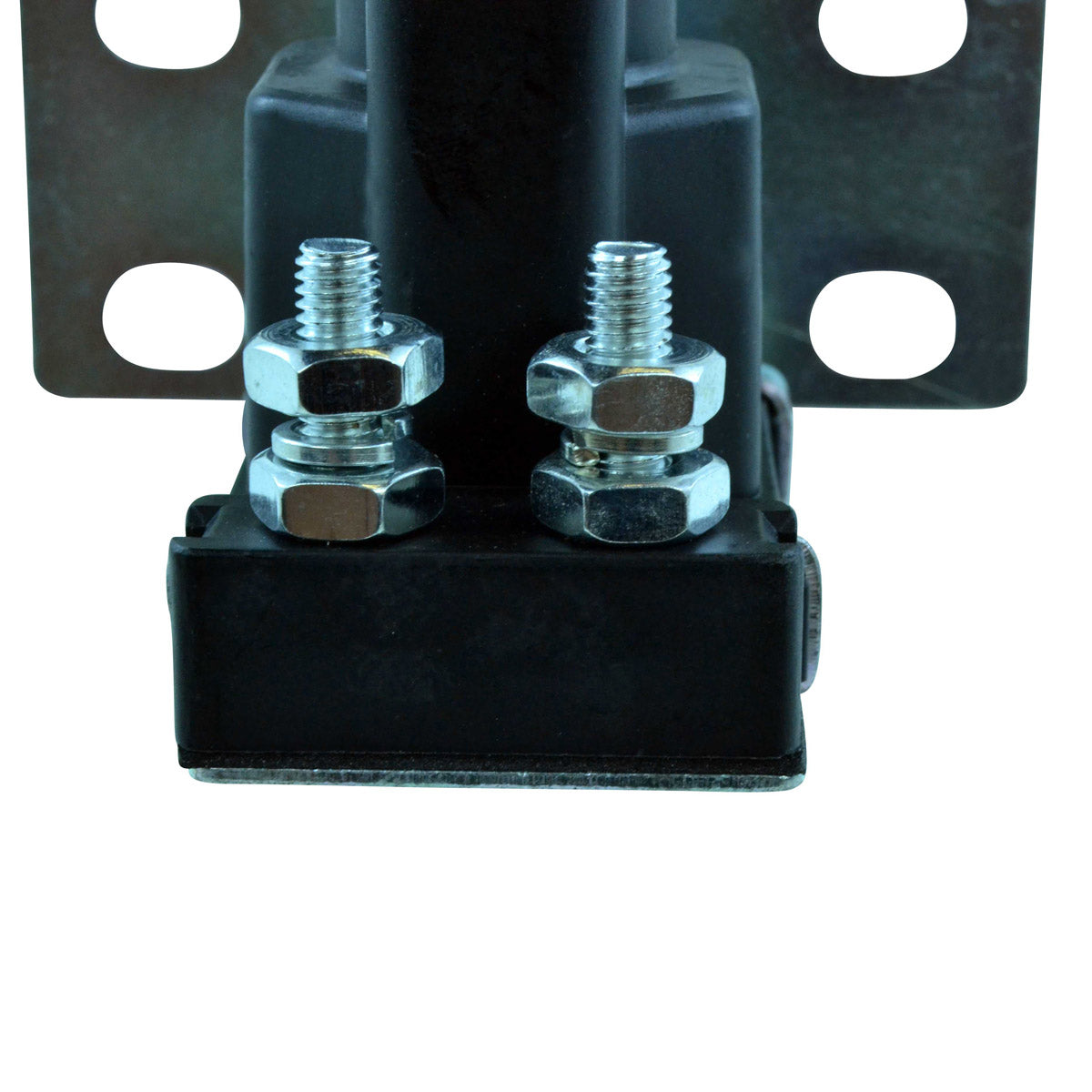

This is a brand new starter relay solenoid switch, part number RMS090-104882, supplied as a direct replacement for the original unit fitted to Arctic Cat Cougar 550, EXT 580, EXT 600, Jag 340, Jag 440, Pantera 580 and Panther 440 machines built between 1995 and 2008. The solenoid is the heavy duty switch that sits between the battery and the starter motor: the start button passes only a small signal current through the solenoid coil, and the solenoid then closes the high current circuit that actually cranks the engine.
Because it takes the full starting load on every start, the solenoid is a wear item on older sleds, and contacts that have burnt or pitted over the years give the familiar click with no crank. This replacement measures 78 mm high, 65 mm long and 34 mm wide, so it occupies the same space as the original. The quality exceeds the OEM equipment and all products shipped are tested.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit
- Quality that exceeds the OEM equipment
- Same 78 x 65 x 34 mm body as the original
- Cross references to Arctic Cat 0645-196
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-104882 |
| Height |
78 mm |
| Length |
65 mm |
| Width |
34 mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Cougar 550 |
1995-2008 |
| Arctic Cat EXT 580 |
1995-2008 |
| Arctic Cat EXT 600 |
1995-2008 |
| Arctic Cat Jag 340 |
1995-2008 |
| Arctic Cat Jag 440 |
1995-2008 |
| Arctic Cat Pantera 580 |
1995-2008 |
| Arctic Cat Panther 440 |
1995-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0645-196 |
Arctic Cat |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original solenoid and matches the original 78 x 65 x 34 mm body, so it mounts and connects in the standard position.
What is included?
One starter relay solenoid switch. No additional hardware is listed for this part.
How do I know the old solenoid has failed?
Look for a single loud click or fast chattering when the start button is pressed while the battery is known to be good, a starter that spins only sometimes, or heat discolouration and corrosion around the solenoid terminals.
How do I confirm this is the right solenoid for my sled?
Compare the number on your original unit against Arctic Cat 0645-196 and check the physical dimensions above against the part you are removing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
