Starter Relay Solenoid for Can-Am Outlander, Renegade & Ski-Doo Summit 2000-2025
Starter Relay Solenoid for Can-Am Outlander, Renegade & Ski-Doo Summit 2000-2025
SKU:RMS090-106270
Free shipping over £150. Terms apply
Couldn't load pickup availability

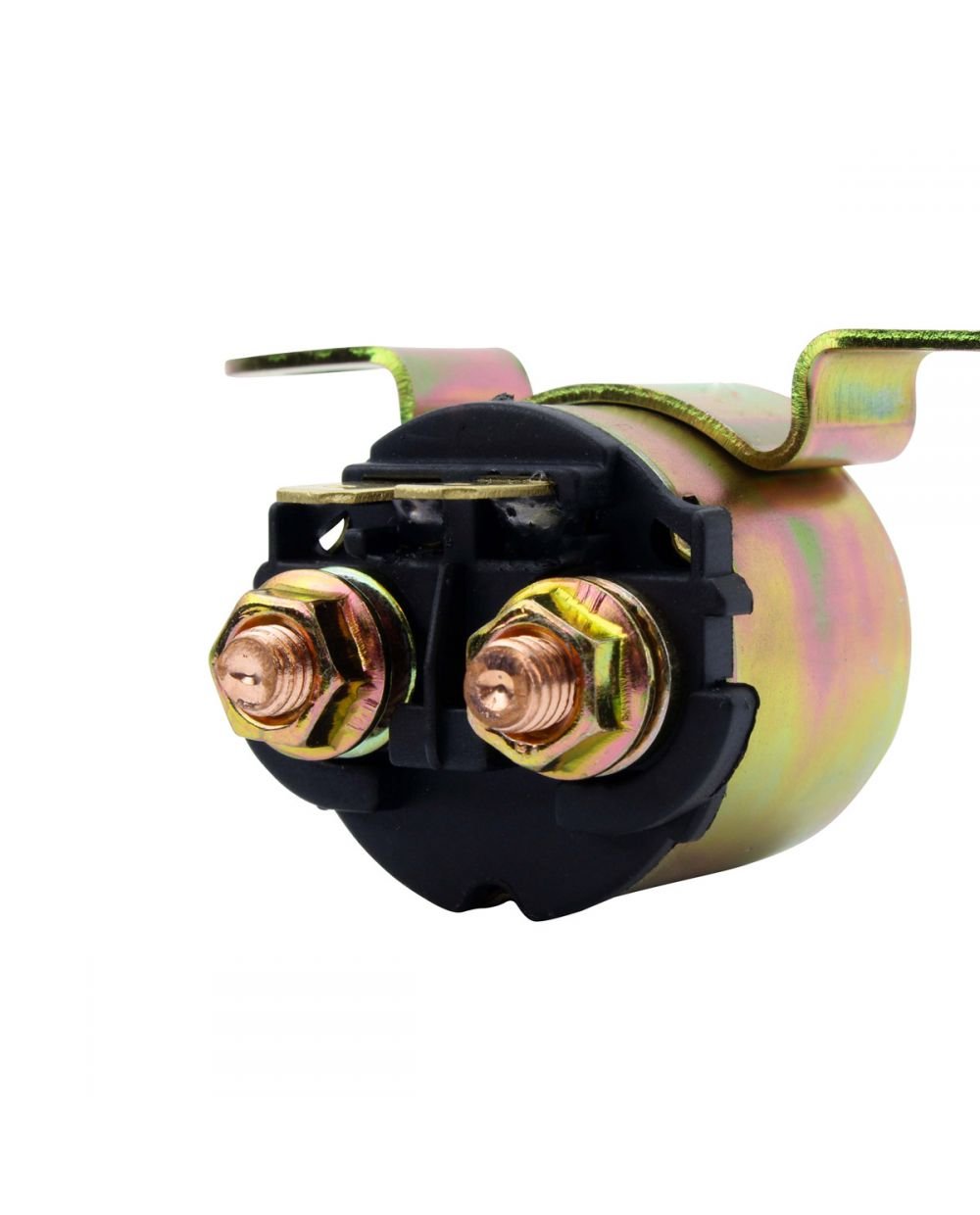

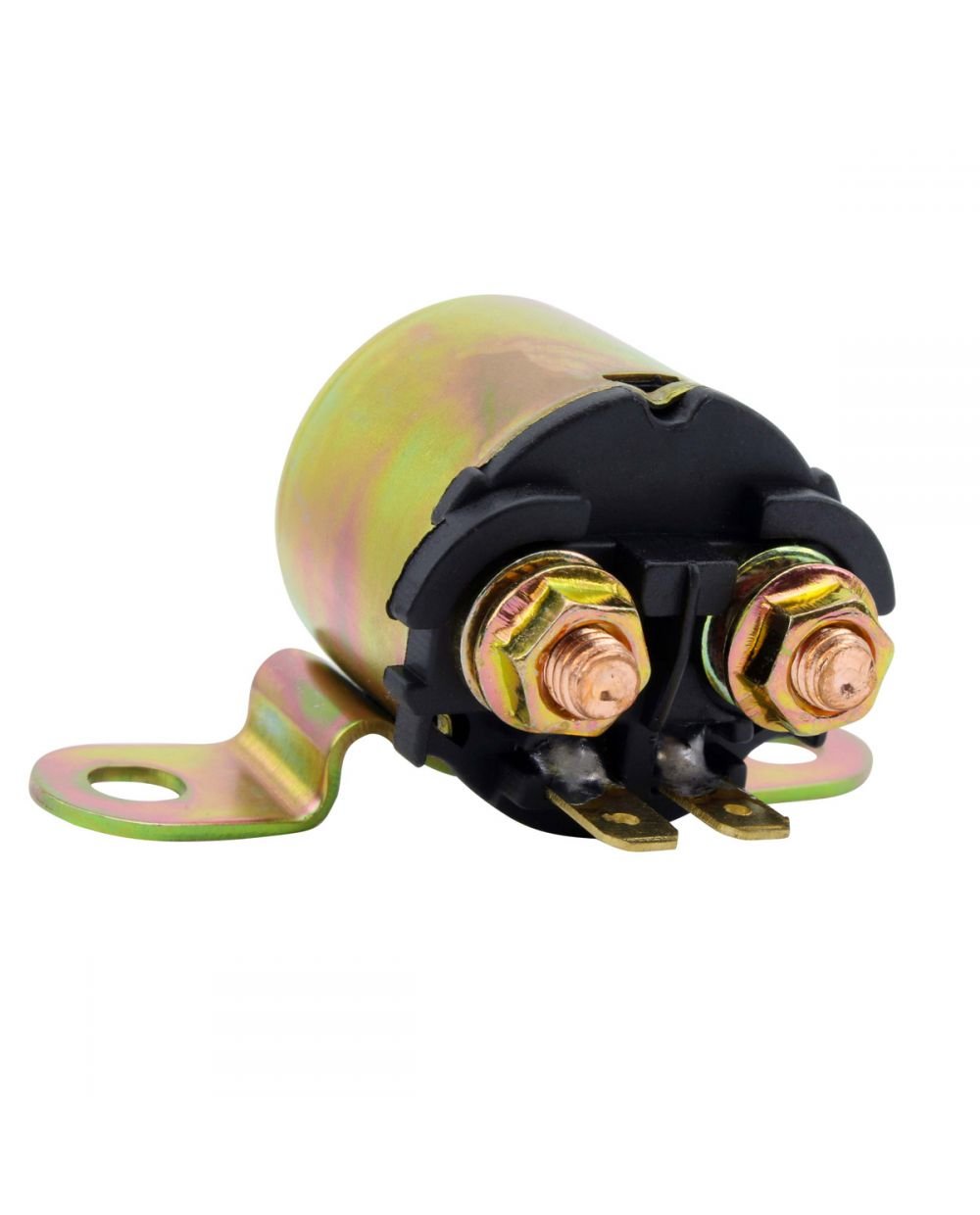

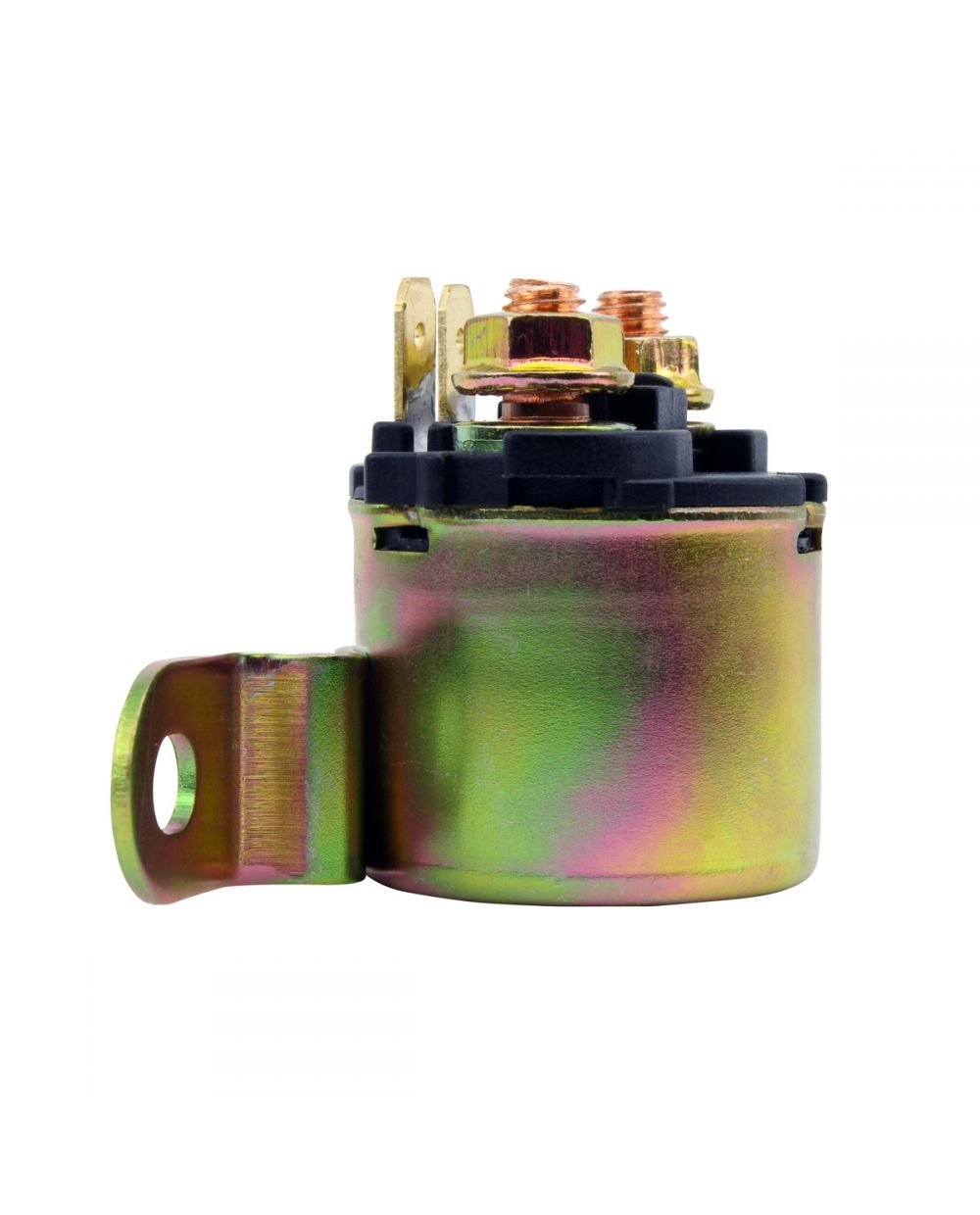

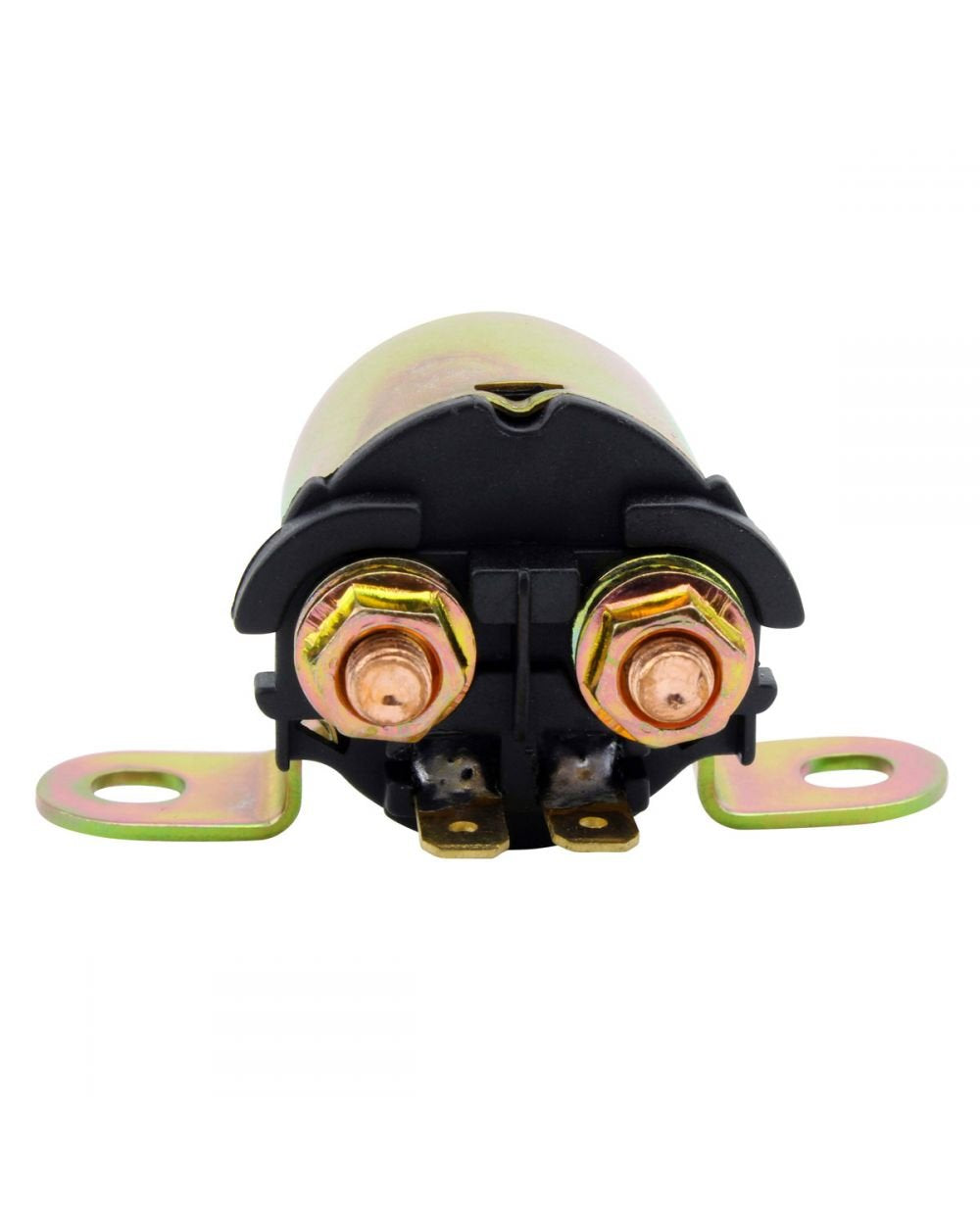

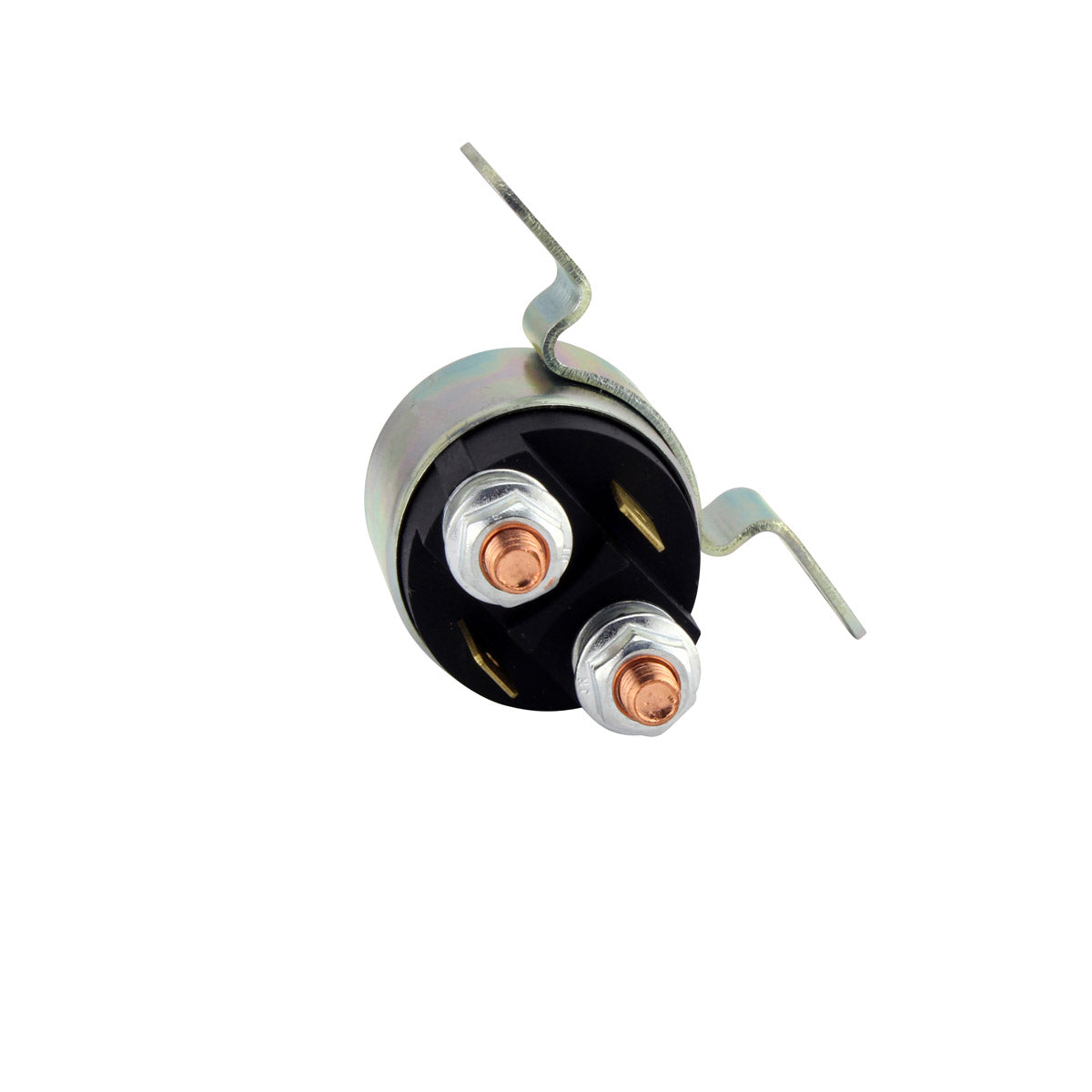

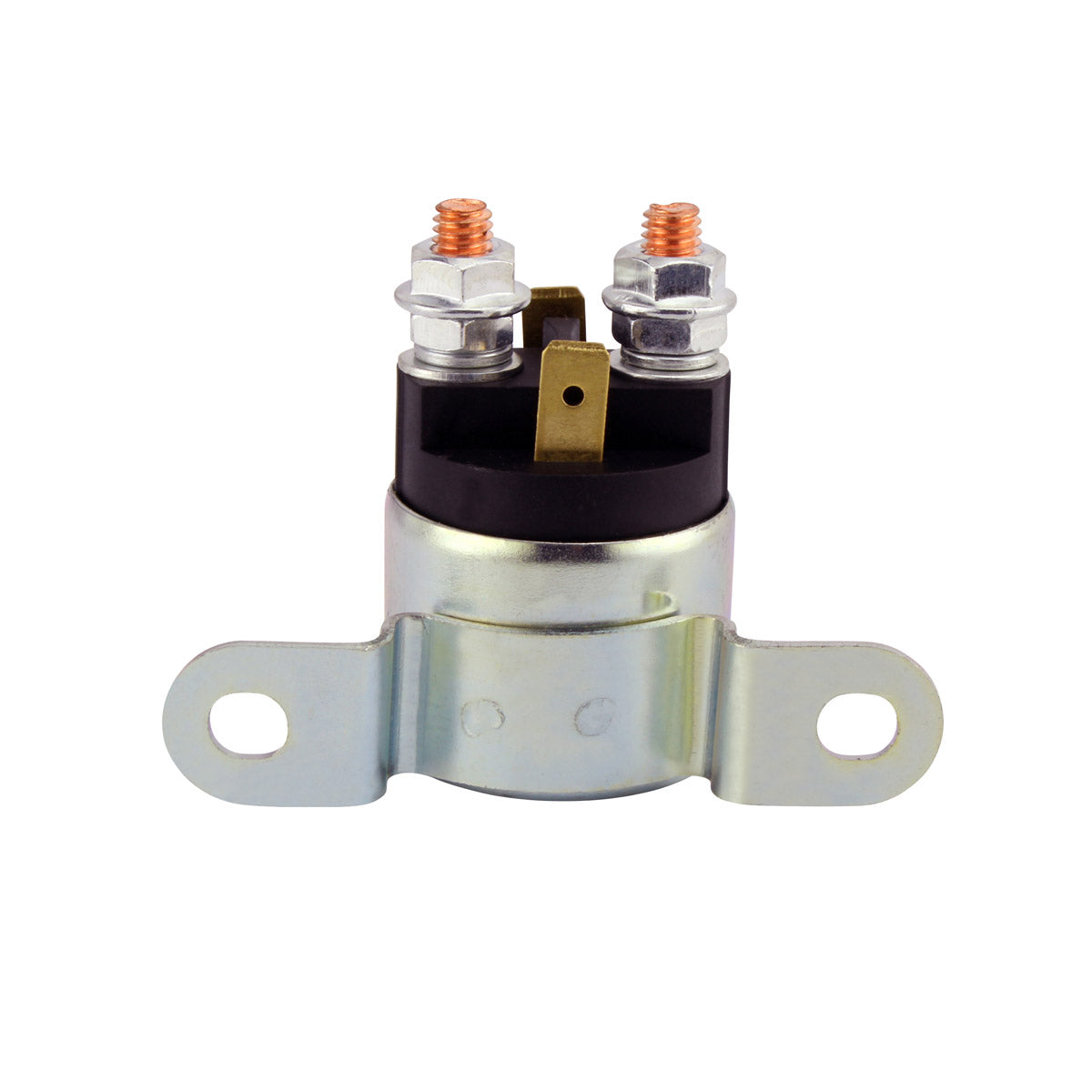

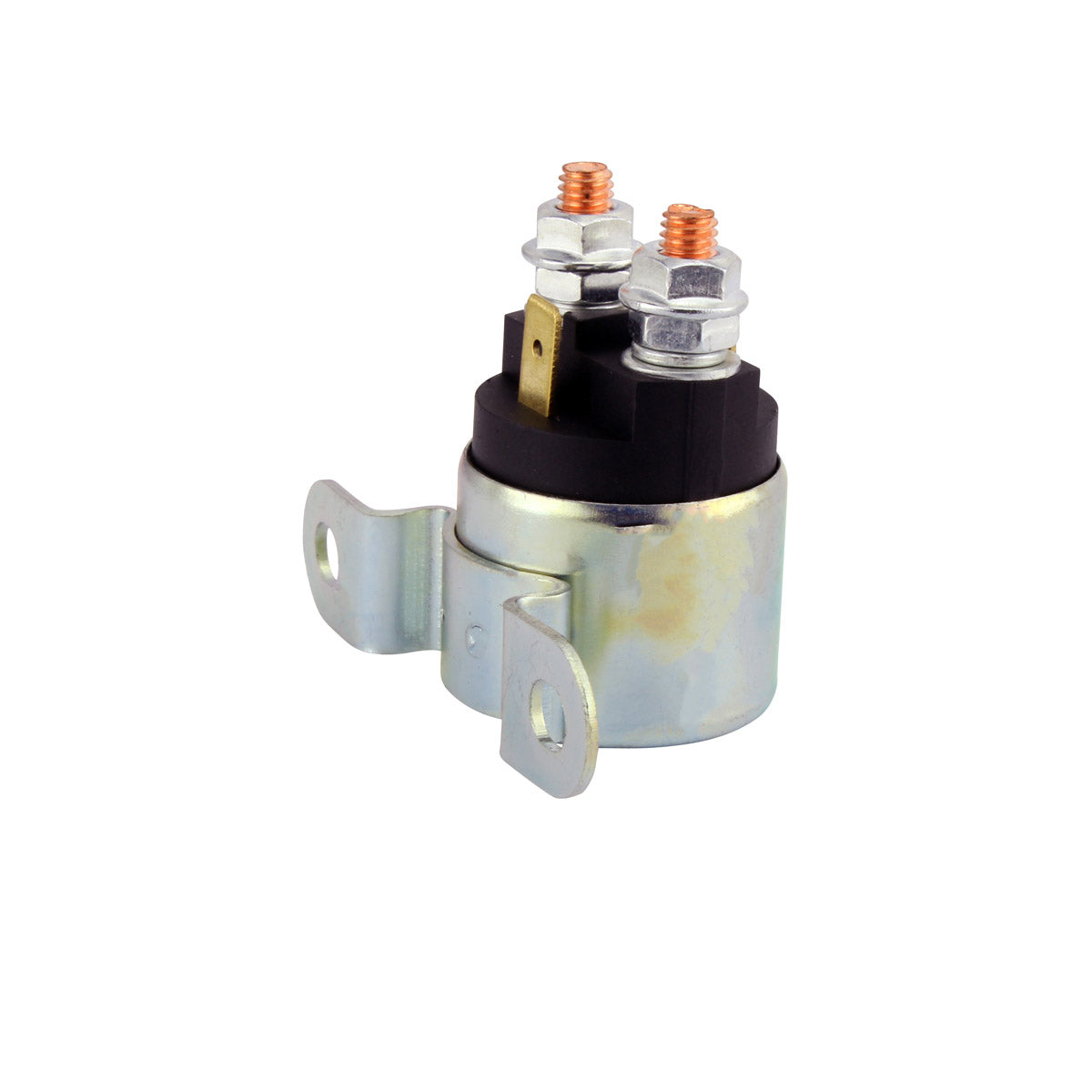

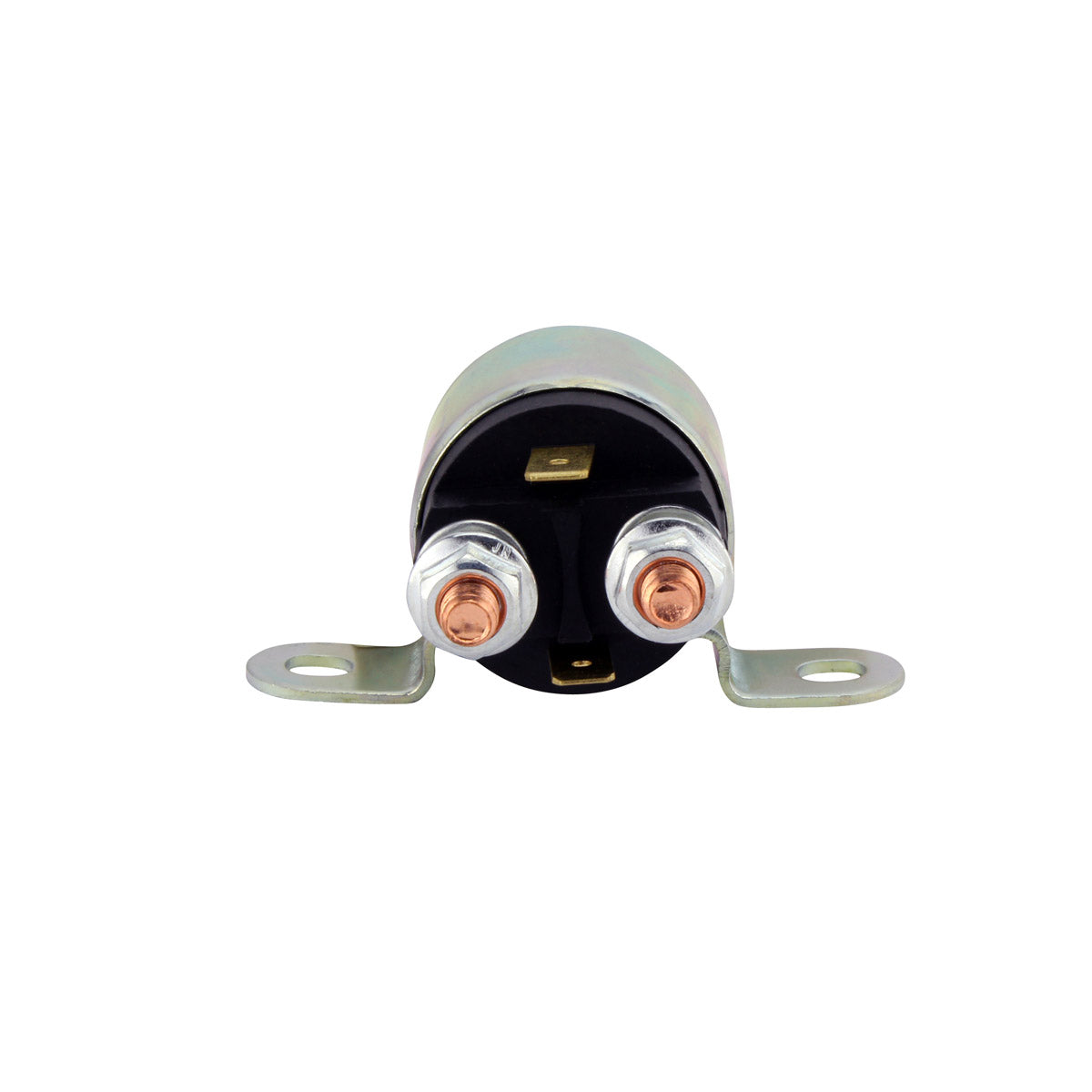

Starter Relay Solenoid - RMS090-106270
Can-Am Outlander, Renegade, Spyder, Commander and Maverick - Ski-Doo Legend, Summit and Skandic - 2000-2025
This is a brand new starter relay solenoid switch for Can-Am Outlander, Renegade, Spyder, Commander and Maverick machines and for the Ski-Doo Legend, Summit and Skandic, supplied as a direct replacement for your original unit. The relay is the heavy-duty switch that stands between the battery and the starter motor. Pressing the start button feeds a small current to the relay coil, which pulls a pair of large internal contacts together and lets the full starting current pass through to the starter. Those contacts carry hundreds of amps every time the engine is started, so they arc, pit and corrode over the years until they can no longer pass current cleanly.

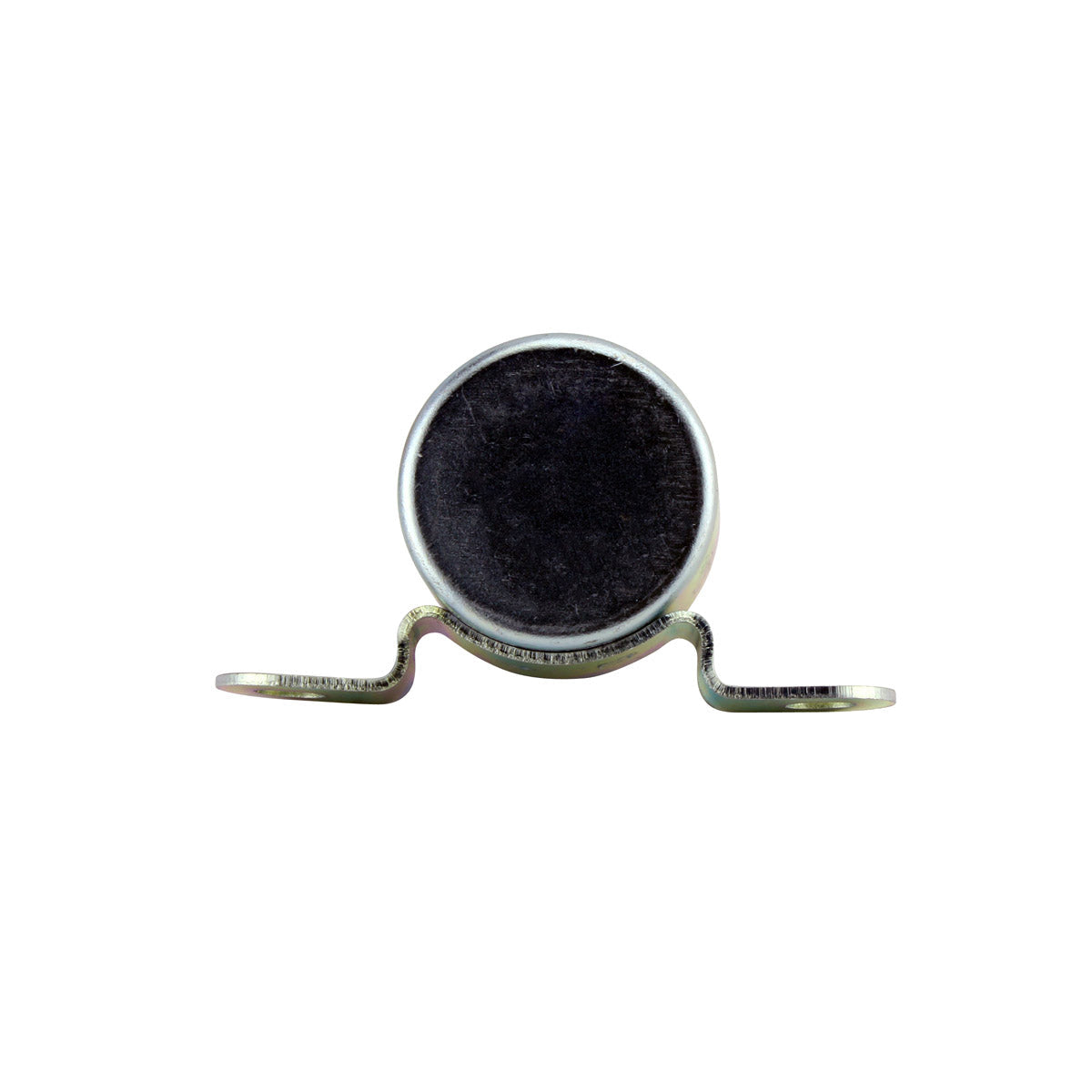

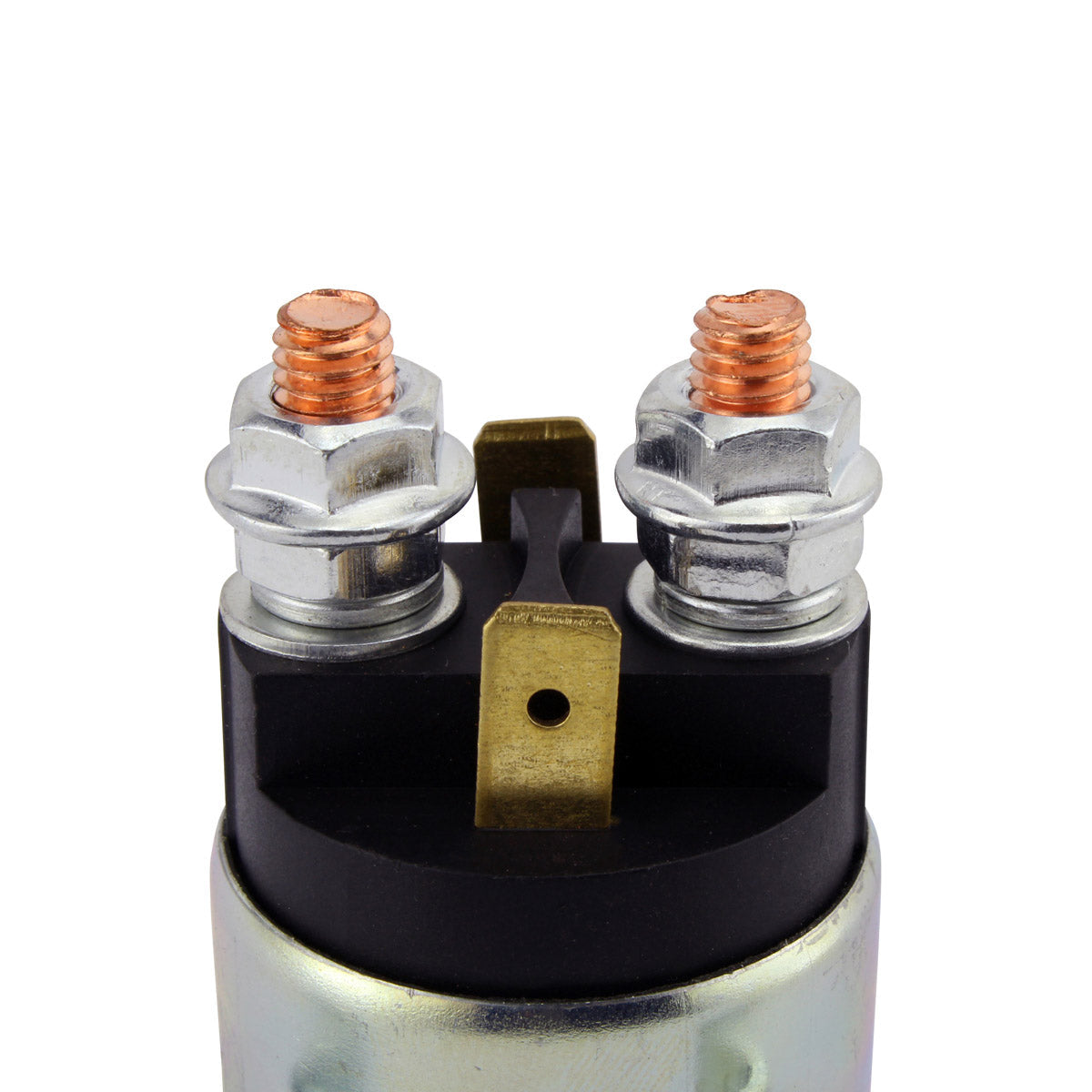

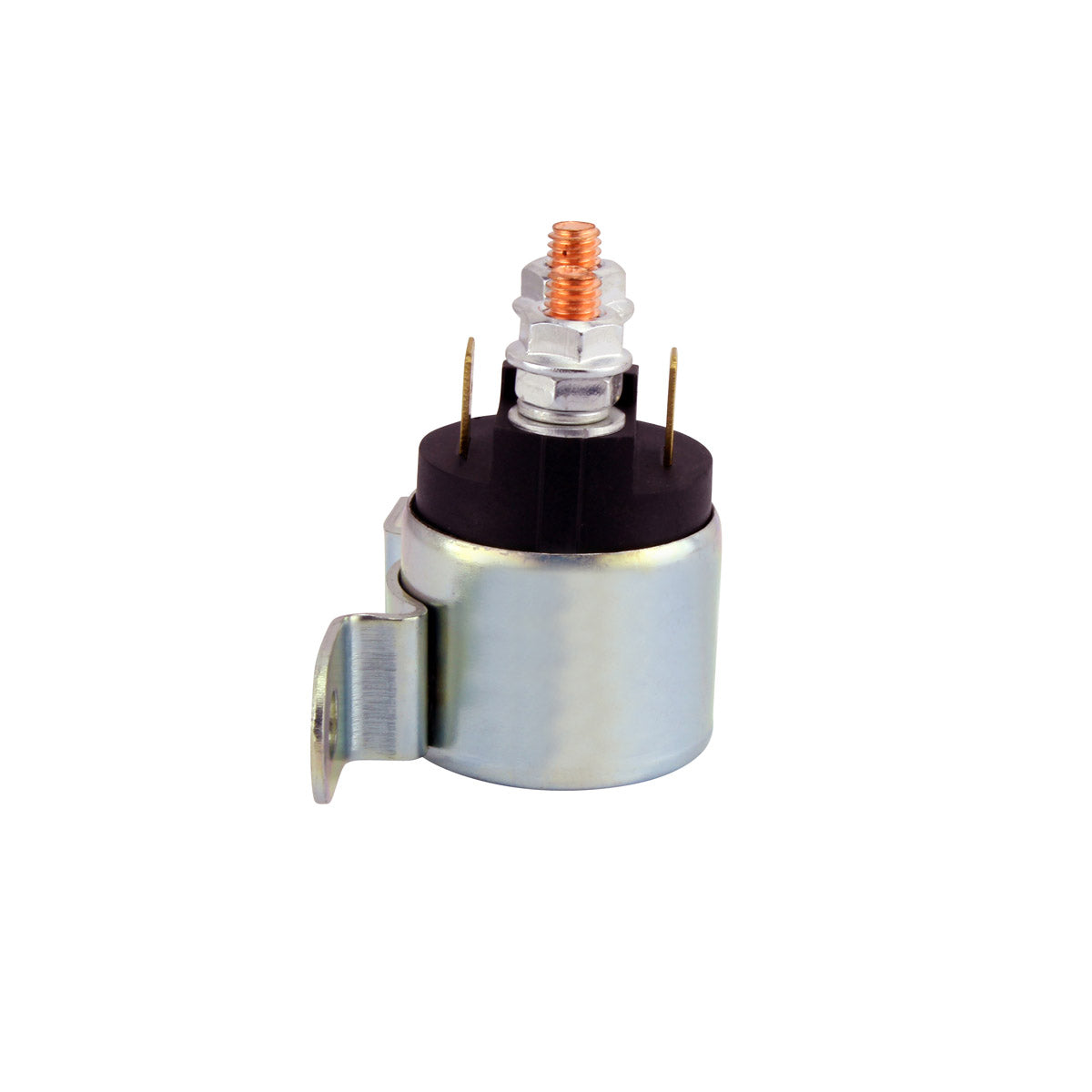

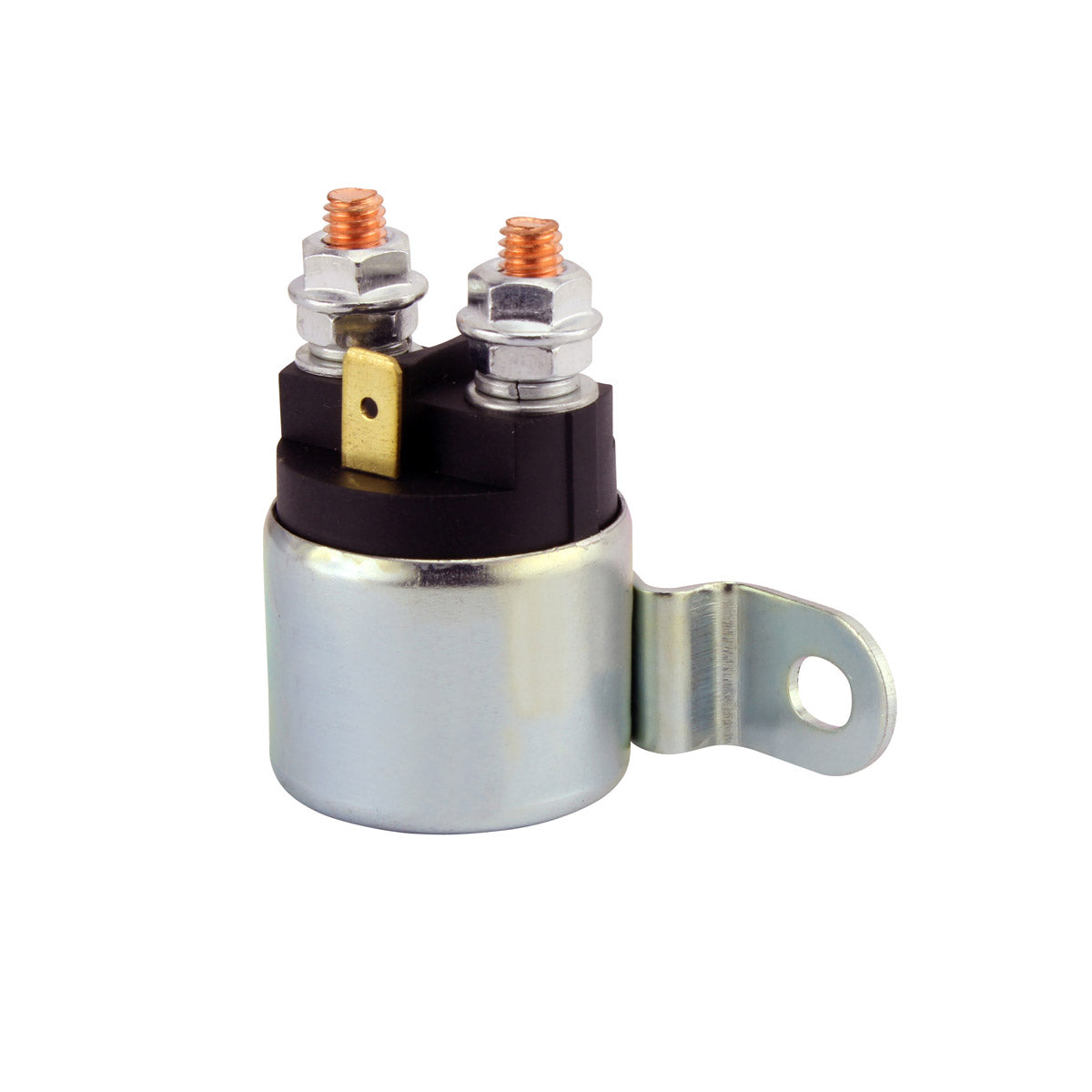

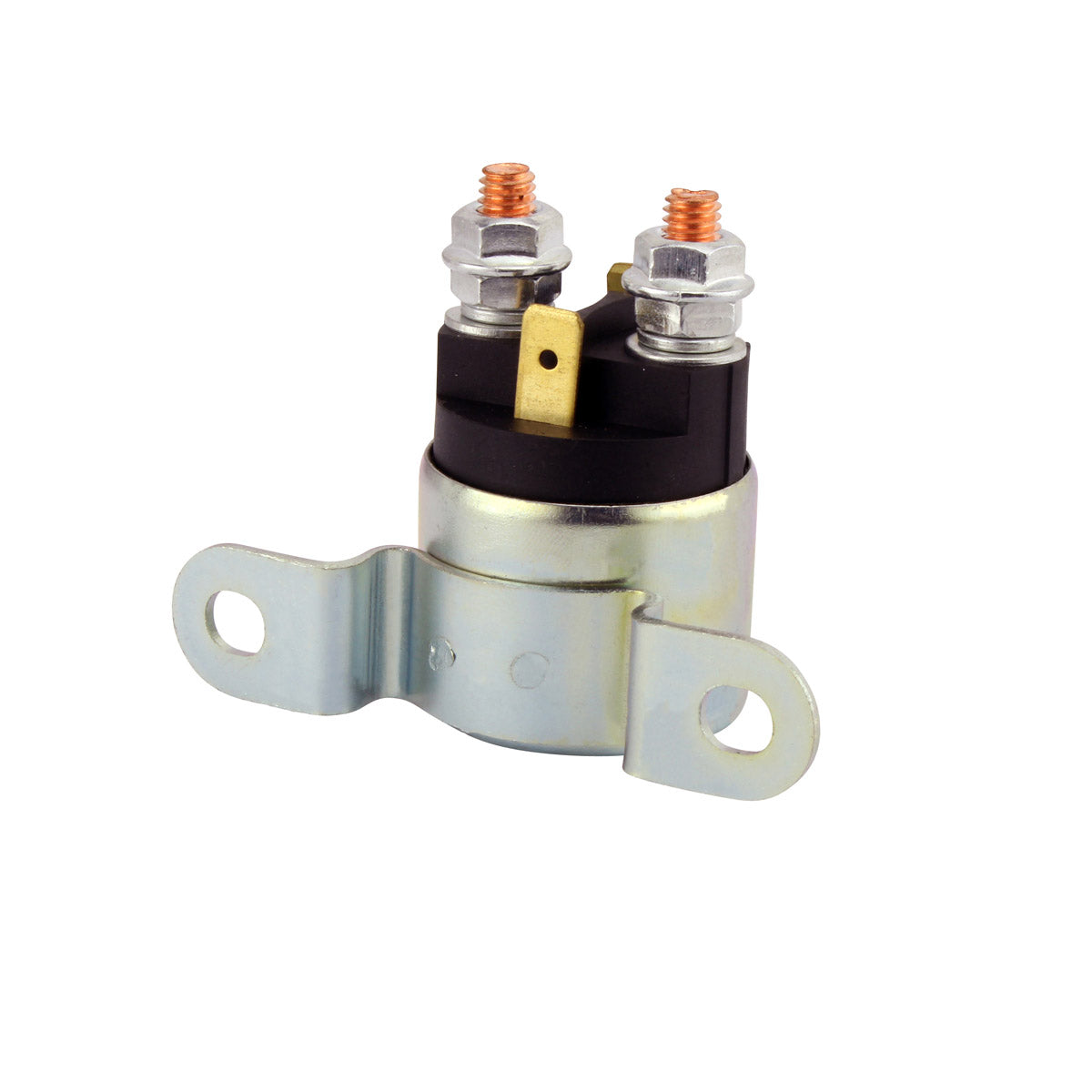

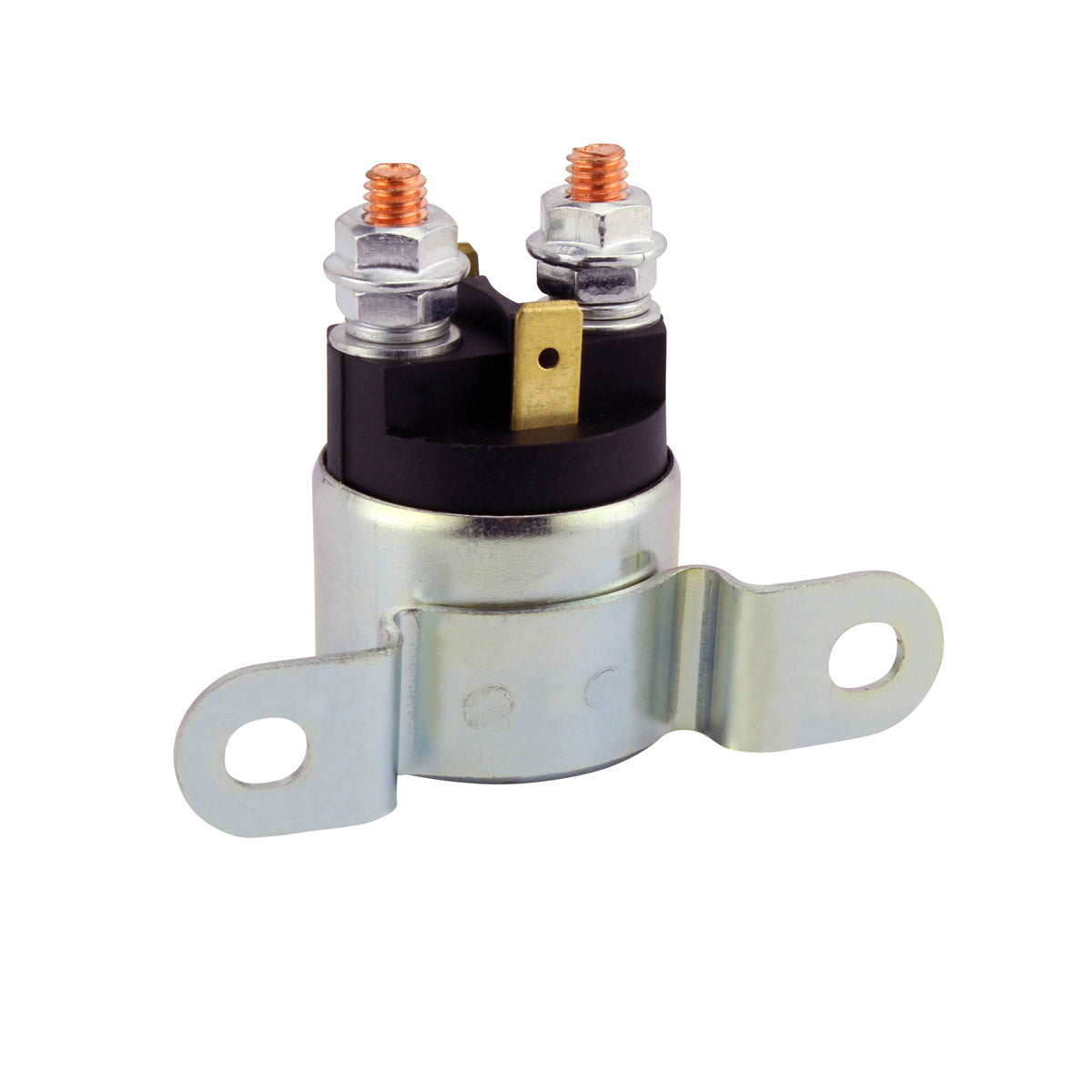

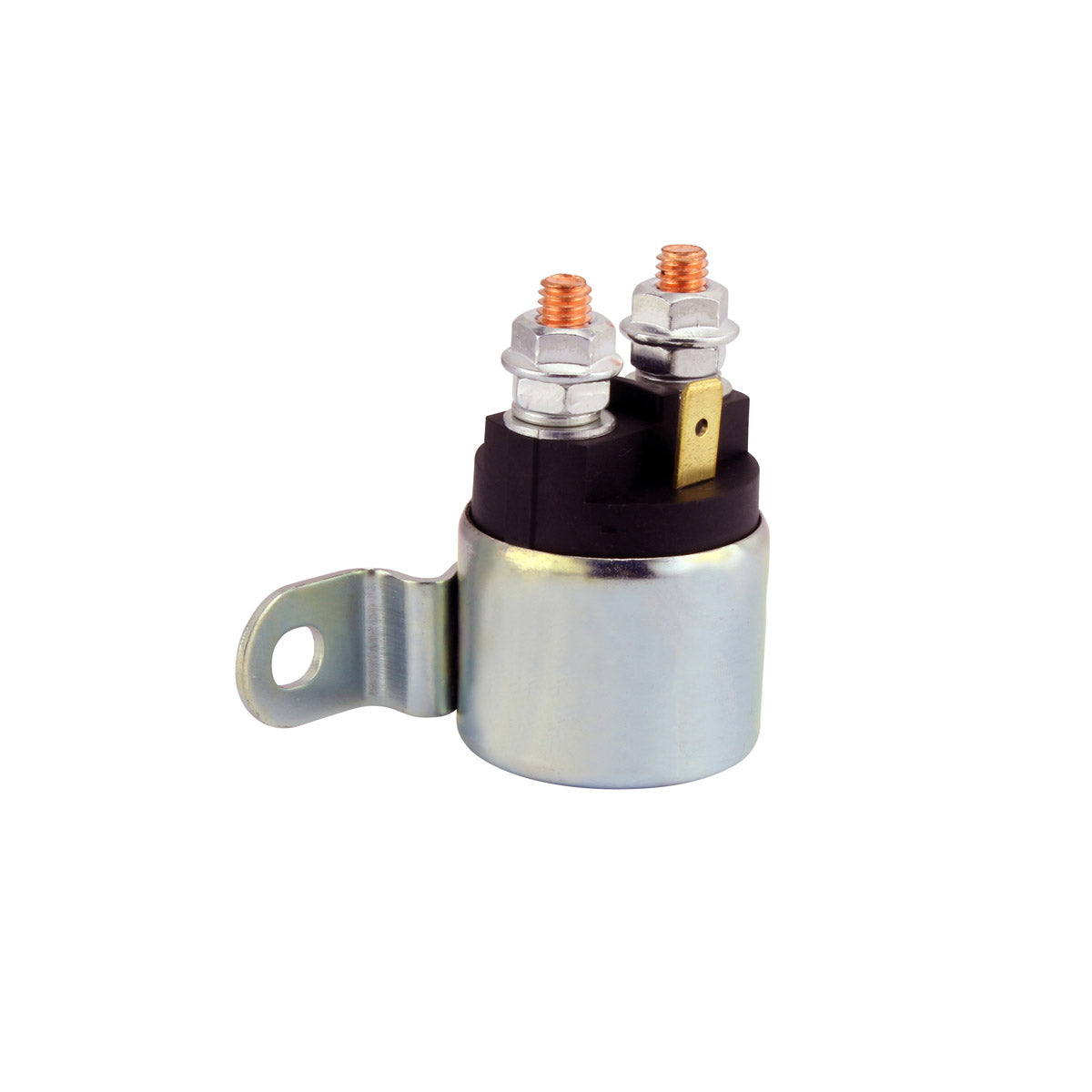

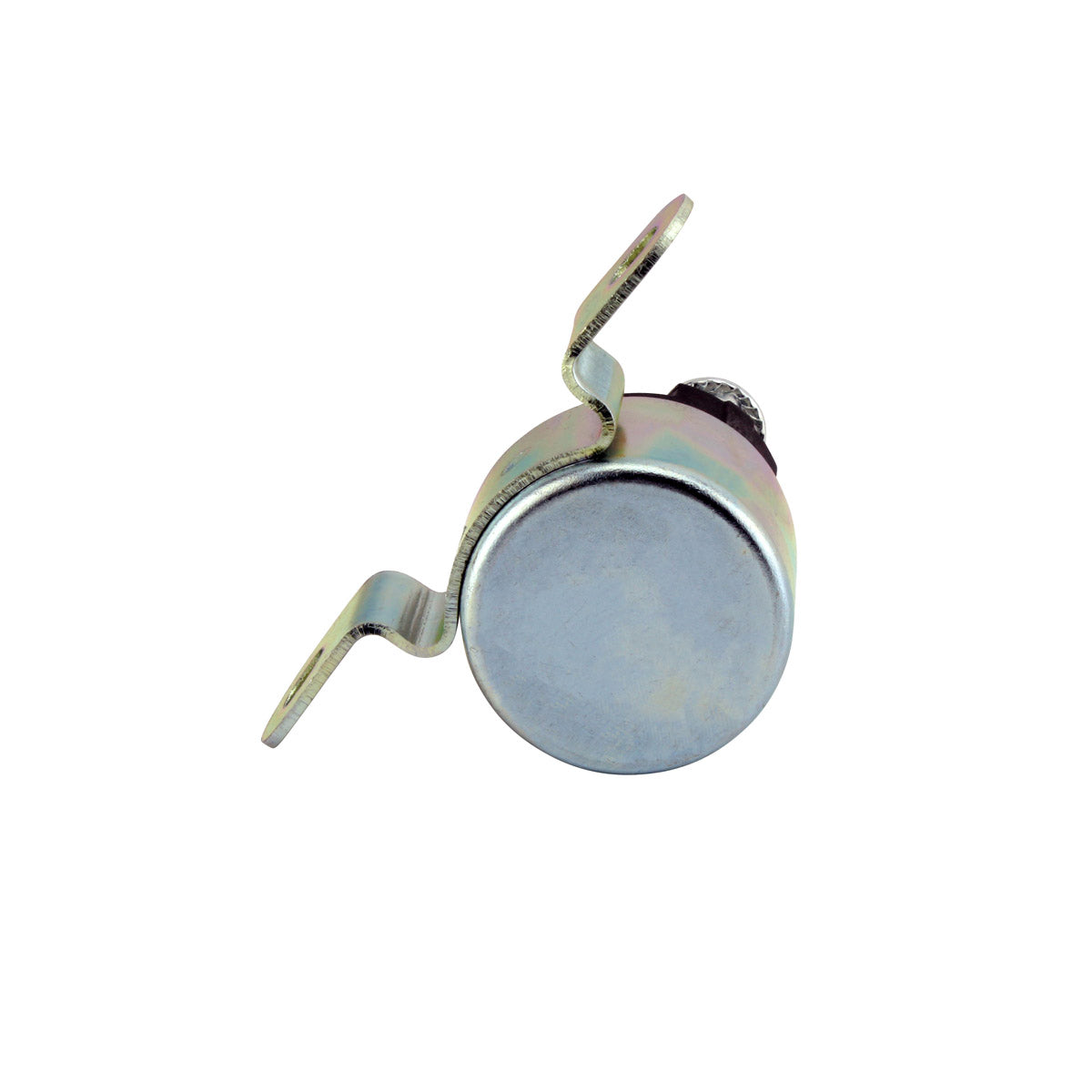

The quality of this unit exceeds the OEM equipment it replaces, and all products shipped are tested before dispatch. It reproduces the original fitting pattern, with 52 mm between the fixation holes and a compact 43 mm high, 34 mm wide body, and carries two bolts plus two terminals so the heavy battery and starter cables and the small trigger connections all land exactly where they did on the factory unit. No cutting, splicing or adapters are needed. All item pictures are accurate - if in doubt, compare our item against your original part before fitting.
Key Features
- Brand new aftermarket starter relay solenoid switch
- Quality exceeds the OEM equipment it replaces
- All products shipped are tested before dispatch
- Direct replacement for your original unit
- 52 mm between the fixation holes
- Two bolts plus two terminals - factory connections
- Compact 43 mm high, 34 mm wide body
- Cross references 710007777, 710000252 and 710001364
Technical Specs
| Specification | Detail |
|---|---|
| Part code | RMS090-106270 |
| Component type | Starter relay solenoid switch |
| Height | 43 mm |
| Width | 34 mm |
| Distance between fixation holes | 52 mm |
| Terminals | 2 bolts + 2 terminals |
| Installation type | Direct replacement |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Outlander | 2000-2025 |
| Can-Am Renegade | 2000-2025 |
| Can-Am Spyder | 2000-2025 |
| Can-Am Commander | 2000-2025 |
| Can-Am Maverick | 2000-2025 |
| Ski-Doo Legend | 2000-2025 |
| Ski-Doo Summit | 2000-2025 |
| Ski-Doo Skandic | 2000-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 710007777 | Can-Am / Ski-Doo |
| 515176011 | Can-Am / Ski-Doo |
| 710000252 | Can-Am / Ski-Doo |
| 710000111 | Can-Am / Ski-Doo |
| 710001364 | Can-Am / Ski-Doo |
Frequently Asked Questions
Does it need any modification to fit?
No. It is a direct replacement for your original unit. The fixation holes are 52 mm apart to match the factory mounting and the two bolts and two terminals match the standard connections, so no cutting, splicing or adapters are required.
What is supplied?
One brand new starter relay solenoid switch, tested before dispatch. Reuse the battery cable, starter cable, terminal nuts and mounting hardware from your old relay.
How do I know the old relay has failed?
A single loud click with no crank, rapid repeated clicking, or a starter that turns slowly on a fully charged battery are the classic symptoms. Worn contacts drop voltage before it reaches the starter, so the relay body itself often warms up after a few attempts. Starting that works when the machine is cold and fails once everything is hot points the same way.
This part covers a lot of models - how do I confirm it is right for mine?
Check the number printed on your original relay against the cross reference table above, and measure the mounting hole spacing, which should be 52 mm, and the body, which should be about 43 mm high and 34 mm wide with two bolts and two terminals. If those match, this is the correct part for your machine.
