Starter Relay Solenoid for Honda MUV700 Big Red 2009-2013
Starter Relay Solenoid for Honda MUV700 Big Red 2009-2013
SKU:RMS090-102109
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Relay Solenoid - RMS090-102109
Honda MUV700 Big Red - 2009-2013
This is a brand new starter relay solenoid switch for the Honda MUV700 Big Red utility vehicle, built as a direct replacement for the original Honda unit. The starter relay is the heavy-current switch that connects the battery to the starter motor. Turning the key sends a small current through the relay coil, which pulls a set of contacts together and allows the full battery current - several hundred amps on a machine of this size - to reach the starter. That current is exactly why the relay wears: every start cycle draws a small arc across the contact faces, and over several seasons of work use the contacts pit, oxidise and eventually stop making a clean connection.

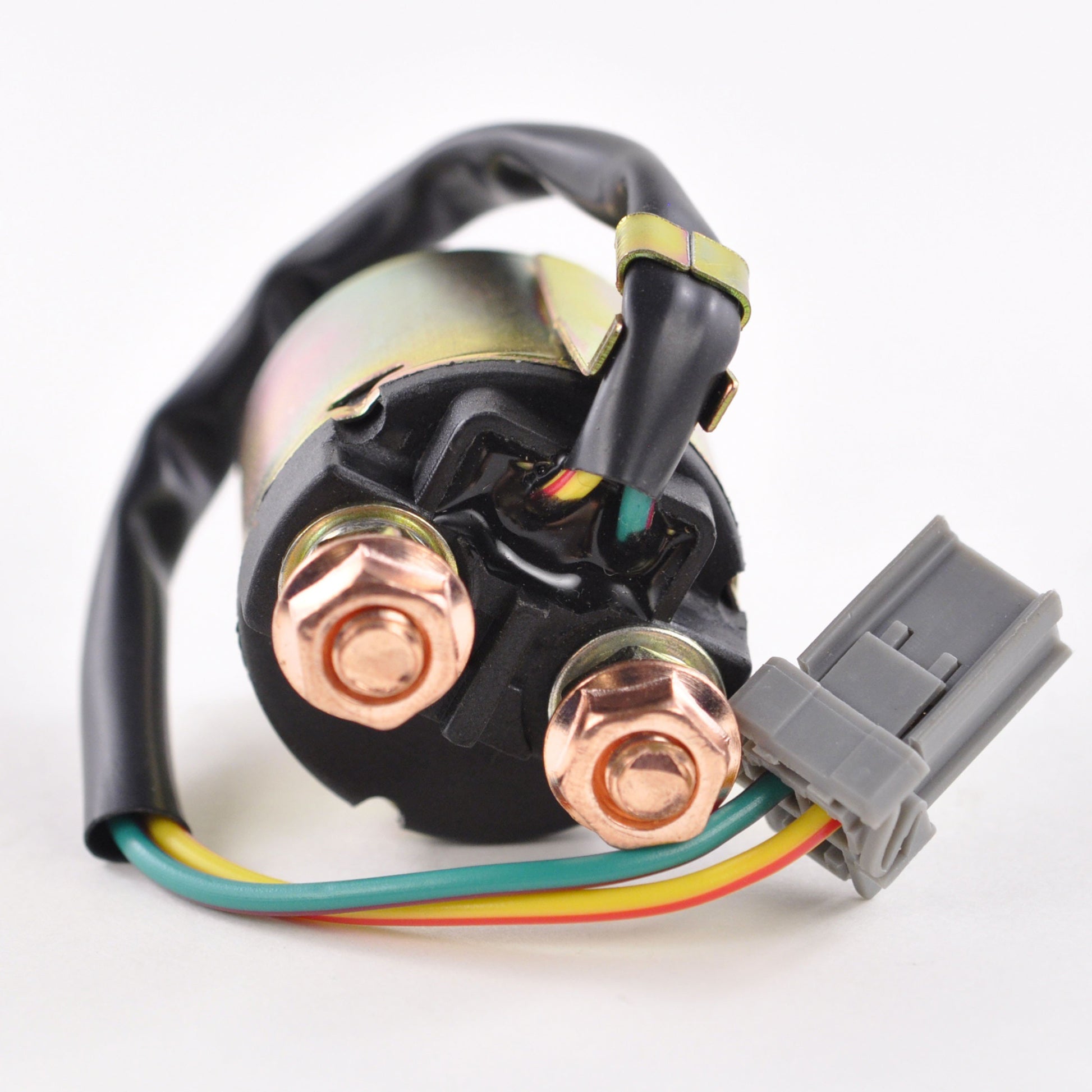

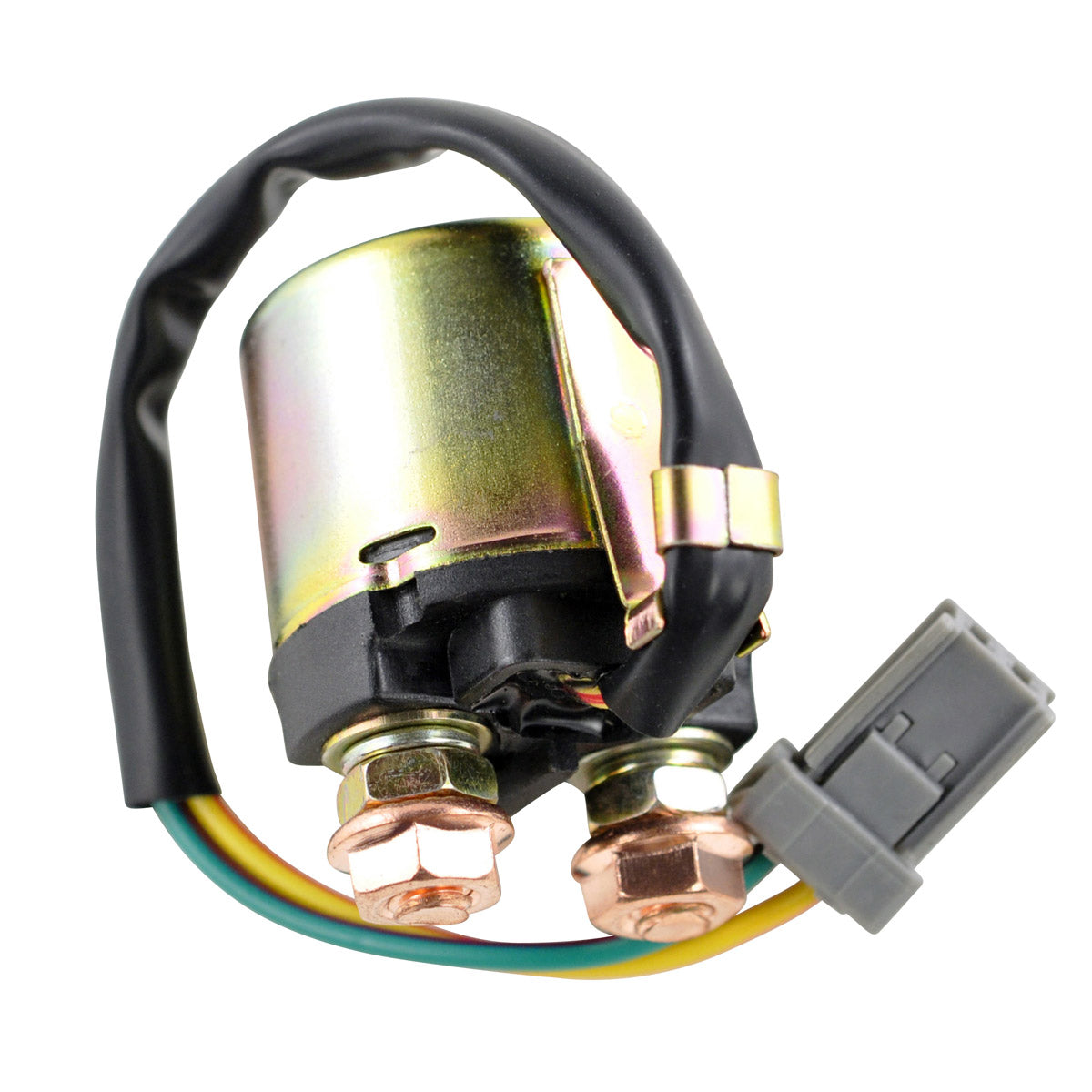

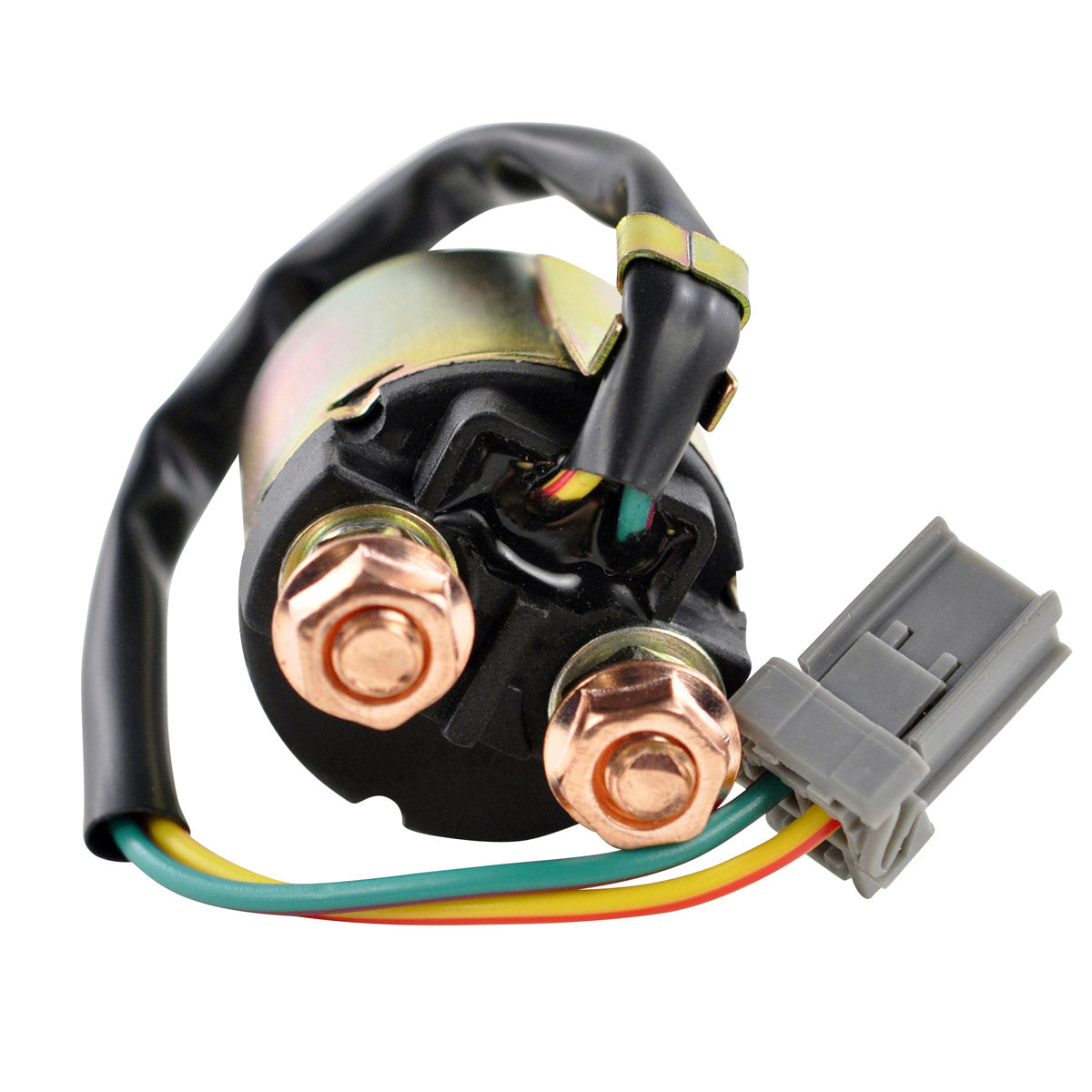

The quality of this unit exceeds the OEM equipment it replaces, and all products shipped are tested before they leave us. It is a direct replacement, carrying the same 45 mm x 32 mm x 32 mm body, a two-wire trigger lead, two heavy-duty terminals and a single plug, so it mounts in the original bracket and reconnects to the factory loom and battery cables without cutting, splicing or adapters. All item pictures are accurate - if you are in any doubt, compare our item directly with your original part before fitting.
Key Features
- Brand new aftermarket starter relay solenoid switch
- Quality exceeds the OEM equipment it replaces
- All products shipped are tested
- Direct replacement - no modification needed

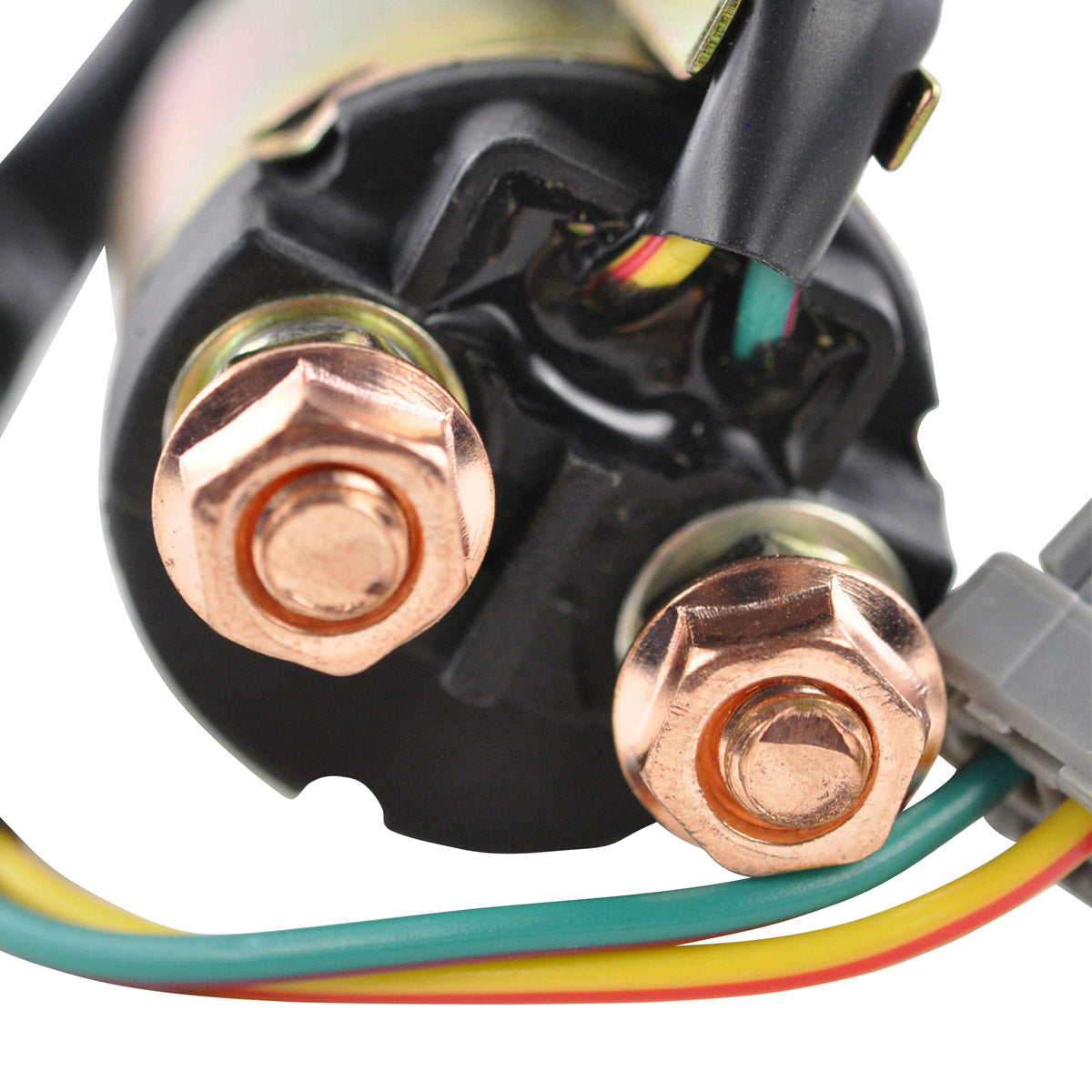

- Two-wire trigger lead with two heavy-duty terminals

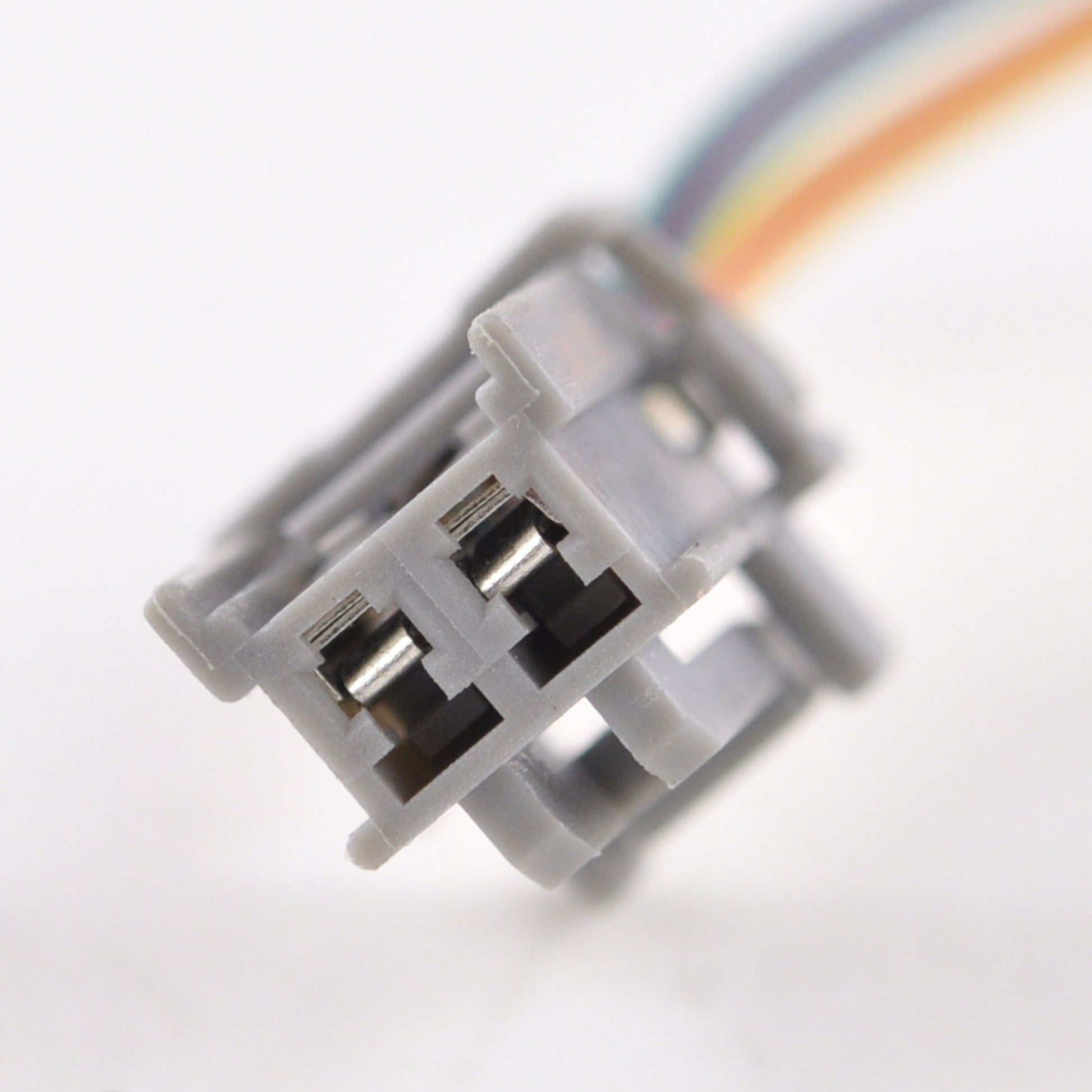

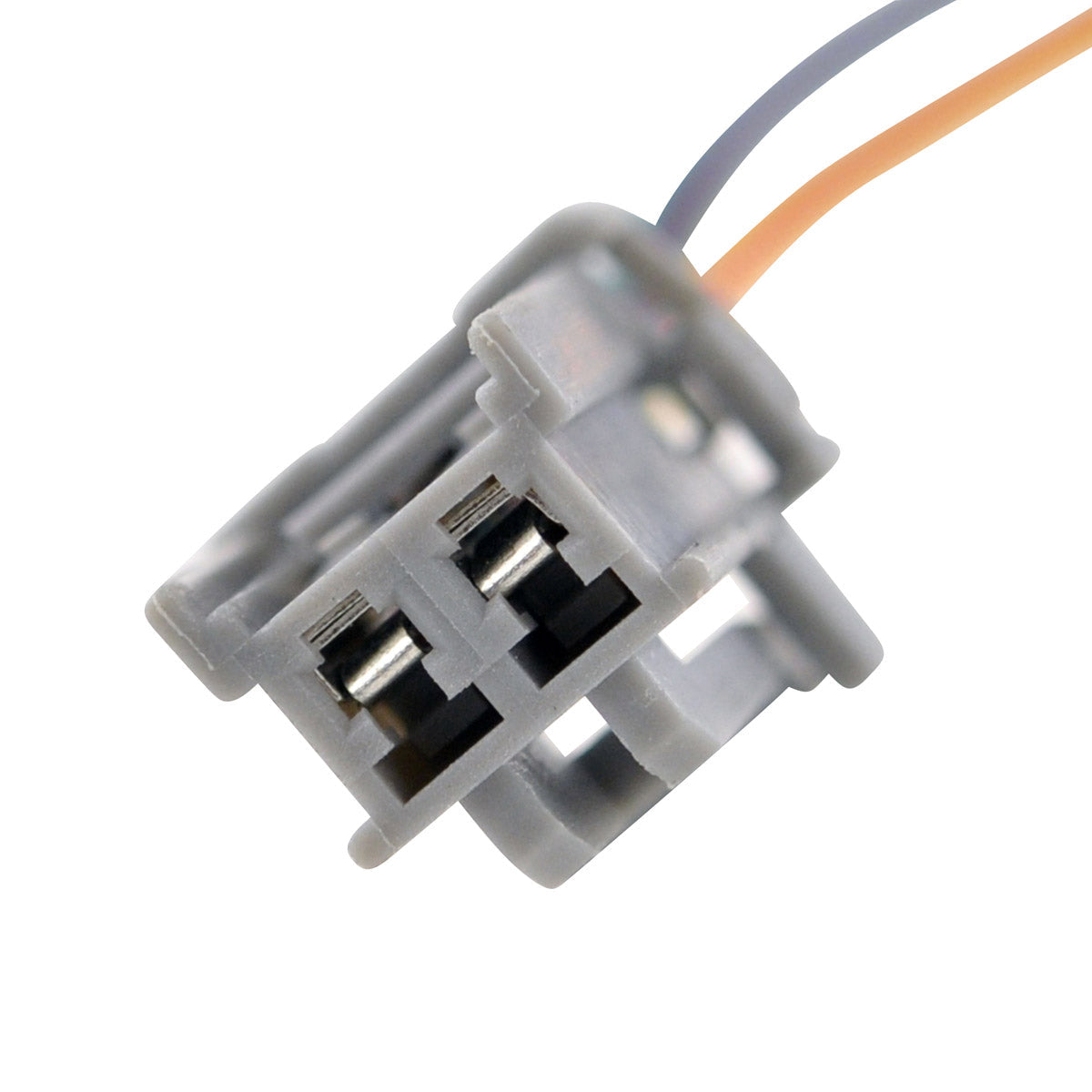

- Single plug matching the factory connector
- Compact 45 mm x 32 mm x 32 mm body
- Cross references Honda 35850-HL1-A01
Technical Specs
| Specification | Detail |
|---|---|
| Part code | RMS090-102109 |
| Component type | Starter relay solenoid switch |
| Height | 45 mm |
| Length | 32 mm |
| Width | 32 mm |
| Number of wires | 2 |
| Number of terminals | 2 |
| Number of plugs | 1 |
| Installation | Direct replacement |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda MUV700 Big Red | 2009-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 35850-HL1-A01 | Honda |
Frequently Asked Questions
Do I have to modify anything to fit this relay?
No. It is a direct replacement for the Honda original. The body measures 45 mm x 32 mm x 32 mm and it uses the same two wires, two terminals and single plug as the factory unit, so it fits the original mounting point and connects straight into the existing loom.
What is included?
One brand new starter relay solenoid switch, tested before dispatch. Your existing battery cable, starter cable, terminal nuts and mounting rubber are reused from the old unit.
How do I tell whether the relay or the battery has failed?
Watch the lights while an assistant turns the key. If the headlights and dash stay bright but the machine only clicks once, or clicks rapidly without turning the engine, the relay contacts are the likely fault. If the lights dim heavily or go out, the problem is more likely the battery or a corroded battery cable. Intermittent starting that gets worse when the machine is hot is another classic sign of worn relay contacts.
Is this the correct part for my Big Red?
This unit covers the Honda MUV700 Big Red from 2009 to 2013 and cross references Honda part number 35850-HL1-A01. Check that number against the one on your original relay - it is the most reliable confirmation before ordering.
