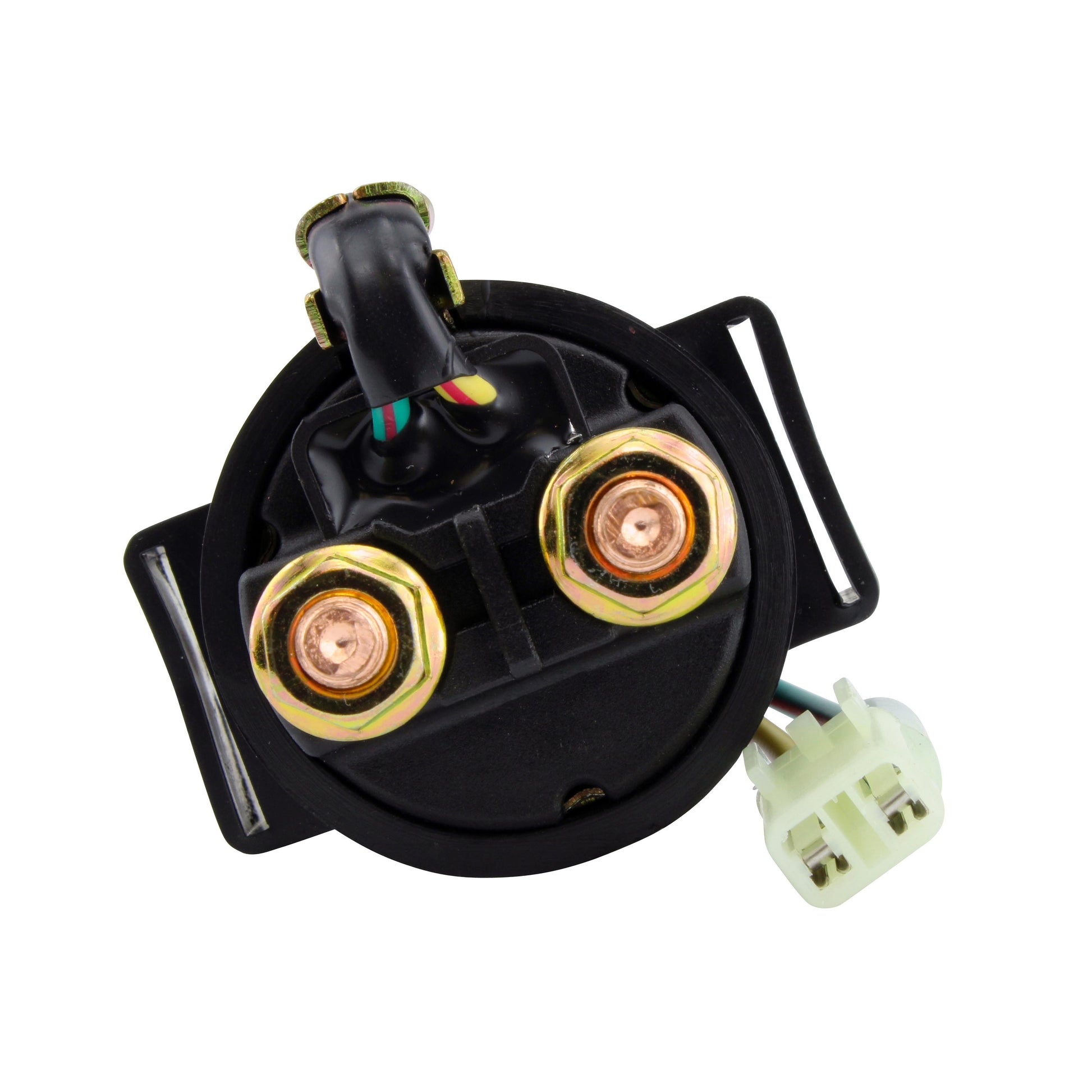

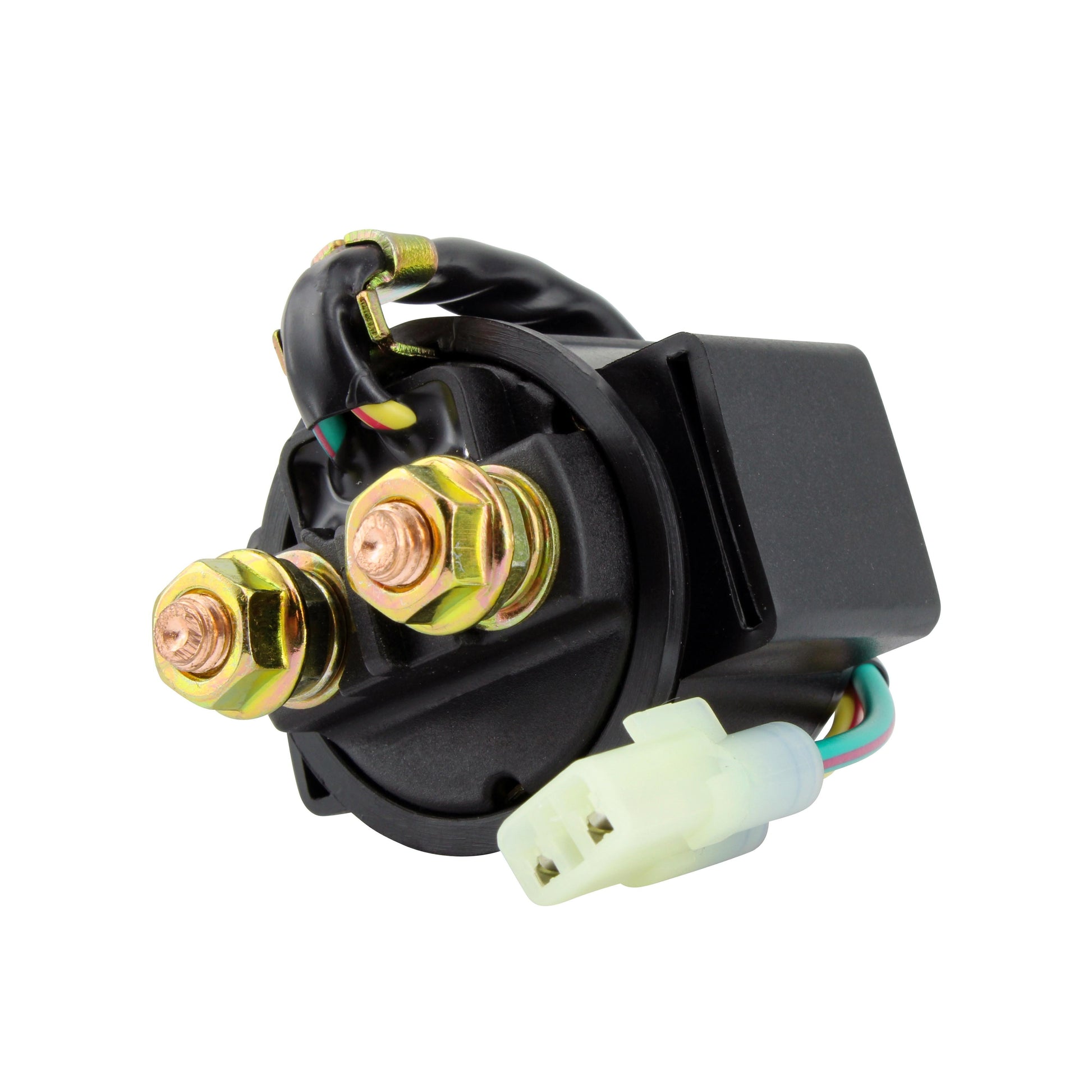

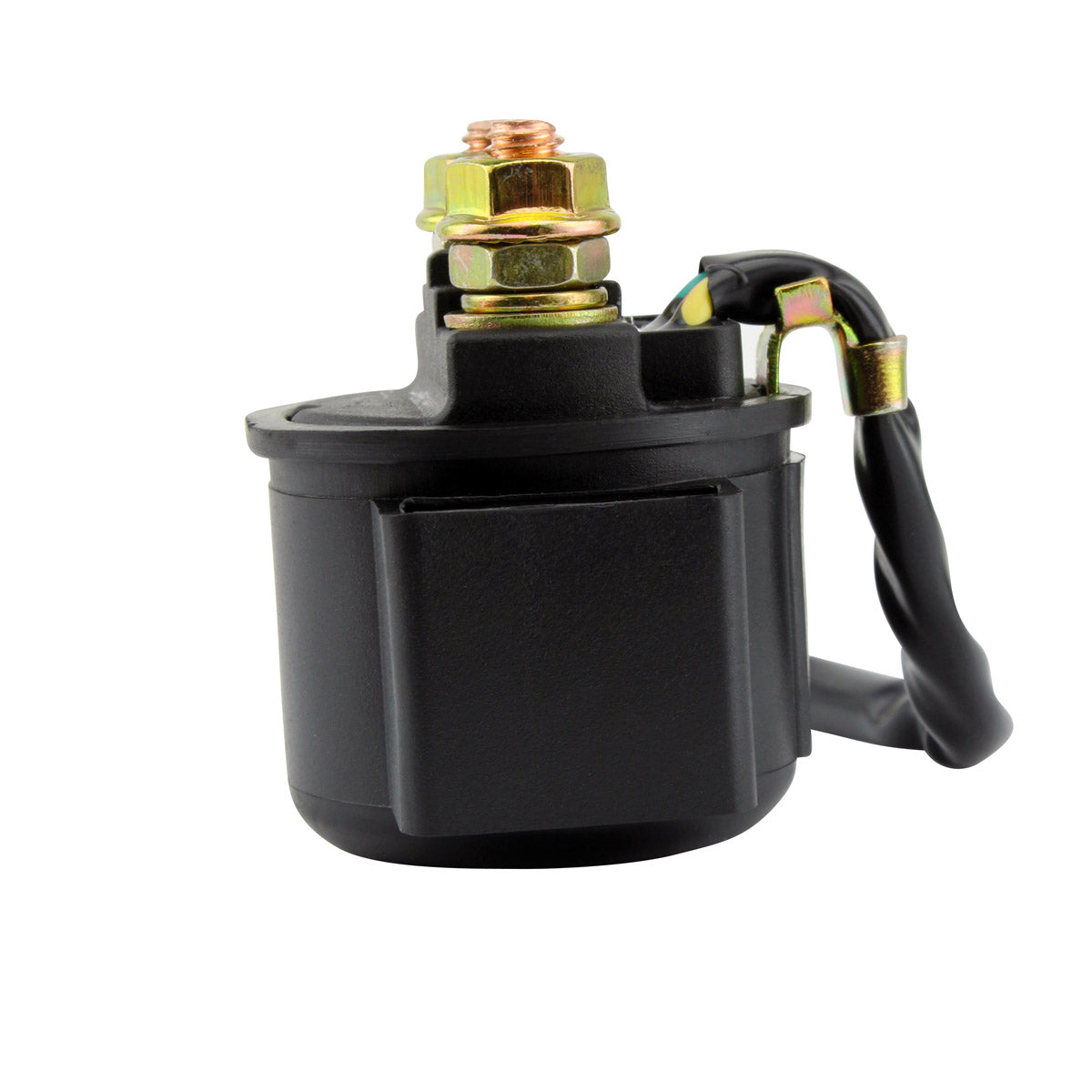

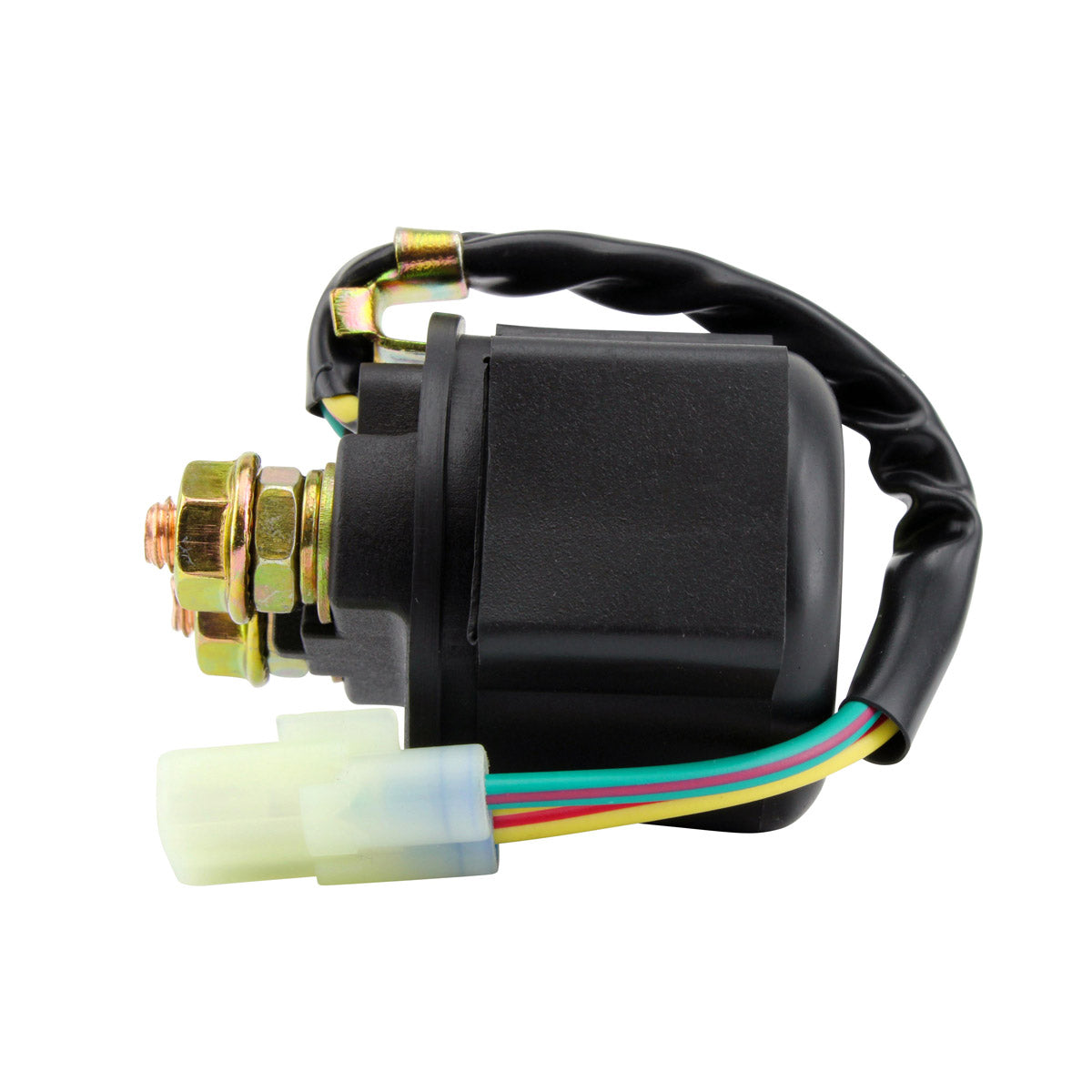

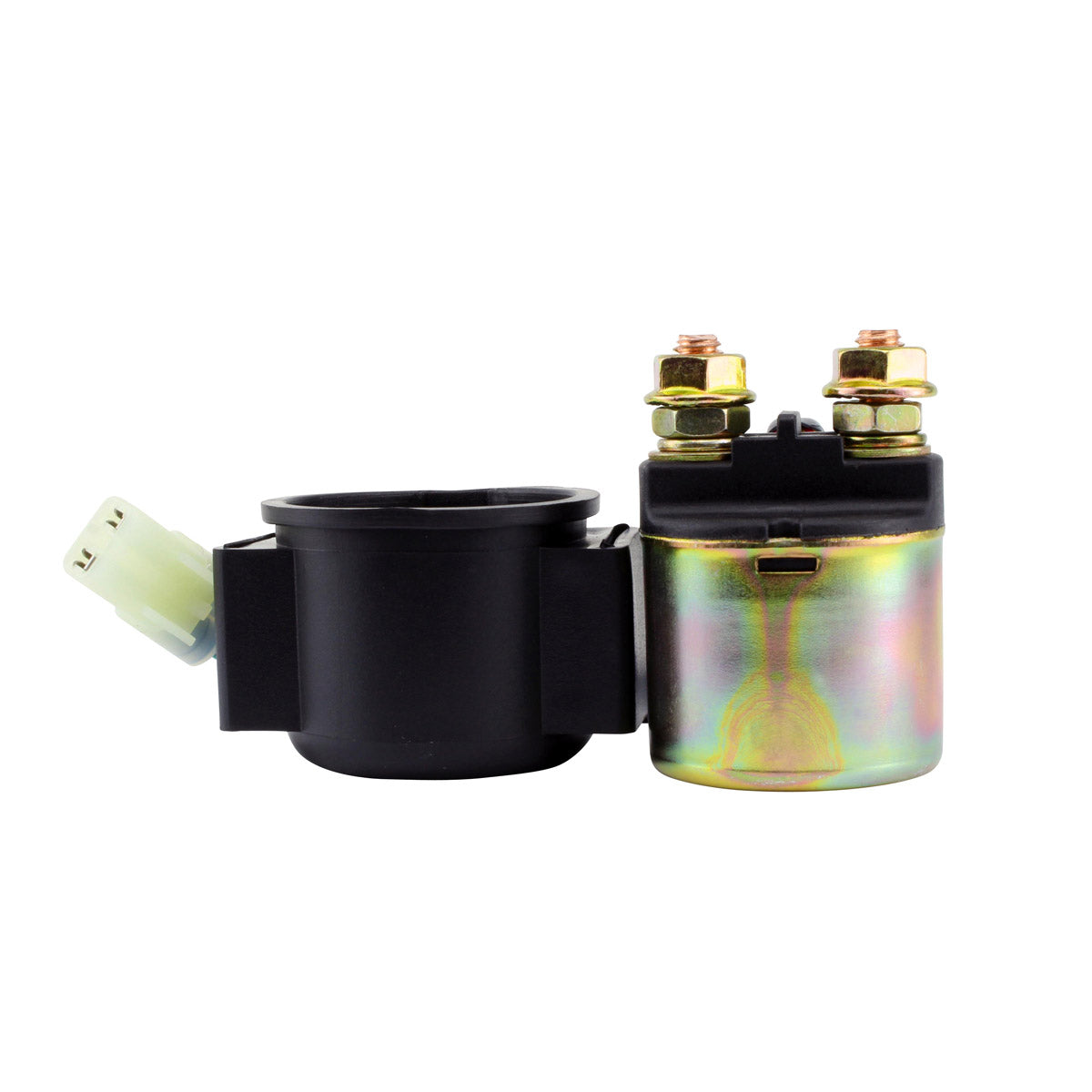

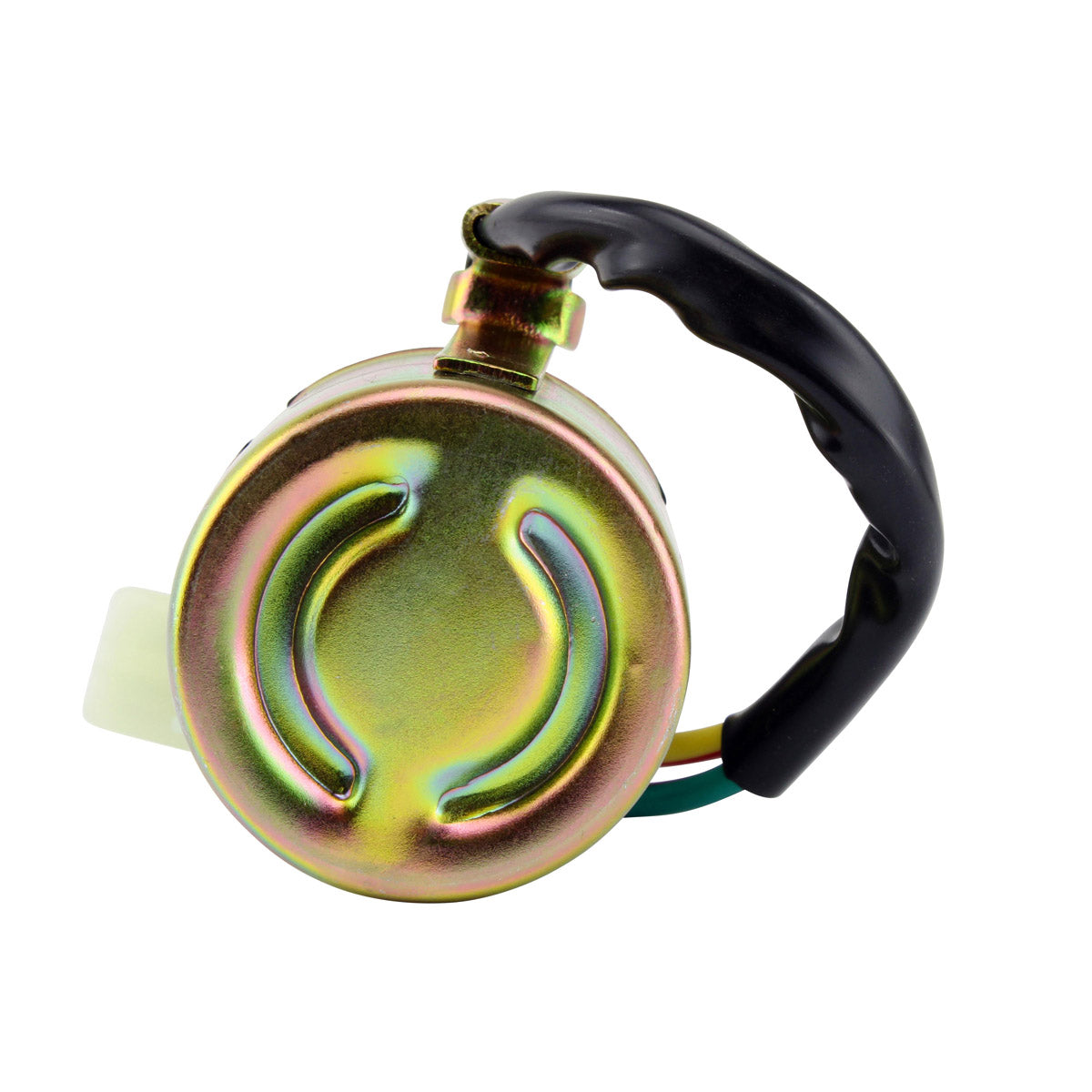

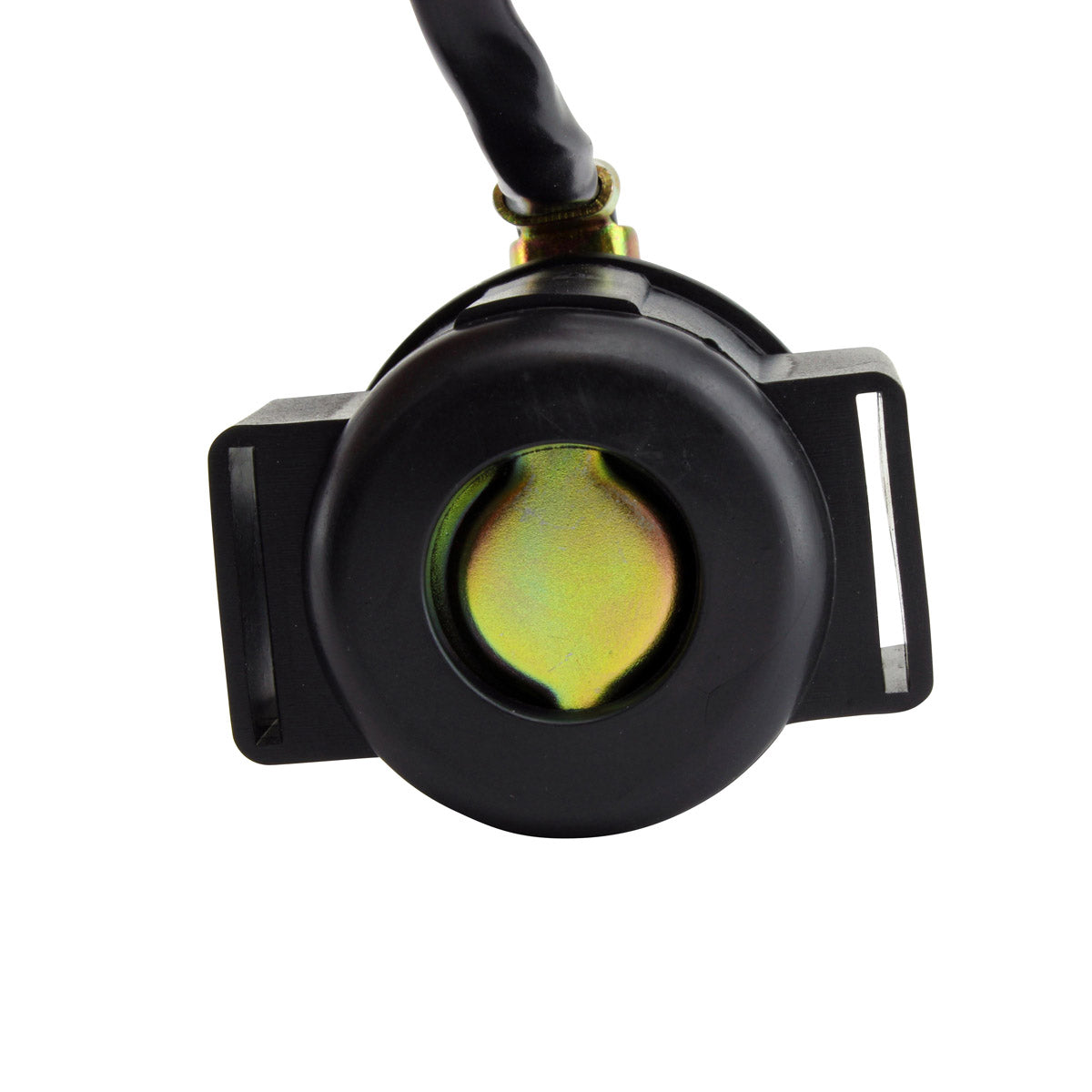

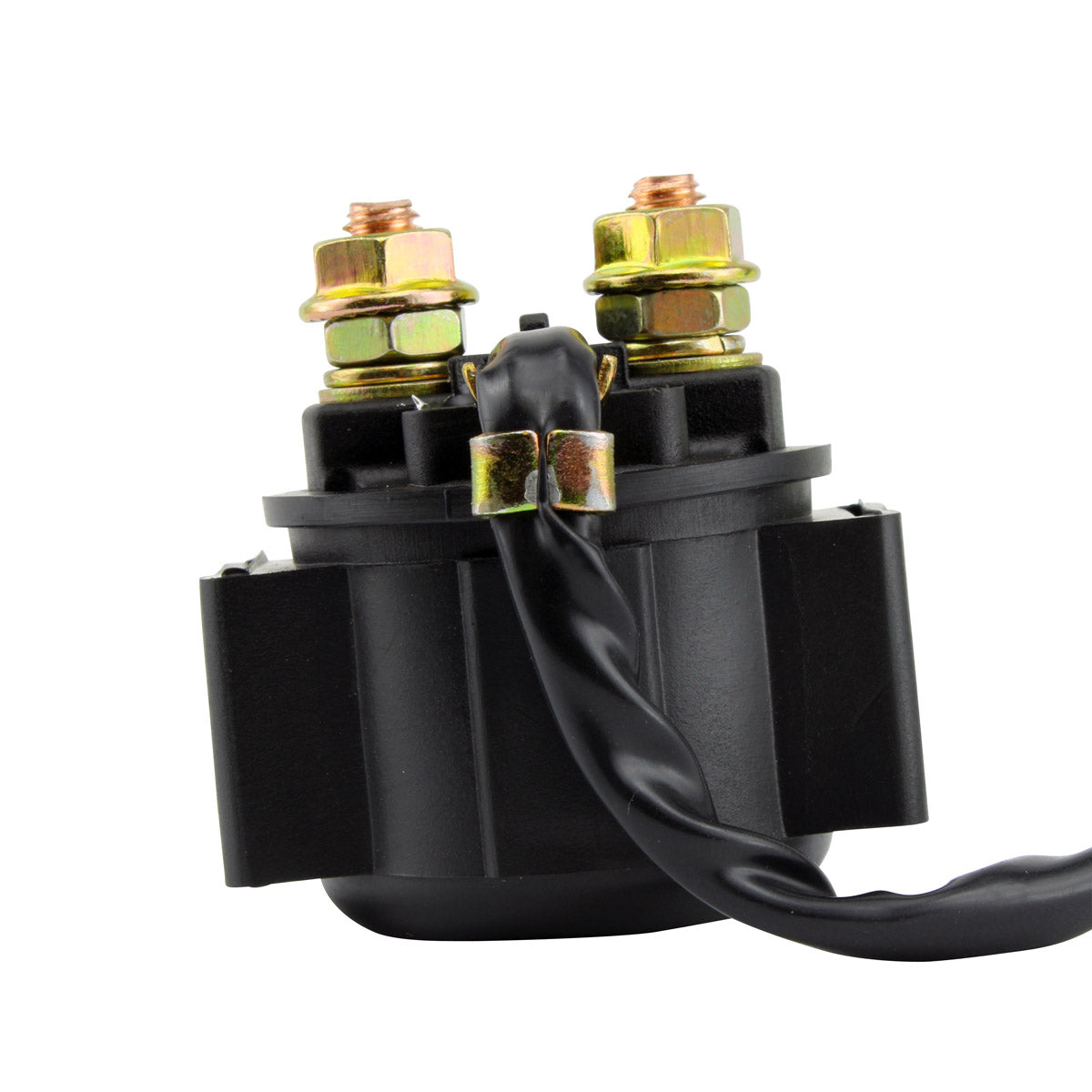

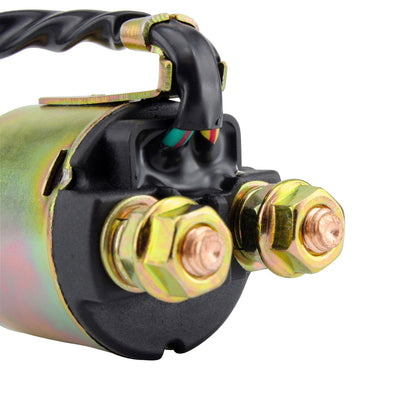

This is a brand new starter relay solenoid switch for the Honda TRX 700 XX quad and the SXS 500 Pioneer and SXS 1000 Talon side-by-sides, supplied as a direct replacement to your original unit. The relay is the high-current switch that links the battery to the starter motor. A small current from the start circuit energises the relay coil, which closes a pair of heavy contacts and lets the full starting current through. Those contacts take the entire load every time the engine is started, so they arc, pit and corrode over time until the relay can no longer pass current cleanly - the usual cause of a machine that clicks but will not crank.
The quality of this unit exceeds the OEM equipment it replaces, and all products shipped are tested before dispatch. It reproduces the original fitting dimensions exactly, including the 44 mm spacing between the fixation holes and the 120 mm trigger lead, so it bolts into the factory bracket and reconnects to the standard loom and battery cables with no cutting, splicing or adapters. All item pictures are accurate - if in doubt, compare our item to your original part before fitting.
Key Features
- Brand new aftermarket starter relay solenoid switch
- Quality exceeds the OEM equipment it replaces
- All products shipped are tested
- Direct replacement to your original unit
- 44 mm between fixation holes - bolts to the factory bracket

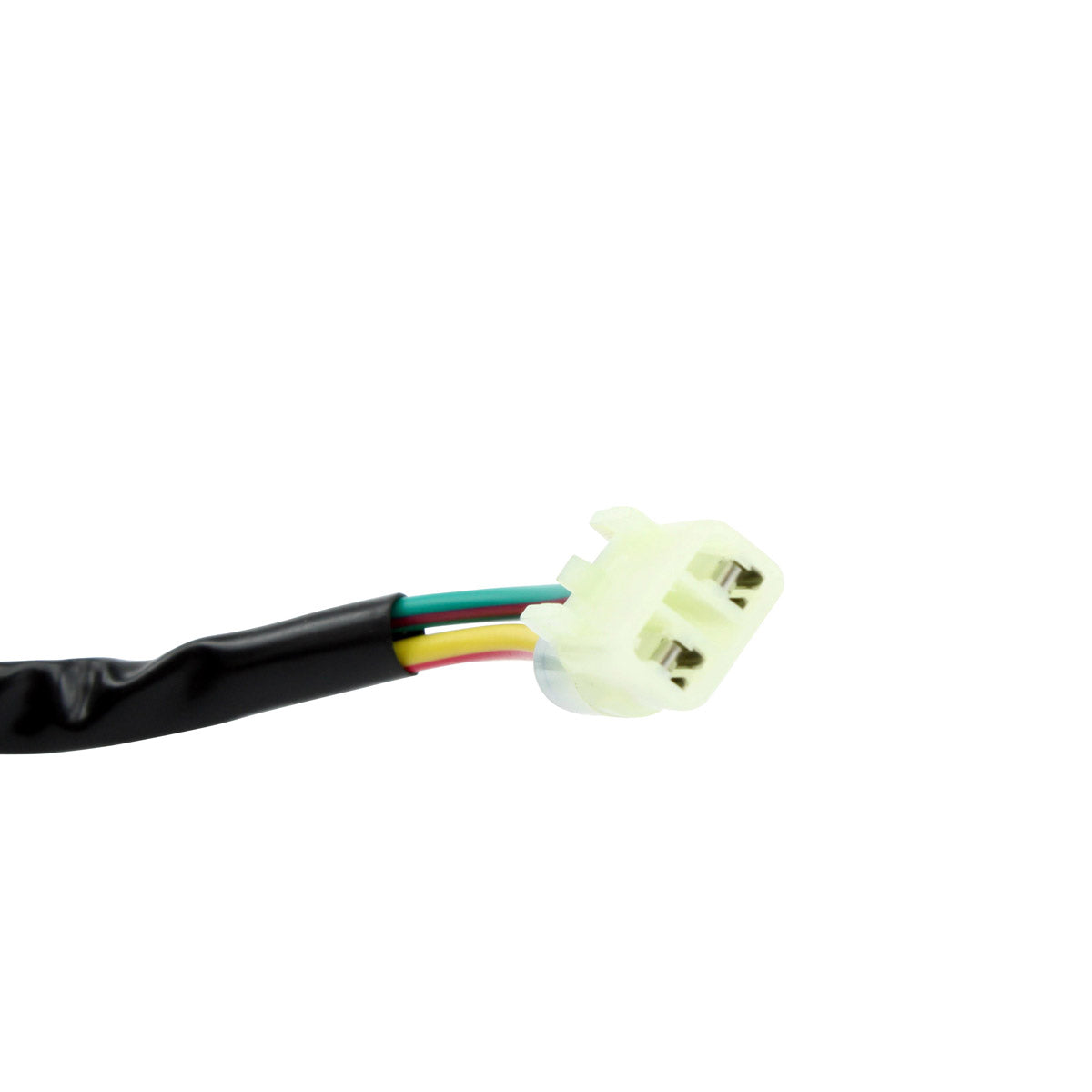

- 120 mm two-wire trigger lead

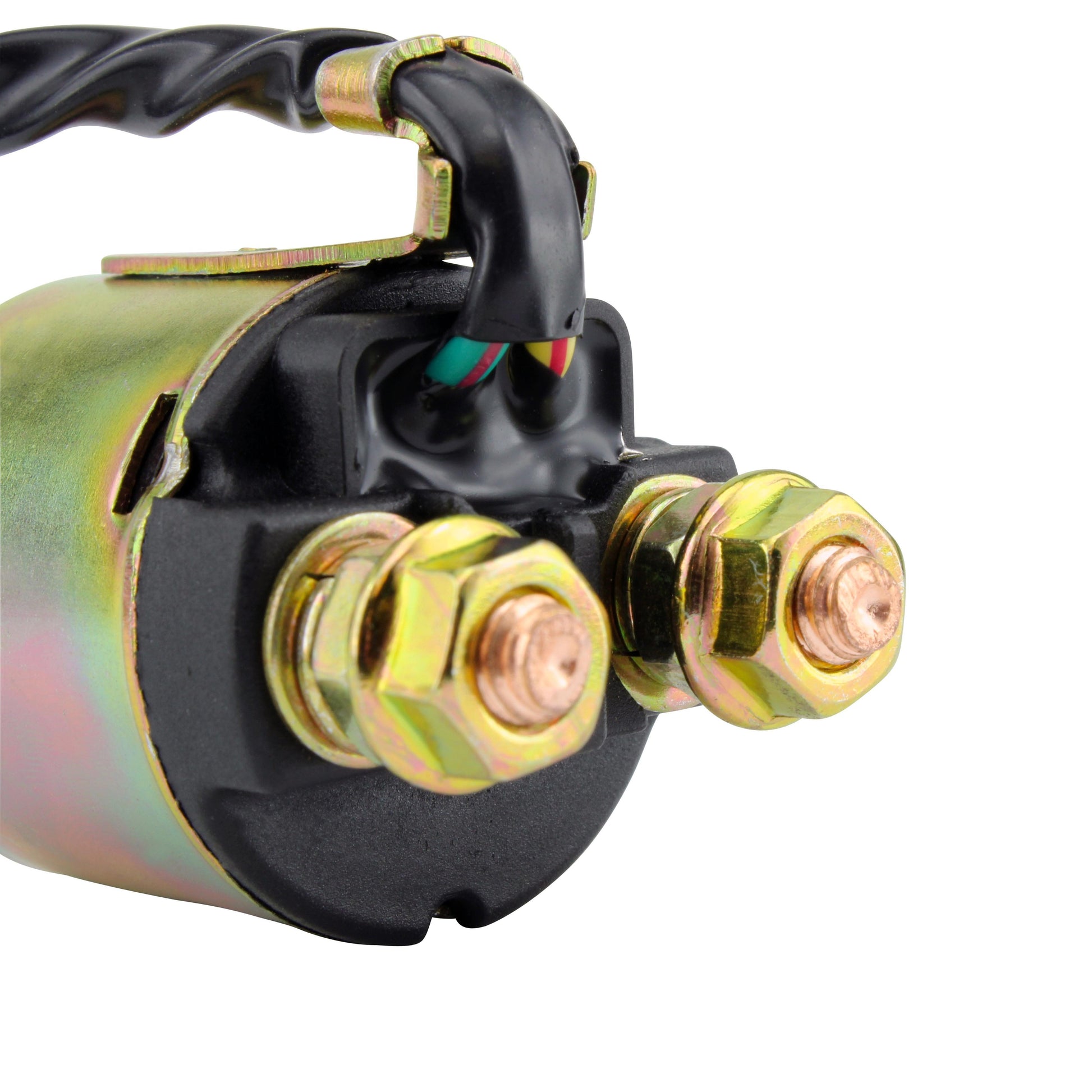

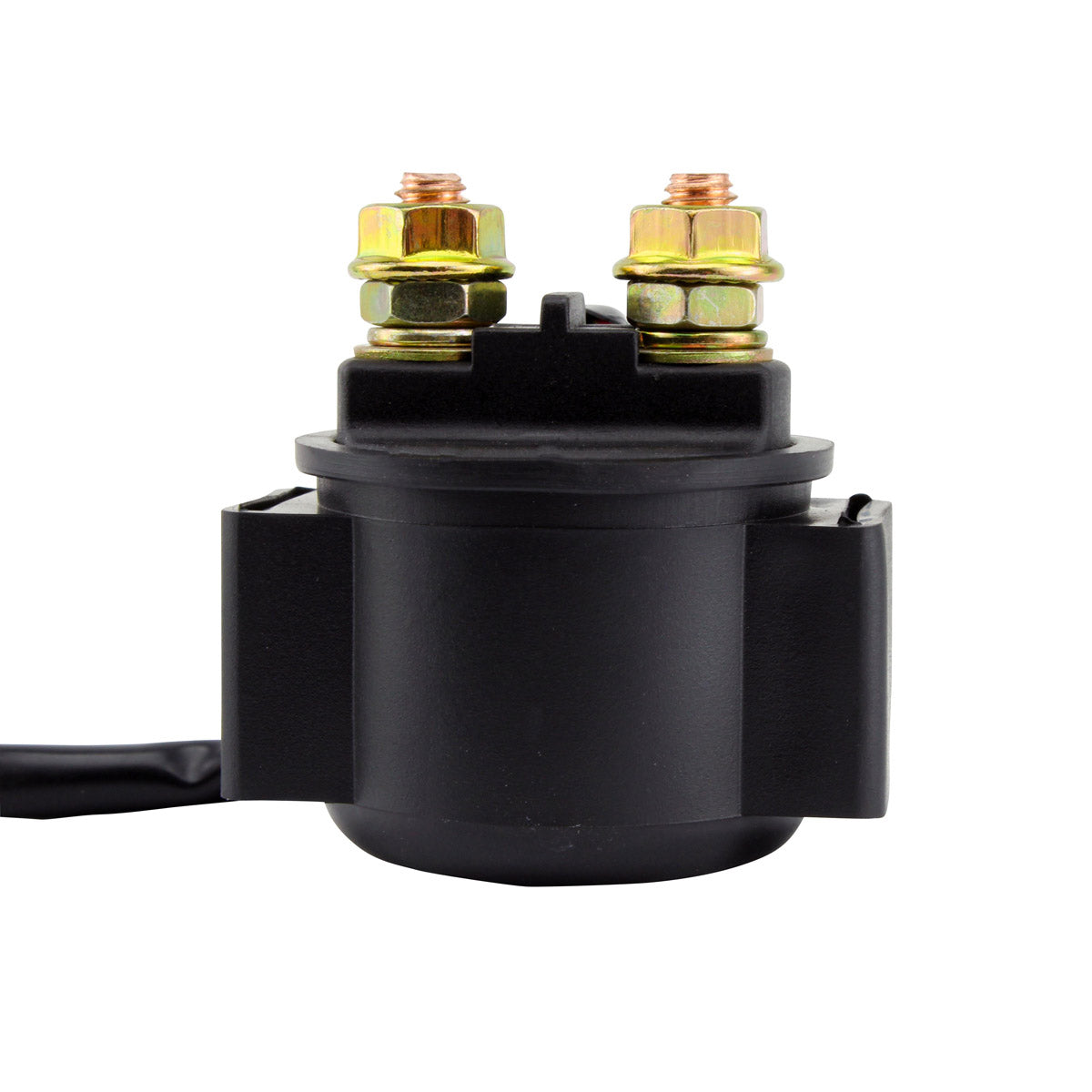

- Two heavy-duty terminals and a single plug
- Cross references Honda 35850-HP6-A01
Technical Specs
| Specification |
Detail |
| Part code |
RMS090-106284 |
| Component type |
Starter relay solenoid switch |
| Height |
52 mm |
| Length |
50 mm |
| Width |
37 mm |
| Wires length |
120 mm |
| Distance between fixation holes |
44 mm |
| Number of wires |
2 |
| Number of terminals |
2 |
| Number of plugs |
1 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 700 XX |
2008-2009 |
| Honda SXS 500 Pioneer |
2015-2023 |
| Honda SXS 1000 Talon |
2015-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 35850-HP6-A01 |
Honda |
Frequently Asked Questions
Does it need any modification to fit?
No. It is a direct replacement to your original unit. The fixation holes are 44 mm apart to match the factory bracket, the trigger lead is 120 mm long, and the two terminals and single plug match the standard connector, so no cutting or splicing is needed.
What is supplied?
One brand new starter relay solenoid switch, tested before dispatch. Reuse the existing battery cable, starter cable, terminal nuts and mounting hardware from your old relay.
How do I know the old relay has failed?
A single loud click with no crank, rapid clicking, or a starter that spins slowly on a fully charged battery are all typical. Worn contacts drop voltage before it reaches the starter, so the relay body itself warms up after a few attempts. Starting that works when the machine is cold and fails once it is hot is another reliable indicator.
One relay for both a quad and a side-by-side - is that right?
Yes. Honda used the same relay design across the TRX 700 XX and the later SXS Pioneer and Talon machines, all under part number 35850-HP6-A01. Checking that number on your original unit is the surest way to confirm fitment.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
