Starter Relay Solenoid for Kawasaki 650 X2, 750 Super Sport XI & 900 STX 1992-2011
Starter Relay Solenoid for Kawasaki 650 X2, 750 Super Sport XI & 900 STX 1992-2011
SKU:RMS090-101712
Free shipping over £150. Terms apply
Couldn't load pickup availability

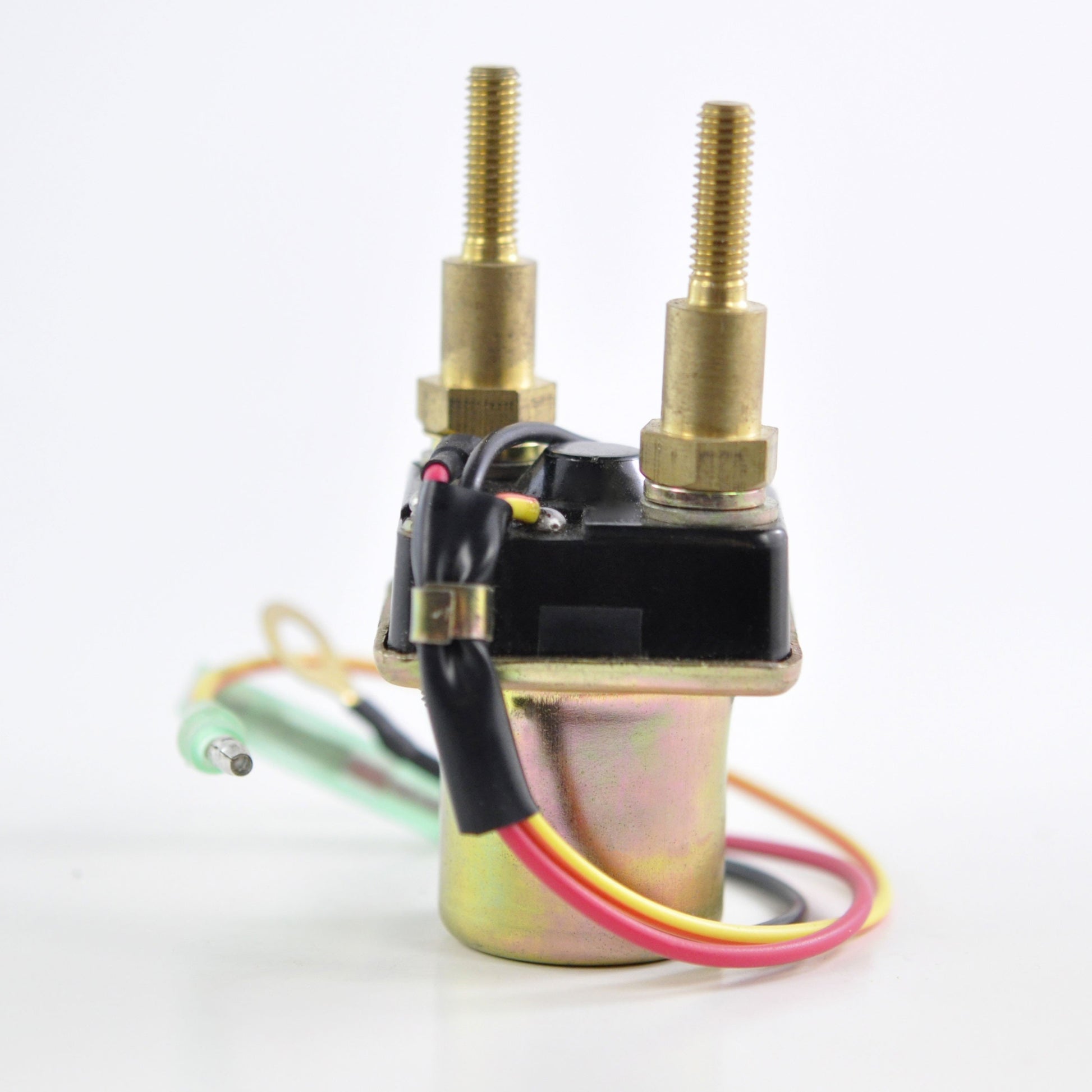

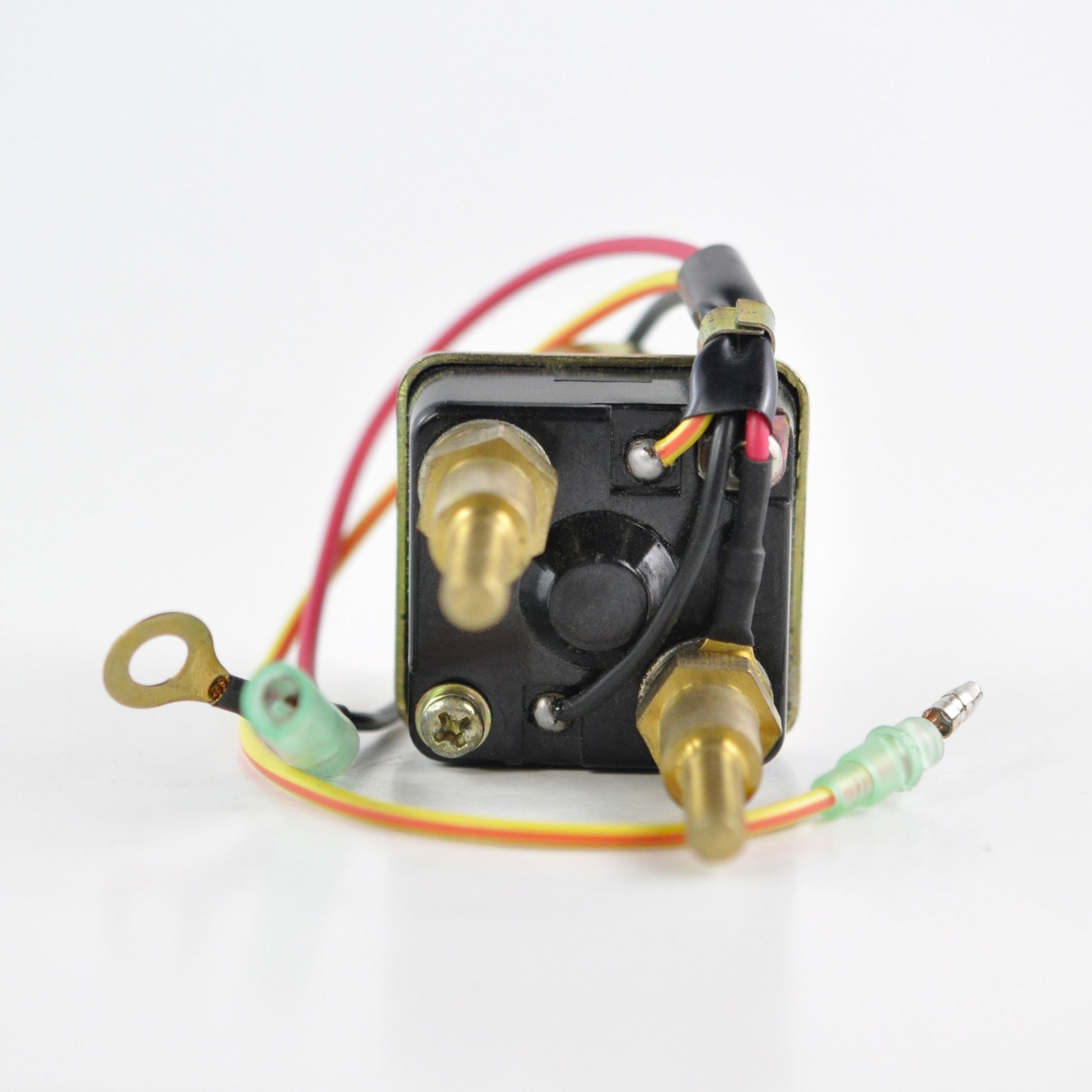

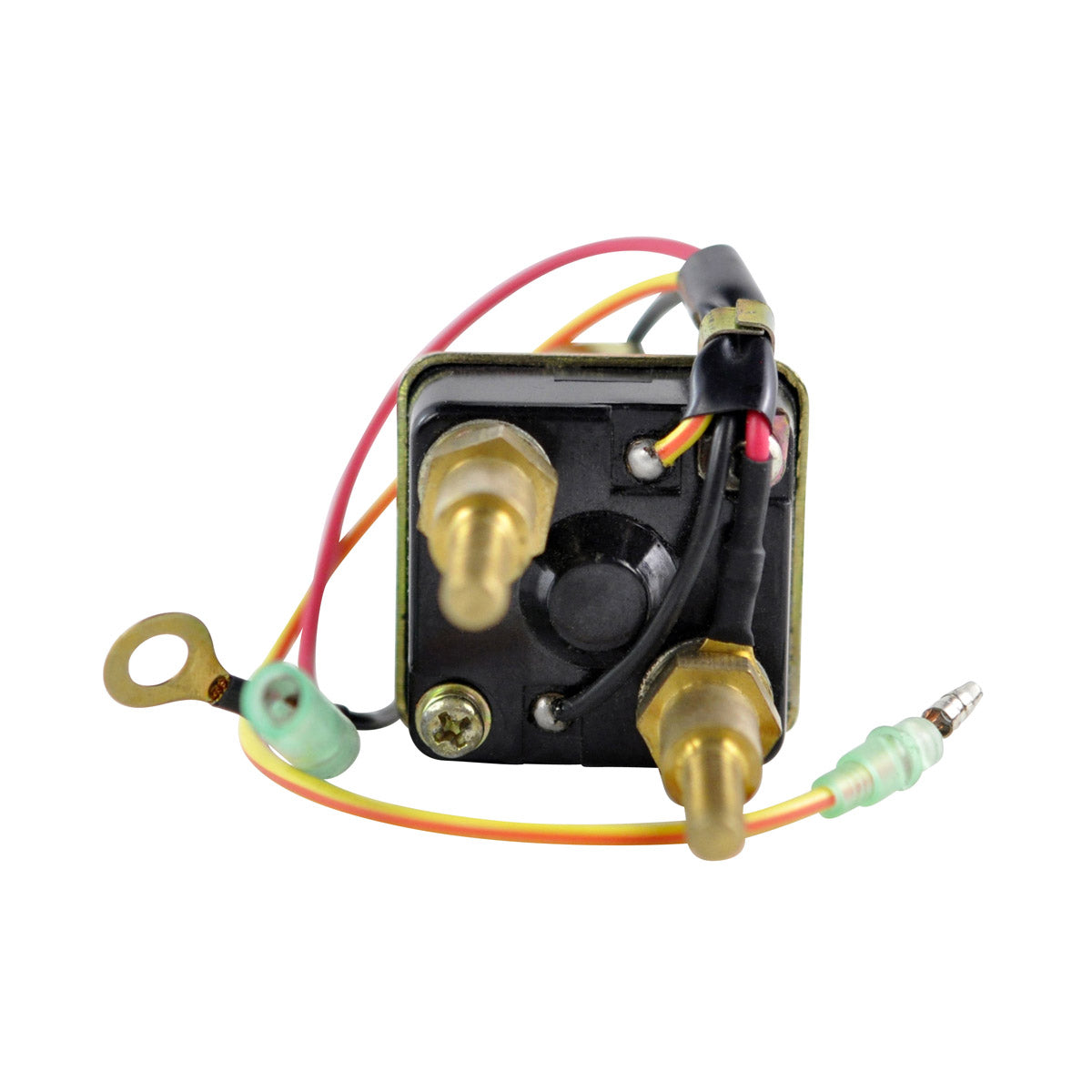

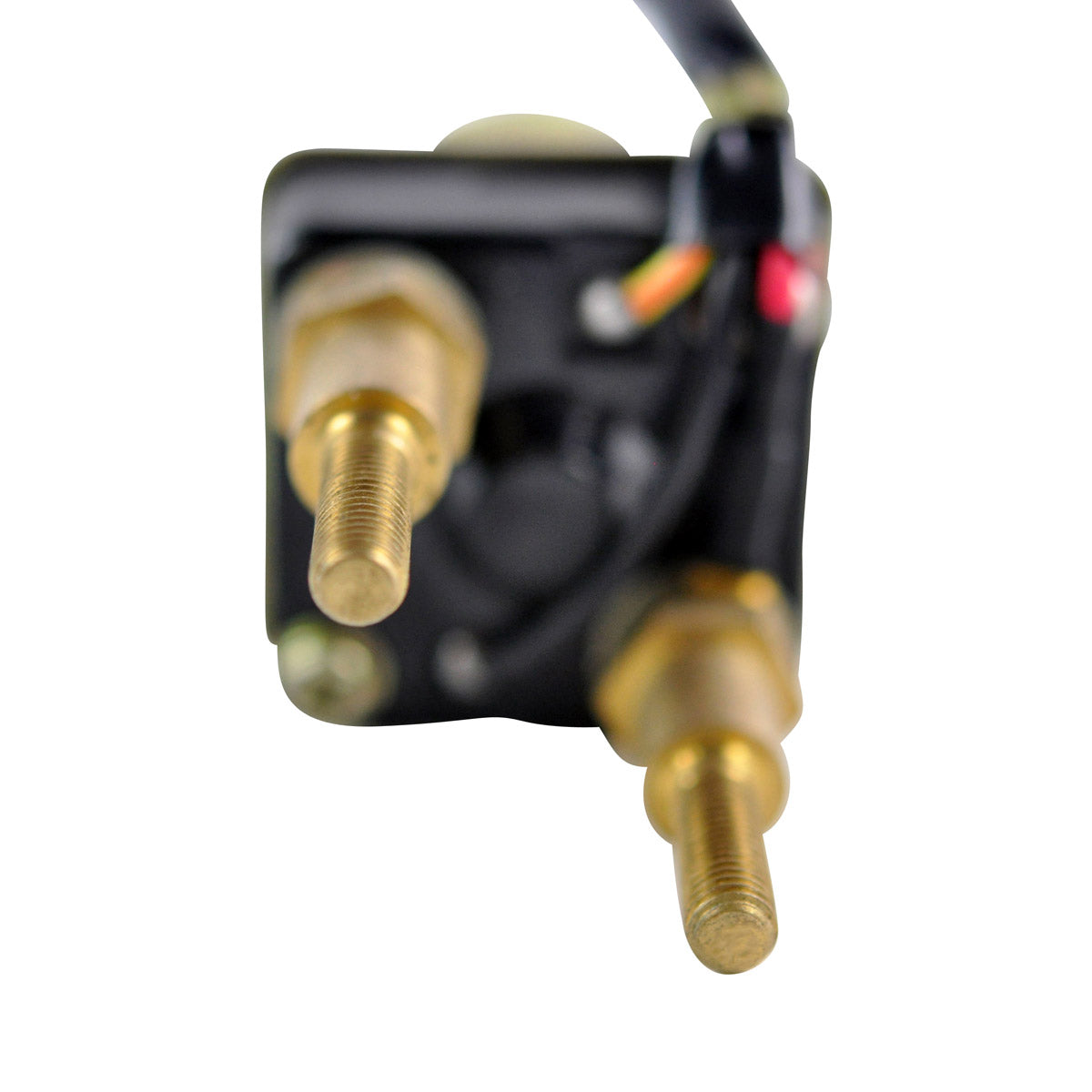

Starter Relay Solenoid for Kawasaki Jet Ski - RMS090-101712
650 X2, 650 SX, 700 SX, JS440, 750 Super Sport XI, 800 SX-R, 900 STX | 1992-2011
Brand new starter relay solenoid switch for Kawasaki Jet Ski personal watercraft. The solenoid is the heavy duty switch that sits between the battery and the starter motor. Pressing the start button sends a small control current to the coil inside the solenoid, which pulls the main contacts together and passes the full cranking current through to the starter. It is a hard working component on a watercraft, where damp and vibration accelerate wear on the internal contacts.
This RMSTATOR unit is a direct replacement built to a quality that exceeds the OEM equipment, and all products shipped are tested. It carries three wires, three terminals and three plugs, in a compact 87 mm tall body. All item pictures are accurate, so if in doubt do not hesitate to compare our item to your original part before ordering.
Key Features
- Brand new starter relay solenoid switch
- Quality exceeds the OEM equipment
- All products shipped are tested

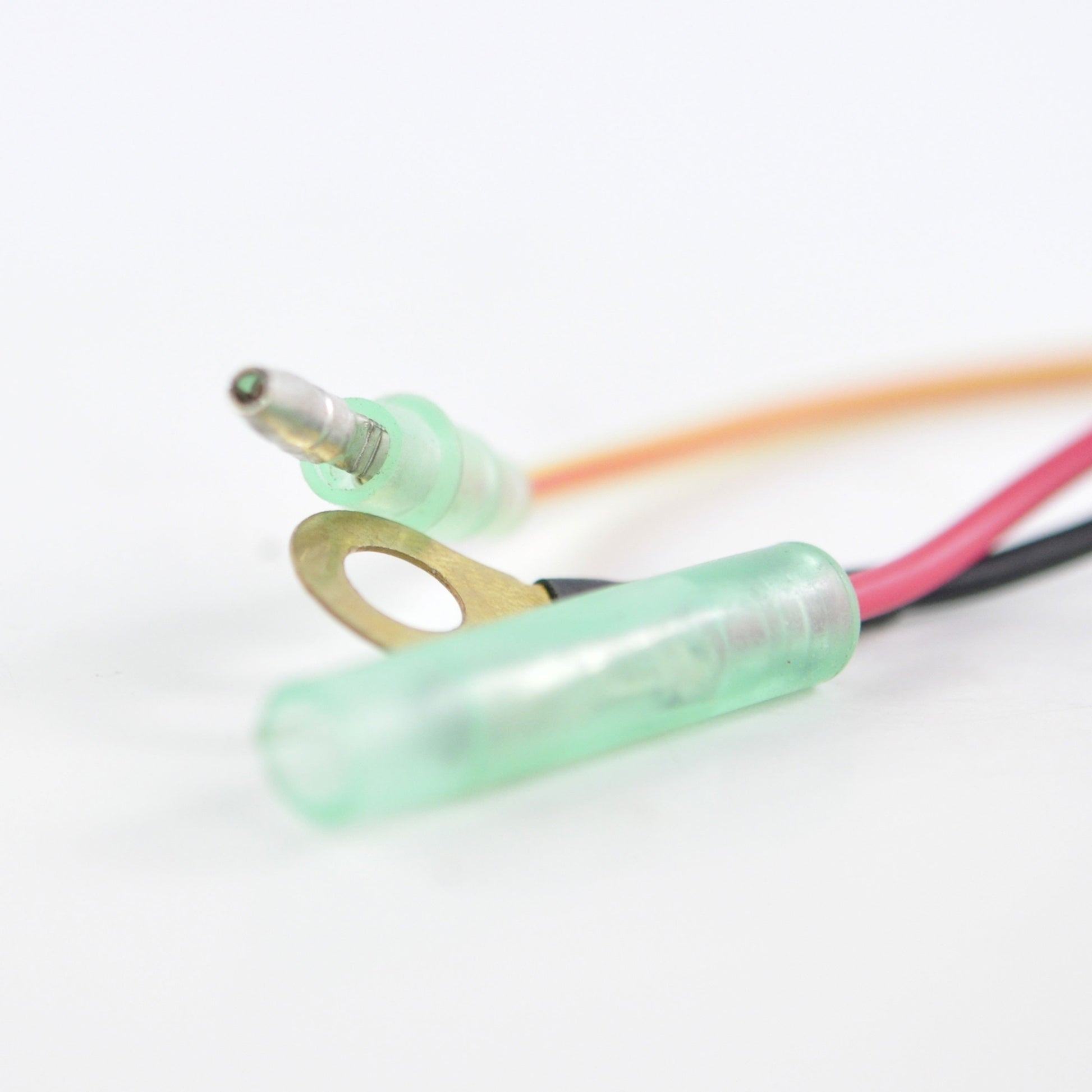

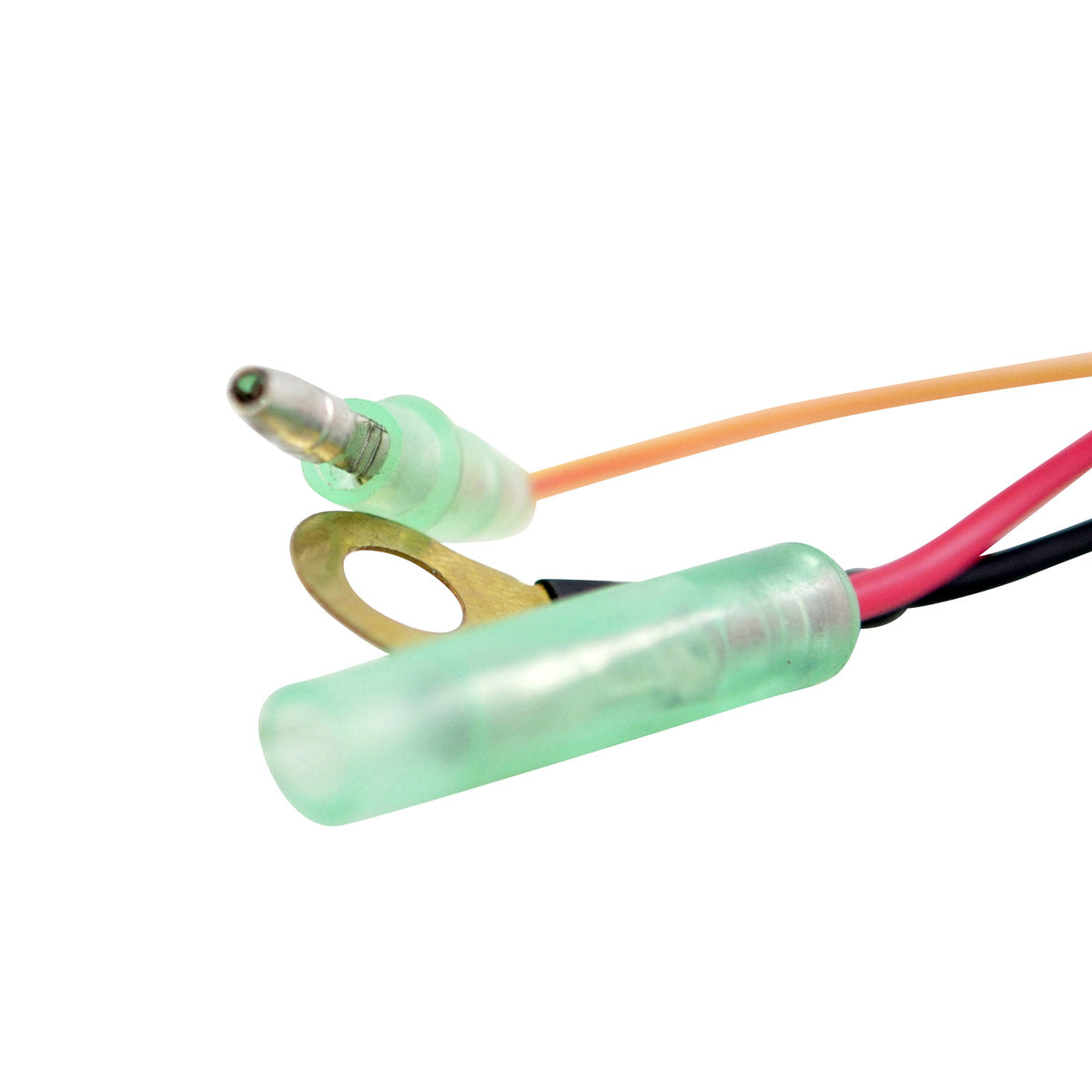

- 3 wire, 3 terminal, 3 plug configuration
- Compact 87 mm tall body
- Replaces Kawasaki OEM 27010-3724 and 27010-3760
- Covers stand-up and sit-down Jet Ski models from 1992 to 2011
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-101712 |
| Type | Starter relay solenoid switch |
| Height | 87 mm |
| Length | 43 mm |
| Width | 43 mm |
| Number of wires | 3 |
| Number of terminals | 3 |
| Number of plugs | 3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki 650 X2 | 1992-2011 |
| Kawasaki 650 SX | 1992-2011 |
| Kawasaki 700 SX | 1992-2011 |
| Kawasaki JS440 | 1992-2011 |
| Kawasaki 750 Super Sport XI | 1992-2011 |
| Kawasaki 800 SX-R | 1992-2011 |
| Kawasaki 900 STX | 1992-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27010-3724 | Kawasaki |
| 27010-3760 | Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement for the original Kawasaki solenoid and uses the same 3 wire, 3 terminal, 3 plug arrangement. Confirm that your original carries Kawasaki part number 27010-3724 or 27010-3760 before ordering.
What is included?
You receive one brand new starter relay solenoid switch, part number RMS090-101712, tested before dispatch.
How can I tell the solenoid has failed?
The classic symptom is a single click from the solenoid with no cranking, or cranking that works one time in three. A ski that starts fine cold but refuses once warm is another common pattern, because heat increases the resistance across contacts that are already burnt.
Is this the starter motor?
No. This is the starter relay solenoid switch that feeds current to the starter motor. It is a much less expensive part than the motor itself and it is the more frequent failure on watercraft, where salt and moisture reach the terminals.
