Starter Relay Solenoid for Kawasaki 900 STX, 1100 ZXi & 750 ZXi 1995-2003
Starter Relay Solenoid for Kawasaki 900 STX, 1100 ZXi & 750 ZXi 1995-2003
SKU:RMS090-101740
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Relay Solenoid Switch
Kawasaki 900 STX, 1100 ZXi, 750 ZXi and 900 ZXi · 1995-2003
This is a brand new starter relay solenoid switch, part number RMS090-101740, supplied as a direct replacement for the original unit fitted to the Kawasaki 900 STX, 1100 ZXi, 750 ZXi and 900 ZXi from 1995 to 2003. The solenoid is the high current switch between the battery and the starter motor. A light signal current from the start button energises its coil, and the solenoid then closes the heavy circuit that cranks the engine, which is why a tired solenoid usually shows itself as a click with no crank rather than a dead machine.

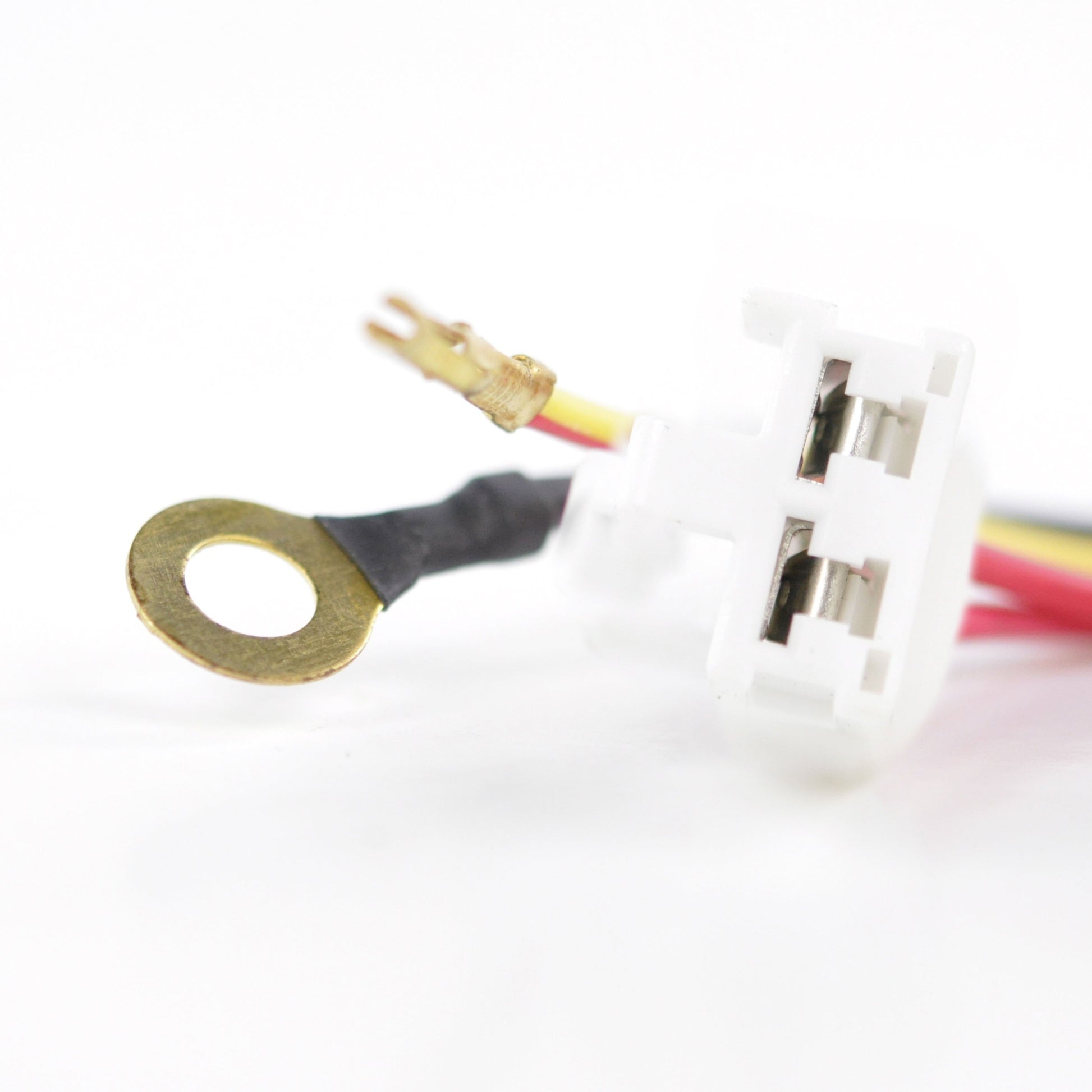

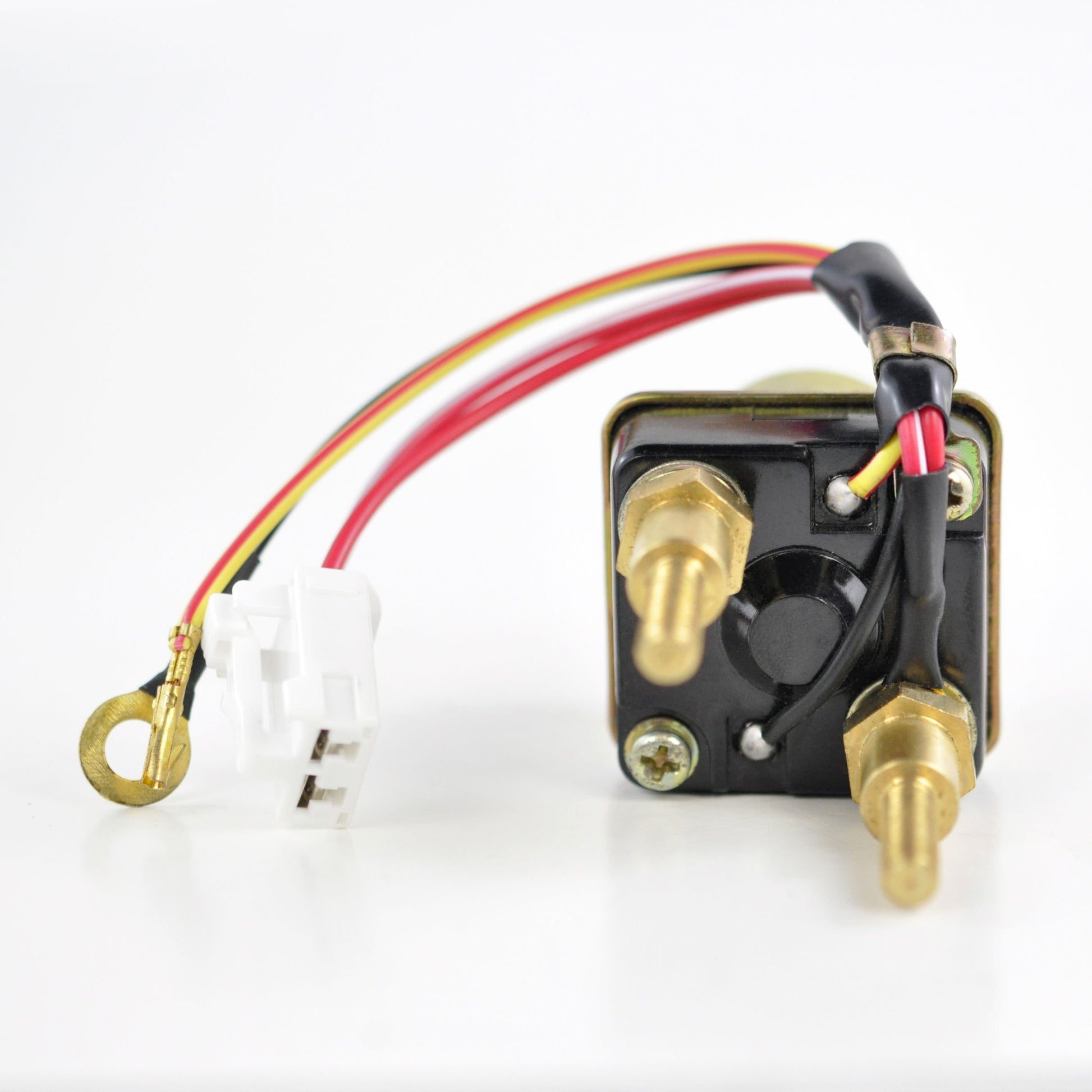

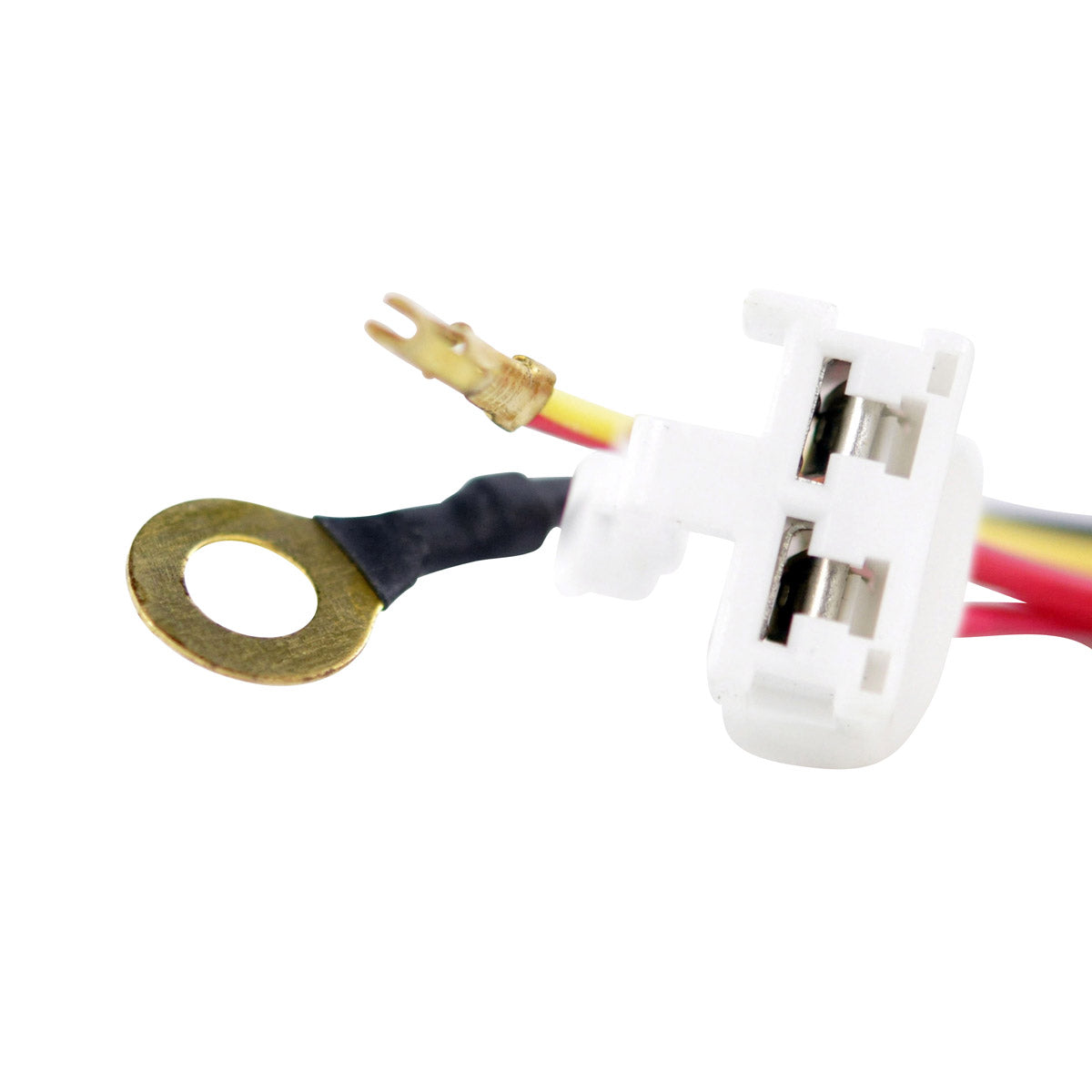

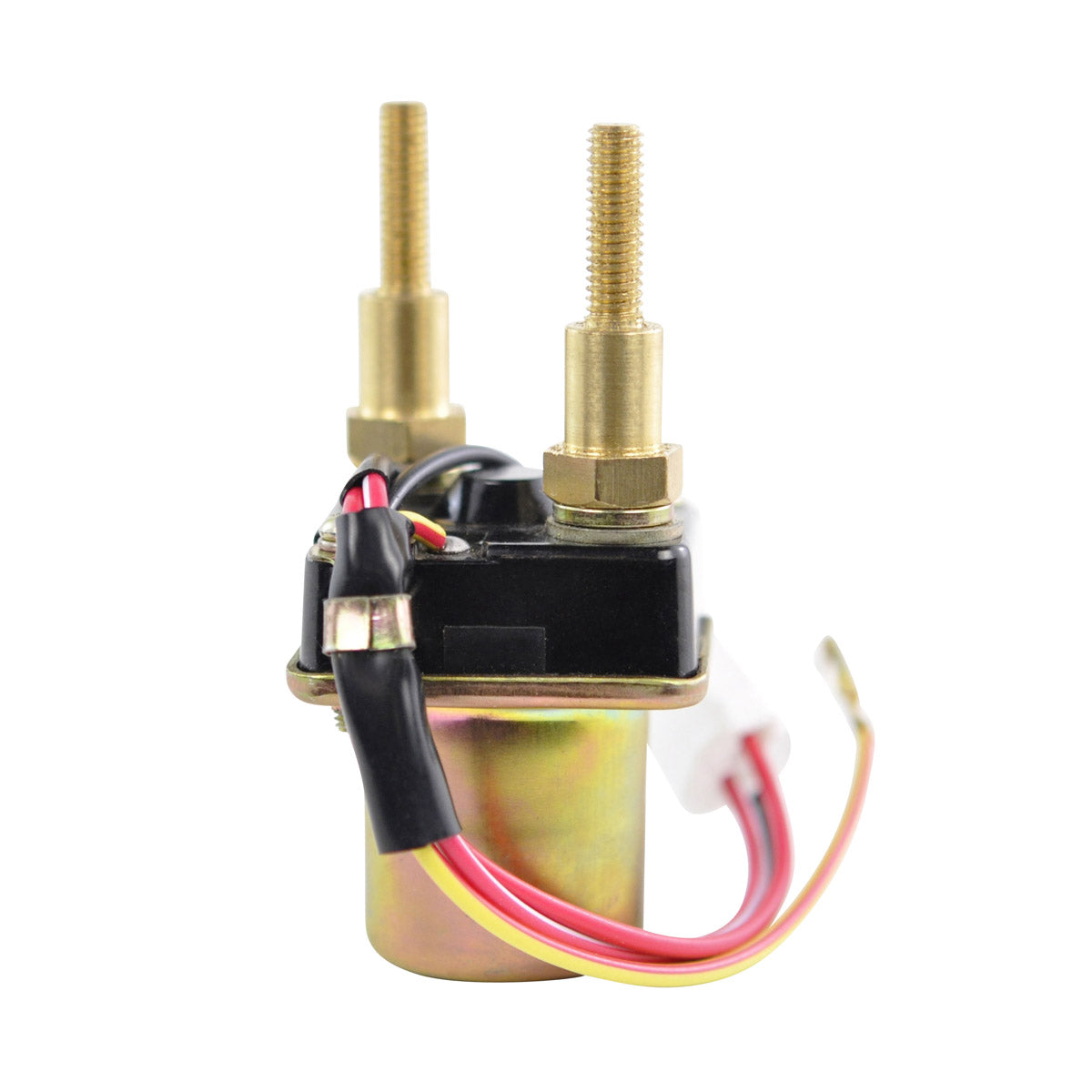

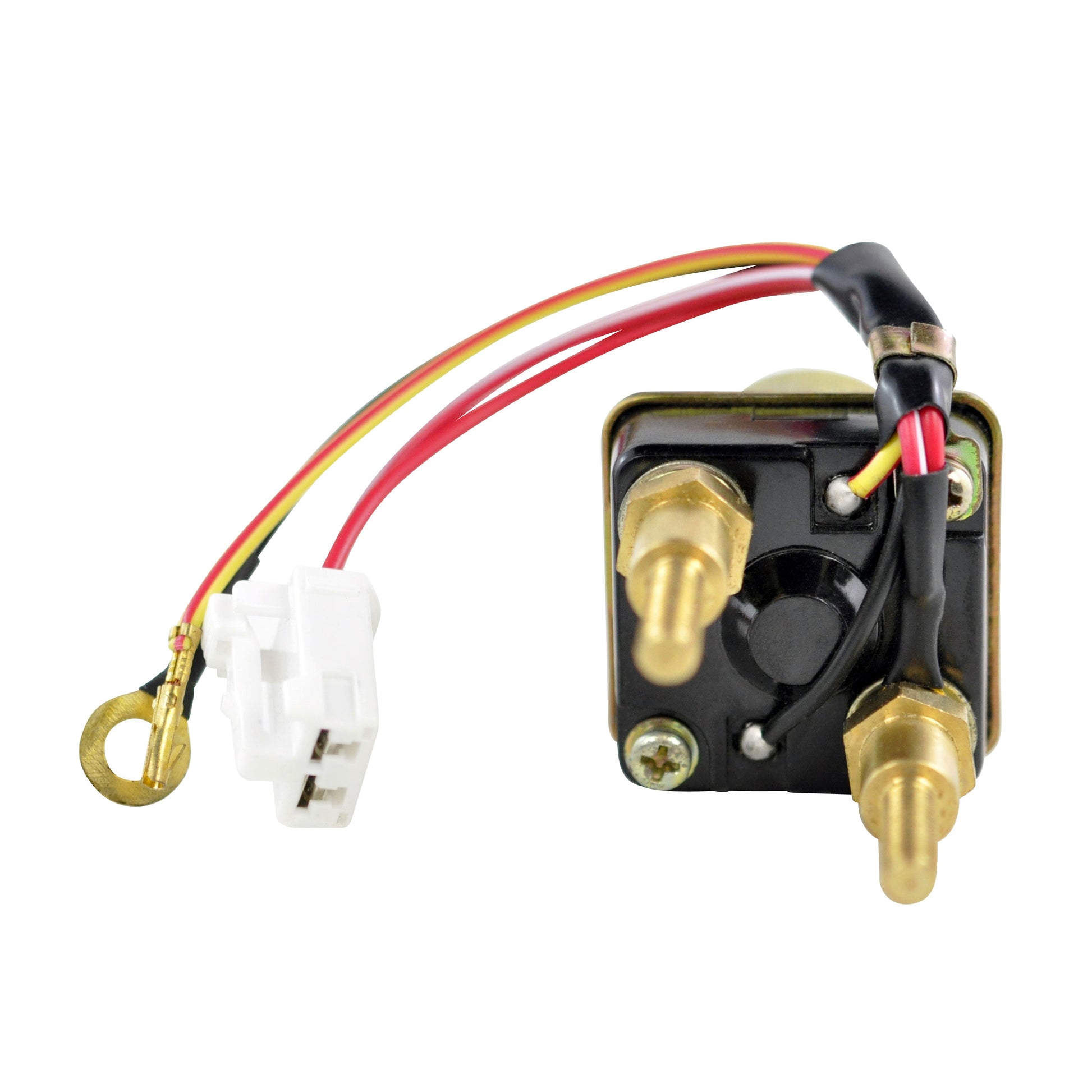

The unit measures 88 mm high, 51 mm long and 43 mm wide, and carries three wires, four terminals and three plugs, reproducing the original connector arrangement so no rewiring is needed. The quality exceeds the OEM equipment and all products shipped are tested.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit
- Quality that exceeds the OEM equipment
- Three wires, four terminals and three plugs, matching the original
- Cross references to Kawasaki 27010-3737
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-101740 |
| Height | 88 mm |
| Length | 51 mm |
| Width | 43 mm |
| Number of wires | 3 |
| Number of terminals | 4 |
| Number of plugs | 3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki 900 STX | 1995-2003 |
| Kawasaki 1100 ZXi | 1995-2003 |
| Kawasaki 750 ZXi | 1995-2003 |
| Kawasaki 900 ZXi | 1995-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27010-3737 | Kawasaki |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original solenoid and repeats the same three wires, four terminals and three plugs, so the standard harness connects straight up.
What is included?
One starter relay solenoid switch. No additional hardware is listed for this part.
How do I know the old solenoid has failed?
A healthy battery combined with a single click and no crank, rapid chattering from the solenoid, or starting that works only sometimes are the usual signs. Corroded or burnt terminals on the solenoid body point the same way.
How do I confirm this is the correct solenoid?
Check the number on your original unit against Kawasaki 27010-3737 and compare the body size of 88 x 51 x 43 mm along with the three-plug layout.
