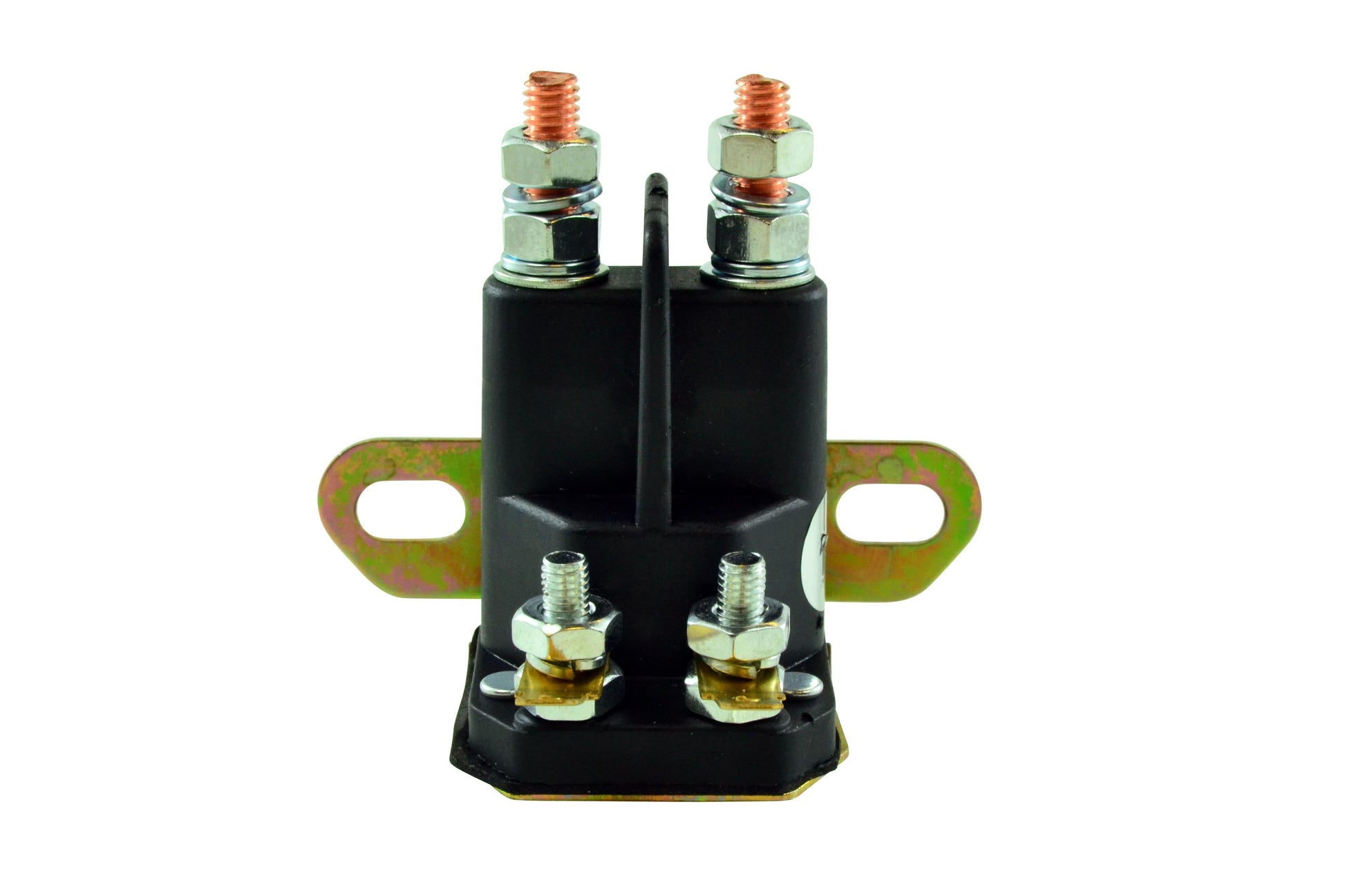

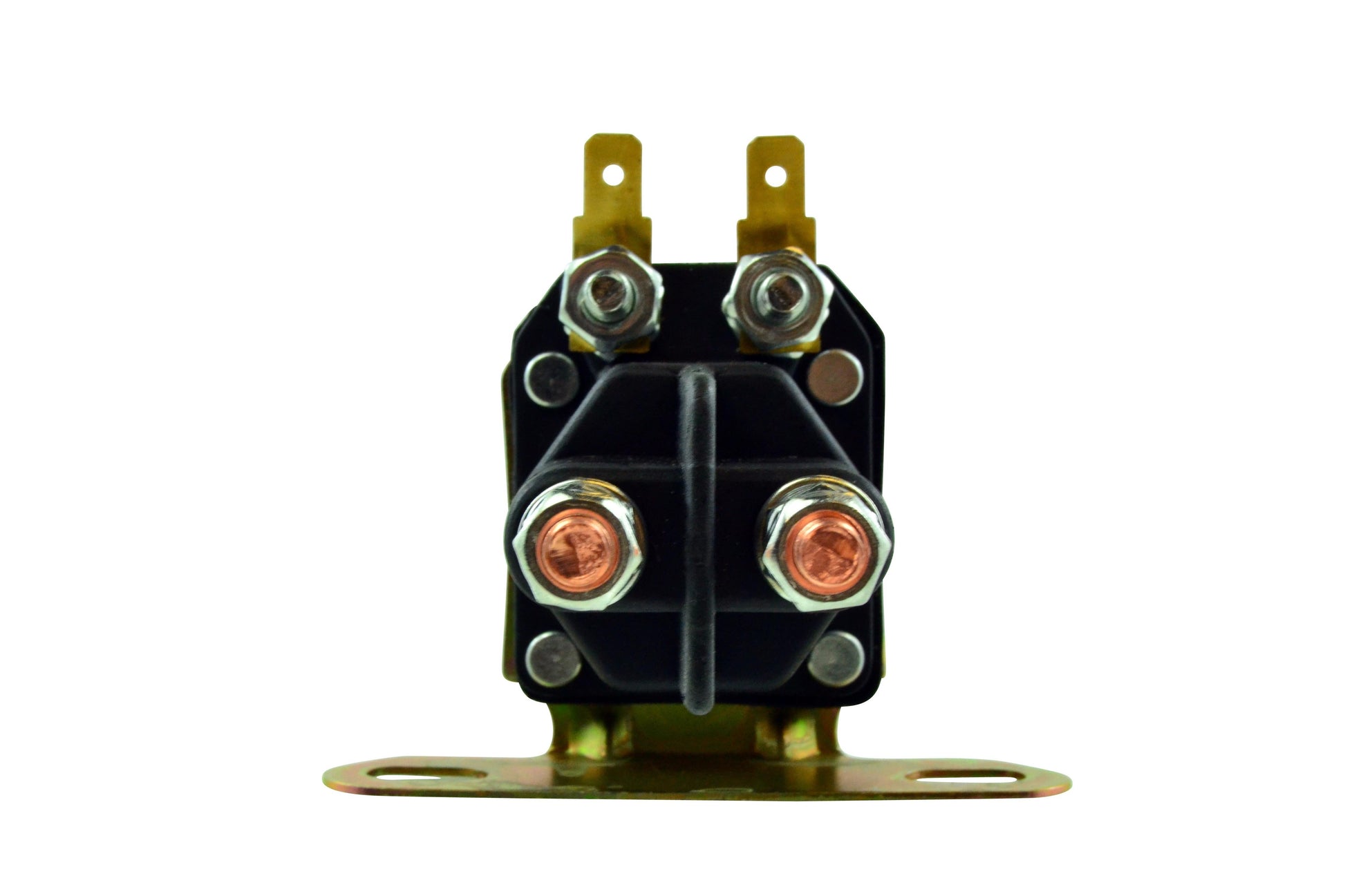

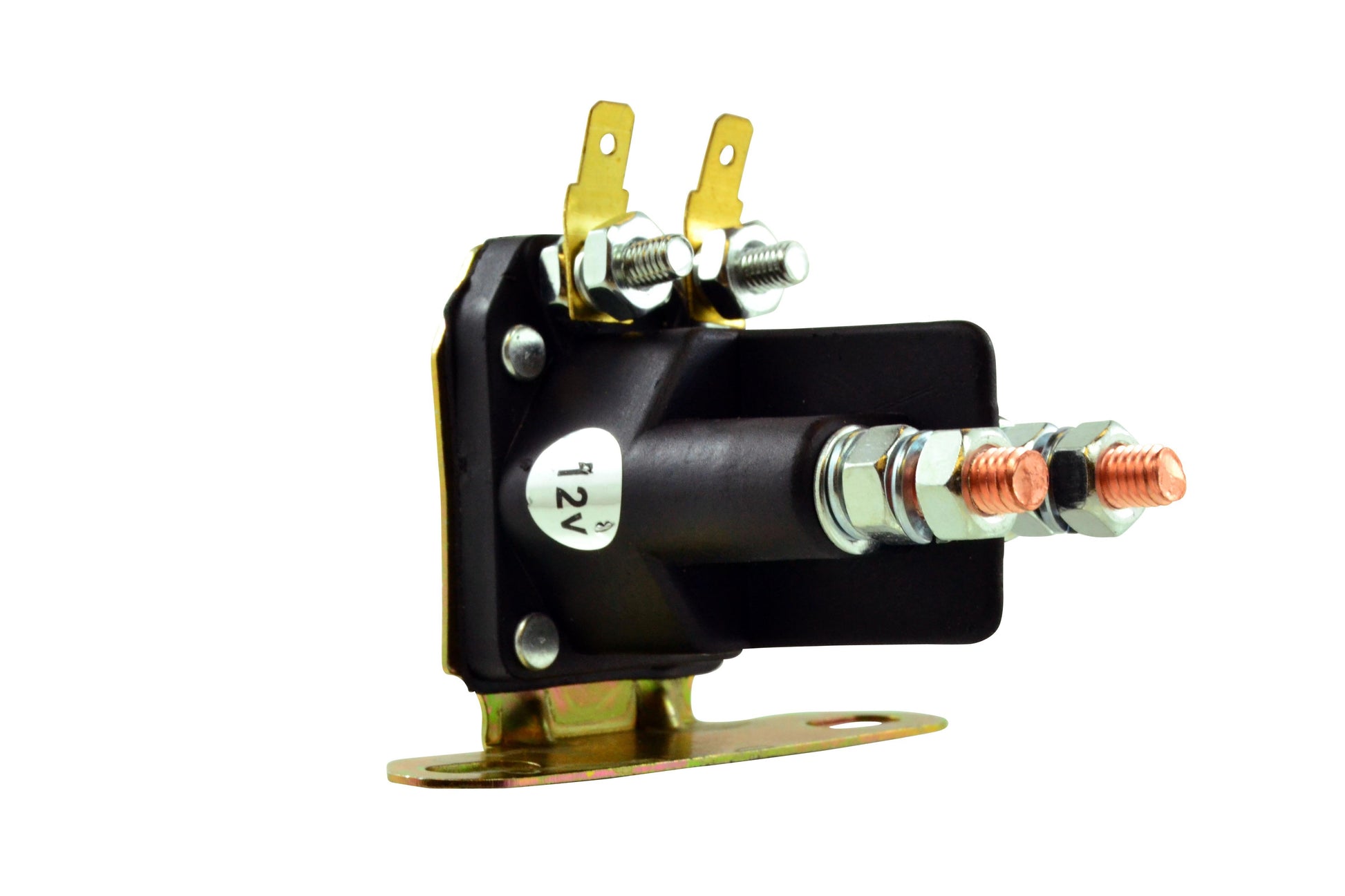

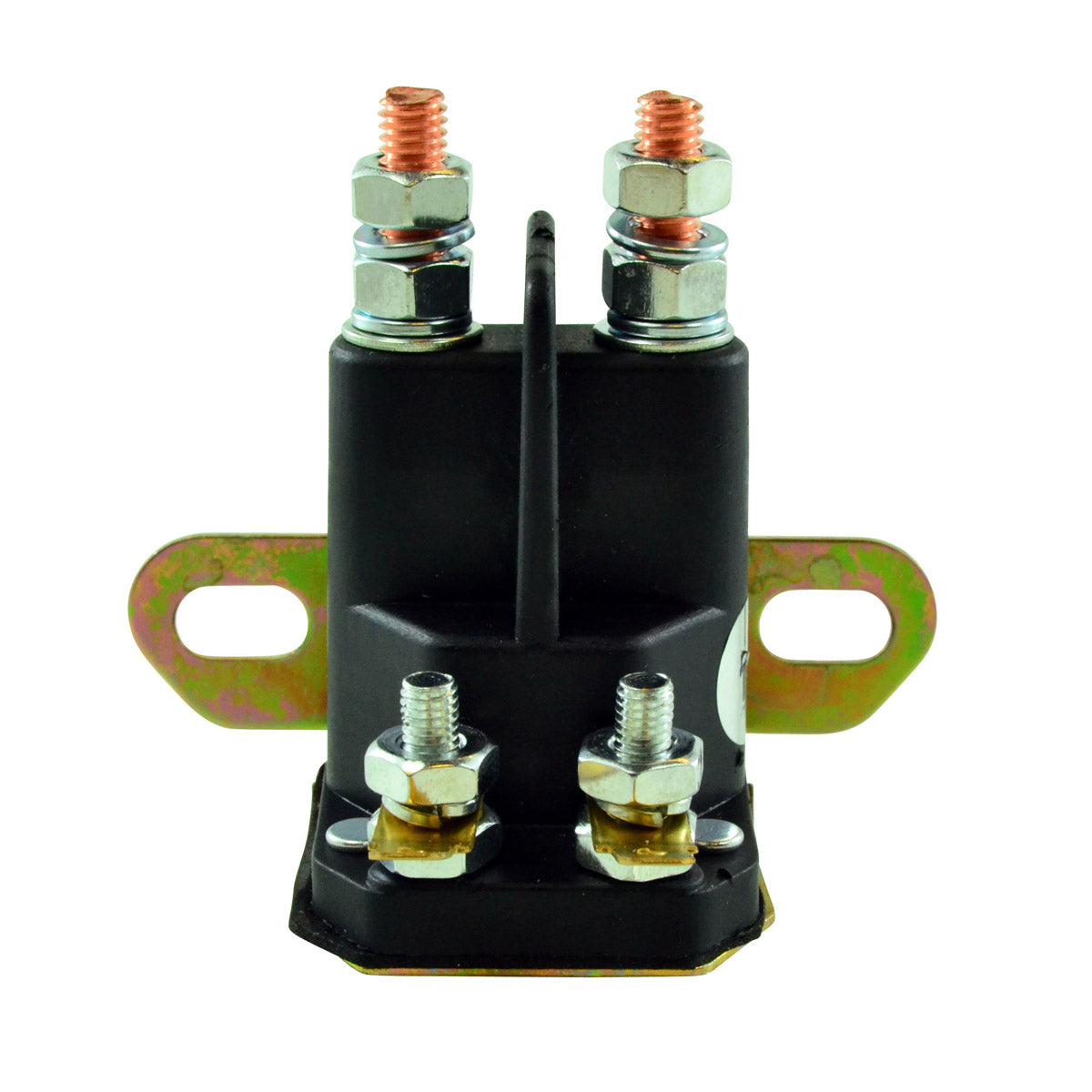

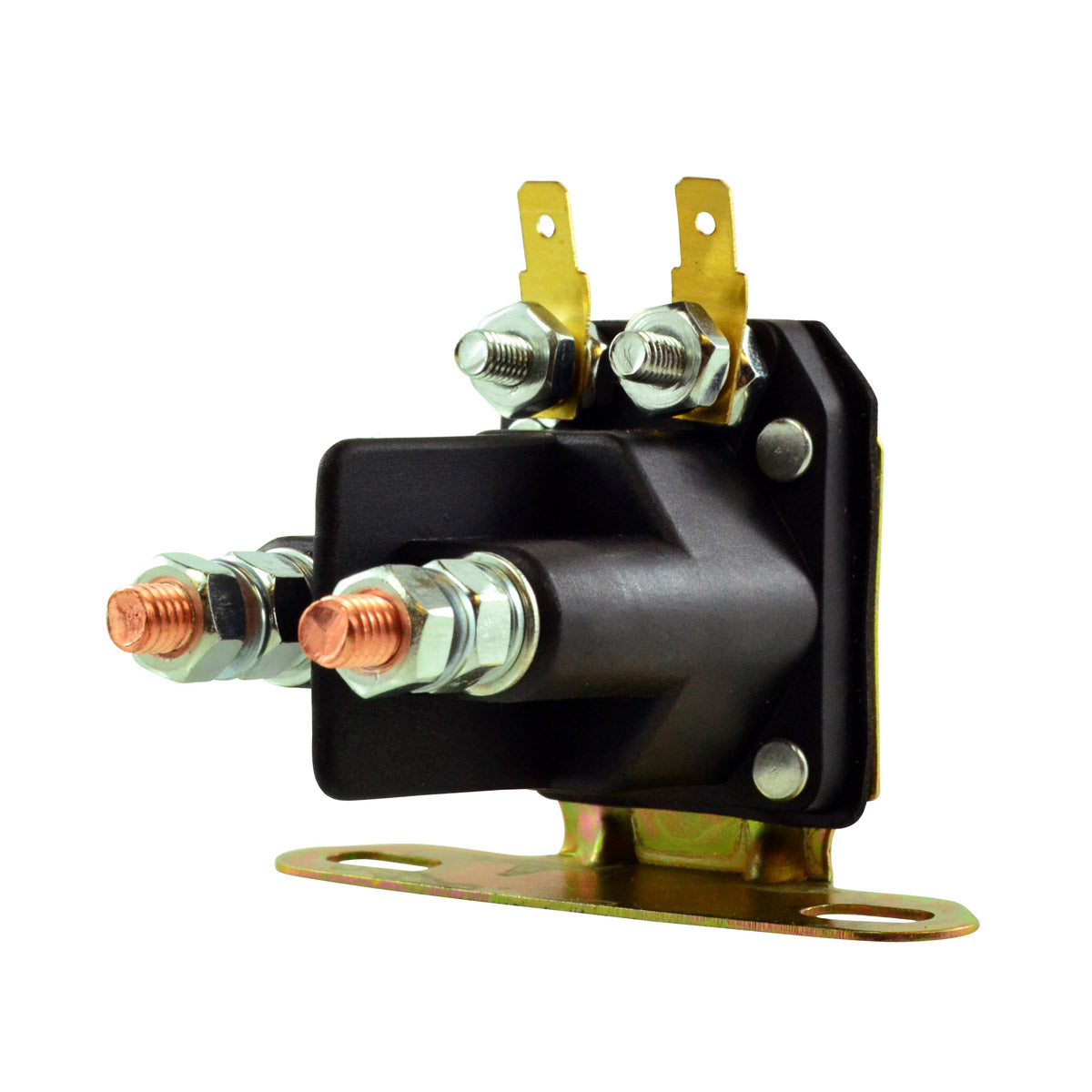

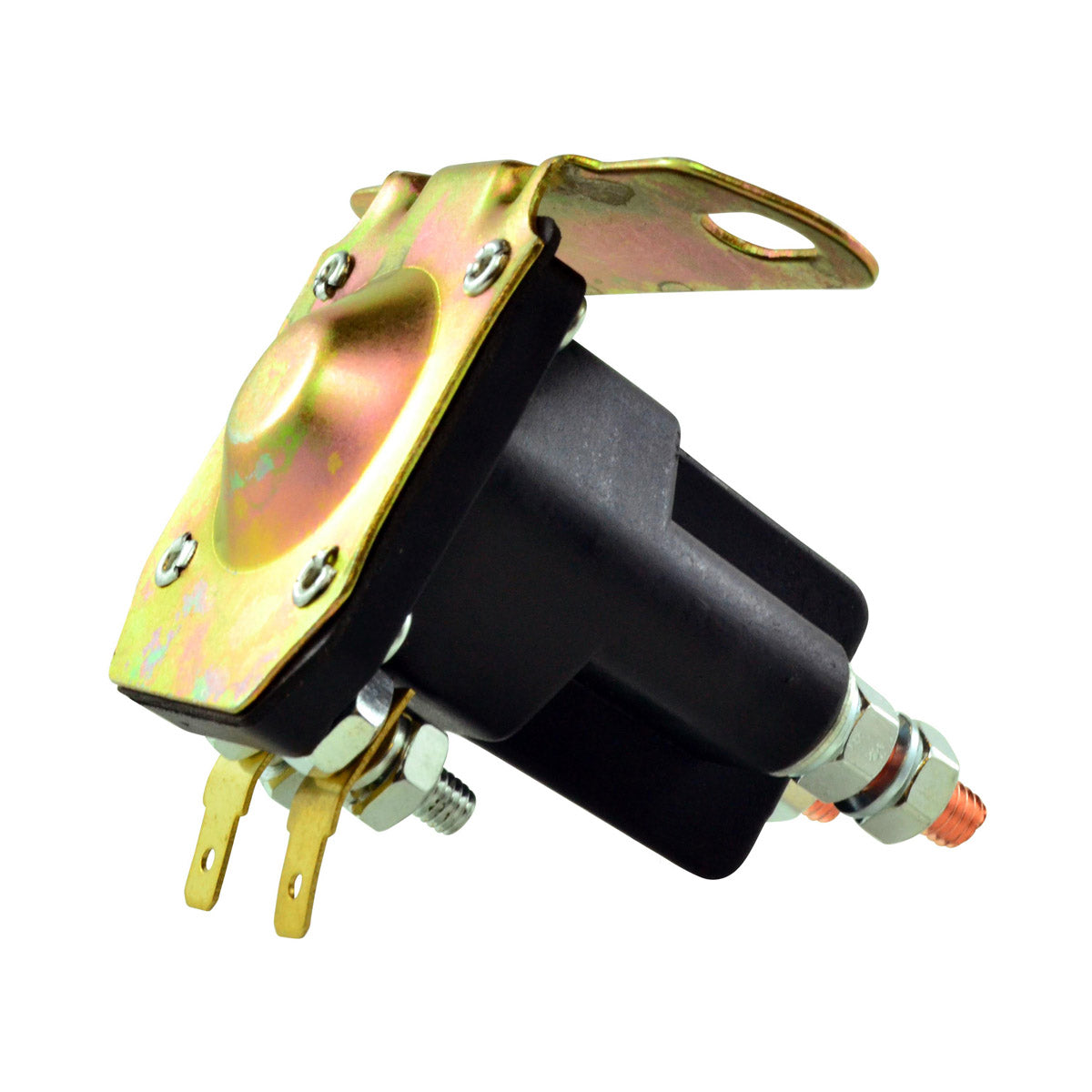

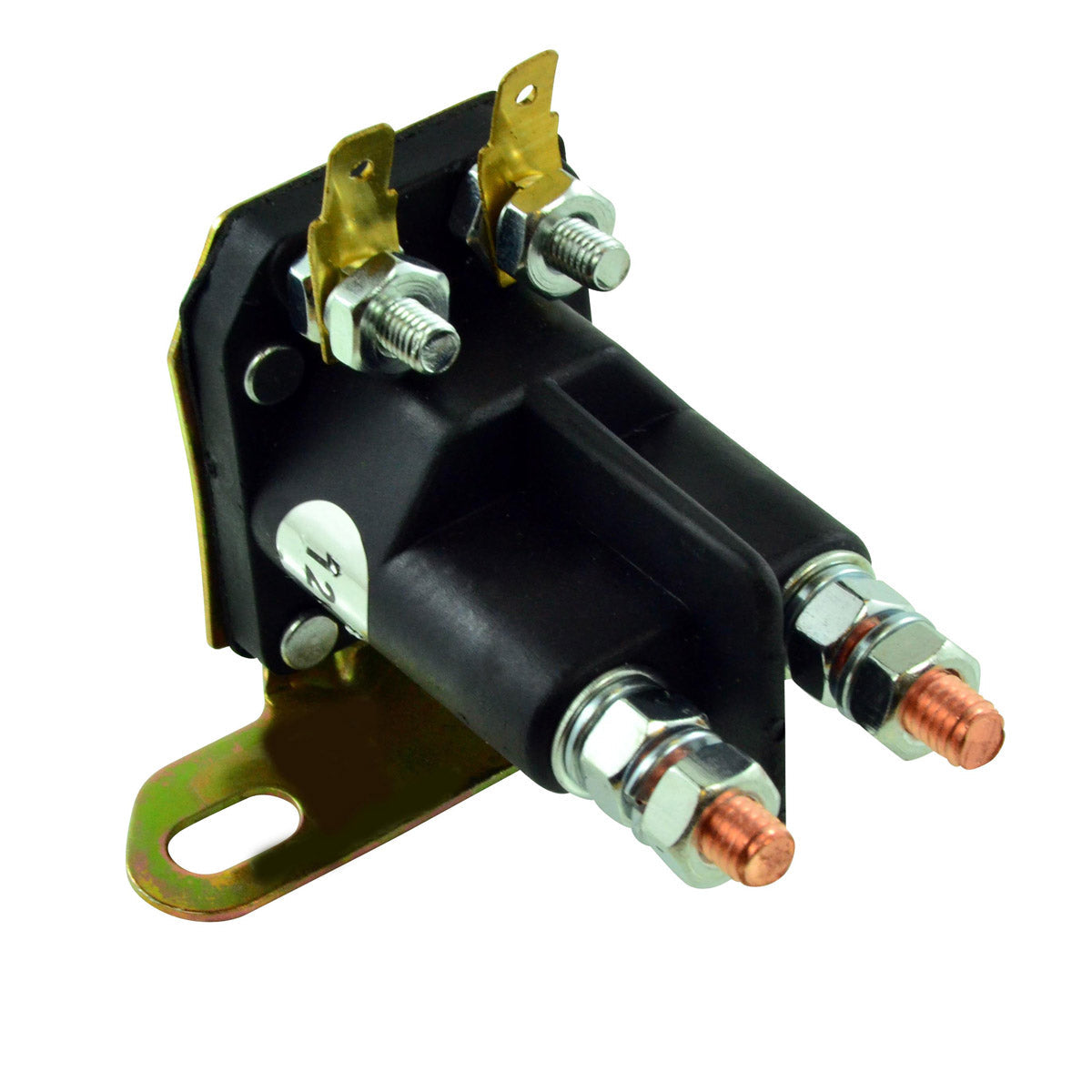

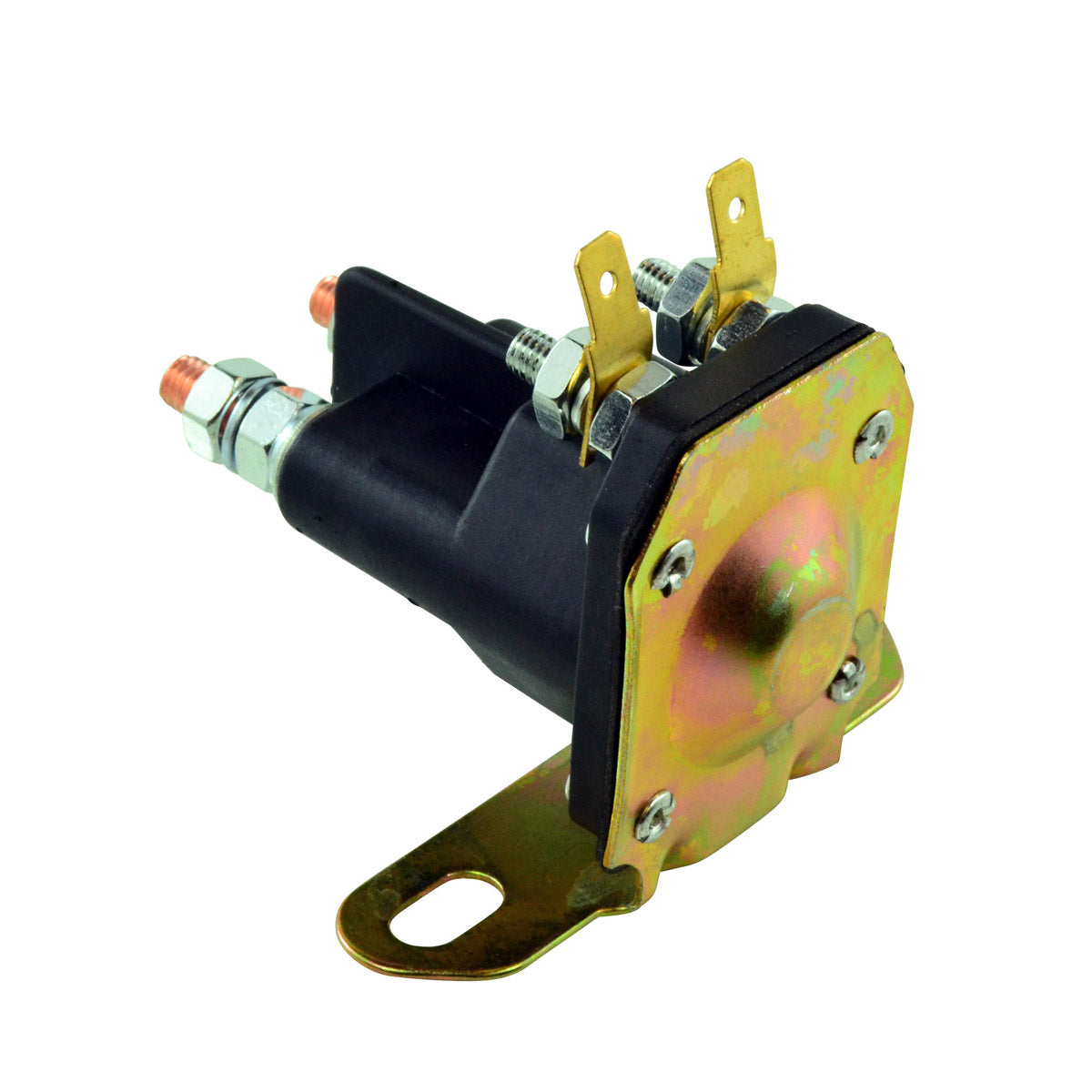

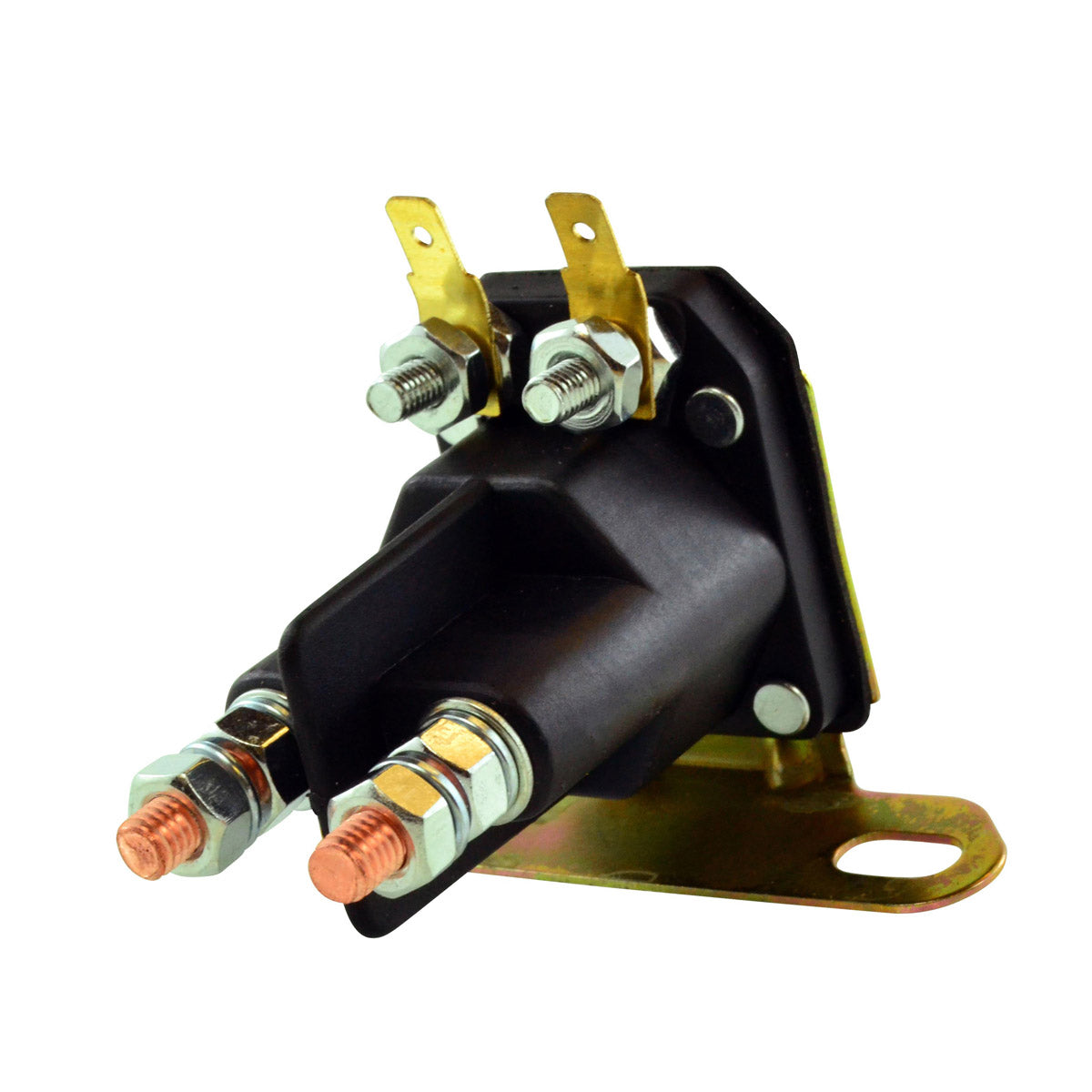

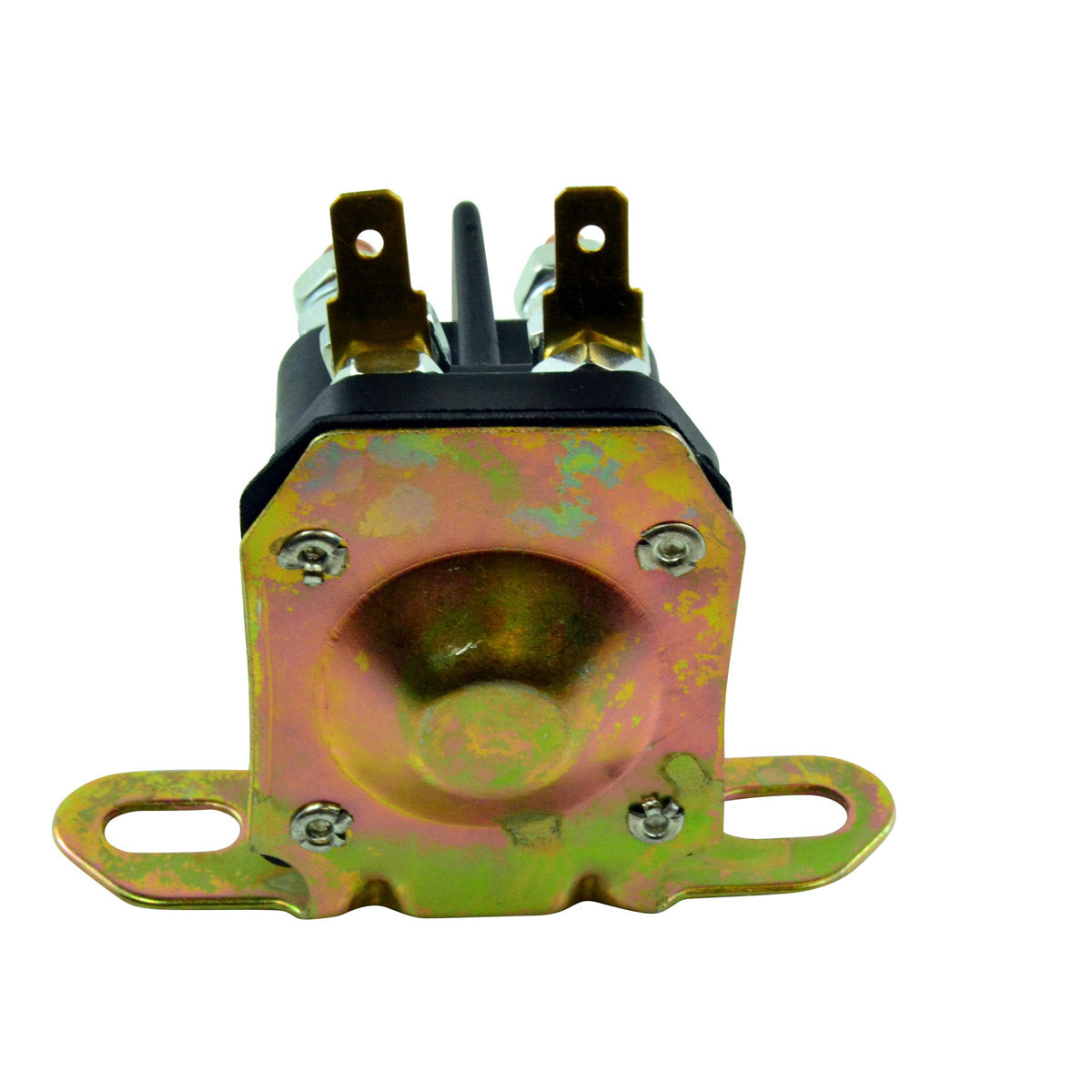

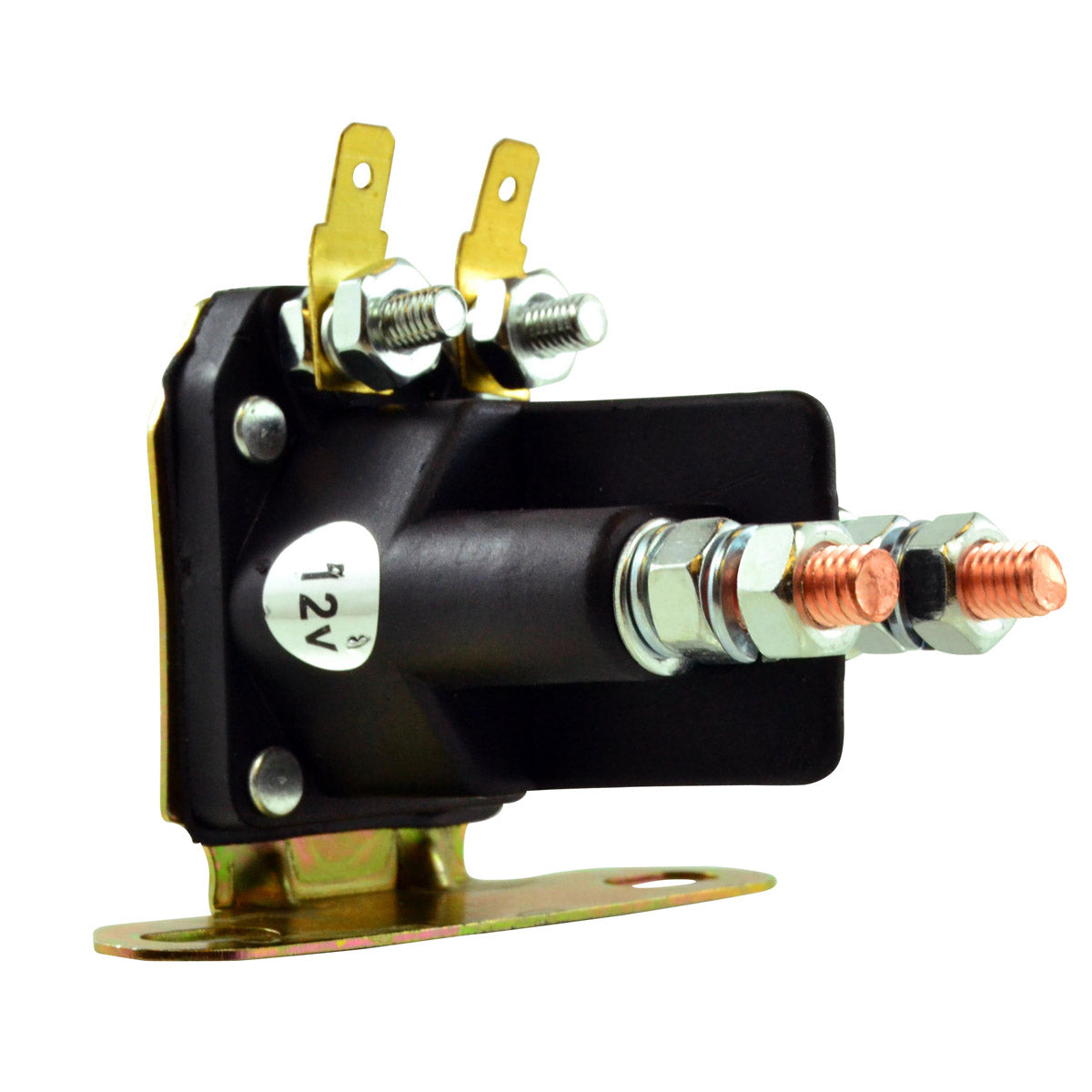

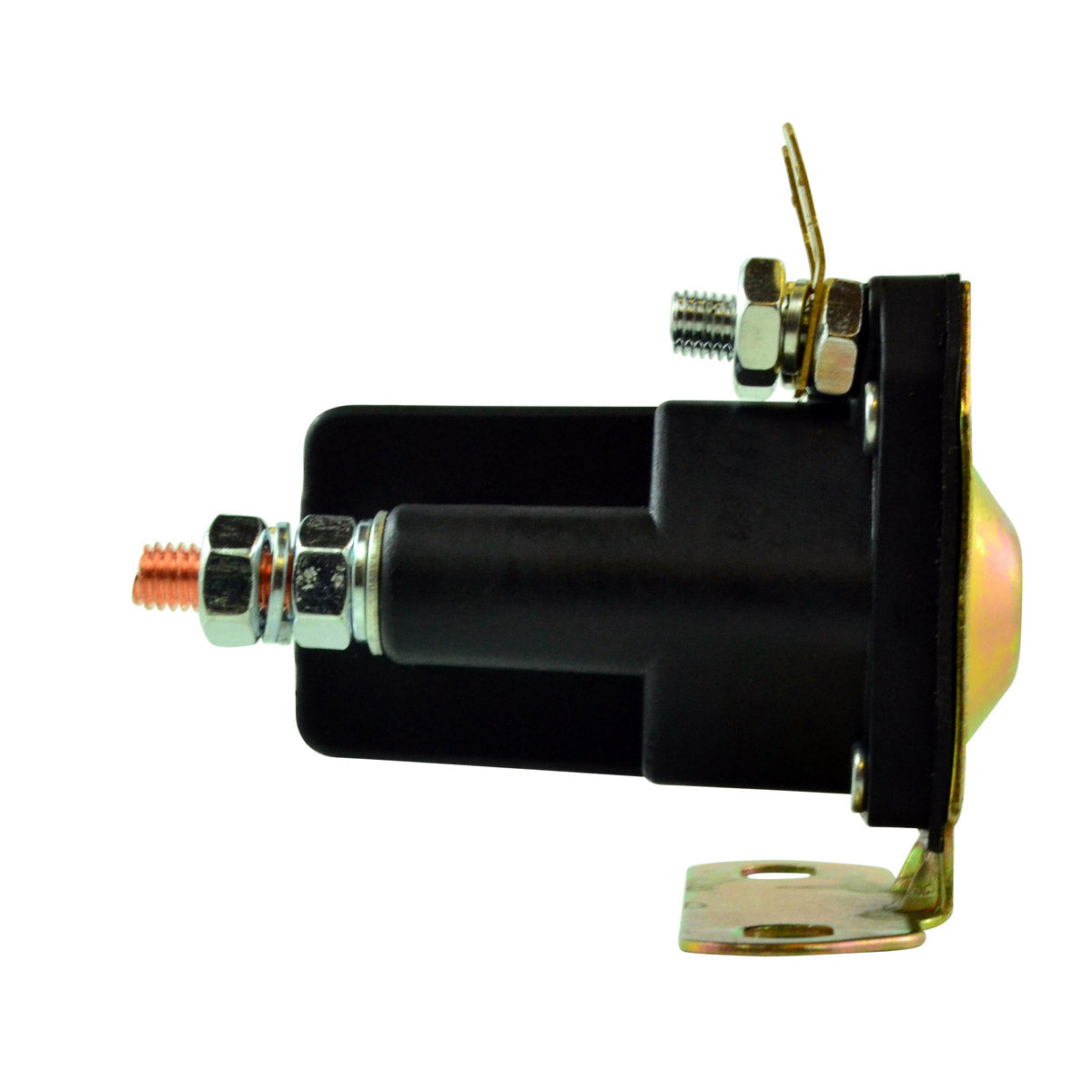

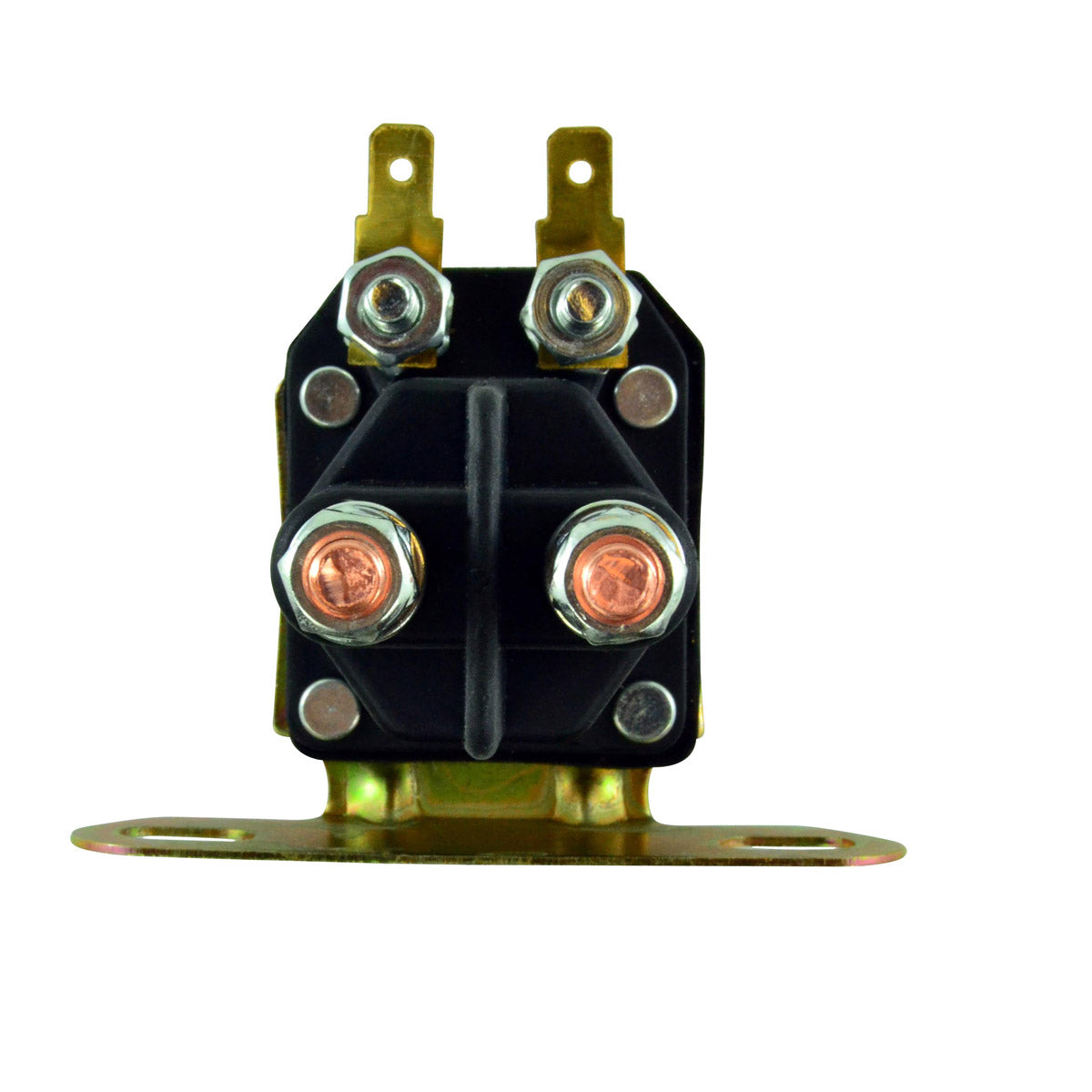

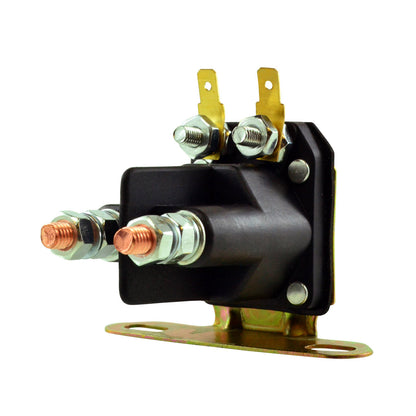

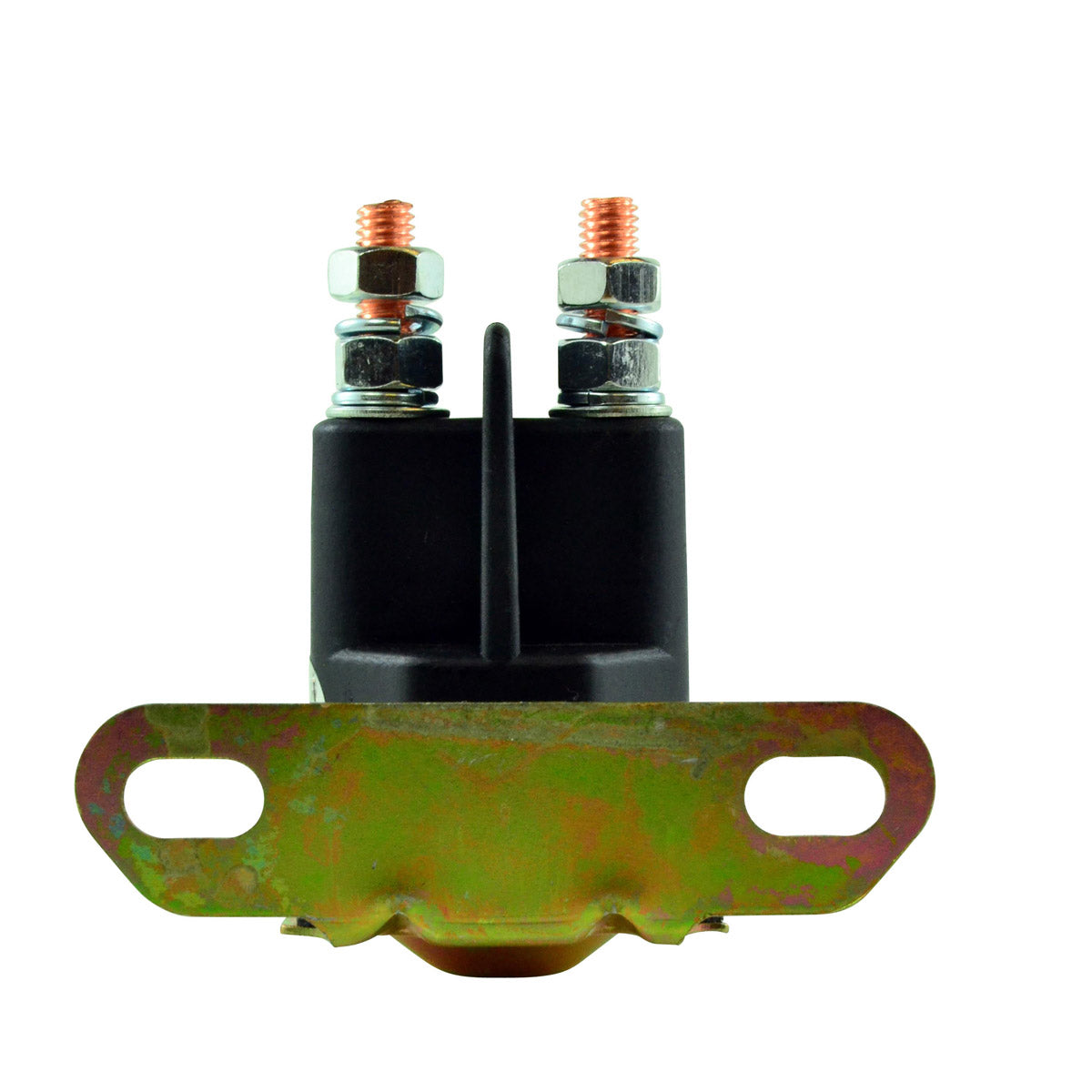

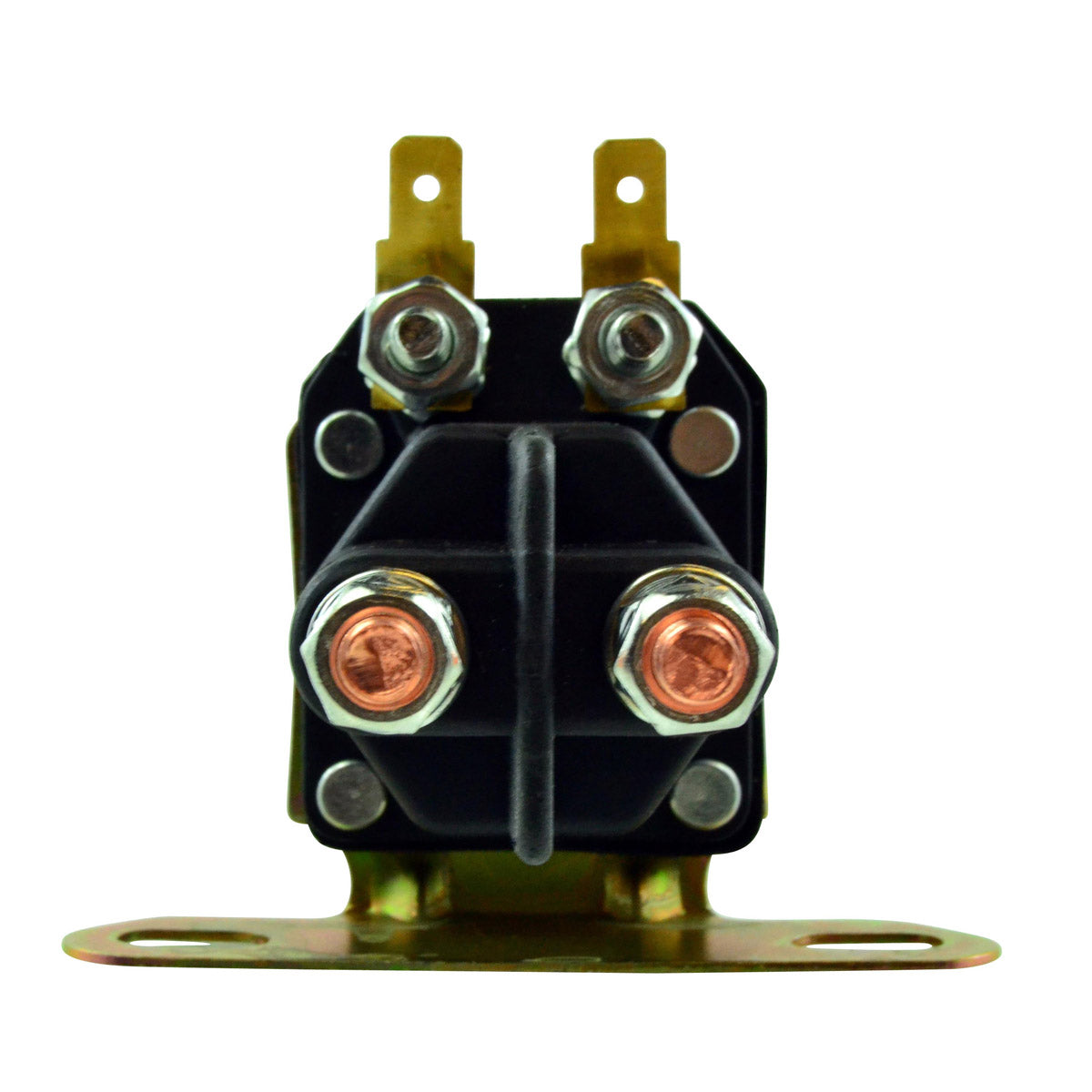

A brand new starter relay solenoid switch for Polaris snowmobiles, built to a standard that exceeds the original equipment part. The solenoid is the heavy-duty switch sitting between the battery and the starter motor. When you press the start button, a small current energises the coil inside the unit and slams a large contact closed, allowing the several hundred amps the starter demands to flow directly from the battery rather than through the start button and its thin wiring.
This unit measures 57 mm long by 40 mm wide by 60 mm high, with 58 mm between the fixation holes, so it sits in the original bracket without adaptation. It supersedes a long list of Polaris interchange numbers, including 4012358, 3086236 and 4015817, which makes it a straightforward answer for a machine that has already been through more than one solenoid part number over its life. Every solenoid we ship has been tested. The product photographs are accurate representations of the item supplied, so if you are in any doubt please compare them against your original part before ordering.
Key Features
- Brand new starter relay solenoid switch, not remanufactured
- Quality exceeds the original equipment specification
- 58 mm fixation hole spacing to match the original bracket
- Supersedes eight Polaris interchange part numbers
- Covers Indy, Switchback, RMK and Rush models
- Broad 2000 to 2024 model year coverage
- Every unit tested before it is shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-104886 |
| Component type |
Starter relay solenoid switch |
| Height |
60 mm |
| Length |
57 mm |
| Width |
40 mm |
| Distance between fixation holes |
58 mm |
| Condition |
Brand new, tested before dispatch |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Indy 550 |
2000-2024 |
| Polaris Indy 600 |
2000-2024 |
| Polaris Indy 750 |
2000-2024 |
| Polaris 800 Switchback |
2000-2024 |
| Polaris 800 RMK |
2000-2024 |
| Polaris 800 Rush |
2000-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4012358 |
Polaris |
| 3086236 |
Polaris |
| 4011334 |
Polaris |
| 2410437 |
Polaris |
| 4010971 |
Polaris |
| 4011251 |
Polaris |
| 4011072 |
Polaris |
| 4015817 |
Polaris |
Frequently Asked Questions
Will it fit without modification?
Yes, on the models listed. The 58 mm fixation hole spacing and the 57 x 40 x 60 mm body match the original solenoid, so it bolts into the standard bracket and takes the standard cable terminals. Checking the number moulded or printed on your existing solenoid against the cross reference table is the surest confirmation.
What is included?
You receive the starter relay solenoid switch itself. Battery cables, the starter lead and the mounting hardware are re-used from your original installation.
How do I know the old solenoid has failed?
The usual signs are a single loud click with no engine turnover, rapid chattering while you hold the start button, or silence from the starter while the gauges and lights stay bright. A solenoid with welded contacts may also keep the starter cranking after the button is released. Because a flat or cold-soaked battery produces almost identical symptoms on a snowmobile, check the battery voltage and the tightness of both terminals before condemning the solenoid.
My machine lists a different Polaris part number - is this still correct?
Very likely. Polaris revised this solenoid several times, so 4012358, 3086236, 4011334, 2410437, 4010971, 4011251, 4011072 and 4015817 all interchange with this single unit. If the number on your original appears in that list, this is the right part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
