This is a brand new starter relay solenoid switch, a direct replacement for the original unit fitted to a wide range of Sea-Doo and Ski-Doo machines, Can-Am UTV side-by-sides and Polaris personal watercraft built between 1995 and 2024. The starter relay is the heavy duty switch between the battery and the starter motor: pressing the start button energises the internal coil, which closes a set of high current contacts and passes full battery current to the starter. It works hard in heat, vibration and moisture, which is why a failed relay is a common cause of a no-start condition on machines of this age.

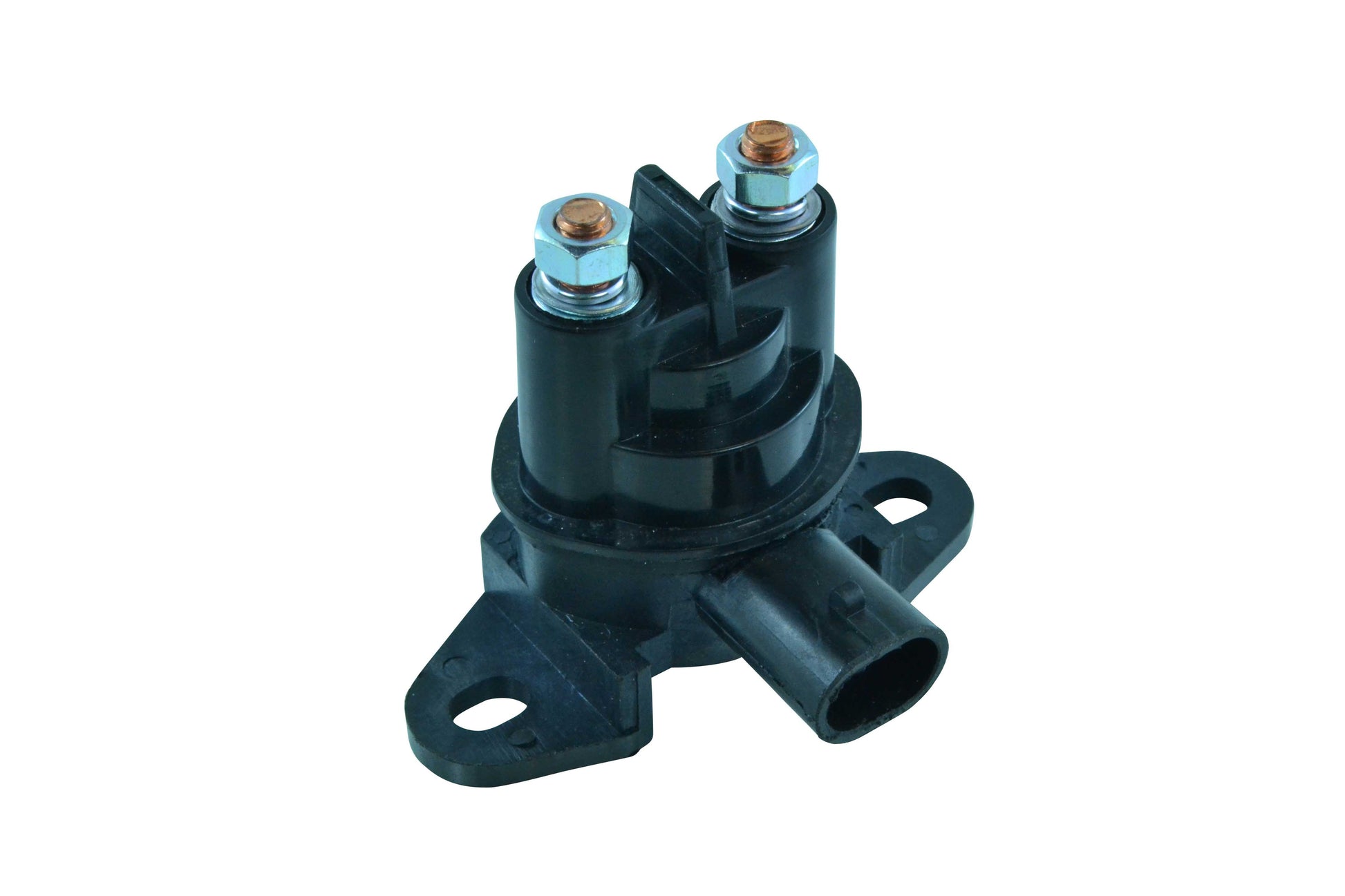

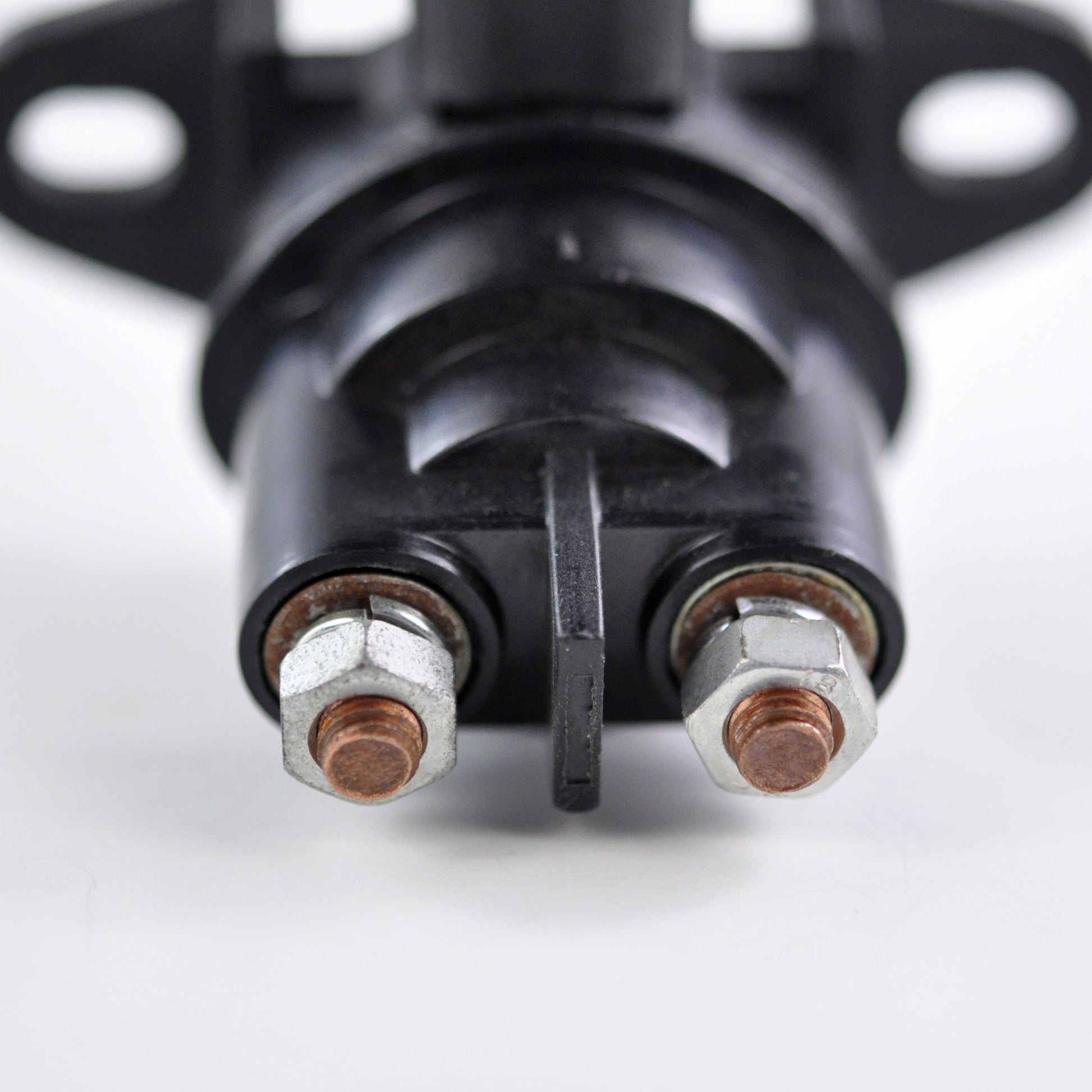

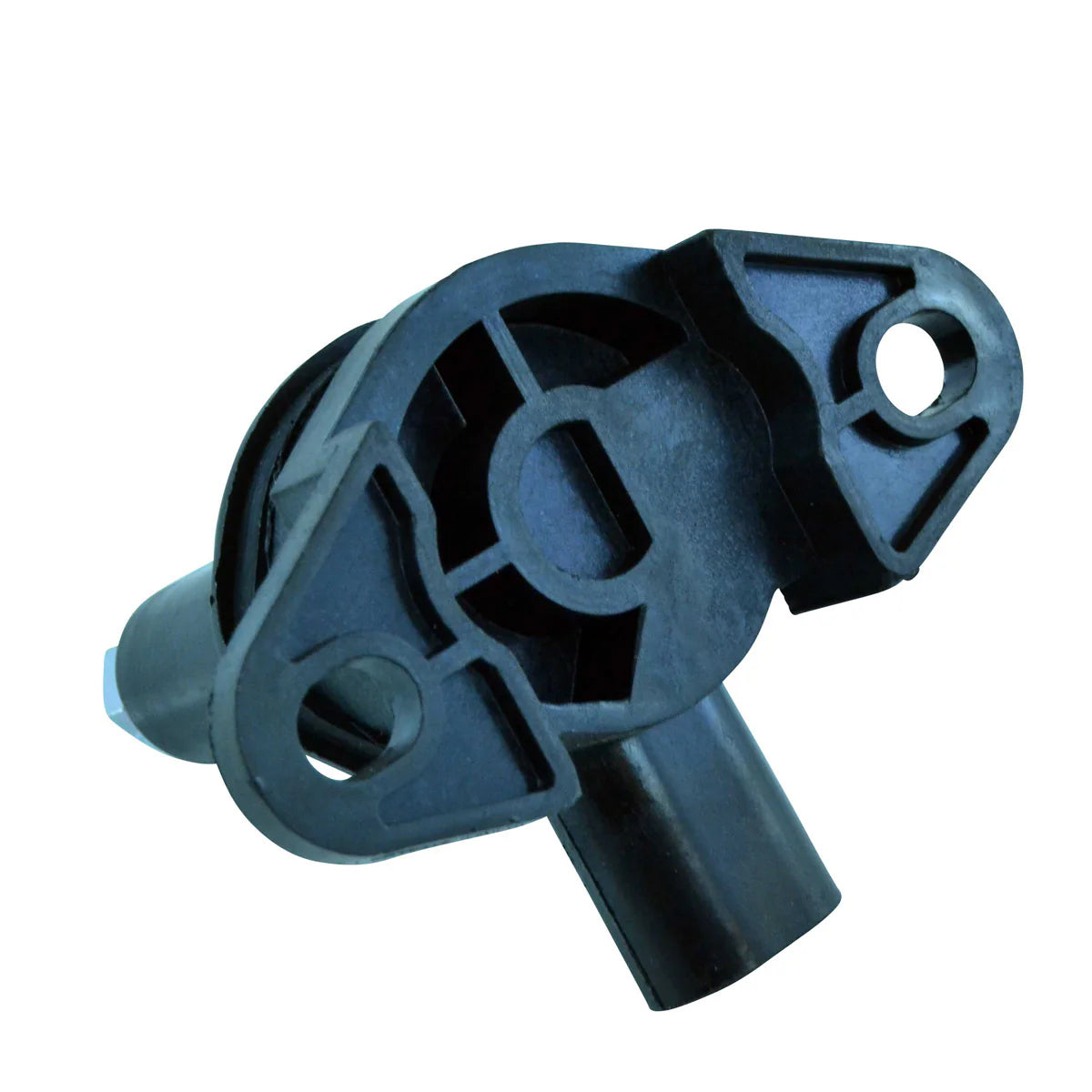

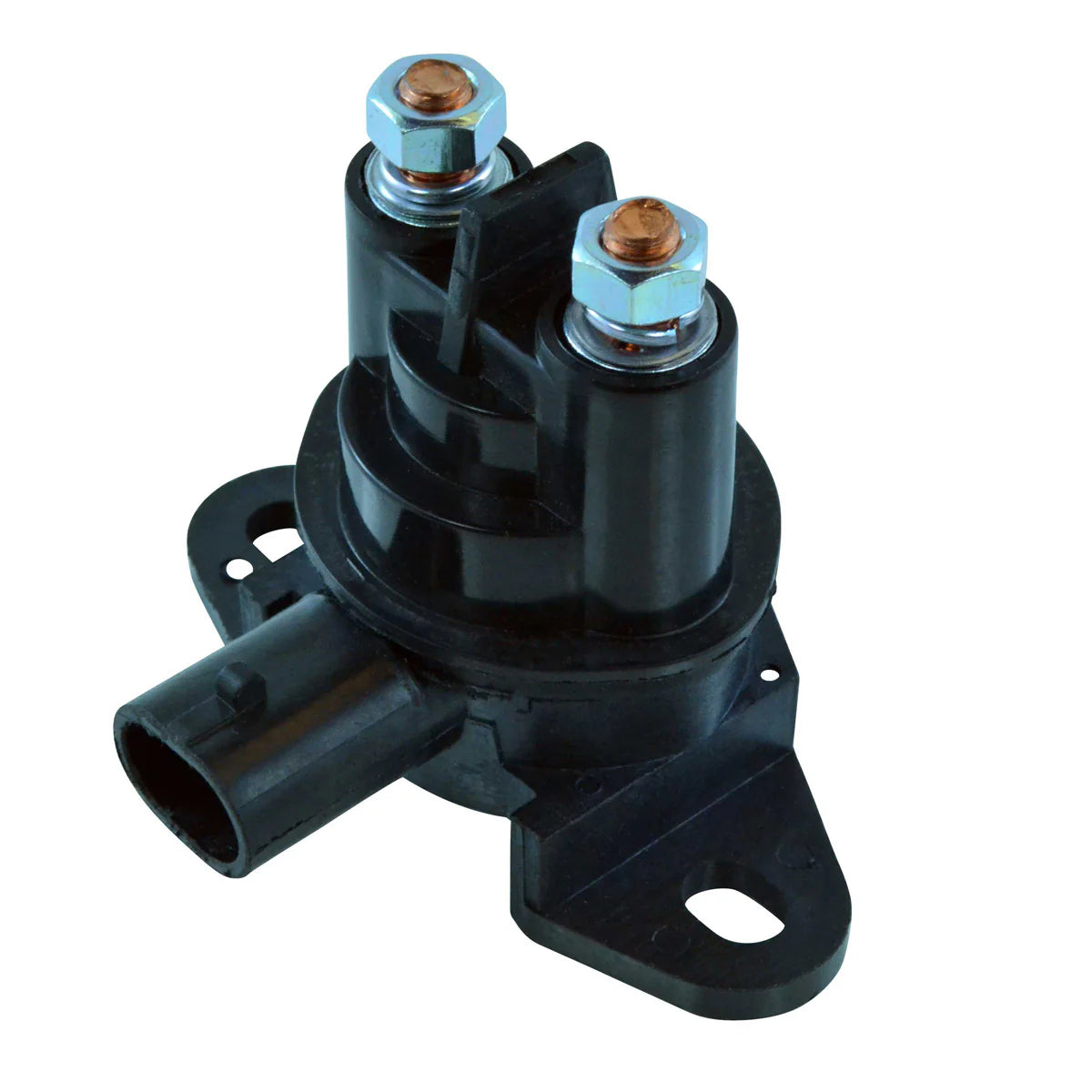

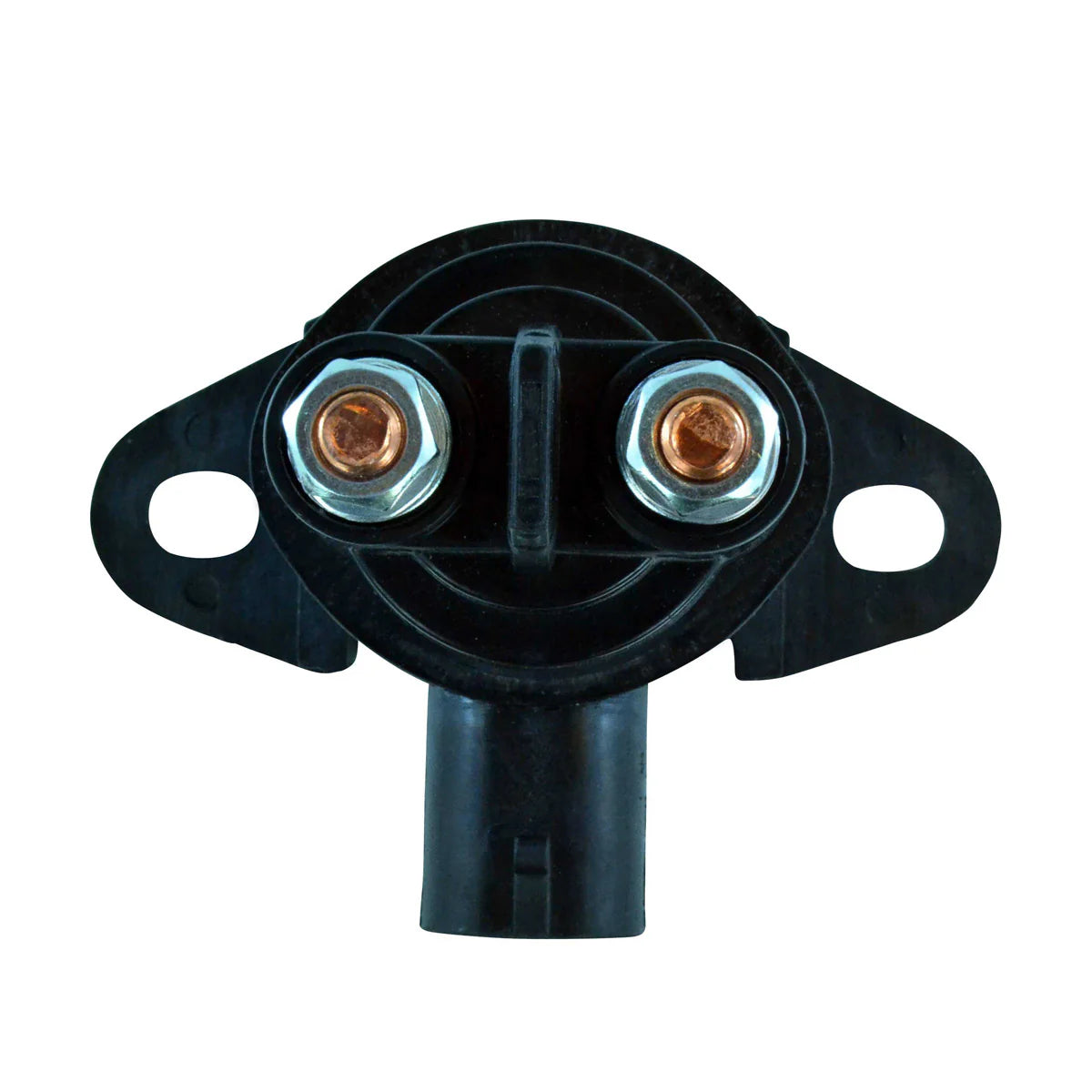

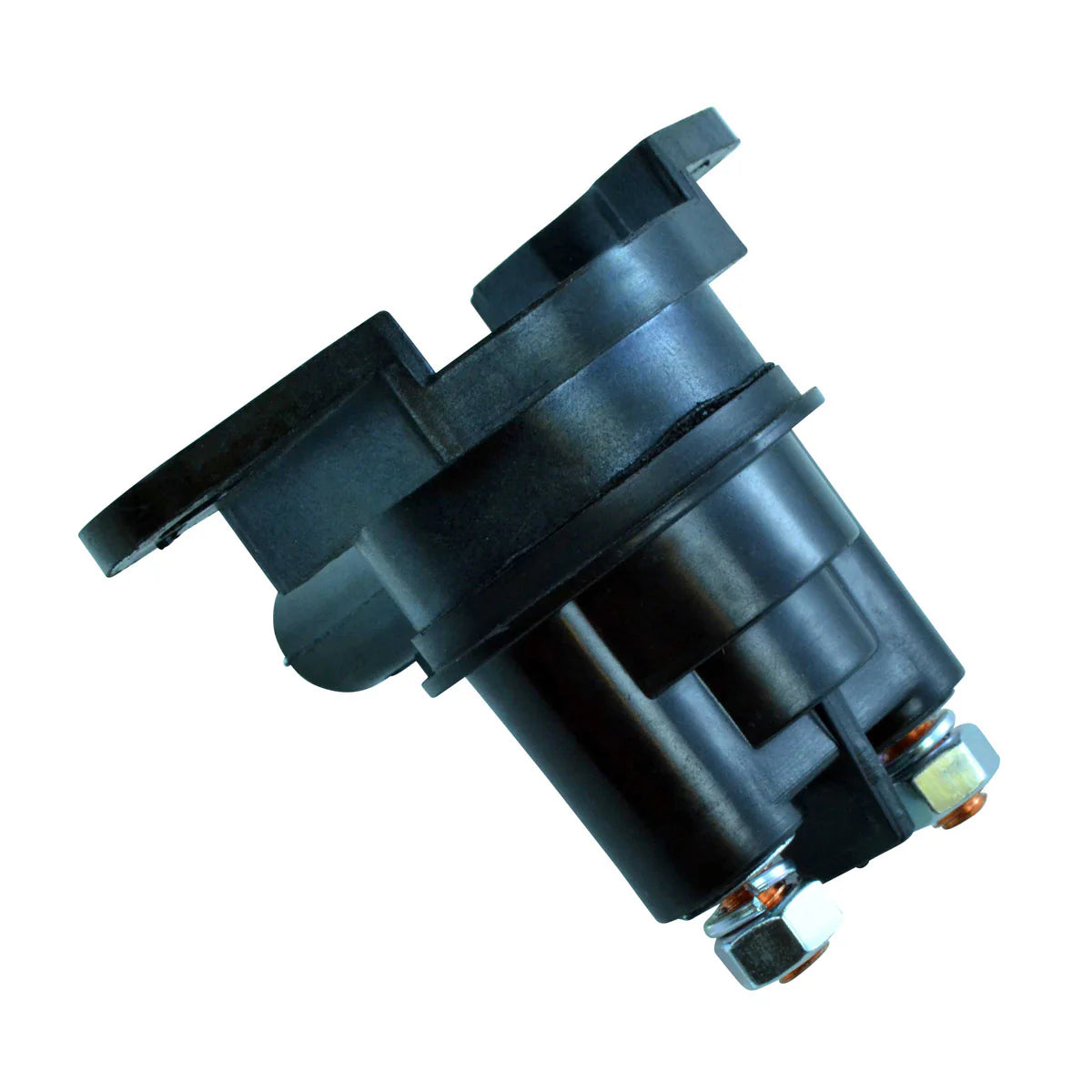

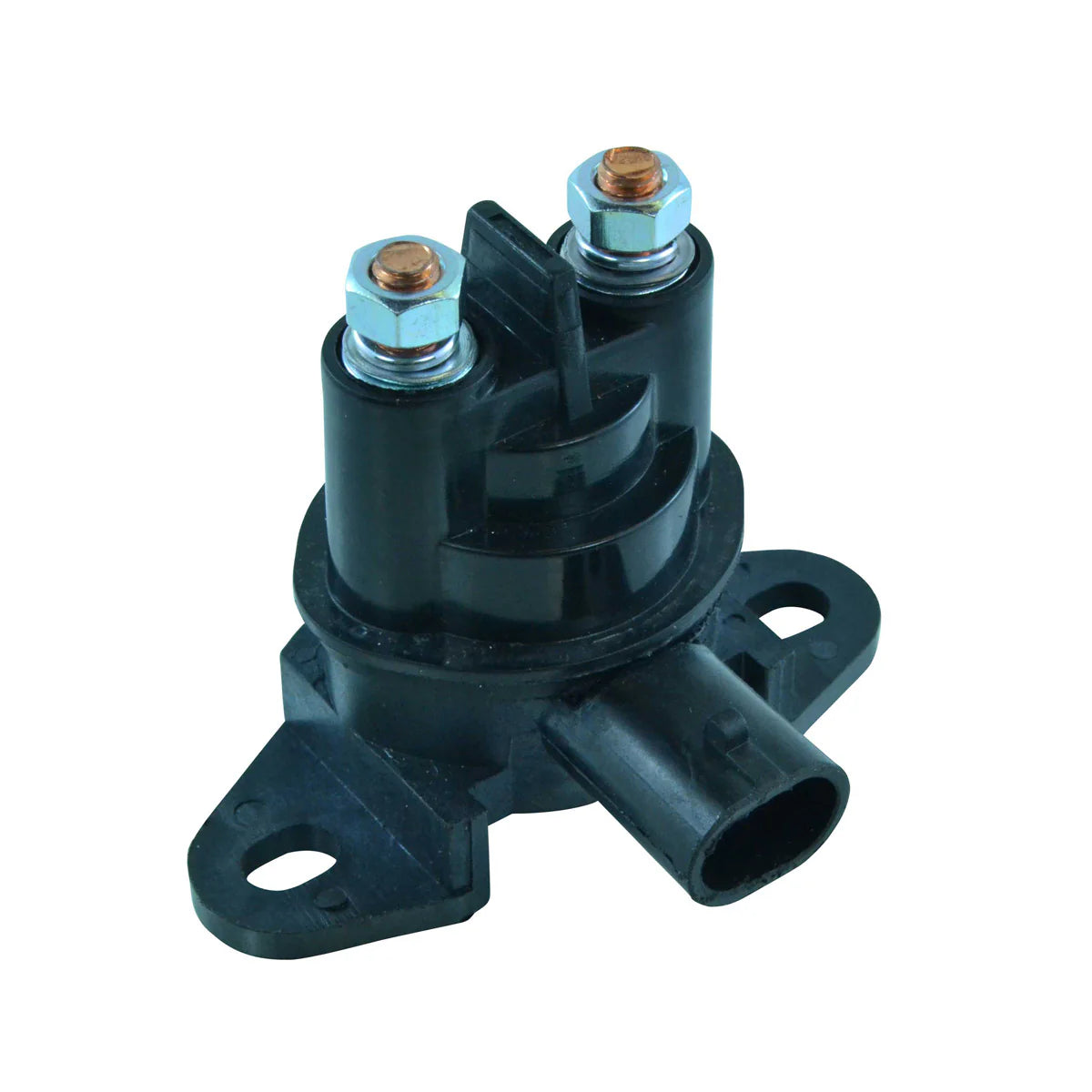

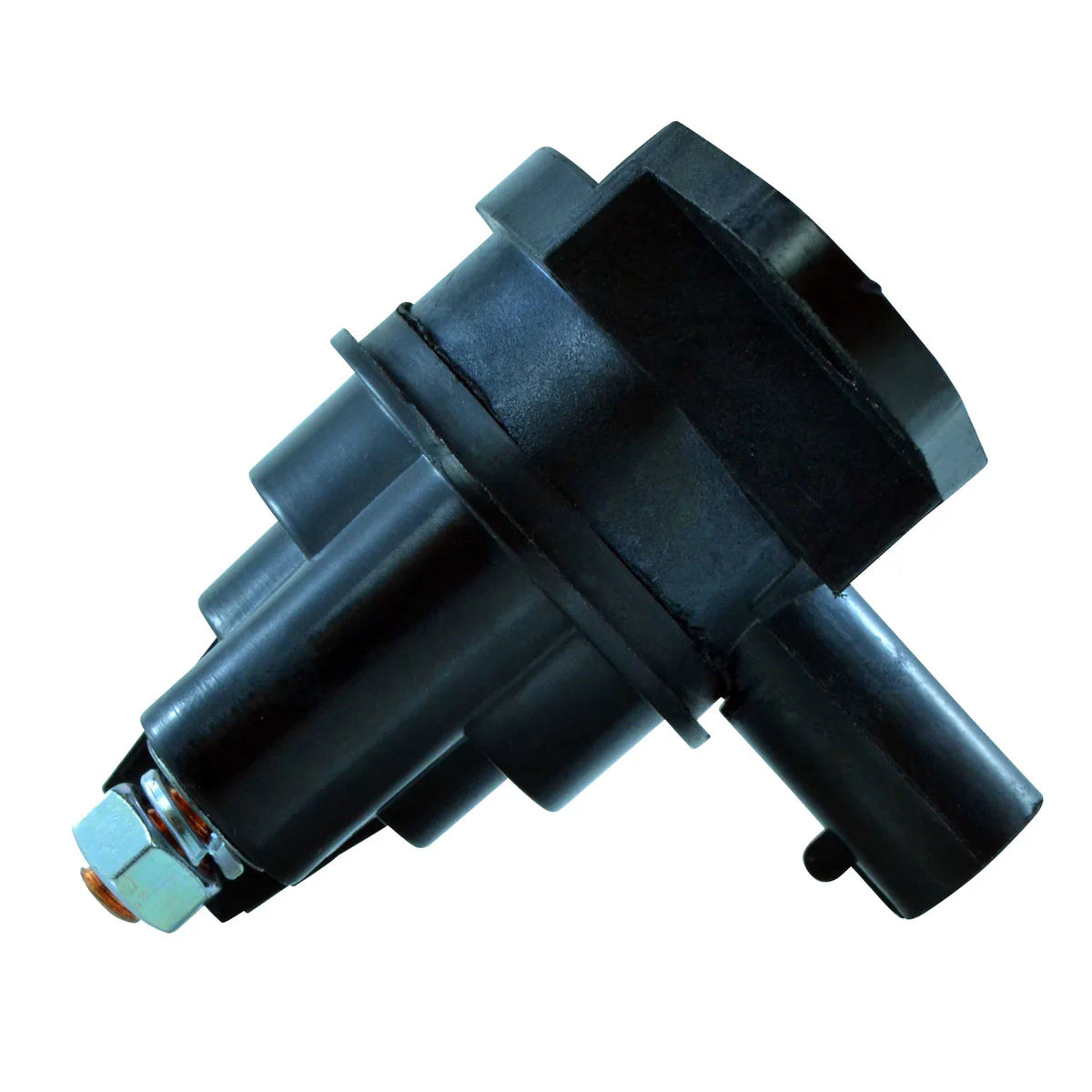

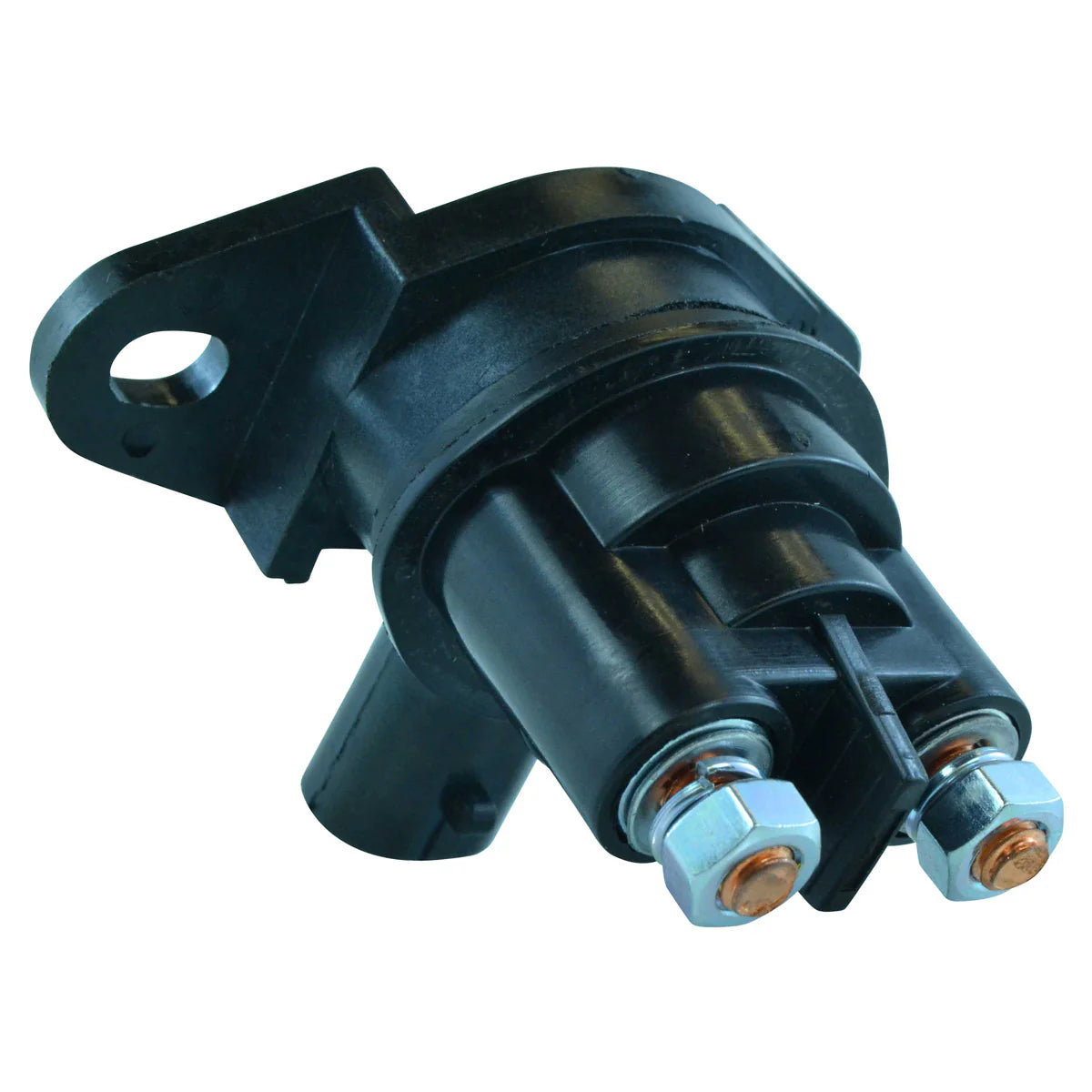

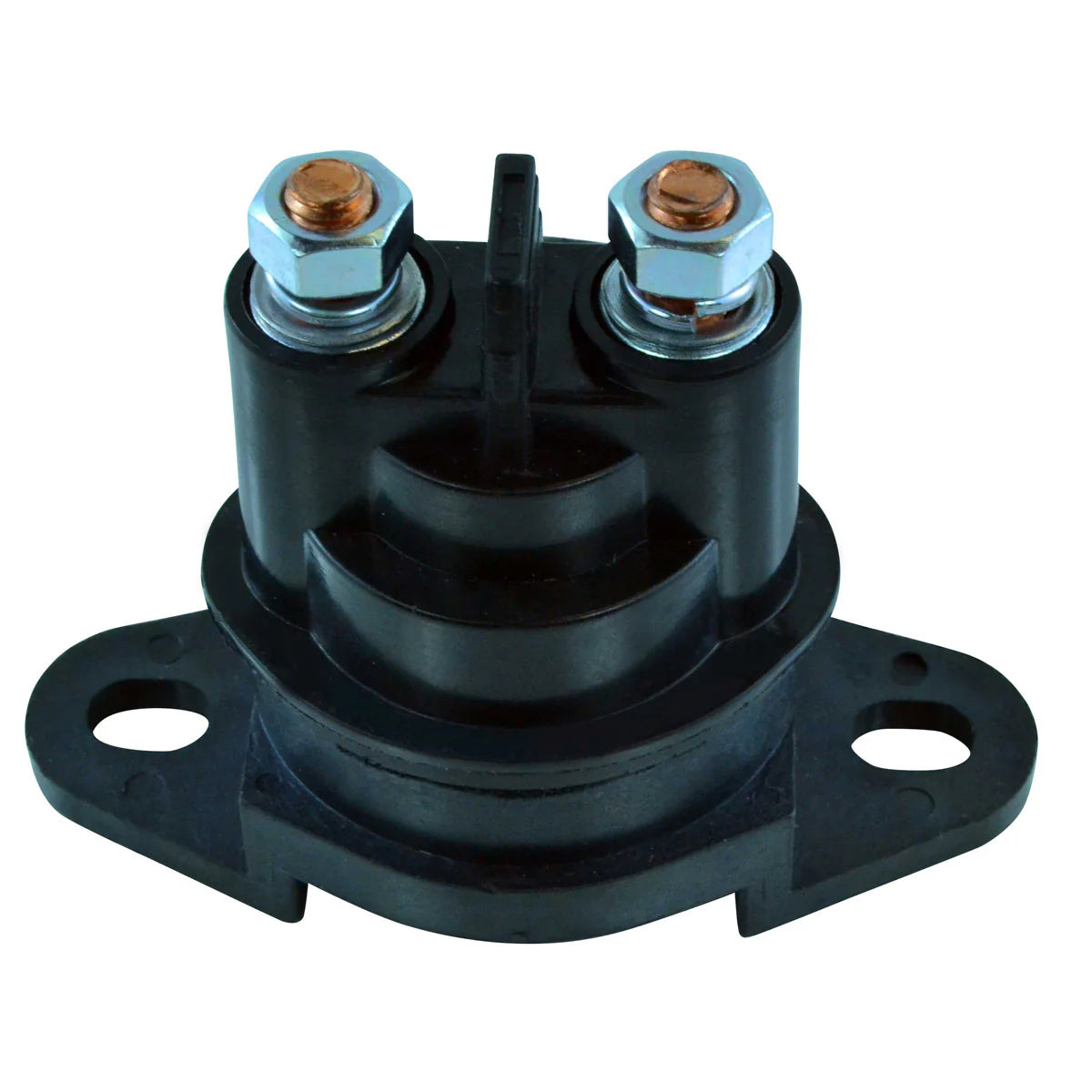

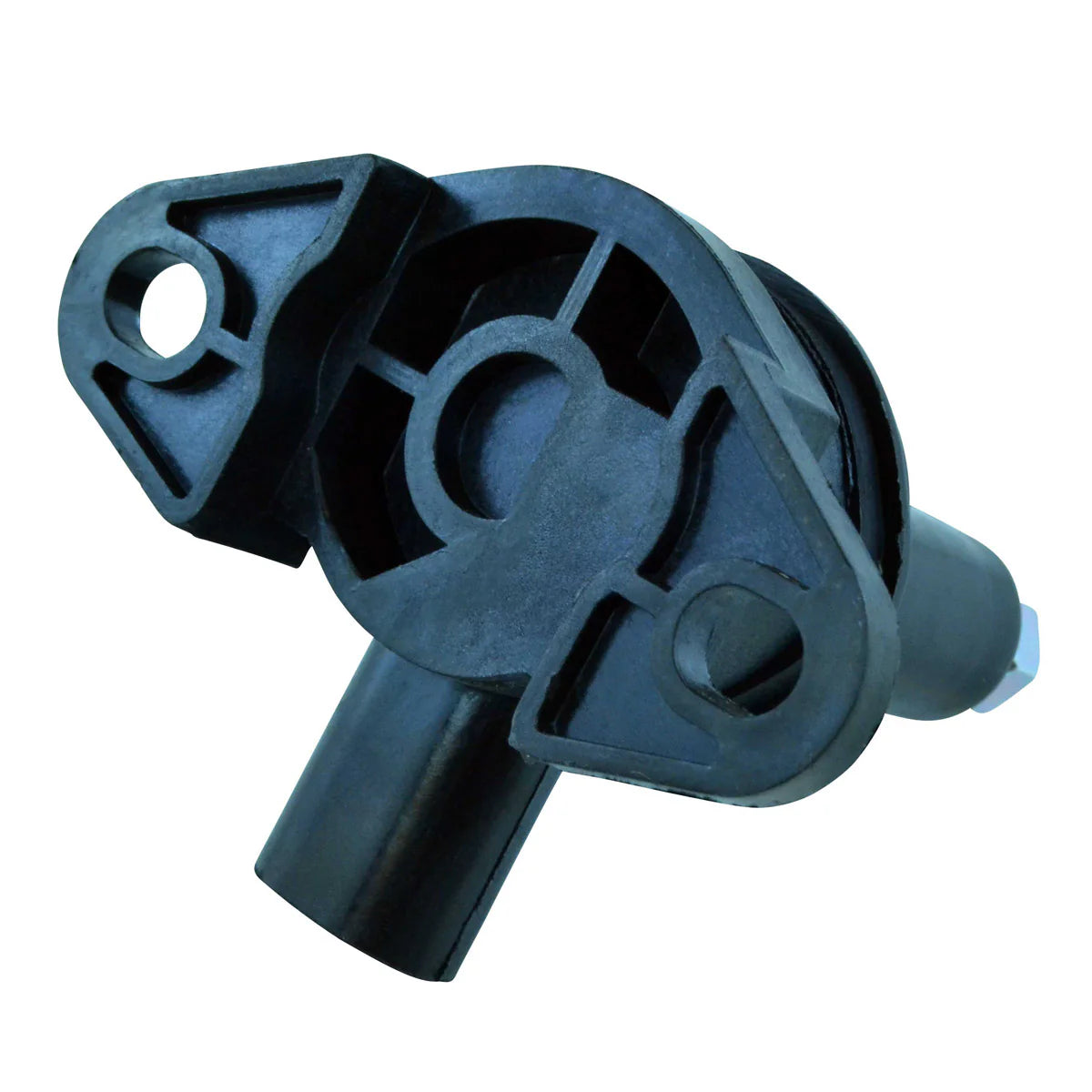

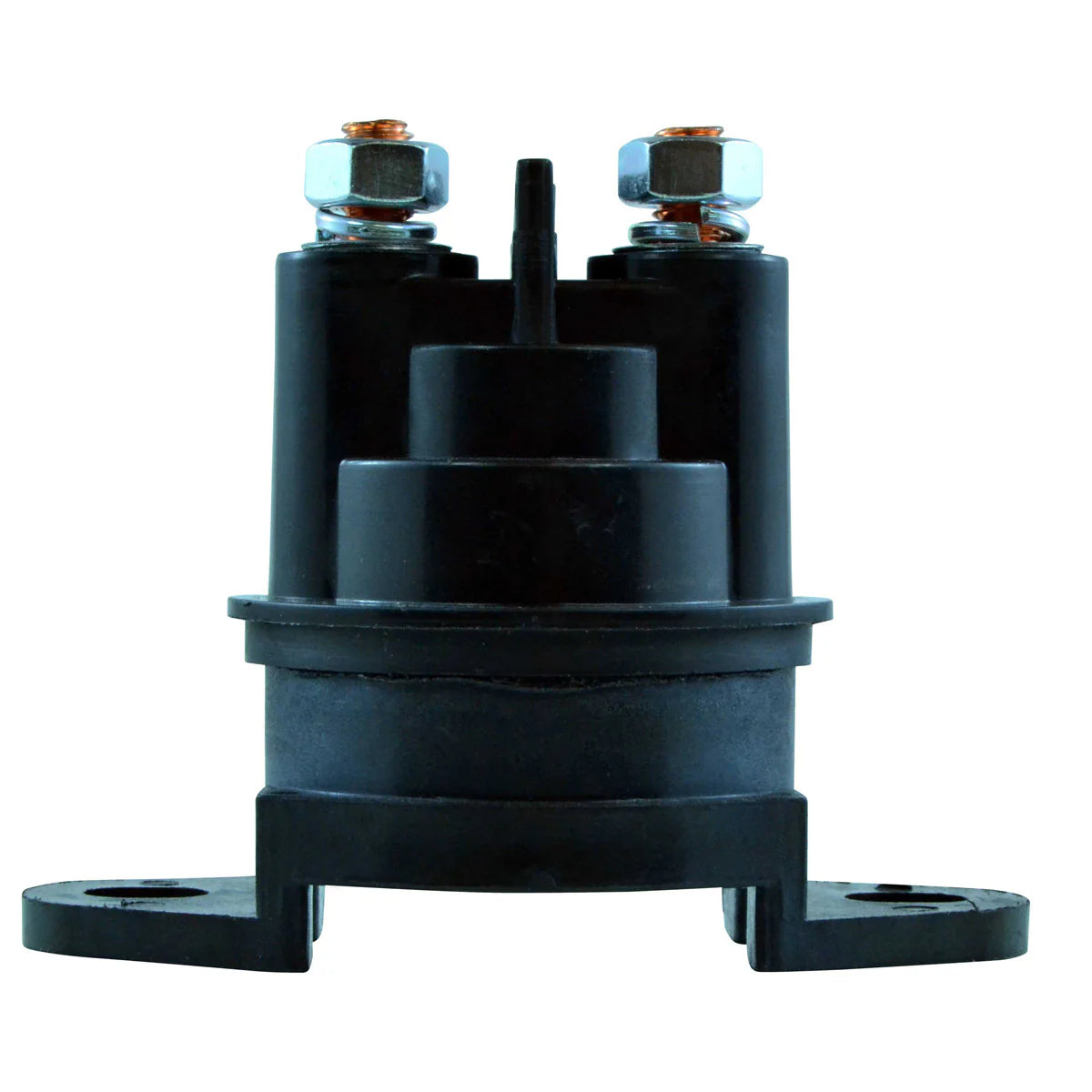

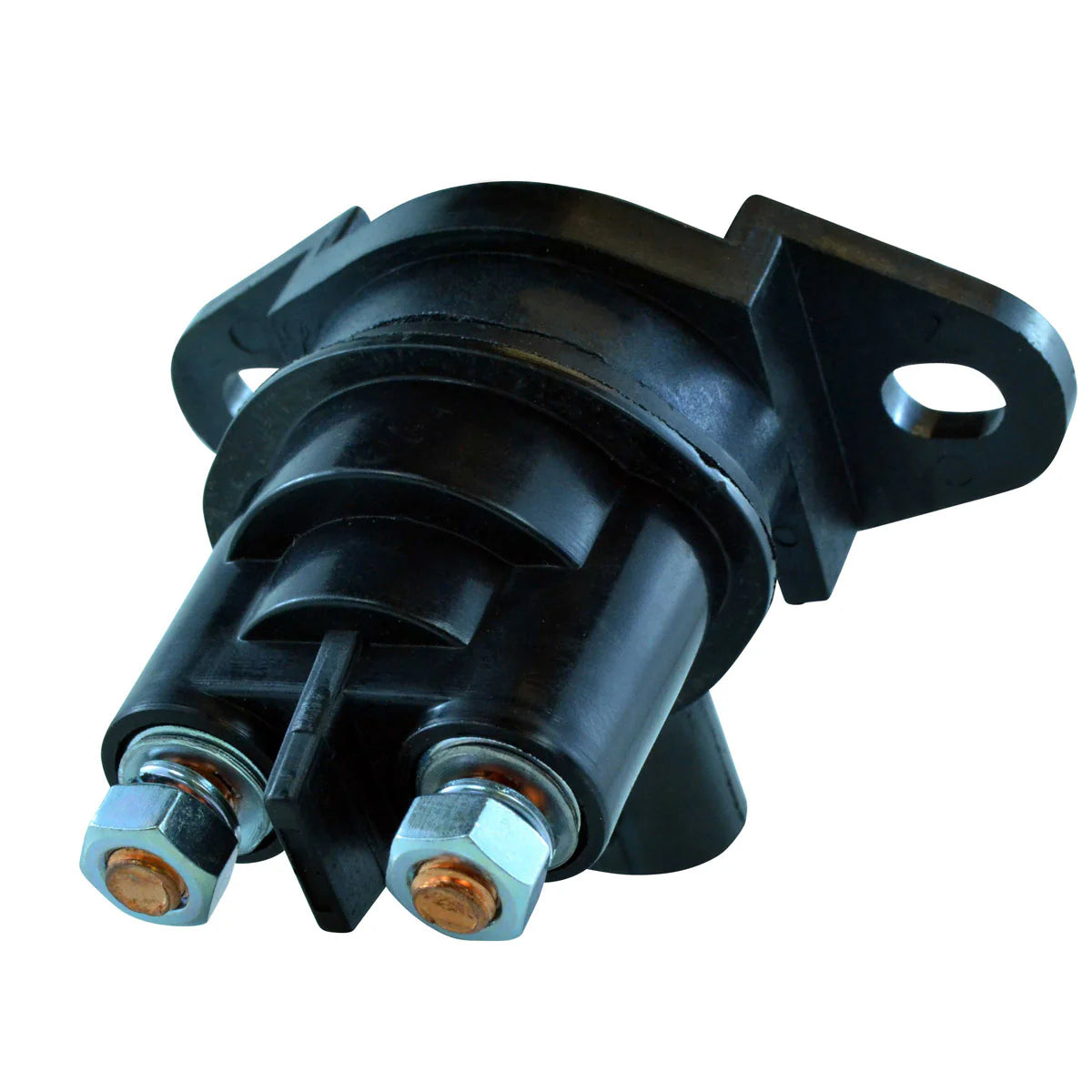

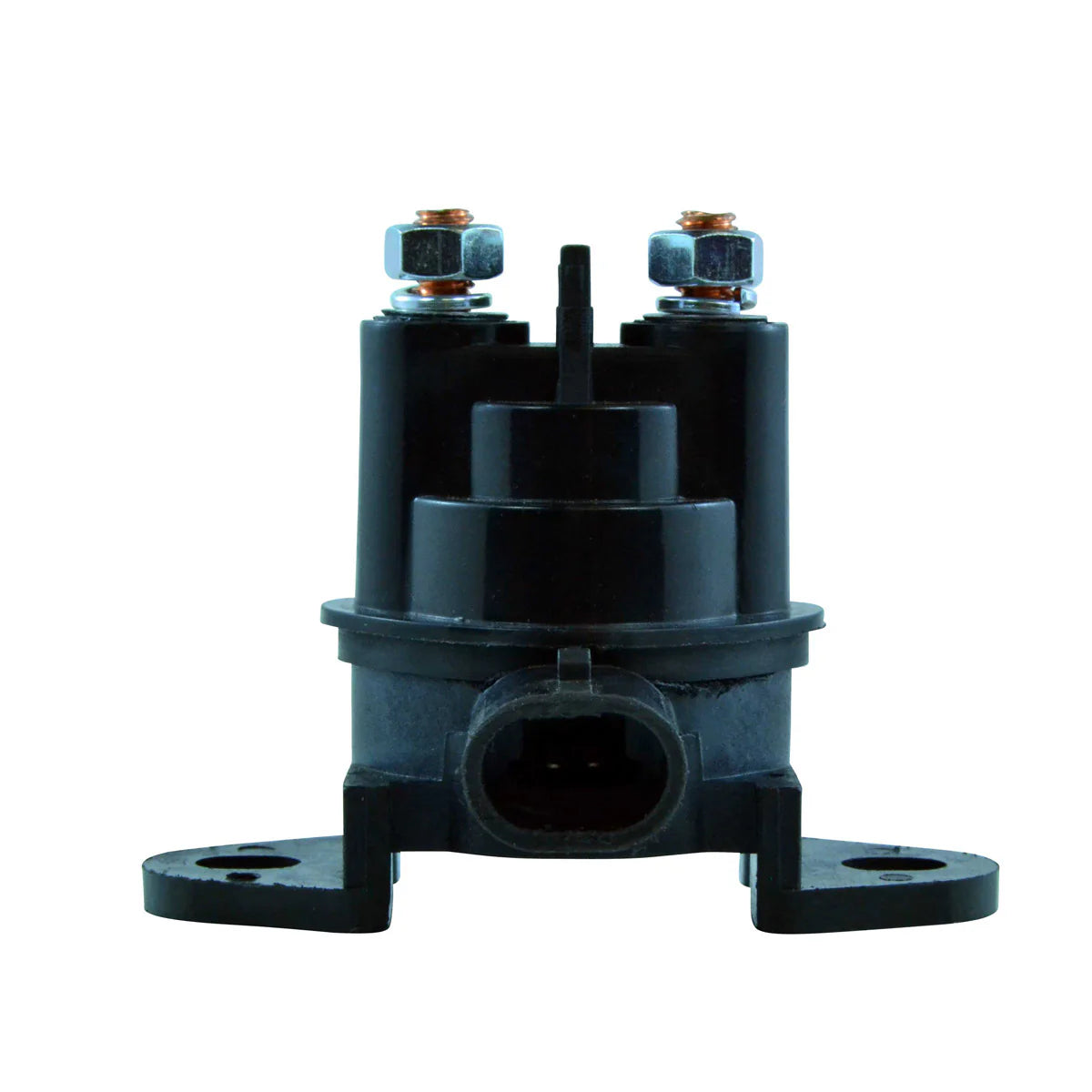

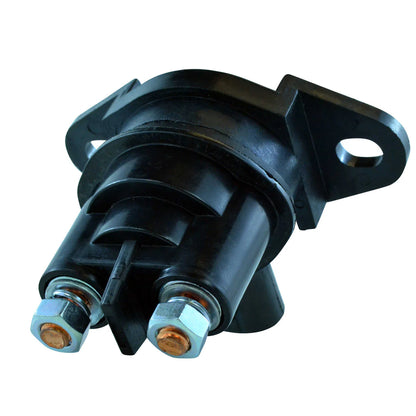

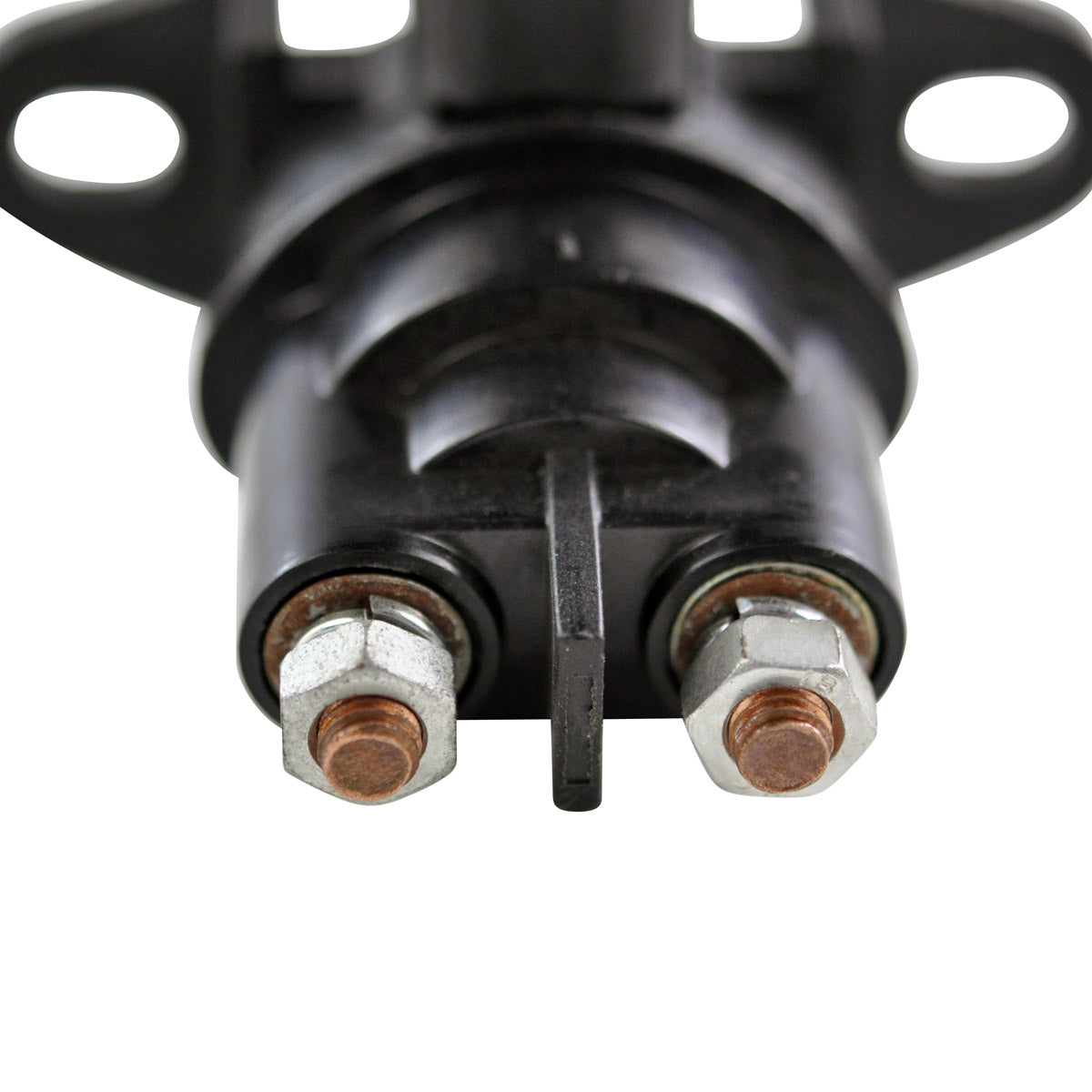

The quality of this relay exceeds the original equipment specification and every unit is tested before it ships. It keeps the same mounting footprint and terminal layout as the factory part, so it drops into the standard bracket with no modification, drilling or rewiring. The body measures 56 mm high, 59 mm long and 78 mm wide, with 60 mm between the bracket hole centres. All of our item pictures are accurate, so if in doubt compare our item to your original part.
Key Features
- Brand new switch - not reconditioned or remanufactured
- Quality exceeds the original equipment specification
- Direct replacement, so no modification is required
- Every unit is tested before despatch
- 60 mm centre to centre bracket mounting matches the factory position
- Cross referenced against ten BRP and Polaris OEM part numbers
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-101685 |
| Height |
56 mm |
| Length |
59 mm |
| Width |
78 mm |
| Bracket hole centre to centre |
60 mm |
| Fitment type |
Direct replacement for the original unit |
| Condition |
Brand new, tested before shipping |
Vehicle Fitment Guide
| Make & Model |
Years |
| Sea-Doo / Ski-Doo / Can-Am UTV / Polaris PWC |
1995-2024 |
This is a ride specific part. Confirm the application by matching your original solenoid against one of the OEM part numbers below.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4010228 |
Polaris |
| 4010401 |
Polaris |
| 4011043 |
Polaris |
| 278002347 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278001766 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278001802 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278000513 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278001376 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278003012 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
| 278001641 |
BRP - Sea-Doo / Ski-Doo / Can-Am |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement using the same bracket footprint, with 60 mm between the mounting hole centres, so no drilling, cutting or rewiring is needed. Confirm your application against one of the OEM part numbers listed above.
What is included?
One brand new starter relay solenoid switch, tested before despatch. Cables and mounting hardware are not supplied, so reuse the fixings and leads from your existing solenoid.
How do I know my old relay has failed?
The usual symptom is a single loud click, or rapid clicking, when you press the start button while the starter motor does not turn. Burnt internal contacts can also cause intermittent starting that worsens when hot, or no response at all. Always charge and test the battery first, as a weak battery gives very similar symptoms.
Does this relay carry the full starter current?
Yes. It is the high current switch between battery and starter, so the main terminals carry the entire cranking load. Disconnect the battery before servicing - there is a risk of electric shock and of shorting the main terminals - and we recommend fitting by a qualified technician.
