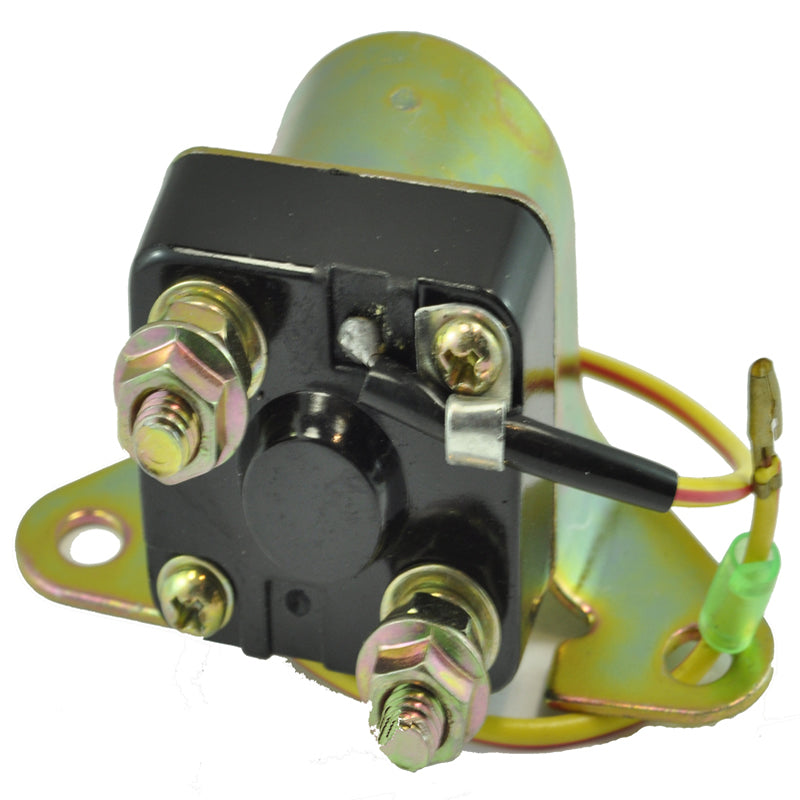

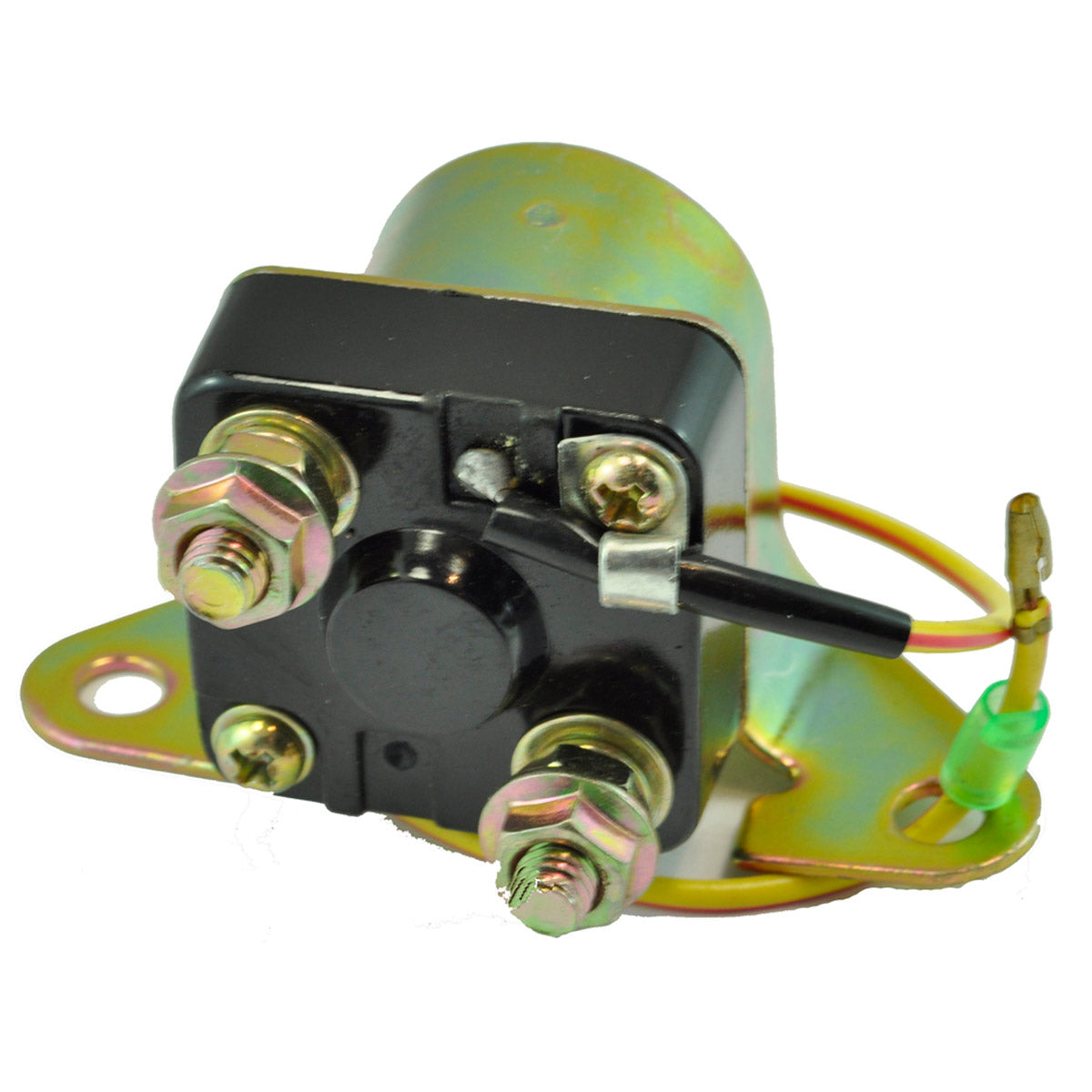

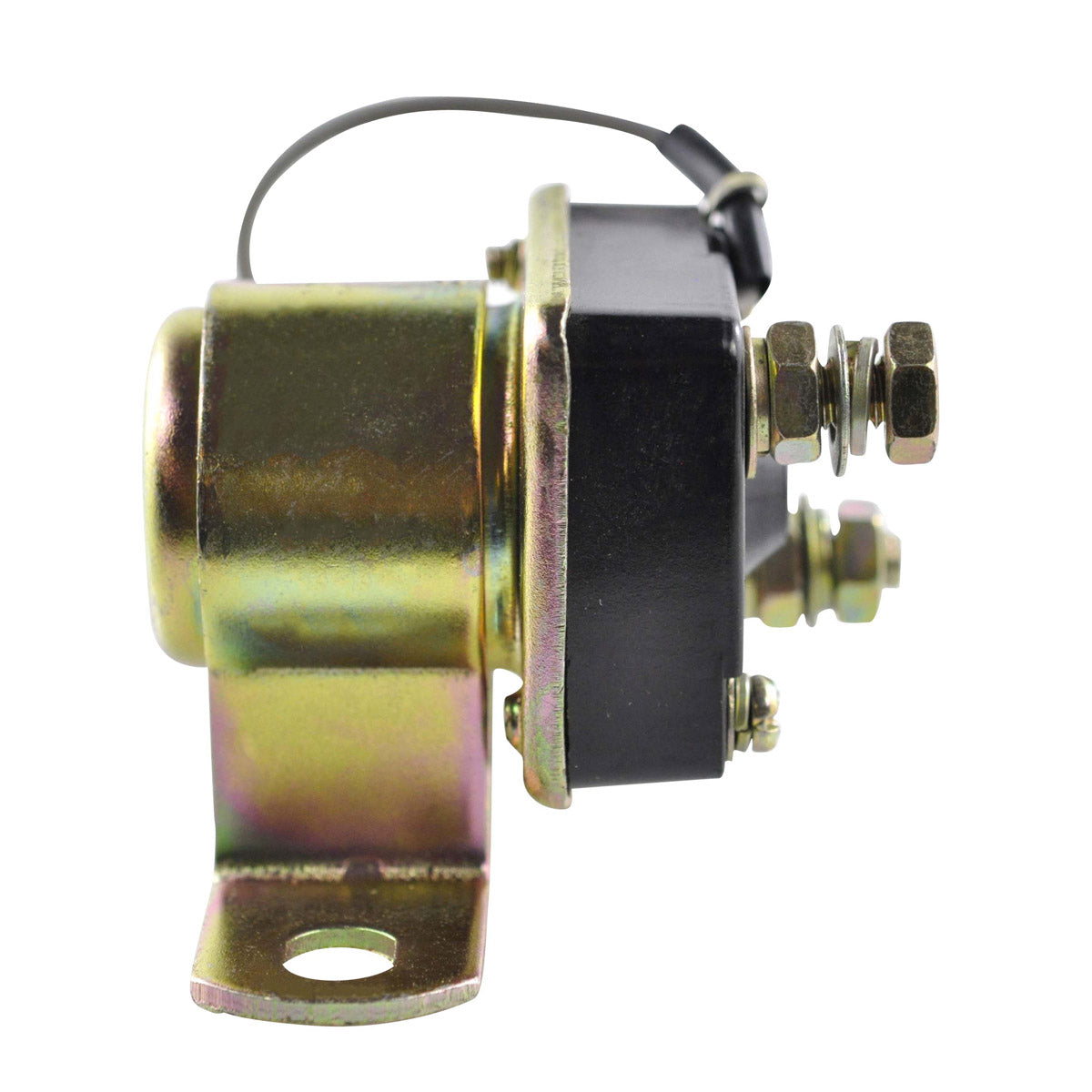

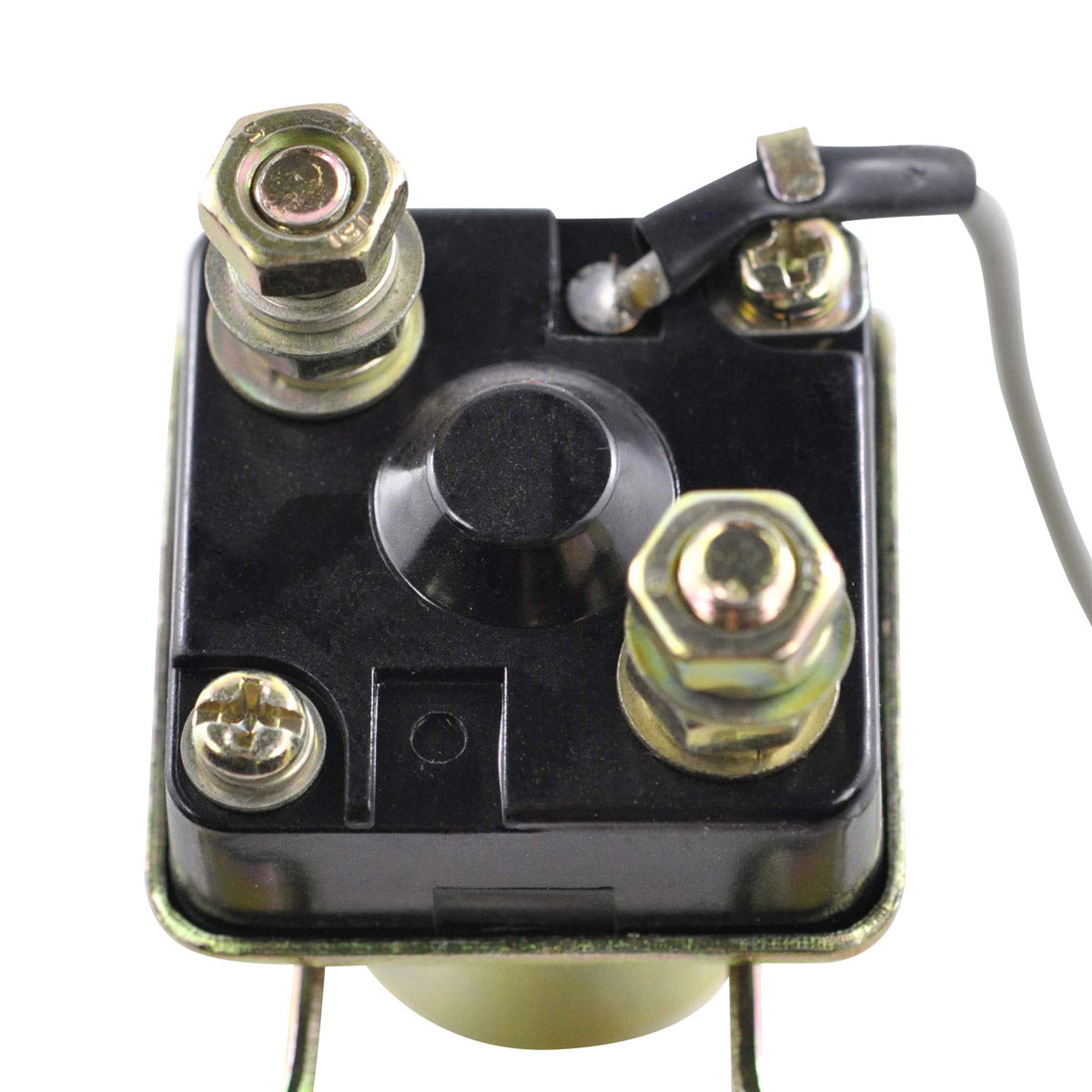

Starter Relay Solenoid with Fuse for Suzuki GS
Suzuki GS250 to GS1100 - 1977-1988 - OEM replacement 31800-37020 - Part number RM09008
This is a brand new starter relay solenoid switch for the Suzuki GS range, from the GS250 right through to the GS1100, supplied as a direct replacement for the original unit. The starter relay is the heavy duty switch that connects the battery to the starter motor. When the start button is pressed, only a small current runs through the button and the handlebar wiring; that current energises a coil inside the relay, which closes a large set of internal contacts and lets the full starting load through to the motor. It is what allows a small handlebar switch to control several hundred amps safely.
This is the larger GS pattern solenoid with the main fuse holder built into the body, rated at 150 A for 30 seconds. That integrated fuse is the main circuit protection for the machine, which is why the whole assembly is usually replaced together - a corroded fuse holder causes exactly the same dead, no-crank symptom as burnt relay contacts. The unit is built to a standard that exceeds the original equipment and every one is tested before dispatch. All item pictures are accurate, so if you are in any doubt, compare the item shown against your original part before ordering.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit - no modification required
- Integrated fuse holder rated at 150 A for 30 seconds
- Quality exceeds the original equipment standard
- Covers the full Suzuki GS range from GS250 to GS1100
- Replaces five original Suzuki part numbers
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM09008 |
| Type | Starter relay solenoid switch |
| Height | 61 mm |
| Length | 77 mm |
| Width | 42 mm |
| Number of wires | 1 |
| Number of terminals | 1 |
| Number of plugs | 0 |
| Fuse | Yes - fuse holder integrated |
| Rating | 150 A / 30 S |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GS250 | 1977-1988 |
| Suzuki GS300 | 1977-1988 |
| Suzuki GS400 | 1977-1988 |
| Suzuki GS450 | 1977-1988 |
| Suzuki GS550 | 1977-1988 |
| Suzuki GS650 | 1977-1988 |
| Suzuki GS750 | 1977-1988 |
| Suzuki GS850 | 1977-1988 |
| Suzuki GS1000 | 1977-1988 |
| Suzuki GS1100 | 1977-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31800-09031 | Suzuki |
| 31800-37020 | Suzuki |
| 31800-37021 | Suzuki |
| 31800-44500 | Suzuki |
| 31800-49320 | Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original GS solenoid, matching the original 77 mm by 42 mm by 61 mm body with its single wire and single terminal, so it sits in the standard mounting position and connects to the existing cables. Check the number on your original unit against the five Suzuki part numbers listed in the cross reference table before ordering.
What is included?
The starter relay solenoid assembly with its integrated fuse holder. Battery and starter cables, mounting rubbers and terminal hardware are carried over from the original installation. On a machine of this age it is worth cleaning the cable eyes at the same time, so the new solenoid starts with a clean, low resistance connection on both sides.
How do I know the old solenoid has failed?
The typical sign is a single click from the solenoid when the start button is pressed and no movement from the starter motor, on a battery that is known to be good. Others are a starter that engages only occasionally, one that keeps spinning after the button is released because the contacts have welded together, or a completely dead machine caused by a blown or corroded main fuse in the holder built into this unit.
What does the 150 A / 30 S rating mean?
It describes the duty the fuse and contacts are designed to handle: up to 150 amps for a period of 30 seconds. Starting a large air-cooled four such as a GS750 or GS1000 draws a very heavy current for a few seconds at a time, and this rating is what the assembly is built to carry during that burst rather than as a continuous load.
