Starter Relay Solenoid for Suzuki AN Burgman 650 (2003-2017)
Starter Relay Solenoid for Suzuki AN Burgman 650 (2003-2017)
SKU:RMS090-102081
Free shipping over £150. Terms apply
Couldn't load pickup availability

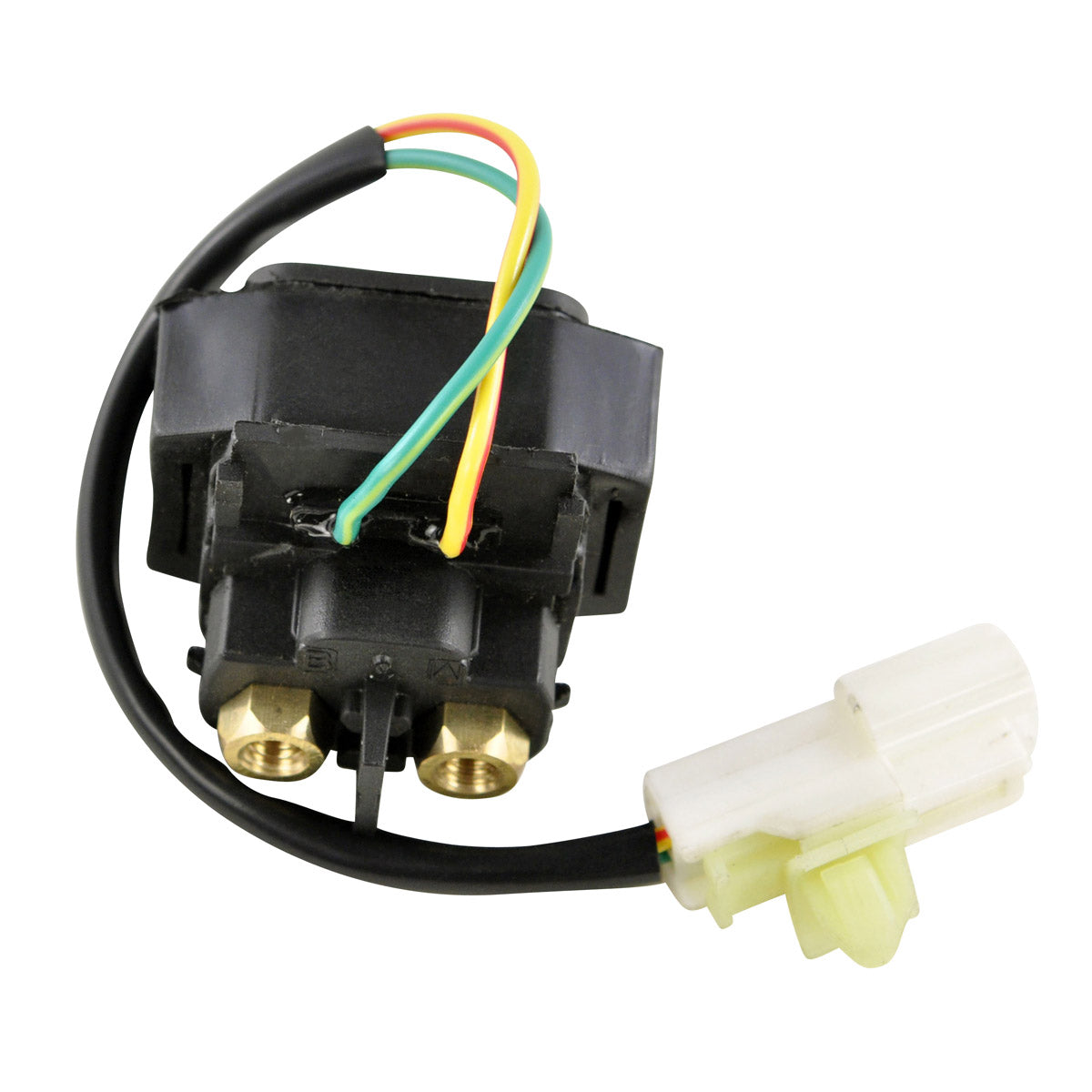

Starter Relay Solenoid for Suzuki AN Burgman 650 - RMS090-102081
Suzuki AN Burgman 650 2003-2017 | OEM Replacement 31800-10G00 / 31800-10G02
Brand new relay for the Suzuki AN Burgman 650, built to a quality that exceeds the OEM equipment, with all products shipped tested before they leave the factory. The starter relay solenoid is the switch that carries the full cranking current from the battery to the starter motor. The handlebar start button only energises a small coil inside the relay, which then closes a pair of heavy contacts to do the real work.

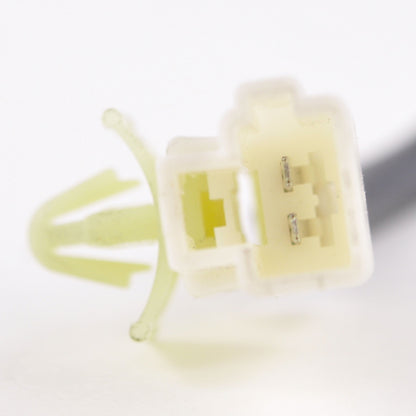

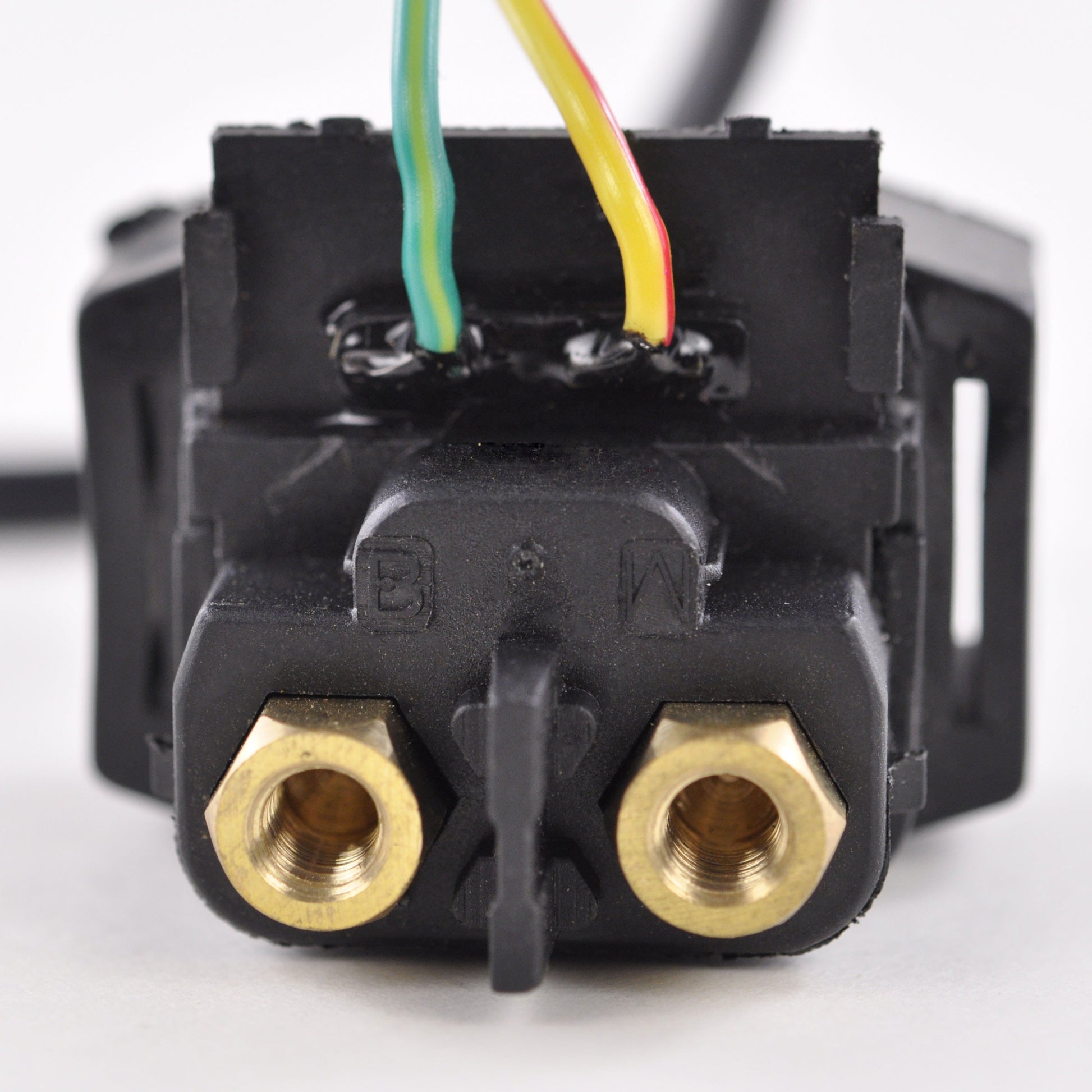

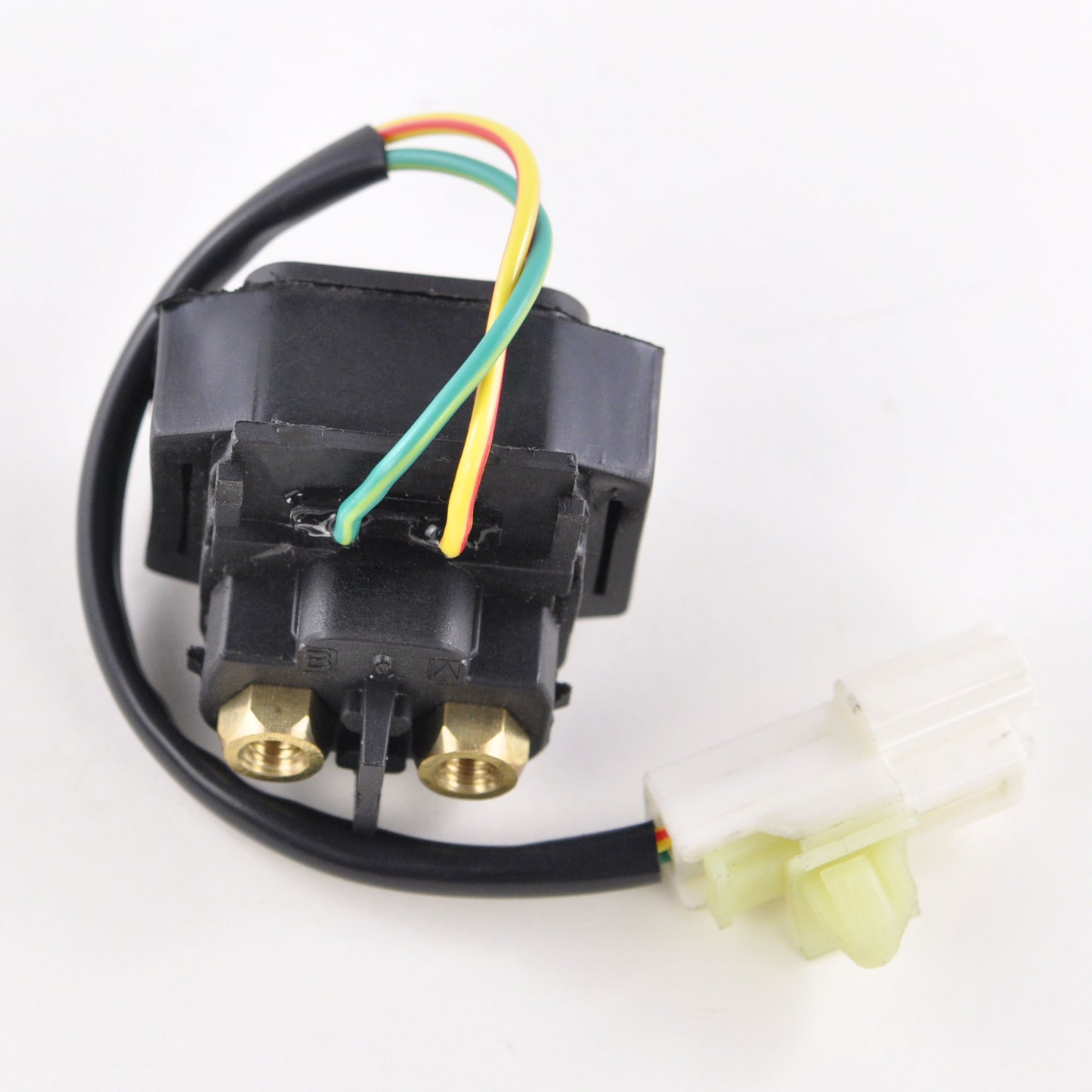

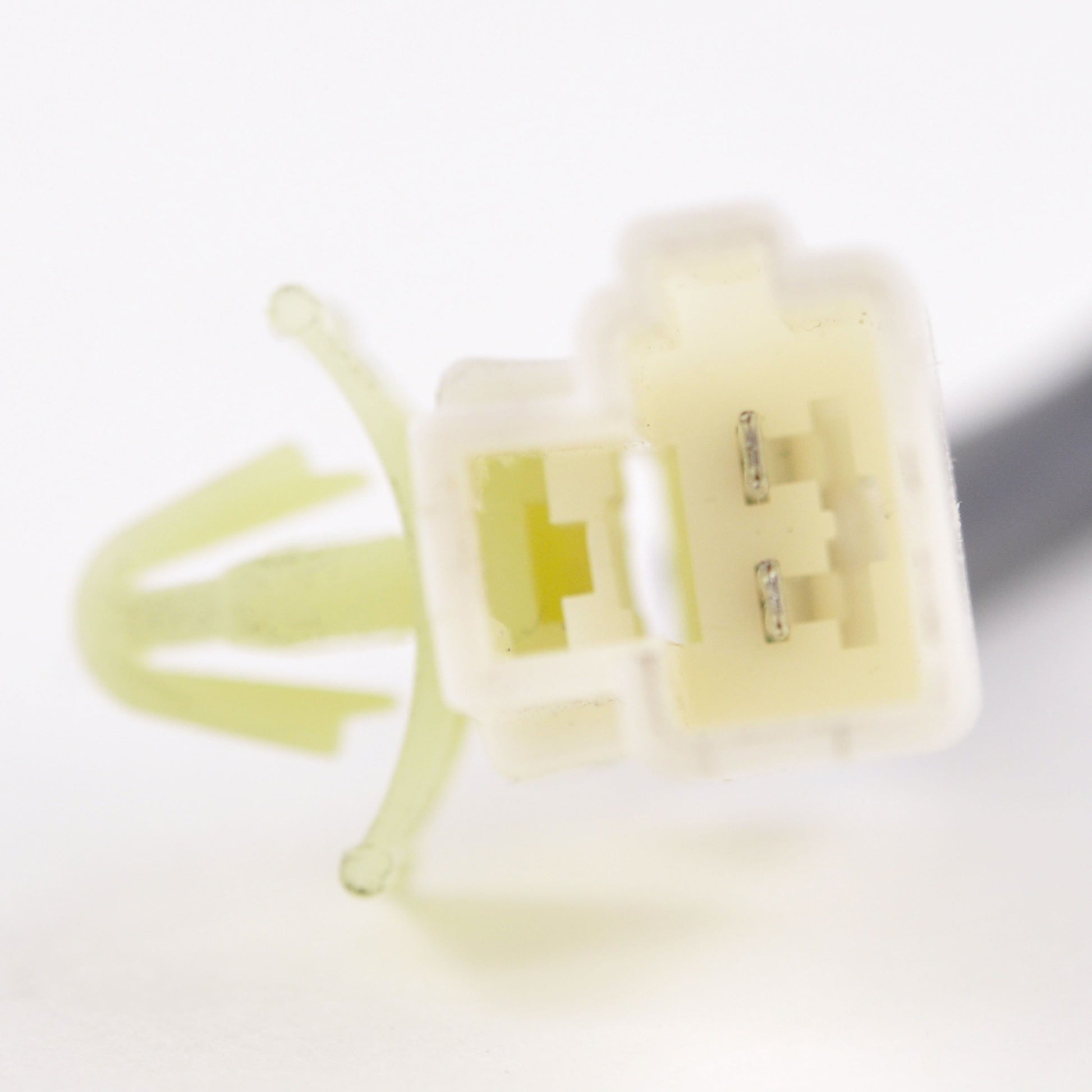

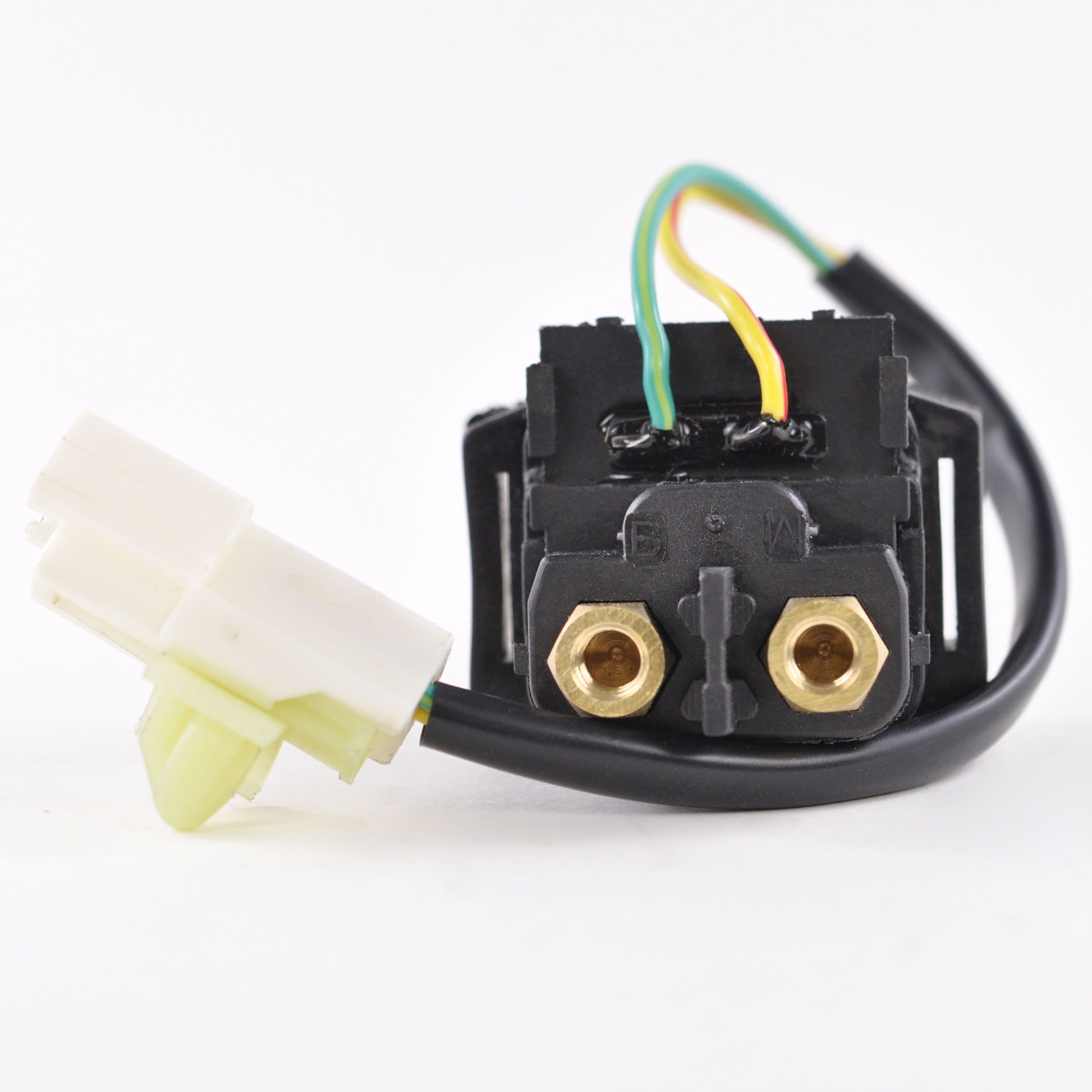

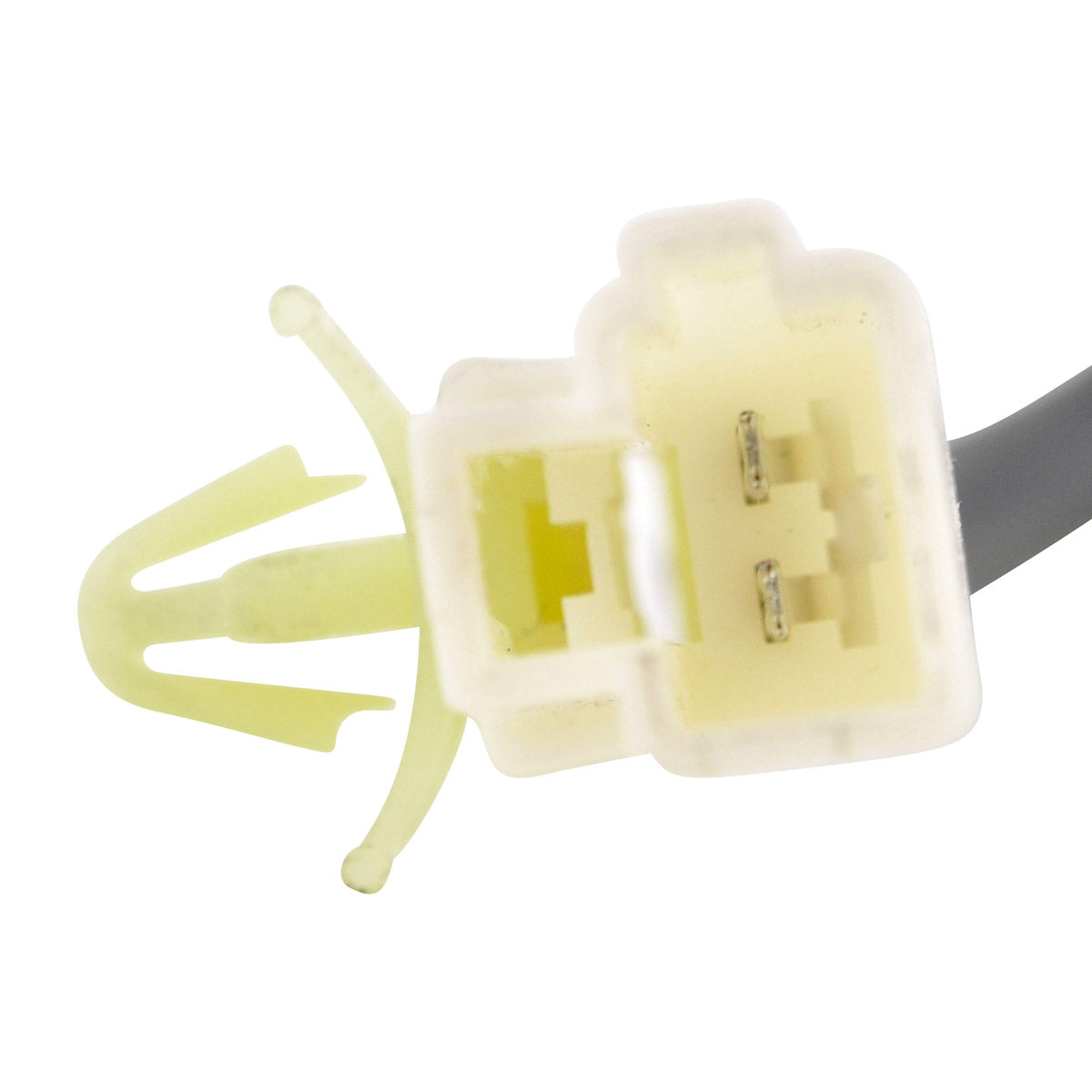

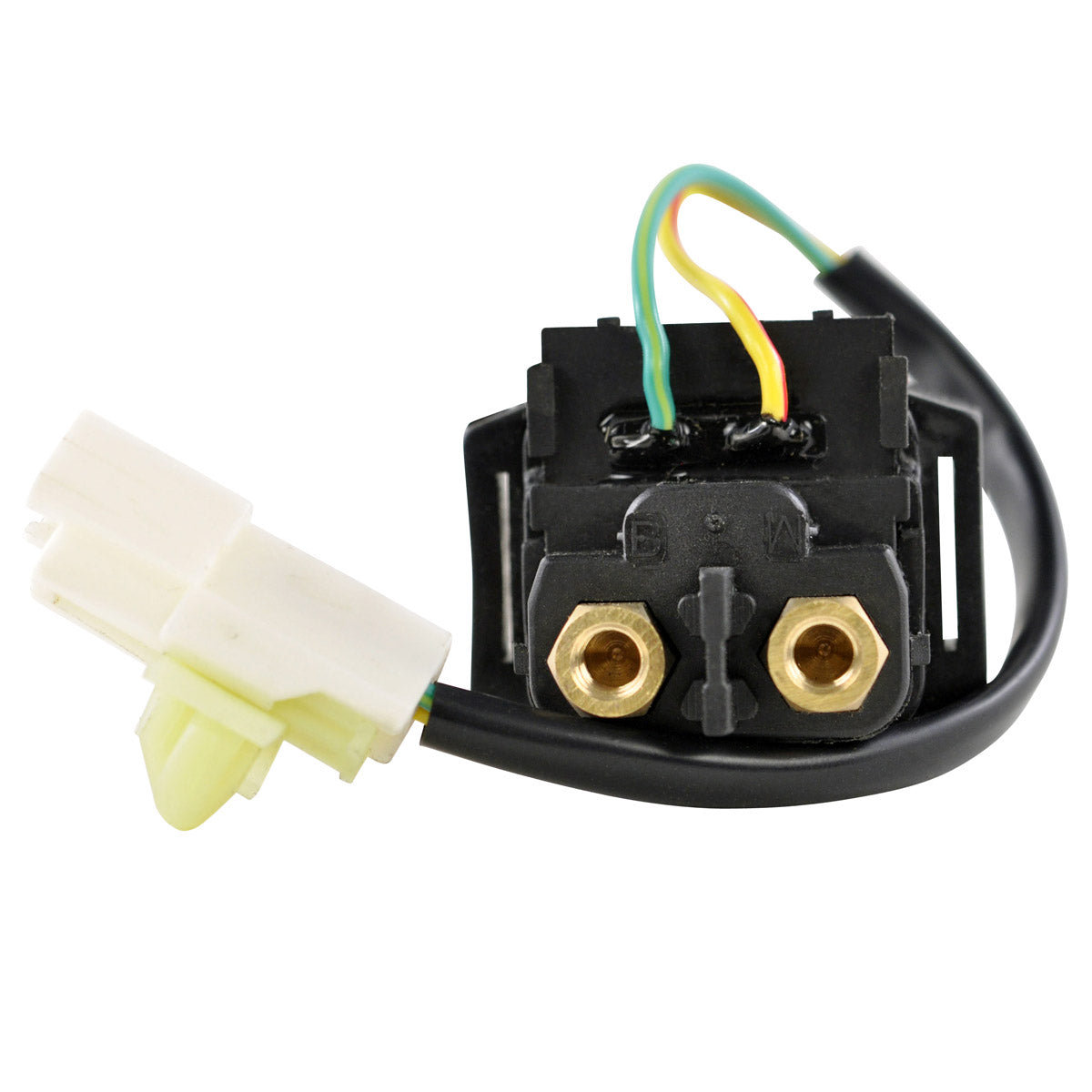

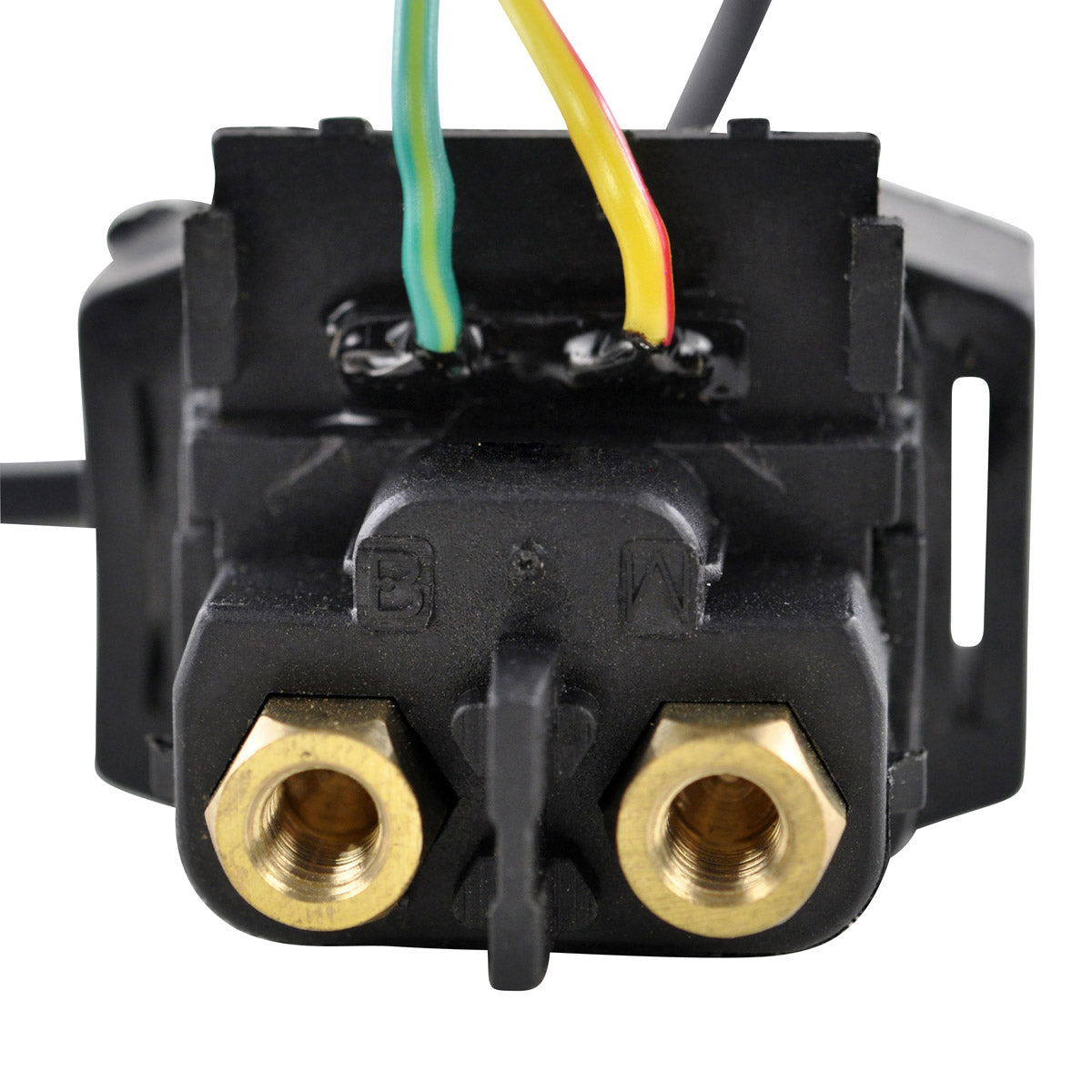

Those contacts are what eventually burn and pit, which is why a worn relay gives a single click, intermittent cranking or a dead scooter with a healthy battery. This unit is a compact 43 mm by 34 mm by 30 mm body with a 223 mm wire lead, two wires, two terminals and a single plug, so it drops into the standard Burgman location and reconnects without any rewiring.
Key Features
- Brand new starter relay solenoid
- Quality exceeds the OEM equipment
- All products shipped are tested
- Direct replacement for the original Suzuki unit
- 2 wire, 2 terminal, single plug connection
- 223 mm wire length for easy routing
- Replaces Suzuki OEM 31800-10G00 and 31800-10G02
- Covers the full 2003-2017 AN Burgman 650 range
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-102081 |
| Type | Starter relay solenoid |
| Height | 43 mm |
| Length | 34 mm |
| Width | 30 mm |
| Wire length | 223 mm |
| Number of wires | 2 |
| Number of terminals | 2 |
| Number of plugs | 1 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki AN Burgman 650 | 2003-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31800-10G00 | Suzuki |
| 31800-10G02 | Suzuki |
Frequently Asked Questions
Will it fit my Burgman without modification?
Yes. It is a direct replacement for the original relay on the Suzuki AN Burgman 650 built from 2003 to 2017. Check that the number on your existing relay is 31800-10G00 or 31800-10G02 before ordering.
What do I receive?
One brand new starter relay solenoid, part number RMS090-102081, with the 223 mm wire lead and plug already fitted, tested before dispatch.
How do I know the old relay has failed?
A loud single click when you press start but no cranking, cranking that only works on some attempts, or a starter that turns slowly despite a fully charged battery all point to the relay. Because the internal contacts carry the whole starter current, the fault typically worsens over a few weeks rather than clearing up.
Does the relay also protect the circuit?
On many Suzuki machines the starter relay housing also carries the main fuse. Check your original unit when you remove it and transfer any fuse and holder across if your model is arranged that way, comparing our item with your original part before fitting.
