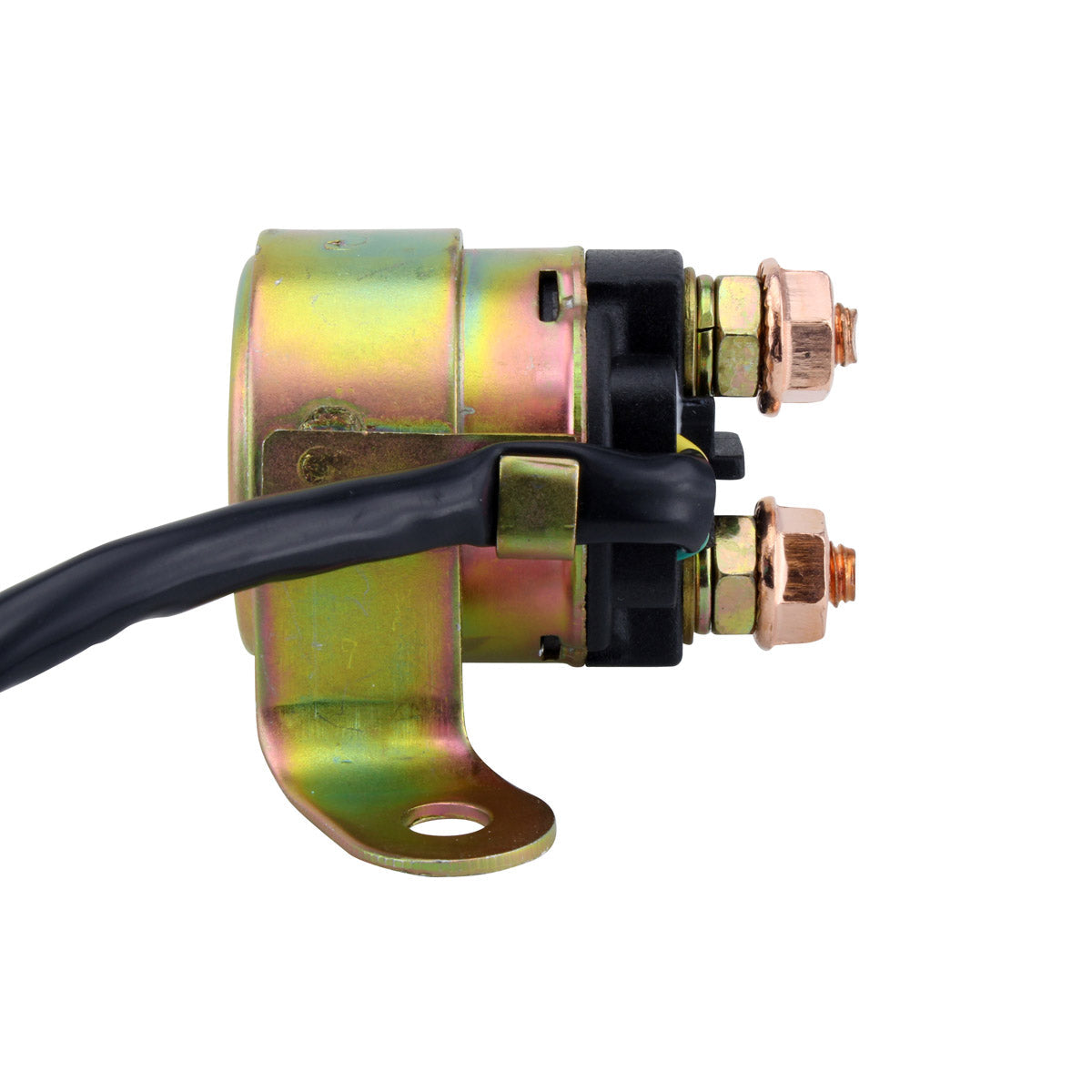

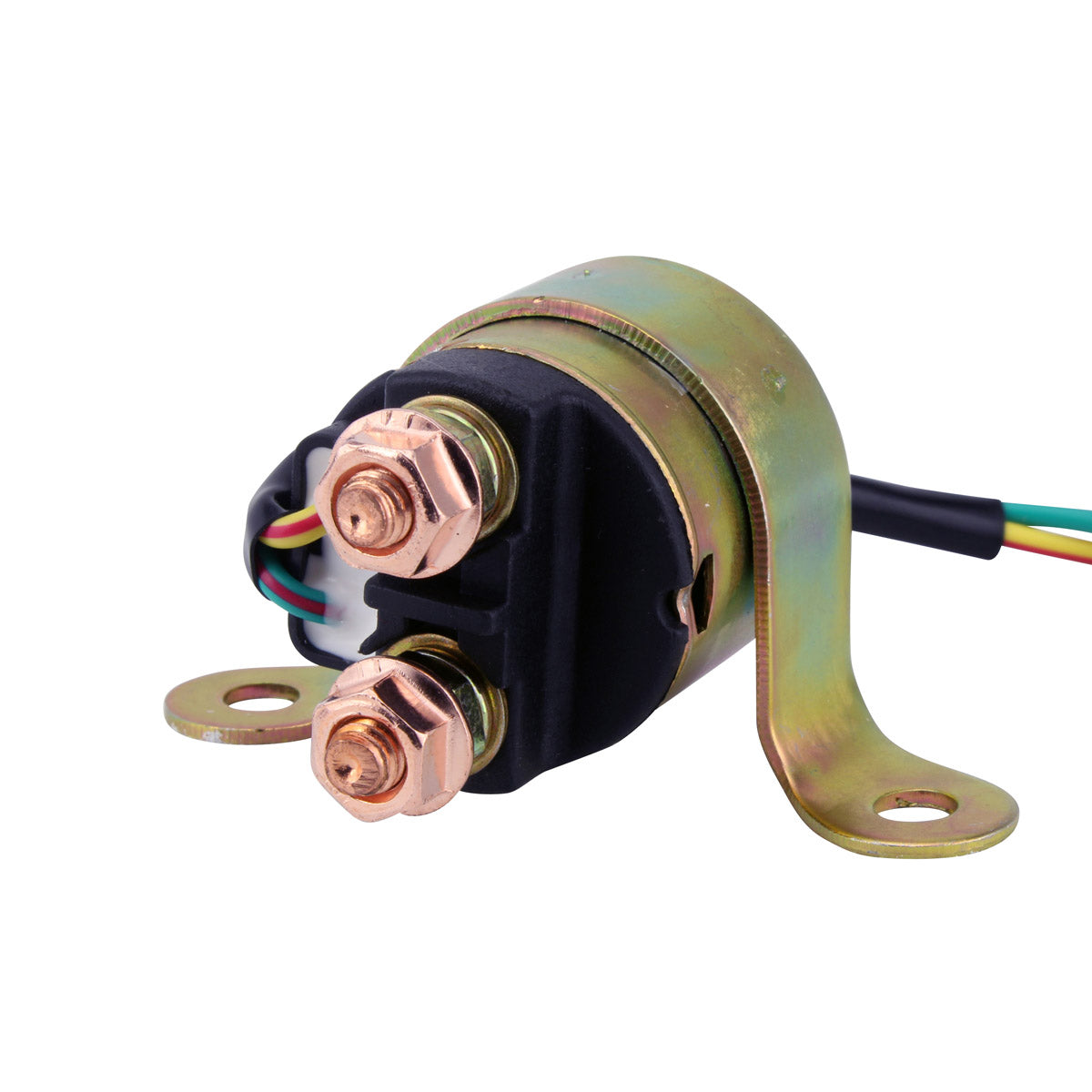

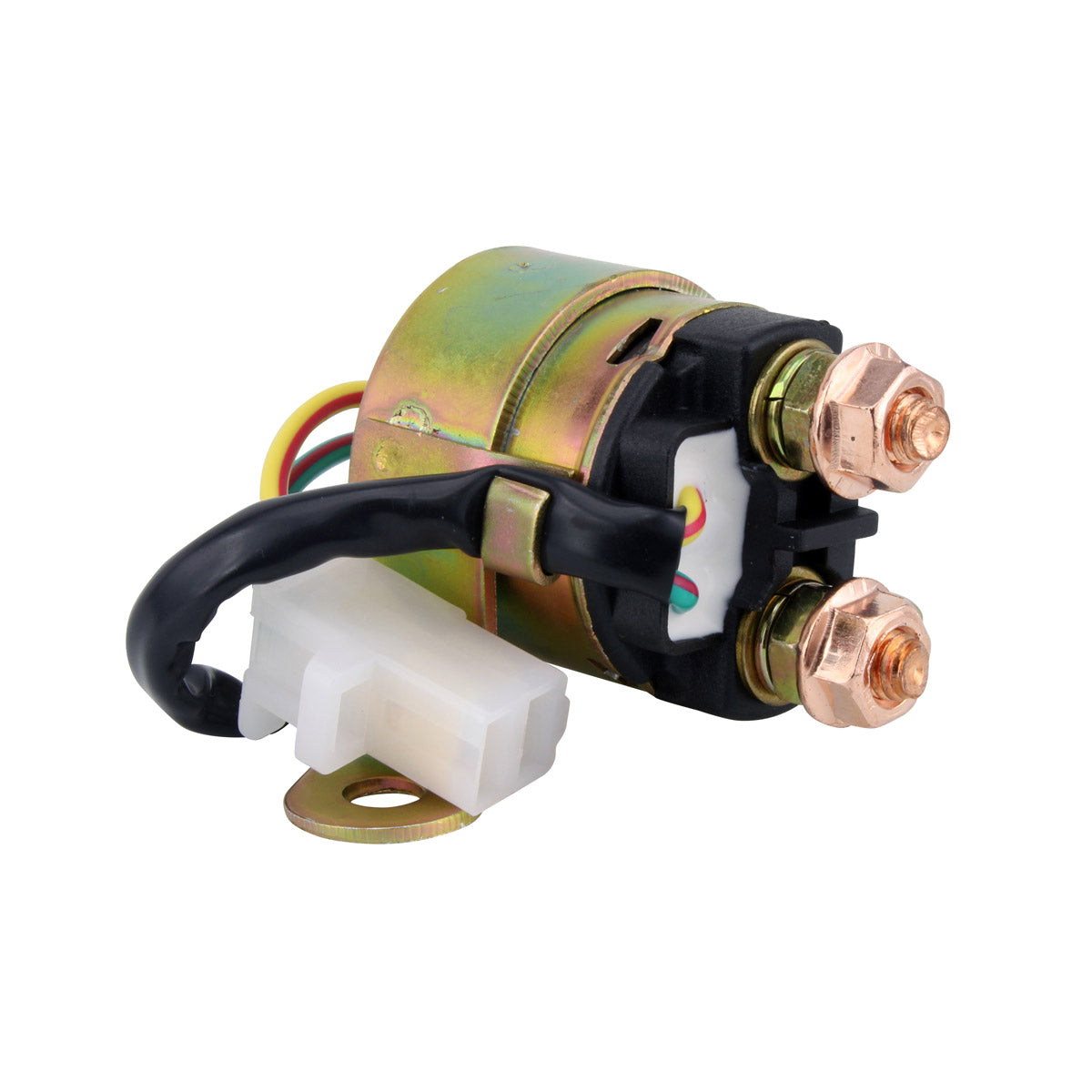

Brand new starter relay solenoid switch for a wide span of Suzuki motorcycles, from the small DR trail bikes up to the large GV touring machines. The solenoid is the heavy duty switch that carries the full cranking current from the battery to the starter motor. The handlebar start button only energises a small coil inside the unit, which closes a pair of substantial contacts to complete the high current circuit.
Those contacts are the wear item. As they burn and pit the resistance across them rises, which is why an ageing solenoid clicks without cranking, or cranks only every second or third attempt. This RMSTATOR replacement is built to a quality that exceeds the OEM equipment and all products shipped are tested. It uses a two wire, two terminal connection with a single plug and a 135 mm wire length, so it reconnects to the original loom without alteration.
Key Features
- Brand new starter relay solenoid switch
- Quality exceeds the OEM equipment
- All products shipped are tested
- 2 wire, 2 terminal, single plug connection
- 135 mm wires length
- Replaces Suzuki OEM 31800-31300, 31800-15500 and 31800-15501
- Covers DR, GR, GS and GV models across a wide year span

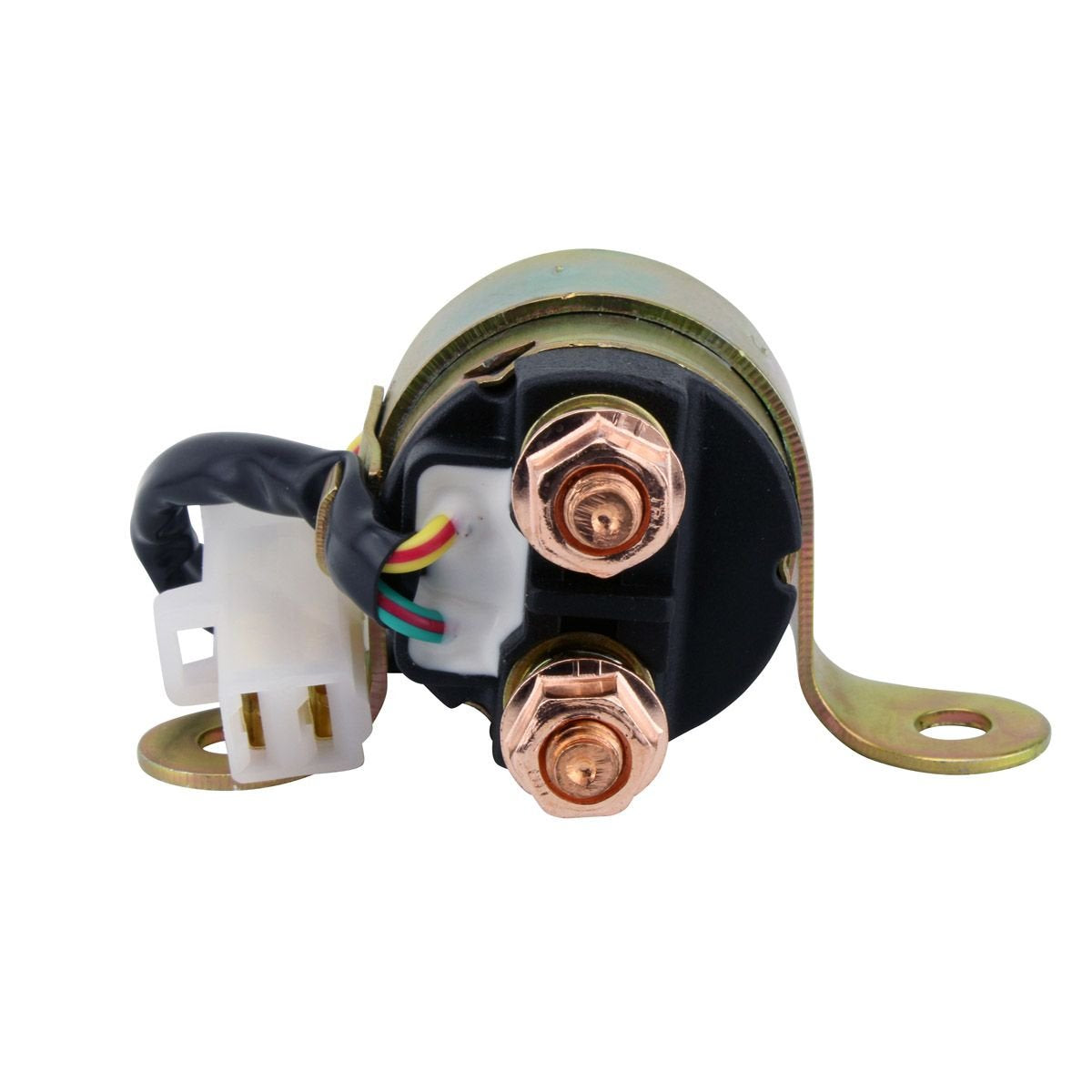

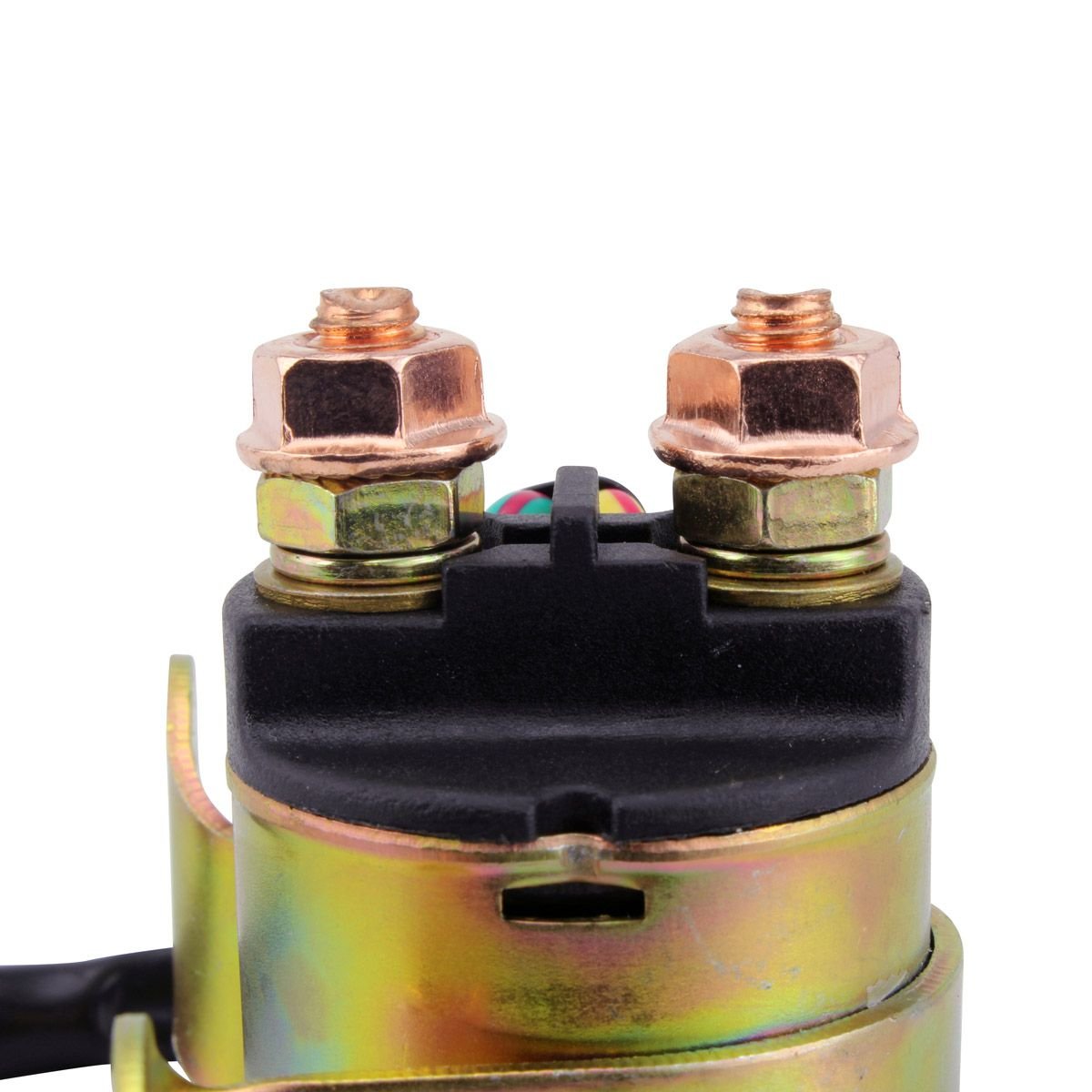

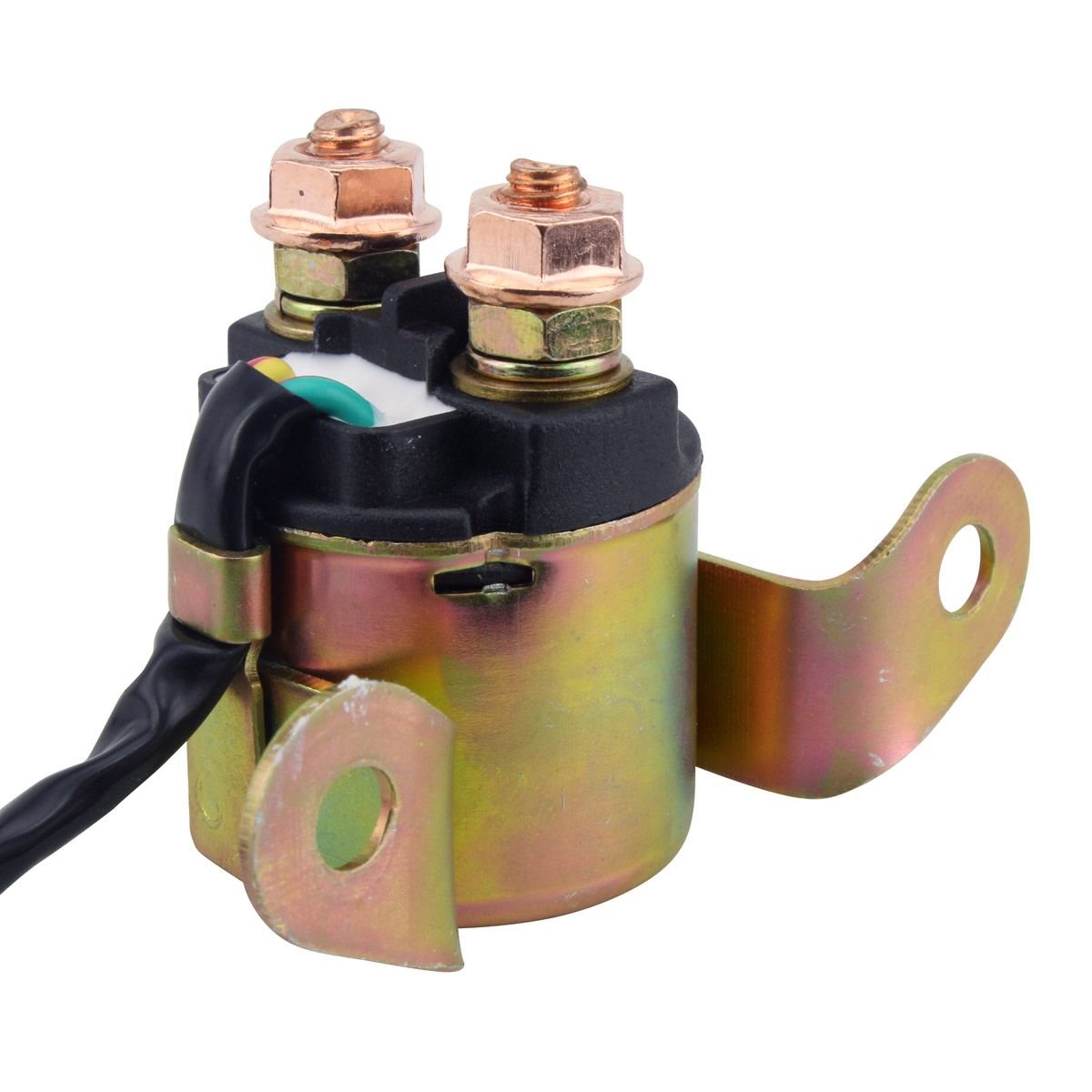

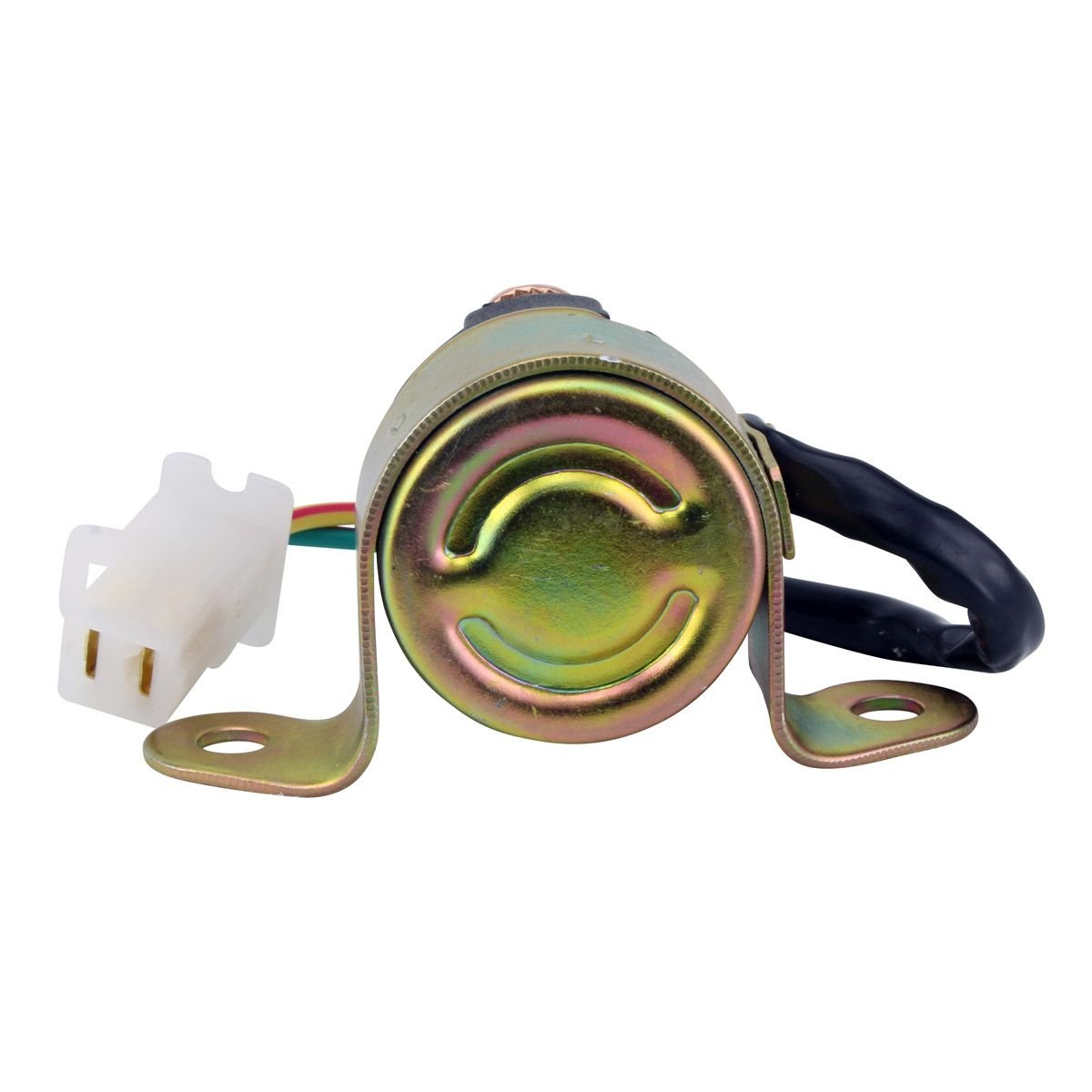

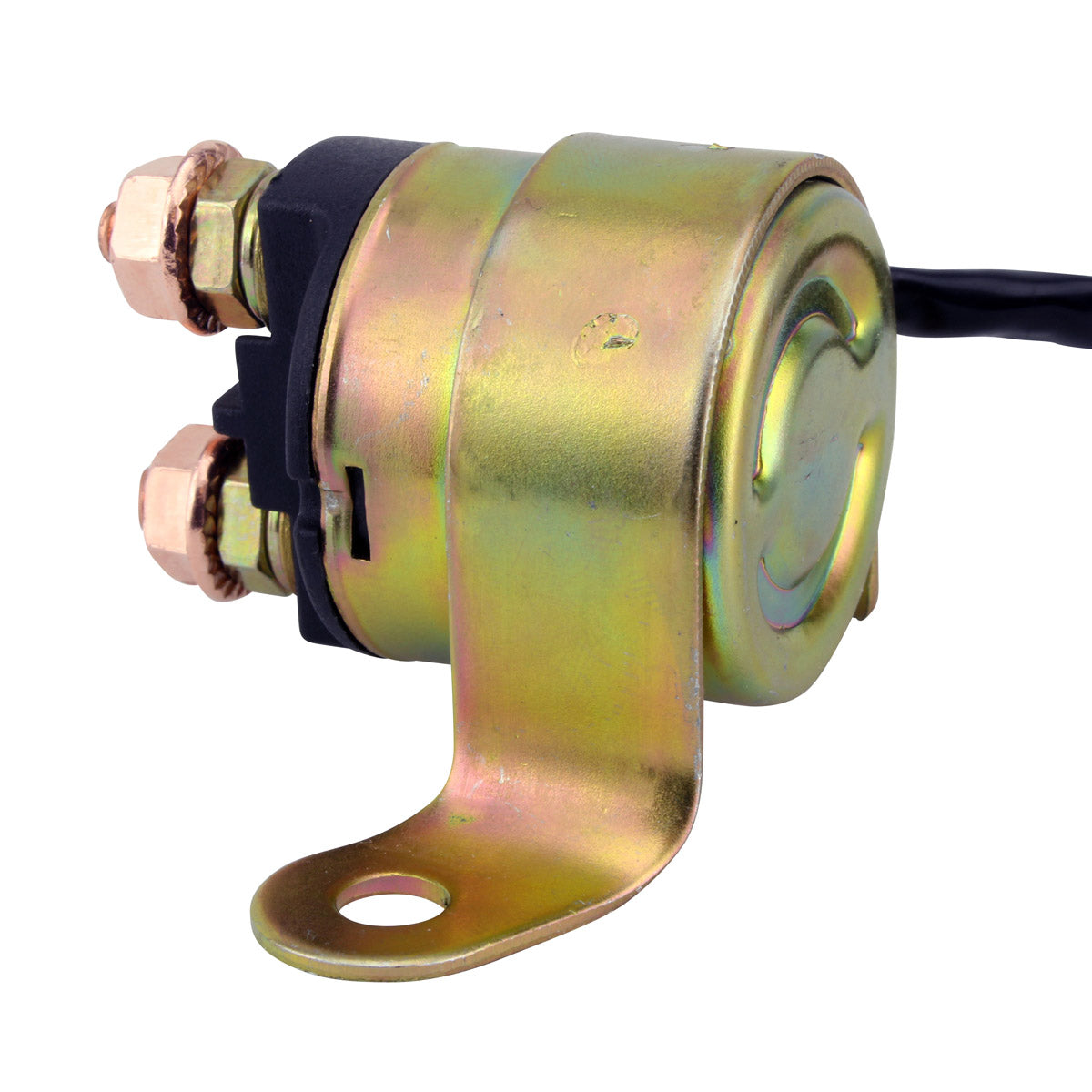

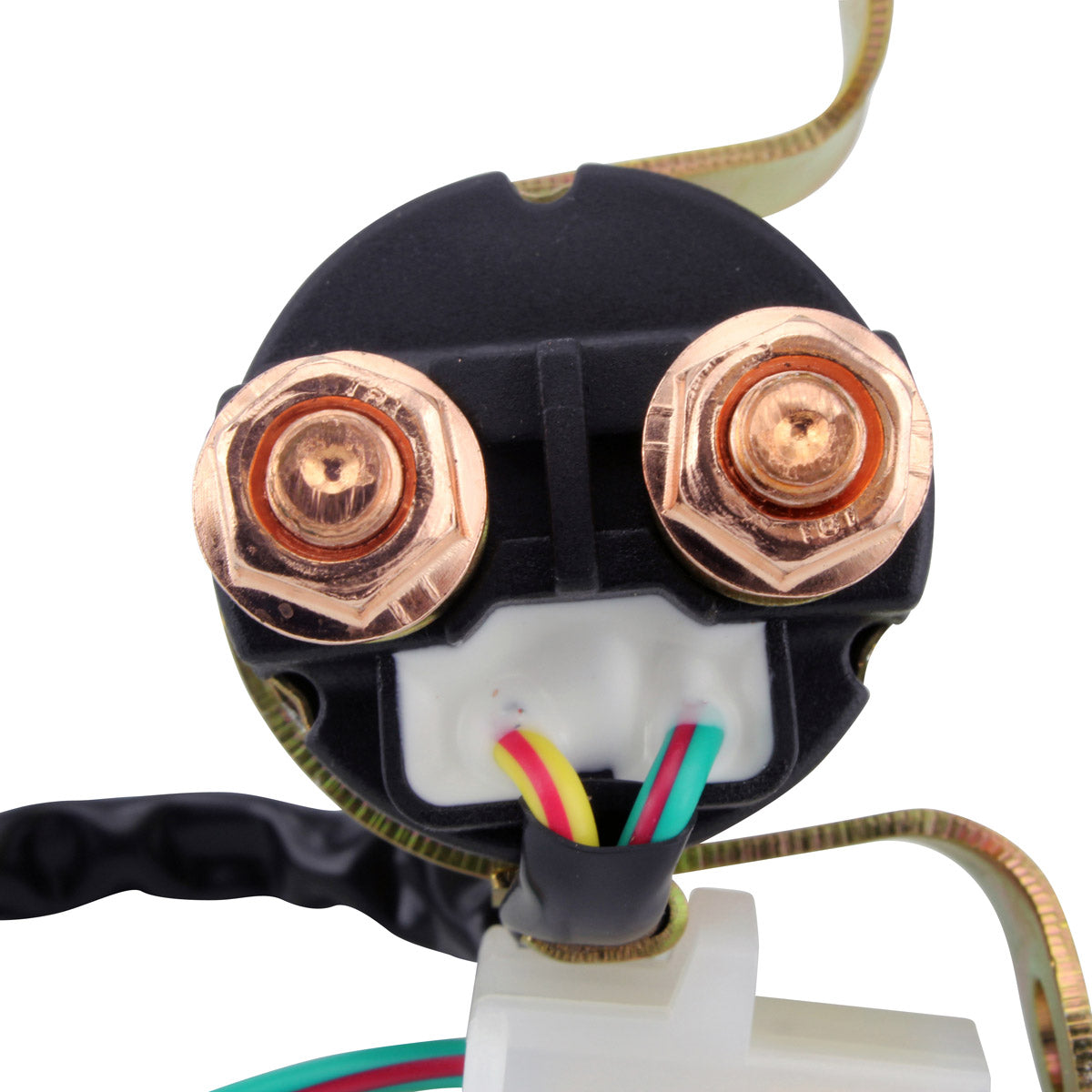

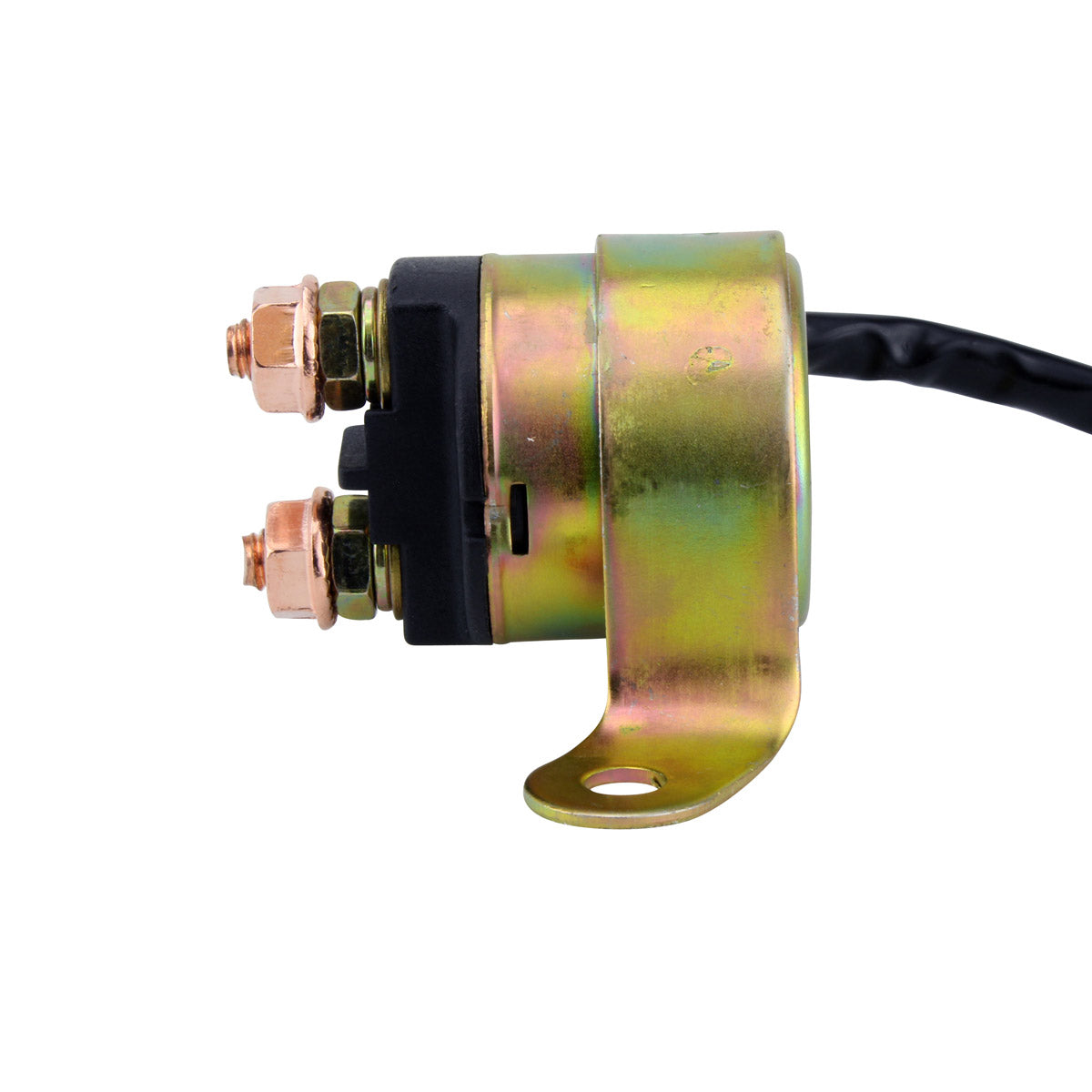

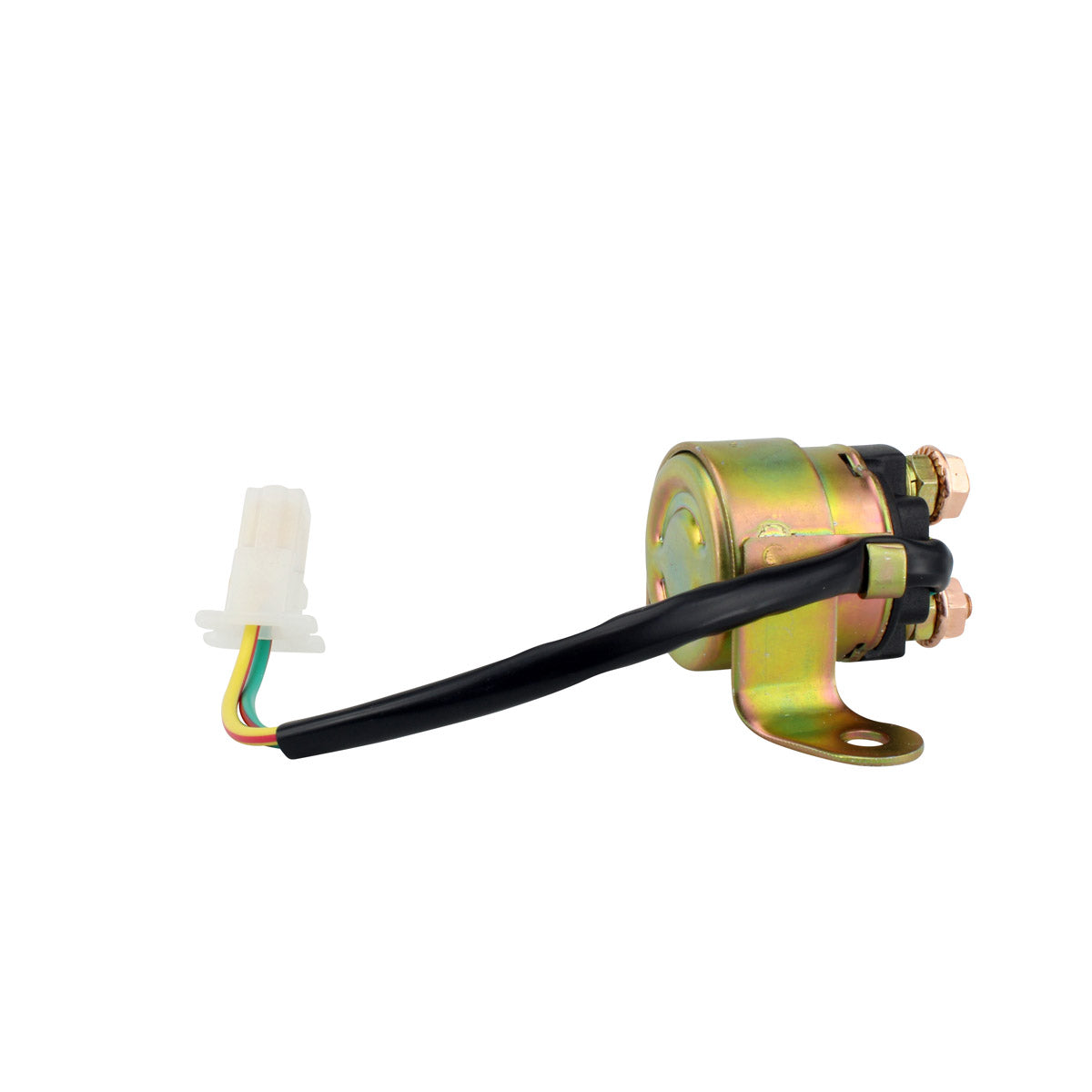

- Item pictures are accurate for direct visual comparison
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-106815 |
| Type |
Starter relay solenoid switch |
| Height |
40 mm |
| Length |
40 mm |
| Width |
75 mm |
| Wires length |
135 mm |
| Number of wires |
2 |
| Number of terminals |
2 |
| Number of plugs |
1 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki DR 125 |
1982-2020 |
| Suzuki DR 200 |
1982-2020 |
| Suzuki GR 650 |
1982-2020 |
| Suzuki GS 700 |
1982-2020 |
| Suzuki GS 750 |
1982-2020 |
| Suzuki GS 1100 |
1982-2020 |
| Suzuki GV 1200 |
1982-2020 |
| Suzuki GV 1400 |
1982-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31800-31300 |
Suzuki |
| 31800-15500 |
Suzuki |
| 31800-15501 |
Suzuki |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement using the same two wire, single plug connection as the original. Because this solenoid covers a very wide range of Suzuki models, the reliable check is the part number: confirm that your original unit is 31800-31300, 31800-15500 or 31800-15501 before ordering.
What is included?
One brand new starter relay solenoid switch, part number RMS090-106815, with its 135 mm wires and plug already fitted. Every unit is tested before it is shipped.
How can I tell my old solenoid has failed?
Press the start button and listen. A single sharp click with no cranking, or cranking that only happens on some attempts, points at burnt contacts inside the solenoid. A starter that spins slowly on a known good, fully charged battery is the same fault at an earlier stage.
Does this unit carry the main fuse?
On many Suzuki models the starter relay housing also holds the main fuse and a spare. Check your original unit as you remove it and transfer the fuse and holder across if your machine is arranged that way, comparing our item against your original part before fitting.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
