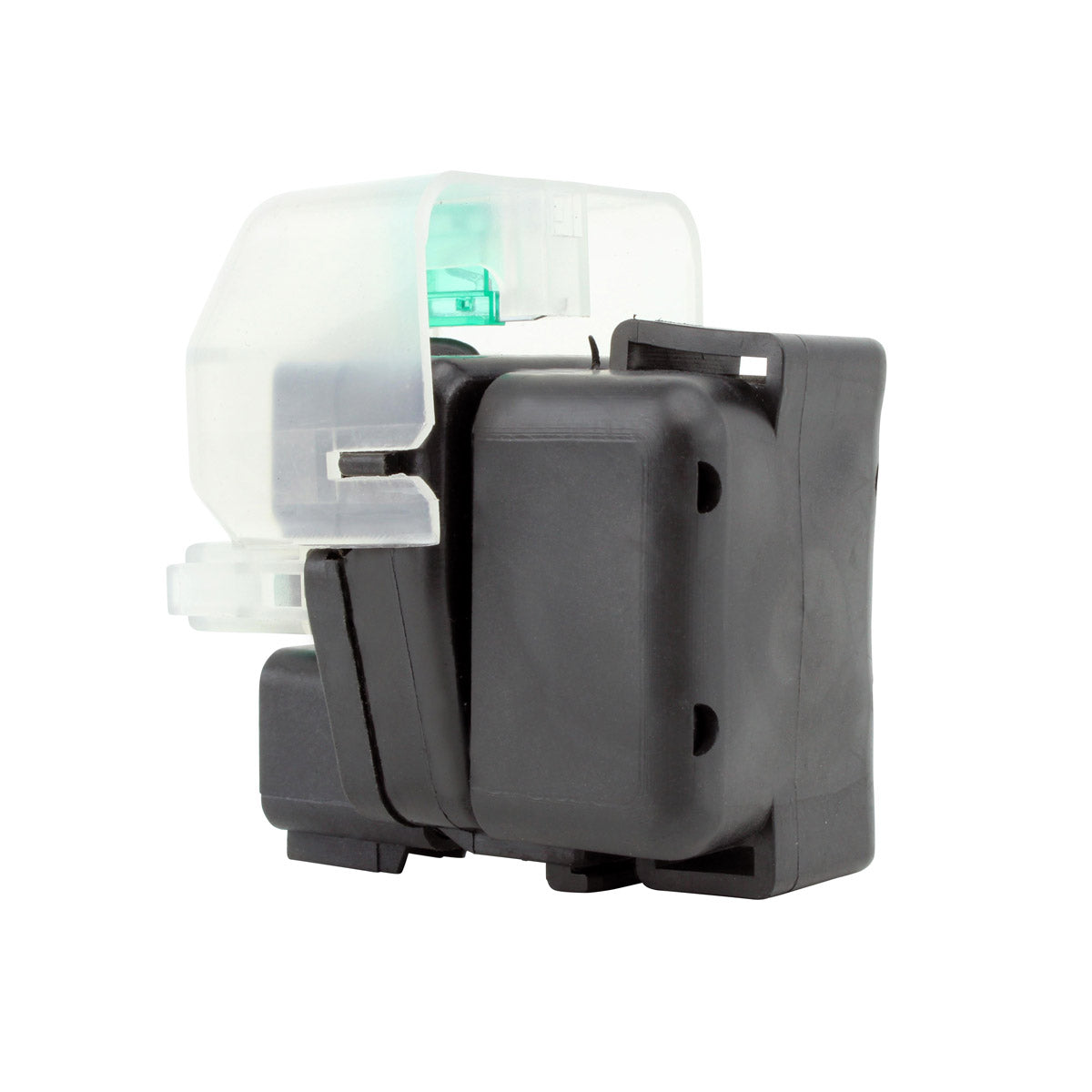

Starter Relay Solenoid for Suzuki GSXR 600, 750, 1000, 1300 & LTA 2005-2024
Starter Relay Solenoid for Suzuki GSXR 600, 750, 1000, 1300 & LTA 2005-2024
SKU:RMS090-104980
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Relay Solenoid for Suzuki GSXR and LTA
GSXR 600, 750, 1000 and 1300 - LTA 450, 500, 700 and 750 X - 2005-2024 - Part RMS090-104980
A brand new starter relay solenoid switch for Suzuki GSXR sports bikes and LTA quads, built to a standard that exceeds the original equipment part. The solenoid is the high-current switch that connects the battery directly to the starter motor. Pressing the start button energises a small coil inside the unit, which snaps a heavy contact closed and lets the starter draw the current it needs without that load ever passing through the handlebar switch or the ignition wiring.

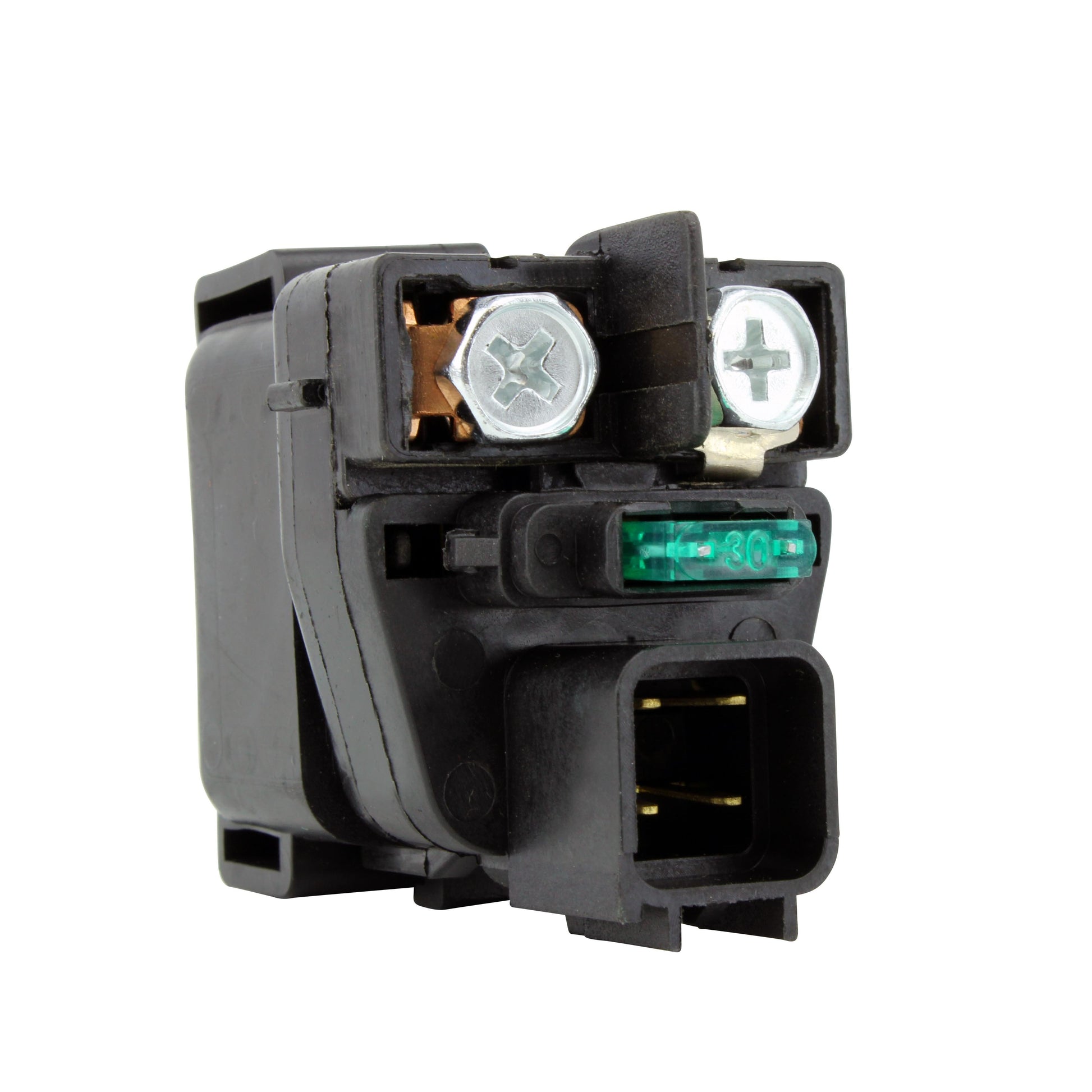

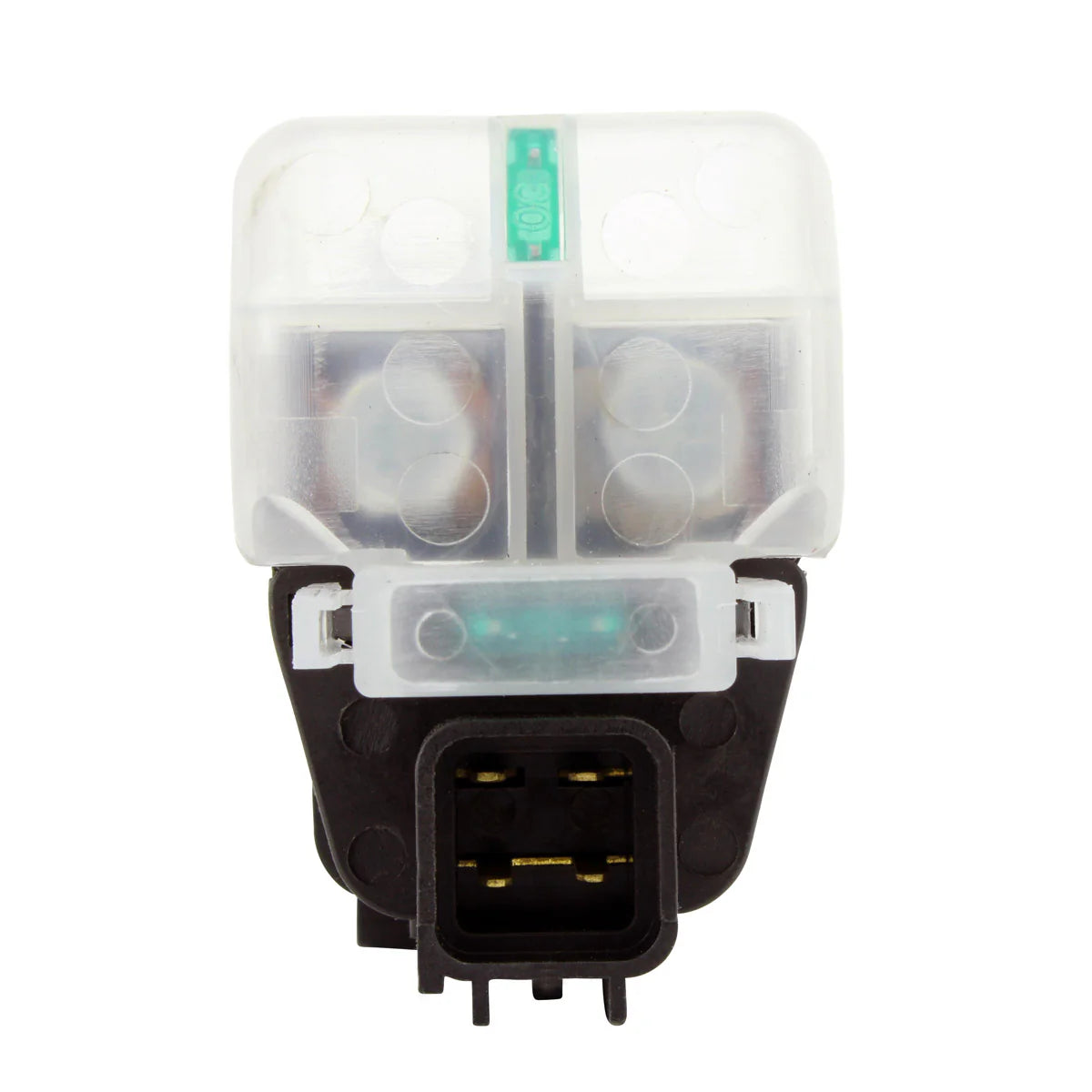

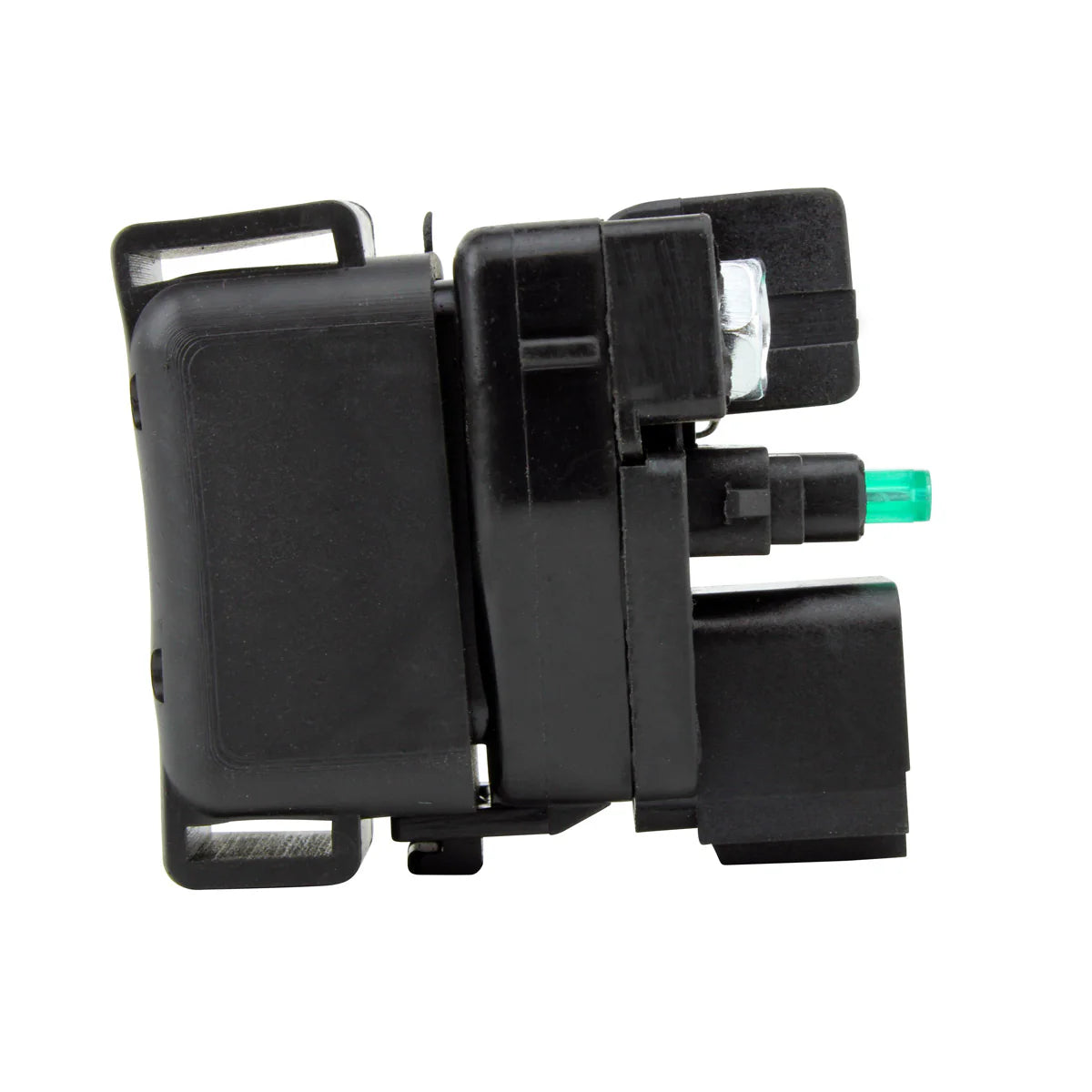

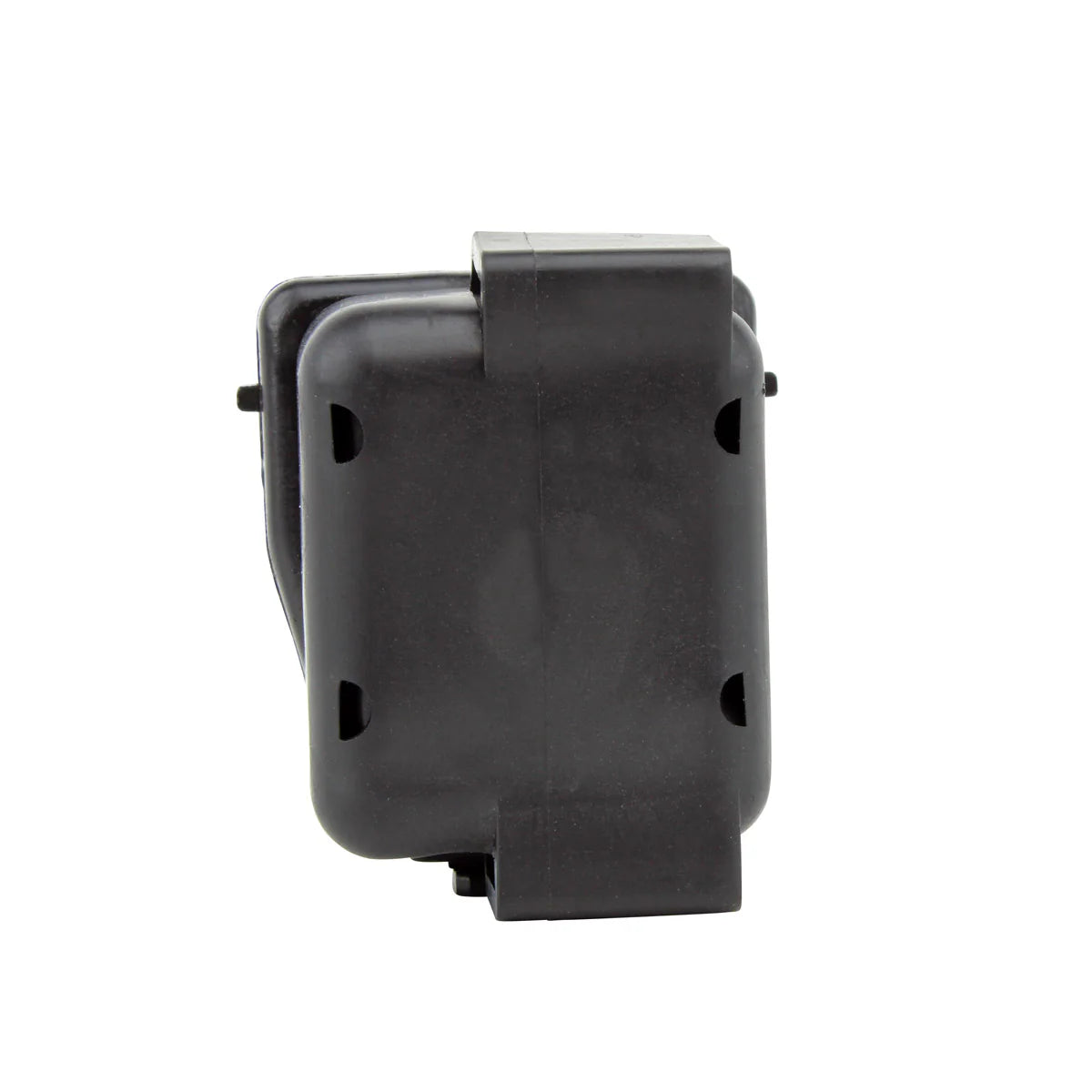

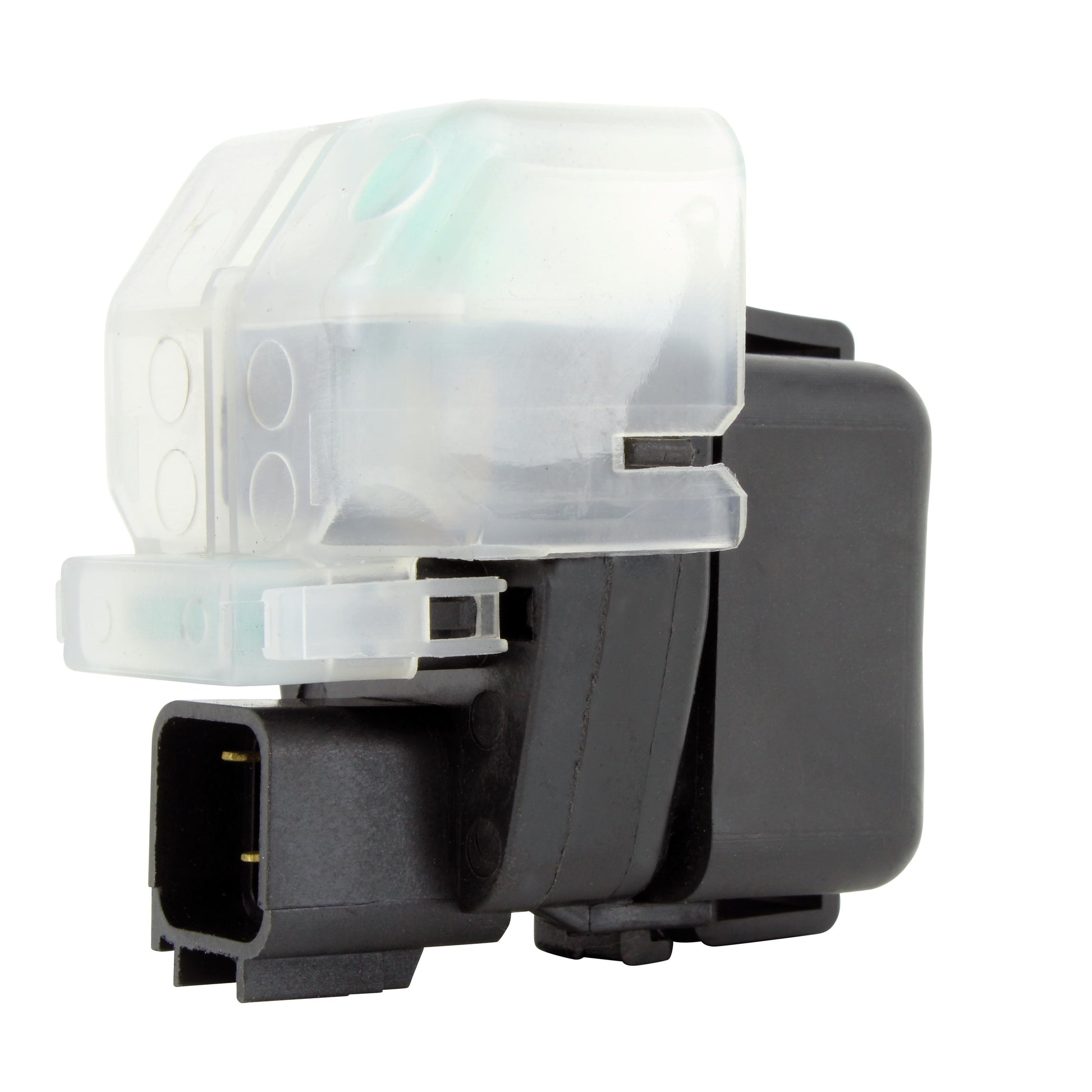

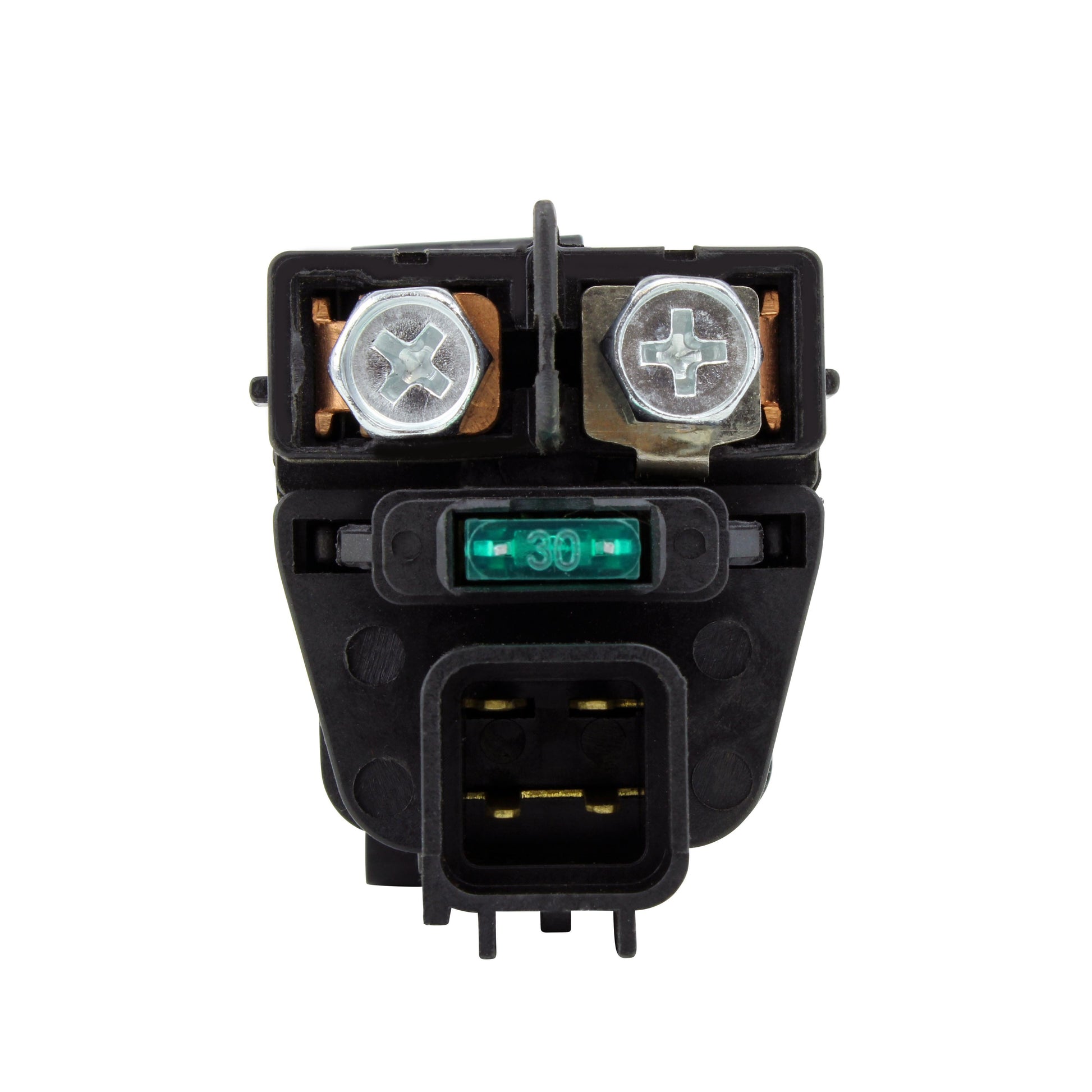

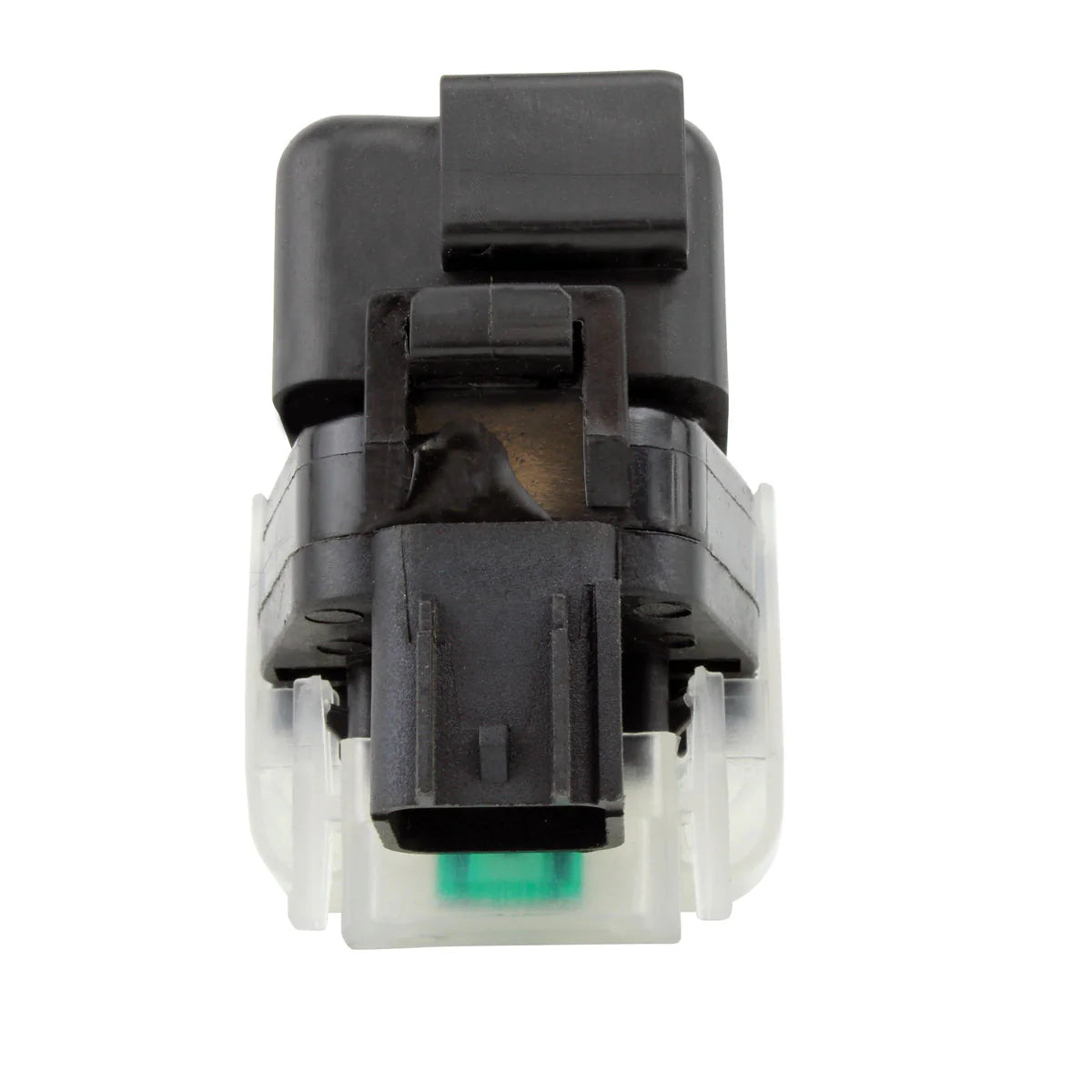

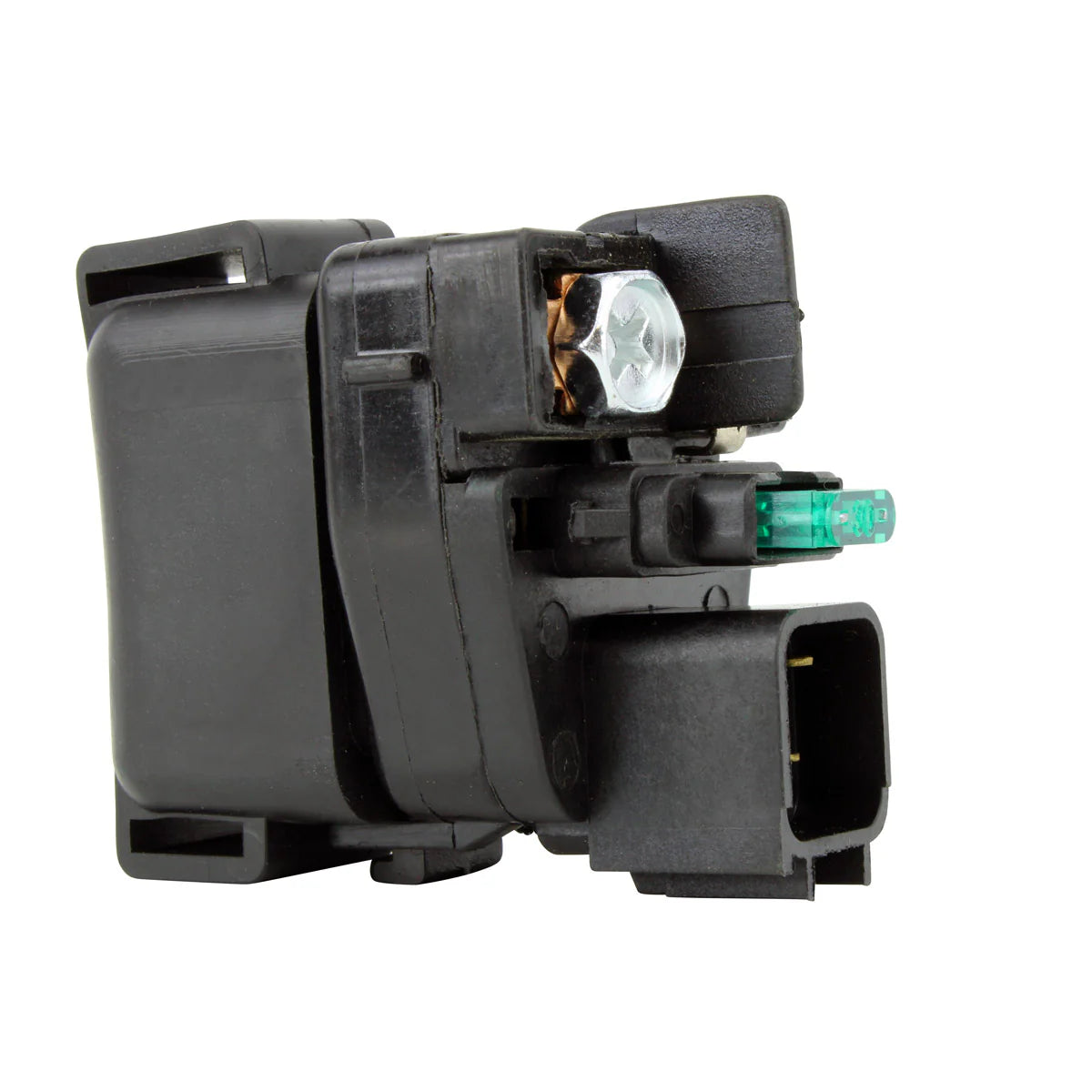

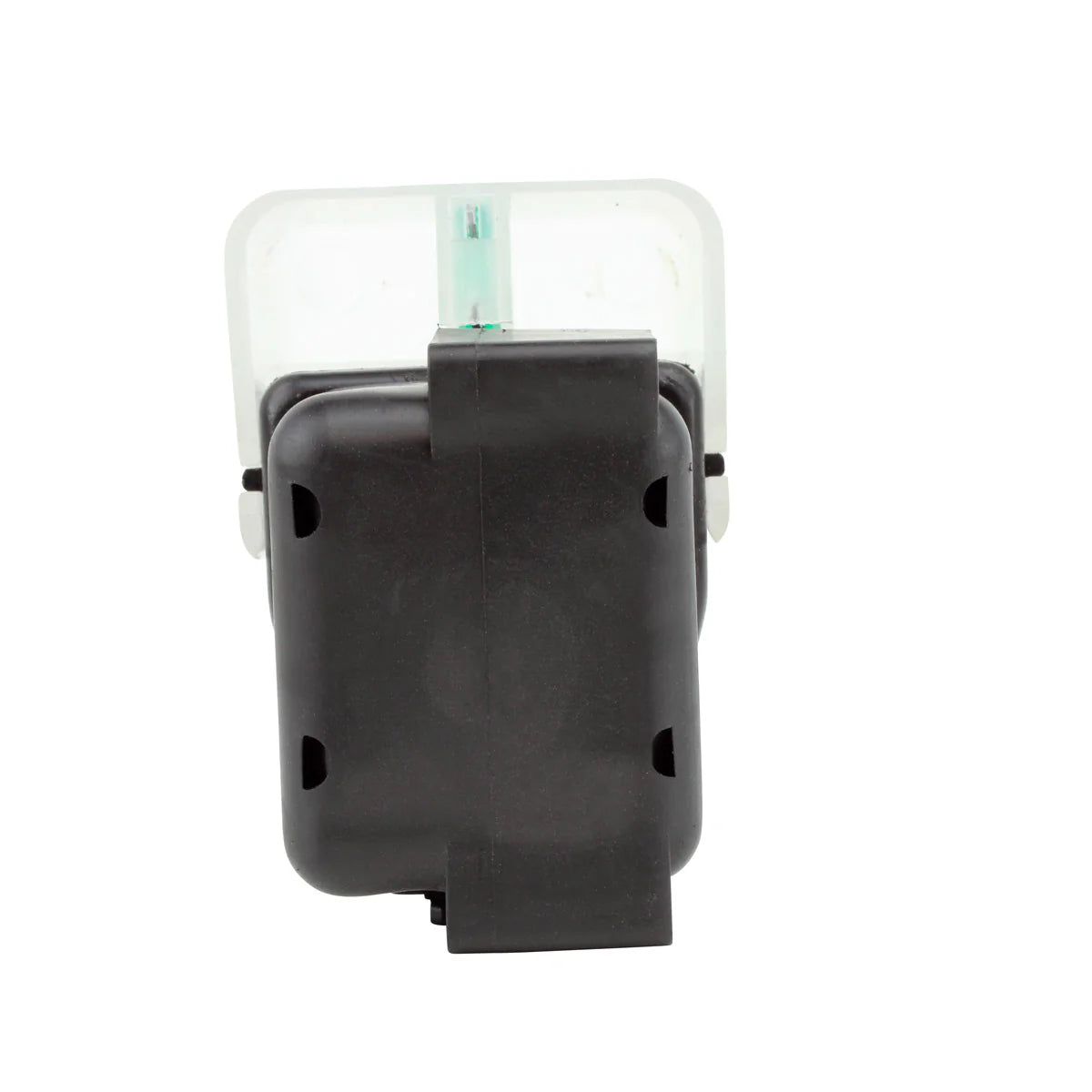

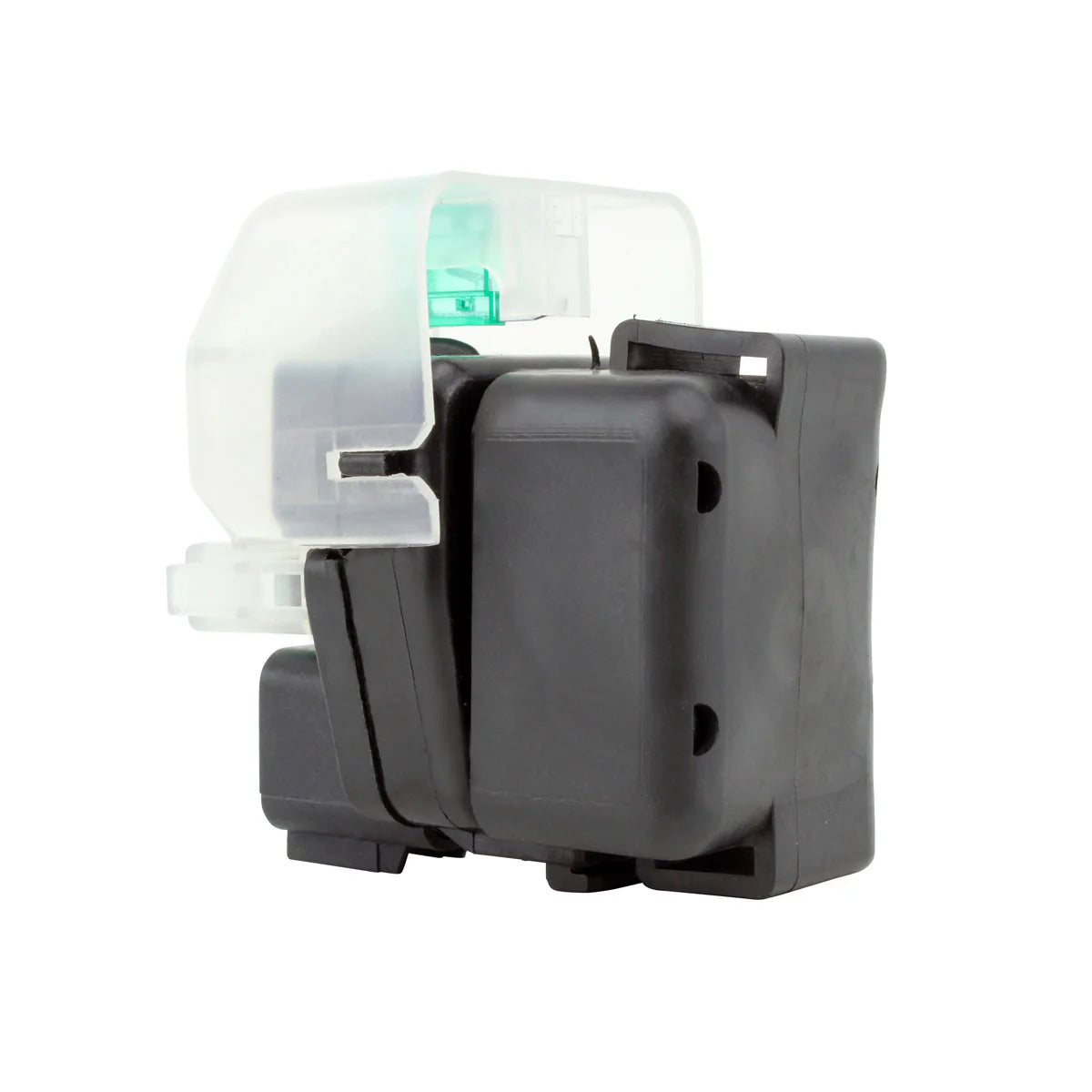

This unit carries a 150A 30S rating, has four terminals and a single plug, and measures 47 mm long by 37 mm wide by 51 mm high. It is a direct replacement to your original unit, so there is no cutting, drilling or adapting involved. Every solenoid we ship has been tested. The product photographs are accurate representations of the item supplied, so if you are in any doubt please compare them against your original part before ordering.
Key Features
- Brand new starter relay solenoid switch, not remanufactured
- Quality exceeds the original equipment specification
- Rated 150A 30S for repeated heavy starting duty
- Four terminals and one plug, as per the original
- Direct replacement to your original unit
- Covers GSXR and LTA models from 2005 to 2024
- Every unit tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-104980 |
| Rating | 150A 30S |
| Number of terminals | 4 |
| Number of plugs | 1 |
| Height | 51 mm |
| Length | 47 mm |
| Width | 37 mm |
| Installation | Direct replacement to your original unit |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GSXR 600 | 2005-2024 |
| Suzuki GSXR 750 | 2005-2024 |
| Suzuki GSXR 1000 | 2005-2024 |
| Suzuki GSXR 1300 | 2005-2024 |
| Suzuki LTA 450 | 2005-2024 |
| Suzuki LTA 500 | 2005-2024 |
| Suzuki LTA 700 | 2005-2024 |
| Suzuki LTA 750 X | 2005-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31800-41G10 | Suzuki |
| 31800-41G00 | Suzuki |
| 31800-44G00 | Suzuki |
Frequently Asked Questions
Will it fit without modification?
Yes. It is described as a direct replacement to your original unit, with the same four terminals and single plug and the same 47 x 37 x 51 mm body, so the standard cables and connector attach as they did before.
What is included?
You receive the starter relay solenoid switch itself. Battery cables, the starter lead and any rubber mounting boot are re-used from your original installation.
How do I know the old solenoid has failed?
Typical symptoms are one loud click and no engine turnover, rapid chattering when you hold the start button, or complete silence from the starter while the dash and lights remain bright. A solenoid whose contacts have welded shut can also leave the starter engaged after you release the button. Check the battery state of charge and the tightness of both battery terminals first, because a weak battery mimics these faults closely.
Does the same solenoid really cover both the sports bikes and the quads?
Yes. Suzuki used the same solenoid family across the GSXR 600, 750, 1000 and 1300 and the LTA 450, 500, 700 and 750 X, which is why the three interchange numbers 31800-41G10, 31800-41G00 and 31800-44G00 all supersede into this one part.
