Starter Relay Solenoid Switch
Yamaha Exciter, FX 1, GP, LS, SJ, SUV, VXR, Wave Blaster, Raider, Runner, Venture, XL and XR 700 · 1989-2002
This is a brand new starter relay solenoid switch, part number RMS090-101724, built as a direct replacement for the original unit fitted to Yamaha Exciter, FX 1, GP, LS, SJ, SUV, VXR, Wave Blaster, Raider, Runner, Venture, XL and XR 700 models from 1989 to 2002. The starter solenoid is the heavy duty switch that sits between the battery and the starter motor: the start button carries only a small current to the solenoid coil, and the solenoid closes the high current circuit that actually turns the engine over.

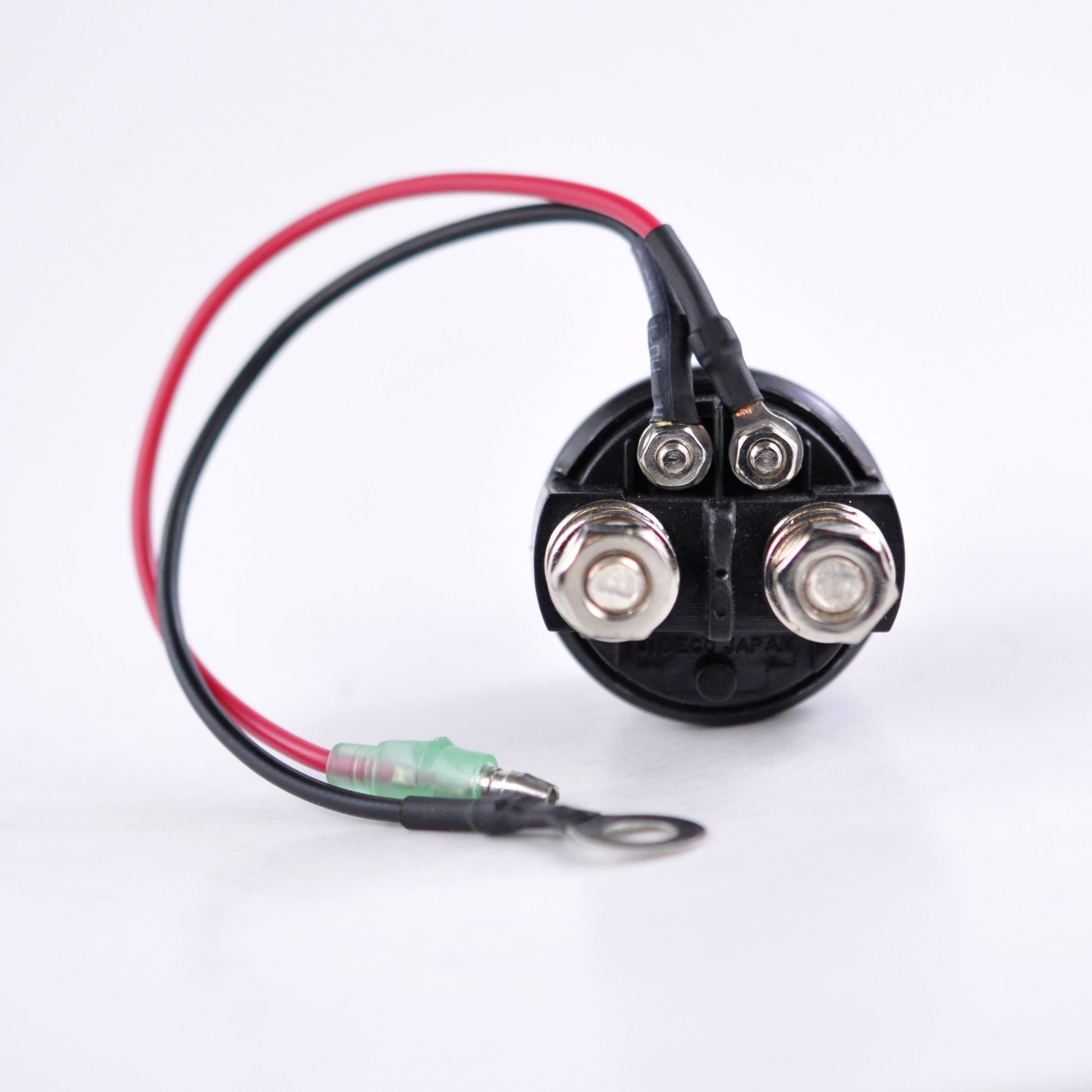

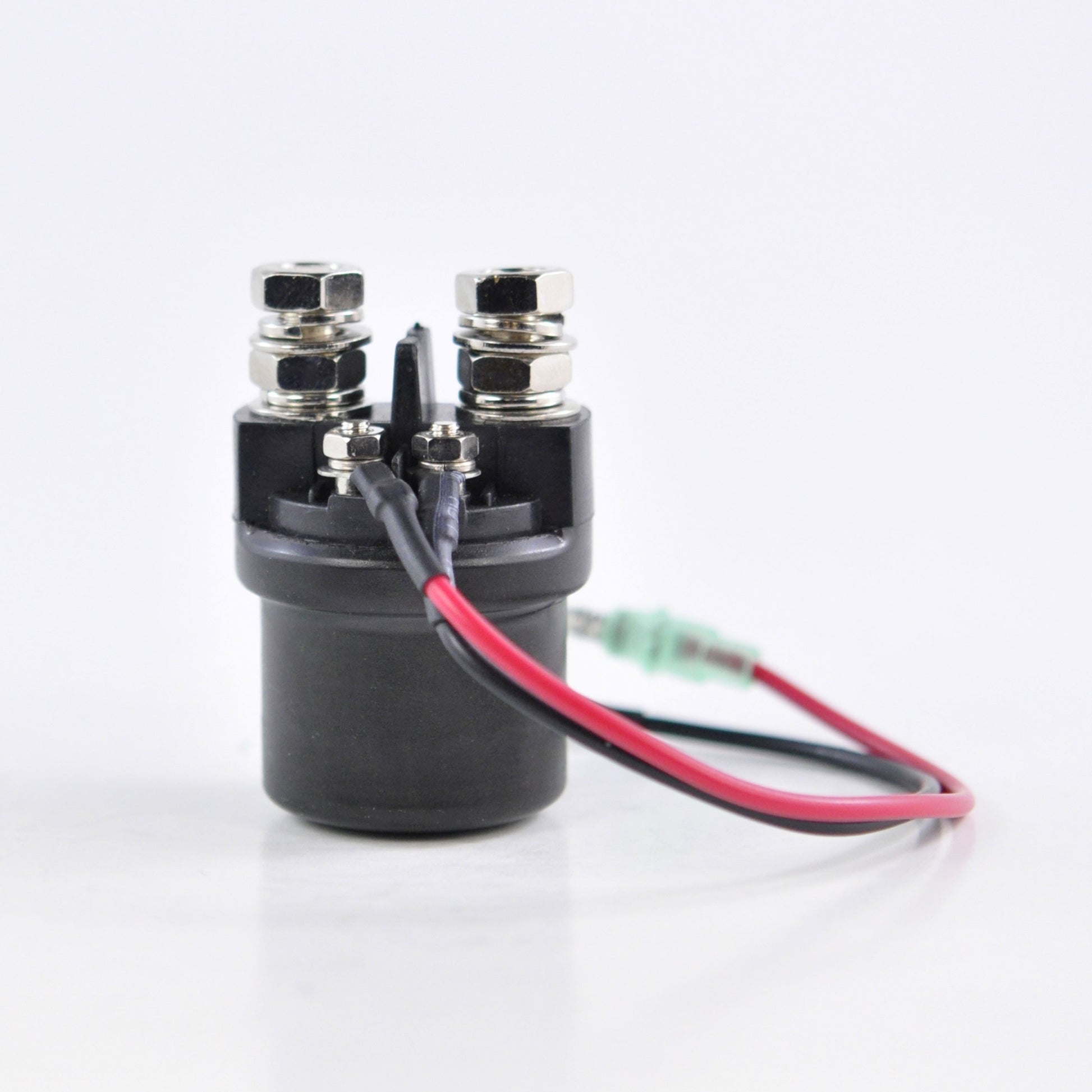

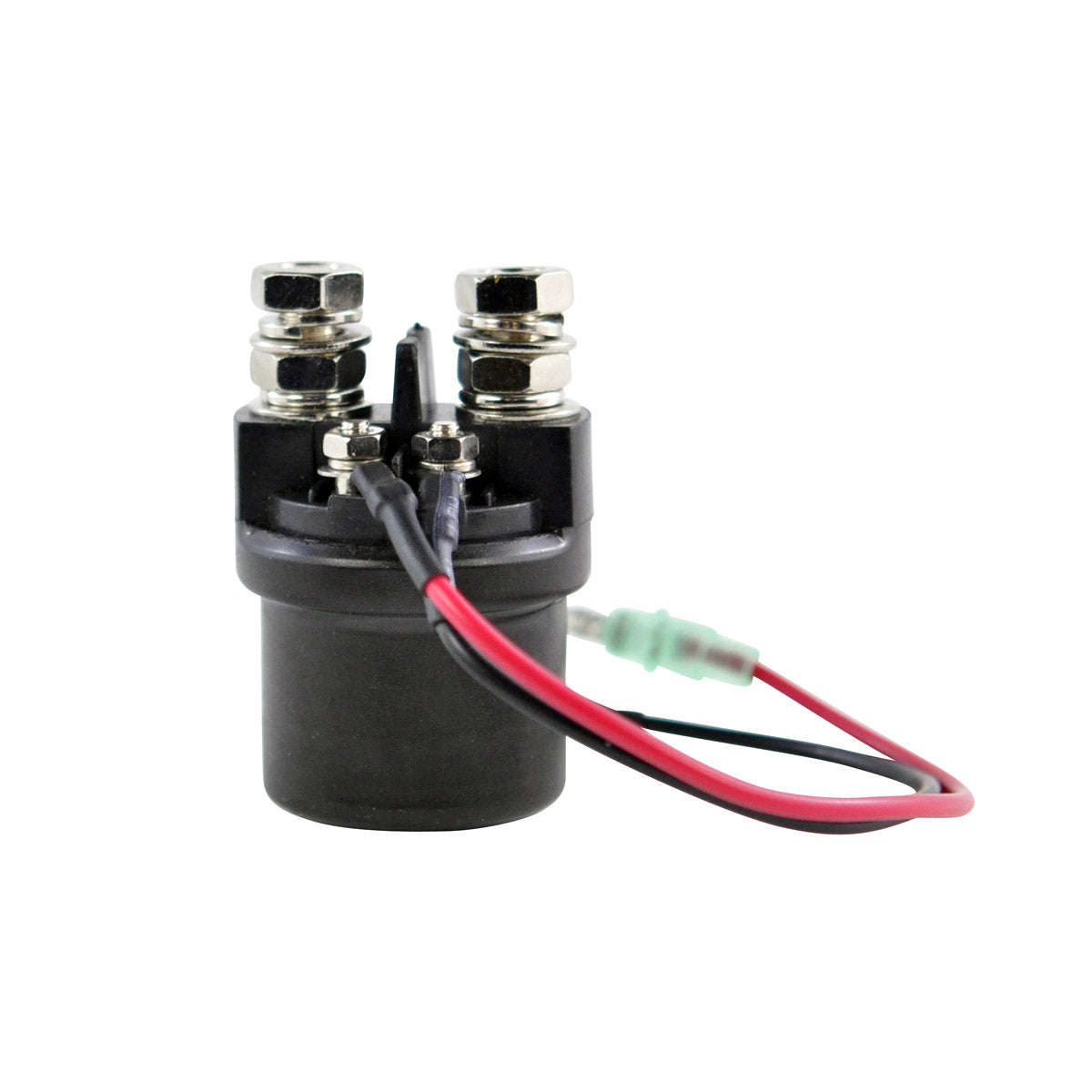

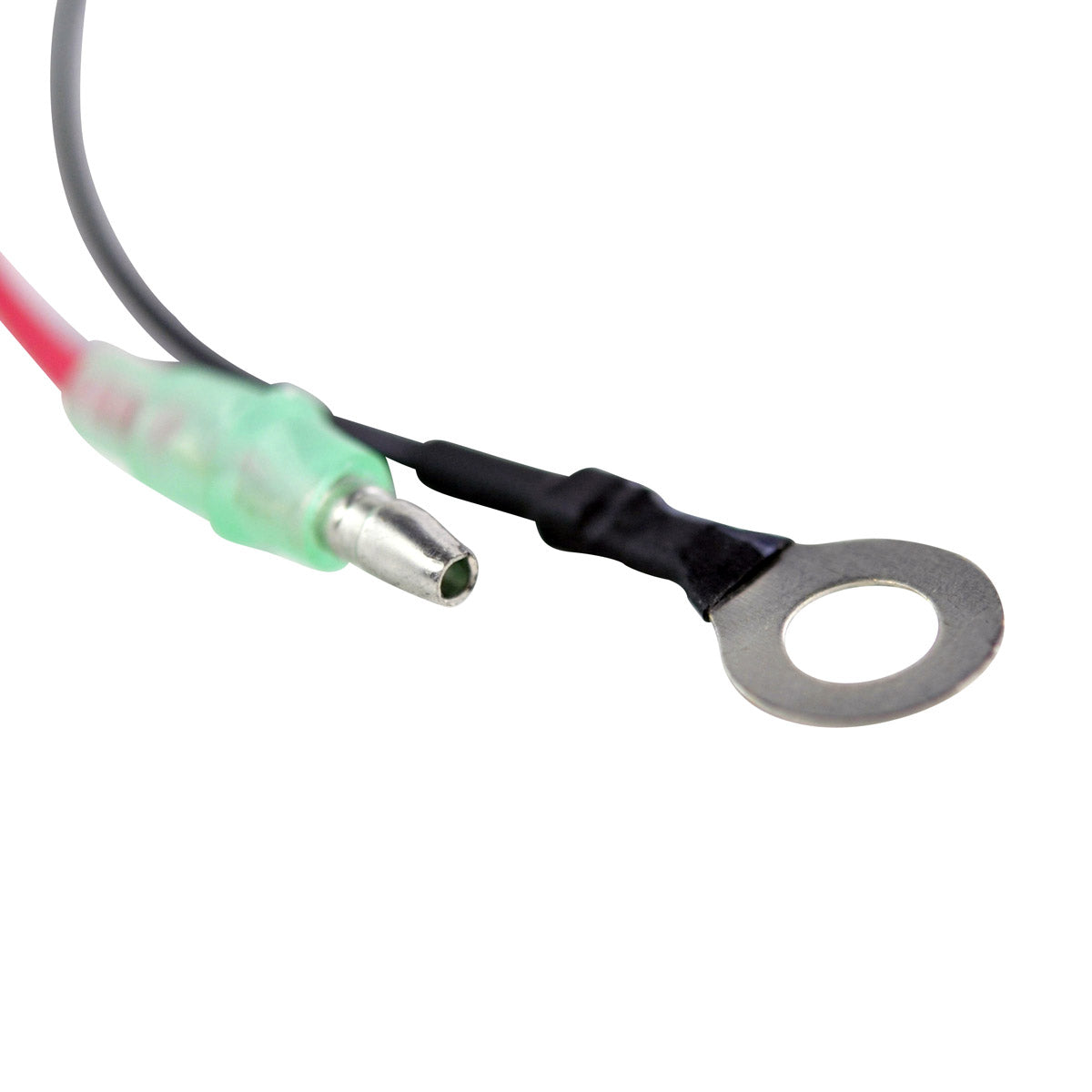

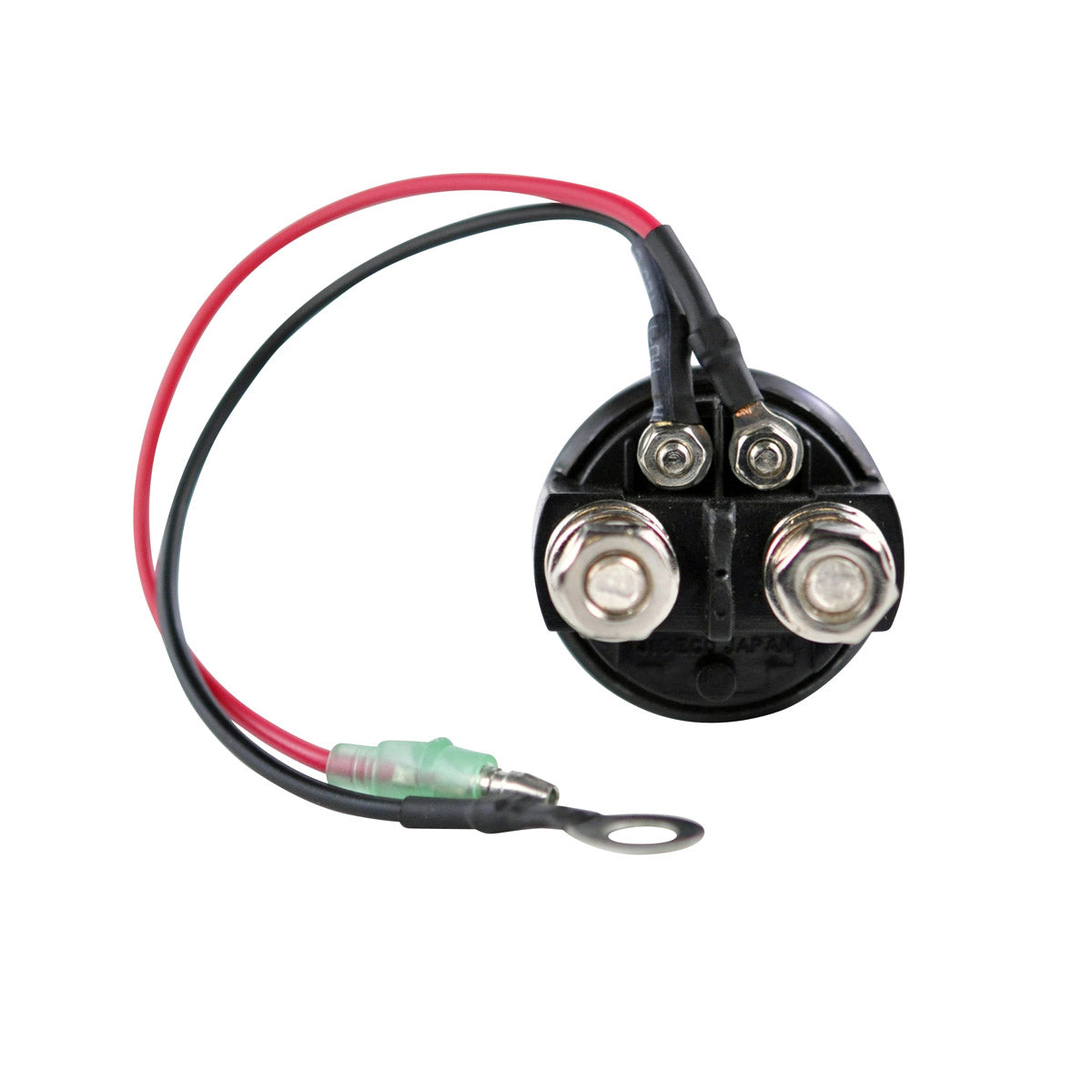

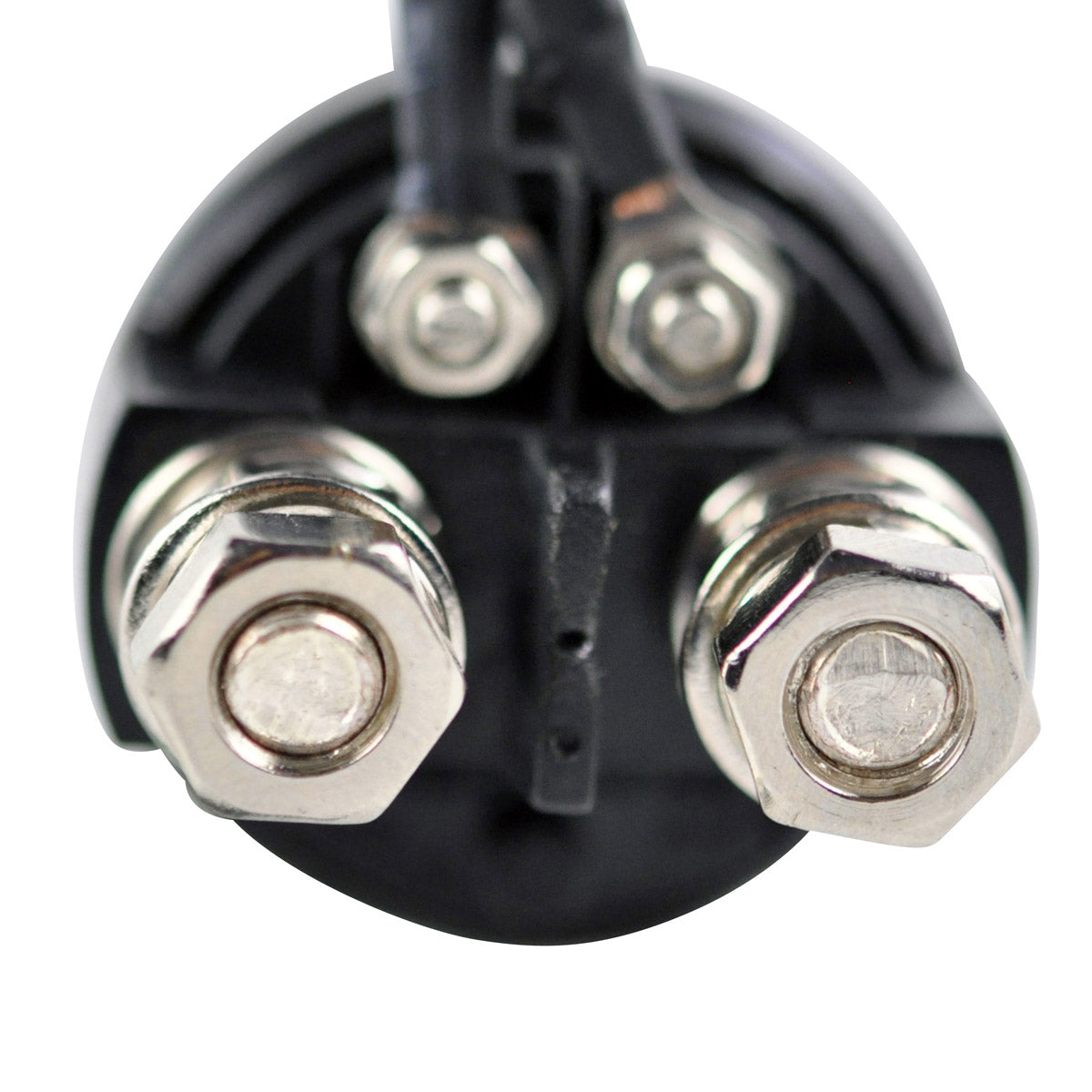

The unit measures 53 mm high, 35 mm long and 35 mm wide, with two wires, two terminals and two plugs, matching the original layout so it drops straight into place. The quality exceeds the OEM equipment and all products shipped are tested. The listing images are accurate representations of the part supplied.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit
- Quality that exceeds the OEM equipment
- Two wires, two terminals and two plugs, matching the original
- Compact 53 x 35 x 35 mm body
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-101724 |
| Height | 53 mm |
| Length | 35 mm |
| Width | 35 mm |
| Number of wires | 2 |
| Number of terminals | 2 |
| Number of plugs | 2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Exciter | 1989-2002 |
| Yamaha FX 1 | 1989-2002 |
| Yamaha GP | 1989-2002 |
| Yamaha LS | 1989-2002 |
| Yamaha SJ | 1989-2002 |
| Yamaha SUV | 1989-2002 |
| Yamaha VXR | 1989-2002 |
| Yamaha Wave Blaster | 1989-2002 |
| Yamaha Raider | 1989-2002 |
| Yamaha Runner | 1989-2002 |
| Yamaha Venture | 1989-2002 |
| Yamaha XL | 1989-2002 |
| Yamaha XR 700 | 1989-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6G1-81940-00-00 | Yamaha |
| 6G1-81941-10-00 | Yamaha |
| 6G1-8194A-10-00 | Yamaha |
| 31800-94401 | Cross reference |
| 3008-106 | Cross reference |
| 3008-165 | Cross reference |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original solenoid, with the same two wires, two terminals and two plugs, so it uses the existing wiring and mounting.
What is included?
One starter relay solenoid switch. No additional hardware is listed for this part.
How do I know the old solenoid has failed?
The classic symptom is a single loud click, or rapid clicking, when you press start while the battery is known to be good and the starter motor does not turn. Intermittent starting that improves when you tap the solenoid points the same way.
How do I confirm this is the right part for my machine?
Compare the number on your original solenoid against the cross reference table above, and check the body size of 53 x 35 x 35 mm together with the two-plug, two-terminal layout.
