Starter Relay Solenoid for Kawasaki Jet Ski STX and Ultra Models
STX-12F, STX-15F, Ultra 130, Ultra 250 and Ultra 260 - 2002-2024
This is a brand new starter relay solenoid switch for 2002-2024 Kawasaki Jet Ski STX-12F and STX-15F, and Ultra 130, Ultra 250 and Ultra 260 personal watercraft. It is a direct replacement for the original solenoid, so it mounts in the same place and plugs into the existing harness without modification. Part number RMS090-101728 replaces Kawasaki OEM 27010-3777 and 27010-0860.
The starter relay solenoid is the heavy-duty switch that sits between the battery and the starter motor. When you press the start button the relay coil pulls in and closes a pair of high-current contacts, letting the full battery current reach the starter. Because it carries the entire cranking load it is one of the most heavily worked electrical parts on a ski, and burnt or pitted contacts are a common reason for a machine that clicks but will not turn over. This unit measures 84 mm high, 61 mm long and 41 mm wide, has two terminals, two plugs and two wires, with 55 mm of wire from the relay to the grommet and a further 280 mm from the grommet to the plug. The quality exceeds the OEM equipment and every unit is tested before it is shipped. All item pictures are accurate, so if you are in any doubt compare the part shown against your original.
Key Features
- Brand new starter relay solenoid switch
- Direct replacement for the original unit
- Quality exceeds the OEM equipment
- Two terminals, two plugs, two wires
- 55 mm relay to grommet, 280 mm grommet to plug
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RMS090-101728 |
| Height | 84 mm |
| Length | 61 mm |
| Width | 41 mm |
| Number of Wires | 2 |
| Number of Terminals | 2 |
| Number of Plugs | 2 |
| Wire Relay to Grommet | 55 mm |
| Wire Grommet to Plug | 280 mm |
| Installation | Direct replacement |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Jet Ski STX-12F | 2002-2024 |
| Kawasaki Jet Ski STX-15F | 2002-2024 |
| Kawasaki Jet Ski Ultra 130 | 2002-2024 |
| Kawasaki Jet Ski Ultra 250 | 2002-2024 |
| Kawasaki Jet Ski Ultra 260 | 2002-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27010-3777 | Kawasaki |
| 27010-0860 | Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement with the same two terminals and two plugs as the original, so it goes back in the factory position and connects to the existing harness. Check your model against the fitment table and compare OEM number 27010-3777 or 27010-0860 on the unit you are removing.
What is included?
One brand new starter relay solenoid switch, part number RMS090-101728, complete with its two plugs and the wiring already fitted - 55 mm from the relay to the grommet and 280 mm from the grommet to the plug. Reuse the original mounting hardware and battery cables.
How do I tell whether the old solenoid has failed?
The classic symptom is a single loud click when you press start, with the engine not turning, on a ski whose battery is known good and fully charged. Intermittent starting that improves when you tap the solenoid, or a relay that stays stuck in and keeps the starter engaged, both point the same way. If there is battery voltage on the input terminal but nothing on the output when the button is pressed, the solenoid is the fault.
Am I sure I am buying the right shape of relay?

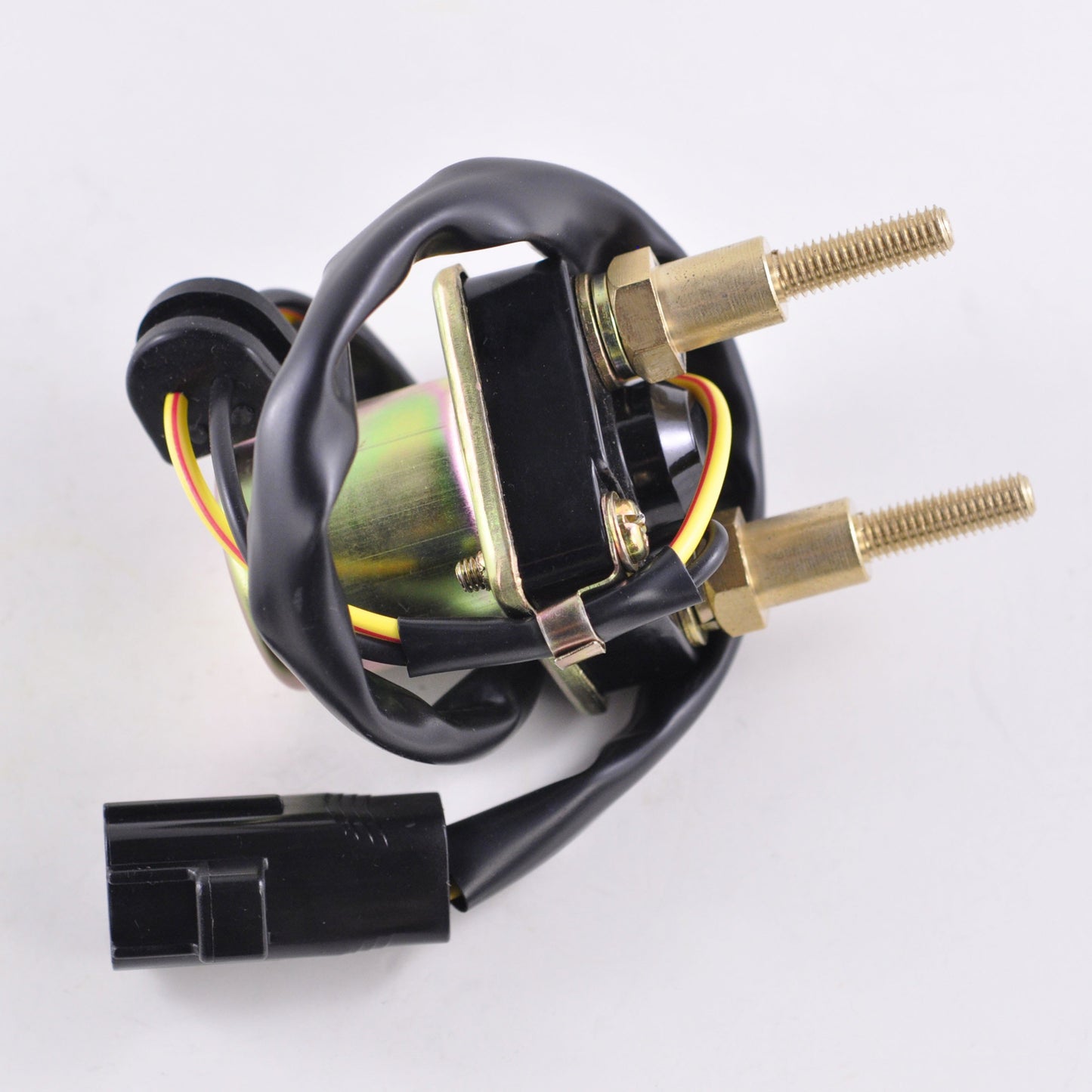

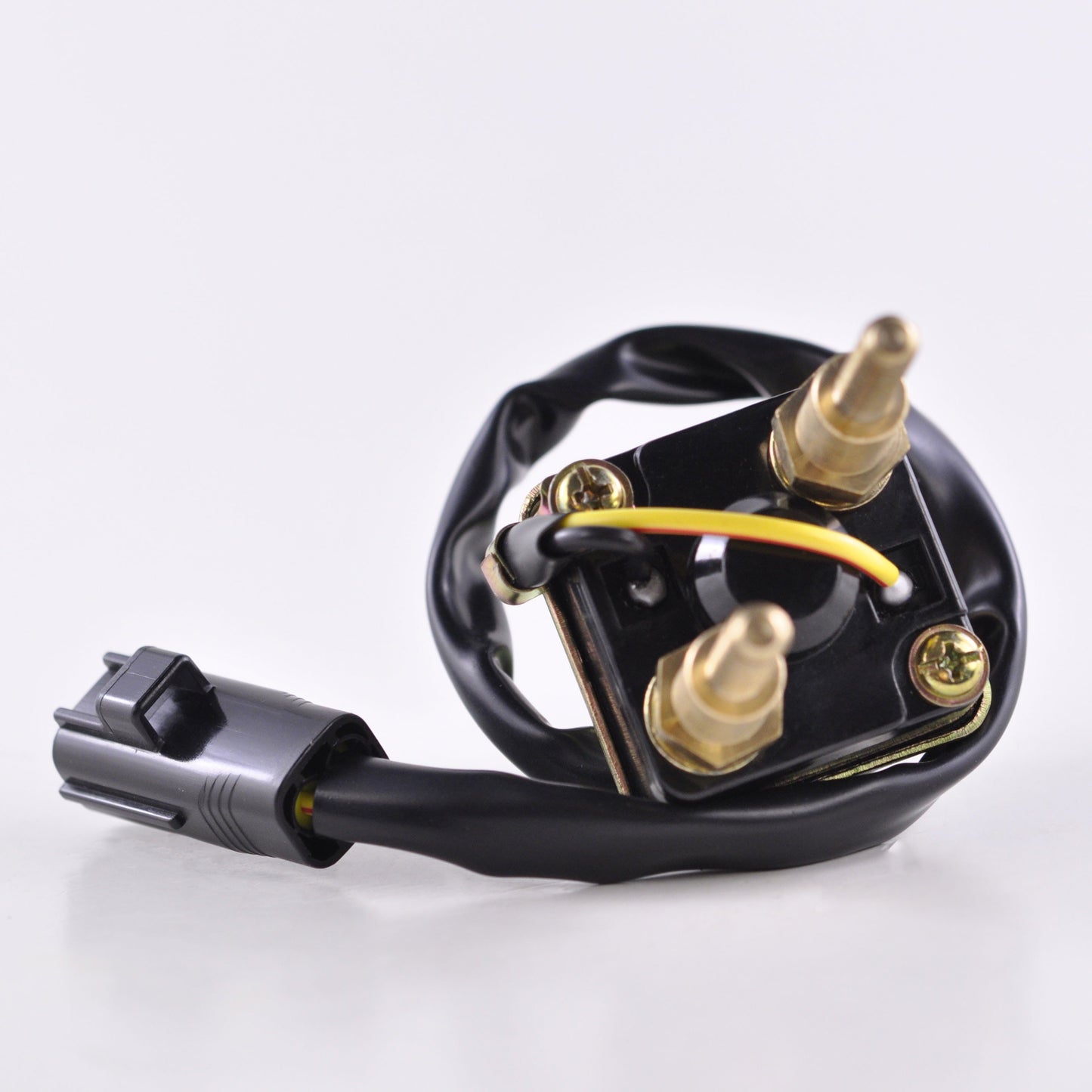

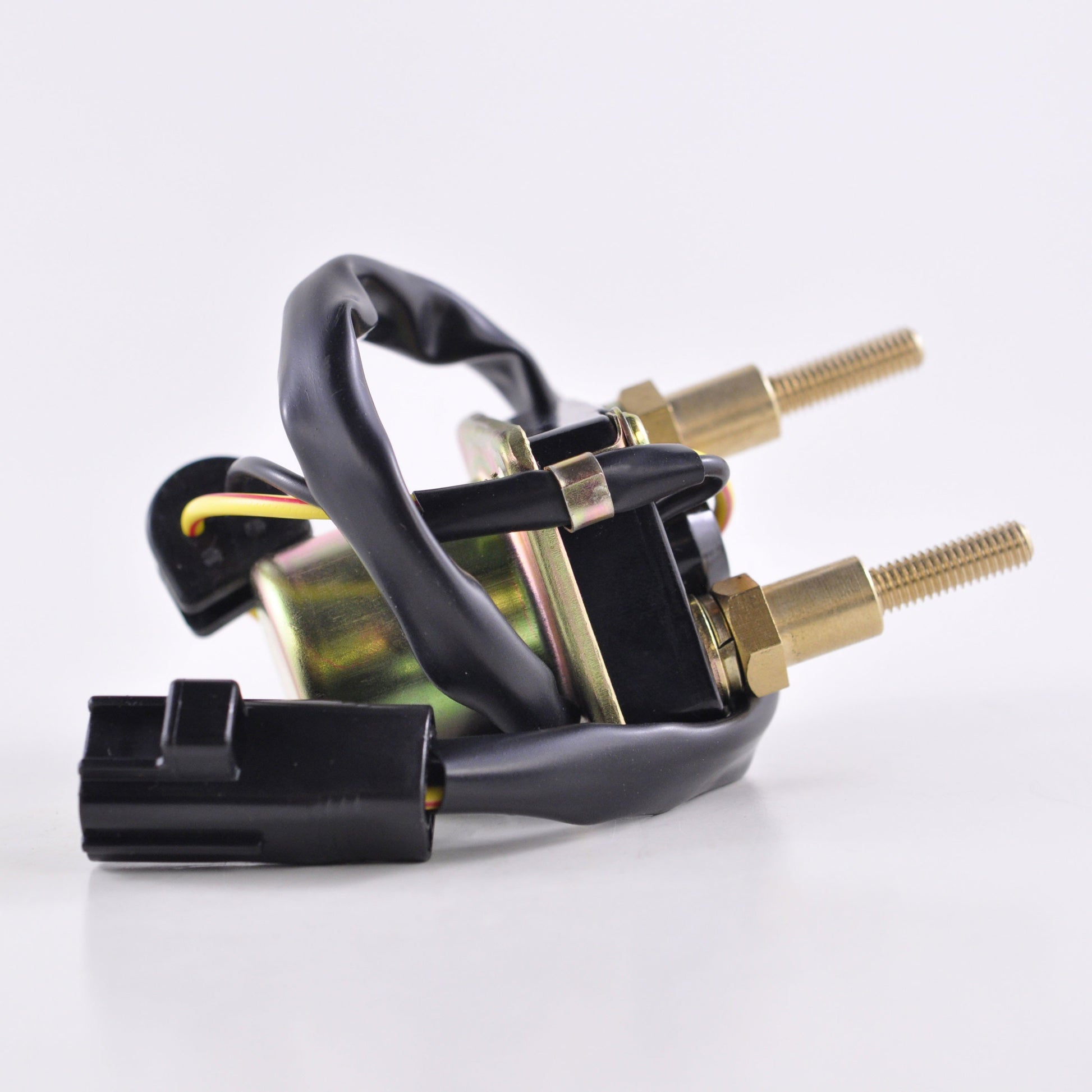

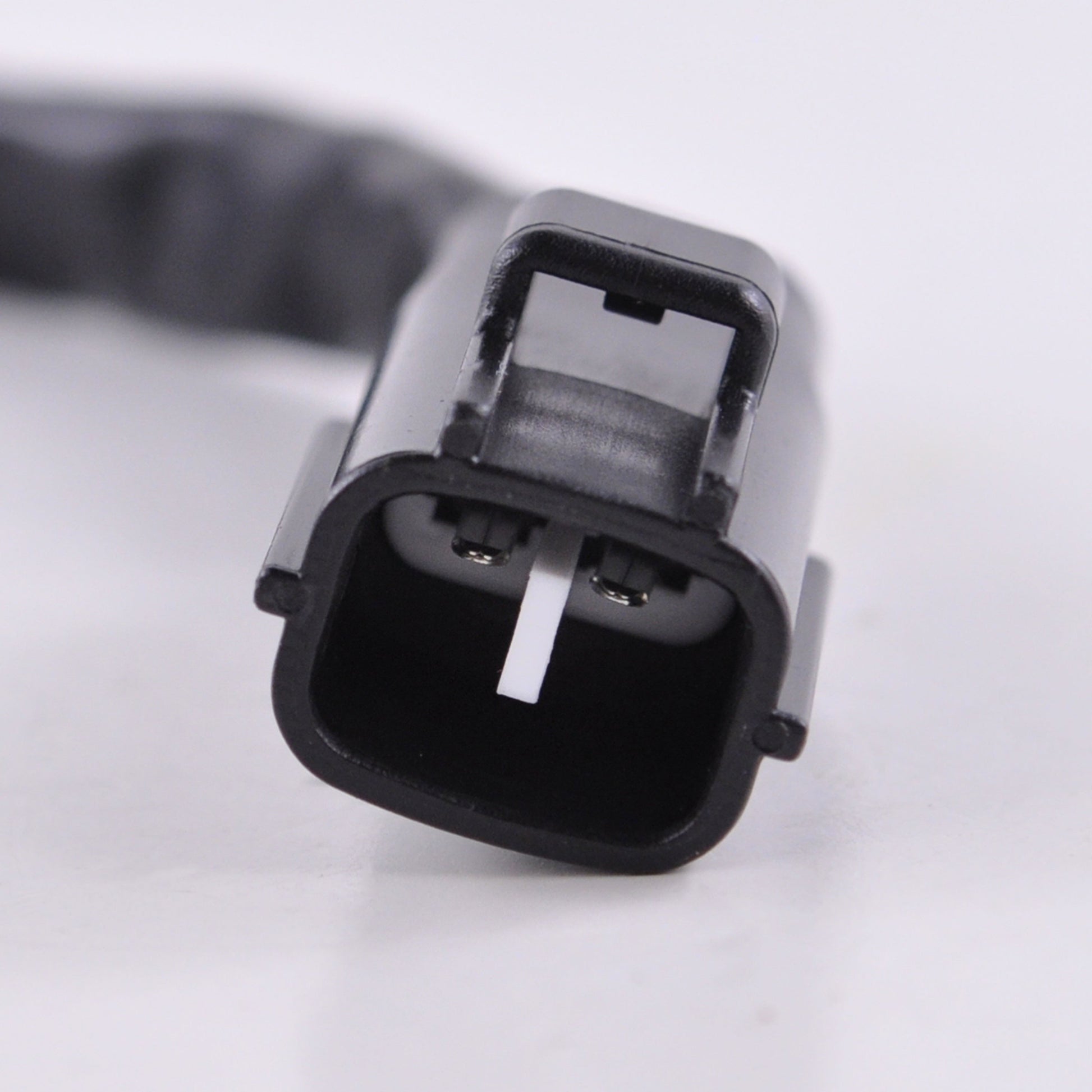

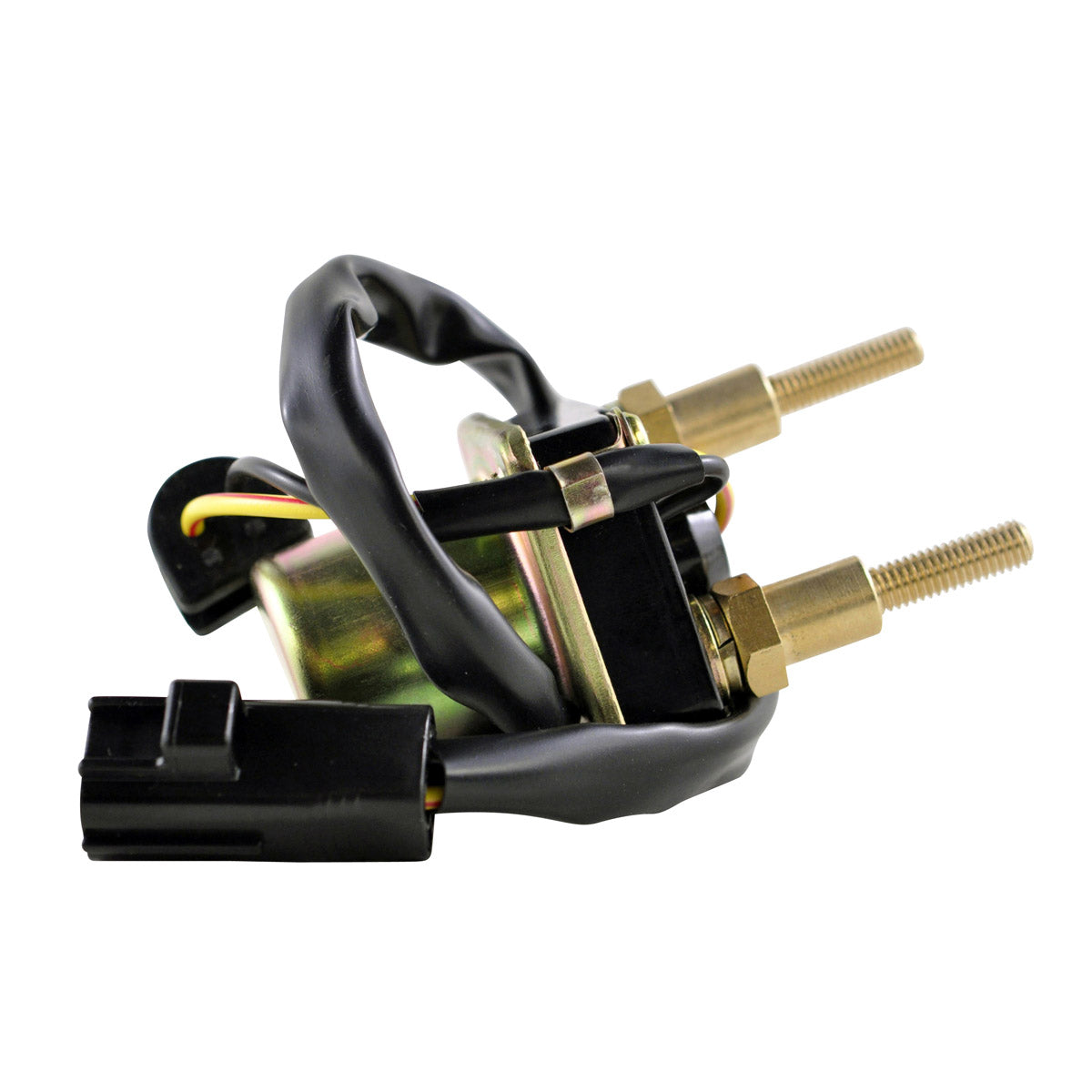

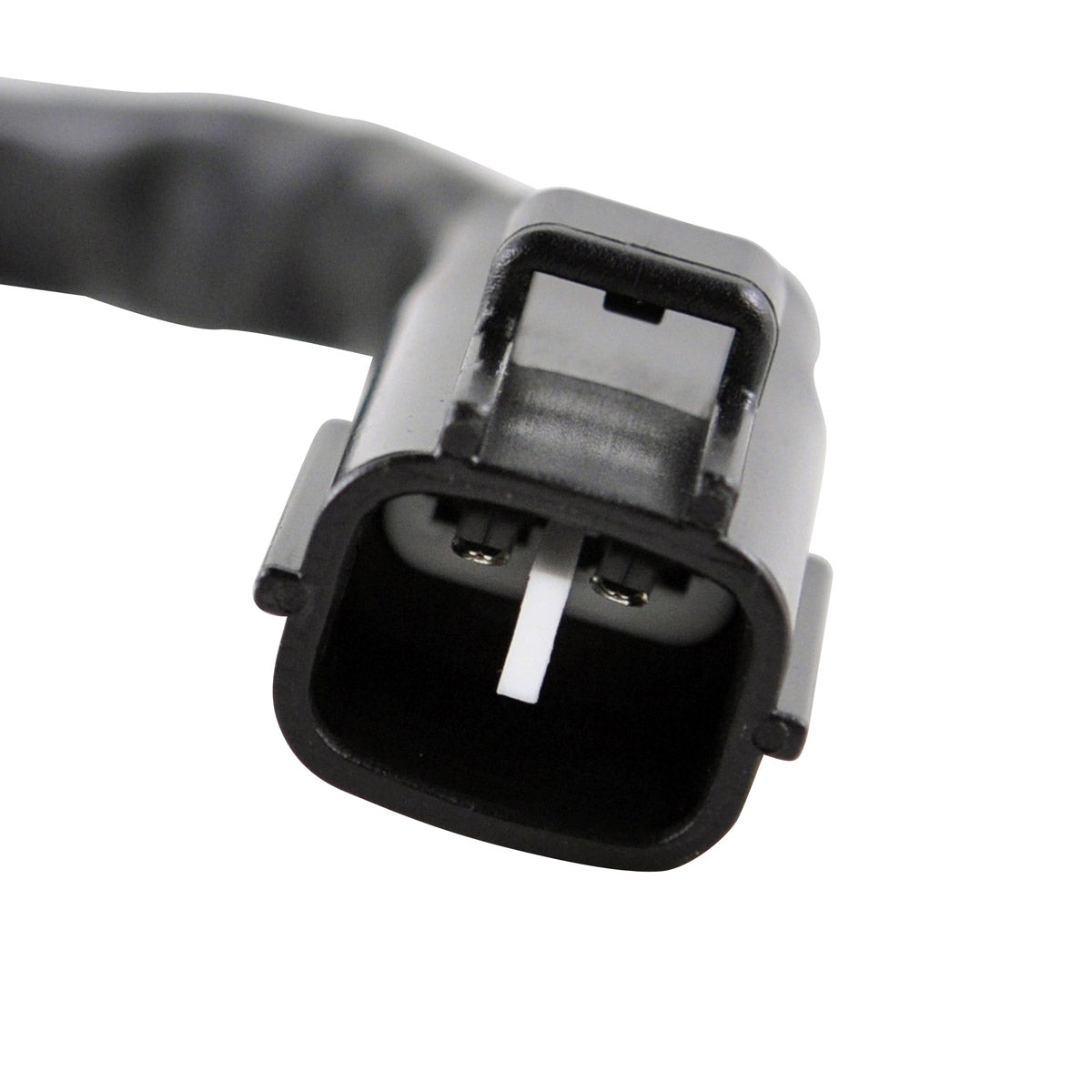

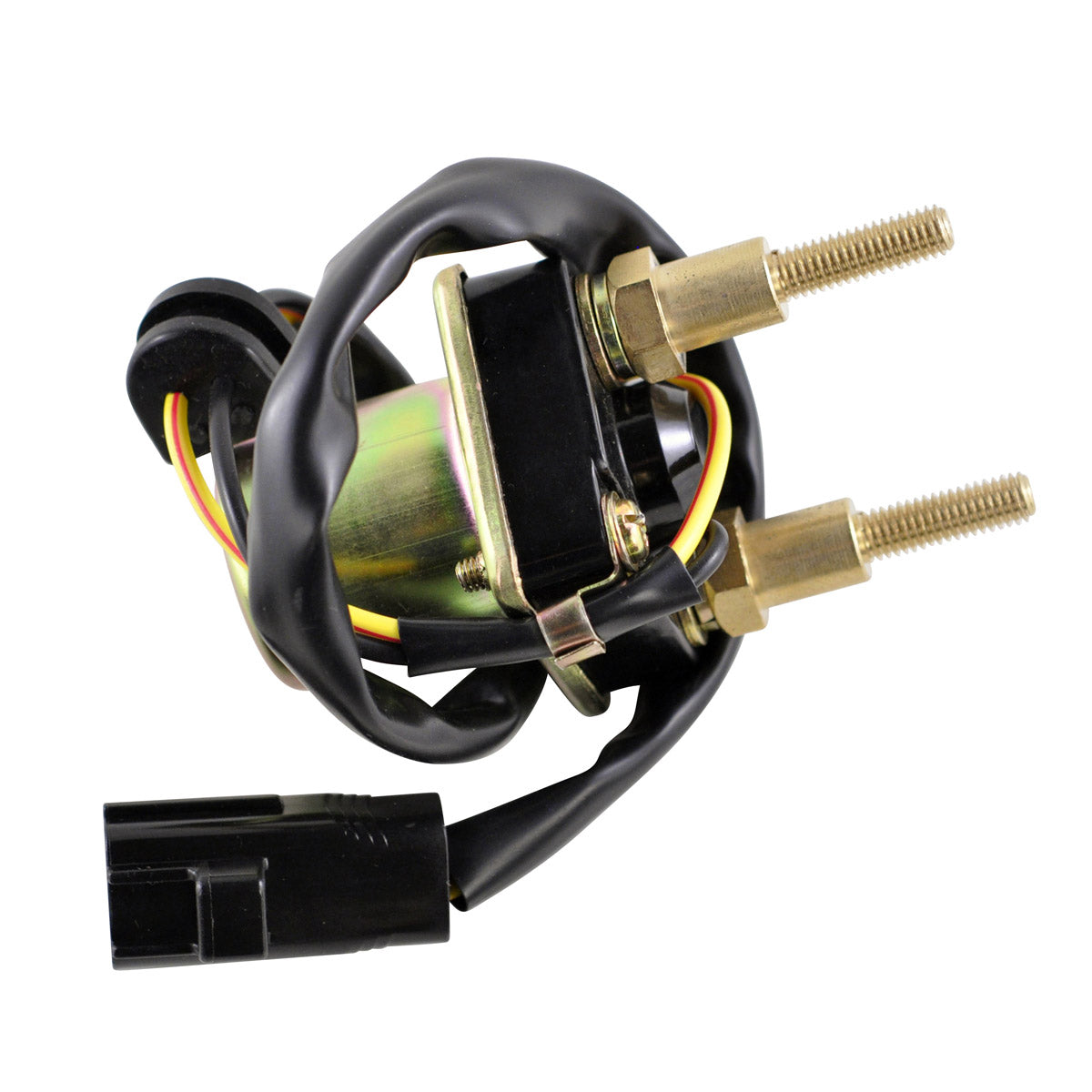

All the item pictures on this listing show the actual part. Measure your original - this one is 84 mm high, 61 mm long and 41 mm wide - and compare the plugs and terminal layout against the photographs. If anything looks different, contact us before ordering and our technical team will check it for you.
