Starter Relay Solenoid - RMSTATOR RM09002
Yamaha YFZ 450 R and X, YFM 550 and 700 Grizzly, Raptor and Kodiak, FJR 1300 | 2006-2024
The starter relay solenoid is the high-current switch that connects the battery directly to the starter motor. Pressing the start button sends a small control current to the coil inside the solenoid; the coil pulls a contact bridge across the two heavy studs and the starter receives the full battery current. It is the single hardest-working switch on the machine, and burnt or pitted contacts inside it are one of the most common reasons a quad or a tourer clicks but refuses to crank.

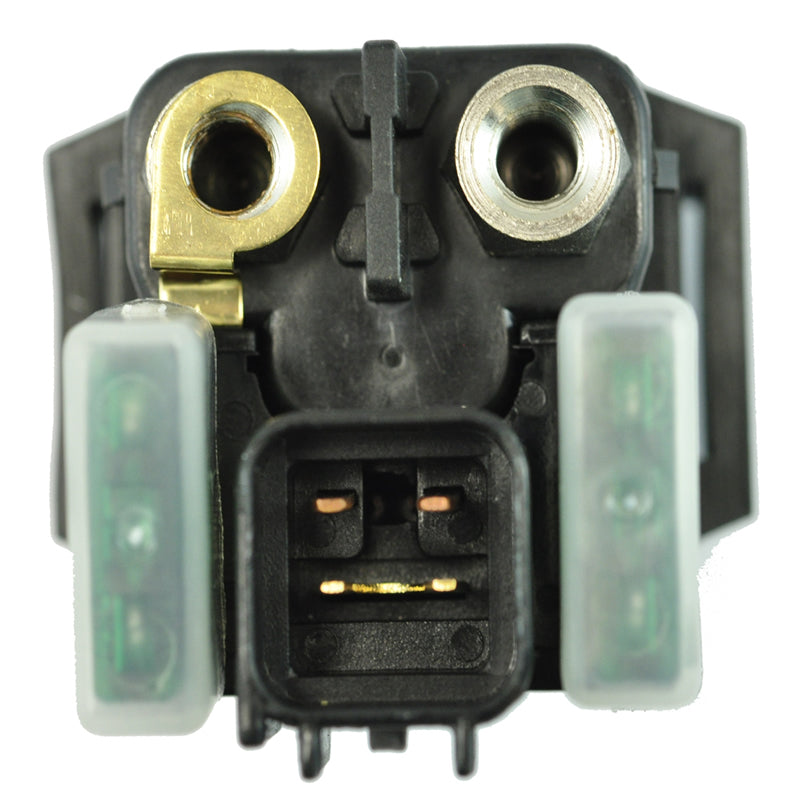

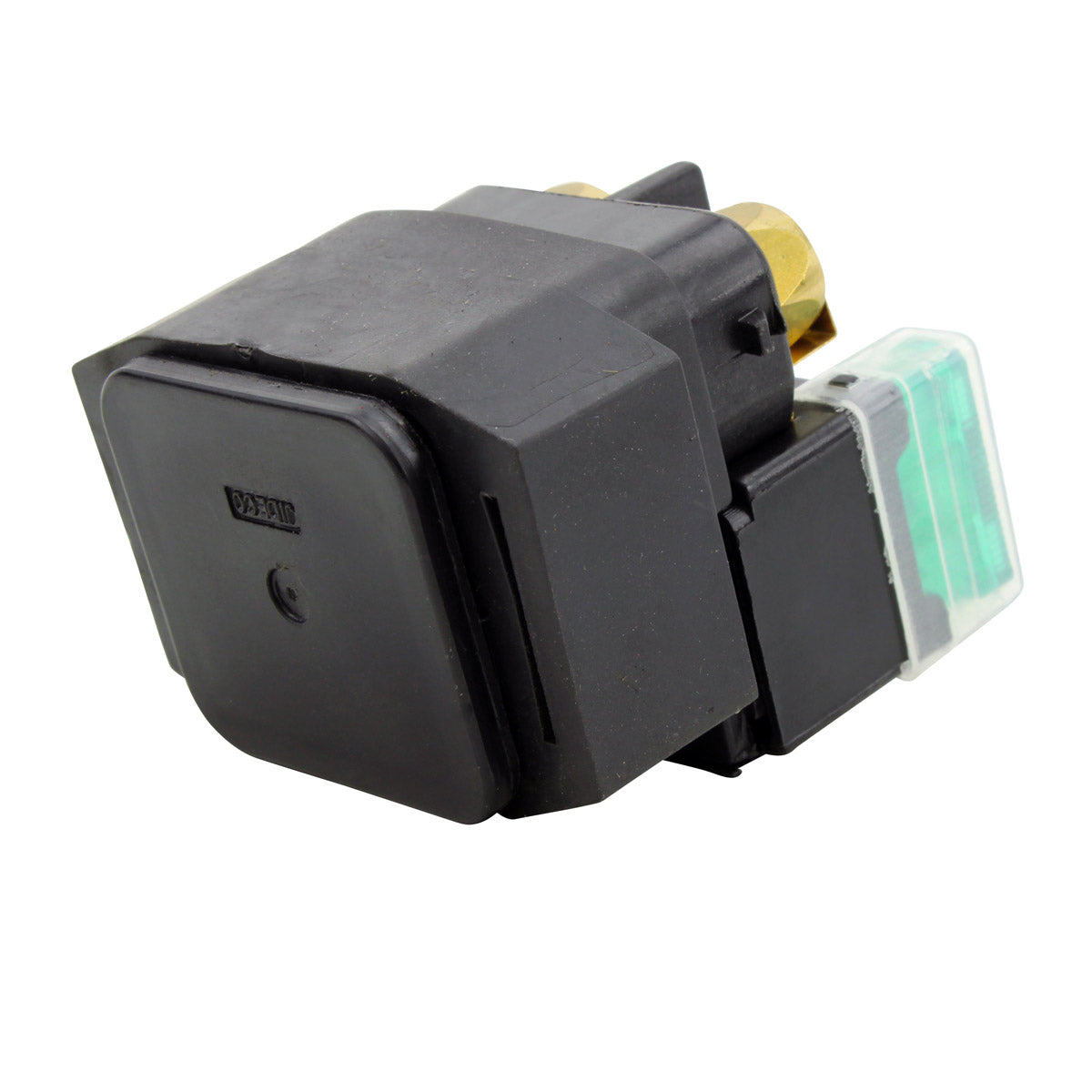

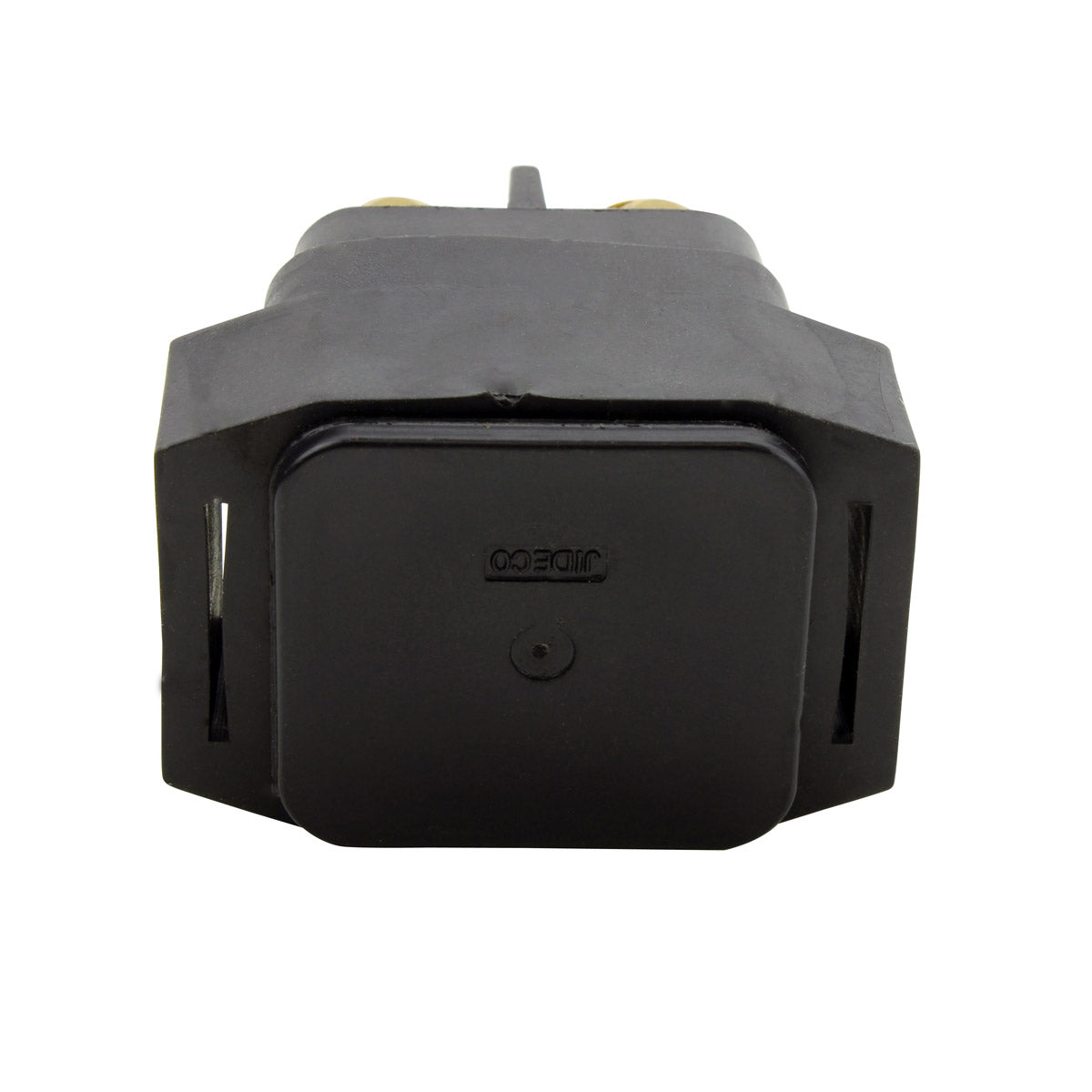

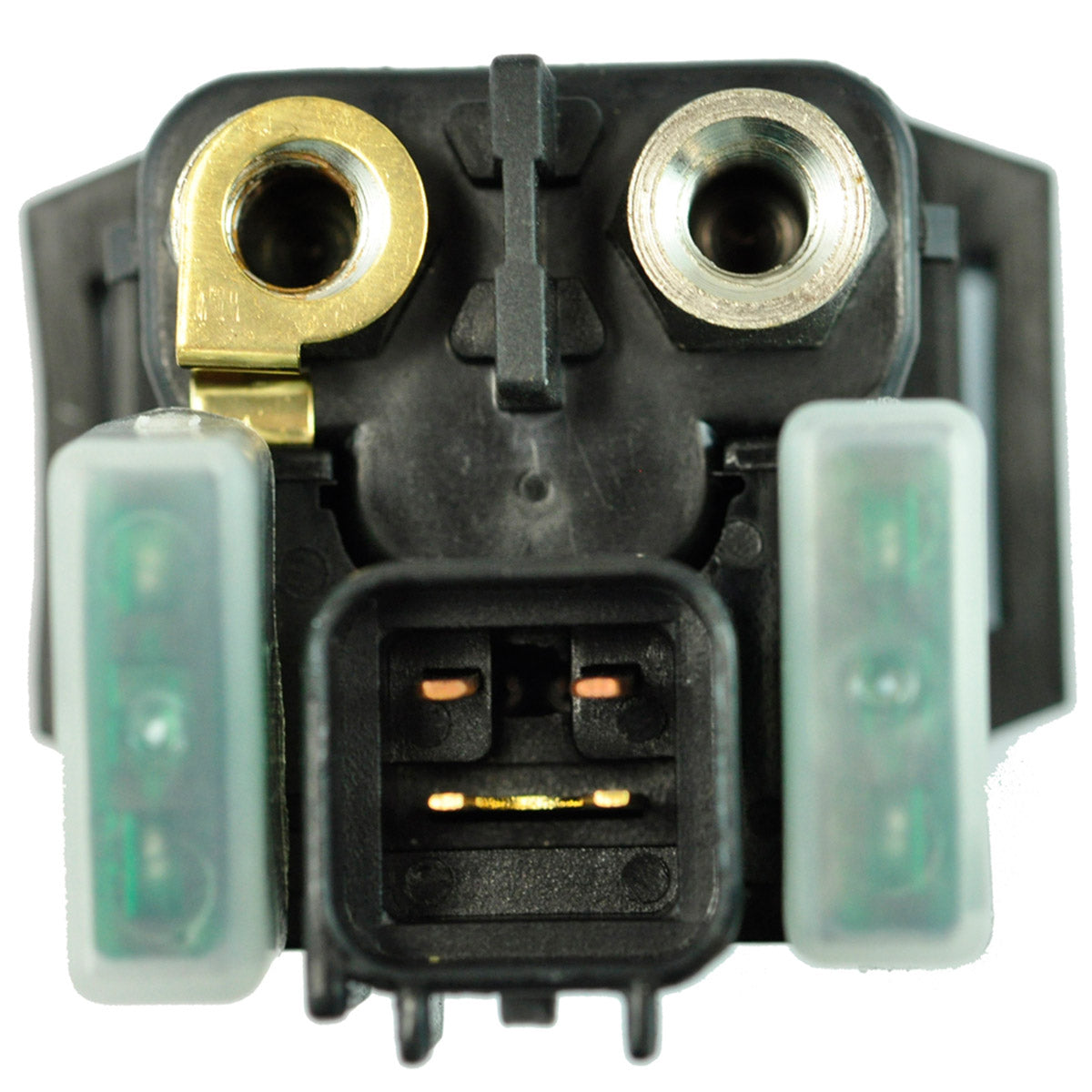

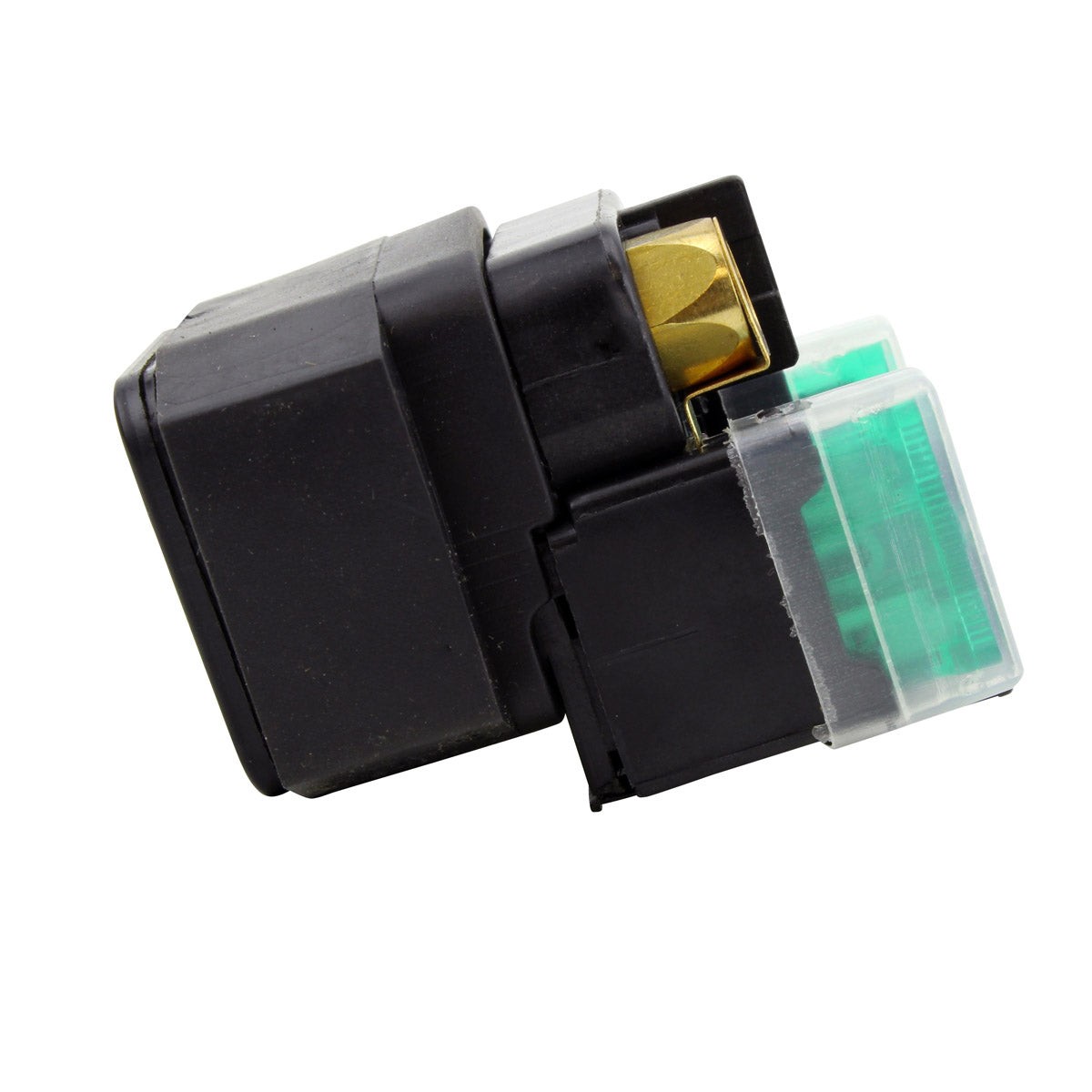

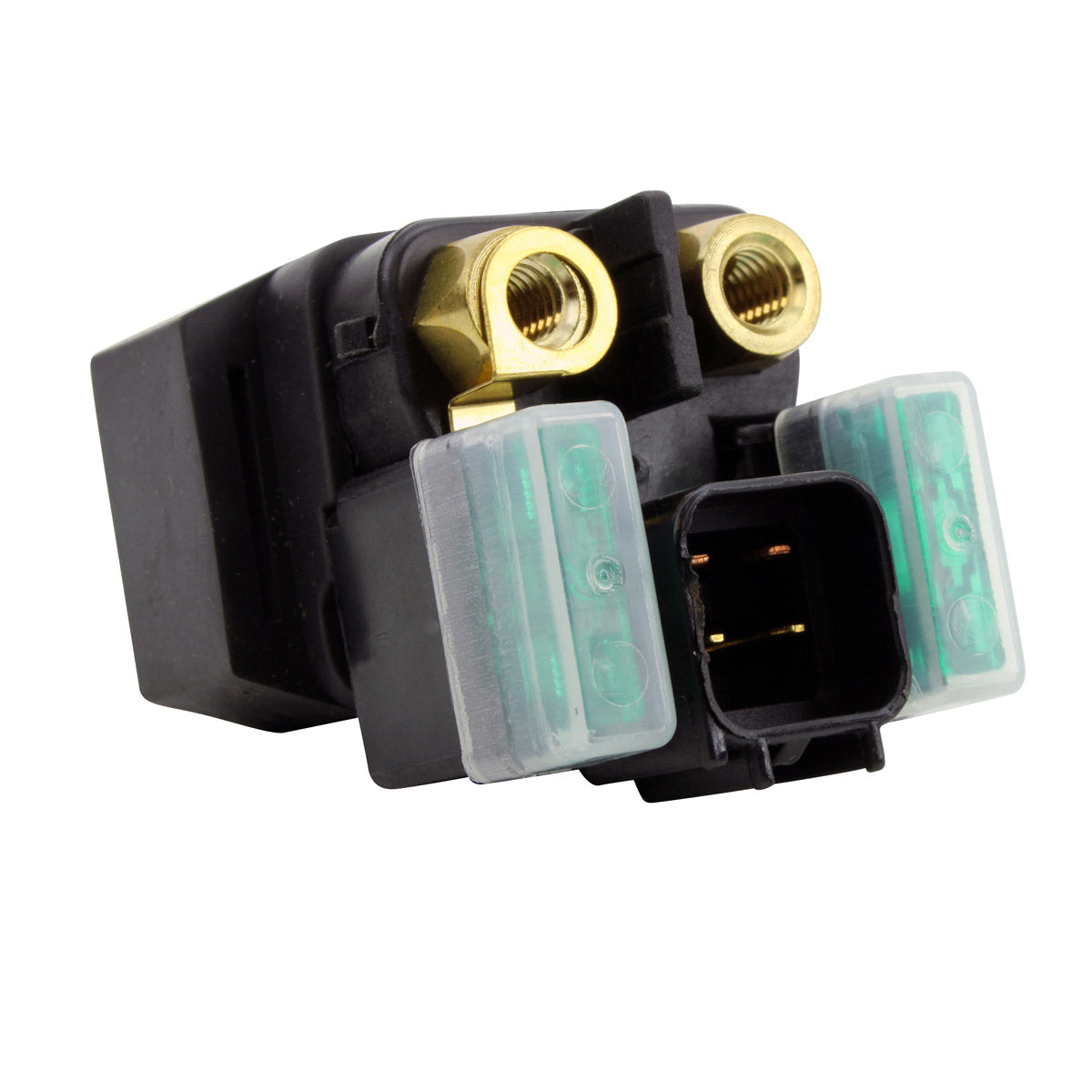

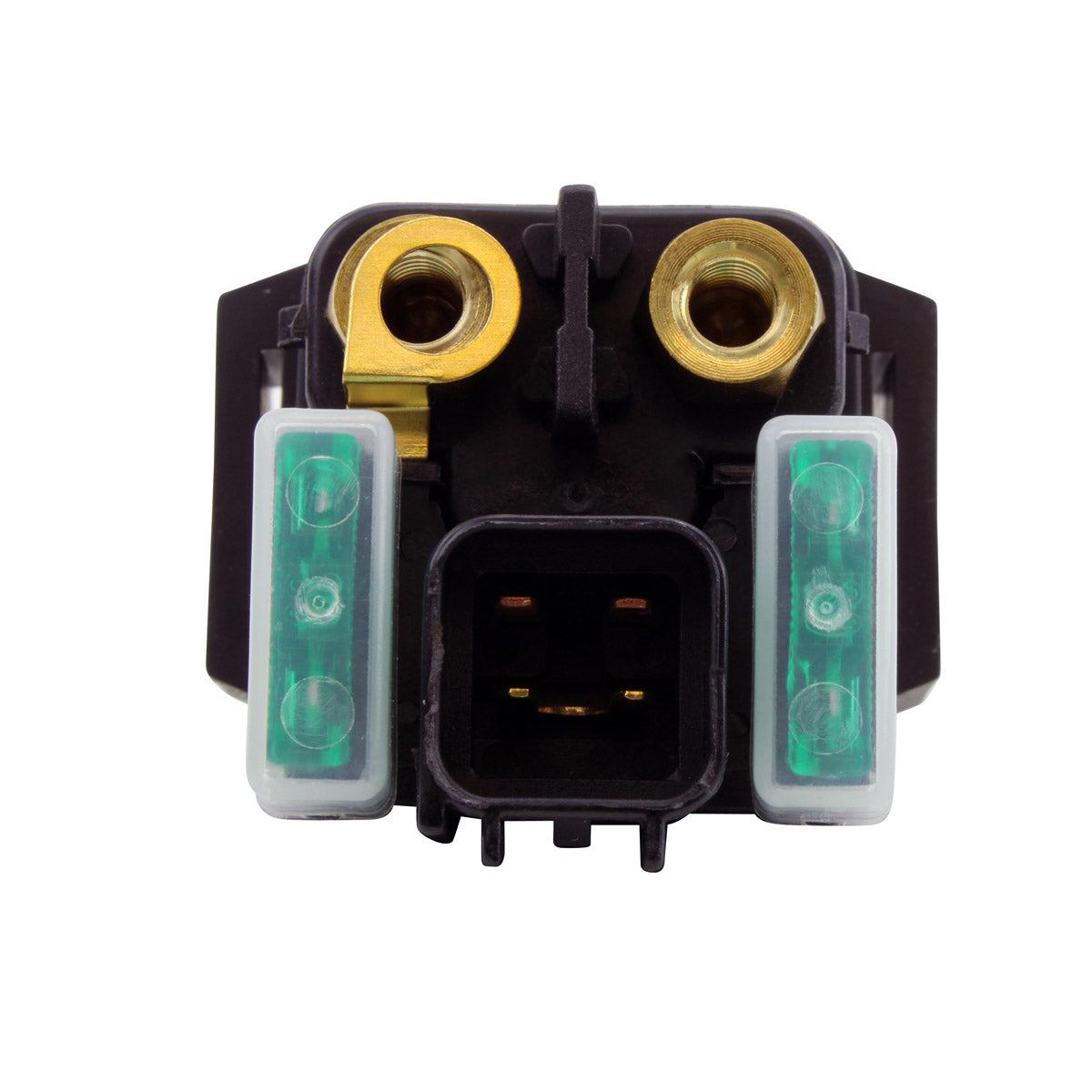

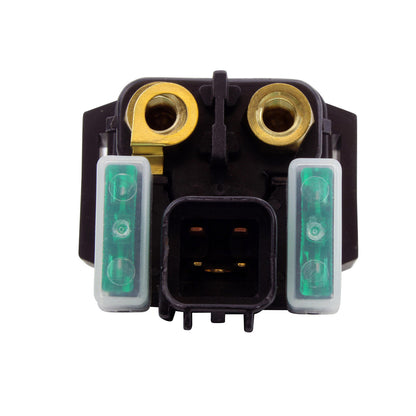

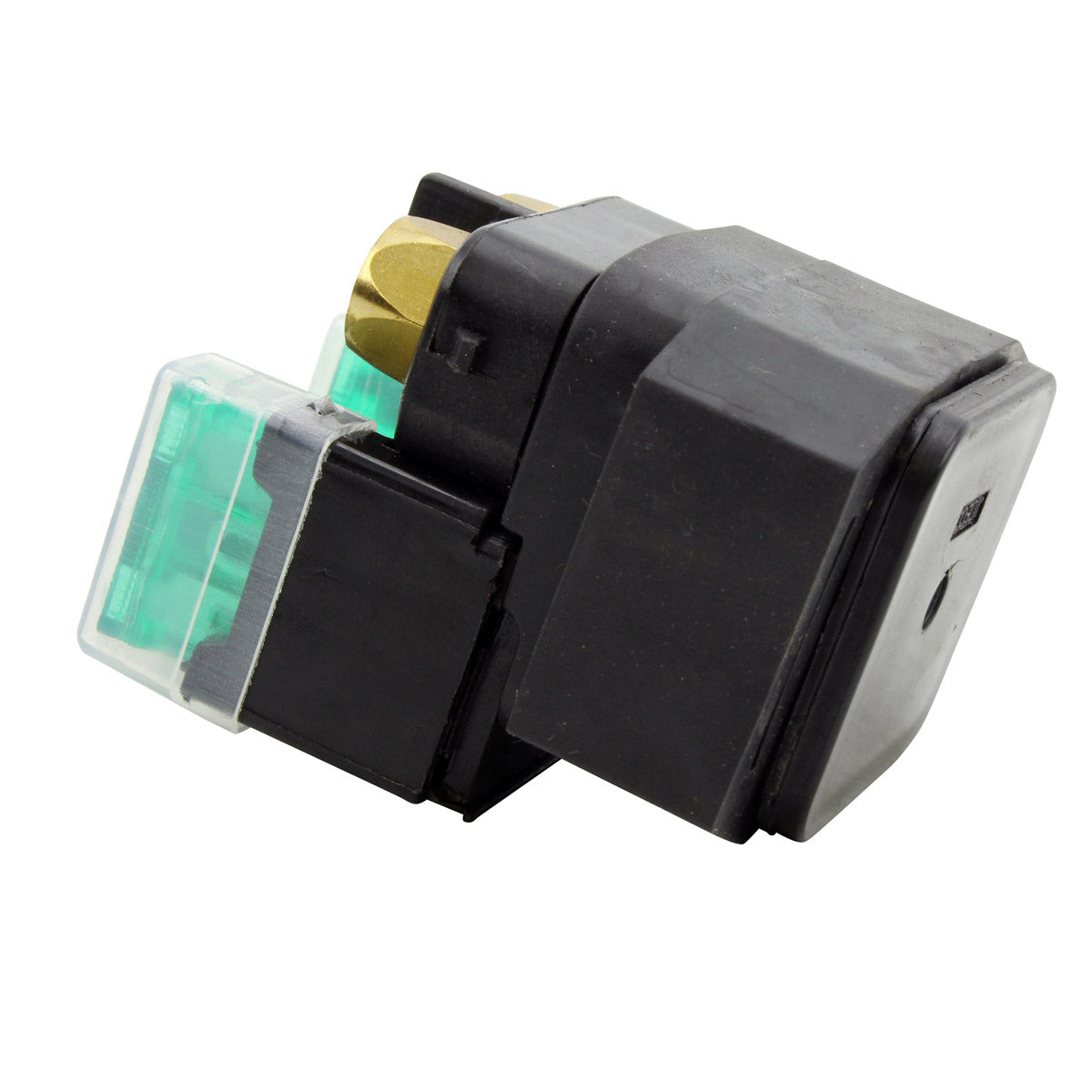

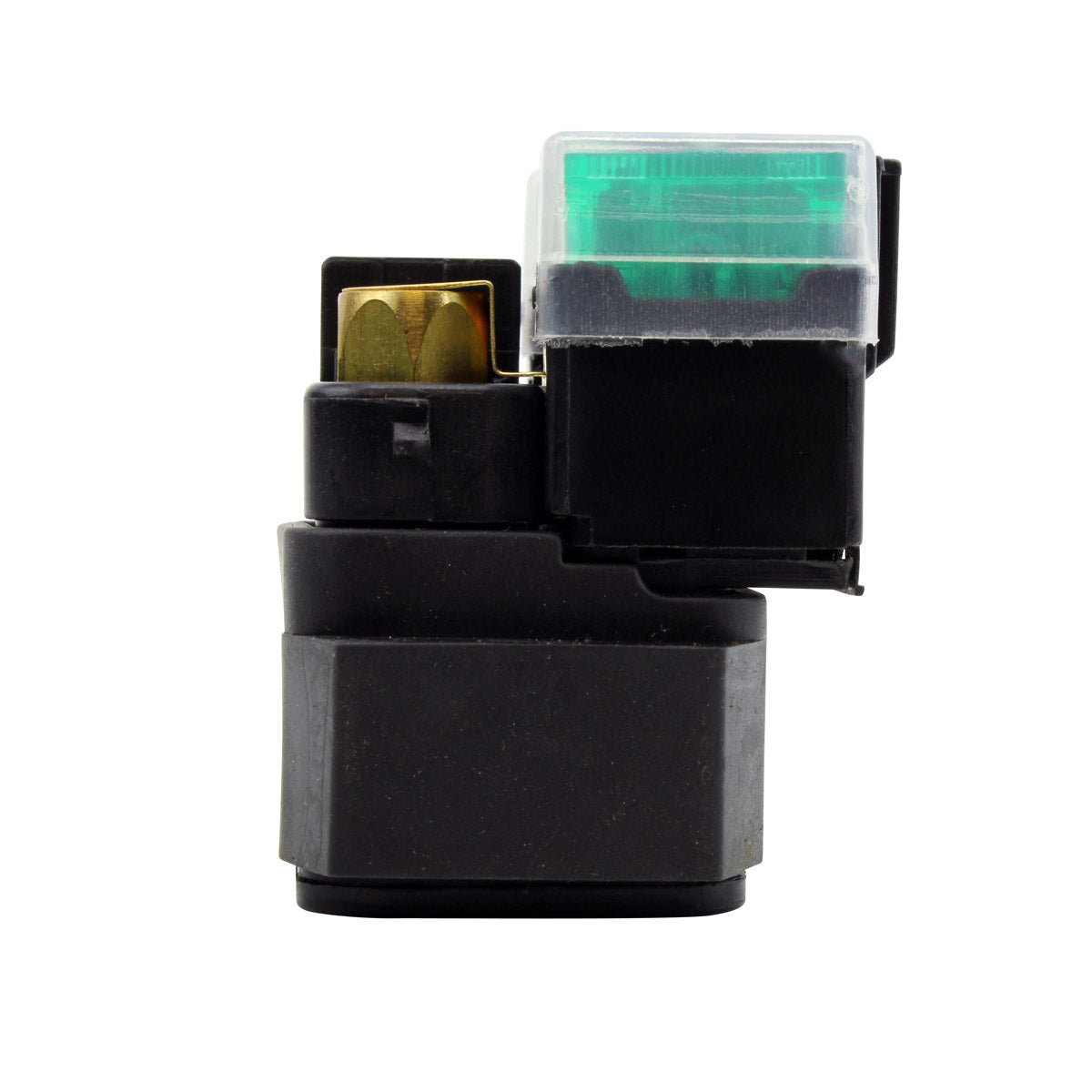

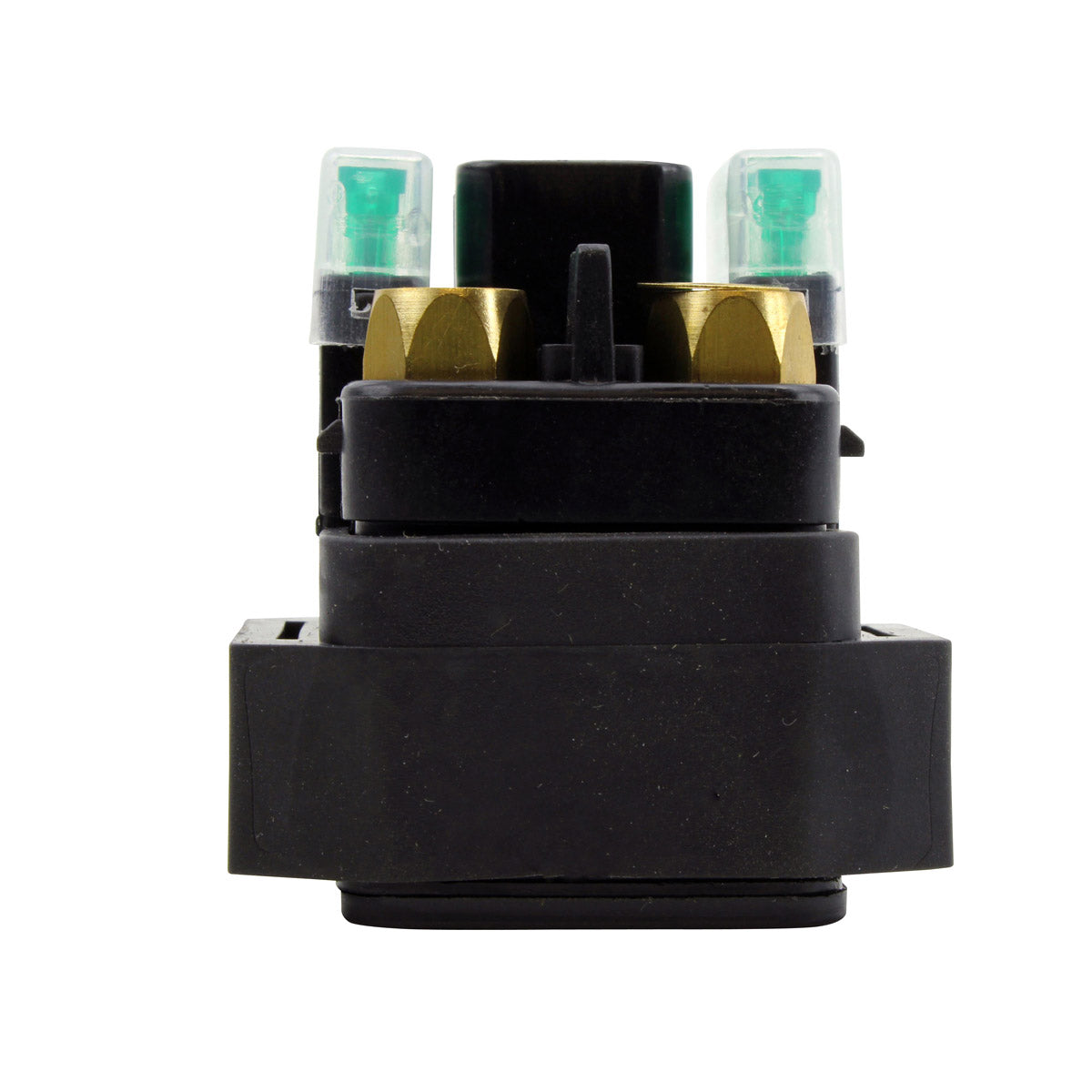

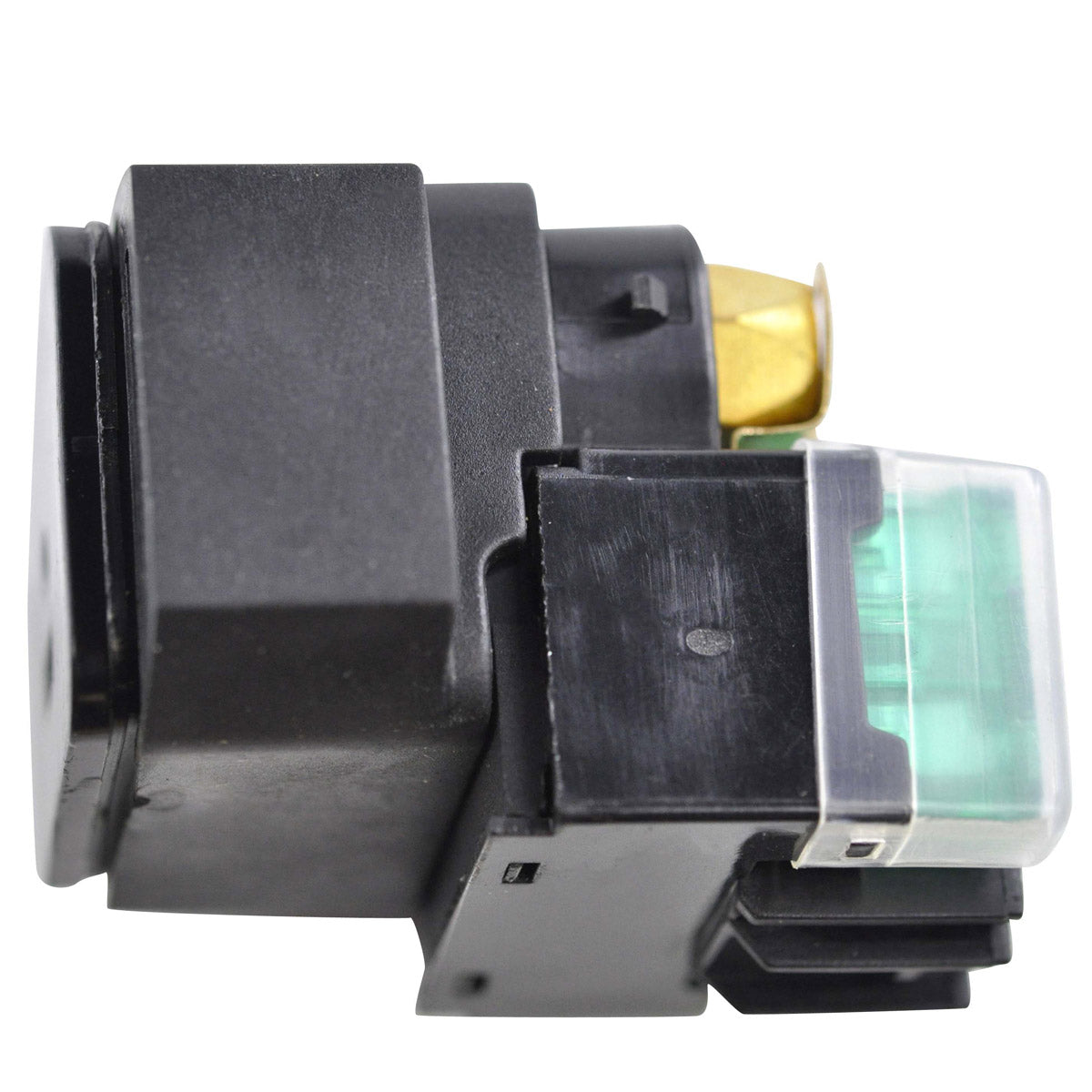

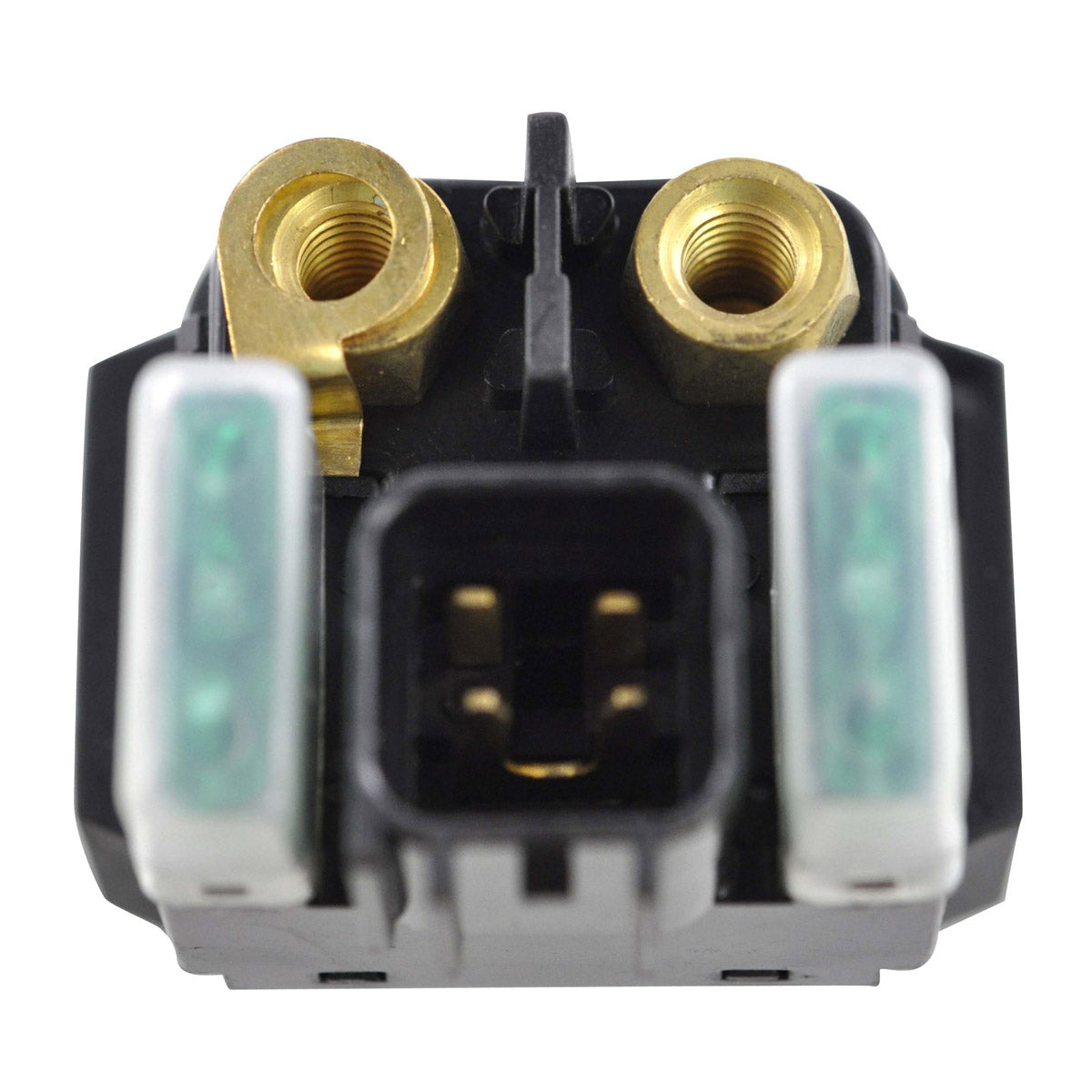

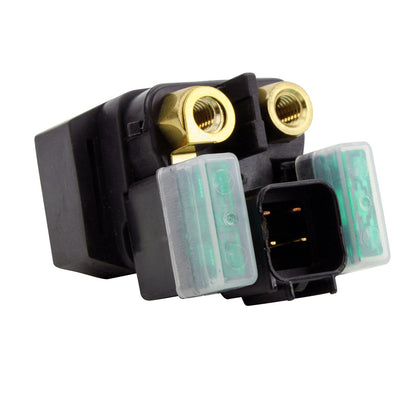

This is RMSTATOR part RM09002, a brand new starter relay solenoid switch supplied as a direct replacement for the original. RMSTATOR state that the quality exceeds the OEM equipment and that every unit is tested before shipment. It uses a four-terminal layout with a single plug and no flying leads, in a 50 mm x 45 mm x 37 mm body, so it fits the original bracket and wiring without modification.
Key Features
- Brand new unit - not remanufactured and not a repaired core
- Direct replacement to the original unit, no modification needed
- Quality exceeds the OEM equipment, according to RMSTATOR
- Tested before shipment

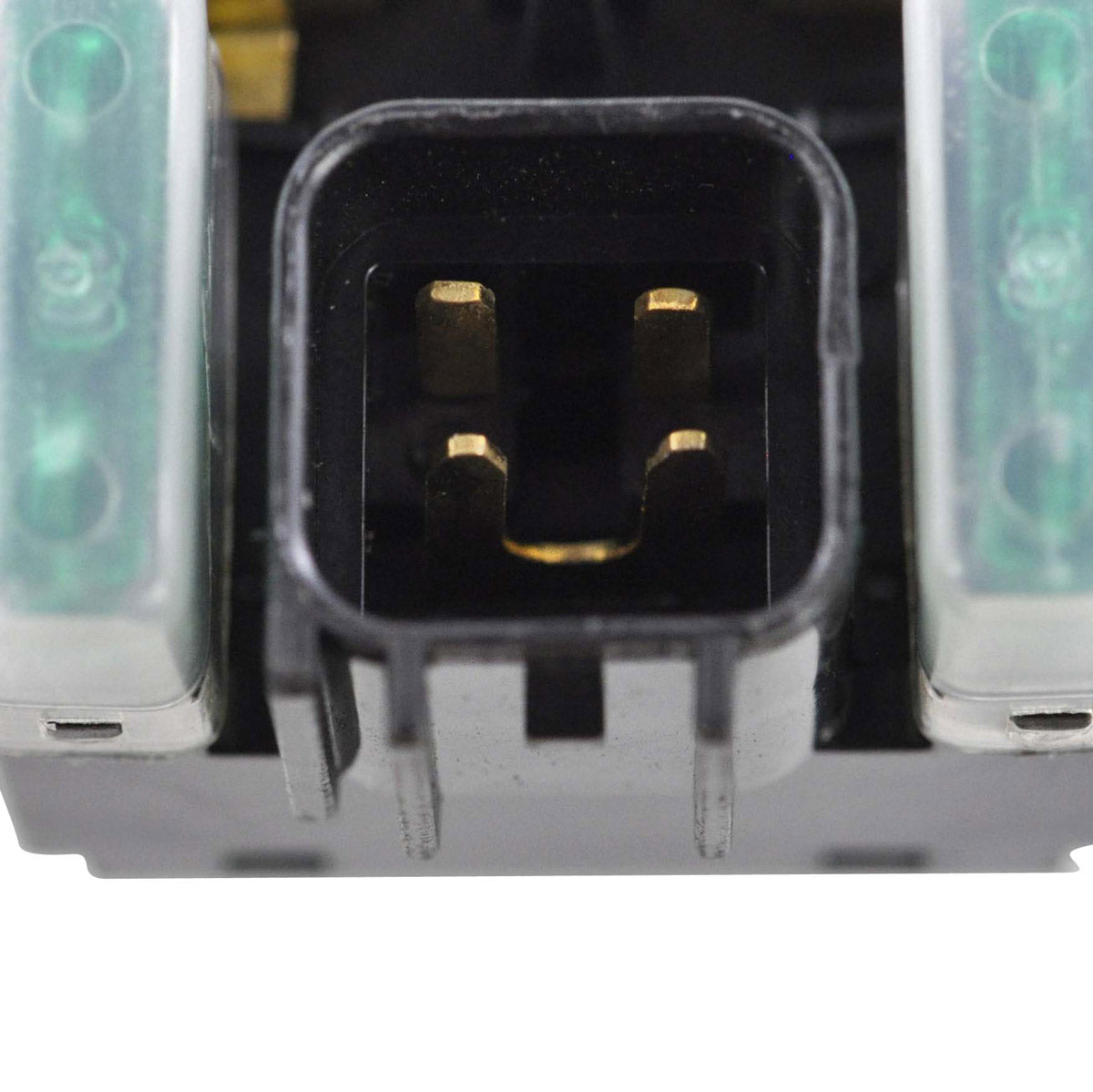

- Four terminals and a single plug, no flying leads
- Compact 50 mm x 45 mm x 37 mm body
- Covers Yamaha sport quads, utility quads and the FJR 1300 tourer
Technical Specs
| Specification |
Detail |
| Part number |
RM09002 |
| Component |
Starter relay solenoid |
| Height |
37 mm |
| Length |
50 mm |
| Width |
45 mm |
| Number of terminals |
4 |
| Number of plugs |
1 |
| Number of wires |
0 |
| Condition |
New, tested before shipment |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YFZ 450 R |
2006-2024 |
| Yamaha YFZ 450 X |
2006-2024 |
| Yamaha YFM 550 / 700 Grizzly |
2006-2024 |
| Yamaha YFM 550 / 700 Raptor |
2006-2024 |
| Yamaha YFM 550 / 700 Kodiak |
2006-2024 |
| Yamaha FJR 1300 |
2006-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3B4-81940-00-00 |
Yamaha |
| 18P-81940-00-00 |
Yamaha |
| 1S3-81940-00-00 |
Yamaha |
| 3P6-81940-00-00 |
Yamaha |
Frequently Asked Questions
Does this solenoid need any modification to fit?
No. RM09002 is a direct replacement to the original unit. The four-terminal layout and single plug match the factory part, so it mounts in the original position and uses the original wiring.
What is included?
One brand new starter relay solenoid switch, tested before shipment. RMSTATOR do not list any additional components with this part number.
How do I know my old solenoid has failed?
A failing solenoid usually gives one sharp click, or a rapid chattering, when you press the start button while the headlight and dash stay lit. Contacts that have burned can also make the starter turn slowly or work only intermittently. Rule out a flat battery and corroded battery cables first, because they cause the same symptom.
What should I do before fitting it?
Disconnect the battery before servicing, to remove any risk of electric shock or of shorting the starter cable against the frame. RMSTATOR recommend that installation is carried out by a qualified technician to avoid a malfunction.
