Starter Solenoid for Delco 5MT, 10MT & 27MT Series Starters
Starter Solenoid for Delco 5MT, 10MT & 27MT Series Starters
SKU:245-12109
Free shipping over £150. Terms apply
Couldn't load pickup availability

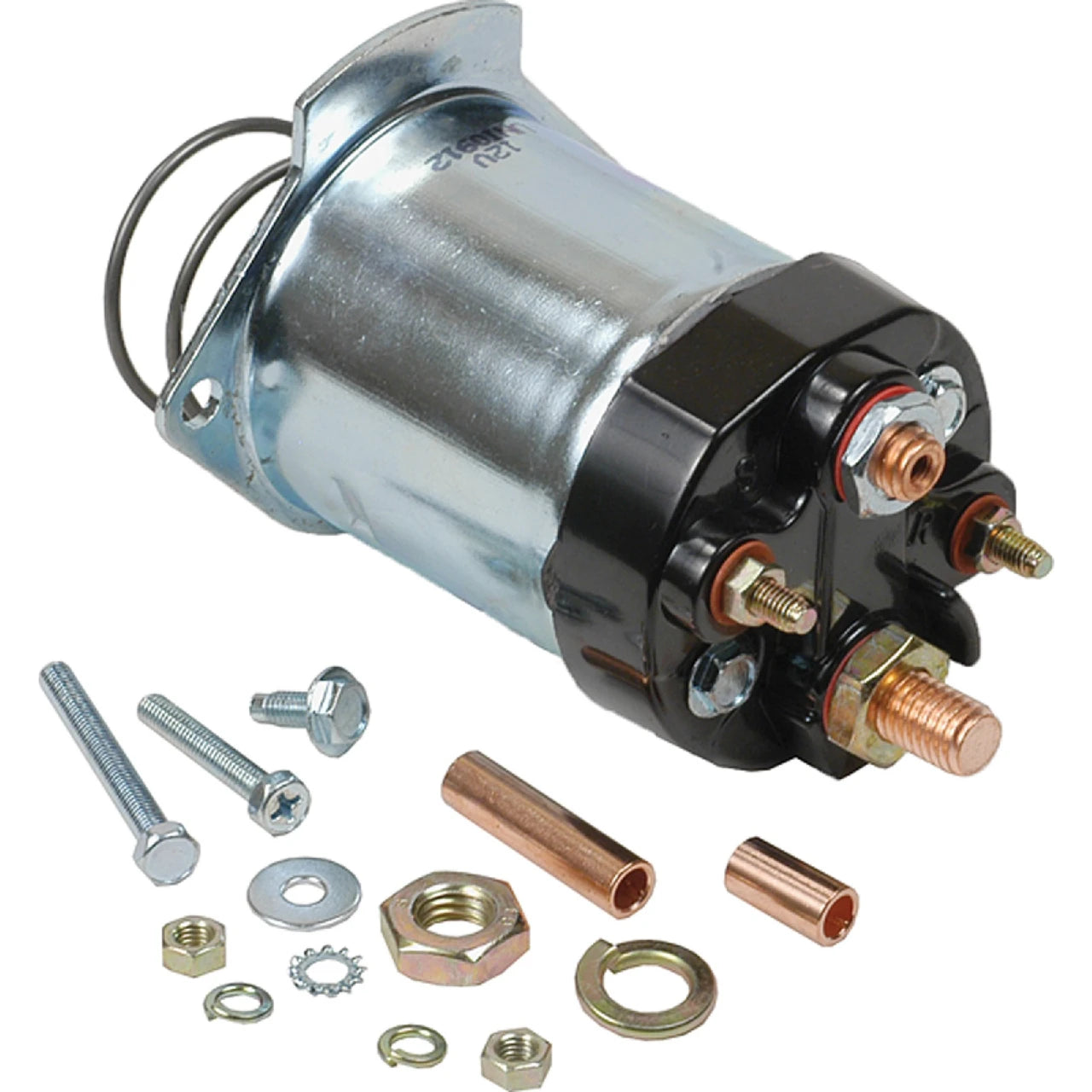

Starter Solenoid for Delco 5MT, 10MT & 27MT Series Starters
Delco SD200 / SD250 / SD300 series short solenoid
This starter solenoid is built to OEM specification as a direct replacement for the common short-body solenoid fitted to Delco 5MT, 10MT and 27MT series starters, including SD200, SD250 and SD300 units. As the electromechanical switch that sits on top of the starter motor, it does two jobs at once: it pulls the starter drive gear into mesh with the flywheel and, in the same movement, closes the heavy internal contacts that send full battery current through to the starter motor windings.
It is a 12-volt unit designed to fit and function exactly like the original, restoring reliable starter engagement without needing to source a full starter motor assembly. Because the solenoid carries the entire starting current on every crank, a worn or pitted original is one of the most common causes of a starter that clicks but does not turn the engine over.
Key Features
- Direct OEM fit and function for Delco 5MT/10MT/27MT starters
- 12-volt operation
- Common short-body Delco solenoid design
- Fits SD200, SD250 and SD300 series starters
- Correct mounting and terminal layout for a bolt-on swap
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Solenoid |
| Voltage | 12V |
| Compatible Series | Delco 5MT / 10MT / 27MT, SD200 / SD250 / SD300 |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1114514-1114531, D911A, D913A, D983, D984 | Delco |
| E3PZ-11390-A, SWG1957 | Ford |
| 38133925, 83500937 | Chrysler |
| 66-100 | WAI |
| SW984 | ARCO Marine |
Frequently Asked Questions
Will this fit without modification?
Yes, it is a direct replacement for the standard short-body solenoid fitted to Delco 5MT, 10MT and 27MT series starters - no modification is needed.
What's included?
One starter solenoid, ready to fit in place of the original unit. The existing wiring and mounting bolts from your starter are reused.
How do I know my old solenoid has failed?
Typical signs are a single loud click when turning the key with no cranking, no response at all from the starter motor, or the starter motor spinning freely without engaging the flywheel.
Is this the long or short terminal version?
This is the common short solenoid version. If your original has a longer 25mm B+ terminal or a smaller 8mm x 1.25 stud, check the terminal spacing on your existing part before ordering, as several similar-looking variants exist.
